ONTOLOGY-BASED SIMILARITY OF SOFTWARE CASE

Applying Ontology Reasoning to Software Retrieval

Lothar Hotz, Katharina Wolter, Stephanie Knab and Arved Solth

HITeC e.V., Department of Computer Science, University of Hamburg, Germany

Keywords:

Ontology engineering, Metamodelling, Description Logic, Taxonomical Similarity.

Abstract:

In this paper, we use Description Logic based classiﬁcation and taxonomical similarity computations for facili-

tating software reuse. For this purpose we map a metamodelling-based software representation to an ontology.

The ontology is classiﬁed by a Description Logic reasoner, which makes implicit taxonomical relations ex-

plicit. This classiﬁcation is the basis for the computation of taxonomical similarity. The approach is tested

with several industrial software applications.

1 INTRODUCTION

Reusing software is still an open problem in current

software practice. Former approaches to solve this

problem concentrated on the code level. However, the

impact of reuse can be increased when integrated ear-

lier in the development process, e.g. on the level of

requirements. Thus, a goal is to design an effective

reuse process based on requirements.

In this paper, we describe one step towards this

goal. The general reuse process of our approach looks

as follows: Starting with an initial requirements spec-

iﬁcation a repository is searched for similar speciﬁca-

tions. This repository contains former software devel-

opment projects stored in the form of software cases.

A software case comprises a problem (requirements)

and a solution (architecture, design, and implementa-

tion), similar to case-based approaches, for example

described in (Bergmann et al., 1999). Each require-

ments speciﬁcation is mapped to appropriate elements

of the solution.

The retrieved case is intended to be

reused by modifying those parts that need rework and

keeping those parts that can be reused without modi-

ﬁcation.

Retrieval of similar requirements speciﬁcations

from a repository is a key prerequisite for this reuse

process. In the following, we explain how this can

be achieved by an ontology-based similarity measure.

In order to enable reuse on the basis of meaning, the

speciﬁcations need to provide more than meaningless

For a complete description of a software case’s internal

structure we refer to (

Smiałek, 2006).

strings. The words in one requirements speciﬁcation

need to be linked to an ontology, where the seman-

tics of the words are deﬁned. Our approach depends

on requirements speciﬁcations in a machine process-

able form as provided by the requirements speciﬁca-

tion language RSL (

Smiałek et al., 2007), which we

use or ATTEMPO (Fuchs et al., 2005).

In this paper, this link is realized by a new combi-

nation of formal requirements speciﬁcations provided

by the requirements speciﬁcation language RSL with

ontology reasoning provided by Description Logics

(DL) (Baader et al., 2003). The basic idea is to cover

all former software cases in an ontology (DL-model)

and use the reasoning facilities of a Description Logic

reasoner (DL-reasoner) to classify the software cases,

i.e. their deeply structured elements. When classiﬁed,

the software cases have certain taxonomical distances

between each other. As shown for example in (Sa-

lotti and Ventos, 1998) the taxonomical distance can

be used for computing the similarity between classes

of a taxonomy, i.e. in our case between elements of

software cases. Computing the similarity in this way

takes into consideration the semantics of used terms.

The remainder of the paper is structured as fol-

lows: we start with the description of the require-

ments speciﬁcation language RSL (see Section 2).

This language links the words used in the require-

ments speciﬁcation of one software case to WordNet

(Fellbaum, 1998) as a basic ontology. This provides

the basis for our semantic-based similarity measure.

However, for applying an DL-reasoner we had to map

the requirements speciﬁcations to a DL-model (see

Section 3). How a DL-reasoner can be used for clas-

183

Hotz L., Wolter K., Knab S. and Solth A. (2009).

ONTOLOGY-BASED SIMILARITY OF SOFTWARE CASES - Applying Ontology Reasoning to Software Retrieval.

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development, pages 183-191

DOI: 10.5220/0002298401830191

 SciTePress

sifying a set of requirements speciﬁcations and thus,

provides new taxonomic relations is described in Sec-

tion 4. Our similarity measure compares the soft-

ware cases taking into account the new taxonomical

relationships between the cases, the meaning of used

terms, and the structure of sentences (Section 5). We

implemented the developed approach and evaluated it

with industrial software cases taken from software de-

velopment organizations. These results are reported

in Section 6. The approach is discussed in Section 7

and ﬁnally the paper is summarized in Section 8.

2 FORMALIZING

REQUIREMENTS

Most requirements speciﬁcations are still written in

natural language. However, natural language is poten-

tially ambiguous, which complicates automatic pro-

cessing such as similarity estimation. Therefore, the

new requirements speciﬁcation language RSL was de-

ﬁned, which enables precise requirements speciﬁca-

tions and is comprehensible by humans at the same

time. RSL is based on the same metamodelling ap-

proach as used for specifying the Uniﬁed Modeling

Language (UML, see (OMG, 2007)), i.e. the Meta

Object Facility (MOF, see (OMG, 2006)). The RSL

metamodel speciﬁes the structure of valid require-

ments speciﬁcations and is integrated in a prototyp-

ical tool. The tool supports the user writing speciﬁca-

tions and ensures that each speciﬁcation is an instance

of the metamodel. In the following, we describe the

RSL elements relevant for the scope of this paper.

Each Requirements Speciﬁcation

is part of a Software

Case, which combines all artifacts developed in one

software development project (e.g. Architectural Model,

Detailed Design Model, and Source Code). However, our

similarity measure compares the requirements speci-

ﬁcations only. This is based on the assumption that

if two software cases have similar requirements their

other artifacts are similar too and thus, the reuse po-

tential is high.

RSL allows to write requirements speciﬁcations

in form of less formal NaturalLanguageHypertextSen-

tences or more formal ConstrainedLanguageSentences.

For comparing the natural language parts of RSL

requirements speciﬁcations an Information Retrieval

approach is most appropriate (see (Wolter et al.,

2008)). The constrained form of sentences has the

advantage of being syntactically unambiguous and se-

mantically rich. For this reason, our approach focuses

This font denotes elements deﬁned in the RSL meta-

model.

on this part of the speciﬁcations.

One type of ConstrainedLanguageSentences pro-

vided by RSL are Subject-Verb-Object (SVO) sentences.

They can be used to write SentenceLists and Con-

strainedLanguageScenarios in order to deﬁne Require-

ments in detail. Such ConstrainedLanguageScenarios

can for example contain sentences like: The customer

changes the order. The system conﬁrms the changes.

etc.

In general, the metamodel deﬁnes classes, their

sub- and superclasses as well as their associations.

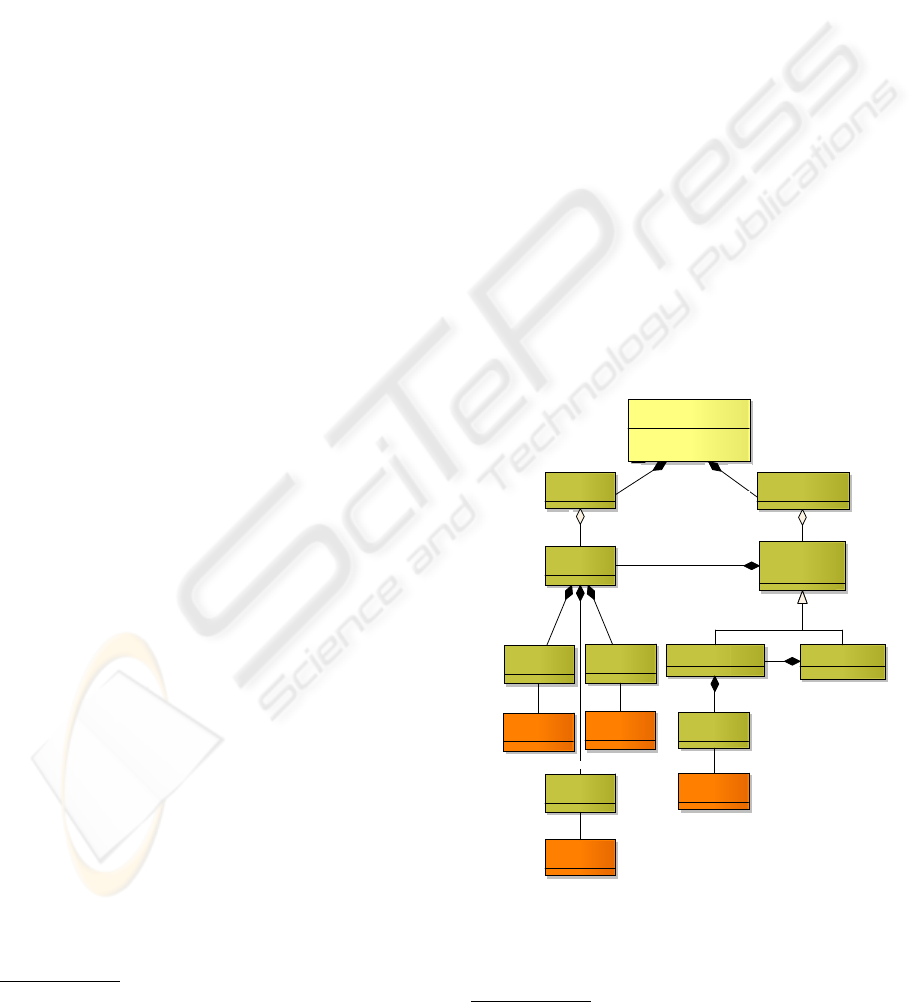

Figure 1 shows the metamodel of SVOSentences in

RSL. Each SVOSentence has a Subject and a Predicate.

The Subject has a NounPhrase, which links to a Deter-

miner, a Modiﬁer and a Noun via DeterminerLink, Modiﬁer-

Link and NounLink, respectively. The Predicate links to

a VerbPhrase being either a SimpleVerbPhrase for sen-

tences with one object or a ComplexVerbPhrase for sen-

tences containing two objects. In addition, the Simple-

VerbPhrase links a Verb via a PhraseVerbLink. While the

phrases enable different sentence structures, the dif-

ferent links contain the information about the words’

inﬂection within a particular sentence. Finally, the

links point to Terms, e.g. Nouns, Verbs etc. All Terms of

one speciﬁcation are contained in a Terminology which

provides a software case-speciﬁc word list.

class Example: SVO-Sentence

ConstrainedLanguageSentence

SVOSentence

PhraseHyperlink

Subject

PhraseHyperl i nk

Predicate

TermHyperlink

DeterminerLink

TermHyperlink

PhraseVerbLink

SimpleVerbPhrase

TermHyperlink

NounLink

Phrase

NounPhrase

Term

Noun

Term

Determiner

Phrase

«abstract»

Ve rbPhra se

ComplexVerbPhrase

Term

Verb

Term

Modifier

TermHyperlink

ModifierLink

verbLink

0..*

target

predi cate*

target 1

determi nerLink 0..*

target 1

nounLink 0..*

target 1

verbPhrase

0..1

object

0..1

subject

target 1

noun

sou rce

0..1

determi ner

0..1

source 0..1

verb 1

source 1

complexVerbPhrase

0..1

s impl eVerbPhrase

predi cate

source1

sub j ect

source

modi fi erLink 0..*

target 1

modifier 0..1

source

Figure 1: The structure of SVO-Sentences in RSL.

In RSL, the meaning of Terms is deﬁned by

linking them to WordNet

. WordNet is a seman-

see: wordnet.princeton.edu/

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

184

tic lexicon that was developed at the Cognitive Sci-

ence Laboratory at Princeton University (Fellbaum,

1998). It groups synonymic words (synonyms) of the

English language in synonym sets (called synsets).

Amongst others, the following semantic relations

connect synsets: hypernyms / hyponyms (is-a, is-a in-

vers) and holonym / meronym (part-of, part-of invers).

For each synset, WordNet provides deﬁnitions or ex-

ample sentences. Words with different meanings par-

ticipate in distinct synsets.

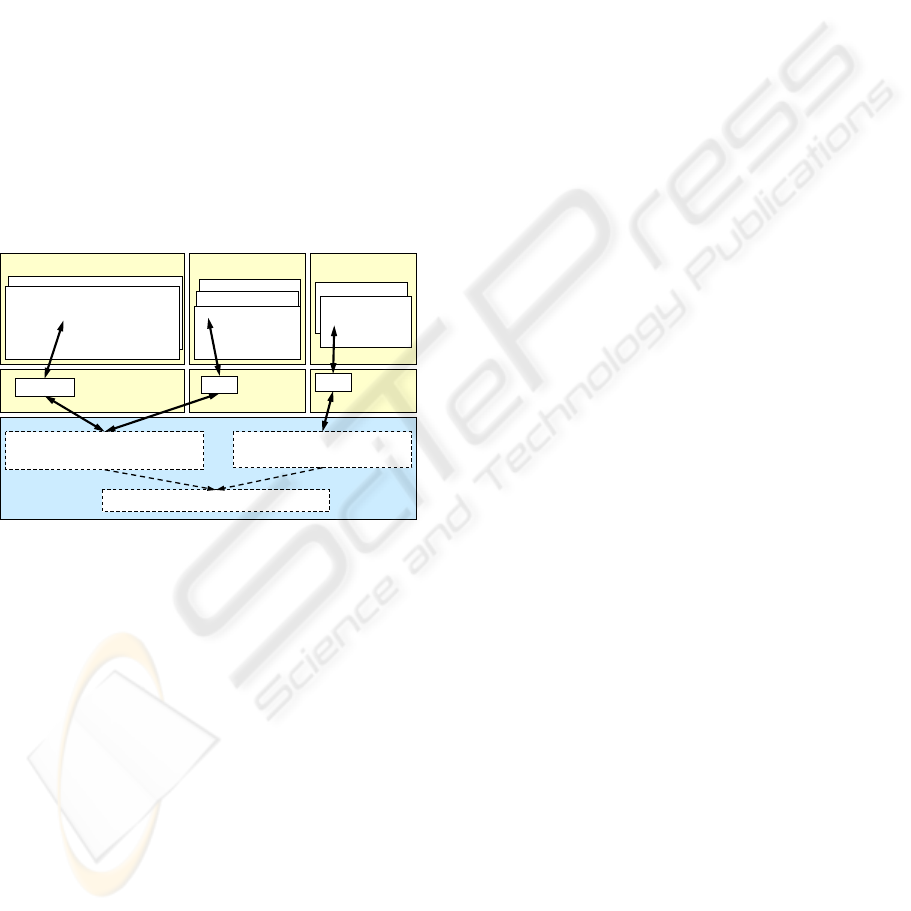

Figure 2 illustrates the general structure of re-

quirements documents deﬁned with RSL and how

ambiguity problems of natural language are solved.

Terminology#1, for example, contains the term Cus-

tomer while Terminology#2 and #3 both contain the

term Client. However, Customer of Terminology#1

and Client of Terminology#2 both link to the same

synset, i.e. they are synonyms while the Client of Ter-

minology#3 links to another synset, i.e. the two terms

Client have a different meaning, they are homonyms.

Terminology #1 Terminology #2 Terminology #3

Requirements Specification #1

Client

Customer

Client

WordNet

Client, Customer: someone

who pays for goods or services

Client: a person who seeks

the advice of a lawyer

Requ. Spec. #2 Requ. Spec. #3

1. Client wants to sign up for show.

2. System checks availability of show.

3. System shows time schedule.

4. Client chooses time.

5. System shows sign-up dialog.

6. Client cancels sign-up for show.

1. Client wants to sign up for show.

2. System checks availability of show.

3. System shows time schedule.

4. Client chooses time.

5. System shows sign-up dialog.

6. Client cancels sign-up for show.

1. …

2. The Customer changes the order

of items.

3. …

1. …

2. The Customer changes the order

of items.

3. …

Person […]: (a human being) […]

Figure 2: Relations between Requirements Speciﬁcation,

Terminology and WordNet.

3 ONTOLOGY CONSTRUCTION

In order to use the classiﬁcation facilities as they are

described in the next section, we had to represent the

requirements speciﬁcations and their links to Word-

Net as a DL-model, using ontology languages like

OWL (OWL, 2004) or KRSS (Patel-Schneider, 1993).

Such languages provide facilities to deﬁne concepts

and roles (or sometimes called properties) between

two concepts. A concept (given with a unique name)

indicates the set of individuals that belongs to it, and a

role indicates a relationship between concepts. Con-

cepts and roles are combined via constructors. Typi-

cal constructors are those of ALCH I F , i.e. Attribu-

tive Language with universal restrictions, existential

qualiﬁcation, concept intersection (ALC ), role hier-

archy (H ), inverse roles (I ), and functional properties

(F ). As we will see in the next section, we use ALC

for gaining a tractable description logic.

With these constructors, we can deﬁne a special-

ization relation between concepts, which provides su-

perconcepts and subconcepts in a taxonomy. Fur-

thermore, AL allows to distinguish between prim-

itive (i.e. necessary) and deﬁned (i.e. necessary

and sufﬁcient) concepts, indicated with implies and

equivalent, respectively.

The question is now, how to use these ontology

representation facilities in order to represent require-

ments speciﬁcations such that similar speciﬁcations

have short taxonomical distances after classiﬁcation.

For this task, we examine particular aspects of re-

quirements speciﬁcations in the following and de-

scribe how they are represented.

Mapping the RSL Metamodel. The RSL meta-

model consists of 127 classes, sub- and superclasses

and several associations between them. For example,

the class SVOSentence has a generalization relation to

ConstrainedLanguageSentence and the association sub-

ject to class Subject and predicate to class Predicate (see

Figure 1). The mapping is straightforward: classes of

the metamodel are represented with concepts, gener-

alization relations are represented with specialization

relations, and associations are represented with roles.

Furthermore, the associations of a class in the meta-

model deﬁne the class, i.e. if an object with such re-

lations exists, then it belongs to that class and if an

object belongs to a class it has the relations of that

class (see Figure 3, upper part).

Although navigation across associations is bidi-

rectional in the RSL metamodel, we do not use in-

verse roles in the DL-model since the similarity com-

putation only requires roles directing down from the

concept representing the requirements speciﬁcation to

the synsets of WordNet. Likewise, we can avoid a role

hierarchy because only a ﬂat hierarchy of associations

is given in the metamodel. Finally, functional prop-

erties are not needed for deﬁning concepts because

they relate a class to a primitive type not to another

concept. Thus, we can use the description logic lan-

guage ALC instead of the more complex language

ALC H I F .

The mapping described above provides concepts

and roles, which have direct correspondence to

the classes and relations of the RSL metamodel.

The concepts representing the classes of the RSL

metamodel form the upper model of our ontology.

The concepts representing the elements of speciﬁc

requirements speciﬁcations are modeled as special-

izations of these concepts, thus, they form the lower

part of our ontology.

ONTOLOGY-BASED SIMILARITY OF SOFTWARE CASES - Applying Ontology Reasoning to Software Retrieval

185

Deﬁnition of an upper-model concept:

(equivalent SVOSentence

(and ConstrainedLanguageSentence

(some subject Subject)

(some predicate Predicate)))

Parts of the deﬁnition of the sentence:

“Client Opens a PC Window”

(equivalent SVOSentenceC2ClientOpensWindow

(and SVOSentence

(some subject SubjectC2Client)

(some predicate PredicateC2OpenWindow)))

(equivalent PredicateC2OpensWindow

(and Predicate

(some verbPhrase SimpleVerbPhraseC2Open)))

(equivalent SimpleVerbPhraseC2Open

(and SimpleVerbPhrase

(some verb PhraseVerbLinkC2Open)

(some object NounPhraseC2Window)))

(equivalent PhraseVerbLinkC2Open

(and PhraseVerbLink

(some linkedVerb VerbC2Open)))

(equivalent VerbC2Open

(and Verb

(some termLinksToWordnetEntry OpenSynset)))

(equivalent NounPhraseC2Window

(and NounPhrase

(some noun NounLinkC2Window)))

(equivalent NounLinkC2Window

(and NounLink

(some linkedNoun NounC2Window)))

(equivalent NounC2Window

(and Noun

(some termLinksToWordnetEntry WindowPCSynset)))

Parts of the deﬁnition of the sentence:

“Fireman opens a Building Window”

(equivalent SimpleVerbPhraseC7Open

(and SimpleVerbPhrase

(some verb PhraseVerbLinkC7Open)

(some object NounPhraseC7Window)))

(equivalent NounPhraseC7Window

(and NounPhrase

(some noun NounLinkC7Window)))

(equivalent NounLinkC7Window

(and NounLink

(some linkedNoun NounC7Window)))

(equivalent NounC7Window

(and Noun

(some termLinksToWordnetEntry WindowBuildingSynset)))

Deﬁnition of some synset concepts:

(implies OpenSynset VerbSynset)

(implies WindowBuildingSynset NounSynset)

(implies WindowPCSynset NounSynset)

(implies PersonSynset NounSynset)

(implies AdministratorSynset PersonSynset)

(implies ClientSynset PersonSynset)

(implies FiremanSynset PersonSynset)

Figure 3: Examples for mappings.

Mapping Requirements Speciﬁcations. Require-

ments speciﬁcations of software cases are represented

through instances of classes of the RSL metamodel.

For example, each SVO sentence deﬁned in a soft-

ware case is an instance of the class SVOSentence

of the metamodel and is related to instances of the

classes Subject and Predicate. We map these instances

to further concepts in the ontology. Please note that

we map the elements of requirements speciﬁcations to

concepts and not to individuals. This is necessary be-

cause taxonomical relationships cannot be computed

between individuals. However, in our approach it

is a key to compute taxonomical relationships be-

tween the elements of requirements speciﬁcations.

For this reason, we represent the elements of a re-

quirements speciﬁcation as subconcepts of the cor-

responding concept of the upper model. Thus, each

SVO sentence of a speciﬁc software case is mapped

to a concept with a unique id as name and the concept

SVOSentence

as superconcept. The concepts repre-

senting the elements of requirements speciﬁcations

are related through roles deﬁned in the upper model.

Furthermore, the roles speciﬁed in the upper model

deﬁne the software case concepts (see Figure 3, mid-

dle part). Figure 4 shows a part of a DL-model, which

we created manually for illustration purposes. SVO

sentences are coded by a software case id starting with

C and a readable string reﬂecting the text of the sen-

tence (e.g. SVOSentenceC2ClientOpensWindow).

This general mapping can be used to convert all

elements of a requirements speciﬁcation to a DL-

model. However, this is not necessary since RSL

speciﬁcations contain elements that are not relevant

for our semantic-based similarity measure such as

NaturalLanguageHypertextSentences, which only con-

tain meaningless strings. A further example are all

TermHyperlinks (e.g. NounLink). They are used to spec-

ify the inﬂection of a word within a particular sen-

tence, which is of minor relevance for the similarity

of sentences. The same holds for function words like

Determiner. They constitute a signiﬁcant number of

sentence element’s but have little semantic content on

their own. Mapping each determiner into a concept

within the DL-model would require the DL-reasoner

to identify the equivalence of most of the determin-

ers. This, however, would cost signiﬁcant amount of

computing time and would not improve the similarity

measure. For this reason, we only map those RSL el-

ements that are relevant for our similarity calculation.

TermHyperlinks e.g. can easily be skipped by relating

Phrases directly with corresponding Terms (see Figure

1).

Mapping WordNet Elements. The WordNet meta-

model consists of several classes like Synonym, Synset,

Wordform etc. Synsets are related via the relation

hyponym and hypernym in a synset taxonomy. For

the classiﬁcation, only this taxonomical relation and

the fact that synsets are distinct are needed. Thus,

This font denotes elements deﬁned in the DL-model.

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

186

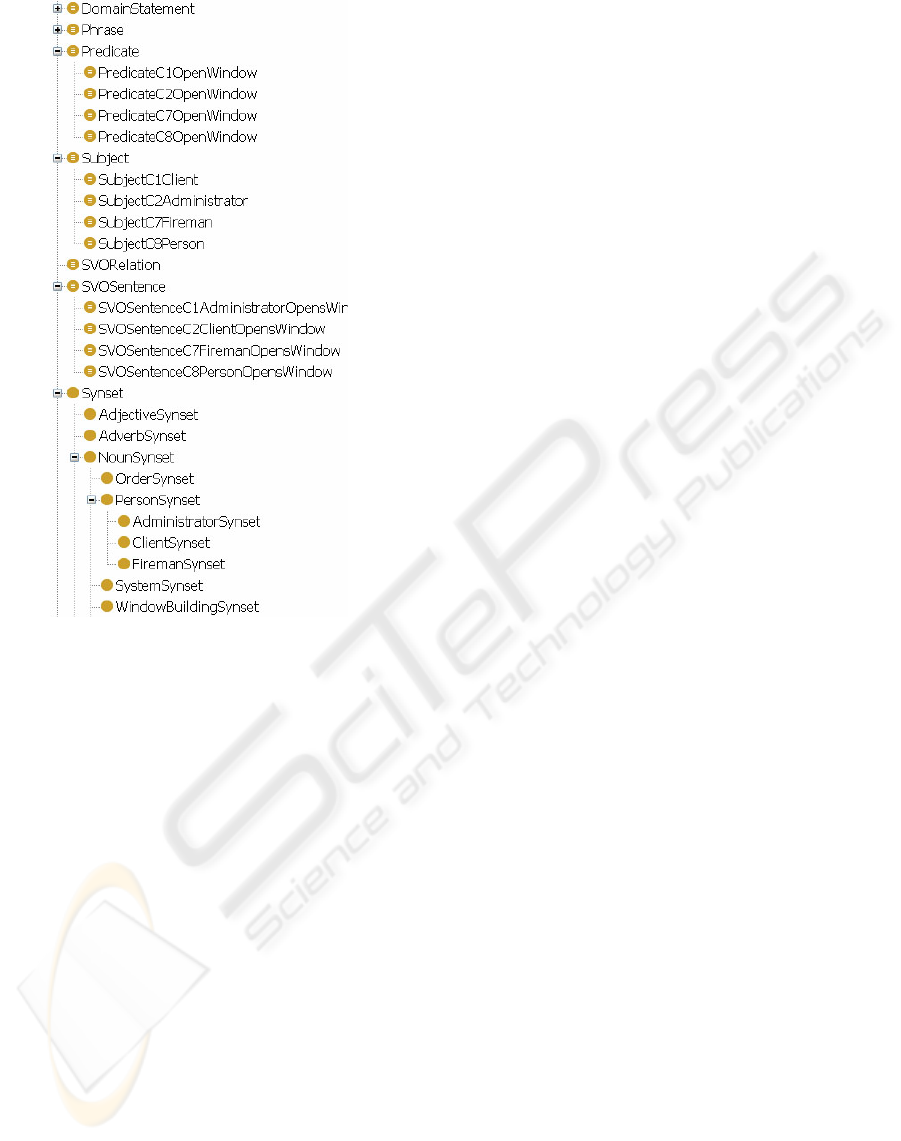

Figure 4: Asserted hierarchy.

we only map synsets from WordNet. They are rep-

resented with concepts and the synset taxonomy is

represented with the subconcept relation. The role

termLinksToWordNetEntry relates each term of a re-

quirements speciﬁcation to one synset (see Figure 3).

However, it is not necessary to map all synsets of

WordNet (i.e. almost 117.000) into the ontology. For

our purposes, it is only necessary to map the synsets

that have relations to a term of a requirements speciﬁ-

cation and all the predecessors of these synsets in the

synset taxonomy.

4 CLASSIFYING THE

ONTOLOGY

Through the mapping described in Section 3, require-

ments speciﬁcations of software cases are represented

with concepts and roles in a DL-model. Since the re-

quirements speciﬁcations contain no information that

directly relates the diverse concepts of distinct spec-

iﬁcations, all concepts are direct subconcepts of up-

per model concepts (see Figure 4). Figure 5 shows

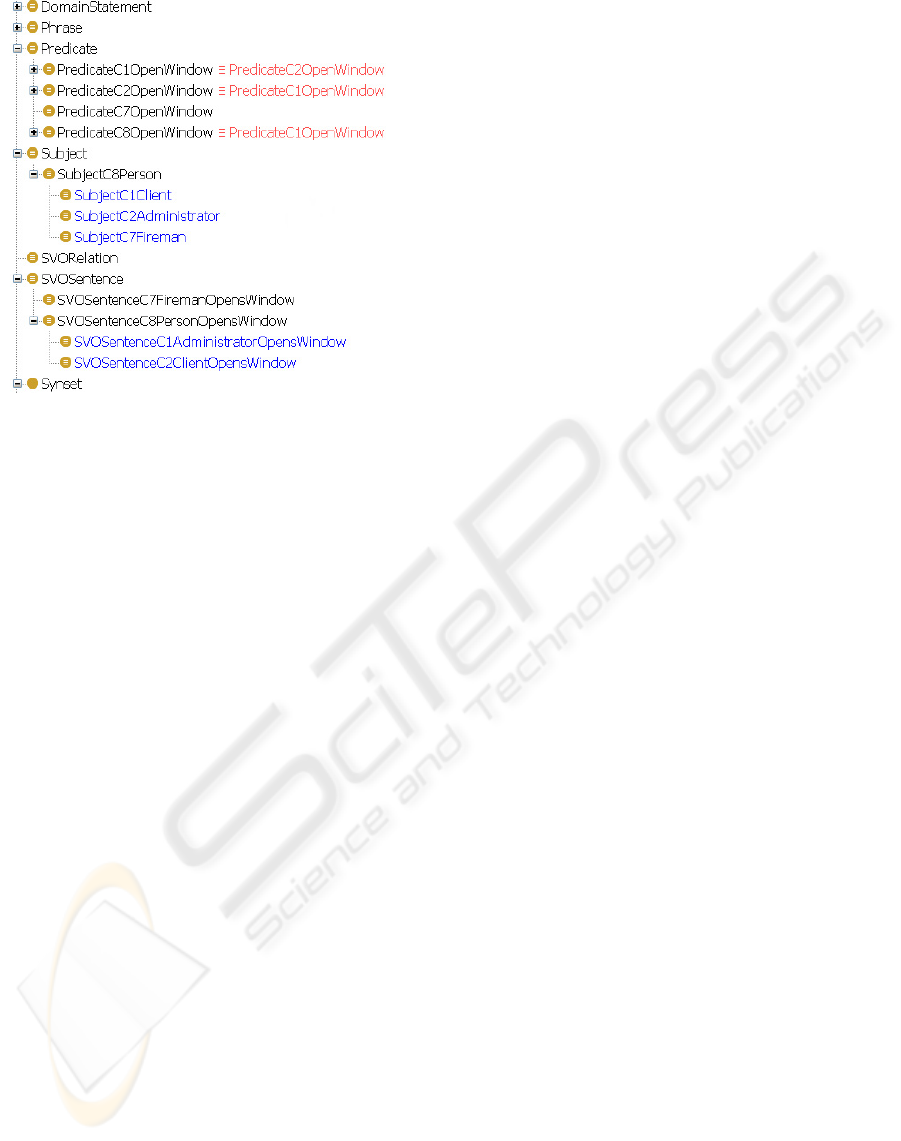

the same DL-model as Figure 4 but after classify-

ing. In Figure 4, the diverse subjects (SubjectC1-

Client, SubjectC2Administrator etc.) are direct sub-

classes of the upper model concept Subject. In this

DL-model, only the synset taxonomy provides a hi-

erarchical structure. For example Administrator-

Synset and ClientSynset are both of type Person-

Synset (see Figure 4). The synset taxonomy provided

by WordNet and the fact that the concepts represent-

ing a requirements speciﬁcation are deﬁned concepts

and thus, strongly related between each other allow

for the classiﬁcation described in the following.

This modeling enables a DL-reasoner to use the

synset taxonomy in order to classify the concepts

of the requirements speciﬁcations, i.e. to compute,

which concepts are equivalent (see Figure 5, upper

part in red) or, which concepts can be taxonomically

structured (see Figure 5, lower part in blue). In Fig-

ure 5, relations of the synset taxonomy are propagated

one by one to the subjects of requirements speciﬁca-

tions of C1, C2, and C7. Namely, Sub jectC1Client,

Sub jectC2Administrator and Sub jectC7Fireman are

subconcepts of the concept Sub jectC8Person due

to the fact that ClientSynset, AdministratorSynset

and FiremanSynset are subconcepts of PersonSynset.

Thus, after classifying the ontology, the taxonomy

deﬁned in WordNet is also reﬂected in the concepts

representing the speciﬁc requirements speciﬁcations.

Even more interesting is the impact on structural con-

cepts like SVOSentence. In Figure 5 for example, the

SVO sentences of case C1 and C2 are classiﬁed as

subconcept of the SVO sentence of case C8. This is

due to the fact, that in both sentences a speciﬁc type

of person (being either an administrator or a client)

opens a window of an operating system while the

ﬁreman (of case C7) opens the window of a build-

ing. Please note that Figure 5 shows only parts of this

information. This distinction between the different

meanings of window is given through the links to dis-

tinct synsets (window: a framework of wood or metal

that contains a glass windowpane [...] or window:

((computer science) a rectangular part of a computer

screen [...]).

This kind of classiﬁcation takes the structure, i.e.

the roles between the concepts, into account. Through

this classiﬁcation, a different taxonomical distance

between the concepts of requirements speciﬁcations

is introduced and will lead to different similarities.

By using the WordNet link and the provided mapping

our similarity measure considers the meaning of the

requirements speciﬁcations.

ONTOLOGY-BASED SIMILARITY OF SOFTWARE CASES - Applying Ontology Reasoning to Software Retrieval

187

Figure 5: Cutout of inferred hierarchy.

5 SIMILARITY COMPUTATION

The goal of similarity computation is to get a value

between 0 and 1 that indicates an similarity between

a query and a software cases; 0 denoting no similarity

one denoting that the query is completely contained

in the software case. Please note, that this measure

is asymmetric: if a query element is not found in a

software case this results in a lower similarity value.

In contrast, if a software case contains elements that

are not part of the query, this has no negative impact

on the similarity value. This is due to the fact that

additional elements in the software case are potential

for reuse and thus wanted.

The assumption made here is that the taxonomi-

cal distance between two concepts can be the basis

of such a similarity value. By using the classiﬁcation

facilities of a DL-reasoner, implicit taxonomical rela-

tions are made explicit.

Our similarity measure compares pairs of con-

cepts in the classiﬁed taxonomy. This comparison

includes both the concept placement in the taxonomi-

cal hierarchy (distance-based similarity) and the roles

and role ﬁllers that the concepts deﬁne (role-based

similarity) (see (Gonz

alez-Calero et al., 1999) for a

similar approach).

For computing the distance-based similarity be-

tween two concepts, the distance of both concepts to

the least common subsumer (LCS) is computed, both

values are added and a value describing that distance-

based similarity is returned: 1 means both concepts

are in fact the same concept, and the smaller the value,

the further away the concepts are from each other.

The basic idea of role-based similarity is that the

similarity of two concepts depends on the similarity

of their subgraphs. When comparing roles, their most

important aspects are their ﬁllers: concepts or con-

crete domains that specify the value of a role. When

comparing two concepts, the function of role-based

similarity is recursively applied. The recursion termi-

nates when two concepts without roles are compared;

their similarity is given by the distance-based similar-

ity function.

The roles of both concepts are recursively com-

pared and similarities are summed up for every con-

cept. A value describing role-based similarity is re-

turned: 1 means both concepts have the same roles,

and the smaller the value, the less their roles have in

common.

Both aspects can be computed independently from

each other. Therefore, we deﬁned two algorithms,

one computing the distance-based similarity between

two concepts and another one comparing the common

roles of concepts. The similarity between two concept

deﬁnitions is the sum of the distance-based similarity

and the role-based similarity divided by two.

6 EXPERIMENTS

In the previous sections, we used a small running ex-

ample for demonstrating our approach to ontology-

based requirements comparison. In the following, we

give an overview of the experiments we are currently

running for applying the approach to larger examples

and to industrial software cases. First, we sketch the

technical setting.

Technical Setting. The metamodel of RSL is cre-

ated with a standard UML tool (Enterprise Archi-

tect) and an appropriate proﬁle containing the meta-

model. For creating requirements speciﬁcations ac-

cording to the RSL metamodel, a speciﬁc software de-

velopment tool is under development. This tool was

used by some industrial partners and us for creating

formalized requirement speciﬁcations. Internally, the

tool uses a graph representation (see (Dahm and Wid-

mann, 2003) for details), which is also based on the

RSL metamodel. This way, a deﬁned representation

for requirements speciﬁcations is available for our ex-

periments.

A JAVA-based converter maps the graph repre-

sentation of requirements speciﬁcations to an OWL

knowledge base by using the mapping described in

this paper. For debugging the OWL knowledge base,

Prot

e is used. Prot

e also provides interfaces to

the DL-reasoners Pellet and Racer. For debugging in-

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

188

ference behavior, Pellint is applied.

The similarity computation is a further JAVA-

component developed by us. It traverses the classi-

ﬁed knowledge base for computing similarities as pre-

sented in Section 5. Together with the converter, this

component will be integrated in the above mentioned

software development tool together with other sim-

ilarity measures based on text and graph structures.

The tool is intended to provide sophisticated reuse

mechanisms in combination with software transfor-

mations (

Smiałek, 2006).

Industrial Experiments. We ﬁrst created examples

to test the similarity measure by slightly varying re-

quirements speciﬁcations, and manually judge the

similarity of software cases. These experiments show

that the mapping described in Section 3 provides

coherent DL-models. Furthermore, we could show

that the taxonomical similarity measure computes the

same similarity ranking for these test cases as consid-

ered plausible by us beforehand. For applying the ap-

proach in a broader scale, 16 industrial software cases

have been created by international software organiza-

tions using the mentioned tool. The application do-

mains are in the area of internet banking, investment

funds management, emergency systems, forestry sys-

tems, ﬁnancial contract systems, and funding sys-

tems. They include 261 requirements written in RSL

in total, which map to more than 30.000 deﬁned con-

cepts. Those concepts are reduced to relevant con-

cepts for similarity computations as described in Sec-

tion 3 (see Table 1). Current experiments still use

subsets of the industrial software cases for classiﬁca-

tion due to the complexity of the resulting ontologies.

However, the general approach could be veriﬁed and

further work will extend the number of tractable con-

cepts.

Table 1: Sizes of industrial software cases.

Upper model deﬁned concepts 34

Software cases 16

Requirements 261

Deﬁned concepts (complete mapping) 30184

Relevant deﬁned concepts 8325

Relevant roles 36

7 DISCUSSION

In this paper, a new approach in the direction of

reusing software on the basis of its semantical de-

protege.stanford.edu, clarkparsia.com/pellet,

www.racer-systems.com, pellet.owldl.com/pellint

scription is presented. For this task, a link between a

formal requirements speciﬁcation and an ontology is

established. This link and the mapping of the formal

requirements speciﬁcations to Description Logic con-

cepts enable inferences that classify existing require-

ments speciﬁcations. This classiﬁcation can be done

ofﬂine before the reuse activities start. For reusing

parts of former software cases, similarity computa-

tions on the basis of classiﬁed concepts are applied.

When using ontologies in industrial settings the

ontology construction should be considered as an au-

tomatic process unless a knowledge engineer is con-

tinuously available within the organization. Auto-

matic ontology construction can be achieved through

learning ontologies (which is not considered in this

paper), or by constructing ontologies programmati-

cally from existing data and knowledge sources. In

this paper, we examine the formal notation of re-

quirements speciﬁcations as such a data source and

developed an automatic mapping from RSL require-

ments speciﬁcations to an ontology (here called DL-

model). By doing so, the modeling effort typically

needed when ontology-based approaches are applied

is reduced to linking words to WordNet elements in

order to specify the intended meaning. This can be

done by the requirements engineers who specify the

requirements, i.e. no knowledge engineer is needed.

Structural relations are implicit deﬁned by using the

tool, which automatically creates requirements speci-

ﬁcations relying on the given metamodel.

The use of a given ontology like WordNet supplies

an easy-to-use starting point. Although WordNet con-

tains more than 155.000 words and about 117.000

synsets leading to almost 207.000 word-sense pairs,

it does not contain all needed terms for any domain

at hand. This holds especially for highly domain-

speciﬁc terms which typically can be found in spec-

iﬁcations. The requirements engineers deﬁne these

terms as WordNet extensions, i.e. they specify a tax-

onomical relation. Linking words to WordNet ele-

ments and speciﬁng extensions if necessary is the only

knowledge modeling effort needed in our approach.

This however, is essential for our approach since it

provides the basis for the comparison of requirements

speciﬁcations created for different domains, by differ-

ent persons or even in different organizations. With-

out such a link, an alignment or comparison of differ-

ent software cases would be difﬁcult, one could only

apply natural language processing in order to guess

the intended meanings.

The approach of retrieving cases on the basis of

a similarity measure originates in case-based reason-

ing (CBR) (Aamodt and Plaza, 1994). Bergmann

has described how to set up taxonomy similarities

ONTOLOGY-BASED SIMILARITY OF SOFTWARE CASES - Applying Ontology Reasoning to Software Retrieval

189

for various relationship types (Bergmann, 1998). In

(Gonz

alez-Calero et al., 1999) and (Gomes et al.,

2004) further combination of CBR and Description

Logic are presented. In the paper at hand, we ap-

ply such taxonomical similarity measures to a tax-

onomy, which has been constructed by ﬁrst mapping

metamodelling-based requirements speciﬁcations to a

DL-Model and then classifying this DL-model by a

Description Logic reasoner.

As a further aspect of CBR, Memory Organization

Packages (MOPs) (Schank, 1982) are used for orga-

nizing cases into signiﬁcant portions for allowing par-

tial matching of cases. Also specializations are used

for structuring those parts. In this respect, our ap-

proach is similar to MOPs, however, the structure we

use is based on formal concepts of a description logic,

which enable classiﬁcation services provided by DL-

reasoners, whereas MOPs use a frame-based strict hi-

erarchy.

Through the mapping given in this paper, highly

structured deﬁned concepts are automatically created

from RSL requirements speciﬁcations. Description

Logic inferences provide the classiﬁcation of these

highly structured concepts. By this means, the given

taxonomy of WordNet’s synset is used for classify-

ing all structured elements of requirements speciﬁca-

tions (e.g. SVOSentences) and implicitly existing tax-

onomical relations even between different software

cases are made explicit. We can not somehow relax

the relatively strong modeling with deﬁned concepts,

because moving from deﬁned to primitive concepts

would not allow this classiﬁcation of structured con-

cepts.

(Borgida et al., 2005) describes similarity mea-

sures for Description Logics, where diverse types of

concept deﬁnitions like nested roles are taken into ac-

count. But composite concepts consisting of multi-

ple roles (like SVOSentences) are not yet considered.

However, examining concept deﬁnitions in such detail

could be used for improving our similarity measure.

The current mapping of the metamodel takes gen-

eralization relations and associations into account.

Attributes to datatypes like strings or numbers are not

considered. Including those would need Description

Logics that handle concrete domains, and would need

a similarity measure for comparing strings (e.g. based

on information retrieval). Since the tool under de-

velopment already provides such mechanisms, which

will be combined with our ontology-based similarity

measure, we will not go into that direction.

Compared to other speciﬁcation technologies as

e.g. provided by the speciﬁcation language Z

(Woodcock and Davies, 1996), our approach al-

lows speciﬁcations on the much higher requirements

level, instead of speciﬁying computer programs it-

self. However, our requirements speciﬁcation lan-

guage RSL is also used for creating architecture mod-

els and detailed design models through transforma-

tions (Kalnins et al., 2005). Furthermore, the link

of the speciﬁcation to ontologies enables the support

through reasoners, which is not given in other speciﬁ-

cation languages.

Finally, our approach extends simple WordNet-

based similarity measures as described e.g. in (Ped-

ersen et al., 2004). These measures provide similar-

ity values for synset pairs only and cannot compare

structured elements like SVO sentences or whole sce-

narios. However, this is essential in our approach.

8 SUMMARY

In this paper, a new combination of formal require-

ments speciﬁcations and description-logic based in-

ferences is used for facilitating software retrieval. A

formal mapping of requirements speciﬁcations repre-

sented by means of a metamodel to a highly differen-

tiated DL-model is given. This model enables a rea-

soner to classify former requirements speciﬁcations.

A taxonomy-based similarity computation uses the

classiﬁed taxonomy as basis for comparing require-

ments speciﬁcations. Our experience so far showed

that the approach works. We were able to map several

industrial software cases into one ontology. Further

application to industrial environments is currently un-

der development.

ACKNOWLEDGEMENTS

This work is partially funded by the EU:

Requirements-driven Software Development System

(ReDSeeDS) (contract no. IST-2006-33596). The

project is coordinated by Infovide, Poland with

technical lead of Wasaw University of Technology

and with University of Koblenz-Landau, Vienna Uni-

versity of Technology, Fraunhofer IESE, University

of Latvia, HITeC e.V. c/o University of Hamburg,

Heriot-Watt University, PRO DV, Cybersoft and

Algoritmu Sistemos.

REFERENCES

Aamodt, A. and Plaza, E. (1994). Case-based reasoning:

Foundational issues, methodological variations, and

system approaches. Artiﬁcial Intelligence Communi-

cations, 7(1):39–59.

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

190

Baader, F., Calvanese, D., McGuinness, D., Nardi, D., and

Patel-Schneider, P. (2003). The Description Logic

Handbook. Cambridge University Press.

Bergmann, R. (1998). On the use of taxonomies for repre-

senting case features and local similarity measures. In

6th German Workshop on CBR.

Bergmann, R., Breen, S., Manago, M., Wess, S., G

oker, M.,

Althoff, K.-D., and Traph

oner, R. (1999). Developing

Industrial Case-Based Reasoning Applications - The

INRECA Methodology, volume 1612 of Lecture Notes

in Artiﬁcial Intelligence. Springer.

Borgida, A., Walsh, Thomas, J., and Hirsh, H. (2005). To-

wards measuring similarity in description logics. In

International Workshop on Description Logics, Edin-

burgh, Scotland. DL2005.

Dahm, P. and Widmann, F. (2003). GraLab - Das Graphen-

labor. Projektbericht 4.3.0, University of Koblenz-

Landau, Institute for Software Technology.

Fellbaum, C., editor (1998). WordNet: An Electronic Lexi-

cal Database. MIT Press.

Fuchs, N. E., H

oﬂer, S., Kaljurand, K., Rinaldi, F., and

Schneider, G. (2005). Attempto controlled english:

A knowledge representation language readable by hu-

mans and machines. Lecture Notes in Computer Sci-

ence, 3564:213–250.

Gomes, P., Pereira, F. C., Paiva, P., Seco, N., Carreiro, P.,

Ferreira, J. L., and Bento, C. (2004). Using wordnet

for case-based retrieval of uml models. AI Commun.,

17:13–23.

Gonz

alez-Calero, P. A., G

omez-Albarran, M., and D

ıaz-

Agudo, B. (1999). Applying DLs for retrieval in case-

based reasoning. In Proc. of the 1999 International

Workshop on Description Logics (DL’99).

Kalnins, A., Celms, E., and Sostaks, A. (2005). Model

transformation approach based on MOLA. In Work-

shop on Model Transformations in Practice (MTIP),

MoDELS/UML ’2005.

OMG (2006). Meta Object Facility Core Speciﬁcation,

version 2.0, formal/2006-01-01. Object Management

Group.

OMG (2007). Uniﬁed Modeling Language: Superstructure,

version 2.1.1 (non-change bar), formal/07-02-05. Ob-

ject Management Group.

OWL (2004). OWL Web Ontology Language Overview.

W3C. http://www.w3.org/TR/owl-features.

Patel-Schneider, P. F. (1993). Description-logic knowledge

representation system speciﬁcation from the KRSS

group of the ARPA knowledge sharing effort. Tech-

nical report, DARPA Knowledge Representation Sys-

tem Speciﬁcation (KRSS) Group of the Knowledge

Sharing Initiative.

Pedersen, T., Patwardhan, S., and Michelizzi, J. (2004).

WordNet::similarity - measuring the relatedness of

concepts. In Proc. 19th National Conference on Ar-

tiﬁcial Intelligence (AAAI-04), page 3p.

Salotti, S. and Ventos, V. (1998). Study and formalization

of a case-based reasoning system using a description

logic. In EWCBR, pages 286–297.

Schank, R. C. (1982). Dynamic Memory: A Theory of

Learning in Computers and People. Cambridge Uni-

versity Press.

Smiałek, M. (2006). Mechanisms for requirements based

model reuse. In International Workshop on Model

Reuse Strategies - MoRSe, pages 17–20.

Smiałek, M., Ambroziewicz, A., Bojarski, J., Nowakowski,

W., and Straszak, T. (2007). Introducing a uniﬁed

requirements speciﬁcation language. In Madeyski,

L., Ochodek, M., Weiss, D., and Zendulka, J., edi-

tors, Proc. CEE-SET’2007, Software Engineering in

Progress, pages 172–183. Nakom.

Wolter, K., Krebs, T., and Hotz, L. (2008). Combined sim-

ilarity measure for determining similarity of model-

based and descriptive requirements. In Artiﬁcial In-

telligence Techniques in Software Engineering (ECAI

2008 Workshop), pages 11–15.

Woodcock, J. and Davies, J. (1996). Using Z: Speciﬁcation,

Reﬁnement, and Proof. Prentice Hall International.

ONTOLOGY-BASED SIMILARITY OF SOFTWARE CASES - Applying Ontology Reasoning to Software Retrieval

191
