DESIGNING A SYSTEM FOR SEMI-AUTOMATIC POPULATION

OF KNOWLEDGE BASES FROM UNSTRUCTURED TEXT

Jade Goldstein-Stewart

U.S. Department of Defense, U.S.A.

Ransom K. Winder

The MITRE Corporation, Hanover, MD, U.S.A.

Keywords: Information Extraction, Content Analysis, Knowledge Base Population, Human-Computer Interaction,

Graphical User Interface.

Abstract: Important information from unstructured text is typically entered manually into knowledge bases, resulting

in limited quantities of data. Automated information extraction from the text could assist with this process,

but the technology is still at unacceptable accuracies. This task therefore requires a suitable user interface to

allow for correction of the frequent extraction errors and validation of proposed assertions that a user wants

to enter into a knowledge base. In this paper, we discuss our system for semi-automatic database population

and how it handles the issues arising in content extraction and populating a knowledge base. The main

contributions of this work are identifying the challenges in building such a semi-automated tool, the

categorization of extraction errors, addressing the gaps in current extraction technology required for

databasing, and the design and development of a usable interface and system, FEEDE, to support correcting

content extraction output and speeding up the data entry time into knowledge bases. To our knowledge, this

is the first effort to populate knowledge bases using content extraction from unstructured text.

1 INTRODUCTION

With the rapid growth of digital documents, it is

necessary to be able to extract identified essential

information at a particular time and create

knowledge bases to allow for retrieval and reasoning

about the information. Unfortunately, database

entry is time consuming. If automatic processes

could extract relevant information, such methods

could automatically populate “knowledge” bases

based on document information. For such

knowledge bases to be useful, the end user must

trust the information provided, i.e., it must have a

high enough degree of accuracy and/or provide a

means to correct and validate the information.

In the past two decades research has been

dedicated to the automatic extraction of text entities,

relations, and events. While the best precision

scores for entity extraction are in the 90s (Grishman,

1996), precision for relations is typically less than

40%, and events have an even lower precision.

Through the Automatic Content Extraction (ACE)

program, an ontology has been developed to

characterize the types of extraction, and annotation

guidelines have been developed to cover ambiguous

cases. For example, in the sentence, “the family

went to McDonald’s” is McDonald’s a facility, an

organization, or both? Is the definition of a facility a

place that is locatable on a map?

In ACE, entities can be people, organizations,

locations, facilities, geographical/social/political

entities, vehicles, or weapons, and their mentions are

the textual references to an entity within a document.

These can be a name (“Ben Smith”), a representative

common noun or noun phrase called a nominal (“the

tall man”), or a pronoun (“he”). Although good

scores have been achieved in entity tagging, there is

cause to doubt the extensibility of systems trained

for this task (Vilain, 2007). Also, because an entity

can be referred to multiple times, an entity

potentially has many mentions, and mentions of the

same entity are said to be coreferenced. The best

extractor scores for coreferencing entity mentions

are in the range of 60-80% (Marsh, 1998). Since

Goldstein-Stewart J. and Winder R. (2009).

DESIGNING A SYSTEM FOR SEMI-AUTOMATIC POPULATION OF KNOWLEDGE BASES FROM UNSTRUCTURED TEXT.

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development, pages 88-99

DOI: 10.5220/0002307500880099

 SciTePress

relations or events can involve referents of multiple

entities, the likelihood of accurately extracting all

arguments of a relation or event is low.

Using ACE terminology, a relation is defined as

an ordered pair of entities with an asserted

relationship of a specific interesting type (“ACE

English,” 2005). So a relation can be thought of as a

four tuple: <entity1, relation, entity2, time>. For

example, “Scott was a member of ACM for four

years” contains a relation where the first entity is

“Scott,” the second entity is “ACM,” and the time is

a duration of “four years.” This relation has a type

of “Organization Affiliation” and has a subtype of

“Membership.”

An event is defined as a specific occurrence

involving participants and a “trigger” word that best

represents the event (e.g., “attacked” in “The rebels

attacked the convoy yesterday”) (“ACE English,”

2005). Despite this broad definition, ACE limits its

events to a set of types and subtypes that are most

interesting. For example, “Jen flew from Boston to

Paris” contains a “travel” event, defined as an event

that captures movement of people, that is, a change

of location of one or more people. The captured

arguments of the event would be the travelling entity

“Jen,” the origin “Boston,” and the destination

“Paris.” Like relations, events can have associated

time values (“Working Guidelines,” 2007).

In an examination of a leading rule-based

commercial extractor on 230 annotated internal

documents, it was able to identify the “ORG-

AFF/Membership” relation with a precision of 47%

(meaning that 47% of the times it identified this

relation, the relation existed in the data). The recall

was also 47% meaning that 53% of the membership

relations in the data were missed by the system. For

those relations that were identified, the first entity,

the person, was identified with 71% precision,

meaning that 29% of the items that the system

returned were incorrect. For the second entity, the

organization, the precision was 85%. After the

company improved the results, the new relation

identification improved to 70% while it remained the

same for the two entity arguments. A member of

this company suggested that this score was

considered “very good” for relations and was unsure

that much more improvement could be obtained.

Unfortunately, relations and events are often the

key assertions that one needs in a knowledge base in

order to identify information about people and/or

organizations. Due to the high error rate in

extraction technology, rather than introducing errors

into the knowledge base, a preferred solution might

be semi-automatic population of a knowledge base,

involving the presentation of extracted information

to users who can validate the information, including

accepting, rejecting, correcting, or modifying it

before uploading it to the knowledge base. This

interface must be designed in a manner that supports

the users’ workflow when doing this task. Ideally,

the interface would speed up significantly the time

to enter data in the knowledge base manually. Since

extractor recall tends to be less than 60%, besides

correcting precision errors that the extractor makes,

the interface must have the ability for users to add

information missed by the extractor (recall errors).

In this paper, we describe the challenges faced in

this task and define the design for our system,

FEEDE – Fix Extractor Errors before Database

Entry. We also discuss the required elements as

defined by our end users, the interface’s design, and

an examination of the extractors used to populate it

with initial content to be authenticated. Given the

daunting task of manually entering all important

information in a knowledge base from unstructured

text, we believe this effort is important to save users

time, both a valuable commodity in this information

age as well as being enterprise cost saving.

To our knowledge, this is the first research effort

on developing an interface using content extraction

from unstructured text for populating knowledge

bases. It has only been in the past year (“Automatic

Content Extraction,” 2008) that the automatic

extraction community has started to focus on text

extraction for the purpose of populating databases.

In 1996, there was an interface effort for structured

data (metadata) (Barclay, 1996). Furthermore, since

content extraction efforts have not been focused on

the database issue, they are missing certain items

that are important for such endeavours. A recent

survey of extraction elements important to our users

revealed that only 25 out of the 47 requested (53%)

were in the ACE guidelines.

2 CONTENT EXTRACTION FOR

DATABASING ISSUES

ACE provides specifications for tagging and

characterizing entities, relations and events in text,

as well as some other features. For entities, the key

attributes are type and subtype. Mention categories

are also important attributes, determining the

specificity of the entities, such as a pronoun referent

to an entity name. Relations and events also feature

types and subtypes as well as arguments—two for

relations, where the order matters, and potentially

many different arguments for events where the

allowed set depends on the event type. Although

quite extensive, the ACE guidelines (“ACE

DESIGNING A SYSTEM FOR SEMI-AUTOMATIC POPULATION OF KNOWLEDGE BASES FROM

UNSTRUCTURED TEXT

English,” 2005) and temporal annotation guidelines

TimeX2 (Ferro, 2005) were not designed for

databasing and are missing key items necessary for

this purpose. The omissions include:

1. Insufficient data elements from current available

extractors to cover what our users want.

Therefore new extractors must be developed,

which requires requirements gathering, definitions

and guidelines. Some have been developed for

the highest priority items.

2. In the ACE guidelines, values/traits or contact

information for people cannot be associated with

people (e.g., “John is 6 ft tall”).

3. Nested events do not exist. This is particularly an

issue with source attribution. Items attributed to

people or a new source are not linked. An

example is “According to John, Jane travelled to

France.” The fact is not necessarily true, but John

states it. Since no such extractor existed, we

developed one which linked assertions to people.

4. No mechanism in ACE covers group

participation. For example, “Anne and John

attended Stanford. In spring 2005, the two

decided to travel to Europe.” ACE does not

contain a way to reference “two” to Anne and

John, although this is a frequent language pattern.

5. ACE lacks a meaningful primary entity name

(PEN) for entities. We define an entity’s PEN to

be its longest named mention in the document

(nominals, titles and pronouns are excluded).

6. ACE lacks descriptors, that is nominals that can

define the entity in the context. These important

descriptions include titles (e.g., professor), careers

(e.g., lawyer), and important roles (e.g., witness).

This allows for a distinction between terms that

are more of interest than others. We care more

that an individual is “prime minister” than about

the description of “a man in a green hat.” A

simple initial solution for distinguishing these is

to have an exhaustive gazetteer of all words in

each category that are considered descriptors.

7. ACE lacks sufficient time normalization.

Databases can allow one to visualize items linked

with temporal information and reason over

temporal items, if entries have time stamps. The

only available temporal normalizer was

TIMEXTAG (Ferro, 2005), which did not have

sufficient coverage for our purposes. To develop

the temporal normalizer, a group of 5 potential

users developed grounding rules for key temporal

expressions. Users independently mapped all

items and then met to come to consensus when

there was disagreement. An ambiguous example

is “late January,” which maps to 21

-31

January.

We hope to make this temporal normalizer

available to the public soon.

8. While time tagging guidelines include a

methodology for sets, they still need to capture the

number of members in the set and how often

something occurs. For example, a tag for “the

past three winters” has no way of representing

“three” and a tag for “twice a month” has no way

of representing “twice.” The knowledge base and

database need a way to support this information.

This list indicates that much research and

development is required before extraction is at a

sufficient level for populating knowledge bases.

Table 1: Results using value-scorer for RB, ST, and ST2

extractors on newswire data.

ST RB ST2

Entities 72.2 72.8 73.1

Entity Mentions 84.6 84.0 84.8

Relations 26.2 24.7 27.3

Events 17.8 N/A N/A

Table 2: Results for entities in newswire data, where P is

precision and R is recall.

ST RB ST2

Unweighted P 49.8 51.9 51.3

Unweighted R 53.5 58.5 57.1

Unweighted F1 51.6 55.0 54.1

Table 3: Results for relations for all three systems and

events for ST, where P is precision and R is recall.

Rel.

ST2

Rel.

Events

Unweighted P 34.8 32.8 39.9 2.2

Unweighted R 22.1 24.1 26.3 1.9

Unweighted F1 27.0 27.8 31.7 2.0

Besides the missing key components, as

mentioned the accuracy of content extraction is too

low for automatic population of databases and

perhaps at levels that could frustrate users. The

ACE 2005 value results (an official ACE measure)

for newswire documents are presented in Table 1 for

three participating systems, two statistical (ST and

ST2) and one rule-based (RB). The scores for

entities and relations/events are presented in Tables

2 and 3, respectively. We present ACE 2005 since it

had more participation on the relations task than

ACE 2007, and ACE 2008 did not evaluate events.

Analysis indicates only slight performance increases

for systems in 2007 and 2008. These results were

computed using the ACE 2005 evaluation script on

each extractor’s documents compared to reference

documents tagged by humans. In the script’s

unweighted scores, a relation or event is considered

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

Table 4: Common extraction errors and how the interface handles them.

Error Type Error Solution Type Solution

Entity Label Type/Subtype

Error

Preprocessing Perform string matches for the primary entity name (or any named mention)

of entities. If one matches with an entity of interest of different

type/subtype, present to User.

Entity

Error

Misspelled by

Doc Author

Interface User corrects by typing in the interface. This applies to punctuation and

capitalization errors too.

Entity

Error

Too Much/Little

Extracted

Preprocessing Compare entity of interest primary entity names to text of other entities. If

there is significant crossover, offer the entity of interest as possibility to

User for assertions involving such entities.

Entity

Error

Too Much/Little

Extracted

Interface User can add missing information or delete extraneous information.

Relation/

Event

Argument Error Preprocessing All proximate entities (mentions within X words) to relation/events should

also be offered as alternatives for the actual relation/event.

Relation/

Event

Argument Error Interface User examines this relation/event and evidence to recognize an incorrect

argument and must either ignore, modify or add a new relation/event.

Modifying includes selecting a new argument from a drop-down menu list

with possible entities for that argument.

Relation/

Event

Type/Subtype

Error

Interface User observes this error in the evidence and must either ignore, modify or

add new relation/event. Relation/event types can be selected by drop-down

menu.

Relation/

Event

Spurious

Relation/Event

Interface User observes this relation is spurious in the evidence and can ignore (hide)

the relation/event.

Relation/

Event

Missing

Relation/Event

Interface If User can recognize this error by viewing the document, new

relation/event can be added in the interface. Adding information is

supported in the interface by menus with a list of allowed relations/events.

Coreference Spurious

Coreferences

Interface User must recognize in evidence that entity mention and primary entity

name are different and must either ignore, modify or add new

relation/event.

Coreference Missing

Coreferences

Preprocessing All proximate entities (mentions within X words) to relations/events should

be offered as possibilities (with low confidence) for the actual

relation/event arguments.

Coreference Split Entities Interface When validating, the user can assign the same knowledge base id to the two

entity chains and then the data will be merged in the knowledge base.

to be located in a system-tagged document if there

are no missing reference arguments and no attribute

errors. Precision equals the number of these

mappable pairs over the total number the extractor

found. Recall equals the number of these mappable

pairs over the total number in the reference text.

These are combined to produce an F1 score.

Note that any error present in the data would

need to be fixed by a user that chose to utilize that

piece of information in the knowledge base. Thus

the trade-off between precision and recall has great

significance for the task, as a higher precision would

imply less user correction of errors in extracted data,

but also requires more manual entry of missing

assertions, while a higher recall implies the reverse.

Given the low precision and recall as shown by

the ACE 2005 results for relations, we believe it is

essential to have an effective user interface to allow

users to correct the information extracted incorrectly

from the documents (precision errors) as well as to

enter missed information (recall errors). Though the

results available for events are not as

comprehensive, these scores are even lower than

those for relations.

In terms of the interface, we define effective as

(1) intuitive, (2) easy to use, (3) minimizing mouse

clicks, (4) following the workflow, (5) faster than

manual entry, (6) tailored to user requirements and

preferences, and (7) assisting and guiding the user in

completing the task of creating entries for the

knowledge base.

Since there are so many potential extraction

errors and the knowledge base requires vetted

information, the user must validate all information

before it is uploaded. Table 4 displays a list of

common problems encountered in extraction.

Solutions to these issues either require action to be

performed by the interface in pre-processing before

the information is presented to the end user or in the

interface itself, essentially assisting the end user in

DESIGNING A SYSTEM FOR SEMI-AUTOMATIC POPULATION OF KNOWLEDGE BASES FROM

UNSTRUCTURED TEXT

making corrections based on observations of the

evidence.

Something else important to the interface that is

absent from ACE is confidence levels in the

information. We use an extractor confidence, if

provided, as a factor into the confidence score

presented to the user. Pronominal references lower

the confidence since their accuracy is only

approximately 80%. We also use evaluation

knowledge about relations and events as a

component in the final confidence score. Other

factors that could be included might be based on the

contextual source; this includes weak attribution,

conditional terms, hypothetical statements, or future

tense.

Confidence levels indicate to the user whether

this assertion has a good chance of being correct,

i.e., it helps to focus items they might choose to

validate. It is important to note that as we add more

information that essentially second-guesses what the

extractor has produced, it becomes necessary to

distinguish between what is believed and what is

not, and confidence plays a role here too.

3 ERROR ANALYSIS

Because relations and events are the most commonly

desired pieces of information to be gleaned from a

document, we provide examples of the types of

errors observed involving relations and events,

drawing from results achieved on the 2005 ACE

evaluation. Since the most interesting attributes are

type and subtype, in this section we only record

attribute errors in these. This change would increase

the results in Table 3 by less than 13%. These

results are still low and indicate that there are many

items that need to be corrected for total accuracy.

Here we further examine a leading statistical

extractor (ST) and a leading rule-based extractor

(RB). Event results were only available for ST.

In the tables below, we examine the frequency of

specific error types independently. Consider the

sentence “British Prime Minister Tony Blair left

Hong Kong.” This contains a relation of

type/subtype “PHYS/Located.” The extent of the

first argument is “British Prime Minister Tony

Blair,” while the head of the first argument is “Tony

Blair.” The extent and head of the second argument

are both “Hong Kong.” It is the head—a more

specific piece of text—that determines whether two

mentions in separately tagged documents map to one

another. There is potential for error with any of these

elements. Table 5 shows the cases where relations

(and events) are tagged with the wrong type or

subtype, while Table 6 shows span errors for the full

arguments of relations and their heads.

Table 5: Relation and event type/subtype error rates

observed for newswire documents if other requirements

for finding relation or event are filled.

Relations Tagged w/

Incorrect Type/Subtype

Events Tagged w/

Incorrect Type/Subtype

ST 16.6% 11.4%

RB 18.5% N/A

Table 6: Argument span error rates observed across

relation mentions. The upper results exclude cases of

mismatched relation type/subtype, while the lower results

ignore the relation type/subtype and just evaluate the head

and extent spans.

Arg1 Head

Span

Arg2 Head

Span

Arg1 Extent

Span

Arg2 Extent

Span

2.5% 4.6% 26.9% 13.1%

4.9% 8.0% 22.2% 14.8%

3.4% 3.8% 25.3% 12.2%

RB 5.4% 7.8% 22.9% 16.1%

Considering cases where relations are potentially

identified but are tagged with an incorrect type or

subtype, the extractors comparably misidentify the

types of relations in the reference corpus at rates of

16.6% and 18.5% for ST and RB, respectively.

Turning to the relation’s arguments, their

mentions can have errors in the span of their extent

(text tagged as being the full argument entity) and

head (the key text that defines the argument entity).

For both extractors the error rates for extent spans

are higher for the first argument than for the second.

Head span errors are lower for both extractors, but

because relations that do not have overlapping heads

will be classified as spurious, it is not surprising that

the feature which is the criterion for mapping

relations between reference and system-tagged

documents has a low error rate when examined.

As Table 7 shows, ST misses 66.9% of these

specific relation mentions and RB misses 72.8%. If

the relations themselves are considered, as opposed

to their specific mentions, then 74.0% of relations

are missed by ST and 70.7% of relations are missed

by RB. When considering relations as opposed to

relation mentions, some of this error is propagated

from errors in entity coreferencing. If perfect entity

coreferencing is assumed, then the number of

missing relations drops to 60.6% for ST and 59.3%

for RB, which is still a high number in both cases.

These numbers are still quite high if we permit

relations to be recognized that are unmatched with a

reference relation and have the appropriate

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

arguments but a different type/subtype, 52.1% for

ST and 50.1% for RB. While the advantage in terms

of recall belongs to RB, the extraction results on

relations are highly errorful, and even when

accounting for errors, the precision and recall are

quite low, indicating that human validation is

necessary for relations. Examining the spurious

relations, these make up a significant portion of the

returned results. Even presuming perfect entities and

ignoring tag mismatches, more than a fourth of

returned relations are spurious for either ST or RB.

Table 7: Rates of missing and spurious relations. STa/RBa

results consider cases of mismatched type/subtype missing

or spurious, while STb/RBb results ignore type/subtype.

Missing

Relations

(Perfect-Coref.)

Missing

Relations

Missing

Relation

Mentions

STa

60.6% 74.0% 66.9%

RBa 59.3% 70.7% 72.8%

STb

52.1% 68.9% 60.2%

RBb 50.1% 64.1% 65.6%

Spurious

Relations

(Perfect-Coref)

Spurious

Relations

Spurious

Relation

Mentions

STa

40.1% 59.1% 44.8%

RBa 52.9% 60.2% 65.5%

STb 27.2% 51.0% 33.6%

RBb 42.2% 51.1% 56.3%

Table 8: Rates of missing and spurious events. The STa

results consider cases of mismatched type/subtype missing

or spurious, while the STb results ignore type/subtype.

Missing Events

(Perfect-Coref.)

Missing

Events

Missing

Event Mentions

STa 84.8% 87.6% 87.8%

STb

82.9% 86.0% 87.6%

Spurious Events

(Perfect-Coref.)

Spurious

Events

Spurious

Event Mentions

STa 82.4% 85.7% 84.0%

STb 80.1% 83.8% 83.7%

Table 9: Error rates (in %) for spurious and missing

arguments for all ST events where “a” results consider

cases of mismatched type/subtype missing or spurious,

while “b” results ignore type/subtype. Arguments assigned

the wrong role are considered found in the results marked

with an *. Numbers in the parentheses include arguments

of missing or spurious events in their counts.

Missing

Args

Missing

Args*

Spurious

Args

Spurious

Args*

a 54.6 (76.2) 51.0 (74.4) 30.1 (52.3) 24.7 (48.6)

b 62.4 (74.1) 55.2 (69.1) 41.7 (48.1) 30.4 (38.1)

Table 8 displays the results for missing and

spurious events. These occur at very high rates, with

87.8% of specific event mentions missed and 87.6%

of events missed. Even when perfect entity

coreferencing is assumed, the percent of events

missed only drops to 84.8%. As for spurious event

mentions, these make up 84.0% of tagged event

mentions and 85.7% of tagged events. Once again

assuming no errors with entity coreferencing only

drops the percentage of spurious events to 82.4%.

Table 5 reveals that only 11.4% of events are

potentially tagged with the wrong type/subtype. If

this restriction is ignored, scores for missing and

spurious events improve only marginally.

These numbers are so high mainly due to the

difficulty in capturing all reference arguments, a

requirement for finding events. Note that events are

chiefly defined by their arguments. Examining

event arguments more closely, we discover that the

error rate for missing arguments is about 54.6%.

This error rate increases dramatically though if the

totals are allowed to include the missing arguments

of completely missing events, rising into the 70s.

With regard to spurious arguments, they make up

30.1% of the arguments identified. This number can

rise into the 50s if the arguments of completely

spurious events are included in the totals. These

numbers are presented in Table 9. While results

improve when restrictions on event type/subtype and

argument role are slackened, they still remain

significantly high.

Apart from type, subtype, and arguments, events

in ACE are defined by attributes ignored in these

results such as tense, genericity, modality, and,

perhaps most importantly, polarity. The last of these

tells whether or not the event is positive or negative,

which means essentially whether or not the event

happened. Excluding tense, the scores for these are

high, but this is due to the tagger consistently

tagging all events with a particular value (its most

common). Therefore, the scores for these values are

meaningless, which is particularly significant for

polarity, as it essentially changes the entire meaning

of an event. Considering this as well as the low

recall and precision of both events and their

constituent parts, it is clear that these also cannot be

accurately mediated by automatic means alone but

require human validation and correction.

4 SYSTEM, DATABASE, AND

INTERFACE

An analysis of the issues involved in bringing

together these different approaches gave rise to a list

of challenges that must be dealt with in order to

DESIGNING A SYSTEM FOR SEMI-AUTOMATIC POPULATION OF KNOWLEDGE BASES FROM

UNSTRUCTURED TEXT

achieve a successful outcome for the project. Table

10 lists these challenges and a description of each.

Among these are issues directly related to content

extraction discussed earlier (Challenges #1-5) as

well as extraction issues for text sets that present

special challenges and require special extractors to

be trained to handle them (Challenge #6). An

example of the latter might be text that is completely

capitalized. This section addresses other challenges

related to the interface needed for correcting the

extracted information as well as database population.

Our system is designed around the extraction of

assertions (relations/events) about people from

unstructured text (e.g., newswire documents). These

assertions can come from a batch of documents or a

single document. In the case of a batch, there may

be redundant repetitive data. For example, in a

batch of documents about UK politics, many may

state that Gordon Brown is a member of the Labour

Party in Britain. Users may (1) want to be able to

enter this information (with source) only once to

allow them to concentrate on the entry of novel

information or (2) enter this data many times for use

as supporting information. If the user wants to enter

the data only once, the system tries to first present

the extracted candidates mostly likely to be accurate.

This eliminates text snippets that have a pronominal

reference since coreference chains can be

determined with an F1 score of approximately 80%

(Harabagiu, 2001). For example, “he is a member of

the Labour Party” would be automatically be

assigned a lower confidence score than “Gordon

Brown is a member of the Labour Party.”

Another issue is that all events and relations are

treated as facts by ACE. We prefer to label them

assertions and to assign a source to the assertion, if

provided. In a case like “Michael said” or “BBC

reported,” Michael or BBC would be tagged as the

source. When presenting content to a user in the

interface, it is important for them to know the

trustworthiness of a relation or event, and thus it is

important in populating the knowledge base. So in

this interface and database definition, a field for

source attribution to an entity is available for all

events and relations. Since no software existed for

source attribution, code was written to provide this

functionality.

The system is designed to allow users to set

preferences to specify which types of data to extract,

correct, and validate. For example, one user may be

interested in social network information, such as

family and friends. Another user might be interested

in the travel of key sports figures.

Since extracted information is often incorrect,

the system must also have a mode for correction and

validation of information. This is done through drop

down text menus in the hope that the user can

quickly select a correct entity or relation. If the

entity was missed by the extractor or misspelled due

to author error, the user has the option to edit it.

Since extractors frequently miss information (“NIST

2005,” 2005), the system also requires a mode for

entering information missed by the extractors.

Table 10: List of challenges.

Challenge Description

1. Accuracy of

content extraction

The accuracy of extractors unaided is

prohibitively low on key assertions.

2. Precision/recall

trade-off

High precision means less User

correction, but more manual entry.

High recall means the reverse.

3. Current extractors

lack appropriate

inventory

47 data elements map to entities,

relations, and events, but 20 elements

are missing from or lack suitable

ACE version.

4. User definitions

don’t match ACE

Definitions differ between terms in

ACE and how Users define them.

5. Temporal

anchoring and

normalization

Extracting time tags and resolving

them with source date. Some cases

are complex or highly ambiguous.

6. Data specific

challenges

Extracting from data sources that

present special challenges when

compared to the majority of texts.

7. Primary entity

name selection

Detecting the most appropriate

primary entity name, and allowing

Users to choose primary entity names

and effectively use them.

8. Disambiguating

entities with KB

Assisting User in merging entity with

existing record or creating a new one.

9. Accuracy of

coreference

resolution

Detecting if two phrases refer to the

same entity, including a related issue

of coreferencing “sets” of people.

10. Mapping from

one schema to

another

Converting User specification to

extractor output and this output to the

knowledge base data model.

11. Building

successful interface

& prototype

Developing an interface that allows

easy entry, efficient correction and

data verification.

12. Measurement of

success

Measuring usability aspects of

effectiveness, efficiency and User

satisfaction.

The system must be able to select for any entity

its primary entity name (PEN) from the list of names

in the document (Challenge #7). As far as we are

aware, there have been no evaluations or research on

how easy this task is, but here we define the PEN as

the longest named mention of an entity in the

document. For example, the PEN for David

Beckham, the English footballer, would be “David

Robert Joseph Beckham.” This name then has to be

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

resolved with names currently existing in the

knowledge base. The user has the option of creating

a new entry for this name or adding the information

to entities that already exist. Once this is

determined, the system stores this name (and

knowledge base id) in case it should arise in future

documents. This software has been written but has

not yet been evaluated. The user may want to

change the display name to be different from the

PEN, so the system has a method to allow for this

and to link the PEN with the display name.

The user also has the option of stating a specific

interest in information that appears about a particular

person. Suppose a person is interested in Michael

Jackson, the English footballer. Once Michael

Jackson has a knowledge base identification number,

the user can select him as an entity of interest (EOI).

EOIs are separated in the user interface for the user.

Documents contain many entities (typically about

50-100 per document) and if the user is only

focusing on a few, having them as EOIs, makes

them easy to find. Other entities that are assigned a

knowledge base id, but not chosen as an EOI are

referred to as resolved entities and are accessible

from the interface as well. A resolved entity can be

easily converted to an EOI, especially since it

already has a knowledge base id.

The system stores a list of names that it has

found in documents associated with a user’s EOIs.

For Beckham it could have both “David Beckham”

and “David Robert Joseph Beckham.” It compares

these names with new documents to offer knowledge

base ids for entities that have previously been seen

by the system and assigned an id by the user.

With a content related database, entity

disambiguation is required when adding information

from new documents (Challenge #8). If Michael

Jackson, the English footballer, is an entity of

interest, the user will have to determine that the

information in the document being presented is his

or her Michael Jackson. For example, “Michael

Jackson” could be the singer, the American

linebacker, the English footballer, the British

television executive, or the former Deputy Secretary

of the U.S. Department of Homeland Security.

The first time that the user has an entity Michael

Jackson and goes to validate an assertion about

Michael Jackson, the system returns the various

named entities already in the knowledge base as well

as any stored information that would assist the user

to determine a match for this person. The user

chooses whether to add the information to one of

these existing entities or to create a new one.

Selection or the creation of a knowledge base id is

required for every entity in the assertion when the

user chooses to validate an assertion as every entry

in the knowledge base must have an identification

number to determine its uniqueness.

Related to this disambiguation issue is entity

coreferencing, an arena where extractors experience

difficulty (good performance with names, moderate

with pronouns, and poorest with nominals). There

are also some inherent limitations with ACE in this

regard, such as an inability to deal with sets of

people (Challenge #9). For example, in “Ron met

Joy after class, and they went to the store,” ACE

cannot coreference “they” to “Ron” and “Joy.” This

requires the development of software to extract

possibilities other than those currently available.

All data is stored in an intermediary database

before being uploaded to the main knowledge base.

This allows the user to stop in a middle of a session

and return before committing the data to the

knowledge base (which is designed for manual

entry). The architecture of our system that makes

use of the FEEDE service is shown in Figure 1.

Additionally because the schemas used for ACE and

the corporate knowledge base are different, they

must be mapped to one another (Challenge #10).

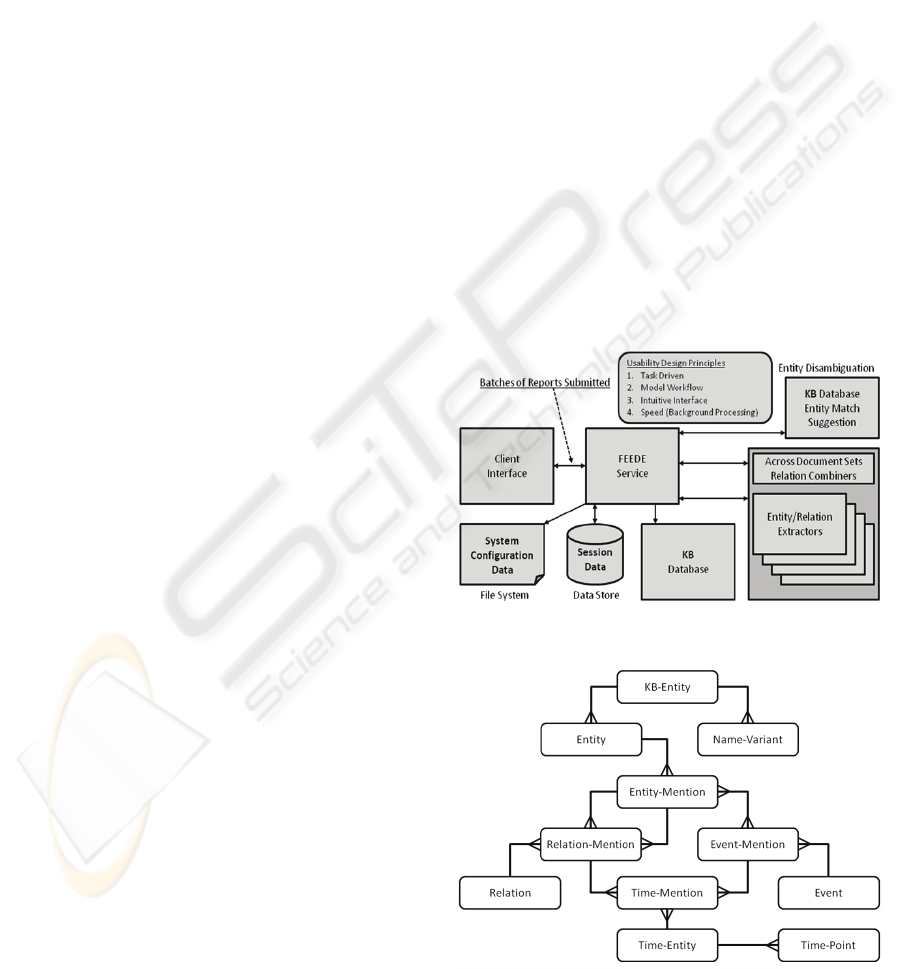

Figure 1: System architecture.

Figure 2: Overview of basic intermediary database

structure.

DESIGNING A SYSTEM FOR SEMI-AUTOMATIC POPULATION OF KNOWLEDGE BASES FROM

UNSTRUCTURED TEXT

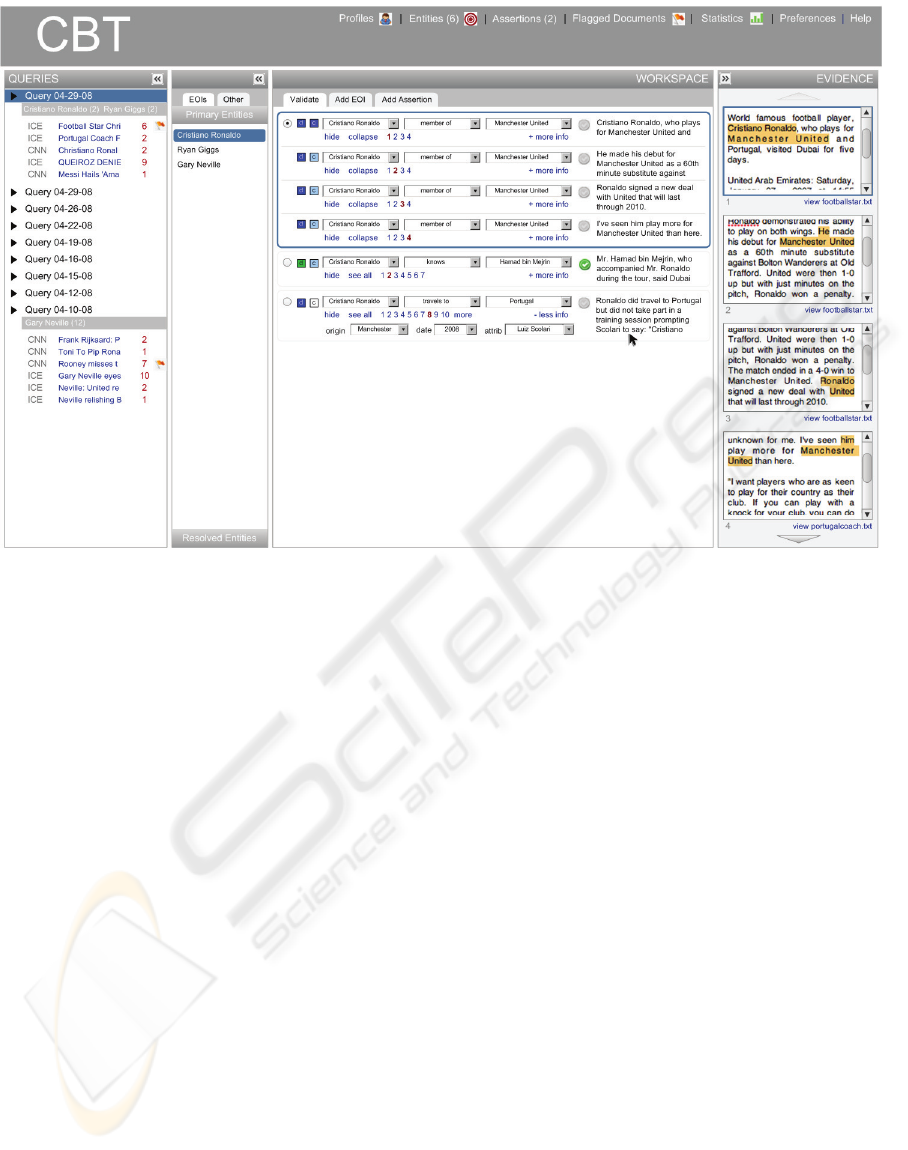

Figure 3: Example mock-up of the correction interface where a relation between two entities is selected and different

mentions of this relation are presented to the user with corresponding textual evidence in the panels to the right. Note: The

actual interface exists, and its appearance is very similar to this mock-up.

Although extraction from unstructured text has

low accuracy, extraction from the headers can be

done with high accuracy. Extraction of items such

as the document source, title, date and other key

information save the user from manually entering

this information. This data is extracted and presented

to the user when uploading validated data. In

particular, the document date is also required for

temporal normalization, to resolve items such as “in

February” if the year is not provided.

5 INTERMEDIARY DATABASE

The intermediary database is a relational database.

When the documents are processed, the information

extraction is stored in this database awaiting

validation by the user. Thus it is populated with

entities, relations, events, and time expressions, each

with varying degrees of confidence. It is not

intended for long-term but rather temporary storage

of extracted information from documents so that a

user can verify, correct, and validate content

extraction results. Only the user validated or entered

results are used to populate the main knowledge

base after the user chooses to upload them to the

knowledge base. A basic schema for the database is

shown in Figure 2. Links without prongs indicate

“has one” while crow’s feet indicate “has many.”

Entity-mentions have one entity, relation-mentions

have two entity-mentions, and event-mentions and

entity-mentions have a many-to-many relationship.

Following this schema, each entity entry in the

knowledge base (KB-Entity) can have any number

of entities (and variants on its name) associated with

it across document sets. Each of these entities in turn

can have any number of mentions in a document.

Each mention can be part of any number of relation-

mentions or event-mentions, each of which refers to

a single relation or event. Relation and event-

mentions can also be associated with any number of

time-mentions, each referring to a single time-entity,

grounded to a timeline with defining time-points.

6 INTERFACE DESIGN

The correction/validation interface (a mock-up

shown in Figure 3) that lies atop the intermediary

database must allow for easy entry of missed

information as well as efficient correction and

verification of extracted data. The interface must

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

make it as easy as possible for users to enter items

not found by extractors into the database. This

requires an examination of user workflow and the

minimization of time required for the critical steps in

extracting assertions (Challenge #11). Of paramount

importance here is maximizing the efficiency,

efficacy, and satisfaction of the users with the

interface (Challenge #12), three properties of

usability that should be independently considered

(Frokjaer, 2000).

This interface has the following basic flow of

content that is extracted from a corpus of documents.

Because information presented to the user is “entity

centric,” meaning that a user specifies entities of

interest (EOIs) and the interface provides the

relevant entities as well as related relations and

events that involve those entities, the first part of this

content flow from a set of documents is the list of

entities (EOIs if the user has already specified

these). Additionally, taken from a list of entities that

appear as arguments to relations and events

involving the EOIs, a list of secondary entities is

also populated.

When a specific entity is selected in the

workspace, the flow progresses to information about

the entity from the document corpus. This

information requires user validation. These are

relations and events, with associated fields for

arguments and other attributes (time, source-

attribution, et al). Each of these pieces of evidence

is also given a confidence (from high to low

depending on textual and source factors) and an

indication of whether the content is already validated

and present in the KB (the two boxes to the left of

relations in Figure 3). The shading of the boxes

allows the user to quickly scan the data. Dark blue

in the first box indicates that the information is not

present in the main knowledge base and dark blue in

the second box indicates that there is high extractor

confidence in that information, suggesting that the

user might want to examine that item first for

validation. Tracking and displaying the presence or

absence of the information in the knowledge base is

important, as the users are often only interested in

entering new information.

In the second piece of evidence, “he” is

coreferenced with “Ronaldo.” Because the user is

validating at an entity level, the PEN is the name

present for each field that represents an entity, not

the entity mention’s referent in the particular piece

of text. The user then verifies relations and events

by checking the textual evidence to the right of the

relations, as well as the larger context for each on

the far right if necessary. In the cases where the

referent in the text evidence does little to clarify who

the entity is (as with a pronoun), then other mentions

of the entity can be indicated, as shown with the

underlining in the 2

evidence example in Figure 4.

Because there are potentially multiple mentions

of the same relation or event in the document

corpus, the user can specify whether to see one or all

of these at once. Each item the user desires to have

entered in the main knowledge base must be

checked and validated (the check circle on the right

of the text). This information can be ignored if

incorrect or corrected to form an accurate

relation/event. Each of the arguments to the

relation/event must be present in the knowledge

base. The interface is structured so that arguments

to relations and events can be modified via drop-

down menus or typing in text fields. Some of these

are accessed by clicking “more info.” When the

relation or event has been corrected, if necessary,

and is present in the material, then the user validates

it for entry into the knowledge base. Otherwise

there is no validation or a different relation or event

can be validated if corrections significantly changed

the relation or event.

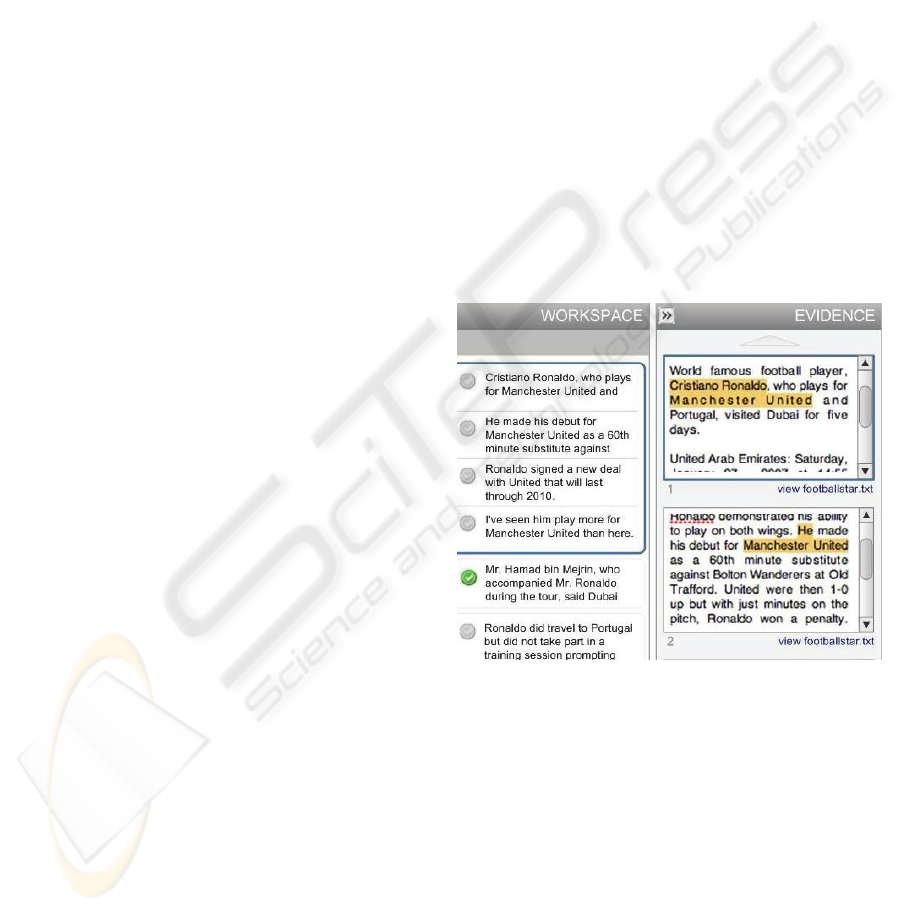

Figure 4: Close-up example of evidence.

Figure 3 also shows the implicit task flow as one

looks from left (document sets and entity lists) to the

right (extracted content to be corrected and textual

evidence). The selected relation can be expanded

(as in Figure 3 with the “member of” relation) to

reveal the different instances of the relation in the

text and the evidence that support it.

The interface also provides a convenient way to

find out more information about entities, helping in

disambiguating them. By simply leaving the mouse

cursor over an entity in the workspace, the interface

will generate a pop-up display about the entity,

DESIGNING A SYSTEM FOR SEMI-AUTOMATIC POPULATION OF KNOWLEDGE BASES FROM

UNSTRUCTURED TEXT

including information on its knowledge base

identity, its type, and when it was last updated.

7 DATABASE FIELDS FOR

RELATIONS

Given the attributes present in ACE in addition to

those we add to extend it, we can present a picture of

what fields are necessary to store sufficient

information in our database. As an example, the list

of fields, along with definitions, for the relation-

mention type follows. First we describe the fields

necessary for the relations to interact with the

knowledge base. Fields that must contain a value

are marked as (R) for “Required.”

• account_id (R) = Unique identification of the user

looking at the relation, which is used to identify

who validated and committed it.

• validated_date = Time the relation was validated

by the user.

• committed_date = Time the relation was

committed to the knowledge base by the user.

• modified_date (R) = Last time the relation was

modified by the user or an updated extraction.

• comments = Comments by the user on the

information.

• user_confidence = How certain the user is that

this relation holds based on trustworthiness and

ambiguity of the source text.

What follows next is a list of fields necessary for

thorough relation-mention definitions in the

database.

• doc_id (R) = Unique identification of the

document where relation was found.

• extractor_info (R) = Features used to do the

extraction, which determine the extractor used,

the version, its parameter settings, etc.

• evidence (R) = Text of the document where the

relation was found.

• evidence_start (R) = Beginning index of the

relation in the evidence.

• evidence_end (R) = End index of the relation in

the evidence.

• paragraph_start = Beginning index of the

paragraph snippet.

• paragraph_end = End index of the paragraph

snippet.

• arg1_entity_mention_id (R) = Unique mention of

the subject of the relation in the relevant

document.

• arg2_entity_mention_id (R) = Unique mention of

the object of the relation in the relevant document.

• relation_type_id (R) = Uniquely determined by

extracted type and subtype, this corresponds to a

specific relation type that can be inserted into the

knowledge base.

• tense = When the relation occurs with respect to

the document. This can be past, present, future, or

unspecified.

• attributed_to = A reference to a person source or

document source in the document for this relation

mention.

• polarity = TRUE if assertion is so stated and

FALSE when it does not hold (NOTE: this is not

part of the ACE guidelines for relations). Most

users prefer to enter positive assertions only, so

the default value is TRUE.

•

source_confidence = Likelihood that this relation

holds given conditional statements (e.g. may,

believe, probably, etc.) and can be attributed to

the writer of the document or some entity in the

document or a combination of the two.

• extractor_confidence = How certain the extractor

is that this relation holds based on its own metrics.

• system_confidence = A measure calculated by the

system based on extractor confidence and its own

internal knowledge.

• hidden = Set by the user, TRUE when the user

wishes to hide the relation and FALSE otherwise.

• inKB = TRUE when the relation is in the

knowledge base, FALSE otherwise.

With these fields, the relations are fully defined

and prepared to be inserted into the final knowledge

base.

8 DISCUSSION

In this paper we have discussed a design for an

interface to aid in the process of populating a

knowledge base with corrected and validated

knowledge originating from text sources that

combines the benefits of both human users and

automated extractors in order to make the process

more efficient. We also examined the basic

structure needed for the interface’s underlying

temporary database and the properties necessary for

the information to possess in order to disambiguate

and fully describe entities.

Also examined was the performance of two

extractors, one rule-based and the other using

statistical methods. The key point of this

examination is to demonstrate that the extractors are

very prone to errors and that in order to populate a

knowledge base with what they produce a human

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

being is still required to examine and validate text,

even if facilitated by the interface and extractors’

guidance. This interaction in the interface remains

the most crucial element in ensuring that the process

will be brisk, successful, and have minimal errors.

We expect that this system will save users

significant time over manual entry of information

into the knowledge base. Users have experimented

with the prototype system and really like it. Their

stated expectation is that this will save them lots of

time. Our intention is to speed up the data entry

process by 50%, which preliminary studies indicate

is the case. We are currently working to improve our

interface based on the user feedback and performing

experiments on the amount of time saved using this

process.

ACKNOWLEDGEMENTS

We would like to thank all of our team members and

consultants for their advice and numerous

contributions to this project.

REFERENCES

ACE (automatic content extraction) English annotation

guidelines for entities version 5.6.1. (2005). Retrieved

May 7, 2008 from: http://projects.ldc.upenn.edu/ace/

docs/English-Entities-Guidelines_v5.6.1.pdf

ACE (automatic content extraction) English annotation

guidelines for events version 5.4.3. (2005). Retrieved

May 7, 2008 from: http://projects.ldc.upenn.edu/ace/

docs/English-Events-Guidelines_v5.4.3.pdf

ACE (automatic content extraction) English annotation

guidelines for relations version 5.8.3. (2005).

Retrieved May 7, 2008 from:

http://projects.ldc.upenn.edu/ace/ docs/English-

Relations-Guidelines_v5.8.3.pdf

Automatic content extraction 2008 evaluation plan.

(2008). Retrieved 2009 from: http://www.nist.gov/

speech/tests/ace/2008/doc/ace08-evalplan.v1.2d.pdf

Barclay, C., Boisen, S., Hyde, C., & Weischedel, R.

(1996). The Hookah information extraction system,

Proc. Workshop on TIPSTER II (pp. 79-82). Vienna,

VA: ACL.

Evaluation scoring script, v14a. (2005). Retrieved

September, 25, 2008, from: ftp://jaguar.ncsl.nist.gov/

ace/resources/ace05-eval-v14a.pl

Ferro, L., Gerber, L., Mani, I., Sundheim, B., & Wilson,

G. (2005). TIDES-2005 standard for the annotation of

temporal expressions, Technical Report, MITRE.

Retrieved June 3,2008 from:http://timex2.mitre.org/ an

notation_guidelines/2005_timex2_standard_v1.1.pdf

Frokjaer, E., Hertzum, M., & Hornbaek, K. (2000).

Measuring usability: are effectiveness, efficiency, and

satisfaction really correlated? Proc. ACM CHI 2000

Conference on Human Factors in Computing Systems

(pp. 345-352). The Hague: ACM Press.

Grishman, R., & Sundheim, B. (1996). Message

understanding conference – 6: A brief history. Proc.

International Conference on Computational

Linguistics (COLING) (pp. 466-471). Copenhagen:

Ministry of Research, Denmark.

Harabagiu, S., Bunescu, R., & Maiorano, S. (2001). Text

and knowledge mining for coreference resolution.

Proc. 2

Meeting of the North America Chapter of the

Association for Computational Linguistics (NAACL-

2001) (pp. 55–62). Pittsburgh: ACL.

Marsh, E., & Perzanowsi, D. (1998). MUC-7 evaluation of

IE technology: overview of results. Retrieved 2009

from: http://www.itl.nist.gov/iaui/894.02/

related_projects/muc/proceedings/muc_7_toc.html

NIST 2005 automatic content extraction evaluation

official results. (2006). Retrieved May 7, 2008 from:

http://www.nist.gov/speech/tests/ace/2005/doc/

ace05eval_official_results_20060110.html

Vilain, M., Su, J., & Lubar, S. (2007). Entity extraction is

a boring solved problem—Or is it? HLT-NAACL –

Short Papers (pp. 181-184). Rochester: ACL.

Working guidelines ACE++ events. (2007). Unpublished

Internal Report.

DESIGNING A SYSTEM FOR SEMI-AUTOMATIC POPULATION OF KNOWLEDGE BASES FROM

UNSTRUCTURED TEXT
