FUZZY SET THEORY BASED STUDENT EVALUATION

Zsolt Csaba Johanyák

Institute of Information Technology, Kecskemét College, Izsáki út 10, Kecskemét, Hungary

Keywords: Fuzzy grading system, Student performance evaluation.

Abstract: The evaluation of students’ learning achievements contains in several cases a lot of decisions that are based

on the expertise and the opinion of the evaluator. Often this opinion is from nature vague and therefore this

field is a good application area for fuzzy set theory based supporting methods and software

implementations. In this paper, a new method called FUSBE (Fuzzy Set Theory Based Evaluation) is

presented. It supports the scoring and grading of the students allowing the evaluator to express his or her

judgment by the means of fuzzy sets that are later aggregated using fuzzy arithmetic. The method is

transparent and easy-to-implement.

1 INTRODUCTION

The evaluation of student’ assignments, homeworks,

software, narrative answers, etc. when a fully

automated scoring is not possible involves a lot of

decisions that are from nature subjective and

therefore usually the deviation between the marks or

grades given by different evaluators and on different

occasions for the same answers could be very high.

The subjectivity can be reduced in several cases

using standardized scoring criteria, specific

examples of responses to the questions, or even

sample software solutions but none of these

approaches can solve all the problems. Besides, the

more specific a guide is the more time consumable

its learning and its application is. Furthermore, it is

not always an applicable solution.

Another approach for dealing with subjectivism

arises from the fuzzy set theory. The application of

linguistic terms and related fuzzy sets is common to

the human thinking and can result in decreasing the

evaluation’s sensitivity to “noisy” scoring data. In

this case the relation between the linguistic terms

and the traditional marks is established by the means

of membership functions.

Starting from the early 1990s several ideas have

been developed in order to find a better evaluation

technique by the help of fuzzy techniques. Biswas

(1994) proposed a particular (FEM) and a

generalized (GFEM) method that were based on the

vector representation of fuzzy membership functions

and a special aggregation of the grades assigned to

each question of the student’s answerscripts. Chen

and Lee (1999) suggested a simple (CL) and a

generalized (CLG) method that produced

improvements by applying a finer resolution of the

scoring interval and by including the possibility of

weighting the four evaluation criteria. Nolan (1998)

introduced a fuzzy classification model for

supporting the grading of student writing samples in

order to speed up and made more consistent the

evaluation.

All the mentioned methods have their advantages

and disadvantages that will be discussed in details in

section 2 along with their short presentation. All of

the methods contain heuristic elements and therefore

there is always a possibility to develop new

techniques that could bring advantages from one or

more aspects.

In this paper, a new approach is suggested that

tries to induce improvements by reducing the

computational needs as well as by eliminating the

summarization of the potential errors caused by the

application of the similarity measure and quasi

defuzzification at the evaluation of each question.

The rest of this paper is organized as follows.

Section 2 contains the presentation and discussion of

some well known methods followed by the

introduction of the new technique in section 3.

Csaba Johanyák Z. (2009).

FUZZY SET THEORY BASED STUDENT EVALUATION.

In Proceedings of the International Joint Conference on Computational Intelligence, pages 53-58

DOI: 10.5220/0002312300530058

 SciTePress

2 FUZZY SET THEORY BASED

EVALUATION METHODS

This section presents a short review of the basic

ideas and key features of some student evaluation

methods that apply elements of fuzzy set theory in

order to facilitate the grading of the students’

academic performance.

2.1 FEM and GFEM

The key idea of the Fuzzy Evaluation Method

(FEM) (Biswas, 1994) is that each question in the

student answerscript is evaluated independently with

a discrete fuzzy set containing membership values

for six uniformly distributed predefined points (X) of

the traditional percentage based evaluation scale

[0,100].

{}

100,80,60,40,20,0=X

(1)

The resulting fuzzy set is compared to all of the

so called Standard Fuzzy Sets (SFSs). The SFSs are

defined on the same universe of discourse [0,100]

corresponding to the grading standard of the

university. Each SFS corresponds to a traditional

grade (e.g. Excellent). The comparison is made by

the means of a similarity degree that is calculated by

()

jjii

SFSSFSEE

SFSE

SFSES

⋅⋅

⋅

,max

(2)

where the index i denotes the ordinal number of

the question,

E is the vector containing the

membership values of the evaluation and

SFS is

the j

standard fuzzy set, and “.” denotes the dot

product. Further on, the degree corresponding to the

SFS with maximum similarity will represent the

evaluation of the actual question.

After processing all the questions a total score is

determined by calculating the weighted average of

the representative values (midpoints) of the fuzzy

sets corresponding to the individual grades assigned

to the questions by

() ()()

100

∑

⋅

gPQT

(3)

where

()

100

∑

QT ,

(4)

where the index i denotes the ordinal number of

the question, n is the total number of questions,

is the question,

(

)

QT is the weight of the question,

g is the degree assigned to the question,

(

)

gP is

the representative value of the degree, and “.”

symbolizes the dot product.

The Generalized Fuzzy Evaluation Method

(GFEM) (Biswas, 1994) evaluates each answer from

four different points of view, namely the accuracy of

information, the adequate coverage, the conciseness,

and the clear expression. The arithmetic mean of the

midpoints of the fuzzy sets representing the four

grades assigned will represent the evaluation of the

given question expressed with marks between 0 and

100

()

∑

(5)

where k identifies the point of view. One

calculates the total score (TS) as a weighted average

of the individual marks

()()

100

∑

⋅

EQT

(6)

The applied weighting is the same as in the case

of FEM.

The advantage of FEM and GFEM is their easy-

to-understand and easy-to-implement character.

Their disadvantage is that they determine separate

grades for each question applying a rounding to the

most similar grade, which introduces an error in

each evaluation step. The error summarizes in

course of the evaluation of the answerscript and at

the end it can lead to a quite strange final result.

The use of the midpoints in the total score

calculation is a quasi defuzzification before the final

aggregation, which also can mislead the evaluation.

Besides, the relation between the SFSs and the

values of the midpoints is not defined clearly.

However, the SFS based concept can soften the

difference between the final scores given by

independent evaluators owing to the feature that

slightly differing evaluations can result in the same

grade.

2.2 CL and CLG

The CL method proposed by Chen and Lee (1999)

has several similar elements to FEM. However, they

use a slightly different terminology. The method

IJCCI 2009 - International Joint Conference on Computational Intelligence

defines a finer resolution of the scoring scale, which

is in this case the interval [0,1] by using eleven so

called satisfaction levels that are crisp similar to the

traditional grade based evaluation. Here one uses an

extended grade sheet for the evaluation’s

documentation, which contains for each question

eleven cells that have to be filled in by the evaluator

with values between 0 and 1. They describe in what

amount the answer given by the student belongs to

the predefined satisfaction levels. They can be

considered also as membership values. After filling

in the eleven cells of the current row a degree of

satisfaction

()

QD is calculated for the current

question

Q by

()

∑

⋅

jij

SLTy

(7)

where

y is the membership value assigned for

the j

satisfaction level

, and

(

)

SLT

is the

upper bound of the score interval corresponding to

Finally, the total score of the student is

calculated as a weighted average of the individual

degrees of satisfaction

()

∑

⋅=

QDsTS

(8)

where the weights have to satisfy the equation

100

∑

s .

(9)

Chen and Lee also published in (Chen & Lee,

1999) a generalized version of their method (CLG).

The applied approach is similar to GFEM; it uses the

same four criteria for evaluation of each question

from different points of view. Thus one calculates

four degrees of satisfaction for each question. The

overall mark

()

QP of the response is calculated as

a weighted average of the four degrees of

satisfaction

()

∑

⋅

kQDw

(10)

where

w is the weight of the k

criteria, and

(

)

kQD

, is the degree of satisfaction of the k

criteria. CLG determines the total score by

substituting

(

)

QP for

(

)

QD in (8).

The CL and CLG methods are in several ways

similar to the FEM-GFEM pair. They introduce

improvements by a finer resolution of the scoring

interval and by allowing the weighting of the four

criteria. These modifications increase the

computational need, however, this not a great

problem owing to the fact that the methods are

applicable in practice only when a software support

is ensured.

2.3 Evaluation Based on Fuzzy

Classification

Nolan (1998) reports the successful development,

implementation and application of a fuzzy rule based

model called Expert Fuzzy Classification System

(EFCS). EFCS was developed in order to support the

evaluation of fourth grade students’ writing samples

in case of narrative response exams. The system

supports a well defined rating process aiming the

reduction of the time needed for the evaluation as

well as making the results more consistent.

The underlying rule base was created using the

rules of the scoring guide applied in case of the

traditional way of evaluation. The antecedent parts

of the rules examine the existence of some skills like

character recognition, text understanding, etc., which

are represented by the input linguistic variables. The

rules infer the measure of skills like reading

comprehension, etc. that are represented by the

consequent linguistic variables. An example rule is

IF understanding is high

AND character-recognition is strong

THEN reading-comprehension is high.

The resolution of the scoring universe is not

high; the partitions usually consist of three fuzzy

sets. The membership functions were developed

based on the interval definitions given by a group of

expert teacher graders.

In course of the evaluation the rater assigns one

score for each dimension of the antecedent universe

of discourse (input linguistic variables) and the

system determines a final score using a Mamdani-

type (Mamdani & Assilian, 1975) inference

mechanism.

Although EFCS is an application specific system

its concept easily can be used for evaluation tasks

where there is available a clear defined rule system

FUZZY SET THEORY BASED STUDENT EVALUATION

(scoring guide) based on symbolic statements in the

antecedent and consequent parts of the rules.

The advantage of EFCS is that it achieved both

of the aims of its developer, namely the evaluation

time reduction and the increase of the consistence of

the grading given by different raters.

The drawback of EFCS is that it requires a

tedious preparation work. The original system

contained 200 rules and the participation of a group

of expert grader was necessary for the determination

of the fuzzy partitions.

3 FUZZY SET THEORY BASED

EVALUATION

This section reports the development of a fuzzy set

theory based evaluation model for student writing

exams. The first subsection will describe the

traditional approach applied in our institute. The

proposed fuzzy solution for this task and the

software based on it will be presented in the second

subsection.

3.1 The Traditional Approach

Although there is no standardized scoring guide in

our institute usually the rating of the assignments

with narrative responses happens as follows. The

total number of marks for an assignment or group of

consecutive assignments is 100. This number is

divided between the questions of the assignment(s).

Table 1: Relation between scores and grades.

Score intervals Grades

0 - 50

Unsatisfactory

51 - 60

Satisfactory

61 - 75

Average

76 - 85

Good

86 - 100

Excellent

Thus the lecturer that prepares the question sheet

assigns marks between 1 and 25 to each question,

viz. each sheet contains at least four questions.

Unlike the previously presented methods our

institute does not use explicit weight number set, the

significance of a question is expressed by the

number of marks a student can achieve in case of a

perfect response. The assignment of the actual

number of marks is based on the expertise of the

evaluator. At the end we calculate a total score

calculated by summarizing the individual scores

achieved in case of each question, and the final score

is mapped to a five-graded scale. The grades are

“unsatisfactory”, “satisfactory”, “average”, “good”,

and “excellent”. The mapping is standardized; the

score intervals corresponding to the grades are

presented in Table

1. They also can be described by

the crisp sets on Figure

100

unsatisfactory

satisfactory average good excellent

0 51617686100

Figure 1: Traditional grades represented as crisp fuzzy

sets.

3.2 Fuzzy Set Based Evaluation

In course of the development of the Fuzzy Set Based

Evaluation (FUSBE) method the following demands

were taken into consideration:

 Although computational complexity may not be

an issue owing to the capabilities of the

nowadays available computers, the method

should be as simple as possible in order to be

understandable for both the students and the

evaluators; all participants of the evaluation

process have to consider it as a fair deal;

 The method should enable for the evaluator to

express the vagueness in her or his opinion in

form of fuzzy sets in case of each question;

 In case of one-valued scoring (singleton fuzzy

sets) the model should lead to the same result

as the traditional approach.

In order to fulfil the above mentioned

requirements the application of fuzzy arithmetic as

score aggregation tool and the use of Centre Of Area

(Kóczy & Tikk, 2000) defuzzification method has

been selected.

Thus the evaluation process is the following. In

case of each question the evaluator determines the

fuzzy score by the means of a fuzzy number.

Theoretically from the rating model’s point of view

the set of applicable membership function types is

not limited as far as they fulfil the CNF (convex and

normal fuzzy set) criteria. However, like any other

fuzzy approach based evaluation model FUSBE is

practically applicable only when the calculations are

IJCCI 2009 - International Joint Conference on Computational Intelligence

done by a computer. Therefore the cardinality of the

selectable membership function types becomes an

implementation detail.

For now the piece wise linear membership

functions that can be described by a trapezoid (i.e.

trapezoid, square, rectangle, triangle, and singleton)

are supported by our program. Other fuzzy set shape

types like piece wise linear forms with more than

four vertices and non-linear forms like bell shaped,

sigmoid, Π, L-R, etc. will be included in future

versions of the software.

The input of the fuzzy scores does not require

any typing. The graphical user interface (GUI) is so

designed that the parameters of the fuzzy sets can be

set by the help of controls using the mouse. We

consider only CNF sets as fuzzy scores of a

question. All of the parameters have default values;

the evaluation starts with a trapezoid situated at the

middle of the scoring interval. In case of the

trapezoid shaped membership functions (Figure

one needs to specify at most four parameters that

define the position (a) of the set and the three width

values (b, c, and d). One modifies the default

parameters with trackbars using the mouse (Figure

3).

b c da

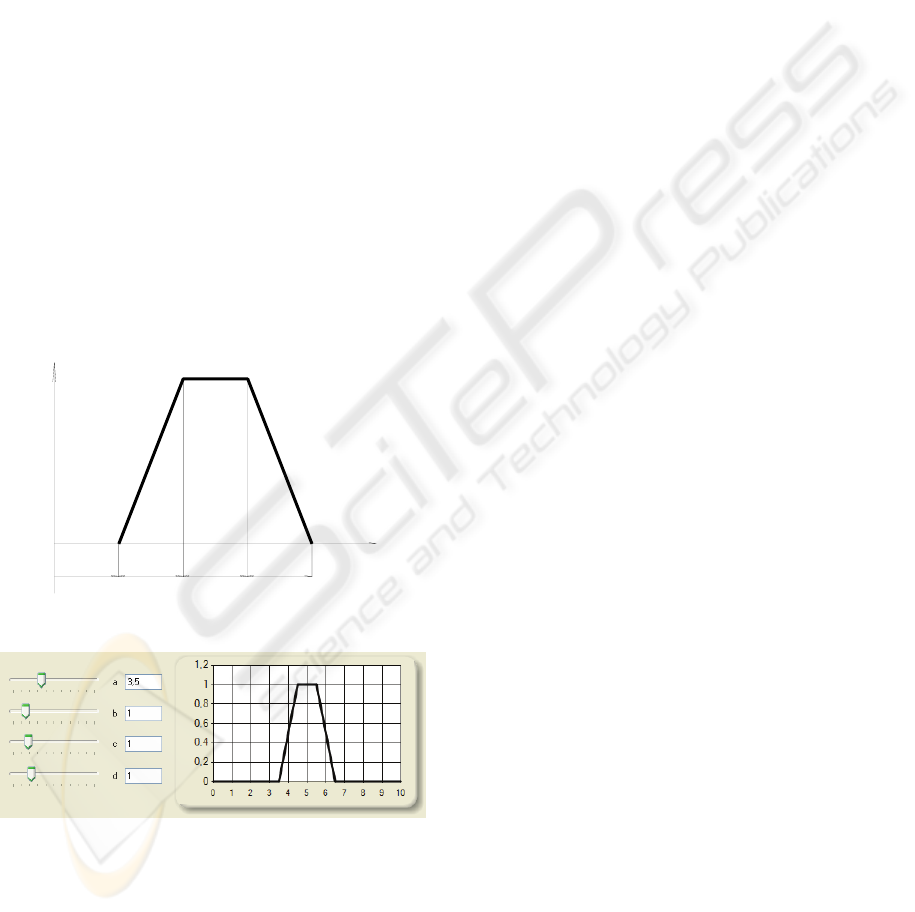

Figure 2: Parameters of a trapezoidal shaped fuzzy score.

Figure 3: Input of the fuzzy score.

The total fuzzy score is calculated as a sum of

the fuzzy scores given to the individual responses.

Conform to the theory of the fuzzy arithmetic it is

calculated α-cut wise, where an α-cut of a fuzzy set

is defined by

[

]

(

)(

]

{

}

1,0;| ∈≥∈=

ααμ

xXxA

(11)

Thus an α-cut of the total fuzzy score (

TFS )

will be

[] []

∑

FSTFS

(12)

where

n is the number of questions and

FS is

the fuzzy score of the

question. The calculations

are done by the help of the lower and upper

endpoints of the

α-cut

[

][]

{}

{

[]

{}}

,sup

,inf|

αα

TFSx

TFSxXxTFS

≤

≥∈=

(13)

where

[]

{}

[]

{}

FSTFS

∑

infinf ,

(14)

[]

{}

[]

{}

FSTFS

∑

supsup .

(15)

In the general case the resulting fuzzy set

determined as a union of its α-cuts by

[]

0+=

TFSTFS

(16)

requires a high number of α-cuts depending on

the demanded accuracy of the result. However, in

case of trapezoidal shaped membership functions

one can simplify the calculations by using the two

relevant

{

}

1,0

α levels.

Owing to the fact that we have been bound to the

total score – grades mapping presented in section 3.1

one has to defuzzify the TFS. FUSBE uses Center

Of Area (Kóczy & Tikk, 2000) type defuzzification

for this task. Thus the method fulfils all the demands

set at the beginning of the section.

4 CONCLUSIONS

The evaluation of the students’ performance in cases

when the process cannot be fully automated contains

and will always contain subjective elements that can

lead to different scorings depending on the

evaluator, on the time of the evaluation, and on other

known or unknown factors.

FUZZY SET THEORY BASED STUDENT EVALUATION

Recently several computational intelligence

based methods have been published in order to deal

with this subjectivism or to reduce its negative

effects. Three of them are presented and examined

shortly in the first part of the paper. The second part

of the paper introduces a new approach that also

possesses a software support.

The method FUSBE is simple, easy-to-

understand, and fulfils the conditions demanded on

this kind of evaluation approaches. Conform our

experience it is accepted by both concerned parties

the students and the teachers.

Further research plans cover the development

and implementation of a student evaluation method

based on fuzzy inference (Kovács, 2006)(Hladek et

al., 2008) including the automatic fuzzy model

identification (Botzheim et al., 2001)(Gál & Kóczy,

2008) (Precup et al., 2008) as well.

ACKNOWLEDGEMENTS

This research was supported by the National

Scientific Research Fund Grant OTKA K77809 and

the Kecskemét College, GAMF Faculty Grant

1KU16.

REFERENCES

Biswas, R. (1995). An application of fuzzy sets in

students’ evaluation. Fuzzy Sets and System, 74(2),

187–194.

Botzheim, J., Hámori, B., & Kóczy, L.T. (2001).

Extracting trapezoidal membership functions of a

fuzzy rule system by bacterial algorithm, 7th Fuzzy

Days, Dortmund 2001, Springer-Verlag, 218-227.

Chen, S. M., & Lee, C. H. (1999). New methods for

students’ evaluating using fuzzy sets. Fuzzy Sets and

Systems, 104(2), 209–218.

Gál, L., & Kóczy, L.T. (2008). Advanced Bacterial

Memetic Algorithms, Acta Technica Jaurinensis,

Series Intelligentia Computatorica, Vol. 1. No. 3.,

225-243.

Hládek, D., Vaščák, J., & Sinčák, P. (2008). Hierarchical

fuzzy inference system for robotic pursuit evasion

task, in Proc. of the 6th International Symposium on

Applied Machine Intelligence and Informatics (SAMI

2008), January 21-22, Herľany, Slovakia, 273-277.

Kóczy, L. T. & Tikk, D. (2000). Fuzzy rendszerek,

Typotex Kft., Budapest.

Kovács, Sz. (2006). Extending the Fuzzy Rule

Interpolation "FIVE" by Fuzzy Observation, Advances

in Soft Computing, Computational Intelligence,

Theory and Applications, Bernd Reusch (Ed.), S

pringer Germany, 485-497.

Mamdani, E. H. & Assilian, S. (1975). An experiment in

linguistic synthesis with a fuzzy logic controller.

International Journal of Man Machine Studies, Vol. 7,

1-13.

Nolan, J. R. (1998). An expert fuzzy classification system

for supporting the grading of student writing samples.

Expert Systems With Applications, 15, 59-68.

Precup, R.E., Preitl S., Tar, J. K. , Tomescu, M. L.,

Takács, M., Korondi, P. Baranyi, P. (2008). Fuzzy

control system performance enhancement by Iterative

Learning Control. IEEE Transactions on Industrial

Electronics, vol. 55, no. 9, 3461-3475.

IJCCI 2009 - International Joint Conference on Computational Intelligence
