COMBINING TEMPORAL AND FREQUENCY BASED
PREDICTION FOR EEG SIGNALS
Padma Polash Paul, Howard Leung
Department of Computer Science, City University of Hong Kong, 83 Tat Chee Ave., Kowloon, Hong Kong
David A. Peterson
1
, Terrence J. Sejnowski
1,2
, Howard Poizner
1
Institute for Neural Computation, University of California, San Diego, U.S.A.
1
The Computational Neurobiology Lab, The Salk Institute, La Jolla, U.S.A.
2
Keywords: Electroencephalography, Temporal based Prediction, Frequency based Prediction, Artificial Neural
Network.
Abstract: This paper presents a novel approach for electroencephalogram (EEG) signal prediction. It combines
temporal and frequency based prediction to achieve a good final prediction result. Artificial neural networks
are used as the predictive model for signals both in the temporal and frequency domain. In frequency based
prediction, the amplitude and the phase of the frequency response are predicted separately. Experiments
were conducted on the prediction of EEG data recorded from 13 subjects. Eight performance measures were
used to evaluate the performance of our proposed method. Experiment results show that the proposed
combined prediction method gives the overall best performance compared with the temporal based
prediction alone and the frequency based prediction alone.
1 INTRODUCTION
Time series prediction problem has wide range of
research interest due to its diverse potential
applications such as electroencephalogram (EEG)
signal analysis, financial data prediction, and
environmental monitoring. To measure brain
activity, non-invasive EEG is one of the most
important bio-signals and many researchers are
working on EEG signal prediction.
Researchers have used time series prediction
methods to check the linearity of EEG signals. They
found that nonlinear properties are present in EEG
signals and that some data are not predictable using
linear stochastic system (Robert A. Stêpieñ, 2002). It
was found that EEG recordings from subjects with
schizophrenia contain some degree of determinism
(low order chaotic), but are not completely
deterministic and contain properties of nonlinearity
(Ying-Jie Li, 2005). The linear EEG model cannot
perfectly describe the spontaneous EEG that
displays nonlinear phenomena (Ou Bai, 2000).
Time series prediction methods were also
applied to find the occurrence of seizures from the
EEG of epilepsy patients (Florian Mormann, 2007).
EEG time series prediction also has been used to
extract features for motor imagery task classification
in Brain Computer Interfaces (Stefan Cososchi,
2006). EEG time series prediction pre-processing
shows better performance compared with Common
Spatial Pattern (Damien Coyle, 2008). From
previous research, it is clear that EEG time series
prediction has a high impact on medical and
engineering applications.
Different algorithms for EEG signal prediction
have been proposed to enhance the predictive
model’s convergence performance in the time
domain, such as Least Square Support Vector
Machine (LS-SVM), Support Vector Regression
(SVR), Neuro-Fuzzy System, recurrent or time delay
network, and feature selection methods such as
mutual information based feature selection.
(Nicholas I., 2009) Researchers also combine
Principal Component Analysis (PCA) (Paul Cristea,
2008), Kernel PCA and SVM (Qisong Chen, 2008),
Independent Component Analysis (ICA) (Juan M.
Gorriz, 2003), for feature selection purpose in the
time domain. Future EEG signal prediction is
29
Polash Paul P., Leung H., A. Peterson D., J. Sejnowski T. and Poizner H. (2010).
COMBINING TEMPORAL AND FREQUENCY BASED PREDICTION FOR EEG SIGNALS.
In Proceedings of the Third International Conference on Bio-inspired Systems and Signal Processing, pages 29-36
DOI: 10.5220/0002696800290036
Copyright
c
SciTePress
necessary to predict the future brain activity in
which users may have different stages of intention.
In this work, the EEG to be predicted is recorded
during a time in which tasks conditions are
changing. At some points in time, subjects
are responding to rewards or making decisions,
making movements, or doing none of these things.
To predict the EEG would be related to what task
conditions the subject was performing at particular
points in the prediction interval.
For nonlinear time series prediction, the future
to some extent may be predicted, but the accuracy of
the non-linear forecast falls off with increasing
intervals of prediction time for uncorrelated noise
(K.J. Blinowska, 1991). On the other hand, the EEG
reflects thousands of simultaneous ongoing brain
processes. The brain’s response to a single stimulus
or event of interest is not usually visible in the EEG
recording of a single trial. To see the brain response
to the stimulus, many trials are typically averaged
(Coles, 1996).
We propose a method for EEG signal prediction
that combines temporal and frequency based
prediction. In our problem, a segment of future EEG
signals is predicted given some known values of the
EEG signal in the past. Using only time domain
data, prediction causes high prediction error for
noise and for the model error. On the other hand,
brain activities such as internal and external
cognitive processing have great impact on particular
frequency bands. This provides good motivation to
perform the prediction in the frequency domain. The
prediction from the temporal domain and the one
from the frequency domain are combined by
considering their performance in the training data.
The remainder of the paper is organized as
follows. The proposed method is described in
Section 2. Experiments and results are provided in
Section 3. The conclusions and future work are
stated in Section 4.
2 PROPOSED METHOD
2.1 Input Data Representation
Time series prediction is a well known problem for
forecasting future value. One-step-ahead time series
prediction can be presented by Equation (1):
),(
21
yyyy
Ltttt
f
= "
(1)
where y
t
is predicted based on the past L values in
the time series.
For future brain activity or event prediction
segments of multiple time samples are predicted. As
illustrated in Figure 1, the time segment Y
M
containing M sample points is predicted based on N
sample points in the past.
Figure 1: A time segment with M sample points to be
predicted from N known sample points.
2.2 Overview of the Proposed System
Figure 2 presents a block diagram of the prediction
process. After preprocessing, the EEG data are
divided into training, validation and test sets. The
trained predictor is then validated using the
validation data set. Different predictors are trained
for the temporal based prediction and the frequency
based prediction separately. The resulting
predictions are then combined using weights that
optimize the results in the training data. Based on
the validation performance, a set of weights is
selected and used to generate the final result in the
testing process.

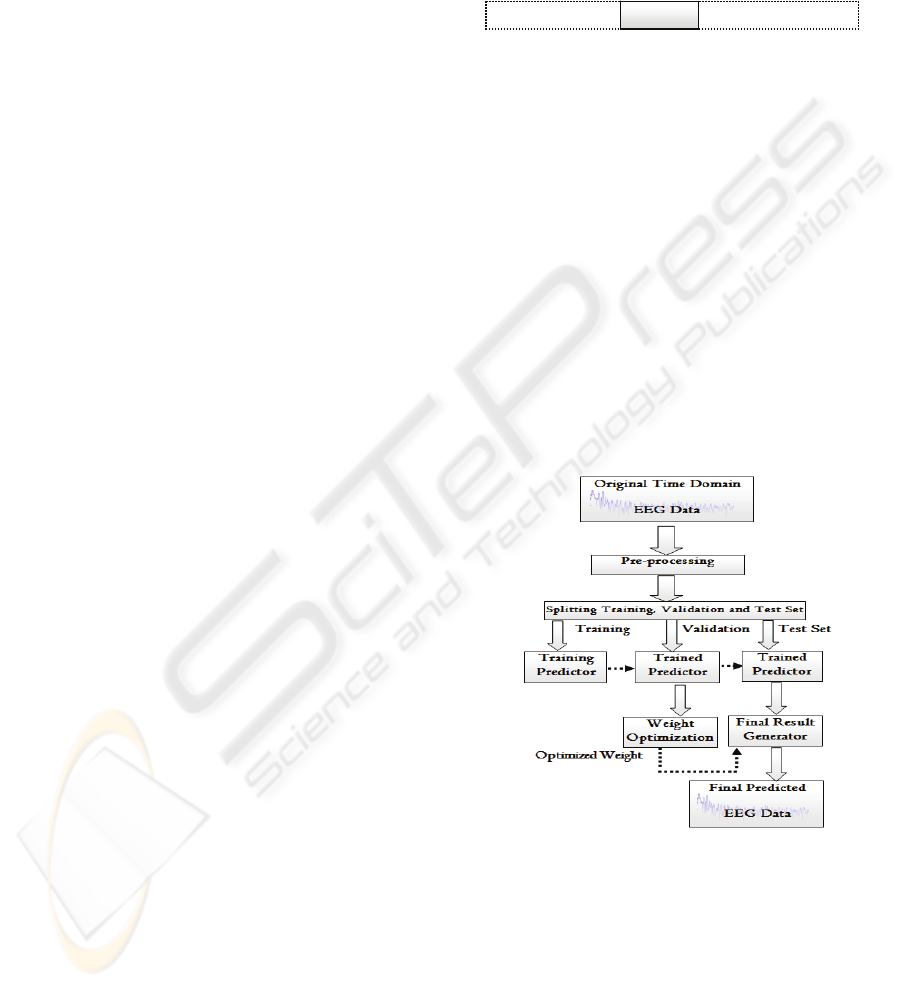

Figure 2: Block diagram of the prediction system.
The following sections explain each of the
system modules in more detail.
2.3 Pre-processing
The raw EEG data are normalized by rescaling the
signal to the range [0,1] to meet the high
convergence in the neural network based training
Y
M
1 2 3 .... N N+1 ... N+M N+1+M ...
y
1
y
2
... ... ... y
M
BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing
30
process. This pre-processing step is illustrated by
Equation (2):
minmax
min
yy
yy
t
t
Y
=
(2)
2.4 Proposed Prediction Algorithm
Figure 3 shows the workflow of our proposed
prediction algorithm. Our proposed prediction
algorithm is divided into two main steps. In the first
step, the temporal domain data and its corresponding
frequency domain data are predicted separately. In
the frequency based prediction, Fast Fourier
Transformation is used to convert the time signal
into the frequency domain. From the frequency
response data, the amplitude and the phase are
computed. Two neural networks are built to predict
the amplitude and the phase separately. In Figure 3,
these predictors are shown in two blocks named
Amplitude Predictor and Phase Predictor. The
predicted frequency response data are reconstructed
using the predicted amplitude and the predicted
phase as shown in Equation (3).
)(
)()(
tphasei
etamplitudetf
×
×=
(3)
Inverse Fast Fourier Transformation is applied to get
the frequency based predicted data in time domain.
In the second step, the temporal and frequency
based predicted data are combined by using weights
obtained from the analysis of the prediction error for
each frequency band of each predicted signal during
the validation process.

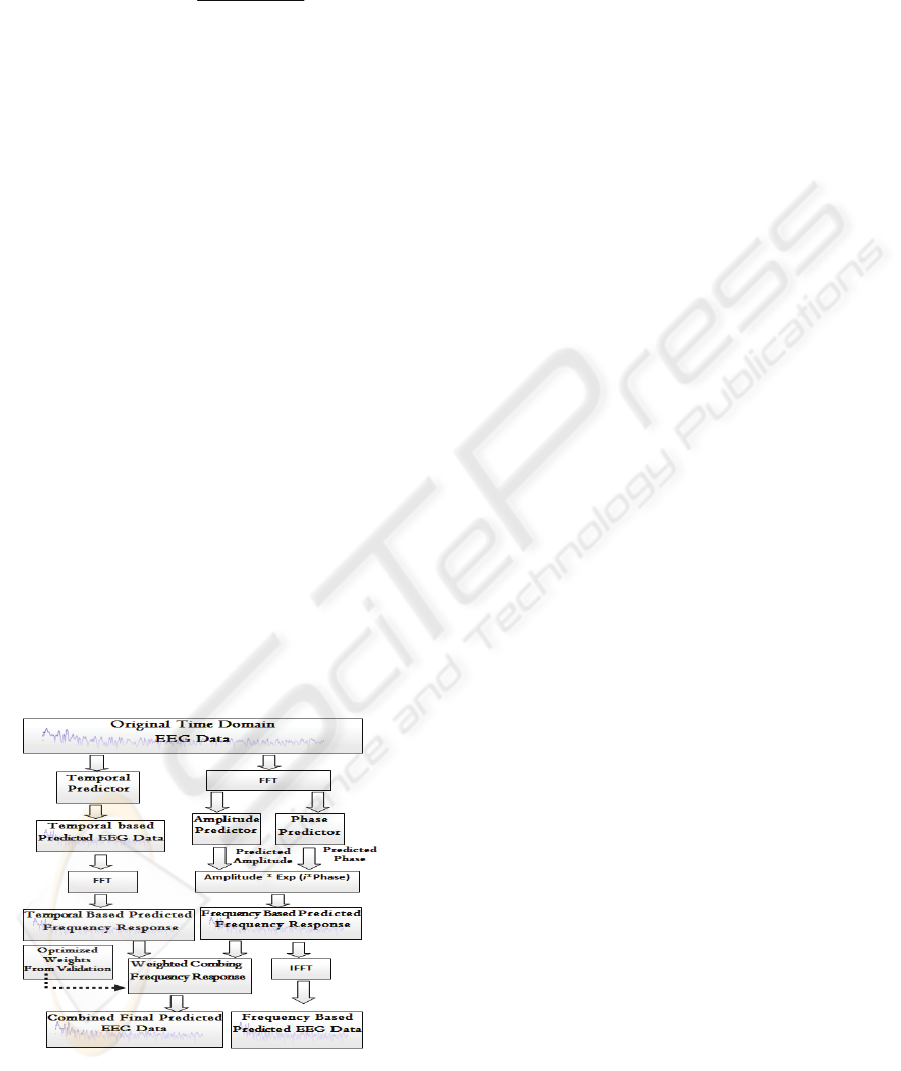

Figure 3: Workflow of the proposed prediction algorithm.
2.5 Predictive Model
The Neural Network parameters are obtained using a
two fold cross validation process. For the temporal
and frequency based predictions, gradient descent
with momentum and adaptive learning rate back-
propagation is used. Parameters are optimized
separately to get the best performance in each
domain. Learning rate in the range 0.01-0.03 and
momentum of 0.3-0.9 gives better performance.
Iteration range is 2000-2500 to train the predictor. A
three layered back-propagation neural network is
used for the system. The number of the input and
output nodes are equal to the known segment length
and predicted segment length respectively. The
number of hidden nodes is optimized both in
temporal and frequency domain. The number
optimized hidden nodes are in the range of 36-120.
Log-sigmoid functions are used as transformation
function.
Our proposed prediction algorithm is a general
framework and it can work regardless of the
predictive model to be applied. The proposed
method is checked with the gradient decent learning
without momentum and the overall performance is
lower than the case of gradient decent with
momentum. The neural network parameters such as
the value of momentum and transformation function
are varied and it is found that the performance is
very similar with negligible difference.
2.6 Weighted Combining
From the predicted results of the temporal and
frequency domains, the weights are optimized from
the validation set. There are two possible ways to
combine the temporal and frequency based predicted
data: 1) in frequency domain and 2) in time domain.
Combining in the frequency domain has the
advantage of being able to put more emphasis in a
particular frequency band if the corresponding
prediction signal is shown to be more accurate. Next
we will show how we calculate the weights.
Figure 4 illustrates the process for computing the
weights used to combine the temporal-based
predicted frequency response and the frequency-
based predicted frequency response. Each frequency
response is divided into n frequency bands. The
frequency bands FRt
1
,FRt
2
,
......
,FRt
n
represent the
frequency response of the signal predicted in the
temporal domain. The frequency bands
FRf
1
,FRf
2
,
......
,FRf
n
represent the frequency response
of the signal predicted in the frequency domain.
With the validation set, the ground truth frequency
COMBINING TEMPORAL AND FREQUENCY BASED PREDICTION FOR EEG SIGNALS
31
response FRg
1
,FRg
2
,
......
,FRg
n
of the actual signal is
known. During the validation, this ground truth
information is compared with the prediction from
the temporal domain and the prediction from the
frequency domain at each frequency band.

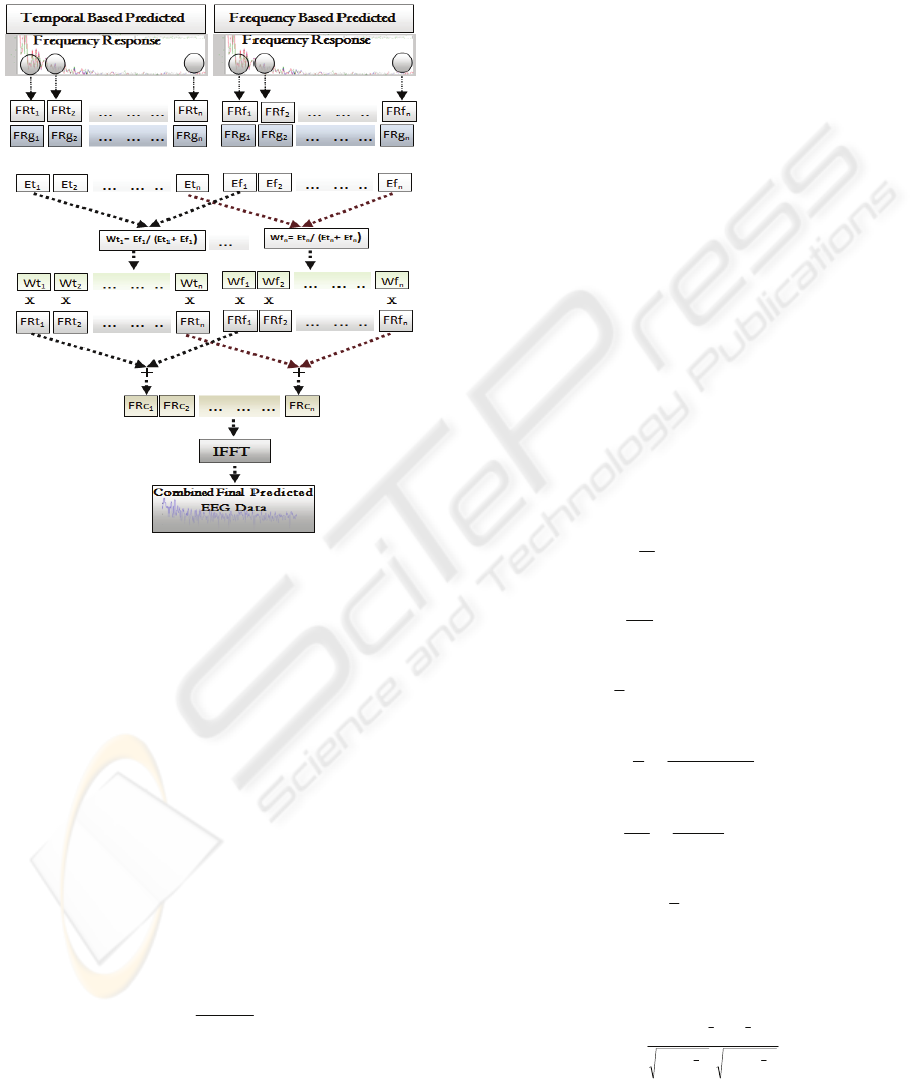

Figure 4: Weight calculation and the combining process of
predicted frequency response data.
Errors are then computed in order to determine
how good the prediction is in each domain. The
error E
ti
denotes the error between the i-th frequency
band of the temporal based predicted frequency
response and that of the ground truth frequency
response. Similarly, the error E
fi
denotes the error
between the i-th frequency band of the frequency
based predicted frequency response and that of the
ground truth frequency response. The smaller the
error is, the better the corresponding prediction is.
The weights for combining the temporal based
predicted frequency response and the frequency
based predicted frequency response for the i-th
frequency band are denoted by W
ti
and W
fi
respectively. These weights are calculated by
Equations (4) and (5):
fiti
fi
ti
EE
E
W
+
=
(4)
tifi
WW
=1
(5)
It can be seen from Equations (4) and (5) that if
the error for a particular prediction method is small
at a frequency band, then the corresponding weight
will be set to be higher. For example, if temporal
based prediction yields a small error E
ti
, then this
means that the error from the frequency based
prediction E
fi
is relatively larger. From Equations (4)
and (5), it can be observed that the weight W
ti
will
become larger than the W
fi
thus putting more
emphasis on the temporal based prediction.
After calculating the weights, the corresponding
frequency bands are then multiplied and added to get
the combine frequency band FRc
1
,FRc
2
,
......
,FRc
n
.
Inverse Fourier Transformation is used to transform
the combined response back to the time domain
signal.
2.7 Performance Measures
Eight different performance measures are used to
check the system performance. These performance
measures are defined by Equations (6)-(13). For the
first five measures MSE, NMSE, MAE, NMAE,
MAPE, the larger the values are, the worse the
performance is. For the last three measures SNR,
PSNR, CCORR, the larger the values are, the better
the performance is.
Mean Square Error (MSE)
2
1
ˆ
1
)y(y
n
MSE
i
n
i
i
=
=
(6)
Normalized Mean Square Error (NMSE)
2
1
2
ˆ
1
)y(y
nσ
NMSE
i
n
i
i
=
=
(7)
Mean Absolute Error (MAE)
|
ˆ
1
1
i
n
i
i
y|y
n
MAE =
=
(8)
Normalized Mean Absolute Error (NMAE)
=
=
n
i
ii
)y(y
|y|y
n
NMAE
1
minmax
ˆ
1
(9)
Mean Absolute Percentage Error (MAPE)
=
=
n
i
i
ii
||y
|y|y
n
MAPE
1
ˆ
100
(10)
Signal-to-Noise Ratio (SNR)
/MSE)y
n
(SNR
n
i
i
=
=
1
2
10
1
log10
(11)
Peak Signal-to-Noise Ratio (PSNR)
/MSE)
peak
(yPSNR
2
10
log10=
(12)
Cross Correlation (CCORR)
=
==
=
×
×
n
i
i
n
i
i
n
i
ii
)y(y)x(x
)y(y)x(x
CCORR
1
2
1
2
1
(13)
BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing
32
2.8 Effect of Weight on Performance
We examine how the performance is affected by the
number of frequency bands n considered. Figure 5
shows the effect of number of frequency bands on
the performance with different error measures. From
the analysis of the results, we found that for all
performance measures if the number of frequency
bands increases then the performance also increases.

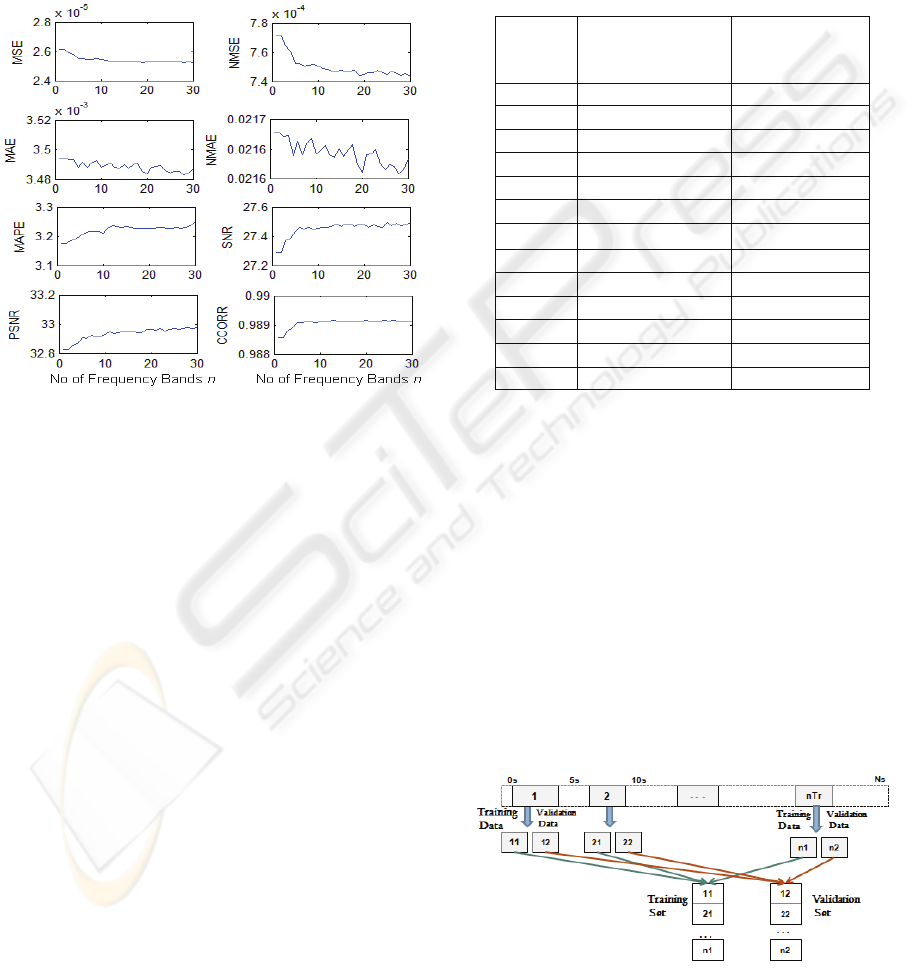

Figure 5: Performance with different number of frequency
bands n.
3 EXPERIMENT AND RESULTS
3.1 Data Acquisition
The EEG signals were collected with a Biosemi
EEG system with 10/20 international standard
(http://www.biosemi.com) from a total of 13 young
adult subjects. The sampling frequency (f
s
) was
512Hz. The behavioural task was an instrumental
reward-based learning task adapted for humans
(Peterson et al., 2009), based on a primate study
designed to examine the firing rates of dopamine
cells during decision making (Morris et al., 2006).
The task is a modification of the classic two-armed
bandit (Robbins, 1952). Subjects were presented
with a series of trials in which they chose abstract
visual images with a possibility of accruing a small
reward on each trial. The task consists of two phases
of 256 trials of reference and decision. Subjects were
first given a brief practice session, with eight
reference and four decision trials. The practice
stimuli were four simple geometric shapes that were
different from any of the stimuli used in the actual
experiment. There were no feedback signals or
rewards in this practice session in order to avoid
teaching any associations prior to the actual
experiment. Table 1 shows the number of sample
points as well as the total time in second in which
the EEG signal for each of the 13 subjects is
recorded.
Table 1: Number of sample points and time in EEG
recoding for the subjects.
Subject Number of
Sample Points
(f
s
=512Hz)
Time (second)
1 1285120 2510
2 1126400 2200
3 949760 1855
4 1172480 2290
5 1246720 2435
6 1141760 2230
7
1077760 2105
8 1100800 2150
9 1226240 2395
10 1044480 2040
11 1231360 2405
12 1044480 2040
13 1008640 1970
3.2 Data Preparation
The data for each subject are segmented into
different sections as shown in Figure 6. Each section
is further divided into two equal subsections, one
used for training and the other used for validation
purpose.
The unused portions of the data shown in Figure
6 are used to for testing. Figure 7 illusrates the test
set generation for a subject.
After splitting the data for a subject, the training sets
are processed for input into the predictive model
(Neural Network in our case). Based on the N
known sample points, M sample points are to be
predicted.
Figure 6: Training and validation set spliting for a subject.
COMBINING TEMPORAL AND FREQUENCY BASED PREDICTION FOR EEG SIGNALS
33

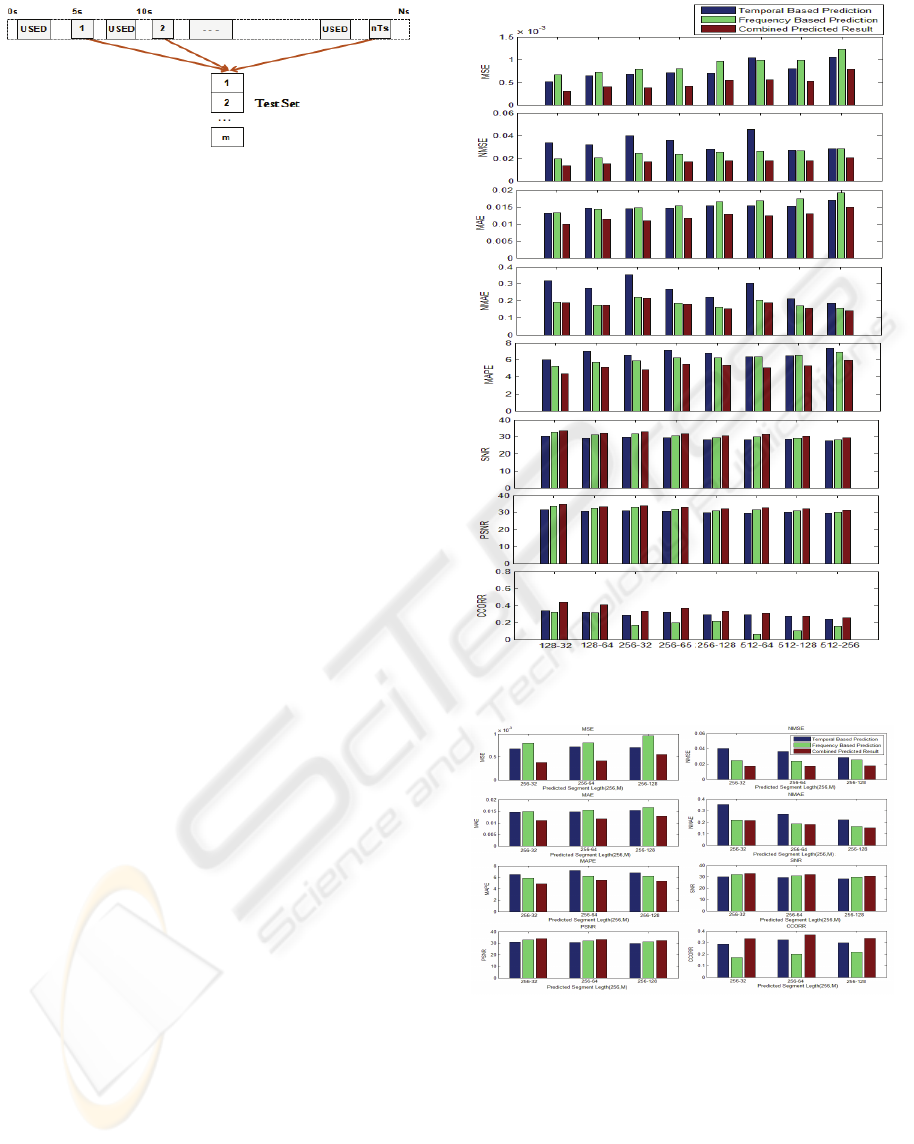

Figure 7: Test set genaration for a subject.
Eight different pairs of parameters (N, M) are
used to check the performance of the proposed
method: (128, 32), (128, 64), (256, 32), (256, 64),
(256, 128), (512, 64), (512, 128), (512, 256).
3.3 Results
The performance averaged over all subjects with
different values of (N, M) using our proposed
method is shown in Figure 8. Temporal based
prediction performance is better than the frequency
based prediction for MSE, MAE, SNR and CCORR.
On the other hand, frequency based prediction gives
better performance for NMSE, NMAE, MAPE, and
PSNR. It can be seen from Figure 8 that the case
with N=128 and M=32 gives the best average result.
It can also be observed that the performance
degrades when the number of samples to be
predicted becomes larger, i.e., when M is larger. An

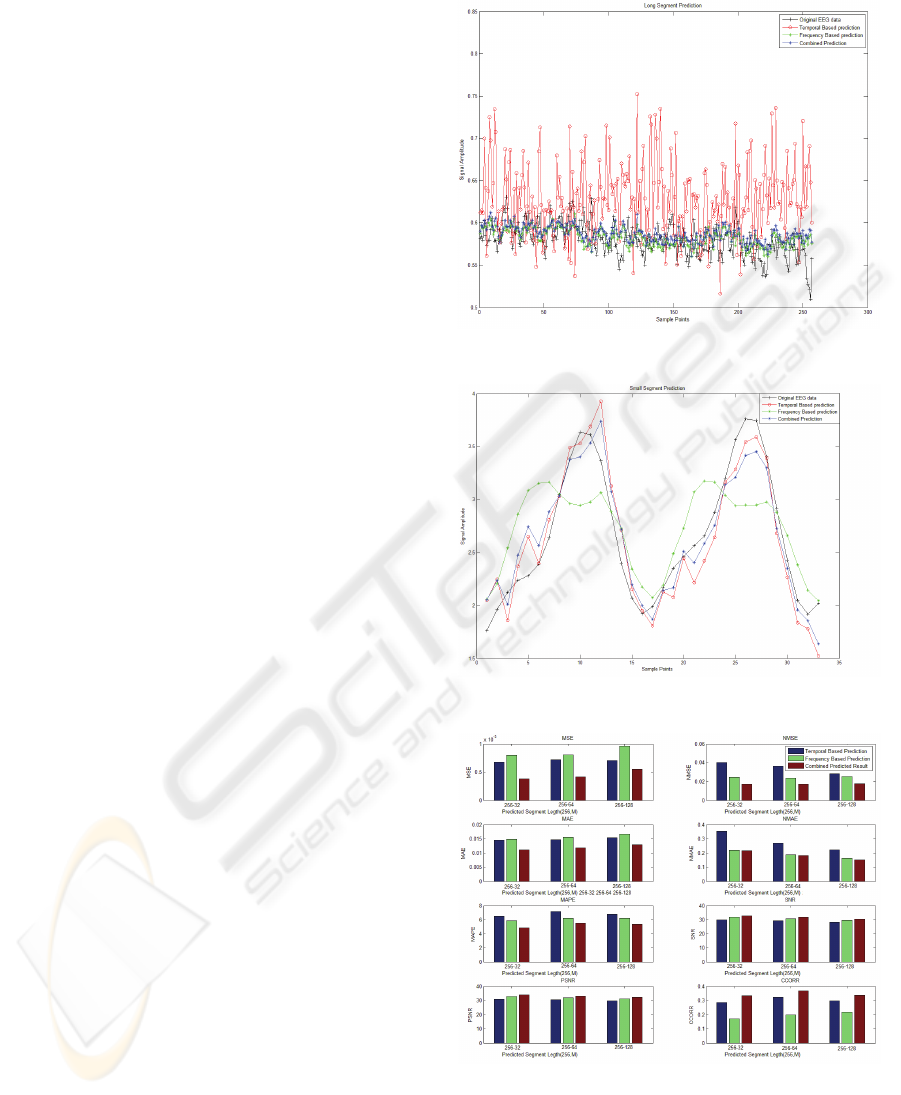

example prediction with a large value of M=256 is
shown in Figure 11 (Appendix). Another example
prediction with a small value of M=32 is shown in
Figure 12 (Appendix).
Figure 9 compares the performance with
different values of M (M=32, 64, 128) at a fixed
value of N=256. From the analysis of the results, we
found that for long segments, frequency based
prediction gives better performance than temporal
based prediction. For example, with the measures
NMSE, NMAE and CCORR, frequency based
prediction gives better performance with N=256 and
M=128. With the measures MSE and MAE,
temporal based prediction gives better performance
in this case. The other three measures SNR, PSNR
and MAPE give similar performance in both
temporal and frequency based prediction. Similar
results are found from the analysis of the cases
(N=512 and M=64, 128, 256) shown in Figure 13
(Appendix).
Figure 10 shows the performance averaged
among all subjects and among all the 8 parameter
pairs of (N, M).
Figure 8: Performance averaged among all subjects under
different values of N-M shown in the x-axis.
Figure 9: Performance comparison for different values of
M at a fixed value of N=256.
It can be observed from Figure 10 that the
performance of proposed combined prediction
approach is better than the performance with the
temporal based prediction or the frequency based
prediction alone with all the 8 measures. Frequency
based prediction gives better performance than
temporal based prediction for the performance
measures NMSE, MAPE, NMAE, SNR and PSNR.
BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing
34

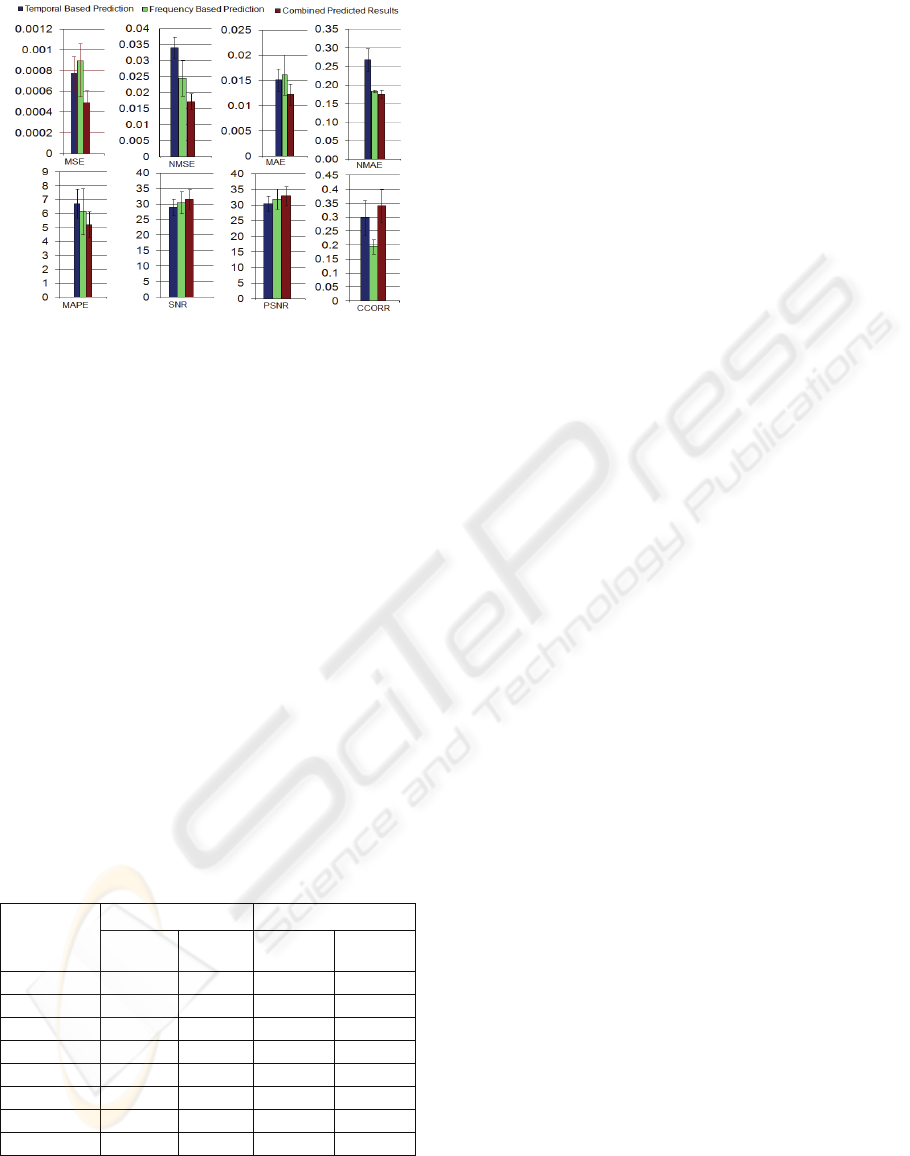

Figure 10: Performance averaged over all subjects and all
parameter pairs (N, M).
For the other three measures MSE, MAE and
CCORR, temporal based prediction gives better
performance than frequency based prediction.
3.4 Statistical Test
The t-tests (one tailed and paired) were performed to
test the statistical significance of the final results of
the eight different performance measures. We tested
the significance of differences between S
td
-S
cd
and
S
fd
-S
cd
pairs, where S
td
, S
fd
and S
cd
are performance
of all subjects in temporal, frequency and combined
domain based prediction results, respectively. The
differences in test scores had approximately normal
distributions. A significance level of α=0.1 was
used. Table 2 shows the t-values and p-values for
different performance measures. We have accepted
most of the measures, because in most of the cases
p<0.1. Subscript of error measures R and L
represent right and left tailed test respectively.
Table 2: Statistical t-Test Result.
Error
Measure
t-Value
(df=12)
p-Values
S
td
-S
cd
S
fd
-S
cd
S
td
-S
cd
S
fd
-S
cd
MSE
R
3.037
1.502 0.0052 0.0794
NMSE
R
5.003
1.662 0.0002 0.0611
MAE
R
6.003
1.647 0.0000 0.0628
NMAE
R
4.191
0.629 0.0006 0.2706
MAPE
R
4.611
0.935 0.0003 0.1841
SNR
L
4.429
1.612 0.0004 0.0665
PSNR
L
4.427
1.612 0.0004 0.0665
CCORR
L
3.103
3.422 0.0046 0.0025
4 CONCLUSIONS AND FUTURE
WORK
In this paper, we propose a method for predicting
time series data. Our approach works by combining
temporal based prediction and frequency based
prediction. We apply our proposed method to the
prediction of EEG signals recorded from 13
subjects. From the experiments, it is found that
frequency based prediction gives better performance
than the temporal prediction and that the combined
final result gives the best performance. In our
experiments, eight different performance measures
were used to evaluate the performance since
different performance measure may be preferred in
different applications.
In future studies, we will apply the system to
predict future brain activity, future user intention for
decision-making and arm movements in an
instrumental reward-based learning task. We will
also use different methods of signal decomposition
to acheive better prediction performance.
ACKNOWLEDGEMENTS
The work described in this paper was fully
supported by a grant from the Research Grants
Councils of the Hong Kong Special Administration
Region, China (Project No. CityU 1165/09E), and
by NSF grant #SBE-0542013 to the Temporal
Dynamics of Learning Center, an NSF Science of
Learning Center.
REFERENCES
Peterson, D.A.,
,
Elliott, C., Song, D.D., Makeig, S.,
Sejnowski, T.J., Poizner, H. Probabilistic reversal
learning is impaired in Parkinson’s disease,
Neuroscience, July 20, 2009 [E-pub ahead of print].
G., Morris, Alon N., David A., E., Vaadia1, H.,
Bergman, 2006. Midbrain dopamine neurons encode
decisions for future action. Nature Neuroscience.
Volume 9.
H. Robbins, 1952. Some aspects of the sequential design
of experiments. Bulletin of the American
Mathematical Society.
Robert A. Stêpieñ, 2002. Testing for non-linearity in EEG
signal of healthy subjects. Acta Neurobiol. Exp.
Ying-Jie Li, Yi-Sheng Zhu, and Fei-Yan Fan, 2005.
Detecting the Determinism of EEG Time Series Using
a Nonlinear Forecasting Method. IEEE Engineering in
Medicine and Biology 27th Annual Conference.
Shanghai, China.
COMBINING TEMPORAL AND FREQUENCY BASED PREDICTION FOR EEG SIGNALS
35
Florian Mormann, Ralph G. Andrzejak, Christian E. Elger
and Klaus Lehnertz, 2007. Seizure prediction: the long
and winding road. Brain, Published by Oxford
University Press on behalf of the Guarantors of Brain.
Damien Coyle1, Girijesh Prasad2 and Thomas M.
McGinnity, 2004. Extracting Features for a Brain-
Computer Interface by Self-Organising Fuzzy Neural
Network-based Time Series Prediction. Proceedings of
the 26th Annual International Conference of the IEEE
EMBS San Francisco, CA, USA.
Damien Coyle, Abdul Satti, Girijes Prasad, Thomas M.
McGinnity, 2008. Neural Time-Series Prediction Pre-
processing Meets Common Spatial Patterns in Brain-
Computer Interface. 30
th
Annual International
Conference Vancouver, British Columbia, Canada, pp.
2626-2629.
Nicholas I., Sapankevych, 2009. Time Series Prediction
Using Support Vector Machines: A Survey. IEEE
Computational Intelligence Magazine. pp.25-38
Paul Cristea, V., mladenov, G., Tsenov, Rodica T.,
Simona P., 2008. Application of neural network, PCA
and feature extraction for prediction of nucleotide
sequence by using genomic signals. 9
th
Symposium on
Neural Network Application in Electrical Engineering,
NEURAL-2008.
Qisong Chen, Xiaowei Chen, Yun Wu, 2008. The
Combining Kernel Principal Component Analysis with
Support Vector Machine for Time Series Prediction
Model. 2
nd
International Symposium of Inteligent
Information Technology. pp. 90-94
K.J. Blinowska and M. Malinowski, 1991. Non-linear and
linear forecasting of the EEG time series. Biological
Cybernetics, Springer-Vcrlag.
Coles, Michael G.H., Michael D. Rugg, 1996. "Event-
related brain potentials: an introduction".
Electrophysiology of Mind. Oxford Scholarship Online
Monographs.
http://www.biosemi.com
Ou Bai, M., Nakamura, Akio Ikeda, Hiroshi Shibasaki,
2000. Nonlinear Markov Process Amplitude EEG
Model for Nonlinear Coupling Interaction of
Spontaneous EEG. IEEE Transaction on Biomedicine
Engineering, VOL. 47, NO. 9.
J.M.Gorriz, C.G.Puntonet, M. Salmeron, E.W. Lang, Time
series prediction using ICA algorithms", Proceedings
of the Second IEEE International Workshop on
Intelligent Data Acquisition and Advanced Computing
Systems: Technology and Applications, pp. 226-230,
2003
APPENDIX
Figure 11: Prediction result of a longer segment (M=256) .
Figure 12: Prediction result of a shorter segment (M=32) .
Figure 13: Performance comparison for different values of
M at a fixed value of N=512.
BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing
36
