DETECTION OF DISTRIBUTED ATTACKS IN MOBILE

AD-HOC NETWORKS USING SELF-ORGANIZING TEMPORAL

NEURAL NETWORKS

James Cannady

Graduate School of Computer and Information Sciences, Nova Southeastern University, Fort Lauderdale, FL, U.S.A.

Keywords: MANET, Intrusion detection, Self-organizing map, Learning vector quantization.

Abstract: Mobile ad hoc networks continue to be a difficult environment for effective intrusion detection. In an effort

to achieve reliable distributed attack detection in a resource-efficient manner a self-organizing neural

network-based intrusion detection system was developed. The approach, Distributed Self-organizing

Intrusion Response (DISIR), enables real-time detection in a decentralized manner that demonstrates a

distributed analysis functionality which facilitates the detection of complex attacks against MANETs. The

results of the evaluation of the approach and a discussion of additional areas of research is presented.

1 INTRODUCTION

Because of the increasing dependence which

companies and government agencies have on their

computer networks the importance of protecting

these systems from attack is critical. A single

intrusion of a computer network can result in the

loss, unauthorized utilization, or modification of

large amounts of data and cause users to question

the reliability of all of the information on the

network. There are numerous methods of

responding to a network intrusion, but they all

require the accurate and timely identification of the

attack. The individual creativity of attackers, the

wide range of computer hardware and operating

systems, and the ever-changing nature of the overall

threat to targeted systems have contributed to the

difficulty in effectively identifying intrusions.

Intrusion detection has been an active area of

research for the last twenty years. However,

advances in information technology, especially in

the use of wireless systems, and the increasing

variety of vulnerable software applications have

made the accurate and timely detection of network-

based attacks a critical, but elusive goal.

This paper describes a research effort that

focused on the development of an effective intrusion

detection capability for Mobile Ad Hoc Networks

(MANET). MANETs are peer-to-peer wireless

networks that rely upon the presence of other

network nodes in a limited geographical proximity

to communicate in an ad hoc manner. Unlike other

wireless network architectures a MANET does not

rely upon static wireless access points or dedicated

servers. Instead, individual components establish

dynamic connections with other MANET nodes

based on proximity at each point in time. The

inherent flexibility of MANETs has led to their

application in a wide range of applications,

including military and emergency response

situations. The potential for use as part of a critical

information infrastructure, and the distributed nature

of the connections, has increasingly made MANETs

the target of focused complex distributed attacks.

1.1 Complexity of MANET Intrusion

Detection

While the process of effective intrusion detection

continues to be difficult, as noted in Sterne (2005),

there are several inherent characteristics of

MANETs that further complicate the accurate

detection of attacks:

• Lack of a Centralized Control

– Since the nodes

in a MANET are distributed independent entities

reliant on localized connectivity there is no

single node that is designed to act as a hub or

controller for other components in the MANET.

229

Cannady J. (2010).

DETECTION OF DISTRIBUTED ATTACKS IN MOBILE AD-HOC NETWORKS USING SELF-ORGANIZING TEMPORAL NEURAL NETWORKS.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Artiﬁcial Intelligence, pages 229-234

DOI: 10.5220/0002712802290234

 SciTePress

• Limited Resources – There is typically far less

network bandwidth available in MANETs than

can be provided in traditional wired networks

and wireless local area networks.

• Dynamic Connectivity

- As a peer-to-peer

network that consists of a variable number of

nodes that may be highly mobile an effective

intrusion detection approach cannot rely on the

presence of any particular node at any particular

point in time.

1.2 Mobile Intrusion Detection

Requirements

To overcome the inherent challenges posed by the

detection of attacks in MANETs, an effective

approach must possess several characteristics

(Sterne):

• Enable the detection of a wide variety of

potential attacks. Particular attention should be

provided for distributed attacks that are

conducted across the network.

• Minimize consumption of network resources.

Limitations in network bandwidth and

processing power of individual nodes must be

conserved for the primary function of the

MANET. Security functions, including intrusion

detection, must operate within the limited

resources that remain after the primary functions

of the network have been satisfied.

• Provide autonomous detection. The approach

must not rely upon any external analysis engine

or controller. The variability in the connectivity

of individual nodes would eliminate reliable data

exchange with any external monitor or

centralized controllers/monitors.

• Utilize data from a variety of sources. Some

types of attacks, particularly distributed attacks,

may only be detected through the use of data

from multiple sensors. As a result, the approach

should have the ability to leverage data from

throughout the MANET.

1.3 Prior Research

With the increasing application of MANETs in a

variety of applications the need for effective

intrusion detection is in these network is growing.

Numerous research efforts have been conducted to

address the requirements for effective MANET

intrusion detection. However, there are a limited

number of seminal research efforts that have formed

the basis for most of the current research in the field.

Zhang, et al (Zhang, 2004) developed a model in

which each node is responsible for independently

conducting localized intrusion detection and with

sharing data with neighboring nodes to provide

collaborative detective on a broader level. The

intrusion detection agents on the nodes

communicate via a secure communication channel

with cooperative detection engines. The resulting

multi-layered integrated intrusion detection system

demonstrated a scalable approach that provided both

local and global detection.

Sterne, et al, (Sterne, 2005), proposed a

comprehensive architecture designed to address the

unique requirements of a MANET-based detection

approach. In their proposed model detection occurs

through the use of a hierarchy in the MANET

formed by nodes that serve as clusterheads. These

nodes coordinate the identification of potential

attacks between nodes at lower levels in the

hierarchy. The paper describes how the approach

could be used to detect specific forms of MANET

attacks.

A significant weakness among most current

approaches is the reliance on dedicated messages

that are disseminated throughout the network on a

continuous basis. While the data communicated

between the nodes provides valuable information for

intrusion detection, it also utilizes the limited

bandwidth available in a MANET. Further, the

reliance on dedicated detection nodes results in a

potential vulnerability to the entire process if those

nodes are dropped from the network topology.

2 APPROACH

The Distributed Self-organizing Intrusion Response

(DISIR) system attempts to overcome these inherent

limitations by leveraging the power and flexibility of

a modified Learning Vector Quantization (LVQ)

neural network. LVQ neural networks combine

self-organizing maps (SOM) with a supervised

competitive layer that provides pattern recognition

capabilities.

2.1 Neural Processing

The LVQ is a combination of a SOM for

classification and a competitive multilayer neural

network that uses the output of a SOM as input for

to the competitive layer pattern recognition. The

LVQ architecture (Figure 1) contains one hidden

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

230

layer with Kohonen neurons, adjustable weights

between input and hidden layer and a winner takes it

all mechanism. This layer is a traditional SOM

neural network. The output from the SOM is then

provided to the linear layer, which is the supervised

learning layer of the architecture. LVQ algorithms

have been employed in the past for applications

ranging from speech recognition (Mäntysalo, 1992),

to radar image classification (Chang, 1994). They

are frequently used in supervised learning

applications that require efficient processing.

(Linde, 1980).

2.2 Modified LVQ Algorithm

While the use of a standard LVQ was shown to be

capable of detecting man-in-the-middle attacks in

(Cannady, 2009) that approach was unable to

identify more complex attacks that evolve over time.

A single snapshot of activity does not contain the

data necessary to evaluate trends and cumulative

effects that would provide evidence of more

complex attacks. To address this deficiency a

method was required that captured the dynamic

nature of network traffic over time. A temporal

approach would enable the system to identify

patterns that only emerge over time. The temporal

method chosen for inclusion in DISIR was the

recursive SOM. (Voegtlin, 2002)

The original SOM mandates that each unit i of

the map compare its weight vector M

to the input

vector X(t) at time t. However, in the recursive

SOM each unit i has associated with it two weight

vectors w

and w

. In the recursive SOM, the best

matching unit c is the node with the highest activity.

The learning rules used for the unit weights are

described as follows:

(t+1) = w

(t) + γ H

[x(t) - w

(t)]

(t+1) = w

(t) + δ H

[y(t-1) - w

(t)]

where γ and δ are the learning rates, and H

is a

Gaussian neighborhood function of the distance

between each node i and the winner node c. The

recursive SOM algorithm is essentially the original

SOM applied to both weight vectors. However, the

inclusion of the additional weight vector allows the

algorithm to consider past activity when evaluating

current data.

In DISIR the recursive SOM has replaced the

traditional SOM portion of the overall LVQ

algorithm. As shown in Figure 1, each recursive

SOM provides feedback, in the form of an

additional weight vector, to the subsequent map.

This additional weight vector represents the last

SOM (time t). By continually updating each new

SOM with the data in the previous SOM the maps

develop a cumulative view of activity being

processed by the SOMs over time. This cumulative

view further allows the enables to the LVQ to

identify changes in activity over time in the form of

dynamic patterns.

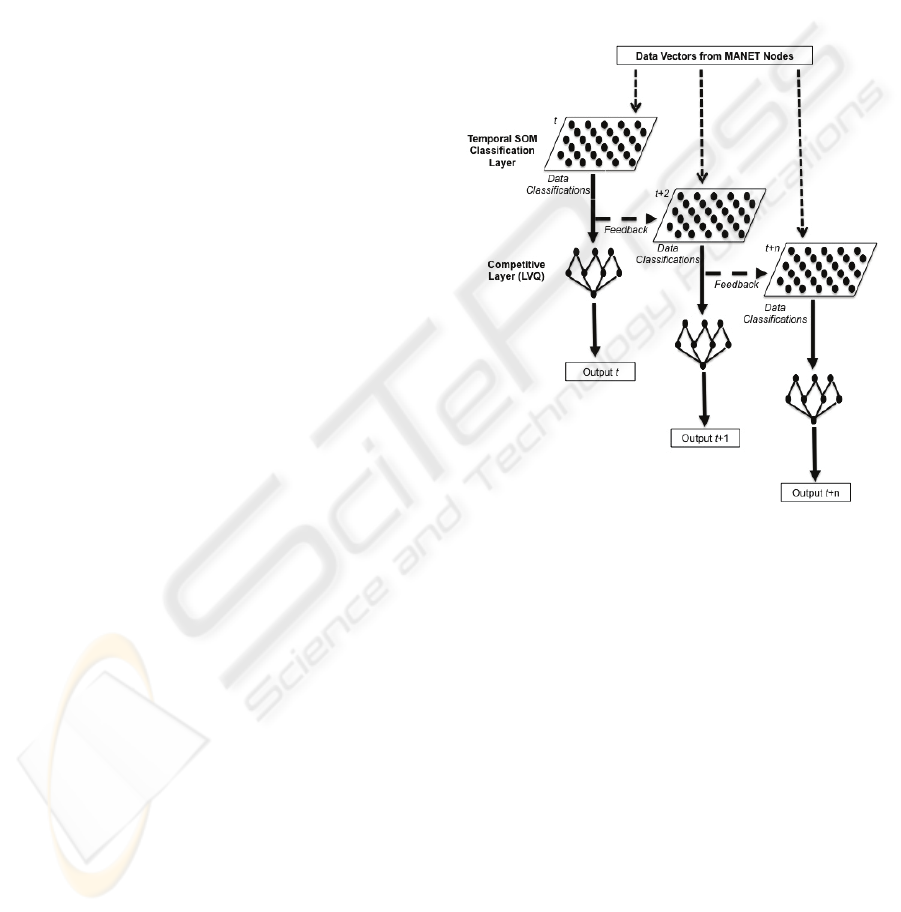

Figure 1: Recursive SOM-based LVQ Approach.

To manage the sum of vectors that would

eventually occur as data is accumulated at each new

time period, the modified LVQ architecture also

includes the use of leaky weight integrators. Leaky

integrators function by gradually degrading

connection weights over time. If no new data is

provided to increase the sum of a particular weight

value the weight will eventually decrease to zero.

Leaky integrators were originally included in a

modified SOM algorithm in (Choe, 1997) and the

approach is commonly used in other neural network

algorithms that attempt to emulate the neural

structure of biological systems. The inclusion of

leaky integrators in this application enables the

approach to more accurately track patterns of

activity that are distributed over time.

DETECTION OF DISTRIBUTED ATTACKS IN MOBILE AD-HOC NETWORKS USING SELF-ORGANIZING

TEMPORAL NEURAL NETWORKS

231

2.3 Distributed Architecture

In DISIR the LVQ is used to classify network

activity using a first-stage recursive SOM and then

identify patterns of activity representing attacks in

the MANET using the LVQs competitive layer.

While the LVQ, like many other host-based

intrusion detection approaches, can effectively

identify attacks targeting an individual MANET

node, the purpose of this research was to develop an

intrusion detection approach capable of detecting

distributed attacks that require data from multiple

nodes for accurate analysis.

To effectively identify activity in multiple

locations within the MANET each node is placed in

promiscuous node. This allows a node to monitor

activity on all other nodes within range. Each node

maintains a SOM that processes the activity of the

nodes contained within a spatial area of the node as

defined by the range of the node in promiscuous

mode. Each of these “area maps” allows each node

to monitor local activity within its range and classify

the activity vector into a class representing network

events on the two-dimensional SOM map. The

output from the area map held by each node is then

fed to the competitive layer of the LVQ which is

also on each node (Figure 2). If a pattern matching

a known attack is identified by the competitive layer

the node disseminates an alert throughout the

MANET. If a node identifies activity which is

suspicious, but short of the threshold necessary to

initiate an alert, it can disseminate the suspicious

results to other nodes in the network by utilizing

modified HELLO messages that are regularly

broadcast by nodes in the MANET. HELLO

messages are used in the AODV protocol to enable

nodes to monitor the presence and proximity of

nodes in their neighborhood. By extending the

HELLO message format to accept an additional 512

bytes (essentially doubling the size of the HELLO

message) the characteristics of a 64x64 SOM grid

could be disseminated through the MANET. This

extension could be modified based on processing

requirements and network bandwidth limitations.

When the LVQ indicates that an attack is

probable but the threshold of a “confirmed” attack

has not been achieved, the frequency of the

dissemination of HELLO messages is increased.

This facilitates the exchange of additional

information when the probability of an attack is

high. The HELLO_INTERVAL parameter of the

AODV protocol is directly associated with the

attack probability so that the time period between

messages between nodes was reduced to facilitate

additional data exchange between the nodes. The

frequency change is local, not global, and

disseminates the reduced HELLO_INTERVAL

through the network as the HELLO messages are

passed between nodes. As other nodes eventually

also increase their recognition of intrusive activity

they would similarly reduce the period between

HELLO messages that they initiate. As the threat

level, based on the current attack probability

decreases, the frequency of HELLO messages

similarly decreases. As a result, the overhead

imposed by the additional HELLO messages

throughout the MANET is limited to periods of

heightened network threats.

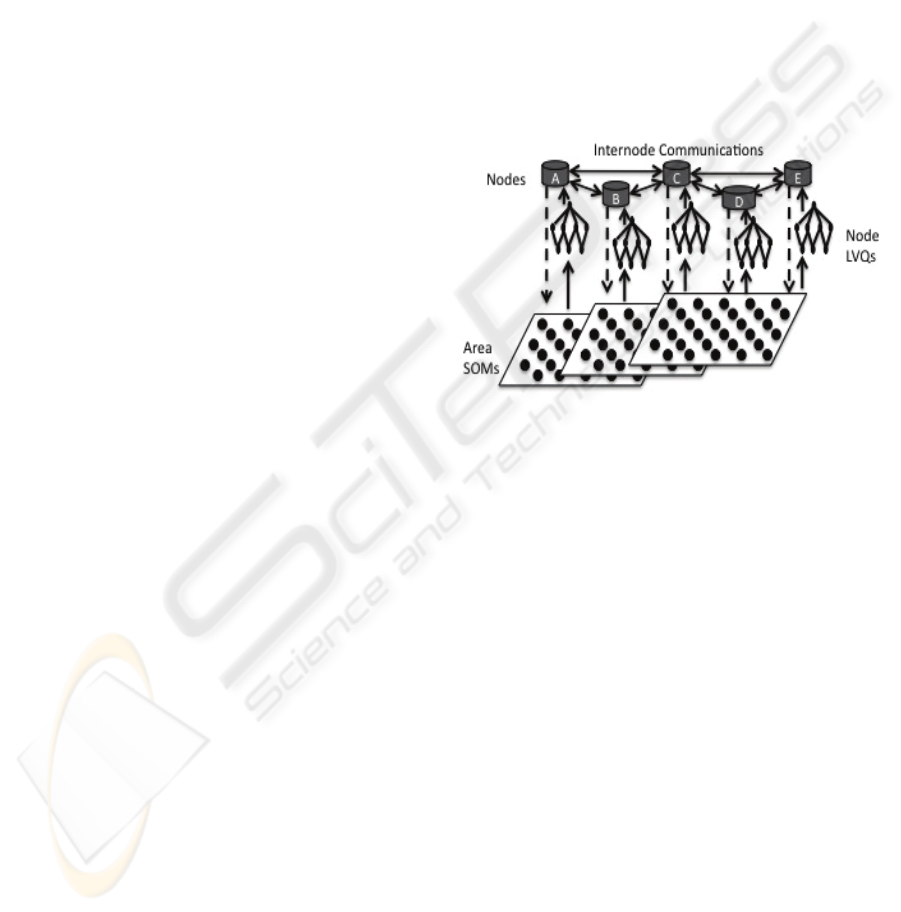

Figure 2: DISIR Structure.

By distributing the analysis of network activity

and the detection of network attacks among all the

nodes in the MANET the need for a centralized

processing node, or a limited number of processing

nodes in a hierarchy, is eliminated. The detection

process is evenly spread throughout the entre

MANET. This avoids the potential loss of a critical

detection component as a result of a physical loss of

the node or dynamic connectivity unrelated to a

network attack. Further, the lack of a centralized

detection manager greatly reduces the amount of

intrusion detection-related data that must be

disseminated throughout the MANET to support a

centralized analytical engine.

3 RESULTS

To evaluate the effectiveness of the approach a

DISIR simulation using Matlab/Simulink™ and ns-2

was developed. A MANET consisting of 36 nodes

was created with each node operating in

promiscuous mode.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

232

The DISIR prototype was evaluated against three

scenarios that are realistic representatives of

distributed attacks that occur in MANETs

representative of the most common forms of threats

in the network.

3.1 Packet Dropping

Packet dropping is the process of discarding packets

that are being transmitted across the network. A

malicious node may specifically select the packets

that are dropped or the node may discard all packets

that are received. The attack not only results in the

loss of data destined for an intended recipient but

the practice also has negative impacts on the entire

network. Network delays can occur as applications

wait for data that is never received, and the

retransmission of packets can further consume

limited network bandwidth.

The detection of packet dropping in DISIR

involved the identification of patterns of lost packets

in the network. As data was identified as missing by

individual nodes the constituents in the current route

were noted. As additional instances of packet loss

were recorded the consistent presence of a particular

node in the route would increase the probability that

the node was in fact discarding the missing packets.

The more packets that were discarded the higher the

probability that the responsible node could be

identified.

As shown in Figure 3 the probability that DISIR

was able to identify a packet dropping attack

increased quickly as the number of missing packets

increased. The detection probability leveled off at

approximately 65 packets in the evaluation. This

indicated that DISIR could correctly identify packet

dropping reliably with a few as 65 packets lost and

any additional lost packets contributed little to the

analysis.

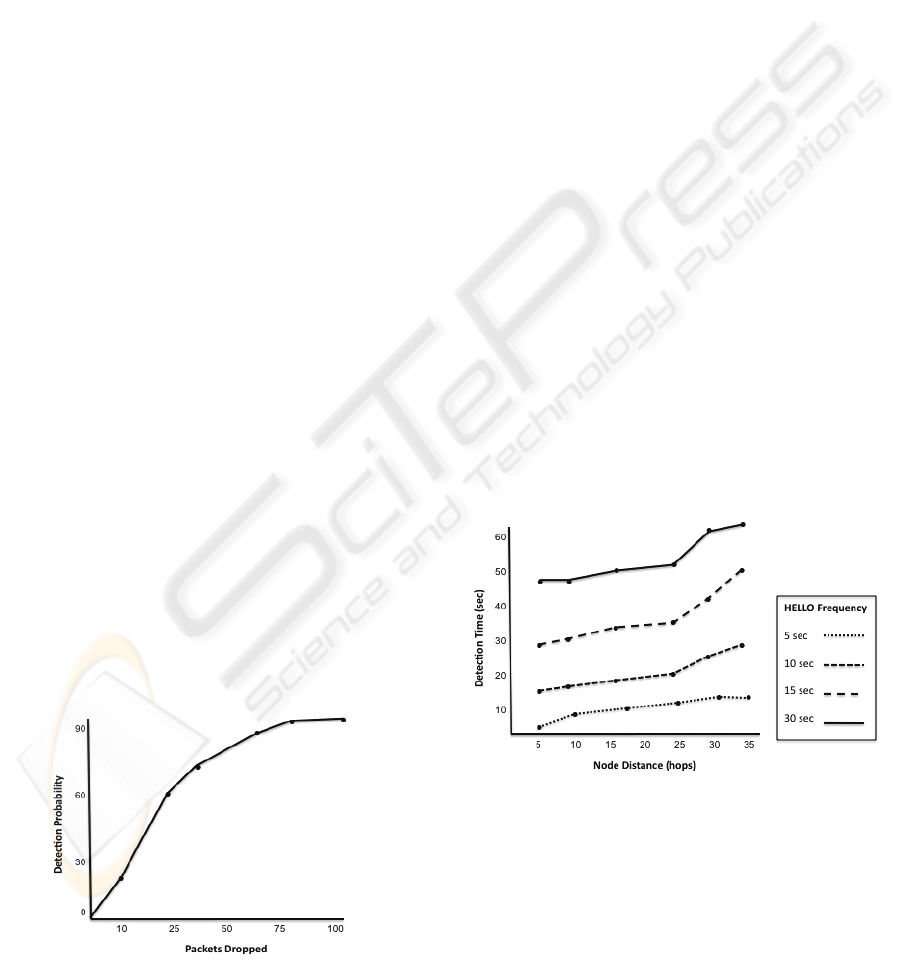

Figure 3: Results of packet dropping detection evaluation.

3.2 Port Scans

A port scan attack is primarily a reconnaissance

techniques designed to allow attackers to discover

host and network services that are vulnerable. A

port scan typically involves interrogating ports

sequentially by sending a message to each port and

determining its status. Because of the nature of the

port scan it was selected for the evaluation to

validate the ability of DISIR to identify a more

distributed attack.

The detection of port scans was based on the

identification of patterns of scanning across the

network. While the process would be trivial if a

global view of network activity was available, the

distributed nature of DISIR requires an effective

data sharing process to provide a broader view of

the activity across the network. As a result, DISIR

was designed to increase the frequency of the

HELLO messages, which provided detection data,

when a port scan was detected on the network. The

increasing frequency of the HELLO messages

allowed data from distant portions of the MANET to

more quickly share relevant data.

As shown in Figure 4, the detection time varied

directly based on distance (number of drops) and the

frequency of the HELLO messages. However, even

in the worst-case scenario of 35 hops travelled and

30 seconds between HELLO messages the MANET-

wide port scan was detected in approximately 60

seconds.

Figure 4: Results of port scan detection evaluation.

4 CONCLUSIONS

The scenarios used to evaluate the DISIR prototype

have determined that the approach is extremely

effective in meeting the stated requirements of a

mobile intrusion detection system:

DETECTION OF DISTRIBUTED ATTACKS IN MOBILE AD-HOC NETWORKS USING SELF-ORGANIZING

TEMPORAL NEURAL NETWORKS

233

• DISIR facilitates the detection of a wide variety

of potential attacks. While the evaluation

scenarios were limited to common distributed

attacks the results of the evaluation process

indicates a significant potential for DISIR to

accurately identify other forms of distributed

attacks.

• Because of the overlapping nature of the “area

SOMs” used in DISIR all of the network traffic

on the MANET is capable of being monitored.

Nearby nodes are observed through promiscuous

monitoring and more distant nodes are included

in area evaluations as their localized analysis

results are disseminated throughout the MANET.

The overlapping nature of the detection process

also enables a layered defense structure.

• By utilizing a de-centralized approach that

disseminates attack data only during periods of

increased threat DISIR is able to efficiently

detect attacks while minimizing resource

consumption. The de-centralized approach also

facilitates autonomous detection since there is no

reliance on any external analysis engine or

controller.

• Since the attack recognition capability of DISIR

is distributed throughout all of the nodes on the

MANET the approach is capable of providing

continuous detection capabilities in the event of

the loss of individual nodes. As a result, DISIR

can maintain the same per capita level of

intrusion recognition regardless of network

scale.

REFERENCES

Sterne, D., Balasubramanyam, P., Carman, D., Wilson, B.,

Talpade, R., Ko, C.., Balupari, R., Tseng, C.-Y.,

Bowen, T. (2005). “A general cooperative intrusion

detection architecture for MANETs” Proceedings of

the 3rD International Workshop on Information

Assurance.

Mäntysalo, J., Torkkola, K., and Kohonen, T. (1992).

"LVQ-based speech recognition with high-

dimensional context vectors". In Proceedings of the

International Conference on Spoken Language

Processing, Edmonton, Alberta, Canada.

Chang, K., and Lu, Y. (1994). "Feedback learning: a

hybrid SOFM/LVQ approach for radar target

classification". In Proceedings of the International

Symposium on Artificial Neural Networks.

Linde, Y. (1980, January). "An Algorithm For Vector

Quantier Design", IEEE Transactions on

Communications, vol. 28, No. 1.

Cannady, J. (2009). “Distributed Detection of Attacks in

Mobile Ad Hoc Networks Using Learning Vector

Quantization”. Proceedings of the 1

International

Workshop on Wireless and Mobile Networks Security.

Voegtlin, T. (2002). “Recursive self-organizing maps”.

Neural Networks, 15(8-9).

Choe, Y. and Miikkulainen, R. (1997). “Self- organization

and segmentation with laterally connected spiking

neurons”. In Proceedings of the International Joint

Conference on Artificial Intelligence (IJCAI-97).

Zhang, Y., Lee, W., and Huang, Y. (2003). “Intrusion

detection techniques for mobile networks”. Wireless

Networks, Volume 9, Issue 5.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

234
