A REINFORCEMENT LEARNING APPROACH FOR MULTIAGENT

NAVIGATION

Francisco Martinez-Gil, Fernando Barber, Miguel Lozano, Francisco Grimaldo

Departament d’Informatica, Universitat de Valencia, Campus de Burjassot, Burjassot, Valencia, Spain

Fernando Fernandez

Departamento de Informatica, Universidad Carlos III, Campus de Leganes, Madrid, Spain

Keywords:

Reinforcement learning, Multiagent systems, Local navigation.

Abstract:

This paper presents a Q-Learning-based multiagent system oriented to provide navigation skills to simulation

agents in virtual environments. We focus on learning local navigation behaviours from the interactions with

other agents and the environment. We adopt an environment-independent state space representation to provide

the required scalability of such kind of systems. In this way, we evaluate whether the learned action-value

functions can be transferred to other agents to increase the size of the group without loosing behavioural

quality. We explain the learning process deﬁned and the the results of the collective behaviours obtained in a

well-known experiment in multiagent navigation: the exit of a place through a door.

1 INTRODUCTION

During last years, the most popular approaches to

multiagent navigation have been inspired in differ-

ent kind of rules (phyisical, social, etological, etc).

These systems have demostrated that it is possible to

group and to combine different rules (eg. cohesion,

obstacle avoidance (Reynolds, 1987)) to ﬁnally dis-

play high quality collective navigational behaviours

(eg. ﬂocking). However the main drawbacks are also

known. All the rules must be deﬁned and adjusted

manually by the engineer or author. The number of

rules required for modelling complex autonomous be-

haviours can be high, and generally they are systems

difﬁcult to adjust when scaling the number of agents,

where some problems (eg. local minimum or dead-

locks) can appear. Beyond handwritten rules sys-

tems, other discrete techniques, as celular automata

or multi-layer grids have been also used in these do-

mains (Lozano et al., 2008) for representing different

kind of navigational maps, as they can precompute

important information for the agents when they have

to plan and to follow their paths.

In this paper we present a ReinforcementLearning

(RL) approach that consists on modelling the problem

as a sequential decision problem using Markov De-

cision Process (MDP). Reinforcement learning tech-

niques have been used successfully to ﬁnd policies

for local motion behaviors without knowledge of the

environment (Kaelbling et al., 1996). It has been

also applied in cooperativetasks, where severalagents

maximizes the collective performance by maximizing

their individual rewards (Fern´andez et al., 2005). In

these cooperative tasks, like Keepaway (Stone et al.,

2005), the relationship among individual rewards and

the cooperativebehavioris typically unknown,but co-

laboration emerges from the individual behaviors.

The aim of the paper can be summarized in: a)

setting a RL multiagent local navigation problem to

simulate a single-door evacuation and b) to study the

possibility of transferring the learned behaviors from

a speciﬁc scenario to other bigger and more popu-

lated environments, which represents the basic con-

cept of scalability in this domain. We propose the use

of multiagent reinforcement learning using indepen-

dent learners to avoid the “curse of dimensionality”

of pure multiagent systems. We do not model the

problem as a single-agent RL problem to allow the

emergence of different solutions providing variabil-

ity to the simulation. We explore the scalability (to

hundreds of agents) and portability (to larger grids)

of the approach. Scalability from a reduced set of

agents to large ones is performed through the transfer

of the value functions (Taylor and Stone, 2005). We

607

Martinez-Gil F., Barber F., Lozano M., Grimaldo F. and Fernandez F. (2010).

A REINFORCEMENT LEARNING APPROACH FOR MULTIAGENT NAVIGATION.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Artiﬁcial Intelligence, pages 607-610

DOI: 10.5220/0002727906070610

 SciTePress

show that the value functions (and hence, the policies)

learned in scenarios with a few agents can be used in

scenarios that multiplies the number of agents.

The paper has been organized as follows, section

2 describes the learning process used. In the section 3

we explain the motivation and use of the value func-

tion transfer. The section 4 shows the simulation re-

sults. The section 5 presents the main conclusions.

2 CROWD NAVIGATION AS A RL

DOMAIN

As independent learners, each agent’s learning pro-

cess can be modeled as a single-agent MDP. A MDP

(Howard, 1960) is deﬁned as a set of states S, a

set of actions A, a stochastic transition function T :

S× A× S → ℜ and the reward function R : S × A →

ℜ that speciﬁes the agent’s task. The agent’s ob-

jective is to ﬁnd an optimal policy, that is, a map-

ping from states to actions so as to maximize the

expected sum of discounted reward, E{

∑

∞

j=0

t+ j

}

where r

t+ j

is the reward received j steps into the fu-

ture. The discount factor 0 < γ < 1 sets the inﬂu-

ence of the future rewards. The optimal action-value

function Q(s,a)

∗

stores this expected value for each

pair state-action in a discrete MDP. The Bellman op-

timality equation gives a recursive deﬁnition of the

optimal action-value function Q

∗

(s,a) = R (s,a) +

∑

′

T(s,a, s

′

)max

′

∈A

∗

′

). Usually the transi-

tion function T is unknown, then the optimal policy

can be learned through experience. There are several

model-free algorithms to ﬁnd Q

∗

(s,a). In Q-learning

algorithm (Watkins and Dayan, 1992) the agent starts

with arbitrary values for the action-value function Q,

and updates the entry correspondent to time t (s

,a)

from the new state s

t+1

receiving an inmediate reward

as follows : Q(s

,a) = (1 − α

)Q(s

,a) + α

γ max

′

∈A

Q(s

t+1

′

)). This sequence converges to

∗

(s,a) when all states are visited inﬁnitely often

and the learning rate α(t) has a bounded sum of its

cuadratic value when t → ∞.

In this work we present an experiment consisting

on a group of agents that has to leave a region of

the space reaching a door placed in the middle of a

wall. This problem has two slopes. Individually, each

agent has to learn to avoid other agents, avoid to crash

against a border and learn the existing bias between

the different actions in terms of effectiveness. As a

group, the agents have to learn to leave by the exit in

an organized way.

The features that describe the state are: a) one

feature for the distance from the agent to the goal,

b) eight features for the occupancy states of the eight

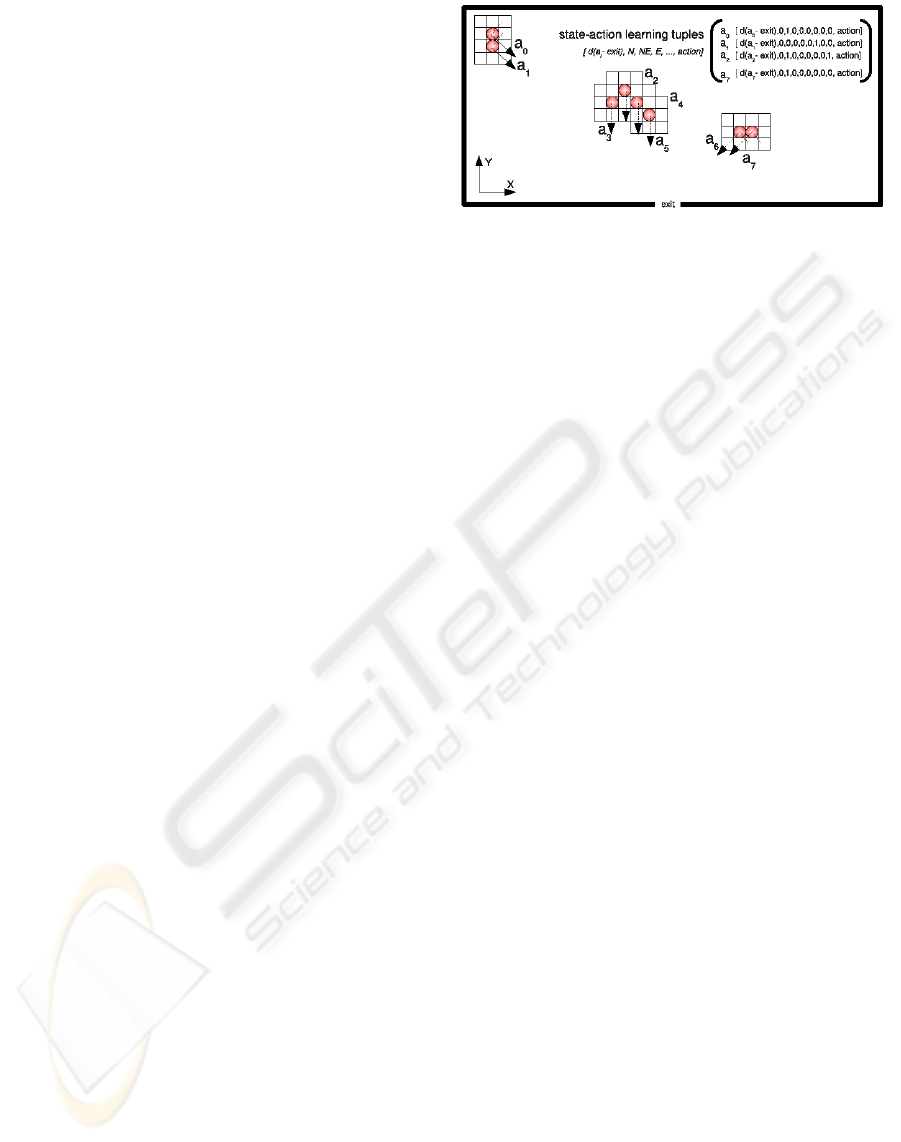

Figure 1: Multiagent learning situation example.

neighbour positions c) one feature for the orientation

respect to the goal. There is no reference to position

in the grid to allow portability. We have considered

the Chesvichev distance because it is adequate to be

used with diagonal movements. The set of actions

consists on the eight possible unitary movements to

the neighbor cells of the grid plus the action “Stay in

your place”. The agent is always oriented to the goal.

The state conﬁguration and the actions are relative to

this orientation. For instance, in Figure 1, the arrows

represent the same action (“go to the North”) for the

different agents and all the agents sensorize the north

point in different places of the neighborhood.

We use Q-Learning with an ε-greedy exploratory

policy and exploring starts because it is a simple and

well-known model-free algorithm to converge to a

stationary deterministic optimal policy of an MDP.

The values of the learning algorithm are: the constant

step-size parameter α = 0.3, the exploration parame-

ter ε = 0.2 with an exponential decay and a discount

factor γ = 0.9. The algorithm stops when an empirical

maximum of trials is reached. If the agent reaches the

goal, the reward value is 1.0; if the agent crash against

a wall or with another agent, its immediate reward is

−2.0; if the agent consumes the maximum allowed

number of steps or cross the grid limits it is rewarded

with a value of 0. The immediate reward is always 0

for the rest of the middle states of a trial. The action-

value functions are initialized optimistically to ensure

that all the actions are explored. We have designed the

described learning problem with 20 agents, therefore

there are 20 independent learning processes.

The Figure 2 shows the incremental mean of the

expression R = R

, where R

= {0, 1}, γ is the dis-

count factor and t is the lenght of the episode in steps.

Besides the mean reward, the curve indicates a mean

for the length of an episode in the interval [7.0,8.0]

that is coherent with the dimensions of the learning

grid. The length of an episode is the number of deci-

sions taken in this episode. The other curve displays

the averaged lenght of the episodes.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

608

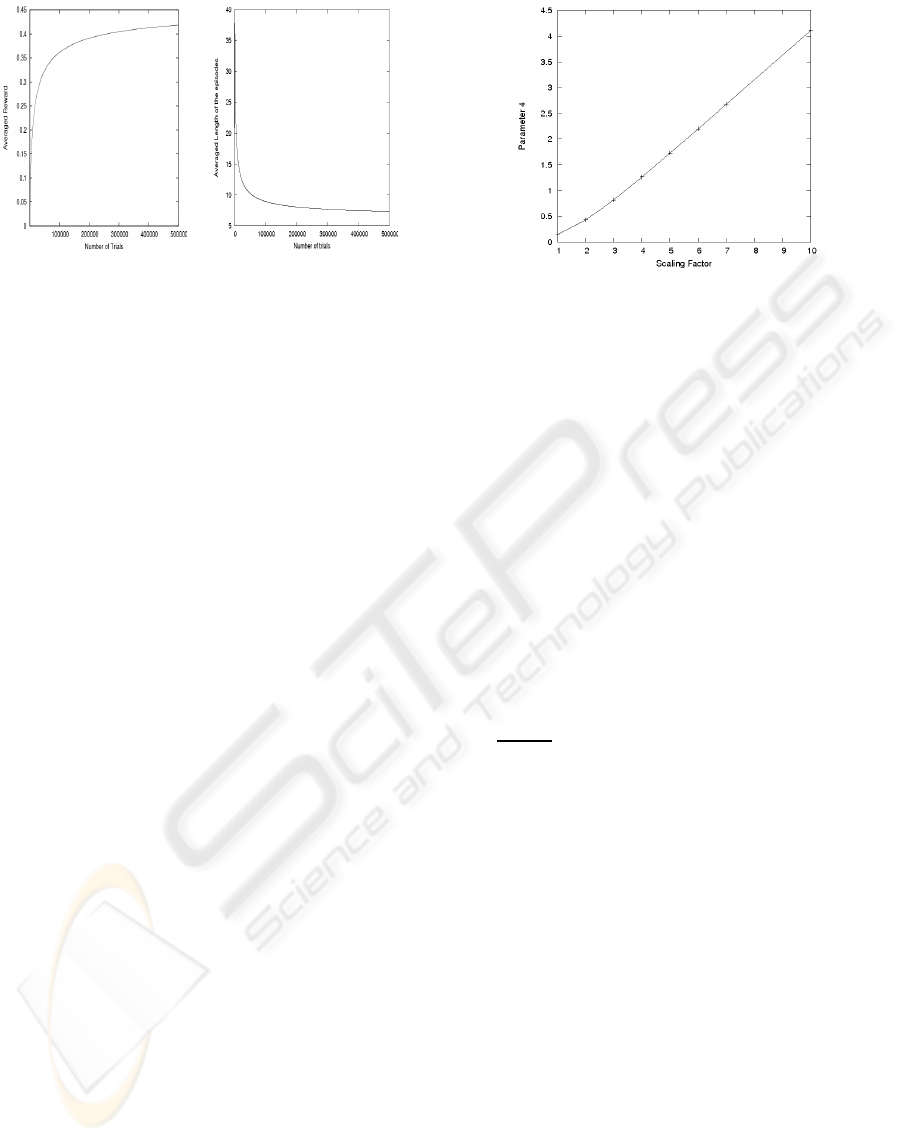

Figure 2: Mean reward curve and mean length of the

episodes curve for one agent in the learning process.

3 SCALING UP THE NUMBER OF

AGENTS

In simulation, we will use the learned value func-

tions in a larger environment with different number of

agents. We exploit the action-value functions using

the greedy action selection as the optimal policy for

an agent. Since the action and the state spaces are the

same that used for learning, no mapping is required.

However a generalization of the distance is neces-

sary because the new grids are bigger in simulation

time and agents can be placed initially farther than the

learned distances. Our generalization criteria is based

on the idea that the distance feature loses its discrimi-

natory power when it is large. Therefore the distances

higher than the MaxDist − 1 value are mapped to a

distance in the range [MaxDist − 1,MaxDist/2] using

an empirical criteria.

Each action-value function is used to animate an

incremental number of agents in the simulation en-

vironment to know their scalability. Thus then, the

number of simulated agents grows in a factor ×1, ×2,

×3,...,×10 with the following meaning: a set of 20

functions corresponding with the learning process of

20 agents will have a scaling sequence of ×1 = 20

agents, ×2 = 40 agents, ×3 = 60 agents, etc.

4 EVALUATING THE

EXPERIMENT

We have deﬁned ﬁve evaluation parameters.

1. Parameter 1. It is the mean of random actions car-

ried out by an agent and it is related with the qual-

ity of the learned action-value function. When the

generalization process described formerly fails,

the agent chooses a random action.

Figure 3: Parameter 4 for the experiment. These data are

averages over 100 trials

2. Parameter 2. It is the total number of crashes that

happened in the simulation time. Bad learning of

states is a possible situation because convergence

is warranted only with inﬁnite iterations and to

visit inﬁnitelly often all the states is not guaran-

teed due to the on-line data adquisition based in

the interaction with the environment.

3. Parameter 3. It is the total number of simulated

episodes that have ended without success. When

the agent has spent a maximum number of steps

in one episode, it ﬁnishes with no success.

4. Parameter 4. It is the relative difference between

the minimum amount of steps necessary to arrive

to the exit from the initial position and the ac-

tual number of steps used. It represents the value

(

act

−l

min

) where l

min

is the minimum number of

actions to reach the exit from a position with a sin-

gle agent and l

act

is the number of actions actually

carried out. It gives the idea of the difference be-

tween the actual performance and the minimum

possible number of actions to reach the door. A

value of 1.0 means that the number of actions is

two times the minimum.

5. Parameter 5. It is an average density map that let

us to estimate the collective behaviour achieved

by the multiagent system during simulation. It

gives a shape of the crowd in the grid, that is a ref-

erence parameter normally considered in pedes-

trian dynamic simulations (Helbing et al., 2000).

We have performed scaling simulations up to a

scaling factor of ×10 in the number of agents, cor-

responding to a maximun of 200 agents.

Concerning the Parameter 1, the percentage of

aleatory actions used in simulation is 0% for our ex-

periment in all the scaling factors. This result shows

two facts: the generalization strategy has provided

candidates in all the cases and the Q function for states

A REINFORCEMENT LEARNING APPROACH FOR MULTIAGENT NAVIGATION

609

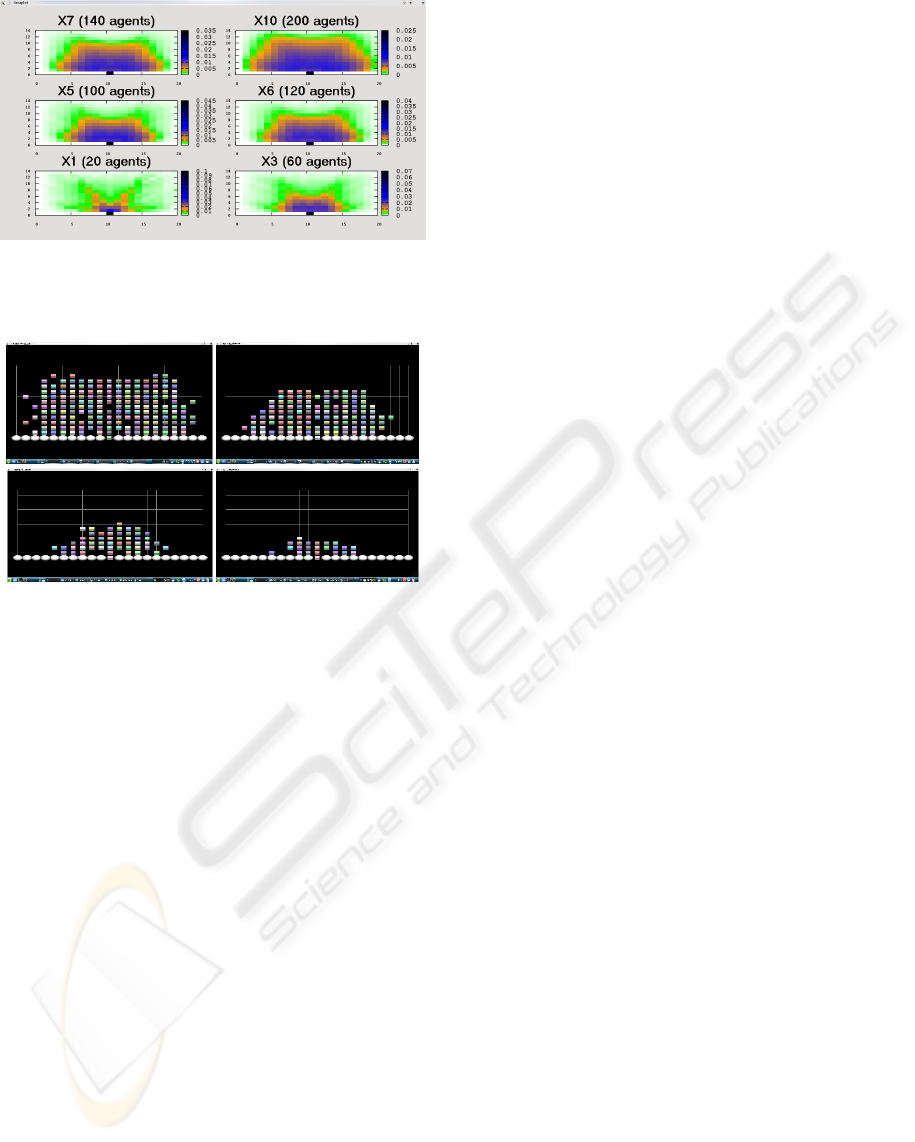

Figure 4: Average density map. The colors show densi-

ties, from low to high: white, green, orange, blue and black.

Note the wall at the bottom in white with the door in black.

Figure 5: Different moments in simulation time in a ×10

scale (200 agents). The agents are the square objects. The

elipses build the wall. The door is placed at the centre of it.

near the goals have been learned to provide an an-

swer to every query. Concerning the Parameter 2, the

number of crashes against another agent or an obsta-

cle are also 0 in all the scaling factors. It means that

the agents have learned enough to avoid crashes in all

the encountered states. The Parameter 3 hints that all

agents reach to the door. The results of these three pa-

rameters suggest that the transference of the learned

value functions to the new simulation scenarios is ad-

equate. The Figure 3 displays the results for Parame-

ter 4. In this curve, a value of 1.0 stands for an episode

twice longer than the episode carried out by a single

agent from the same initial position. The curve shows

a lineal growth of the length of the episode with the

scaling process. This lineal behavior allows us to pre-

dict the performance of the simulation in respect of

the number of simulated agents.

The Figure 4 shows the average density map ob-

tained for our experiment. It shows how the agents

are concentrating around the exit in a typical half-

circle shape. We scale from 20 agents (×1) up to 200

(×10). In all the cases, the resulting shapings have

been checked in the simulator (see Figure 5), giving

good visual results.

5 CONCLUSIONS

Our results show that RL techniques can be useful

to improve the scalability in the problem of control-

ling the navigation of crowded-oriented agents. In

our experiment up to 200 agents are managed with

a good behavior (a coherent decition sequence) using

20 learned value functions. Visual checking of the

simulations agree with the experimental curves.

The relative sensorization and the independence

of the cartesian position makes possible the scalability

of the learned process to scenarios with different sizes

and different position of the goals.

ACKNOWLEDGEMENTS

This work has been jointly supported by the Spanish

MEC and the European Commission FEDER funds,

under grants Consolider-Ingenio 2010 CSD2006-

00046 and TIN2009-14475-C04-04.

REFERENCES

Fern´andez, F., Borrajo, D., and Parker, L. (2005). A re-

inforcement learning algorithm in cooperative multi-

robot domains. Journal of Intelligent Robotics Sys-

tems, 43(2-4):161–174.

Helbing, D., Farkas, I., and Vicsek, T. (2000). Simulating

dynamical features of escape panic. Nature, 407:487.

Howard, R. A. (1960). Dynamic Programming and Markov

Processes. The MIT Press.

Kaelbling, L. P., Littman, M. L., and Moore, A. W. (1996).

Reinforcement learning: A survey. Int. Journal of Ar-

tiﬁcial Intelligence Research, 4:237–285.

Lozano, M., Morillo, P., Ordu´na, J. M., Cavero, V., and

Vigueras, G. (2008). A new system architecture for

crowd simulation. J. Networks and Comp. App.

Reynolds, C. W. (1987). Flocks, herds and schools: A dis-

tributed behavioral model. In SIGGRAPH ’87, pages

25–34, New York, NY, USA. ACM.

Stone, P., Sutton, R. S., and Kuhlmann, G. (2005). Re-

inforcement learning for RoboCup-soccer keepaway.

Adaptive Behavior, 13(3).

Taylor, M. E. and Stone, P. (2005). Behavior transfer for

value-function-based reinforcement learning. In 4th

I.J.C. Autonomous Agents and Multiagent Systems.

Watkins, C. and Dayan, P. (1992). Q-learning. Machine

Learning, 8:279–292.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

610
