EVALUATING JASON FOR DISTRIBUTED CROWD SIMULATIONS

Victor Fern´andez, Francisco Grimaldo, Miguel Lozano and Juan M. Ordu˜na

Departament d’Inform`atica, Universitat de Val`encia, Avda. Vicent Andr´es Estell´es s/n, 46100, Burjassot, Spain

Keywords:

Multi-agent architectures, Crowd simulation.

Abstract:

Large-scale crowd simulations require distributed computer architectures and efﬁcient parallel techniques to

achieve the rendering of visually plausible images while simulating the behaviour of crowds of autonomous

agents. The Java-based multiagent platforms, devoted to provide the agents with the required lifecycle, rep-

resent a key middleware in crowd systems. However, since they are oriented to maximize portability and to

reduce the development cost, they may reduce performance and scalability, two important requirements in

large-scale crowd simulation systems. This paper studies the performance and scalability provided by Jason,

a well known Java-based BDI-MAS platform, as a plausible framework to be used for large-scale crowd sim-

ulations. The performance evaluation results show that some improvements should be performed in order to

make Jason a suitable middleware for large-scale crowd simulations.

1 INTRODUCTION

Crowd simulation can be considered as a special case

of Virtual Environments where the avatars are intel-

ligent agents instead of user-driven entities. Each

of these agent-based entities can have its own goals,

knowledge and behavior. In recent years, crowd sim-

ulation has become an essential tool for many vir-

tual environment applications in education, mobility,

safety and security in public spaces or entertainment

(Pelechano et al., 2008). However, simulating the re-

alistic behavior of large crowds of autonomous agents

is still a challenge for several computer research com-

munities (Reynolds, 2006; Lozano et al., 2007).

Scalability is a key feature in crowd simulation

and the simulation of high number of autonomous

pedestrian-agents represents an active research area at

the intersection of computer graphics, artiﬁcial intel-

ligence and distribute computing.Any scalable model

can be divided into three levels. Firstly, graphic en-

gines must render complex crowded scenes as fast as

posible. Here, the challenge is to display realistic big

size crowded scenes at interactive frame rates. How-

ever, most of the current (graphics oriented) crowd

systems use speciﬁc MAS with centralised architec-

tures, so they can hardly simulate a few thousands of

agents and it is also very diffucult to scale these sys-

tems up. Secondly, the MAS platform represents a

middleware between the distributed computer archi-

tecture and the graphical engine. The MAS platform

mainly addresses two important issues, the agents be-

havior modeling and their parallel lifecycle execution.

Some researchers have been testing the performance

of existing agent platforms (Mulet et al., 2006), show-

ing a lack of performance and scalability in many of

them. The main challenge that crowd simulation of-

fers to the MAS platforms is the ability of handling

a massive and concurrent action processing at inter-

active rates (i.e. 250ms/action). Thirdly, large scale

crowd simulation requires distributed computer archi-

tectures (eg. P2P, networked-server,...) to execute the

MAS designed and to be able to increase the number

of agents when required. Hence, scalability is a key

issue that mainly depends on the distributed computer

architecture and the degree of parallelism achieved by

the software architecture.

Bearing these levels in mind, this work evaluates

Jason, a well-known MAS platform, as a plausible

MAS for simulating large-scale interactive crowded

scenes. Although there are several works dealing

with the evaluation of Java-based Multiagent Plat-

forms (Cortese et al., 2002), to our knowledge there is

no such study for the Jason framework. Therefore, the

results presented in this paper will be of great value to

those researches considering Jason as a suitable plat-

form to develop not only crowd simulations but also

other large-scale multiagent applications. The perfor-

mance evaluation carried out has been focused on the

agent action response time and the percentage of CPU

utilization consumed by the MAS when simulating a

locomotion benchmark. The evaluation results show

that some improvements should be performed in order

206

Fernández V., Grimaldo F., Lozano M. and M. Orduña J. (2010).

EVALUATING JASON FOR DISTRIBUTED CROWD SIMULATIONS.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Agents, pages 206-211

DOI: 10.5220/0002729802060211

 SciTePress

to make Jason a suitable middleware for large-scale

crowd simulations.

2 RELATED WORK

Crowd simulations must focus on rendering visu-

ally plausible images of the environment, requiring

a high computational cost. Furthermore, from a MAS

level point of view, complex agents must provide au-

tonomous complex behaviors, greatly increasing the

computational cost as well. Hence, this situation re-

quires the use of distributed architectures capable of

managing the corresponding workload.

Graphics oriented proposals tackle crowd simula-

tions as a particle system with different levels of detail

(e.g. impostors) in order to reduce the computational

cost (O’Sullivan et al., 2002). Although these propos-

als can handle crowd dynamics and display populated

interactive scenes (10K pedestrians), they are not able

to produce complex autonomous behaviors for their

actors. On the contrary, a few graphics oriented pro-

posals include socially complex and autonomous be-

haviors (Treuille et al., 2006). However, the main

problem presented by these works is scalability, since

they are generally based on centralised system archi-

tectures. Hence, they can only control hundreds of

autonomous agents at interactive frame rates.

From the distributed computing point of view, dif-

ferent architectures have been applied to crowd sim-

ulation. For instance, a new approach has been pre-

sented for PLAYSTATION3 which supports simula-

tion of simple crowds up to 15000 individuals at 60

frames per second (Reynolds, 2006). This work in-

corporates spatial hashing techniques to improve the

neighboring search and it also distributes the load

among PS3-Cell elements. Parallel simulation based

on classical Reynolds’s boids (Reynolds, 1987), has

been also integrated in a PC-Cluster with MPI com-

munication among the cluster processors (Zhou and

Zhou, 2004). This proposal uses different commu-

nication and partitioning strategies to ﬁnally produce

small crowds simulations (512 boids), which are far

from interactive.

In the middle of these two levels, a multiagent sys-

tem must be located in order to: i) efﬁciently explode

the computational resources involved and ii) to pro-

vide the required data ﬂow to the interactive graphic

application. According to this, the MAS framework

constitutes a key middleware that higly inﬂuenciates

the global performance and scalability of the crowd

system. Some researchers have tested the perfor-

mance and scalability of a few existing MAS plat-

forms (Mulet et al., 2006), showing a lack of both

important issues in many of them. Since the main

problem that crowd simulation provides to the MAS

platform is to be able of handling a massive and con-

current action processing (all the crowd actions), a

higly efﬁcient action model will be required. Other-

wise, the MAS platform will not be useful for crowd

simulation purposes.

3 JASON INFRASTRUCTURES

Jason is a Java-based interpreter for an extended ver-

sion of AgentSpeak, a BDI agent-oriented logic pro-

gramming language (Bordini et al., 2007). It offers

an elegant notation based on logic programming to

design agents capable of managing long-term goals

(goal-based behavior), reacting to changes in a dy-

namic environment and handling multiple intentions

concurrently. Beyond the implicit overload that a vir-

tual machine adds to any system, here we are focused

on scalable crowd architectures, which are mainly af-

fected by the possibility of distributing the MAS on

different computers to increase the crowd size with-

out loosing agent performance.

Jason provides three infrastructures to execute a

MAS: Centralised, SACI and JADE. On the one hand,

the Centralised infrastructure places all the compo-

nents of the MAS in the same host. On the other

hand, it is also possible to distribute these components

in several hosts using either SACI or JADE technolo-

gies. Next, we review these three approaches.

3.1 Centralised

The Centralised infrastructure executes both the en-

vironment and the agents of a MAS within a single

computer. Figure 1 depicts the general scheme of this

infrastructure. On the left hand side, the environment

has its own execution thread and it is provided with

a conﬁgurable pool of threads (PThE) to attend the

actions requested by the agents. This way, the en-

viroment is able to deal with several agent requests

concurrently. On the right hand side, each agent owns

by default a thread in charge of executing the agent

reasoning cycle. In this manner, all the agents can

run concurrently within the MAS. However, this ap-

proach limits the number of agents that can be exe-

cuted, since the total numberof threads will be limited

by the JVM and ﬁnally by the operating system. In or-

der to overcome this limitation, Jason offers the pos-

sibility to optionally add another conﬁgurable pool of

threads (PThA), so that the set of agents can share a

smaller number of execution threads but reducing the

EVALUATING JASON FOR DISTRIBUTED CROWD SIMULATIONS

207

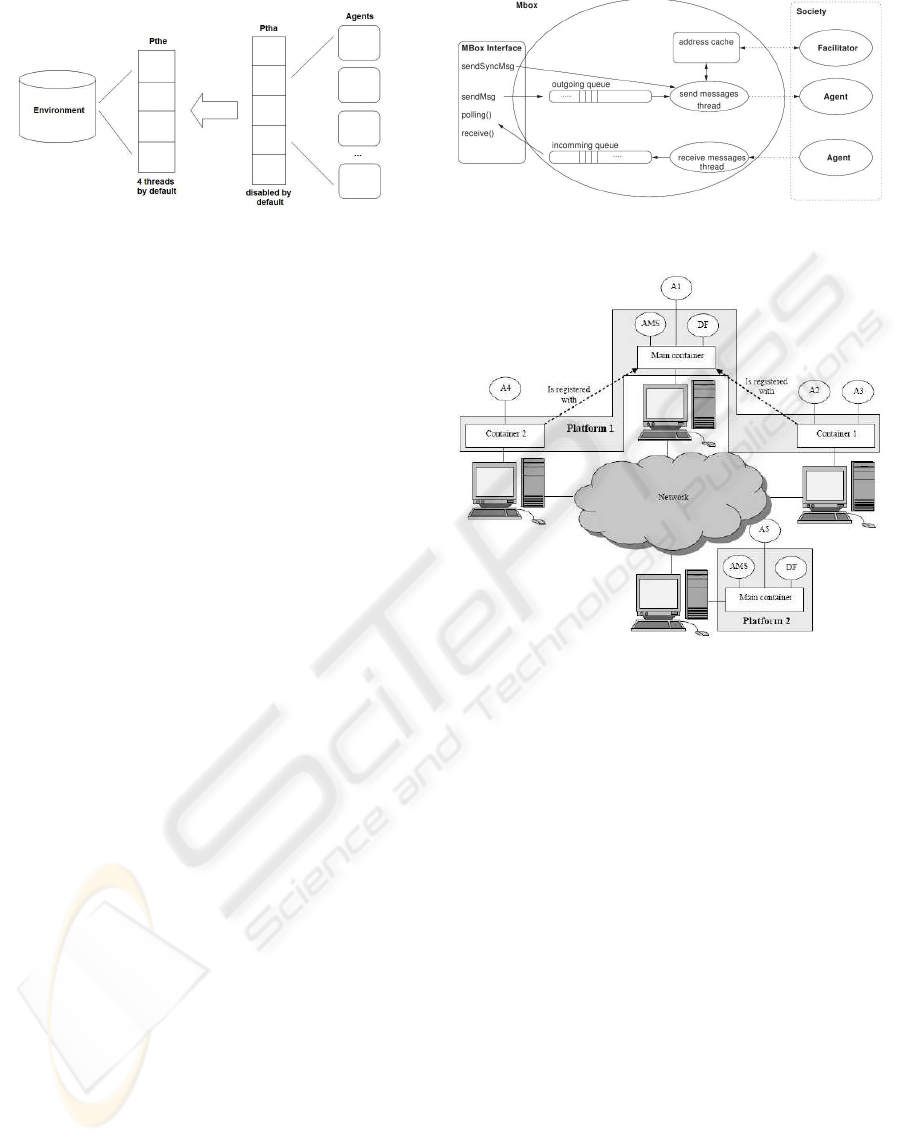

Figure 1: Overview of the Centralised infraestructure.

level of concurrency. By default, the PThE holds 4

threads whereas the PThA is disabled.

Agent-agent as well as agent-environment com-

munication is made through event passing in the Cen-

tralised infrastructure. That implies that the message

is not serialized but cloned, and the new object ref-

erence is passed to the receiver. The structure of the

messages in Jason is based on the speech act paradigm

and follows the protocols proposed by the KQML

(Finin et al., 1993) and FIPA (FIPA, 2009) agent com-

munication languages.

3.2 SACI

The Simple Agent Communication Infrastructure

(SACI) is an API of Java with a set of tools for the de-

velopment of societies of distributed agents (Sichman

and H¨ubner, 2009). SACI offers a programming com-

munication API oriented to two important features:

i) composing, sending, and receiving messages; and

ii) getting the agents designers rid of the underlay-

ing computer architecture. As shown in ﬁgure 2, the

agents in SACI group in societies and they are pro-

vided with a mailbox to interact among them. Every

society has a Facilitator agent who makes the location

of the agents transparent in the network. This way,

agents can exchange messages between their queues

of incomming and outgoing messages. Then, the pro-

grammer can specify in which host to run each agent

through the conﬁguration ﬁle of the multiagent sys-

tem (i.e. the mas2j ﬁle).

With regard to the agent-agent and agent-

environment communication, the SACI infrastructure

uses Java Remote Method Invocation (Java RMI).

RMI uses object serialization to marshal and unmar-

shal the messages being exchanged. Besides, as mes-

sages in SACI are formatted in KQML, every Jason

message will have to be recoded by the sender in or-

der to be delivered.

Figure 2: Overview of the SACI infraestructure (Sichman

and H¨ubner, 2009).

Figure 3: Overview of the JADE infraestructure (TILAB,

2009).

3.3 JADE

The latest infrastructure available in Jason is the well-

known Java Agent DEvelopment Framework (JADE)

(TILAB, 2009). JADE simpliﬁes the implementa-

tion of multiagent systems through a middleware that

complies with the FIPA speciﬁcations (FIPA, 2009).

Thus, the agent platform can be distributed across ma-

chines as shown in ﬁgure 3. The agent execution en-

vironments in JADE are called Containers and the ac-

tive set of Containers that form the MAS is known as

the Platform. Each Platform has a Main Container

with two special agents: i) the Agent Management

System (AMS), that provides the naming service and

represents the authority in the platform; and ii) the Di-

rectory Facilitator (DF), that provides a Yellow Pages

service. Currently, the speciﬁcation of the JADE set-

tings to run Jason projects over JADE is not fully sup-

ported by the mas2j conﬁguration ﬁle. Thus, the pro-

grammer is left in charge of manually creating the one

or more Platforms and of distributing the environment

and the agents among the Containers by means of the

command-line JADE commands.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

208

Communication in JADE follows an asyn-

chronous message exchange approach where every

agent has a mailbox within which the container intro-

duces the messages sent by other agents. The mes-

sages have the format speciﬁed by the FIPA ACL

language. Then, message passing is done through

RMI when the agents share the same platform but are

placed in different containers.

4 TEST DESCRIPTION

The goal of this work is to evaluate Jason as a

plausible MAS framework for simulating interactive

crowded scenes. We should notice that normal com-

munication procedures of software agents are far from

the crowd ones. Crowd agents do not communicate

among them often, but they need to act very fre-

quently in a shared environment. Motion actions are

the most frequent actions within a crowd and they

must be executed carefully in order to ensure the

world consistency.

Therefore, we have deﬁned a locomotion testbed

where a set of wanderer agents request movement ac-

tions to a grid-like single environment, which in turn

replies with the result of the execution. Wanderer

agents are written in AgenSpeak and they cyclically

execute the following steps: (i) take start time, (ii)

request a random movement to the enviroment, and

(iii) take ﬁnish time. On the other hand, the environ-

ment executes each movement action in a synchro-

nized manner to ensure the world consistency. This

testbed is repeated for the three infrastructures being

studied: Centralised, SACI and JADE. For the dis-

tributed versions we used two hosts, one devoted to

run the environment and the other to execute all the

wanderer agents. In the JADE case, a single platform

has been created and the environment has been placed

in the main container.

The performance evaluation carried out in section

5 measures the environment response time and the

percentage of CPU utilization consumed while run-

ning the locomotion benchmark. We deﬁne this Re-

sponse Time (RT) as the time elapsed between an

agent asking for an action and receiving the reply

from the environment. Although each agent performs

500 movements or cycles, we only consider the 100

mesurements in the middle to obtain the average re-

sponse time (RT). This interval reﬂects the system

behavior at full load whereas the ﬁrst and the last 200

cycles measurements are distorted due to the agent

creation/destruction as demonstrated in ﬁgure 4.

In order to evaluate the scalability of Jason, we

have increased the number of wanderer agents (N

ags

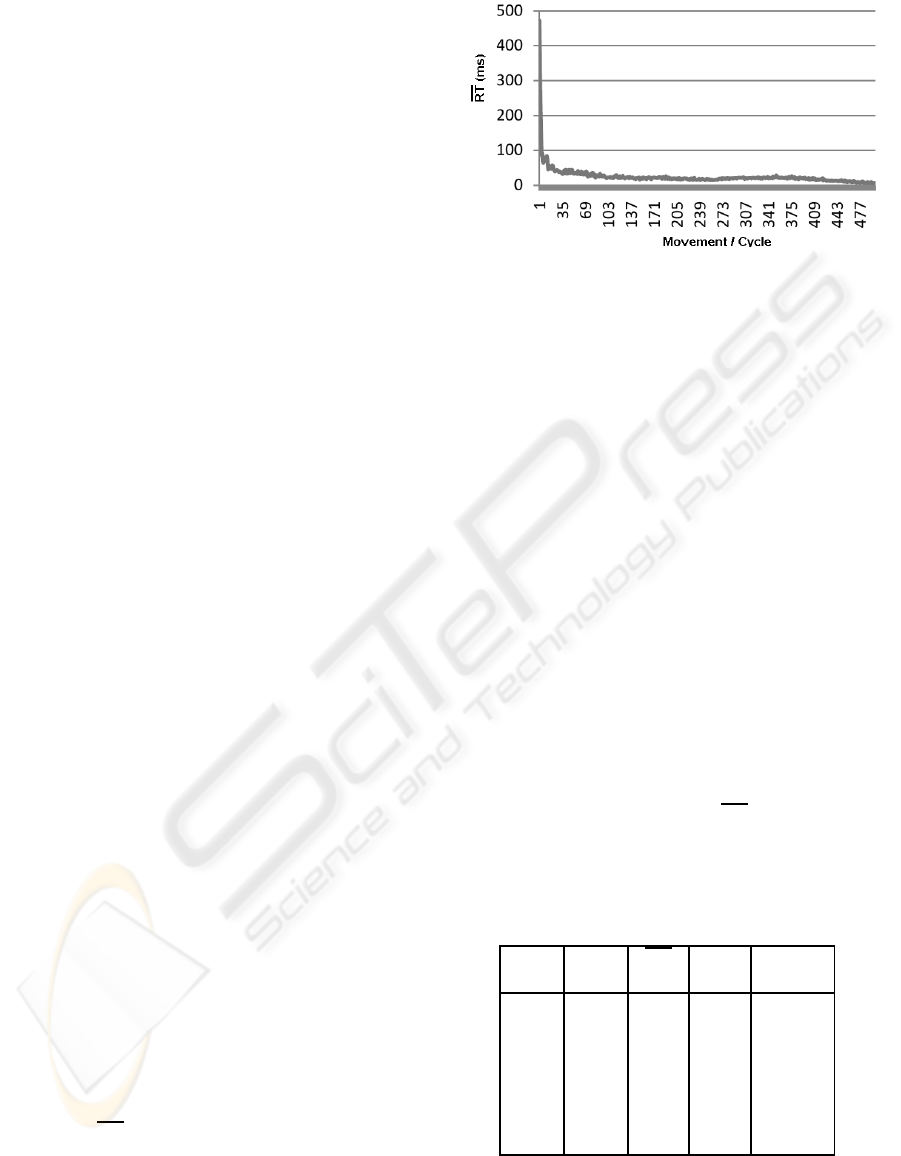

Figure 4: Response Time evolution.

The size of the environment has been adapted accord-

ingly so that the density remains around 40%. In

this paper, we show the results between 500 and 3500

agents since the system saturates beyond 3500 agents

due to the JVM limitation in the number of threads.

5 PERFORMANCE EVALUATION

The results shown in this section have been obtained

using a PC cluster of 24 AMD Dual-Core Opteron

processors running at 1.6 GHz with 4 GB of RAM

and connected via Gigabit Ethernet. The cluster runs

the 64-bit version of CentOS 5.1 and the Java imple-

mentation used is Sun JDK 1.6.

Table 1 shows the performance obtained for the

test deﬁned in section 4 in the Centralised architecture

with PThA disabled and 50 threads in PThE. From

left to right, the columns represent: the number of

simulated agents (N

ags

); the percentage of CPU uti-

lization consumed; the average of the response time

for each agent movement action (RT); its correspond-

ing standard deviation (σ

); and the total Time con-

sumed by the simulation.

Table 1: Performance obtained in a Centralised infrastruc-

ture (PThA=0 and PThE=50).

ags

CPU RT σ

Time

% (ms) (ms) (ms)

500 83 61 129 34528

1000 84 85 264 65510

1500 84 76 249 99815

2000 84 201 464 143170

2500 82 305 669 179427

3000 77 410 652 229985

3500 76 429 746 272099

Firstly, we focus on the response time since it is an

important feature of crowd simulations that directly

affects the degree of interactivity achieved. Gener-

ally, 250 ms/action is considered as a reference ratio

EVALUATING JASON FOR DISTRIBUTED CROWD SIMULATIONS

209

(maximum period) for these domains (Lozano et al.,

2007). Although this value is exceeded after 2K

agents, this constraint is only satisﬁed for 500 agents

due to the high standard deviation values. For in-

stance, in the 1K agents simulation the 70% of the ac-

tions are served in 85 ± 264 ms. That is, even though

the average value (85 ms) indicates that many actions

are served very fast, there are a few agents that must

wait more than 250 ms for their actions to be exe-

cuted. Besides, the percentage of CPU utilization de-

creases for higher number of agents. This situation

indicates that the scheduling policies used to access

the environment threads in PThE as well as the syn-

chronized action code must be carefully reviewed to

provide a more equilibrated RT distribution.

Table 2 evaluates the inﬂuence of the size of

PThE. In this case, we have ﬁxed the number of

agents to a value of 1000. The average response

times decrease when increasing the size of PThE, but

the standard deviation shows huge values with an in-

creasing slope and the percentage of CPU utilization

decreases. These results show that, even though the

agents have more threads to act, the current schedul-

ing policies and the cost of handling the pool of

threads highly increases the standard deviation.

Table 2: Inﬂuence of the number of threads in PThE in the

Centralised infrastructure with N

ags

=1000 and PThA=0.

PThE

CPU RT σ

Time

% (ms) (ms) (ms)

100 85 119 351 66489

200 83 106 396 66958

300 84 121 547 68124

400 83 106 564 66701

500 83 88 608 67467

600 83 81 522 62341

700 81 76 560 62755

800 81 67 597 65393

900 81 93 672 64489

1000 81 78 601 65094

Although not included in this paper, we have also

demonstrated that using the PThA makes the global

agent cycle run slower due to the new thread com-

petition introduced. Thus, it is only interesting when

you want to run a lot of agents with limited resources.

For comparison purposes, we have executed the

same locomotion benchmark over the two distributed

infrastructures offeredby Jason: SACI and JADE. For

these simulations we used a simple distributed archi-

tecture composed by two hosts, the ﬁrst one allocating

the agents and the second one handling the environ-

ment. Tables 3 and 4 show the results obtained for

SACI and JADE, respectively. These tables distin-

guish the percentage of CPU utilization required by

both the host in charge of the agents (CPU

) and the

host in charge of the environment (CPU

Table 3: Inﬂuence of the number of agents in the SACI in-

frastructure with PThA=0 and PThE=50.

ags

CPU

RT σ

Time

% % (ms) (ms) (ms)

100 32 36 100 11 162021

200 32 35 198 20 314212

300 32 35 299 31 468057

400 32 35 398 46 621113

500 31 35 503 52 780493

600 31 36 610 70 946934

700 31 36 707 93 1112253

800 31 35 810 111 1277237

Table 4: Inﬂuence of the number of agents in the JADE

infrastructure with PThA=0 and PThE=50.

ags

CPU

RT σ

Time

% % (ms) (ms) (ms)

100 45 39 130 18 267926

200 45 39 258 31 513394

300 45 39 382 36 772402

400 45 39 521 46 1045591

500 44 39 641 61 1286356

600 45 39 783 77 1552234

700 45 39 907 78 1808992

800 44 39 1026 86 2048948

According with the RT column, both SACI and

JADE show a linear response with the number of

agents, although this response is slightly better for

the SACI case. Furthermore, the standard deviation

shown in both tables is considerably lower than the

Centralised outcomes. However, the high values ob-

tained for the RT are far from the interactive response

time desired in crow simulation (i.e. 250 ms).

Additionally, tables 3 and 4 show very low per-

centages of CPU (CPU

and CPU

) utilization. These

results suggest that the problem here comes from

the communication platform in both infrastructures,

which use RMI instead of method invocation to per-

form the message passing. In this way, when com-

paring the total time consumed with the centralised

approach (table 2), the distributed simulation requires

longer execution times to complete the same work.

Therefore, we can conclude that the ﬁnal perfor-

mance is being seriously affected by the communi-

cation costs.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

210

6 CONCLUSIONS AND FUTURE

WORK

This paper studies the performance and scalability

provided by Jason as a suitable framework to be used

for large-scale crowd simulations. The results for

the Centralised infrastructure show that the schedul-

ing policy followed in PThE to provide a parallel ac-

tion execution must be reviewed, in order to achieve

a more equilibrated RT distribution. Otherwise, a few

agents in each cycle must wait for a long time to

execute their actions. For the distributed infrastruc-

tures, the results show the effects of the communica-

tion platform on this particular problem. Both SACI

and JADE are based on RMI and result in a similar

scalability degree (considering scalability as a func-

tion that associate the number of agents with the RT

obtained). However, the distributed simulations re-

quire longer execution times and the performance (in

terms of the response time) is seriously affected by the

communication costs. Finally, the CPUs have never

reached saturation due to both the number of agents

waiting to gain access to the environment threads in

PThE and the synchronized action code.

These conclusions allow us to address future work

in the following directions. First, we should study the

scheduling policy of both the pool of threads of the

environment and the synchronized action code. Then,

a new P2P architecture can be proposed to distribute

the problem, where each peer will be a computer ex-

ecuting a centralised version of the system (agents

+ environment) dealing with a smaller piece of the

environment. In this case, spatial criteria should be

used to distribute the agents to the computers, and dy-

namic algorithms will be required to keep the work-

load properly balanced during the simulation.

ACKNOWLEDGEMENTS

This work has been jointly supported by the Spanish

MEC and the European Commission FEDER funds,

under grants Consolider-Ingenio 2010 CSD2006-

00046 and TIN2009-14475-C04-04.

REFERENCES

Bordini, R. H., H¨ubner, J. F., and Wooldrige, M. (2007).

Programming Multi-Agent Systems in AgentSpeak us-

ing Jason. Wiley.

Cortese, E., Quarta, F., and Vitaglione, G. (2002). Scal-

ability and performance of JADE message transport

system. In AAMAS Workshop on AgentCities.

Finin, T., Weber, J., Wiederhold, G., Genesereth, M., Fritz-

son, R., McKay, D., McGuire, J., Pelavin, R., Shapiro,

S., and Beck, C. (1993). Speciﬁcation of the KQML

agent communication language. DARPA Knowledge

Sharing Initiative External Interfaces Working Group.

FIPA (2009). FIPA (Foundation for Intel-

ligent Physical Agents). Available at

http://www.ﬁpa.org/specs/ﬁpa00023/.

Lozano, M., Morillo, P., Ordua, J. M., and Cavero, V.

(2007). On the design of an efﬁcient architercture

for supporting large crowds of autonomous agents. In

Proceedings of IEEE 21th. International Conference

on Advanced Information Networking and Applica-

tions (AINA’07), pages 716–723.

Mulet, L., Such, J. M., and Alberola, J. M. (2006). Per-

formance evaluation of open-source multiagent plat-

forms. In AAMAS ’06: Proceedings of the ﬁfth inter-

national joint conference on Autonomous agents and

multiagent systems, pages 1107–1109, New York, NY,

USA. ACM.

O’Sullivan, C., Cassell, J., Vilhjmsson, H., Dingliana, J.,

Dobbyn, S., McNamee, B., Peters, C., and Giang, T.

(2002). Levels of detail for crowds and groups. Com-

puter Graphics Forum, 21(4):733–742.

Pelechano, N., Allbeck, J. M., and Badler, N. I. (2008). Vir-

tual crowds: Methods, simulation, and control. Syn-

thesis Lectures on Computer Graphics and Animation,

3(1):1–176.

Reynolds, C. (2006). Big fast crowds on ps3. In sandbox

’06: Proceedings of the 2006 ACM SIGGRAPH sym-

posium on Videogames, pages 113–121, New York,

NY, USA. ACM.

Reynolds, C. W. (1987). Flocks, herds and schools: A

distributed behavioral model. In SIGGRAPH ’87:

Proceedings of the 14th annual conference on Com-

puter graphics and interactive techniques, pages 25–

34, New York, NY, USA. ACM.

Sichman, J. and H¨ubner, J. F. (2009). SACI - Simple

Agent Communication Infrastructure. Available at

http://www.lti.pcs.usp.br/saci/.

TILAB (2009). JADE (Java Agent DEvelopment Frame-

work). Available at http://jade.tilab.com/index.html.

Treuille, A., Cooper, S., and Popovic, Z. (2006). Continuum

crowds. In SIGGRAPH ’06: ACM SIGGRAPH 2006

Papers, pages 1160–1168. ACM.

Zhou, B. and Zhou, S. (2004). Parallel simulation of group

behaviors. In WSC ’04: Proceedings of the 36th con-

ference on Winter simulation, pages 364–370. Winter

Simulation Conference.

EVALUATING JASON FOR DISTRIBUTED CROWD SIMULATIONS

211
