k-ANONYMITY

IN CONTEXT OF DIGITALLY SIGNED CDA

DOCUMENTS

Daniel Slamanig and Christian Stingl

Department of Medical Information Technology, Healthcare IT & Information Security Group

Carinthia University of Applied Sciences, Primoschgasse 10, 9020 Klagenfurt, Austria

Keywords:

Clinical document architecture, Secondary use, k-anonymity, Digital signatures, Generalized redactable sig-

natures, Privacy, Anonymization.

Abstract:

If medical data are provided to third parties for secondary use, the protection of the patients privacy is an

essential issue. In general this is accomplished by removing identifying and quasi-identifying information to

provide k-anonymity for a given data set. This means, that one patient cannot be distinguished from at least

k − 1 other individuals. However, if the single records of the data set are digitally signed, the modiﬁcation of

the respective records destroys their integrity as well as their authenticity. Hence, digital signatures, which are

an invaluable tool for verifying the integrity and authenticity of digital medical data, seem to be inadequate in

this scenario. But, especially in context of secondary use, malicious manipulations and processing errors may

lead to serious failures in a subsequent medical (treatment) process.

In this paper we propose a novel approach based on generalized redactable signatures that realizes k-anonymity

for sets of digitally signed records. To the best of our knowledge this is the ﬁrst work that combines these seem-

ingly contradictory topics very efﬁciently. In particular, the proposed solution allows any party to verify the

original digital signatures for medical data, although these data are modiﬁed during the process of achieving

k-anonymity. The main advantage of this approach is that all parties involved in the aforementioned process

are able to verify the integrity and authenticity based on the original digital signatures.

1 INTRODUCTION

One major drawback in context of digital signatures

is, that the validity of a signature can solely be veri-

ﬁed if the entire document is available. Usually, this

is desirable and reasonable, but in some scenarios this

aspect of digital signatures is counterproductive. A

major aspect, that is in our opinion highly interesting,

is that only a speciﬁc part of a medical document need

to be given to other parties, e.g. de-identiﬁed medical

data for a second opinion. Another example, that will

be discussed below is a patient who removes results

resp. diagnoses from a medical report to obtain an in-

dependent second opinion from another expert. But,

in this scenario the receiving party is not able to verify

the integrity and authenticity of these data anymore.

Clearly, one possibility to overcome this problem is

to contact the original signer to provide another dig-

ital signature for the modiﬁed medical report. How-

ever, in the majority of treatment processes this is ab-

solutely impractical. Consequently, this means that

the receiving party needs to absolutely trust the re-

ceived information. For instance, errors that occur

during the removal of parts or during the transmis-

sion or even result from malicious manipulation can-

not be identiﬁed. This may lead to serious failures in

the subsequent process. Thereby, it is essential that

the patient can only remove information of a medical

document that were speciﬁed by the original signer.

Subsequently, we will provide an overview of exam-

ples which can beneﬁt from the method introduced in

this paper. It should be noted, that this work focuses

on Extensible Markup Language (XML) data and in

particular the Clinical Document Architecture (CDA),

which is in our opinion the most promising standard

for the exchange of clinical documents. Furthermore,

digital signatures are explicitly considered in this ar-

chitecture.

• Veriﬁable disclosure of parts of a CDA document,

e.g. for second opinions.

• Veriﬁcation of anonymized CDA documents, e.g.

Slamanig D. and Stingl C. (2010).

k-ANONYMITY IN CONTEXT OF DIGITALLY SIGNED CDA DOCUMENTS.

In Proceedings of the Third International Conference on Health Informatics, pages 62-69

DOI: 10.5220/0002731700620069

 SciTePress

for clinical studies.

• Signatures on partial information of CDA docu-

ments.

• Veriﬁcation of medical data that is stored in

an anonymized (pseudonymized) fashion in elec-

tronic or personal health record architectures

(Huda et al., 2008; Riedl et al., 2008).

• Verifying signatures on CDA documents without

having access to XML Schema ﬁles and/or Exten-

sible Stylesheet Language (XSL) information for

the layout of the content.

In these examples conventional digital signatures can-

not be used to provide the integrity and authenticity of

the modiﬁed parts. However, in our opinion these two

aspects are essential when dealing with highly sensi-

tive data. When considering a set of documents that

is given to another party, e.g. for a clinical study, in-

stead of a single document, the situation turns to be

much more complex. Then, the entire set needs to

be taken into consideration to protect the privacy of

the individuals, i.e. to prevent unique identiﬁcation

of patients. This can be accomplished by means of

techniques that are based on k-anonymity (Li et al.,

2007; Machanavajjhala et al., 2007; Samarati, 2001;

Sweeney, 2002). Roughly spoken, this means that

relevant attributes of all documents are modiﬁed to

such an extent that one patient cannot be distinguished

from at least k − 1 other individuals. It is seemingly a

paradox, that a digital signature stays valid although

the corresponding document is modiﬁed. However,

in this paper we will show that the main methods that

are applied to obtain k-anonymity do not negatively

inﬂuence the original signature, when using general-

ized redactable signatures.

2 CDA

The HL7 Clinical Document Architecture (CDA)

(Dolin et al., 2001) is a document markup standard

that speciﬁes the structure and semantics of “clini-

cal documents” for the purpose of exchange. CDA

Release 2.0 became an ANSI-approved HL7 standard

in May 2005. The content of CDA documents are

derived from the HL7 Reference Information Model

(RIM) and are encoded in XML.

A CDA document contains a header, which provides

for instance information on the patient, the author of

the document, the custodian, the recipient and the au-

thenticator of the document. Additionally, it is pos-

sible to provide a participant who has legally authen-

ticated the document, e.g. digitally signed the doc-

ument. The body of a CDA document contains the

clinical report and can either be unstructured (level 1),

semi-structured (level 2) or highly structured (level

3). The structuring of a CDA document can be im-

plemented by using so called CDA body entries, e.g.

observation, procedure, encounter, substance admin-

istration, supply, observation media, etc. The basic

principles of CDA are brieﬂy discussed subsequently.

• Persistence: A clinical document continues to ex-

ist in an unaltered state for a time period, deﬁned

by local and regulatory requirements.

• Stewardship: A clinical document is maintained

by an organization entrusted with its care.

• Potential for Authentication: A clinical docu-

ment is an assemblage of information that is in-

tended to be legally authenticated.

• Context: A clinical document establishes the de-

fault context for its contents.

• Wholeness: Authentication of a clinical docu-

ment applies to the whole and does not apply to

portions of the document without the full context

of the document.

• Human Readability: A clinical document is hu-

man readable.

One important principle and a necessity regarding le-

gal requirements is the (legal) authentication of docu-

ments. This aspect is one of the motivating factors of

this work, i.e. the (legal) authenticator signs the doc-

ument such that every receiving party is able to check

the integrity and authenticity of the document. Fur-

thermore, the originator is not able to repudiate that

the document was created by him.

3 DE-IDENTIFYING HEALTH

DATA

Person related health data are in general very sensitive

information and consequently must be protected ap-

propriately. Especially, when using these data for sec-

ondary use, which includes medical research, clinical

studies and second opinions, the protection of the pri-

vacy of patients is obligatory. Hence, it is necessary to

prepare data before passing it to another party for sec-

ondary use, such that the patients cannot be identiﬁed

uniquely anymore. This process of preparation fo-

cuses primarily on attributes that directly identify the

patients and secondarily on attributes that indirectly

identify the patients. The latter class of attributes is

often denoted as quasi-identifying information. CDA

documents contain directly identifying attributes, e.g.

the social security number, as well as several indi-

rectly identifying attributes, e.g. name, gender, date

k-ANONYMITY IN CONTEXT OF DIGITALLY SIGNED CDA DOCUMENTS

of birth, geographic information, demographic data,

etc. Furthermore, there are also document related at-

tributes, e.g. unique document identiﬁer, which can

be used in combination with external sources to iden-

tify the respective patient. Subsequently, we will dis-

cuss two different approaches, which focus on a sin-

gle CDA document and a set of CDA documents re-

spectively.

3.1 Anonymization

In general, anonymization means to remove all patient

related information from medical data. This includes

all directly identifying attributes as well as a subset of

the indirectly identifying attributes, e.g. the surname,

but probably not the date of birth. For instance, there

are heuristics like the Safe Harbor Rule, which is part

of the Health Insurance Portability and Accountabil-

ity Act (HIPPA) that provides among others a precise

set of 18 speciﬁc categories of data that need to be

removed (Emam, 2008).

3.2 k-Anonymity

When passing a set of data that contains person re-

lated health data to another party for secondary use,

e.g. a clinical study, then it is necessary that the

individuals contained in this set cannot be uniquely

identiﬁed. However, the naive approach of remov-

ing solely the directly identifying attributes is unfor-

tunately not sufﬁcient. This is also reﬂected in a

study (Sweeney, 2000), which estimates that 87% of

the population of the United States can be uniquely

identiﬁed based only on the seemingly harmless at-

tributes gender, date of birth, and 5-digit zip code.

Consequently, data that contains these attributes can-

not be considered as anonymous. The concept of k-

anonymity, introduced in (Samarati, 2001; Sweeney,

2002) provides methods to anonymize data sets by

also taking into account indirectly identifying at-

tributes and thus prevent unique identiﬁcation of in-

dividuals. More precisely, a data set provides k-

anonymity protection, if each person contained in

the data set cannot be distinguished from at least

k − 1 individuals whose information also appear in

this data set. Recent results showed, that k-anonymity

may not be sufﬁcient in speciﬁc scenarios and there

have been proposed enhancements of this approach

which are denoted as l-diversity (Machanavajjhala

et al., 2007) and more recently t-closeness (Li et al.,

2007). Thereby, the latter two concepts are based on

k-anonymity.

3.3 Methods

In order to establish anonymization for a single doc-

ument or k-anonymity for a set of documents, the

subsequent methods have been proposed (Emam,

2008; Samarati, 2001; Samarati and Sweeney, 1998;

Sweeney, 2002).

• Record Suppression: An entire record is re-

moved from the data set.

• Attribute Suppression: One ore more attributes

are removed from records of the data set.

• Generalization: This can be accomplished by

attribute suppression, or by removing or replac-

ing certain parts of attributes. For instance, the

geographic information comprises city and re-

gion. The suppression of the city will result

in a geographic area aggregation. An exam-

ple for the second case based on the attribute

birthTime value="19970924"

(see ﬁgure 3) is

the removal of day and month, which results in

birthTime value="1997****"

. Another exam-

ple using the same attribute is a replacement of the

last digit of the year, which results in

birthTime

value="199

0924"

. The last example can be

seen as grouping individuals after their year of

birth in intervals of 5 years.

• Sampling, Swapping Attributes and adding

Noise: These operations can be applied to the

data set, while maintaining some overall statisti-

cal properties of the data set (Bakken et al., 2004;

Ciriani et al., 2007).

The methods “record suppression”, “attribute sup-

pression” and “generalization” are mainly used in

context of anonymization and k-anonymity. Hence,

in this paper we are focusing on these methods and

propose techniques to apply them to sets of digitally

signed medical documents.

4 METHODS

As mentioned in the introduction, the main target of

our approach is that the integrity as well as the authen-

ticity of the data need to be guaranteed in every single

step of the process (see ﬁgure 1). More precisely, the

initial digital signature created in the ﬁrst step of the

process need to be usable in every subsequent step

to verify the integrity and determine the authenticity

of every document. Consequently, this leads to the

paradox situation that, although documents are mod-

iﬁed during the preparation step, the original signa-

tures need to stay valid. The process illustrated in ﬁg-

ure 1 can be divided into three steps:

HEALTHINF 2010 - International Conference on Health Informatics

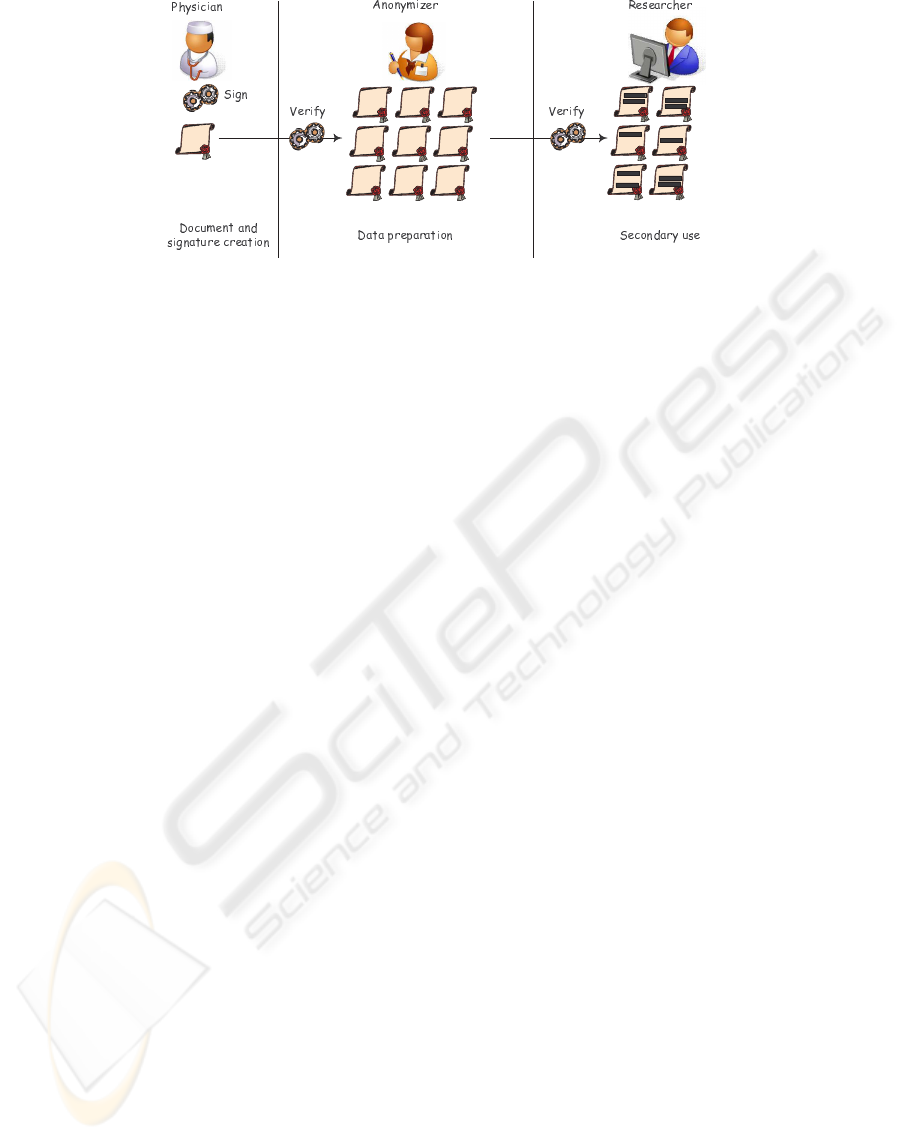

Figure 1: The process of achieving k-anonymity for a set of documents.

1. Document and Signature Creation: A CDA

document is created and digitally signed by a (le-

gal) authenticator.

2. Data Preparation: This is the process of

anonymizing a single CDA document or to

achieve k-anonymity for a set of CDA documents.

3. Secondary Use: Based on the modiﬁed docu-

ments a third party conducts the secondary use,

e.g. a clinical study.

In the following, we describe properties which are

used to evaluate three available variants of digital sig-

natures discussed in section 4.2, with respect to their

applicability in context of anonymization. Thereby, it

should be noted that record suppression is only con-

sidered for the sake of completeness, since omitting

entire documents is always possible during the prepa-

ration step. The ﬁrst four properties are directly taken

from section 3 and the property “controlled removal”

means that the original signer is able to control which

information can be removed during data preparation.

• Record suppression

• Attribute suppression

• Generalization by aggregation

• Generalization by removal of parts

• Generalization by replacement of parts

• Controlled removal

• Anonymization

• k-anonymity

Before we are going into details, we provide a brief

introduction to digital signatures based on the hash-

then-sign paradigm, with a special emphasis on the

construction of the hash value of the message prior to

signing.

4.1 Basic Principles of Digital

Signatures

Digital Signatures are a widely used cryptographic

method to provide authenticity, integrity and non-

repudiation of electronic documents. In order to be

able to sign documents, a user generates a secret sign-

ing key SK and a corresponding public veriﬁcation

key PK, which is certiﬁed together with the user’s

identity by a so called certiﬁcation authority (CA).

To efﬁciently generate a digital signature for a doc-

ument D, the user computes the hash value of the

document h = H(D) by means of a publicly known

collision resistant cryptographic hash function, e.g.

the SHA-2 family, and computes the signature σ by

means of the signing algorithm S and his secret key

SK, i.e. σ = S

(h). Every person who is in pos-

session of (PK, D, σ) is able to use the veriﬁcation

algorithm V to check whether the signature σ repre-

sents a valid signature for the document D and was

generated by the owner of PK, i.e. V

(H(D), σ) ∈

{accept, re ject}. An alternative to compute the hash

value h = H(D) is to build a Merkle-tree (hash tree)

(Merkle, 1989) of the document D and ﬁnally sign the

hash value of the root node of the Merkle-tree. This

construction is very useful in context of redactable

signature schemes, which are discussed in section

4.2.3, and also long-term archiving of documents.

4.2 Variants of Digital Signatures

In this section we compare three variants of digital

signatures regarding their applicability in context of

anonymization and k-anonymity.

4.2.1 XML Digital Signatures

The XML-DSig recommendation of the W3C (East-

lake et al., 2002) deﬁnes an XML syntax and process-

ing rules for creating and representing digital signa-

k-ANONYMITY IN CONTEXT OF DIGITALLY SIGNED CDA DOCUMENTS

tures. It can be conveniently used to sign arbitrary

XML or non-XML data using one of the following

signing types:

• Enveloped: The XML signature is included in the

XML document. It is contained within a child el-

ement of the XML document.

• Enveloping: The XML document is included in

the XML signature. It is contained within a a child

element of the XML signature.

• Detached: The XML signature is included in

a separate document from the signed document.

The location of the signed document is referenced

in the XML signature. This type of signature is

used for non-XML documents.

It is important to note, that when signing XML

documents, one needs to serialize it prior to sign-

ing. Thereby, this process needs to guarantee that

logically-identical documents produce exactly identi-

cal serialized representations, which do not depend on

the actual encoding, white spaces, etc. This process

is usually denoted as normalization (canonicalization)

and one representative of canonicalization methods is

C14N.

Since every modiﬁcation of the document invali-

dates the digital signature, none of the above men-

tioned properties (except record suppression) can be

achieved.

4.2.2 Partial Signatures based on XML-DSig

A partial signature is a signature on an arbitrary

subdocument of an XML document. This means,

that using this approach it is possible to append

several independent signatures for subdocuments to

the XML document. Although attribute suppression

and generalization cannot be applied to partially

signed documents without invalidating the original

signature, the original signer is able to produce ad-

ditional partial signatures for speciﬁc subdocuments

that do not contain identifying attributes. This could

be used in scenarios which require the anonymization

medical documents. However, k-anonymity can

practically not be achieved, since the parts that need

to be removed from the document during the prepa-

ration depend on the actual set of CDA documents

for a speciﬁc secondary use. Clearly, the attributes

that need to be removed must have been known to

the original signer at the time of creating partial

signatures, which is usually not the case in practice.

One can conclude that the above two variants of

digital signatures cannot be reasonably used to

accomplish the before mentioned properties. The

third variant, which represents a generalization of

redactable signatures can surprisingly be used to

realize nearly all of the above mentioned properties.

But before we are going into details, we provide a

brief introduction to redactable signatures.

4.2.3 Generalized Redactable Signatures

The concept of a redactable signature scheme was

introduced in (Johnson et al., 2002) and allows any

party to remove parts of a signed document D to ob-

tain a redacted document D

such that a signature for

can be derived from the signature of D without co-

operation with the original signer. Consequently, it

is possible to remove certain parts of a document and

pass the remaining document to another party, who

is able to verify the integrity and authenticity of the

resulting document D

. It must be noted, that sev-

eral variants of signature schemes realizing compara-

ble ideas have been proposed (Ateniese et al., 2005;

Miyazaki et al., 2006; Steinfeld et al., 2001).

Redactable signatures (Johnson et al., 2002) orga-

nize the content of a document as leafs of a com-

plete binary tree. This is absolutely sufﬁcient for un-

structured documents. However, when using a struc-

tured document like an XML document, which itself

represents a tree, then splitting up a document into

blocks of ﬁxed size and organizing these blocks in

a binary tree is not desirable. The redactable signa-

ture of (Johnson et al., 2002) also works with vari-

able block length, however, the rule for splitting up

the document needs to be available to the redactor

(anonymizer) as well as the veriﬁer and consequently

must be appended to the document. Thus, it is more

natural to use the existing tree structure of a struc-

tured document and thereby use inner nodes as well

as leaf nodes to hold parts of the document, instead of

organizing the parts as leafs of a binary tree. This ap-

proach is denoted as generalized redactable signatures

(Slamanig and Stingl, 2009). Subsequently, we will

present additional transformation rules for the gener-

alized redactable signature proposed in (Slamanig and

Stingl, 2009).

When representing an XML document with its inher-

ent tree structure, the resulting tree is in general nei-

ther binary nor complete. In the following we will

deﬁne a unique transformation T which maps an ar-

bitrary XML document uniquely to a N-ary tree. But,

we want to emphasize that there exist other mappings

which can also be used for this purpose. For the sake

of simplicity of the presentation we are focusing on

XML elements, attributes, attribute- and element-data

and will present the transformation rules informally:

: Element

<TAG>VALUE</TAG>

: The label of the

HEALTHINF 2010 - International Conference on Health Informatics

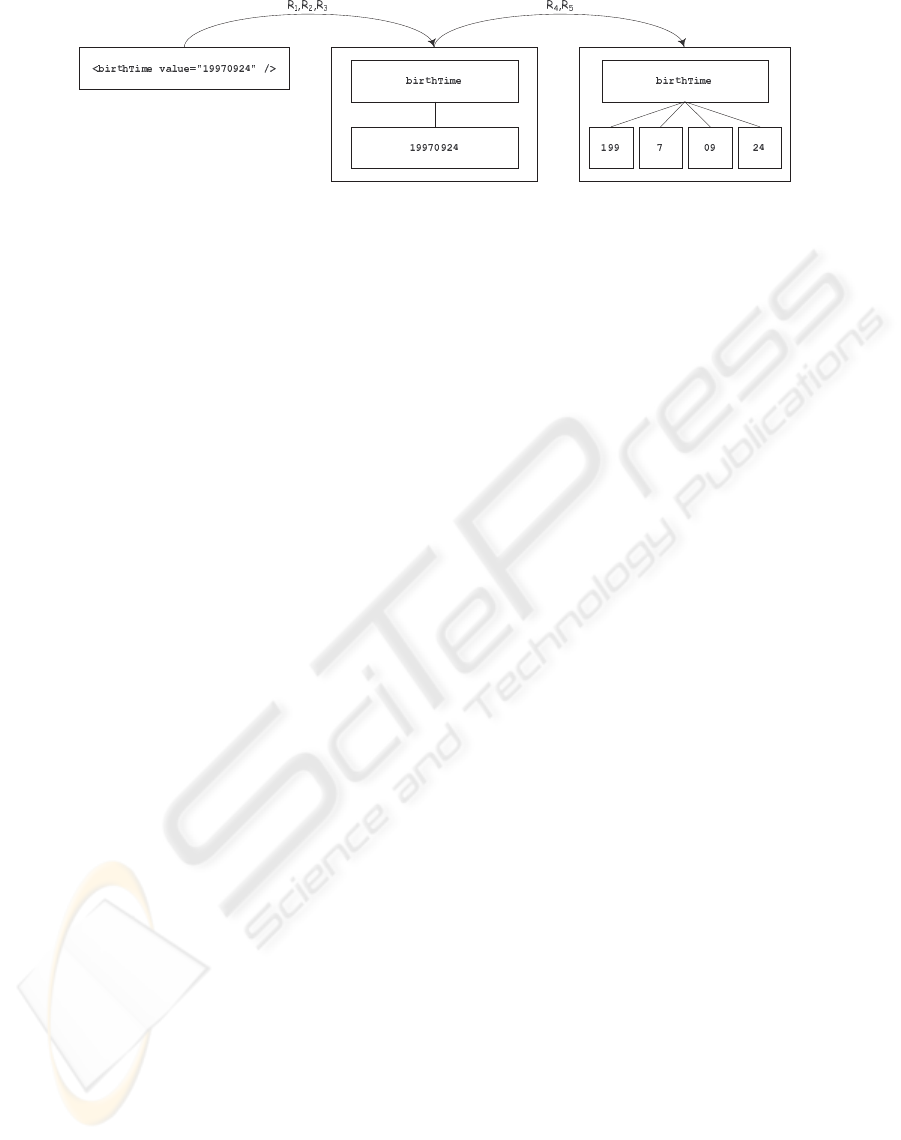

Figure 2: Applying the rules to a single XML element.

root node is

TAG

and has one child node with label

VALUE

: Element

<TAG A

,...,A

></TAG>

Again, the label of the root node is

TAG

and for

each attribute i a sub-tree with root labeled A

and

one child labeled V

is constructed.

: Element

<TAG><STAG

></STAG

>...<STAG

</STAG

></TAG>

: The label of the root node is

TAG

and for each subtag a sub-tree with root la-

beled

STAG

and child node representing the value

is constructed.

<name>

<given>Henry</given>

<family>Levin</family>

</name>

<administrativeGenderCode code="M"

codeSystem="2.16.840.1.113883.5.1" />

</patientPatient>

</patientRole>

</recordTarget>

Figure 3: A fragment of the header of a CDA document.

It should be noted, that in all above transformation

rules the attributes are transferred prior to values.

Since an arbitrary XML document cannot be usefully

transformed into a binary tree, the standard Merkle-

tree cannot be applied in this scenario. Considering

this transformation, it must be noted that in addition

to leaf nodes also the inner nodes contain valuable

information, e.g. names of elements and attributes.

Consequently, the Merkle-tree construction has to be

adapted to ﬁt these needs. Therefore, an adapted as-

signment φ for the label of the nodes is proposed in

(Slamanig and Stingl, 2009), which is recursively de-

ﬁned in (1). Thereby, x is the value of the parent node

p and c

, . . . , c

are the respective child nodes, where

0 ≤ k < N.

φ(p) =

H(x||φ(c

)||. . . ||φ(c

)) if p has k + 1 children,

H(x) if p is a leaf.

(1)

Due to the construction of the Merkle-tree, it is possi-

ble to reconstruct certain (small) redacted parts of the

document by brute-force attacks. Hence, it is neces-

sary to randomize the Merkle-tree construction by ap-

plying a so called GGM-tree (Goldreich et al., 1986)

resp. a modiﬁed GGM-tree (Slamanig and Stingl,

2009). The key issue of this construction is, that the

original signer is able to determine the granularity of

redactable information and any other party is able to

remove these parts and can “adapt” the original sig-

nature such that the signature is valid for the redacted

document. The details of the two above mentioned

aspects are omitted here, since they do not inﬂuence

the concept proposed in this paper and details can be

found in (Johnson et al., 2002; Slamanig and Stingl,

2009).

When applying the transformation T and subse-

quently signing the document using the generalized

redactable signature scheme, the properties “attribute

suppression”, “generalization by aggregation” can be

realized completely and “controlled removal” par-

tially. However, “generalization by removal of parts”

cannot be achieved at all. Subsequently, we will pro-

pose an extended transformation T

. This transforma-

tion uses two additional rules, which are introduced

below.

: Element

<TAG>VALUE</TAG>

: The label of the

root node is

TAG

and has a child nodes with label

VALUE

, . . . ,

VALUE

where these new values are a

unique and complete representation of the original

VALUE

: Element

<TAG A

,...,A

></TAG>

: The

label of the root node is

TAG

and for each attribute

i a sub-tree with root labeled A

and a child nodes

labeled V

, . . . ,V

is constructed as in R

When applying transformation T or T

, the result

does not represent a valid XML-document, which is

however not necessary for the generalized redactable

k-ANONYMITY IN CONTEXT OF DIGITALLY SIGNED CDA DOCUMENTS

signature scheme. It should be noted, that the trans-

formation could easily be adapted by adding addi-

tional tags such that the result represents a valid XML

document.

Based on an example, we will now demonstrate the

potential as well as the limitations of the rules R

and

(see ﬁgure 2). Obviously, it is possible to remove

certain parts of the

birthTime

, e.g. the day and/or

the month, which realizes exactly the “generalization

by removal of parts”. However, the property “gener-

alization by replacement of parts” cannot be achieved,

since this concept somewhat contradicts the idea be-

hind generalized redactable signatures.

Efﬁciency Analysis. The costs of a single gen-

eralized redactable signature consists of exactly n

calls to the hash function H, the computation of the

(modiﬁed) GGM tree and one digital signature, where

n is the number of elements, attributes and values

or the corresponding split values of the transformed

XML document.

The results of this section are summarized in ta-

ble 1. As a consequence, in the subsequent section

we solely consider generalized redactable signatures

to achieve k-anonymity, since it is the only approach

that is applicable.

5 WORKFLOW TO ACHIEVE

k-ANONYMITY

In this section we will discuss the workﬂow as well as

the parties introduced in section 4 more detailed. Re-

call, these parties are the creator and original signer,

the anonymizer and the party conducting the sec-

ondary use. For the sake of simplicity, we are omit-

ting details on the normalization (canonicalization)

and the encoding of the XML document prior to sign-

ing. This is clearly essential, but does not inﬂuence

the concept.

5.1 Creator and Original Signer

The creator and original signer proceed as follows:

1. Deﬁnition of the granularity of the redaction and

splitting of values according to a common agreed

policy, which deﬁnes the values that are allowed

to split and the rules to split.

2. Applying transformation T

to the CDA docu-

ment.

3. Computation of the hash value of the root node by

means of the adapted Merkle-tree.

4. Signing of the hash value using the private key

of a conventional digital signature scheme, e.g.

RSA-PSS, ECDSA, etc.

The resulting signature can be veriﬁed by any party

who is in possession of the document and the signers

public key.

5.2 Anonymizer

The anonymizer proceeds as follows, when given a

set of signed CDA documents.

1. According to the speciﬁcation of the secondary

use, the anonymizer identiﬁes all documents that

are relevant for the speciﬁc clinical study.

2. Removal of all directly identifying attributes.

3. Identiﬁcation of the set of indirectly identifying

attributes (quasi-identiﬁers).

4. Achieving k-anonymity by applying the meth-

ods of section 3.3 to the indirectly identifying

attributes, by taking into account the common

agreed policy.

5. Adapting the digital signature of each redacted

document

5.3 Party Conducting the Secondary

Use

1. After receiving the set of redacted documents, the

integrity and authenticity is veriﬁed by means of

the (adapted) digital signatures. Thereby, the pub-

lic keys of the original signers are used.

2. If the signature veriﬁcation succeeds, the set of

redacted documents can be used for the intended

clinical study.

6 CONCLUSIONS & FUTURE

ASPECTS

In this paper we have introduced a novel approach that

covers the concept of k-anonymity in context of dig-

itally signed medical documents. To the best of our

knowledge this is the ﬁrst work that combines these

seemingly contradictory topics. As we have shown,

generalized redactable signatures provide an efﬁcient

and practical solution to realize nearly all methods

to achieve k-anonymity. With respect to the proper-

ties illustrated in table 1, generalized redactable sig-

natures solely fail to support “generalization by re-

placement of parts”, whereas there is no way to re-

alize this property solely by redacting information.

HEALTHINF 2010 - International Conference on Health Informatics

Table 1: Overview of properties provided by the discussed variants of digital signatures (≈ means partial support).

Property XML-DSig Partial Sig Generalized Redactable Sig

Record suppression X X X

Attribute suppression × × X

Generalization by aggregation × × X

Generalization by removal of parts × × X

Generalization by replacement of parts × × ×

Controlled removal × × X

Anonymization × ≈ X

k-anonymity × × X

Nevertheless, one future research direction is to use

so called Bloom ﬁlters (Bloom, 1970) to efﬁciently

“store” the set of possible replacements to realize

the open method “generalization by replacement of

parts”.

REFERENCES

Ateniese, G., Chou, D., de Medeiros, B., and Tsudik, G.

(2005). Sanitizable Signatures. In ESORICS 2005,

volume 3679 of LNCS, pages 159–177. Springer.

Bakken, D. E., Parameswaran, R., Blough, D. M., Franz,

A. A., and Palmer, T. J. (2004). Data Obfuscation:

Anonymity and Desensitization of Usable Data Sets.

IEEE Security and Privacy, 2(6):34–41.

Bloom, B. H. (1970). Space/Time Trade-offs in Hash

Coding with Allowable Errors. Commun. ACM,

13(7):422–426.

Ciriani, V., di Vimercati, S. D. C., Foresti, S., and Samarati,

P. (2007). k-Anonymity. In Secure Data Management

in Decentralized Systems, pages 323–353. Springer.

Dolin, R., Alschuler, L., and et al., C. B. (2001). The HL7

Clinical Document Architecture. J. Am. Med. Inform.

Assoc, 6:552–569.

Eastlake, D., Reagle, J., and Solo, D. (2002).

XML-Signature syntax and processing.

http://www.w3.org/TR/xmldsig-core/.

Emam, K. E. (2008). Heuristics for De-identifying Health

Data. IEEE Security & Privacy, 6(4):58–61.

Goldreich, O., Goldwasser, S., and Micali, S. (1986). How

to Construct Random Functions. J. ACM, 33(4):792–

807.

Huda, N., Sonehara, N., and Yamada, S. (2008). A Privacy

Management Architecture for Patient-Controlled Per-

sonal Health Record System. In NetApps 2008. IEEE

Computer Society.

Johnson, R., Molnar, D., Song, D., and Wagner, D. (2002).

Homomorphic Signature Schemes. In CT-RSA ’02,

volume 2271 of LNCS, pages 244–262. Springer.

Li, N., Li, T., and Venkatasubramanian, S. (2007). t-

Closeness: Privacy Beyond k-Anonymity and l-

Diversity. In ICDE 2007, pages 106–115. IEEE Com-

puter Society.

Machanavajjhala, A., Kifer, D., Gehrke, J., and Venkita-

subramaniam, M. (2007). l-Diversity: Privacy beyond

k-Anonymity. ACM Transactions on Knowledge Dis-

covery from Data, 1(1).

Merkle, R. (1989). A Certiﬁed Digital Signature. In

CRYPTO ’89, volume 435 of LNCS, pages 218–238.

Springer.

Miyazaki, K., Hanaoka, G., and Imai, H. (2006). Digitally

Signed Document Sanitizing Scheme Based on Bilin-

ear Maps. In ASIACCS 2006, pages 343–354. ACM.

Riedl, B., Grascher, V., and Neubauer, T. (2008). A Se-

cure e-Health Architecture based on the Appliance of

Pseudonymization. Journal of Software, 3(2):23–32.

Samarati, P. (2001). Protecting Respondents’ Identities in

Microdata Release. IEEE Trans. Knowl. Data Eng.,

13(6):1010–1027.

Samarati, P. and Sweeney, L. (1998). Generalizing Data

to Provide Anonymity when Disclosing Information

(Abstract). In PODS’ 98, page 188. ACM Press.

Slamanig, D. and Stingl, C. (2009). Disclosing Veriﬁable

Partial Information of Signed CDA Documents using

Generalized Redactable Signatures. In IEEE Health-

com 2009. IEEE Communications Society.

Steinfeld, R., Bull, L., and Zheng, Y. (2001). Content Ex-

traction Signatures. In ICISC 2001, volume 2288 of

LNCS, pages 285–304. Springer.

Sweeney, L. (2000). Uniqueness of simple demographics in

the u.s. population. Technical report, Carnegie Mellon

University.

Sweeney, L. (2002). k-Anonymity: a Model for Protecting

Privacy. Int. J. Uncertain. Fuzziness Knowl.-Based

Syst., 10(5):557–570.

k-ANONYMITY IN CONTEXT OF DIGITALLY SIGNED CDA DOCUMENTS
