STATISTICAL ANALYSIS OF BIOMOLECULAR DATA USING

UNICORE WORKFLOWS

Marcelina Borcz

1,2

, Rafał Kluszczy

nski

and Piotr Bała

1,2

Faculty of Mathematics and Computer Science, Nicolaus Copernicus University

Chopina 12/18, 87-100 Toru

n, Poland

Interdisciplinary Centre for Mathematical and Computational Modelling, University of Warsaw

Pawi

nskiego 5a, 02-106 Warsaw, Poland

Keywords:

UNICORE, Workﬂow, R environment, GridBean.

Abstract:

Nowadays the role of e-Science is important, especially in the area of life sciences. Experiments and their

analysis are carried out in collaboration of many scientiﬁc groups from institutes located all over the world.

Moreover, they work with immense amount of data which usually needs to be processed statistically. There-

fore, the need for computing power is increasing. It usually can not be supplied by a standard laboratory. That

is why e-Science makes use of grid technology. UNICORE (Uniform Interface to Computing Resources) is a

middleware enabling access to the Grid resources in a seamless and secure way.

In this paper we present UNICORE gridbean for statistical R environment which enables to process statistically

data on the Grid. Being used as a part of more complex workﬂow task it can analyze results given by another

applications and calculate needed statistics. By presenting example workﬂow constructed in UNICORE Rich

Client application, authors show power of the Chemomentum workbench built on UNICORE Grid system.

1 INTRODUCTION

Growing need for computing power in many areas

of scientiﬁc research has entailed interest in the grid

technology. It has been successfully used in many

projects within areas such as 3D graphics, quan-

tum chemistry, molecular modeling or bioinformatics.

Particularly, computing power plays an important role

in biology research. Increasing number of known se-

quences, huge molecules systems and metabolic path-

ways demand a lot of computational time for process-

ing. The grid middleware which offers an uniform

access to the resources can be a very attractive solu-

tion. It enables the use of geographically distributed

resources through the Internet. Running several tasks

on the different computing systems can save time sig-

niﬁcantly. Grid environments like UNICORE (Uni-

form Interface to Computing Resources) provide ac-

cess to the resources and applications in a seamless

and secure way.

Applications such as BLAST (Basic Local Align-

ment Search Tool), Clustal and NAMD (Not Another

Molecular Dynamics) are widely used by the molecu-

lar biology scientists. Authors successfully supported

them on the UNICORE Grid (Borcz et al., 2007;

Kluszczy

nski and Bała, 2008; Kluszczy

nski and Bała,

2009). However, there has been noticed the need for

the statistical tools to analyze data. We have decided

to develop a gridbean which integrates the statistical

environment R with the grid. The purpose of this pa-

per is to present plugin for the UNICORE Rich Client.

Next, authors point out UNICORE ability to construct

scientiﬁc workﬂows to create complex simulations to

process and analyze biomolecular data.

2 MOLECULAR LIFE SCIENCES

The aim of Life sciences is to study living organisms

to help explaining how they are related to each other

and to the environment. Biology plays here key role

along with the computer and information sciences.

Bioinformatics is one of the disciplines which has be-

come very popular nowadays. There exist many con-

fusions about the deﬁnition of “bioinformatics”. Ac-

cording to the Bioinformatics Deﬁnition Committee

of Biomedical Information Science and Technology

217

Borcz M., Kluszczy

nski R. and Bała P. (2010).

STATISTICAL ANALYSIS OF BIOMOLECULAR DATA USING UNICORE WORKFLOWS.

In Proceedings of the First International Conference on Bioinformatics, pages 217-220

DOI: 10.5220/0002742102170220

 SciTePress

Initiative Consortium (Huerta et al., 2000) bioinfor-

matics is related to the databases and focuses on com-

putational tools to store, archive, analyze and visual-

ize biology data. It is strongly related to the compu-

tational biology, which studies biological systems by

developing methods for mathematical modeling and

techniques for simulations.

Biologists and programs they use have to han-

dle huge amount of data. As an example can

serve NAMD, an application for molecular dynamics,

which simulates the behavior of a molecular system

of many thousands of atoms. BLAST is used to ﬁnd

regions of similarity between the DNA sequences. It

searches through huge sequence databases and com-

pares very long strands. Clustal allows for enacting

pairwise alignment and can create a phylogenetic tree

and use it to align multiple sequences. Typical ex-

periments consist of many steps and sequence align-

ment is usually one of them. Therefore programs

widely used by biologists require computing power

that can not be provided by a standard computer facil-

ities available at research lab or department.

High throughput experiments and large simula-

tions produce output which has to be statistically pro-

cessed. It can be done using various programs like R,

SPSS or Statistica. Authors focus on the ﬁrst of them.

R is a free software environment and a high level

programming language for statistical calculations and

data analysis. It enables scientists like mathemati-

cians, physicians and biologists to make calculations

and to visualize the data. Besides basic commands

and functions there are available more than 1700 tech-

nical packages providing more advanced tools.

3 SCIENTIFIC WORKFLOW

SYSTEMS

Workﬂows play central role in the computationally

intensive science (e-Science). They can be used as

analysis pipelines in many disciplines such as biol-

ogy, chemistry, geosciences or physics. In the 2004

the deﬁnition of a workﬂow in the grid systems has

been postulated by the Global Grid Forum (Fox and

Gannon, 2006). In the Grid context workﬂow is au-

tomation of the processes which involves the orches-

tration of a set of grid services or agents that must be

combined together to solve a problem or to deﬁne a

new service. The advantages of the scientiﬁc work-

ﬂows are numerous (Yu and Buyya, 2005). Below we

present most important ones:

• an ability to build dynamic applications which use

distributed resources,

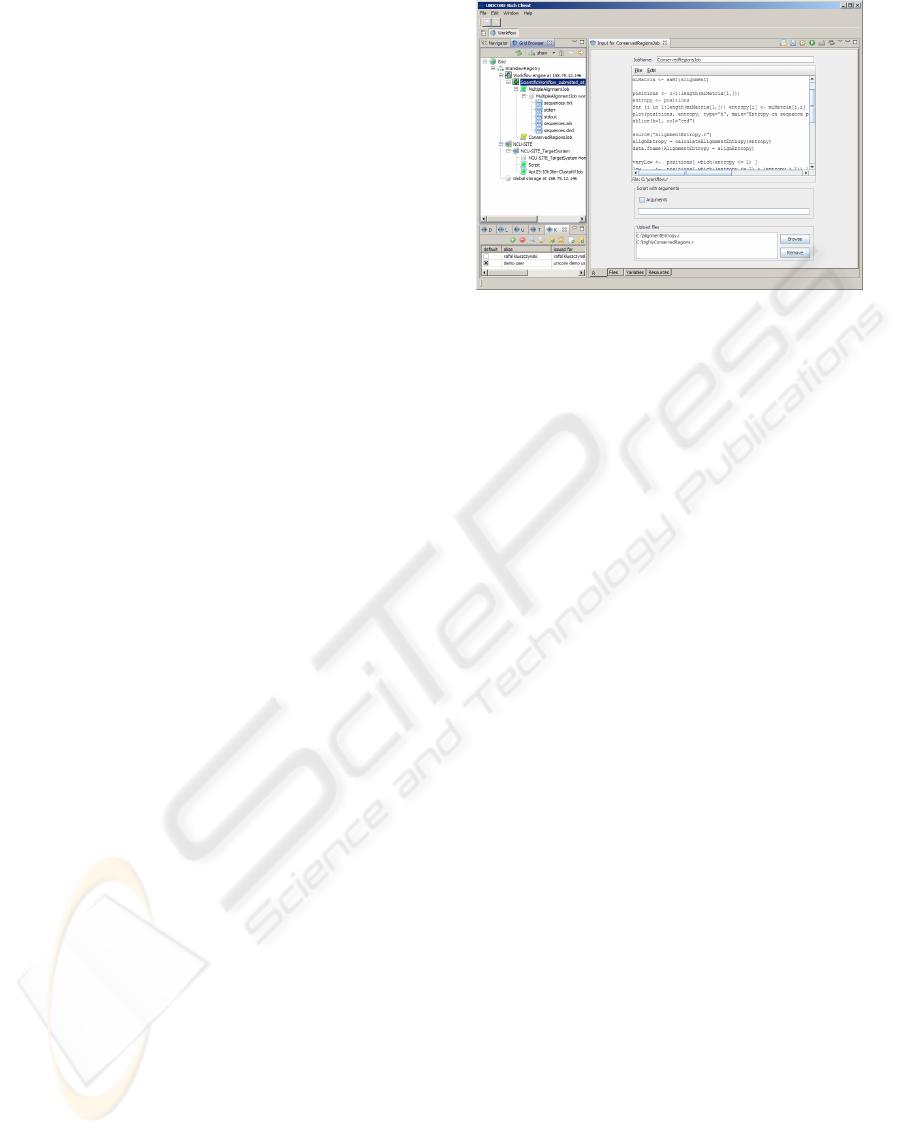

Figure 1: UNICORE Rich Client application with loaded

gridbean for R Environment.

• dynamic utilization of resources in order to in-

crease throughput and reduce execution costs,

• promotion of a collaborations between scientiﬁc

groups involved in a different parts of the experi-

ment.

Workﬂow systems are being developed as a part of

grid middlewares and as a standalone applications.

The UNICORE middleware has an ability to build

and run workﬂows on the grid. The UNICORE work-

ﬂows allow the use of loops and if-else statements to

create sophisticated tasks run on the remote systems.

4 UNICORE GRID MIDDLEWARE

Standards used in grid middlewares have been chang-

ing over the time and new application areas have been

discovered. UNICORE project has been established

in 1997 in order to enable an easy and secure ac-

cess to supercomputers in Germany (Streit, 2009).

During the last decade it has become international

and has been successfully used in many scientiﬁc

projects. Its popularity is still growing and today

UNICORE is widely utilized in Europe along with

other widely known grid environments like gLite,

Globus and ARC.

Version 6 of the UNICORE middleware is be-

ing developed based on the web-service technology

and adopts grid services standards. UNICORE pro-

vides a ﬂexible and user-friendly client framework.

UNICORE Rich Client (URC) targets a wide range

of users with varying grid experience. It provides a

graphical view of the grid and can be run on most of

the platforms. URC offers to the users a full set of

functionalities in a graphical representation. The user

may see his previous and currently running jobs and

download the results or speciﬁc resources from the

BIOINFORMATICS 2010 - International Conference on Bioinformatics

218

grid (Fig. 1).

Applications are integrated with the UNICORE

infrastructure through gridbeans. Gridbeans separate

the layer of application speciﬁc user interface from

the actual implementation of grid middleware. This

idea emerges from the experience of UNICORE 5

(Ratering, 2005) and is considered as one of the high-

est advantages of UNICORE.

5 APPLICATION GRIDBEANS

Gridbeans are plugins which provide a graphical in-

terface to the application. Grid environments sup-

ply clients with special services enabling to down-

load plug-ins by simply selecting them from the list.

Once gridbean is loaded into the client, a user can run

tasks without any speciﬁc knowledge about the envi-

ronment or the way of executing the program on the

host. He just has to ﬁll in particular ﬁelds and op-

tions in the interface and than press submit button.

Moreover, UNICORE clients have an ability to check

the existence of application on the grid. User can see

available programs on particular target systems and

decide which one to use.

In the last years, authors have developed grid-

beans for bioinformatics tools like BLAST, NAMD

or Clustal (Borcz et al., 2007; Kluszczy

nski and Bała,

2008; Kluszczy

nski and Bała, 2009). All mentioned

gridbeans provide a graphical interface which makes

possible to run the applications in an easy way. They

contain special ﬁelds and components to input data

and to set up options. Moreover, BLAST and Clustal

interfaces are designed in a way similar to the existing

web interfaces, to which biologists are used to.

Recently, we have designed and implemented

RGridBean. It integrates statistical R environment (R

Development Core Team, 2005) with the grid and it

can be used as a part of workﬂow. The R has been

already integrated with the ACGT grid environment

based on Globus Toolkit 4 (Wegenera et al., 2009),

however it cannot be reused in the UNICORE work-

ﬂows. Grid solutions proposed in (Grose et al., 2006;

Wegenera et al., 2009) demand knowledge about new

R packages from the users. UNICORE Rich Client

allows to run R scripts on the grid without execution

of additional commands. With the help of RGridBean

users just select the script and submit it to the remote

system. The script remains in the same form in which

it was executed locally on the PC.

In the example presented in the section 6 the R

plugin processes the results given by other biology ap-

plications. The main panel (Fig. 1), besides a ﬁeld for

a job name, contains a text area to write commands

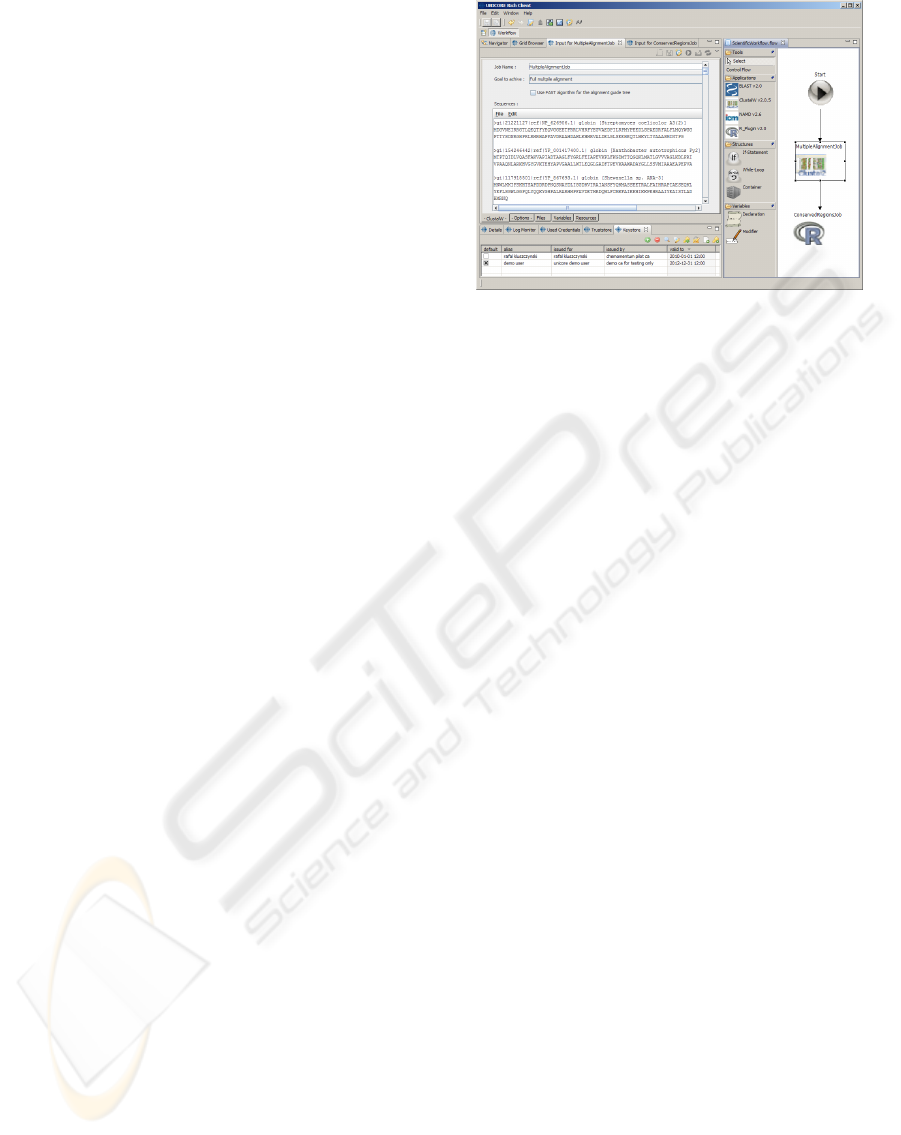

Figure 2: An example of a scientiﬁc workﬂow involving

Clustal and R gridbeans. The workﬂow is presented in the

dedicated editor of the UNICORE Rich Client.

and open or save scripts. Moreover, there have been

prepared special components, which allow to input

script arguments and attach additional ﬁles. After job

is ﬁnished, user can see its results shown in two dif-

ferent output panels. In the ﬁrst one, there are visible

results of calculations presented as text. In the sec-

ond there are displayed generated plots which can be

saved in a PNG format.

6 WORKFLOW EXAMPLE

UNICORE Rich Client has an ability to design work-

ﬂow tasks combining several applications. This func-

tionality is provided by a workﬂow editor. It en-

ables a graphical construction of tasks together with

programming blocks realizing loops and if-else state-

ments. Workﬂows consist of tasks or processes.

Workﬂow elements are related by dependencies cor-

responding to the data ﬂow between them. As blocks

of such workﬂows there are used gridbeans, which

are downloaded to the client. Of course some tasks

can be independent and not related to other work-

ﬂow components. With every sub-job, user can assign

the site where it should be run or leave decision to

the workﬂow service. Dedicated editor enables very

user-friendly and intuitive construction of workﬂows.

URC supports drag-and-drop technique, which makes

it easy to design workﬂow structure and dependencies

between elements.

In Fig. 2 there is presented an example workﬂow

which uses Clustal and R gridbeans. Designed ex-

periment at the ﬁrst stage aligns a family of globin

proteins. Next, the multiple alignment obtained by

Clustal is statistically processed. The results are pre-

sented in the text and graphical form. It is impor-

tant to mention, that once designed workﬂow can be

STATISTICAL ANALYSIS OF BIOMOLECULAR DATA USING UNICORE WORKFLOWS

219

used in the future. To execute simulations for another

family of proteins the user should just change the se-

quences data in the gridbean for Clustal and resubmit

the workﬂow.

During the protein sequence analysis scientists

usually look for motifs. These are small con-

served regions which have functional and structural

signiﬁcance. However, regions with a high num-

ber of changes are responsible for the speciﬁcity of

molecules. Shannon entropy as the measure of uncer-

tainty in a data set is a good indicator of variability

(Bui et al., 2007). Entropy can be calculated in the

R environment in an easy way using aaMI package

(Wollenberg, 2005).

The article (Bui et al., 2007) provides an example

of such an application. Its authors analyze the are-

navirus protein sequence variability to identify con-

served regions that could be targeted for development

of a universal renaviral vaccine. They looked also for

high variable regions which could be helpful in diag-

nosis. To do this they performed multiple sequence

alignments of chosen proteins using ClustalW pro-

gram and calculated Shannon entropy. Fig. 2 presents

an example of a workﬂow performing similar tasks.

Of course workﬂows can be much more compli-

cated. The UNICORE can handle workﬂows with

thousands of elements and dependencies. With the

help of an editor it is very easy to create even so com-

plex simulations.

7 CONCLUSIONS

In this paper authors presented plugin designed for

statistical R environment. It makes it possible to

analyze and process data from many scientiﬁc ap-

plications, not only limited for molecular ones like

BLAST, Clustal or NAMD. Being used as a part of

workﬂow, it plays crucial role in experiment conclu-

sions. The workﬂow systems can be very useful for

scientists. With the help of special editors, like the

one in UNICORE middleware, workﬂow construction

is intuitive and user-friendly. An additional advan-

tage is the reduction of frequency of human errors.

Once designed workﬂow can by used for different

data. This automates the process of experiment en-

abling the scientists to focus only on results and con-

clusions.

ACKNOWLEDGEMENTS

This work was supported by European Commission

under IST grant Chemomentum (No. 033437) and

the European Social Fund with the National Budget

of the Republic of Poland under the Integrated Re-

gional Development Operational Programme, Objec-

tive 2.6 ,,Regional Innovation Strategies and trans-

fer of knowledge“ project of Kujawsko-Pomorskie

Province ,,Scholarships for PhD Students 2008/2009

- ZPORR“.

REFERENCES

Borcz, M., Kluszczy

nski, R., and Bała, P. (2007). BLAST

Application on the GPE/UnicoreGS Grid. In et al., L.,

editor, Euro-Par 2006 Workshops: Parallel Process-

ing, volume 4967 of LNCS, pages 245–253. Springer

Berlin / Heidelberg.

Bui, H., Botten, J., Fusseder, N., Pasquetto, V., Mothe,

B., Buchmeier, M., and Sette, A. (2007). Protein

sequence database for pathogenic arenaviruses. Im-

munome Research, 3.

Fox, G. and Gannon, D. (2006). Special issue: Workﬂow in

grid systems. Concurrency and Computation: Prac-

tice and Experience, 18(10):1009–1019.

Grose, D., Crouchley, R., van Ark, T., Kewley, J., Allan,

R., Braimah, A., and Hayes, M. (2006). sabreR: Grid-

enabling the analysis of multi-process random effect

response data in R. Proc. Second International Con-

ference on e-Social Science.

Huerta, M., Haseltine, F., Liu, Y., Downing, G., and Seto,

B. (2000). NIH working deﬁnition of Bioinformatics

and Computational Biology.

Kluszczy

nski, R. and Bała, P. (2008). Supporting NAMD

Application on the Grid using GPE. In et al., W., ed-

itor, PPAM 2007, volume 4967 of LNCS, pages 762–

769. Springer Berlin / Heidelberg.

Kluszczy

nski, R. and Bała, P. (2009). Supporting Clustal

Application on the UNICORE Grid. Polish Journal of

Environmental Studies, 18(3B):165–169.

R Development Core Team (2005). R: A Language and

Environment for Statistical Computing. R Founda-

tion for Statistical Computing, Vienna, Austria. ISBN:

3-900051-07-0.

Ratering, R. (2005). Grid Programming Environment

(GPE) Concepts. GPE documentation.

Streit, A. (2009). UNICORE: Getting to the heart of Grid

technologies. eStrategies, Projects, 9th edition, pages

8–9.

Wegenera, D., Sengstag, T., Sfakianakis, S., Rpinga, S., and

Assi, A. (2009). GridR: An R-based tool for scientiﬁc

data analysis in grid environments. Future Generation

Computer Systems, 25:481–488.

Wollenberg, K. (2005). Mutual information for protein se-

quence alignments. Package ’aaMI’ for R environ-

ment.

Yu, J. and Buyya, R. (2005). A Taxonomy of Scientiﬁc

Workﬂow Systems for Grid Computing. SIGMOD

Record, 34(3):44–49.

BIOINFORMATICS 2010 - International Conference on Bioinformatics

220
