PREREQ

UISITES FOR AFFECTIVE SIGNAL PROCESSING (ASP) –

PART III

Egon L. van den Broek

Joris H. Janssen, Marjolein D. van der Zwaag

User Experience Group, Philips Research Europe, High Tech Campus 34, 5656 AE Eindhoven, The Netherlands

Jennifer A. Healey

Future Technology Research, Intel Labs Santa Clara, Juliette Lane SC12-319 Santa Clara CA 95054, USA

Keywords:

affective signal processing, emotion, integration of biosignals, physical characteristics

Abstract:

This is the third part in a series on prerequisites for affective signal processing (ASP). So far, six prerequi-

sites were identiﬁed: validation (e.g., mapping of constructs on signals), triangulation, a physiology-driven

approach, and contributions of the signal processing community (van den Broek et al., 2009) and identiﬁca-

tion of users and theoretical speciﬁcation (van den Broek et al., 2010). Here, two additional prerequisites are

identiﬁed: integration of biosignals, and physical characteristics.

1 INTRODUCTION

This paper is the third paper in a series that addresses

prerequisites for Affective Signal Processing (ASP).

Let us start with what Rosalind W. Picard states

in the preface of her book Affective Computing

(AC) (Picard, 1997, p. x):

But what I ran into, in trying to understand

how our brains accomplish vision, was emotion. Not

as a corollary, tacked on to how humans see, but as

a direct component, an integral part of perception.

. . . The role of emotions in “being emotional” is

a small part of their story. The rest is largely

untold, and has profound consequences – not just for

understanding human thinking, but speciﬁcally for

computing.

Subsequently, she continues denoting the impor-

tance of emotions through stating that . . . emotions

play an essential role in rational decision making,

perception, learning, and a variety of other cog-

nitive functions (Picard, 1997, p. x). She even

poses that . . . too little emotion can impair decision

making (Picard, 1997, p. x). The former notion

was already embraced by cognitive sciences and

is now generally accepted. The latter notion was

a shocking conclusion for the artiﬁcial intelligence

(AI) community since their traditional foundation is

one of reasoning and logic.

In a nutshell, AC aims to model or classify human

emotions, using the ‘affective signals’ they transmit.

These can be either facial characteristics (e.g., ob-

tained through computer vision), movements, speech

processing, biosignals, or a combination of these sig-

nals (van den Broek et al., 2009). This paper ad-

dresses the use of biosignals for affective signal pro-

cessing (ASP), a notion which originates from the late

19th century (James, 1894). Biosignals are especially

promising as they can now be measured unobtrusively

and in real-time through wearable devices.

More than a decade after Picard’s seminal book,

more than anything else, it has become apparent that

AC is incredibly hard and complex (Boehner et al.,

2007; Chanel et al., 2009). Despite the vast efforts

toward AC, results are still disappointing. Although it

should be noted that some results, should be marked

as good; e.g., Healey and Picard (1998); Rani et al.

(2003); H

onig et al. (2007); Benovoy et al. (2008).

Although sometimes promising results are re-

ported in literature, often follow-up research failed to

replicate those results; cf. Chanel et al. (2009). More-

432

van den Broek E., Janssen J., van der Zwaag M. and Healey J. (2010).

PREREQUISITES FOR AFFECTIVE SIGNAL PROCESSING (ASP) – PART III.

In Proceedings of the Third International Conference on Bio-inspired Systems and Signal Processing, pages 432-435

DOI: 10.5220/0002744104320435

 SciTePress

over, in the cases recognition rates of 90% or higher

are achieved, three out of the four best results are

based one the results on one participant. Only in the

research of H

onig et al. (2007) a group of (24) partici-

pants participated; however, this study only differenti-

ated between two levels of stress. Taken together, AC

has a long way to go, before large-scale real-world

applications using AC are feasible.

Taken together, we pose that AC is a bridge too

far and ASP is what should have our attention ﬁrst.

To enable a breakthrough in results on ASP, we pro-

pose to adopt a set of prerequisites, with which we

started in van den Broek et al. (2009) and continued

in van den Broek et al. (2010). After this, AC can be

brought to practice.

This paper complements the two other pa-

pers van den Broek et al. (2009) and van den Broek

et al. (2010), which already introduced 6 prerequi-

sites. Together, the three papers should form the foun-

dation for more successful ASP and, in the future,

successful AC.

In the next section, the two new prerequisites will

be introduced, namely: integration of biosignals and

physiological characteristics. We end this paper in

Section 3, with a brief conclusion.

2 PREREQUISITES – PART III

In van den Broek et al. (2009) and van den Broek et al.

(2010), the following prerequisites for ASP were in-

troduced: validity, triangulation, a physiology-driven

approach, contributions from signal processing, user

identiﬁcation, and theoretical speciﬁcation. While

each of these is still of the utmost importance for

ASP, we will now denote two additional prerequisites:

physical characteristics and integration of biosignals.

2.1 Integration of Biosignals

Although not frequently discussed, biosignals are in-

ﬂuenced by other factors besides affect (Cacioppo and

Tassinary, 1990). For instance, Figure 1 illustrates

how pervasive motion artifacts can be for ASP in real

world settings. Both HR and EDA are elevated dur-

ing the period of high activity from 27 to 30 minutes.

Moreover, the signal graphs also show that changes in

HR follow changes in activity much more rapidly than

EDA, in onset and especially in terms of recovery. For

level 4 (walking) in this graph, it even seems that the

physical effects are so dominant that ASP should not

be attempted. In contrast, with level 1 (lying down),

2 (sitting), and 3 (standing/strolling) this is possible.

In van den Broek et al. (2009), we discussed deal-

ing with these issues through triangulation; i.e., using

multiple signals to describe or measure one construct.

As a particular and highly effective instance of tri-

angulation, we now discuss the integration of two or

more biosignals into one feature that can be used as

input to a classiﬁer. This idea stems from the fact that

additional biosignals can often explain noise that is

present through other inﬂuences.

The integration of biosignals takes three steps: (1)

identifying a theoretical relationship between mul-

tiple biosignals, (2) selecting an appropriate model

that integrates both, and (3) data gathering and model

training.

In the ﬁrst step, a noisy biosignal is selected and

theoretical relationships with other variables are iden-

tiﬁed. As we saw, HR is also inﬂuenced by physical

activity and respiration. Hence, we should gather res-

piration data and accelerometer data to correct the HR

signal for this noise. Other such relationships exist,

for instance, between skin conductance and skin tem-

perature, skin conductance and physical activity, or

HR and skin temperature. Often this correction re-

lates to a theoretical concept as well; e.g., correcting

the high frequency (HF) power obtained from the in-

ter beat intervals (IBI) for respiration gives a reliable

measure for activity of the parasympathetic nervous

system, which is involved in relaxation and recovery

processes (Grossman and Taylor, 2007).

The second step consists of selecting a procedure

to integrate multiple signals. A popular approach is

using regression to describe the relationship between

the variables. Correcting observed values then con-

sists of computing its residualized value (i.e., the dis-

tance to the regression line) on the dimension of inter-

est. In most cases, this is done using a linear regres-

sion line, but it can just as well be done with more

complex non-linear relationships. A second popular

method for the integration of such signals is through

conditional probabilities. In that case, a Bayesian

model is built in which the corrected value is con-

ditional on the observed value and the values of the

other inﬂuencing variables. When a new value is ob-

served, the corrected value with the maximum a pos-

teriori probability can be selected through this model.

In the third step, when the theoretical relationships

and integration procedures are established, data has

to be gathered that can be used to train the selected

model. Each instance of the data should contain a

value for of the features of the model. In the case

of regression, there are many algorithms that deter-

mine a line or plane of best ﬁt through the data. A

particularly popular approach is using maximum like-

lihood approach by minimizing the least squares er-

PREREQUISITES FOR AFFECTIVE SIGNAL PROCESSING (ASP) - PART III

433

0 5 10 15 20 25 30

1000

2000

3000

4000

GSR

GSR and HR with Activity

0 5 10 15 20 25 30

100

120

0 5 10 15 20 25 30

Minutes

Activity

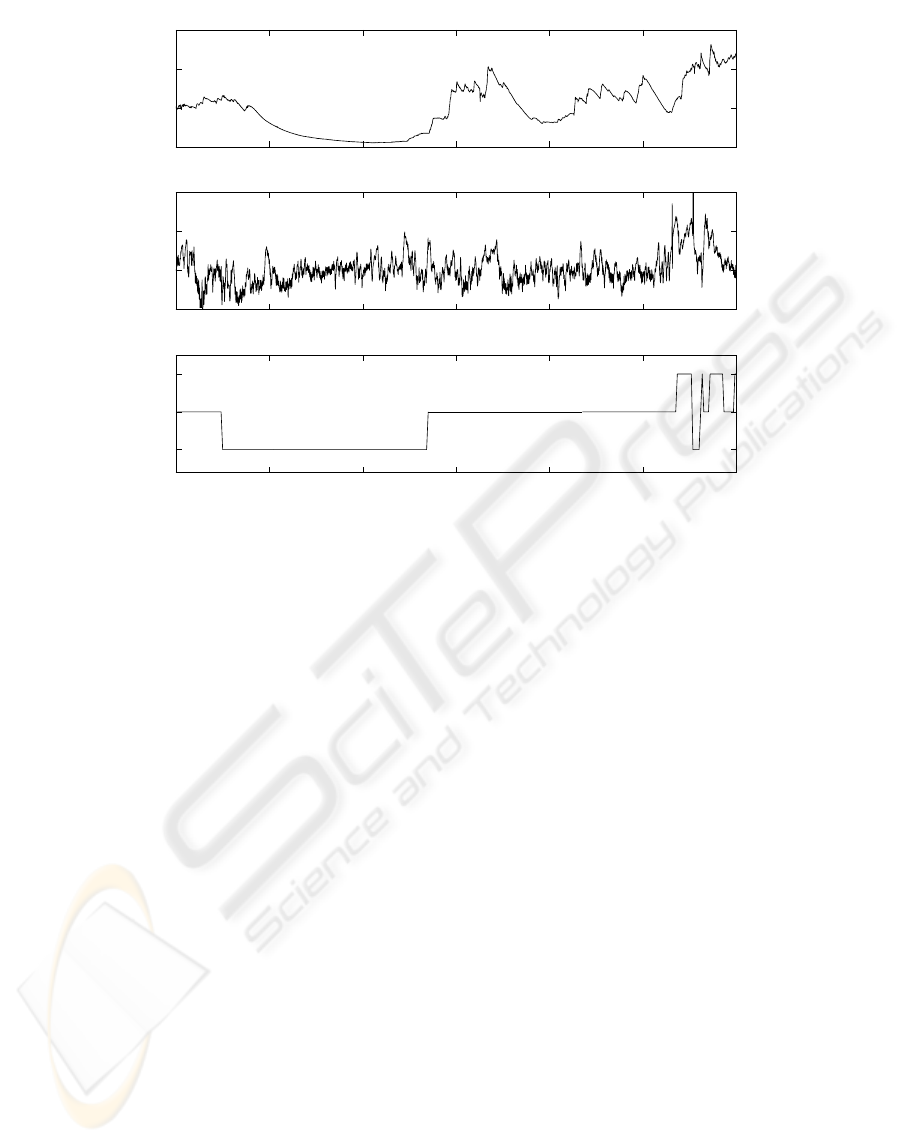

Figure 1: Recordings of Heart rate (HR), electrodermal activity (EDA) (or galvanic skin response, GSR), and a person’s

activity for a period of 30 minutes, in a real world setting. See Section 2.1 for the legend of the activities.

ror. For Bayesian models, the data is modeled through

(mostly continuous) probability distributions. The nu-

merous methods for parameterizing a probability dis-

tribution from data are beyond the scope of this paper;

see Bishop (2006) and Korb and Nicholson (2004) for

more info.

2.2 Physical Characteristics

In this section, we discuss the implications of physi-

cal characteristics of sensors and the environment for

affective signal processing. There are a number of dif-

ferent sensors. For respiration measurements, a gauge

band can be placed around the chest. Thermistor sen-

sors placed on the surface of the skin can be used to

measure skin temperature (Kistler et al., 1998). HR

can be measured through surface electrodes (ECG) or

through a photoplethysmograph (BVP). Skin conduc-

tance and muscle tension (EMG) are also measured

through surface electrodes.

The choice of surface electrodes depends on the

kind of measurement, the aim of the measurement,

and the application in which it is used. On the one

hand, in the lab one opts for the most sensitive and

reliable electrodes, which are wet electrodes that use

a gel for better conductivity. On the other hand, for

wearable affective measurements a better option is

dry electrodes, as these are more practical and easier

to attach and incorporate in devices.

The kind of gel used in wet electrodes depends

on the measurement type. For skin conductance

measurements, a salt less gel should be used as salt

changes the composition of the skin which inﬂuences

the measurement (Boucsein, 1992). For EMG and

ECG, gels with high electric conductance are better.

The location of the surface electrodes is important

as improperly placed can cause noise in the signal.

However, in the case of ASP, the wearable devices

and setting will put constraints on the location of the

sensors. For example, the upper phalanx of the ﬁnger

tips conventionally used for skin conductance mea-

surements cannot be used while driving a car. Other

parts of the hands or the sole of the foot should be

used instead. For HR, instead of using electrodes on

the chest (ECG) one can use a BVP sensor on the ear,

hand, or foot. Skin temperature can also be measured

on the foot instead of the hand.

For ASP, the physical characteristics of the en-

vironment like humidity and temperature also play

an important role. This predominantly inﬂuences

the skin conductance and temperature measurements.

This point is of special interest for longer periods

of continuous measurements and is also different in

medical experiments which require a controlled lab

situation in where humidity and temperature of the

room can be kept constant.

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

434

To deal with the issues of different sensor posi-

tions and changes in environmental temperature and

humidity one should standardize the measurements

using z-scores for each session. During continuous

longer term measurements one can use a sliding time

window for a set period, e.g. one or two hours, which

is used for standardization.

To conclude, due to the large amount of differ-

ences in the aim of physiological measurements, dif-

ferent sensor positions, and different or even changing

environmental conditions, one should always care-

fully puzzle to ﬁnd the best combination of electrode

types and locations. Furthermore, standardizing the

signals will also reduce a lot of the otherwise unex-

plained variance in the signal. In the end, this will

provide cleaner signals to the machine learning algo-

rithms and will lead to a much more successful ASP.

3 CONCLUSIONS

This paper provided the third set of prerequisites

for ASP. It comprises the prerequisites integration

of biosignals and physical characteristics, which are

complementary to the six previously introduced pre-

requisites: identiﬁcation of users and theoretical spec-

iﬁcation (van den Broek et al., 2010) and validity, tri-

angulation, the physiology-driven approach, and con-

tributions of signal processing (van den Broek et al.,

2009).

Perhaps the conclusion should be that, for now,

AC is too complex (Boehner et al., 2007); cf. Chanel

et al. (2009). We pose that it would be wise to take

a step back, and study ASP, using the prerequisites

provided. Then, time will learn whether AC will be

future or remain ﬁction.

ACKNOWLEDGEMENTS

The authors would like to thank both Joyce H.D.M.

Westerink (Philips Research, Eindhoven, The Nether-

lands) and the anonymous reviewers for their com-

ments.

REFERENCES

Benovoy, M., Cooperstock, J. R., and Deitcher, J. (2008).

Biosignals analysis and its application in a performance

setting: Towards the development of an emotional-

imaging generator. In Biosignals 2008: Proceedings of

the ﬁrst International Conference on Biomedical Elec-

tronics and Devices, volume 1, pages 253–258, Funchal,

Madeira, Portugal. INSTICC.

Bishop, C. M. (2006). Pattern Recognition and Machine

Learning. Information Science and Statistics. New York,

NY, USA: Springer Science+Business Media, LLC.

Boehner, K., DePaula, R., Dourish, P., and Sengers, P.

(2007). How emotion is made and measured. Interna-

tional Journal of Human-Computer Studies, 65(4):275–

291.

Boucsein, W. (1992). Electrodermal activity. New York,

NY, USA: Plenum Press.

Cacioppo, J. and Tassinary, L. (1990). Inferring psycholog-

ical signiﬁcance from physiological signals. American

Psychologist, 45(1):16–28.

Chanel, G., Kierkels, J. J. M., Soleymani, M., and Pun,

T. (2009). Short-term emotion assessment in a recall

paradigm. International Journal of Human-Computer

Studies, 67(8):607–627.

Grossman, P. and Taylor, E. W. (2007). Toward understand-

ing respiratory sinus arrhythmia: Relations to cardiac va-

gal tone, evolution and biobehavioral functions. Biolog-

ical Psychology, 74(2):263–285.

Healey, J. A. and Picard, R. W. (1998). Digital processing

of affective signals. In Proceedings of the IEEE Interna-

tional Conference on Acoustics, Speech, and Signal Pro-

cessing (ICASSP98), volume 6, pages 3749–3752, Seat-

tle, WA, USA. IEEE.

onig, F., Batliner, A., and N

oth, E. (2007). Real-time

recognition of the affective user state with physiological

signals. In Proceedings of the Doctoral Consortium of

Affective Computing and Intelligent Interaction (ACII),

pages 1–8, Lisbon, Portugal.

James, W. (1894). The physical basis of emotion. Psycho-

logical Review, 1:526–529.

Kistler, A., Mariauzouls, C., and von Berlepsch, K. (1998).

Fingertip temperature as an indicator for sympathetic

responses. International Journal of Psychophysiology,

29(1):35–41.

Korb, K. B. and Nicholson, A. E. (2004). Bayesian Artiﬁcial

Intelligence. Boca Raton, FL, USA: Chapman & Hall /

CRC Press.

Picard, R. W. (1997). Affective Computing. Boston, MA,

USA: MIT Press.

Rani, P., Sarkar, N., Smith, C. A., and Adams, J. A. (2003).

Affective communication for implicit human-machine

interaction. In IEEE International Conference on Sys-

tems, Man, and Cybernetics, volume 5, pages 4896–

4903.

van den Broek, E. L., Janssen, J. H., van der Zwaag, M. D.,

and Healey, J. A. (2010). Prerequisits for Affective Sig-

nal Processing (ASP) – Part II. In Biosignals 2010: Pro-

ceedings of the International Conference on Bio-Inspired

Systems and Signal Processing, page [submitted], Valen-

cia – Spain.

van den Broek, E. L., Janssen, J. H., Westerink, J. H. D. M.,

and Healey, J. A. (2009). Prerequisits for Affective Sig-

nal Processing (ASP). In Encarnac¸

ao, P. and Veloso,

A., editors, Biosignals 2009: Proceedings of the Inter-

national Conference on Bio-Inspired Systems and Signal

Processing, pages 426–433, Porto – Portugal.

PREREQUISITES FOR AFFECTIVE SIGNAL PROCESSING (ASP) - PART III

435
