TOWARDS THE EVOLUTION OF LEGACY APPLICATIONS TO

MULTICORE SYSTEMS

Experiences Parallelizing R

Gonzalo Vera and Remo Suppi

Computer Architecture and Operating Systems Department (CAOS), Universitat Aut`onoma de Barcelona

Campus UAB, Ediﬁci Q, 08193 Bellaterra (Barcelona), Spain

Keywords:

Legacy applications, R language, Parallel computing, Multicore systems.

Abstract:

Current innovations in processor performance, focused to keep the growth rate of the last years, are mainly

based on providing several processing units within the same chip. With new underlying multicore processors,

traditional sequential applications have to be adapted with parallel programming techniques to take advantage

of the new processing capabilities. There exists a great variety of libraries, middlewares, and frameworks

to assist the parallelization of such applications. However, in many cases, specially with classical scientiﬁc

applications, due to several limitations ranging from technical incompatibilities to simply lack of knowledge,

this evolution cannot always be achieved. We here present our experiences providing an alternative for two

situations where former contributions could not provide a satisfactory solution to our needs: adapting a mature

non-thread-safe C coded application, the R language interpreter, and providing support for the automatic

parallelization of R scripts in multicore systems.

1 INTRODUCTION

During the last years we are witnessing a new age

characterized by massive adoption of multiprocessor

computers, even at desktop level with the populariza-

tion of multicore computers. The change on the gen-

eralized way microprocessor manufacturers are in-

creasing the raw performance of their products started

a debate still open about the serious implications of

these new micro-architectures over applications per-

formance (Sutter and Larus, 2005). There is a large

set of classical scientiﬁc applications that have been

extensively used since the last decades without taken

into consideration the underlying computer architec-

ture. An example of this type of applications are

bioinformatics software tools using statistical or ar-

tiﬁcial intelligence methods to analyze the results of

experimental data based on the scripting language R

(Ihaka and Gentleman, 1996). The R language inter-

preter, like many other legacy applications is a single-

thread program that is not prepared out of the box

to take advantage of nowadays multicore computers.

In order to do so parallel programming techniques

are required. As a consequence, legacy applications

like the R language interpreter, running on top of cur-

rent multicore processors, claim for parallel comput-

ing support.

Transforminga sequential program to make it able

to run concurrently several sections of its code it is a

difﬁcult task that can be achieved by several meth-

ods, depending on our resources, requirements and

limitations (Bridges et al., 2008). Most of them im-

ply either using a shared memory model, suitable

for multiprocessor machines, or a message passing

model, which can be used between networked ma-

chines. Shared memory based solutions, within a sin-

gle process, make use of multithreading techniques

to run several instances of a single process together

with shared variables and inter-process communica-

tions (IPC) mechanisms like mutex sections to syn-

chronize its parallel execution. A useful tool to au-

tomate the construction of such programs is OpenMP

(Dagum and Menon, 1998). Solutions based on the

message passing paradigm also use IPC mechanisms

but in this case to communicate different processes,

usually but not necessarily, through the network. A

well-known library that provides a full set of building

blocks to ease the construction of such parallel pro-

250

Vera G. and Suppi R. (2010).

TOWARDS THE EVOLUTION OF LEGACY APPLICATIONS TO MULTICORE SYSTEMS - Experiences Parallelizing R.

In Proceedings of the First International Conference on Bioinformatics, pages 250-256

DOI: 10.5220/0002746302500256

 SciTePress

grams is MPI (MPI Forum, 1993). There are more

solutions that have proved their value with great suc-

cess, but even in the case these useful tools are com-

patible with our programming language and running

environment, more inconvenients still can appear.

An obstacle that dramatically increases the com-

plexity to adapt sequential programs appears when

global variables are extensively used in legacy appli-

cations. In these situations, if using multiple threads

running at different instructions of the same process,

it is quite complicated to ensure the correct access

to these variables and avoid race conditions. When

correct access order is not ensured, applications are

said to be non-thread-safe. This is quite common

in large legacy applications that have been growing

for years while increasing its funcionality. An ex-

ample of this, with more than 10 years of evolu-

tion, is the R language interpreter. A different prac-

tical obstacle appears when observing the mainte-

nance lifecycle of legacy applications. After years

of proved utility it is logical to expect a long life

span. Introducing an external dependency on a piece

of software that later on may get discontinued can

cause serious problems in the future. Another legal

obstacle is found between incompatible software li-

censes. For example, many open-source tools are

published using the GNU General Public License

GPL (GNU Software Foundation, Inc., 2007). Al-

though partially solved with the Lesser GPL license,

the former prevents the usage of these GPL licensed

tools together with propietarysoftware licenses which

were commonly adopted by earlier legacy applica-

tions. Finally, a pragmatic problem comes with the re-

quired skills to perform such transformations or adap-

tations. It is common for scientists to program their

own applications. Although when implementing their

algorithms, they produce high quality applications,

without speciﬁc background on software engineering

and parallel computing, this process of transforma-

tion, due to the lack of knowledge and experience, is

very cumbersome and error-prone.

In this paper we expose our research experiences

creating a solution to support multicore systems in

the R language. The outcome is an add-on R pack-

age called

R/parallel

(Vera et al., 2008). Its con-

ception initiates after the need of providing parallel

support for the R language interpreter, a non-thread-

safe C coded legacyapplication. The next sections de-

scribe the reasons and motivations that have directed

our design decisions and implementation details in or-

der to allow other developers, with equivalent needs

and conditions, to adopt a similar solution. Besides

of providing a technical description of an explicit par-

allelism method to enable the usage of multicore pro-

cessors and assist other legacy application maintain-

ers, we also describe with more detail our extension of

the R language interpreter, including the experimental

results that have allowed us to validate our implemen-

tation. This second contribution also provides assis-

tance to enable parallel computing, but in this case

providing a simple parallelization method that any R

user, using an implicit parallelism method, and with-

out aditional programming skills, can use to run his or

her R scripts.

2 DESIGN CONSIDERATIONS

The design of a solution to provide parallel computing

capabilities in single thread legacy applications like

the R language interpreter is constrained by the prob-

lems exposed previously in the introduction section.

Language interpreters are a good example of pro-

grams that have evolve considerably over time. Their

implementations can be grouped into two different

approaches observing how they handle the global

variablesshared between differentconcurrentthreads:

share all or share nothing. The share all approach

has the advantage that any variable is directly ac-

cessible at any time. However, since the access has

to be controlled continuously with global locks, its

performance falls down with an increasing number

of parallel threads. The second approach, in con-

trast, shares nothing unless explicitly deﬁned. This

imposes more work for the programmer but results

in better scalability. This approach has been used

by many language interpreters like python, erlang

or perl. In fact, the perl implementation of threads

switched from the share all to the share nothing ap-

proach in version 5.8.0 (The Perl Foundation, 2002)

to overcome the poor performance of its earlier im-

plementations. With this second implementation the

scalability is dramatically increased although the se-

quential access to shared variables is still a bottleneck.

The interpreter implementations, besides of

choosing a share nothing approach, can be classiﬁed

into two additional groups. One group implements

dedicated user level threads to manage the shared re-

sources, also known as green threads, while the other

delegates its control to native system calls at kernel

level, known as native threads. The ﬁrst option has

the advantage, on single processor computers, that

since the controlling thread has speciﬁc knowledge

about their own family threads, its expected perfor-

mance should be greater than if managed by general

purpose kernels, which have no knowledge about the

future requirements of the threads being scheduled.

However, the common disadvantage, since all user-

TOWARDS THE EVOLUTION OF LEGACY APPLICATIONS TO MULTICORE SYSTEMS - Experiences Parallelizing

251

parallel

section

sequential

section

sequential

section

parallel

section

parallel

section

parallel

section

INSTANCE #1

INSTANCE #2

INSTANCE #N

Independent processes

(running different instances of the parallel section )

Added

Multithreading ModuleLegacy Application

SET UP, DISTRIBUTION

and COORDINATION

COLLECTION &

REDUCTION

Re-entrant code

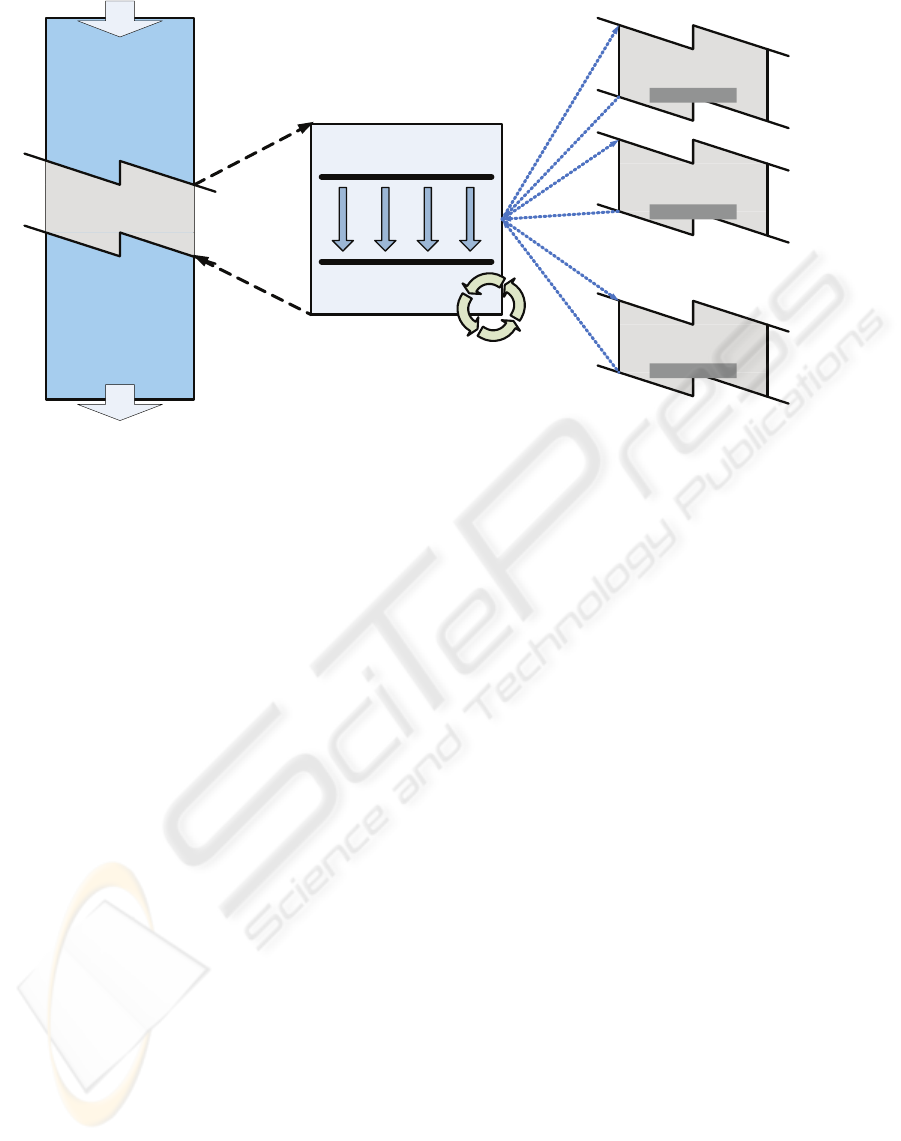

Figure 1: General design strategy for parallelizing a non-thread-safe legacy application.

level threads belong to the same process and they

share the processor quantum of scheduled time (i.e.

cooperative timeslicing scheduling) is that only one

thread is scheduled at a time to a processing unit.

With a high number of running threads, the control-

ling thread turns into the busiest one, blocking the

others to get access not only to the shared variables

but also to their share of processor time. This scala-

bility problem appeared for example in early versions

of the java virtual machine or in the ruby interpreter

language. Using native threads have been adopted by

other programs like the python interpreter or later ver-

sions of the java virtual machine to solve this limita-

tion. Taking into account the evolution and experi-

ence of those general purpose interpreters seems logi-

cal that when performance on multicore systems mat-

ters, and restricted to the situations depicted in the in-

troduction, using a share nothing approach based on

internal operating system mechanisms is the recom-

mended option.

Being the R language interpreter a considerably

large non-thread-safe application it is not advised to

initiate a restructuration that will require an exten-

sive revision of all the global variables used all over

its source code and a later validation of the changes

introduced to ensure its initial quality levels. More-

over, the R language interpreter, like many modern

languages, is evolving continuously, and every year a

few updates are released. That will require a contin-

uous tracking of the changes introduced in new ver-

sions that clearly discourages any direct modiﬁcation.

At the other hand, choosing a third party tool, if avail-

able and compatible, technically and legally, for our

application, has to be carefully done if we expect this

introduced dependency to exist safely for the coming

years. Therefore, as long as multithreading within the

same working process is not directly a feasible op-

tion, a classical alternative, multiprocessing, seems a

right choice. The requirement for that option is to

ﬁnd a way to create multiple processes with selected

code and manage its execution. As we exposed ear-

lier, libraries like MPI provide helpful functions than

can assist with the task of spawning and communicat-

ing processes but they also have two major inconve-

nients for our speciﬁc needs: ﬁrst, they require the in-

stallation and conﬁguration of additional system soft-

ware, what turns to be too difﬁcult and scary for non-

technical users, and second, the available wrappers

existing for the case of R does not provide an standard

and stable programming interface over MPI versions

(e.g. Rmpi (Yu, 2009) does not have a seamless inte-

gration of different MPI implementations like LAM

(Burns et al., 1994) and OpenMPI (Gabriel et al.,

2004)).

Finally, taking all the arguments into considera-

tion, the design chosen is depicted in ﬁgure 1. The

basic idea is to identify, within the legacy applica-

tion the sections of code that can independently run

in parallel. These sections can be replicated in several

independent processes so we are sure we will avoid

race conditions when accessing its local copy of the

global variables. In order to prepare these processes

with different input data, coordinate its execution and

collect back the partial results we need a central piece

BIOINFORMATICS 2010 - International Conference on Bioinformatics

252

of software. This additional module, as long as it is

completely new and shares nothing with the original

application can be implemented using multithreading.

These threads will be used to manage independently

the creation and communication of the processes with

the module. The result is a master-worker architec-

ture, suitable for embarrassingly parallel problems,

where the central module acts as a master coordinator

and a set of working processes, running concurrently

over different processor cores, perform the calcula-

tions that previously were done sequentially within

the legacy application.

3 IMPLEMENTATION

Following the design described in the previous section

we have implemented an R add-on package to extend

the functionalities of the R language interpreter and

provide support for parallel computing in multicore

systems. The implementation mixes standard R core

functions to interface with the R interpreter (and the

R user), together with C++ objects to interface with

the operating system and manage the parallelization.

The general steps undertaken by the master module

are summarized in ﬁgure 2. Once a parallel section is

reached within the legacy application, the execution

is diverted to the added controlling module where the

ﬁrst step performed is to retrieve the current value of

all the accessible variables of the ongoing execution.

With this information, and knowing the parallel sec-

tion of code to be run, the independent processes (jobs

in advance) are set up and spawned using bootstrap

ﬁles and system calls (i.e. fork like functions). Using

standard system calls, although less straightforward

than using already done wrapper libraries ensures the

autonomy, and therefore the long term maintainabil-

ity of the application. At this point, each worker will

perform its assigned job and once ﬁnished it will be

returned to the master. The communication is carried

out and coordinated using standard IPC system calls

and objects (i.e. mutex variables and pipes).

Once all the partial results are recovered, and

knowing the jobs assigned to each worker, the mas-

ter module is able to compute its aggregated results

(i.e. reduces the partial values) to obtain the single

ﬁnal values. At this point, the modiﬁed variables are

updated within the legacy application, and the execu-

tion continues from the next sequential section with-

out further changes.

With this strategy, we can effectively run concur-

rently any section of R scripts by rising several in-

stances of R conveniently prepared to communicate

with the central module. However, how R end-users

0. Initial sequential execution

1. Save the state

2. Create the jobs

3. Submit the jobs

. . .

external

execution

4. Retrieve the results

5. Compute aggregated result

6. Final sequential execution

7. Return to invoking call

worker

process

worker

process

worker

process

worker

process

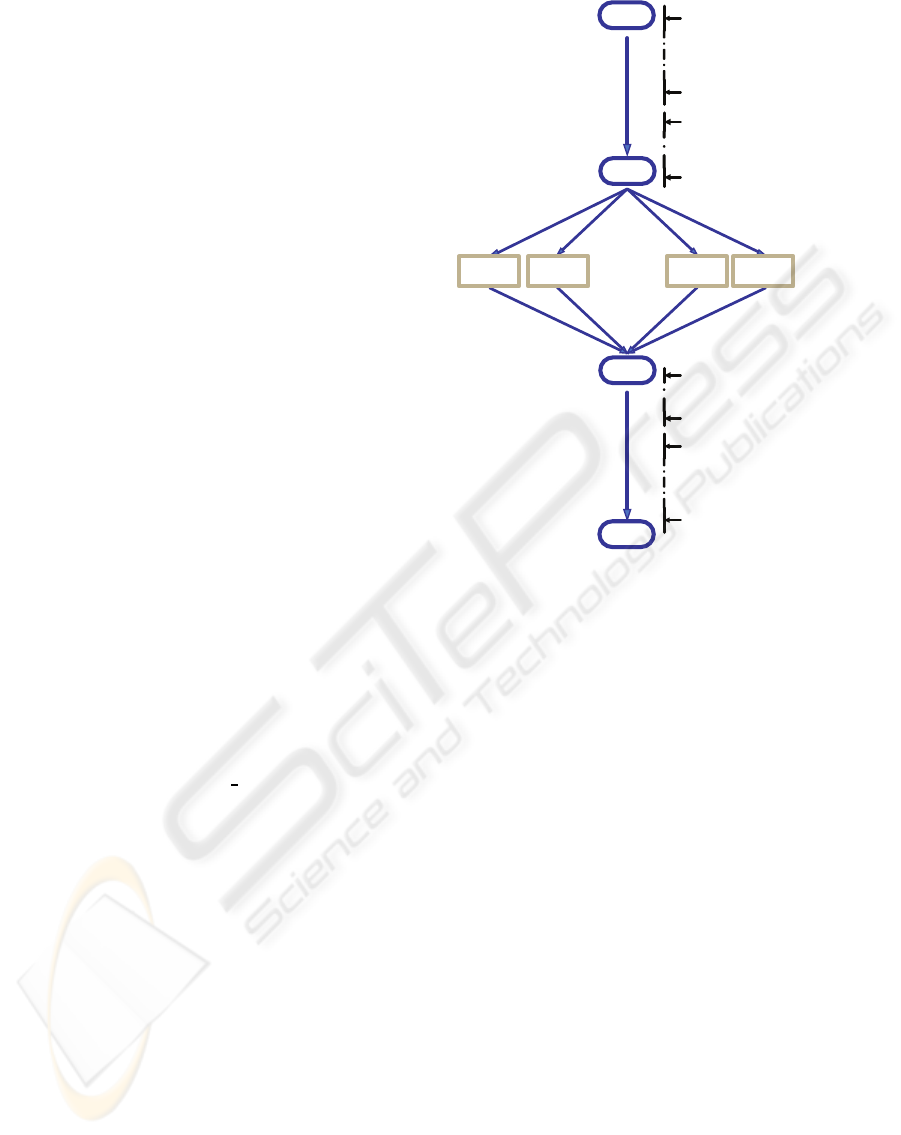

Figure 2: Steps sequence performed at the master module.

can take advantage of this mechanism still have to be

deﬁned. The solution implemented in our proposal is

illustrated in ﬁgure 3.

Since loops without data dependencies (i.e. paral-

lel loops) are the most common case within bioinfor-

matics applications, where large vectors of samples

are analized with the same analytical method, one af-

ter the other, this is the ﬁrst situation where automatic

parallelization can bring great beneﬁts, and therefore

the ﬁrst that our implementation currently supports.

Once an R user has coded his or her function with a

for

loop, to run its iterations concurrently, he only

needs to enclose the

for

loop within the

else

body

of an additional

if-else

conditional structure. In the

case of being our R add-on package loaded, the par-

allelization will take place. Otherwise, the execution

will run as usual without any change. This method,

instead of using directly a new external function call,

and as far as R does not provide macros (used in tools

like OpenMP), has been chosen to let R users to keep

sharing their scripts, regardless of using or not our R

add-on package. If the

condition is true, then the

function

runParallel()

can safely be called. At this

point, the original thread of execution is diverted to

the master module. There, all the accesible variables,

including the

for

loop code of the invoking function,

together with the

runParallel()

arguments, are re-

trieved using the scoping functionalities of R. This

TOWARDS THE EVOLUTION OF LEGACY APPLICATIONS TO MULTICORE SYSTEMS - Experiences Parallelizing

253

yourFunctionName <- function( argument1, argument2=NULL )

{

# 1. Initializing Variables

anyVar <- 0

reduceVar <- NULL

if( "rparallel" %in% names( getLoadedDLLs()) )

{

runParallel( resultVar="reduceVar", resultOp="reduceOp" )

}

else

{

# 2. Start of loop

for(index in 1:nrow(argument1))

{

#Make some calculations

internalVar1 <- someCalculations( argument2 )

tempResult <- someOperations(argument1[index], anyVar )

reduceVar <- reduceOp( tempResult, reduceVar )

}

# 3. Finalizing the function

return( reduceVar )

}

yourFunctionName <- function( argument1, argument2=NULL )

{

# 1. Initializing Variables

anyVar <- 0

reduceVar <- NULL

# 2. Start of loop

for(index in 1:nrow(argument1))

{

#Make some calculations

internalVar1 <- someCalculations( argument2 )

tempResult <- someOperations( argument1[index], anyVar )

reduceVar <- reduceOp( tempResult, reduceVar )

}

# 3. Finalizing the function

return( reduceVar )

}

Indicate Parallel Region

Figure 3: Generic example to parallelize an R loop.

step can also be programmatically accomplished in

any legacy application in case we have access to its

source code. After retrieving this information, the

master module begins the steps described previously.

The mandatory arguments of

runParallel()

are the

reduction variables which values have to be preserved

between iterations, and its corresponding reduction

operations used to aggregate the partial results. Fi-

nally, once the calculation has concluded, from the

same

runParallel()

function, the R environment of

the invoking function is updated with the new values

of the reduced variables. From this point, the execu-

tion of the R interpreter, or any other legacy appli-

cation where the same steps have been implemented,

will continue running the remaining sequential code.

4 EXPERIMENTAL RESULTS

In order to assess the capabilities of our proposal, to

take advantage of the available processing power of a

multicore computer when running a parallel comput-

ing extension of the R language interpreter, we show

in this section the results obtained after performing a

set of experiments selected for this purpouse.

The tests performed have been done using the

function

qtlMap.xProbeSet()

from the R add-on

package

affyGG

(Alberts et al., 2008).

affyGG

has

been developed to perform bioinformatics QTL anal-

ysis of samples obtained using Affymetrix microar-

rays. The input data has been simulated using real

data obtained from samples of 30 recombinant inbred

mice (Bystrykh et al., 2005) to obtain a total execution

time of the R function of +10 hours without using any

BIOINFORMATICS 2010 - International Conference on Bioinformatics

254

10000 15000 20000 25000 30000 35000 40000

Number of cores

Execution Time (seconds)

Number of cores

Speedup

Real

Linear

0.0 0.2 0.4 0.6 0.8 1.0

100%

92%

94%

91%

90%

84%

81%

74%

Number of cores

1 2 3 4

5 6 7

1 2 3 4

5 6 7

1 2 3 4

5 6 7

1 2 3 4

5 6 7

Eciency

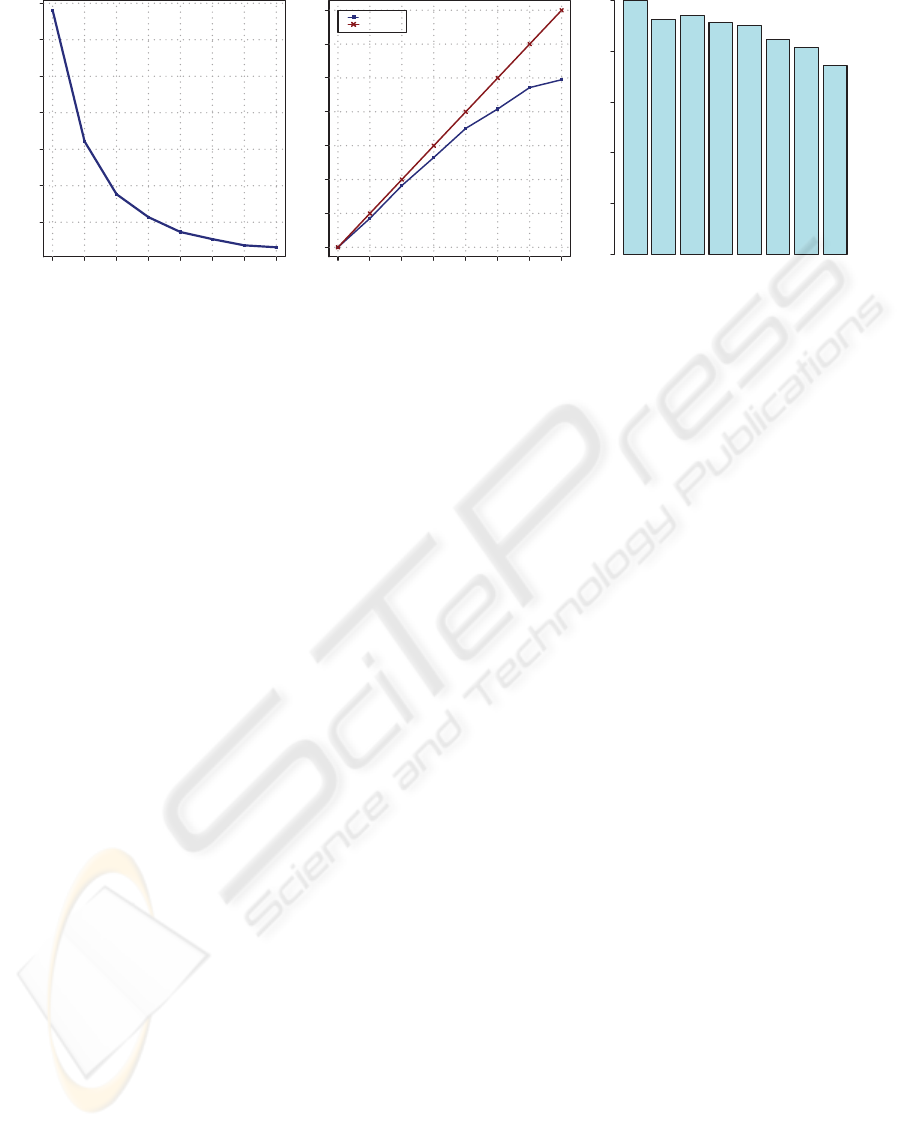

Figure 4: Experimental Results.

parallel solution. By this way, adding progressively

more cores to the computation (the number of workers

can be set optionally), when running with our solution

we can observe how the scalability and efﬁciency of

this solution evolve as we add more cores.

The test environment consist of one server

equiped with 2 quad-core processors (i.e. 8 cores

available) and 16 GB of main memory running the

operating system Red Hat Enterprise Linux Server re-

lease 5 and the R language interpreter, version 2.8.1.

Figure 4 shows the results obtained of total execution

time, speedup and efﬁciency.

As it can be observed, the processing time is re-

duced proportionally as we add more cores to the

computation. Looking at the speedup, although ini-

tially close to the linear speedup, it is clear that, be-

cause of the overhead introduced with the manage-

ment and control the parallel execution, increasing the

number of processing units, the performance growth

rate is affected negatively. The less efﬁcient case is

observed when using 8 cores. Besides of the system

processes, we have also to take into account the mas-

ter process. When reaching the maximum number of

available cores the machine is overloaded because of

the competence between all the processes trying to

get their corresponding slice of processor time. As a

consequence, the overall performance is affected and

the results, although still reducing the total execution

time, show a worse efﬁciency using 8 cores than using

other smaller conﬁgurations.

Nevertheless, the results demonstrate that even

with few available cores, our proposal, by enabling

the available computational power of nowadays mul-

ticore processors, and with so little effort by the R

user, is able to run parallel loops in R scripts substan-

tially faster than previously without our extension.

5 CONCLUSIONS AND FUTURE

WORK

In this manuscript we have described our experiences

parallelizing R from two points of view. One describ-

ing our experiences when parallelizing a non-thread-

safe legacy application by extending the R language

interpreter, and another, describing the characteristics

and beneﬁts of using our R add-on package from an

end-user point of view. The ﬁnal outcome is an R add-

on package called

R/parallel

which can be loaded

dinamically into the R language interpreter and allows

the parallel execution of

for

loops without data de-

pendencies using the strategy explained previously.

The design principles have been proved correct re-

garding the supporting technologies chosen. The R

package has remained completely independent and

functional across several version updates of R since

R/parallel

was released for the ﬁrst time. Regard-

ing its perfomance beneﬁts, the experimental results

show that our proposal enhaces the efﬁciency with

which R natively runs on top of multicore systems.

However, new functionalities can be implemented

and best performance be achieved. Current imple-

mentation is limited to

for

loops. Although this is

enough for most R users, there are other situations

where parallelism can be exploited. For example from

series of consecutive independent heavy-load func-

tion calls where each call can be performed by dif-

ferent workers (i.e. task parallelism). Increased per-

formance should also be achieved by controlling the

cores to which each worker is assigned. By control-

ling the process aﬁnity it is possible to make a better

use of the processor cache memory and hence reduce

the execution times. Moreover, further performance

can be achieved by means of distributed computing.

This is an interesting research aspect for future work

TOWARDS THE EVOLUTION OF LEGACY APPLICATIONS TO MULTICORE SYSTEMS - Experiences Parallelizing

255

although extending the computing environment to re-

mote computers also increases the number of prob-

lems to deal with like for example load distribution

and fault tolerance.

Nevertheless, we expect our experiences will help

other legacy applications in the same situation de-

scribed for the R language. In such situation it is

faster to evolve coding and testing a new small mod-

ule than reviewing, restructuring and testing again the

whole body of very large applications. The same con-

cept applies for R end-users. Now, with our contribu-

tion, they are able to, in less time than before, quickly

and easily parallelize the execution of their

for

loops.

ACKNOWLEDGEMENTS

This research has been supported by the MEC-

MICINN Spain under contract TIN2007-64974.

REFERENCES

Alberts, R., Vera, G., and Jansen, R. C. (2008). affyGG:

computational protocols for genetical genomics with

Affymetrix arrays. Bioinformatics, 24(3):433–434.

Bridges, M. J., Vachharajani, N., Zhang, Y., Jablin, T., and

August, D. I. (2008). Revisiting the sequential pro-

gramming model for the multicore era. IEEE Micro,

28(1):12–20.

Burns, G., Daoud, R., and Vaigl, J. (1994). LAM: An open

cluster environment for MPI. In Proceedings of Su-

percomputing Symposium, pages 379–386.

Bystrykh, L., Weersing, E., Dontje, B., Sutton, S., Pletcher,

M. T., Wiltshire, T., Su, A. I., Vellenga, E., Wang,

J., Manly, K. F., Lu, L., Chesler, E. J., Alberts, R.,

Jansen, R. C., Williams, R. W., Cooke, M. P., and

de Haan, G. (2005). Uncovering regulatory pathways

that affect hematopoietic stem cell function using ’ge-

netical genomics’. Nature Genetics, 37(3):225–232.

Dagum, L. and Menon, R. (1998). OpenMP: An industry-

standard API for shared-memory programming. IEEE

Computing in Science and Engineering, 5(1):46–55.

Gabriel, E., Fagg, G. E., Bosilca, G., Angskun, T., Don-

garra, J. J., Squyres, J. M., Sahay, V., Kambadur, P.,

Barrett, B., Lumsdaine, A., Castain, R. H., Daniel,

D. J., Graham, R. L., and Woodall, T. S. (2004). Open

MPI: Goals, concept, and design of a next generation

MPI implementation. In In Proceedings, 11th Euro-

pean PVM/MPI Users Group Meeting, pages 97–104.

Ihaka, R. and Gentleman, R. (1996). R: A language for data

analysis and graphics. Journal of Computational and

Graphical Statistics, 5(3):299–314.

GNU Software Foundation, Inc. (2007). GNU general pub-

lic licence. http://www.gnu.org/licenses/gpl.html.

MPI Forum (1993). MPI: A Message Passing Interface. In

Proc. of Supercomputing 93, pages 878–883.

The Perl Foundation (2002). Perl 5.8.0 release announce-

ment. http://dev.perl.org/perl5/news/2002/07/18/

580ann/.

Sutter, H. and Larus, J. (2005). Software and the concur-

rency revolution. ACM Queue, 3(7):54–62.

Vera, G., Jansen, R., and Suppi, R. (2008). R/parallel -

speeding up bioinformatics analysis with R. BMC

Bioinformatics, 9(1):390.

Yu, H. (2009). Rmpi: Interface (wrapper) to MPI

(message-passing interface). http://www.stats.uwo.ca

/faculty/yu/Rmpi.

BIOINFORMATICS 2010 - International Conference on Bioinformatics

256
