TOWARDS ROBUST HYBRID CENTRAL/SELF-ORGANIZING

MULTI-AGENT SYSTEMS

Yaser Chaaban, J

org H

ahner and Christian M

uller-Schloer

Institute of Systems Engineering, Leibniz Universit

at Hannover, Appel Str.4, Hannover, Germany

Keywords:

Organic computing, Self-organisation, Coordination, Autonomous vehicles, Robustness, Multi-agent systems,

Artiﬁcial intelligence.

Abstract:

The Organic Computing initiative uses life-like properties such as self-organisation, self-optimisation and self-

conﬁguration towards building today’s technical systems as ﬂexible, robust, and adaptive systems. In a previ-

ous paper, we proposed a system for coordinating semi-autonomous agents under the framework of Organic

Computing. It uses abstractions of observer and controller to add robustness and solve scheduling/allocation

problems. In this context, the path planning and the observation of the agents were presented and also the

detection of deviations in different situations was discussed. In this paper, we introduce control features of

the system designed to deal with these types of deviations. That leads in turn to intervene in time when it is

necessary, so that the system remains demonstrating robustness. Furthermore, this paper addresses the con-

ﬂict between a central planning algorithm and the autonomy of the agents. A hybrid central/self-organizing

multi-agent system is introduced solving this conﬂict.

1 INTRODUCTION

The behavioural intelligence can be seen as a mix-

ture of ﬂexibility, robustness and adaptiveness of be-

haviour. This mixture is however the key idea of de-

veloping today’s technical systems which use the Or-

ganic Computing (OC) concept. The Organic Com-

puting initiative uses life-like properties such as self-

organisation, self-optimisation and self-conﬁguration

towards building those systems as ﬂexible, robust, and

adaptive systems.

Robust system shall behave or act appropriately

according to situational needs. But this is not guar-

anteed in novel systems which have their complexity

and whose environment is changing dynamically, be-

cause that leads to unexpected system behaviour.

Because environments of complex systems may

change dynamically, self-organising systems should

be provided with some degrees of autonomy so that

they can adapt their behaviour to new environmental

situations. This autonomy as well as errors, distur-

bances and deviations may cause an unwanted emer-

gent behaviour (Mnif et al., 2007). Therefore, the sys-

tem should be observed (e.g., by an Observer) and

controlled (e.g., by a Controller) so that this emer-

gent behaviour can be prevented and the system per-

formance remains effective as long as possible. A

generic Observer/Controller (O/C) architecture has

been proposed in (Richter et al., 2006) in order to

establish the controlled self-organisation in technical

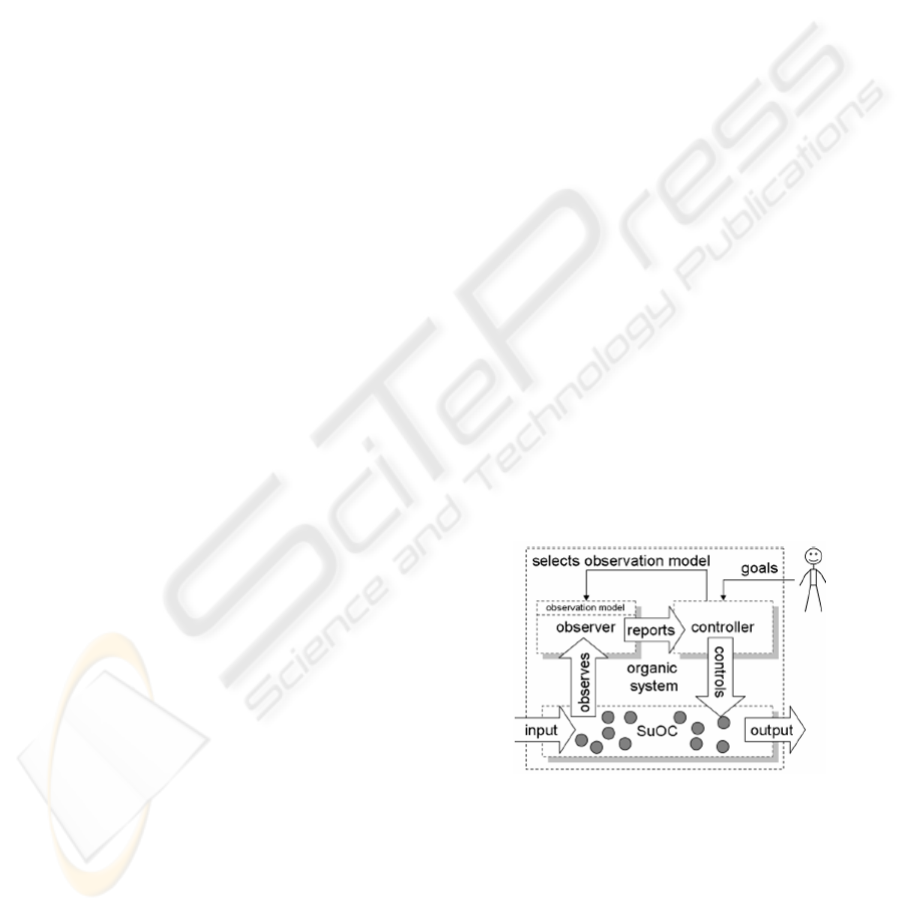

systems. Figure 1 shows a generic o/c architecture.

As depicted in Figure 1 the behaviour of the techni-

Figure 1: Observer/Controller architecture.

cal system can be evaluated to intervene in time when

it is necessary. The o/c architecture has a set of sen-

sors and actuators to measure system variables and

inﬂuence the system. The observer observes the sys-

tem state and its dynamics, quantiﬁes them and ag-

gregates its observations as a vector of situation pa-

rameters. These parameters are then sent to the con-

troller. The controller evaluates the situation parame-

341

Chaaban Y., Hähner J. and Müller-Schloer C. (2010).

TOWARDS ROBUST HYBRID CENTRAL/SELF-ORGANIZING MULTI-AGENT SYSTEMS.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Agents, pages 341-346

DOI: 10.5220/0002761003410346

 SciTePress

ters and inﬂuences the system under observation and

control (SuOC) with respect to the given goal by the

user. In previous paper, we proposed a system for

coordinating cars at intersections using an o/c archi-

tecture (Chaaban et al., 2009). The trafﬁc intersection

is regulated by a controller, instead of having a trafﬁc

light. The cars send messages (requests) to the inter-

section (path planning unit of the controller) and then

get appropriate trajectories. These trajectories guar-

antee a coordinated behaviour with the other cars in

order to avoid trafﬁc jams in the centre of the inter-

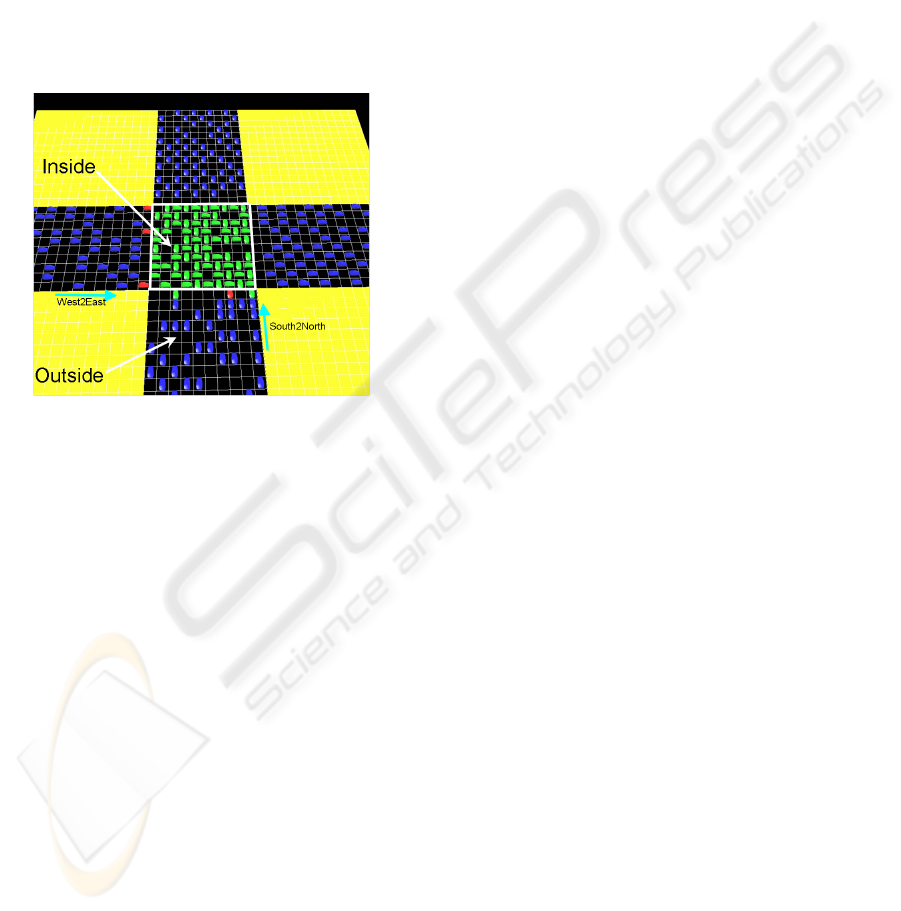

section. Figure 2 shows a screenshot from our project.

In that earlier paper, we focused on the path planning

Figure 2: The intersection without trafﬁc lights.

and the observation of the agents and also the detec-

tion of deviations in different situations.

In this paper, we describe the control process of

the system designed to deal with these types of devia-

tions. That leads in turn to intervene in time when it is

necessary, so that the system remains demonstrating

robustness. This control process depends on our hy-

brid central/self-organizing concept, which solves the

conﬂict between a central planning algorithm (path

planning in the trafﬁc intersection) and the autonomy

(deviations from the plan) of the agents.

The scenario of trafﬁc intersection offers a lot of

cases that can be used to verify the new investigated

concept. In this scenario, a resource sharing problem

(resource sharing conﬂict) arises which has to be re-

solved in order to avoid collisions in the centre of the

intersection (a shared resource). In this context, the

hybrid central/self-organizing concept is used to solve

this coordination problem. It aims to keep the inter-

section robust when deviations occur in the behaviour

of the cars, so that the cars can move reliably in their

environment.

2 THE ORIGINAL SYSTEM

Previously, we proposed a new multi-agent approach

which deals with the problem occurring in the sys-

tem wherever multiple agents (cars) move in a com-

mon environment (intersection without trafﬁc lights).

We presented the desired system architecture together

with the technique that is to be used to cope with this

problem. This architecture was an o/c architecture

adapted to the scenario of trafﬁc intersection.

The system under observation (cars within the

centre of the intersection) is considered as a set of el-

ements possessing certain attributes in terms of multi-

agent systems. This means that every car in the sys-

tem is an agent. Every car by itself is assumed to be

egoistic (because the driver here is autonomous and

he tries quickly to cross the intersection and perhaps

he does not obey his trajectory). Therefore compe-

tition situations arise due to the egoistic behaviour

(competition-based behaviour) of cars, which in turn

leads to a trafﬁc jam in the centre of the intersection.

2.1 Path Planning

Path planning delivers collision-free trajectories for

all cars. Path planning has to be done only for cars

inside the centre of the intersection. A car outside the

centre of the intersection has only local rules, through

which this car tries to move forward avoiding colli-

sions with other cars.

When a car arrives at a border of the centre of the

intersection, it sends a message (request) to the in-

tersection (path planning unit of the controller). This

message has to be responded to by the intersection

controller so that the car is being able to cross the

centre of the intersection (shared resource) safely, if

no unexpected errors occur within this process. The

path planning takes into consideration other cars and

the geometry of the intersection in the conﬁguration

space-time. It calculates an appropriate trajectory and

sends it to that car which would be entering the cen-

tre of the intersection. Furthermore, the calculated

trajectory is stored in the memory of the trajectories.

The enquiring car gets its trajectory which guarantees

a coordinated behaviour with the other cars in order

to avoid trafﬁc jams in the centre of the intersection.

We assume that every car obeys its trajectory. But this

is not guaranteed. Therefore the observer of the inter-

section observes whether the current travelled path of

a car in the centre of the intersection corresponds to

the planned trajectory of this car in the memory of the

trajectories. If this is not the case, then the intersec-

tion controller is informed so that it could intervene

in time if it would be important.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

342

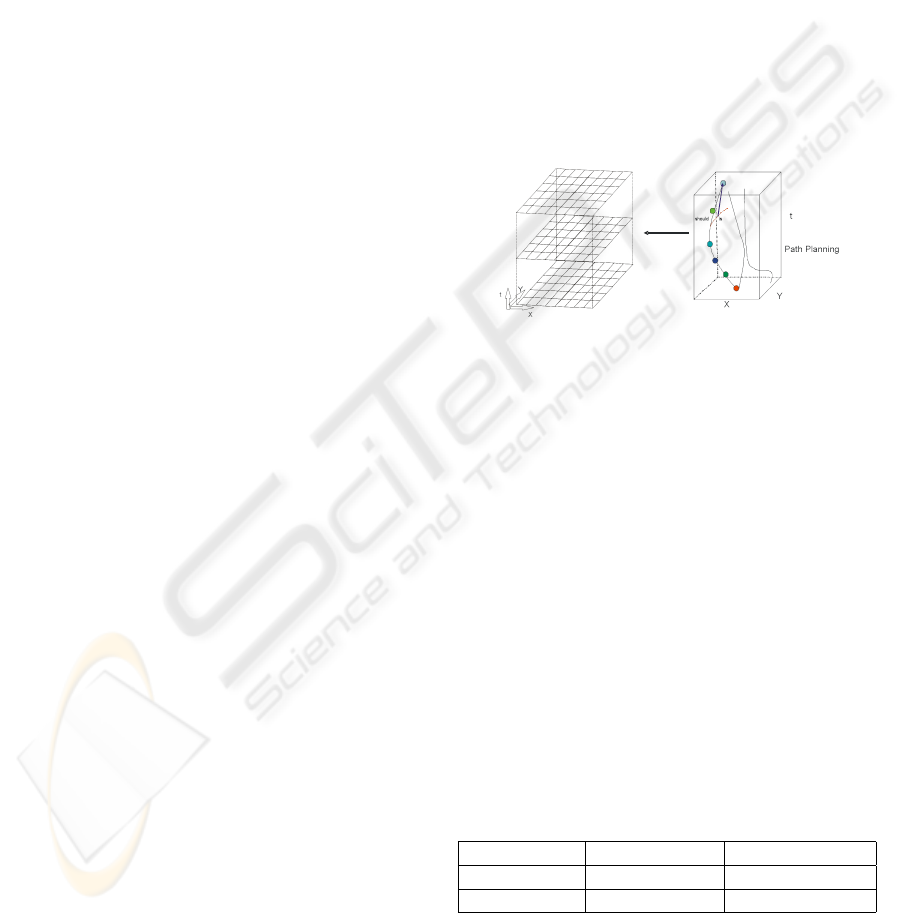

The A*-procedure for path planning of cars is ap-

plied in three dimensional conﬁguration time-space.

It makes an independent planning of the paths for

the individual agent (cars) in their conﬁguration time-

spaces which extends the conﬁguration space of the

agent by a time axis.

2.2 Observation

The observer concentrates at present only on the in-

tersection. Therefore, other observers in order to ob-

serve the agents (cars) on the way are not considered.

In the centre of the intersection every car has to

obey its trajectory as planned. Since deviations from

the planned trajectories are possible, the monitoring

is done in order to detect the deviations and to inter-

vene dynamically through re-plan trajectories of the

affected cars. The observer of the intersection aggre-

gates its observations as a vector of situation parame-

ters. These parameters are then sent to the controller.

2.3 Detection of Deviation

The observer compares the two states (should-be and

actual states) of every car in order to detect whether

any deviation from the plan occurred. When the ob-

server detects any deviation, then it has to ﬁnd the

deviation class. The possible classes of deviations,

which could be detected through the observer in this

system, are: 1- Accident. 2- Autonomy. 3- Accident

and Autonomy (Chaaban et al., 2009).

3 THE HYBRID

CENTRAL/SELF-ORGANIZING

CONCEPT

The generic o/c architecture has to be customised to

different scenarios. The distribution possibilities of

the proposed architecture are varying from fully cen-

tral to fully distributed architecture (Branke et al.,

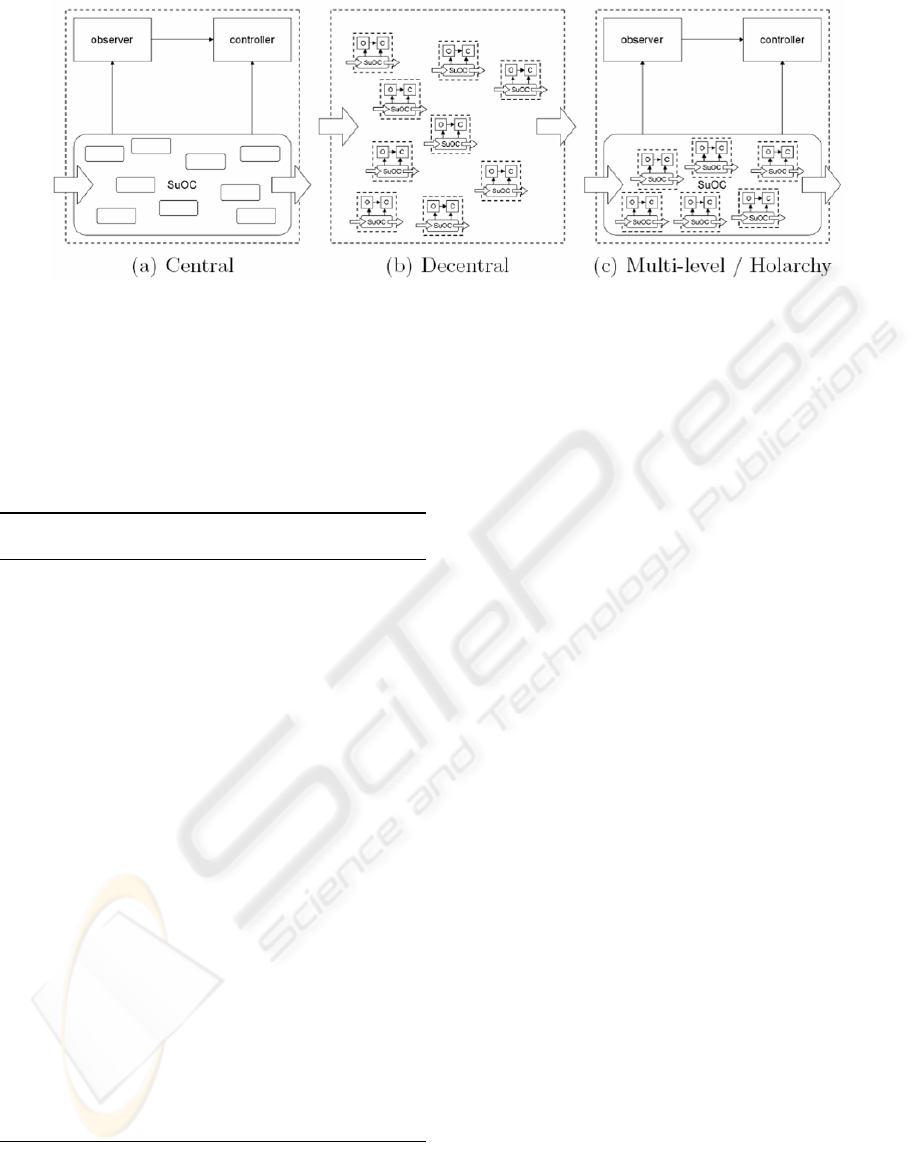

2006). The three main options to realize the generic

architecture as depicted in the Figure. 3 are:

(a) Central: One o/c for the whole system.

(b) Decentral: One o/c for each subsystem.

one (or more) for the whole system.

In this paper, we are introducing the term, hybrid

central/self-organizing multi-agent system. It is a new

possibility of the distribution of the proposed archi-

tecture. The new architecture is a special form of the

fully central architecture, in which some autonomous

agents can leave the control of the fully central ar-

chitecture and also to behave in fully autonomous

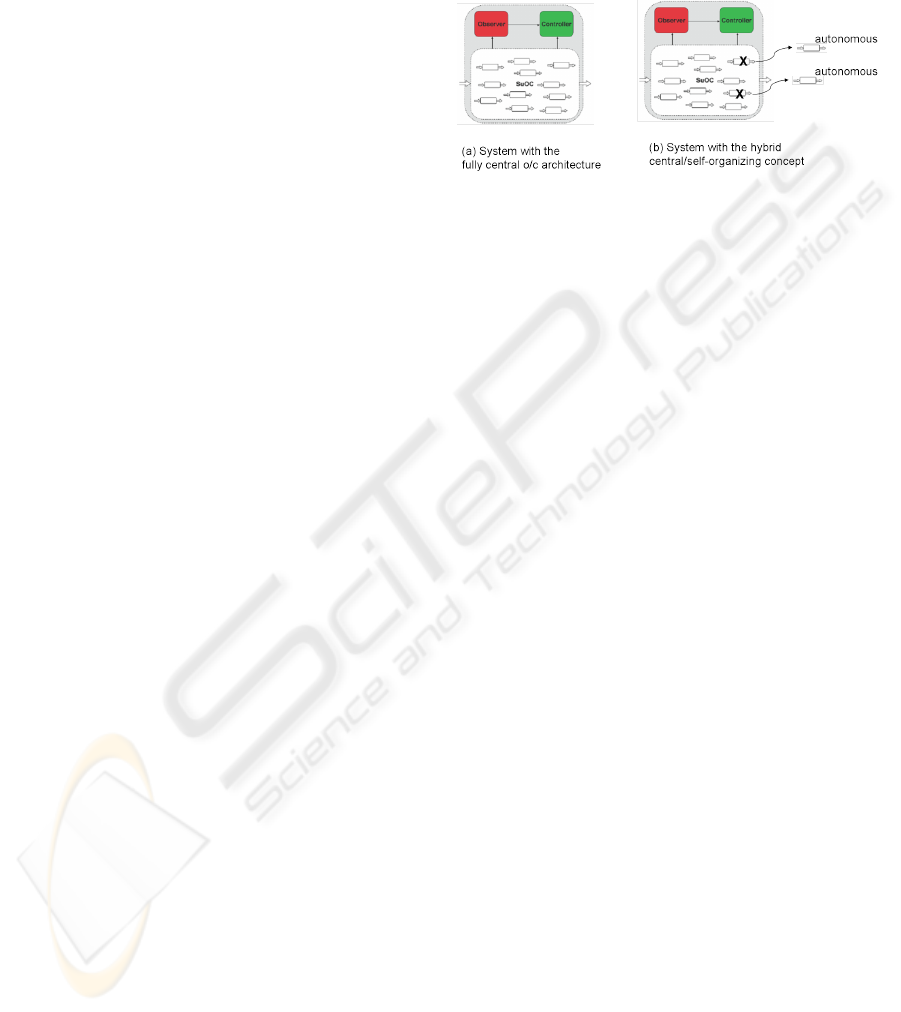

way. Figure 4 shows the main idea of this hybrid

central/self-organizing concept arising from the fully

central architecture.

Figure 4: The hybrid central/self-organizing concept.

Organic Computing searches for concepts to

achieve controlled self-organisation as a new design

paradigm, which is necessary to cope with degrees of

freedom required by the process of self-organisation

(Cakar et al., 2007). The choice of the appropriate o/c

realization is a design decision that has to be done by

the developer in the design phase of the technical sys-

tem. In this work, the hybrid central/self-organizing

concept aims to increase the autonomy of agents in

the central architecture. This means, our hybrid con-

cept tolerates that some agents behave in fully au-

tonomous way in the central architecture. It solves

the conﬂict between a central planning algorithm and

the autonomy of the agents. Here, the autonomy is

recognized as a deviation from the plan of the central

algorithm, if the agents are not respecting this plan.

Consequently, our new concept comprises the use of

a central o/c architecture, autonomous agents and de-

viations from a central plan in order to solve coordina-

tion problems in multi-agent systems. Additionally, it

keeps the system robust when deviations occur in the

system behaviour, so that the agents of a system can

move reliably in their environment.

3.1 Decision Making

This paper focuses on the control process of the sys-

tem to deal with the occurred deviations.

The decision maker is the central part of the con-

troller. The controller uses the decision maker to take

a decision how it can intervene most suitable when it

is necessary so that the system can be inﬂuenced with

respect to the given goal by the user. The given goal

of the user in the introduced scenario of this work is

to keep the system demonstrating robustness in spite

of emergent behaviour which could be appeared in the

system, so that the agents (cars) can move reliably in

their environment in order to cross over it (intersec-

tion) quickly as soon as possible. That would be done

TOWARDS ROBUST HYBRID CENTRAL/SELF-ORGANIZING MULTI-AGENT SYSTEMS

343

Figure 3: Distribution possibilities of the generic observer/controller architecture.

in addition to get autonomous trafﬁc as possible with

low delays. The decision maker is activated when the

controller gets the situation parameters which contain

a deviation message. On the other side, when there is

no deviation, this means that everything is as planned

and the decision maker will not be used here.

Algorithm 3.1. Overview of the controller algorithm

with the aid of the observer.

The observer calculates and checks δ:

δ ← (should-be state) XOR (actual state)

if (δ = 0) then

- there is no deviation, and everything is as

planned, and the decision maker will not be used

here.

else

while (δ 6= 0) do

- there is a deviation from the plan.

- increase the counter of the Autonomy Detec-

tor: (AD = AD + 1).

if (AD ≥ the threshold of the emergency)

then

activate the state of emergency

end if

- the observer ﬁnds the deviation class, and

send a deviation message to the controller.

- the controller reads the deviation message

and re-plans the trajectories of the affected

agents (cars), and send it to the system.

- wait for the next simulation tick.

- the observer calculates again and checks δ:

δ ← (should-be state) XOR (actual state).

end while

end if

3.2 The Controller Algorithm

See Algorithm 3.1. for an overview of how the con-

troller algorithm works and cooperates with the ob-

server. This algorithm allows the controller to inter-

vene dynamically through re-plan trajectories of the

affected agents (cars), when the observer has detected

deviations from the planned trajectories. Future work

includes further investigation on intervention tasks.

The simulation parameter AD (Autonomy Detector)

plays a major role in the decision process. AD repre-

sents the degree of the system sensitivity to the devi-

ations that occur. It can be adjusted to a certain value

according to the used scenario. E.G., when the sce-

nario is risky (e.g. cars scenario), the AD can be ad-

justed to a very low value. On the other side, the AD

can be adjusted to a higher value. When the value of

AD reaches the adjusted value (the threshold of the

emergency), the controller activates the emergency

state and also stops all agents (cars) and does not give

any new trajectories to the other agents.

4 PERFORMANCE EVALUATION

In this section, we present an initial evaluation of

our system using the model of a trafﬁc intersection,

which was designed and described in our earlier paper

(Chaaban et al., 2009). Due to space limitations, we

include only our main result. In future work, we in-

tend to present a more complete empirical evaluation

including experiments with other metrics for estimat-

ing the overall reduction of the Performance (through-

put) of the system, in which deviations from the plan

of the controller occur.

4.1 System Performance Metrics

In our previous work (Chaaban et al., 2009), we have

measured the two fundamental performance metrics

in trafﬁc engineering: the throughput and the latency

(the waiting time), because a high throughput and a

low latency are always needed in trafﬁc engineering.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

344

Throughput is the total amount of cars that leaved the

intersection (simulation area) over time, whereas the

mean latency is the mean waiting time (ticks) needed

by cars to traverse the intersection.

In this paper, another metric is measured, the re-

sponse time. Response time is an important metric

for real time systems, because in these systems short

response time is required. This short response time

is required in this work, because cars approaching the

intersection need trajectories as soon as possible.

Response time is the time which takes a system

to react to a given input. The response time here is

the time between the moment when the path planning

unit in the controller of the o/c architecture gets mes-

sages (requests) from the system (cars) and the mo-

ment when it sends appropriate trajectories to the sys-

tem (cars). Thus, currently the average response time

is the average used computation time of the search for

the best appropriate trajectories of cars. In this sce-

nario, the system with the o/c architecture will pro-

vide a better system performance if the response time

is shorter.

4.2 Evaluation Scenarios

We used four different test scenarios to measure and

compare the system performance. These scenarios re-

sult from the change of values of the following two

simulation parameters. The ﬁrst simulation parameter

is the maximum number of cars in each direction. The

second simulation parameter is the production rate of

cars in each direction (Trafﬁc Level). The four differ-

ent used evaluation scenarios ensure that the system

performance in various combinations of the parameter

remains effectively. We called this four test scenarios:

(Equal-Equal), (Equal-Not Equal), (Not Equal-Equal)

and (Not Equal-Not Equal) (Chaaban et al., 2009).

4.3 First Results

Currently, the path planning of the o/c architec-

ture only has been implemented in order to deliver

collision-free trajectories for all cars. Thus, the re-

sults described here are measured assuming that no

deviations occur in the system. Recalling, that one

tick in the simulator means one time step.

Additionally, we have implemented the reserva-

tion algorithm for the trajectories of cars in two ways

trying to get better response time of the system. The

ﬁrst way is ”AllTrajectoriesVector”. Here, every

cell in the intersection is an object (instance) of the

class SpaceTimePoint (x,y,time). Each trajectory in

turn is a vector. This vector contains all points (Space-

TimePoints) which represent a trajectory. Accord-

ingly, the AllTrajectoriesVector is a vector that con-

tains all trajectories of cars. The second way is ”Pho-

toOfGrid”. Here, for each tick (each unit of time) in

the simulation a photo for the whole area of the in-

tersection will be stored. Therefore, in every cell an

”AgentID” (CarID) is saved if this cell at this time (at

this tick) for this agent (car) is reserved. Each level

represents a photo of a speciﬁc tick of the simula-

tion. Thus, a photo represents the coordinates (x,y),

whereas a level represents the third axis (time), so that

the conﬁguration time-space is formed. Each photo is

implemented as a HashMap, where the keys are the

ticks and the values are the photos:

(key, value) = (Tick, PhotoO f Grid) (1)

Figure 5 shows the structure of the PhotoOfGrid-way.

Figure 5: The structure of the PhotoOfGrid-way.

We have measured the average response time of

the system for the two reservation ways after 3000

ticks in two selected scenarios. The scenario I is a

simple scenario in terms of a small number of cars.

We have measured in scenario I the average response

time of the system in the case that trafﬁc level of

cars in south-north and west-east directions is only

(1) cars/tick, whereas the maximum number of cars

in each direction is only (20) cars. The scenario II is a

complex scenario in terms of a large number of cars.

We have measured in scenario II the average response

time of the system in the case that trafﬁc level of cars

in south-north and west-east directions is (4) cars/tick,

whereas the maximum number of cars in each direc-

tion is (100) cars.

Table 1 shows the resulting average response

times in the two reservation ways.

Table 1: Average response times in (ms).

Scenario I (simple case) Scenario II (complex case)

AllTrajectoriesVector 0.167 0.930

PhotoOfGrid 1.062 12.447

We can note that the second reservation way (Pho-

toOfGrid) requires about (6) times longer time than

the ﬁrst reservation way (AllTrajectoriesVector) in the

scenario I, whereas it is about (13) times longer in the

TOWARDS ROBUST HYBRID CENTRAL/SELF-ORGANIZING MULTI-AGENT SYSTEMS

345

scenario II. That means, the reservation way (AllTra-

jectoriesVector) has approximately a quadratic com-

plexity, whereas the reservation way (PhotoOfGrid)

has approximately a cubic complexity, because time

is additional to the (x,y) form this 3-D conﬁgura-

tion. Since the reservation way (AllTrajectoriesVec-

tor) outperforms signiﬁcantly the other reservation

way (PhotoOfGrid) by computation time in several

situations, we have further measured only the ﬁrst

way (AllTrajectoriesVector).

Figure 6 shows the system performance (average

response time) for the scenario I (Equal-Equal) after

3000 ticks using the reservation method (AllTrajec-

toriesVector). We have measured in this scenario the

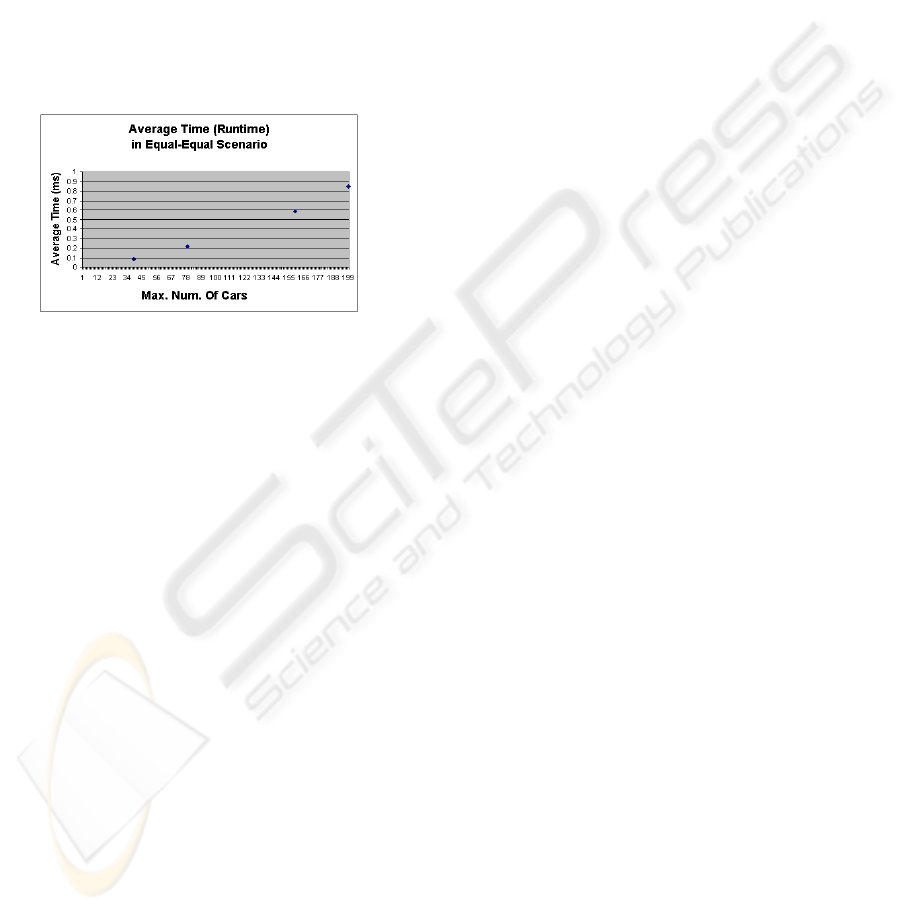

Figure 6: The average response time of system in scenario I

(Equal-Equal) after 3000 ticks using the reservation method

(AllTrajectoriesVector).

average response time of the system in the case that

the trafﬁc level of cars in south-north and west-east

directions is (5) cars/tick, whereas we have repeated

the measurement in the cases that the maximum num-

ber of cars in each direction is 20, 40, 80 and 100 cars.

Note here, on the x-axis is the total amount of cars in

the two directions together. The value of the average

response time of the system in this scenario is about

(0.1) ms when the total number of cars in the two di-

rection is (40) cars, whereas about (0.83) ms by (200)

cars. This means, that the average response time of

the system increases approximately quadratically re-

quiring less that (1) ms when the total number of cars

in the two direction is (200) cars.

5 CONCLUSIONS

The choice of the appropriate o/c realization is a de-

sign decision that has to be done by the developer in

the design phase of the technical system. In this pa-

per, we presented a new approach towards building a

robust hybrid central/self-organizing multi-agent sys-

tem. This approach solves the conﬂict between a

central planning algorithm and the autonomy of the

agents. Additionally, it aims to increase the auton-

omy of agents in the fully central architecture. This

means, our hybrid concept tolerates that some agents

behave in fully autonomous way in the central o/c ar-

chitecture. The scenario used in this paper is a trafﬁc

intersection without trafﬁc lights. We introduced con-

trol features of the system designed to deal with de-

viations from the plan which can occur in the system

behaviour. These control features intend to intervene

in due time when it is necessary so that the system

remains demonstrating robustness. Finally, as evalu-

ation metric to measure the system performance, we

used the response time in four different test scenarios

in various combinations of parameters.

6 FUTURE WORK

Since we implemented the generic o/c architecture

adapted to our trafﬁc scenario and accomplished our

experiments assuming that no deviations occur in the

system, the next step is to continue with the imple-

mentation of the case when deviations occur in the

system to completely realize our vision. Then, we

will measure the system performance and compare

the two cases, the system performance with and with-

out deviations. This comparison will be used to deter-

mine whether the system performance remains effec-

tive as long as possible when a deviation occurs and

consequently to assure a robust system.

REFERENCES

Branke, J., Mnif, M., M

uller-Schloer, C., Prothmann, H.,

Richter, U., Rochner, F., and Schmeck, H. (2006).

Organic computing - addressing complexity by con-

trolled self-organization. In ISoLA, pages 185–191.

Cakar, E., Mnif, M., M

uller-Schloer, C., Richter, U., and

Schmeck, H. (2007). Towards a quantitative notion of

self-organisation. In IEEE Congress on Evolutionary

Computation.

Chaaban, Y., H

ahner, J., and M

uller-Schloer, C. (2009). To-

wards fault-tolerant robust self-organizing multi-agent

systems in intersections without trafﬁc lights. In Cog-

nitive09: Proceedings of The First International Con-

ference on Advanced Cognitive Technologies and Ap-

plications, November 15-20, 2009 - Athens, Greece.

IEEE, (To appear).

Mnif, M., Richter, U., Branke, J., Schmeck, H., and M

uller-

Schloer, C. (2007). Measurement and control of self-

organised behaviour in robot swarms. In ARCS 2007,

volume 4415 of LNCS, pages 209–223. Springer.

Richter, U., Mnif, M., Branke, J., M

uller-Schloer, C.,

and Schmeck, H. (2006). Towards a generic ob-

server/controller architecture for organic computing.

In INFORMATIK 2006. Bonner K

ollen Verlag.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

346
