INTEGRATING CASE BASED REASONING AND

EXPLANATION BASED LEARNING IN AN APPRENTICE

AGENT

Lei Wang, Tetsuo Sawaragi, Yajie Tian and Yukio Horiguchi

Graduate School of Engineering, Kyoto University, Yoshida Honmachi, Sakyo-ku, Kyoto, Japan

Keywords: Case based reasoning, Explanation based learning, Machine learning.

Abstract: The problem in applications of case based reasoning (CBR) is its utility problem, that is, the cost of

retrieving the most appropriate case from the case library for a new given problem and the cost of adapting

the retrieved case for solving the new given problem. This paper proposes an approach to solve the utility

problem of CBR by integrating CBR and explanation based learning (EBL) from a perspective that

emphasizes the function of learning in CBR. In this paper, CBR and EBL are integrated in an apprentice

agent, and the application of this apprentice agent in the robotic assembly domain is given as an example.

1 INTRODUCTION

Case-based reasoning (CBR) is a problem solving

paradigm that in many respects is fundamentally

different from other major AI approaches. Instead of

relying solely on general knowledge of a problem

domain, or making associations along generalized

relationships between problem descriptors and

conclusions, CBR is able to utilize the specific

knowledge of previously experienced, concrete

problem situations (cases). A new problem is solved

by finding a similar past case, and reusing it in the

new problem situation. A second important

difference is that CBR also is an approach to

incremental, sustained learning, since a new

experience is retained each time a problem has been

solved, making it immediately available for future

problems (Aamodt and Plaza, 1994). Generally, a

CBR cycle is described by the following four

processes: 1. Retrieve the most similar case or cases;

2. Reuse the information and knowledge in that case

to solve the problem; 3. Revise the proposed

solution; 4. Retain the parts of this experience likely

to be useful for future problem solving.

The problem in applications of CBR is its utility

problem, that is, the cost of retrieving the most

appropriate case from the case library for a new

given problem and the cost of adapting (i.e., reusing

and revising) the retrieved case for solving the new

given problem. Mantaras, et al. (Mantaras, et al.,

2006) regard the utility problem as a natural trade-

off between the benefits of speed-up knowledge and

the cost of its application. In their view, the utility

problem in CBR systems is caused by the conflict

between: 1. the average savings in adaption effort

due to the availability of a particular case, which

tends to increase efficiency as the case base grows,

and 2. the average retrieval time associated with a

given case base size, which tends to decrease

efficiency. Moreover, as new cases are added

retrieval costs become progressively greater but

adaption savings progressively less. Therefore, most

researchers on CBR focus on developing new

retrieval and adaption methods. There are also

researchers who have discovered the importance of

maintaining the case library to solve the utility

problem of CBR (Iglezakis, Reinartz and Roth-

Berghofer, 2004; Wilson and Leake, 2001).

However, in our opinion, learning (i.e., retaining)

is very important for CBR with regard to solving its

utility problem. This is because the retrieval and

adaption costs are not solely depend on the amount

of cases, but also rest with the representation forms

and contents of the cases. In CBR, learning decides

the representation forms of cases and the contents

that can be learned from cases. Therefore, our basic

idea is to save retrieval and adaption costs by

making more efforts on post-processing of cases.

The aim of emphasizing learning is to post–process

667

Wang L., Sawaragi T., Tian Y. and Horiguchi Y. (2010).

INTEGRATING CASE BASED REASONING AND EXPLANATION BASED LEARNING IN AN APPRENTICE AGENT.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Artiﬁcial Intelligence, pages 667-670

DOI: 10.5220/0002763306670670

 SciTePress

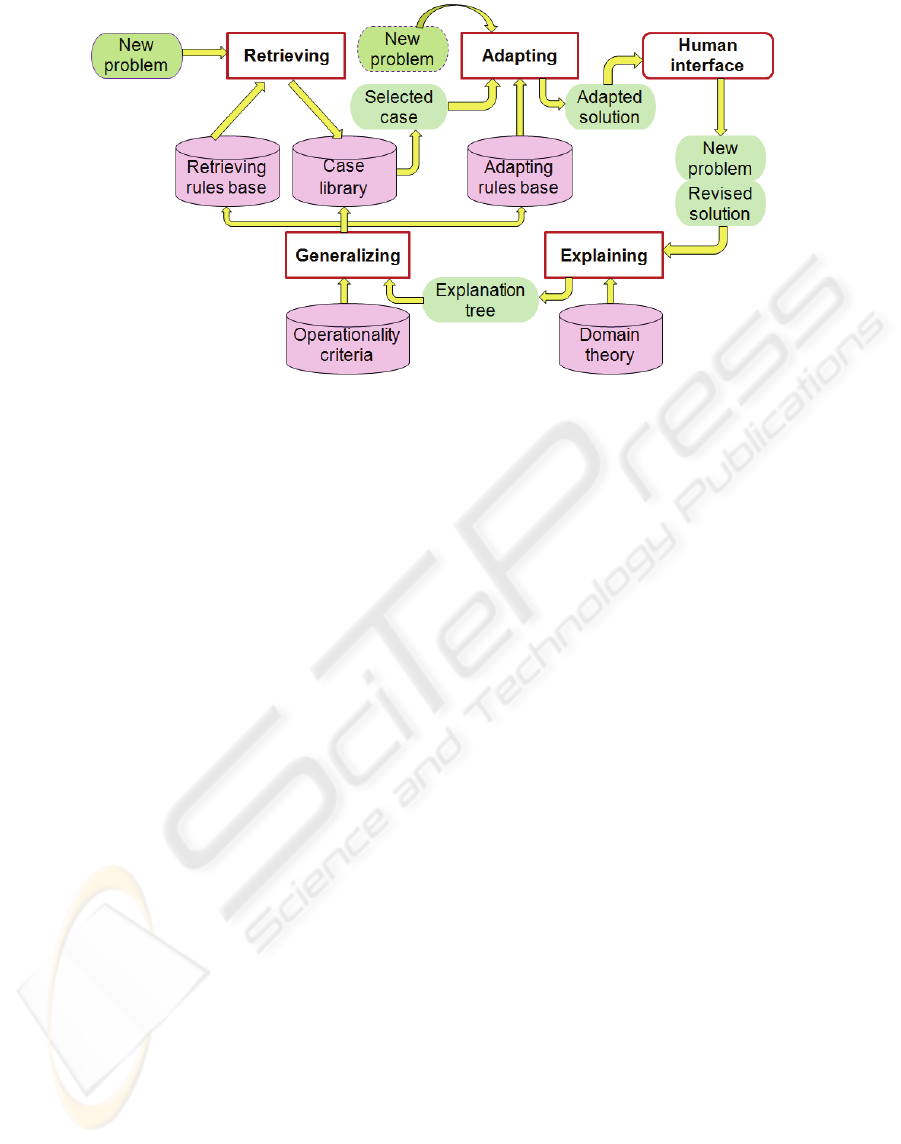

Figure 1: Structure of the apprentice agent.

cases to make them easier to be retrieved and to be

adapted for new problems. The method we use to

learn cases is explanation based learning (EBL).

EBL is a learning method that can acquire

knowledge through observing a single training

example with the help of a pre-encoded knowledge

base, which is called domain theory (Mitchell, Keller

and Kedar-Cabelli, 1986; DeJong and Mooney,

1986; DeJong, 2006). Given a domain theory, a

description of the goal concept, an operationality

criterion and a training example, the EBL method

tries to improve the domain theory in order to obtain

a more efficient (operational) definition of the goal

concept. EBL has two main steps: 1. to build an

explanation justifying why the input example is a

positive instance of the goal; and 2. generalizing the

explanation as much as possible while the

explanation holds. The explanation is the proof tree

build by the system during the problem solving

process. Therefore, the explanation is generated in a

deductive way and its generalization will be correct

since deductive methods are truth-preserving. Finally,

from the generalized explanation new rules can be

generated and stored as part of the domain theory

and they can be used for solving further problems.

The idea of EBL is much like that of CBR. Both

of them are to acquire knowledge from a single

problem-solving example and to reuse the acquired

knowledge to solve new problems. The difference

between the two is that EBL uses a domain theory to

explain why the example is a positive example of the

goal concept and generalizes the explanation to form

an operational knowledge that can be generally

reused for a type of new problems, while CBR

doesn’t analyze the example, but just directly saves

the example as a case into the case library. Therefore,

CBR and EBL can be integrated with each other.

Armengol, et al. (Armengol, Ontanon and Plaza,

2004; Armengol, 2007) have applied EBL in

retrieving appropriate cases in CBR.

In this paper, we integrate EBL into CBR to

make an apprentice agent that is applied in the

robotic assembly domain. The apprentice agent

works as a co-worker of human workers to assist

them in their task of teaching robots. The main

functions of the apprentice agent are: 1.

automatically generating robot programs for new

assembly tasks by reusing past learned experiences;

2. providing suggestions and hints for human

workers when human workers revise the robot

programs or teach robot new assembly skills; 3.

acquiring knowledge from revising and teaching

demonstrations of human workers. The most

distinctive feature of this apprentice agent is that it

uses CBR to help human workers in teaching robots

new assembly tasks by reusing past experiences and

applies EBL to learn assembly knowledge by

observing robot teaching demonstrations of human

workers. The EBL learning process can be regarded

as a post-processing process of cases before

retaining them in CBR. Its aim is to reduce the

retrieving and adapting cost of cases.

2 THE APPRENTICE AGENT

Figure 1 shows the structure of the apprentice agent.

There are five functional modules in the apprentice

agent: 1. Retrieving module, 2. Adapting module, 3.

Human interface module, 4. Explaining module, and

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

668

5. Generalizing module. Each of the modules has its

own knowledge base, except for the human interface

module. This is because human workers are the

knowledge source for the human interface module.

Through this module, the apprentice agent interacts

with human workers and acquires knowledge from

them.

2.1 Retrieving Module

After a new problem (i.e., an assembly task) has

been input into the apprentice agent, its retrieving

module uses a hierarchical mechanism to retrieve the

most appropriate case for the problem.

The hierarchical mechanism works in the

following two steps. First, it examines the features of

the problem, and matches these features against

heads of retrieving rules in the retrieving rules base.

If the features satisfy the head of a retrieving rule,

then this rule is selected and used to select a class of

past cases that corresponding to this rule from the

case library. In the robotic assembly domain, the

features examined in the first step of the retrieving

module are: 1. Type of the target workpiece, 2. Type

of the robot tool, 3. Type of assembly operation, and

4. Destination environment. Second, the retrieving

module uses a similarity distance calculation

algorithm to select the case that is most similar to the

new input problem from the class of cases confined

by the retrieving rule in the first step. The similarity

distance calculation algorithm works by assigning

different weights to the specific data in the problem

description such as the geometric data of the

workpiece and robot tool, assembly operation, and

destination environment information. It calculates

the similarity distances between the retrieved cases

in the first step and the input problem, and selects

the case with the shortest similarity distance to the

input problem.

Each case in the case library is corresponding to

a retrieving rule. This rule is generalized by EBL in

the learning process of CBR. Its role is to classify

cases in the case library according to their features.

In this way, the retrieving cost can be reduced by

classifying the cases with retrieving rules.

2.2 Adapting Module

Both the selected case and the new input problem

description are input to the adapting module. The

adapting module compares the data in the new

problem description against those in the problem

description of the selected case to determine whether

to revise the solution plan in the selected case or to

reuse it directly.

In our apprentice agent, a case in the case library

is composed of three parts: 1. Primitive problem

description of the case, 2. Generalized solution plan,

3. Explanation of the generalized solution plan. In

the robotic assembly domain, a primitive problem

description is a description of an assembly task. A

generalized solution plan is a generalized robot

program for the assembly task. A generalized robot

program consists of a robot command schema and

point parameter deciding methods for points in the

robot schema. Explanation of the generalized

program provides instructions of the robot schema

and point parameter deciding methods to make them

be easily understood by human workers.

The adapting module decides whether to revise

the selected case by searching available adapting

rules with considering differences between the new

problem description and the problem description of

the selected case. If adapting rules are searched, it

will revise the case according to these rules.

Otherwise, it won’t revise the case but just reuses it

directly.

Here, reusing means the adapting module uses

the robot program schema and determines point

parameters with point parameter deciding methods

and data in the new problem description to generate

a robot program for the new problem. Revising

means the adapting module revises the robot

commands or point parameter deciding methods in

the generated program according to adapting rules.

The adapting rules are not pre-encoded, but are

learned by the EBL process of the apprentice agent.

Thus, an adapted case without revision doesn’t mean

it doesn’t need revision, but means there has not

been available adapting rules learned for revising it.

2.3 Human Interface Module

The human interface module shows the adapted

solution to human workers. Human workers review

it and test it in the playback mode of robots. If

human workers are not satisfied with its performance

or error occurs, they will further revise the adapted

solution. Then the human interface module sends the

new problem description, the revised solution,

together with the adapted solution to the EBL

process (i.e., explaining and generalizing modules)

of the apprentice agent to acquire assembly

knowledge of human workers from them.

INTEGRATING CASE BASED REASONING AND EXPLANATION BASED LEARNING IN AN APPRENTICE

AGENT

669

2.4 Explaining and Generalizing

Modules

Explaining and generalizing modules constitute the

EBL process of the apprentice agent. Our past work

(Wang, L., Tian, Y. and Sawaragi, T., 2008) has

described its detailed working mechanism.

The EBL process both can learn from examples

directly given by human workers and can learn from

examples generated by the adapting module and

further revised by human workers. The learning

results include: 1. a retrieving rule for the case, 2. the

case, and 3. adapting rules of the case. The adapting

rules are learned by comparing the revised solution

with the adapted solution.

3 AN EXAMPLE

Figure 2 shows an application example of the

apprentice agent. In this example, the apprentice

agent assists human workers by generating robot

programs for palletizing two rows of blocks into a

plate. The blocks in the same row have the same

cross-section but different heights. The blocks in the

left row have bigger widths (i.e., are thicker) than

those in the right row.

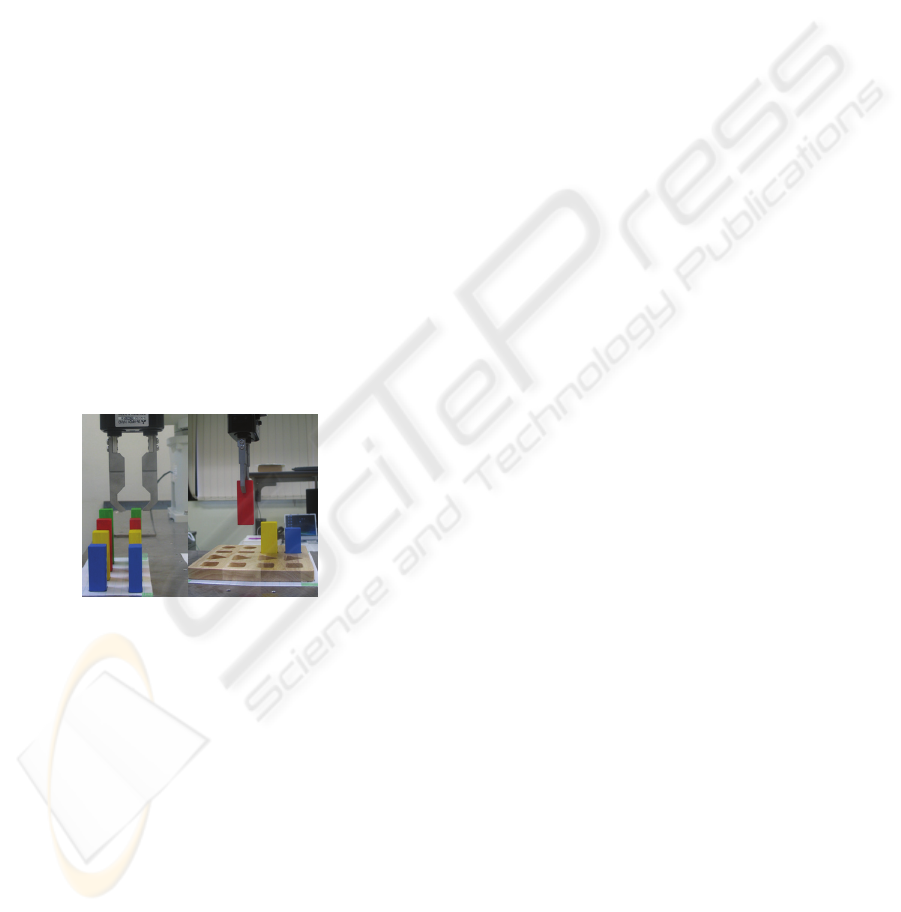

Figure 2: An example: palletizing blocks.

First, human workers teach the robot how to

palletize the blue block in the right row. Then the

apprentice agent reuses this case successfully in

palletizing the rest blocks in the left row.

However, when the case is reused in palletizing

the first (i.e., the blue) block in the left row, an error

occurs. The robot tool collides with the target blue

block. Then human workers revise the adapted

solution by inserting a command to slow down the

robot speed before the command of closing the robot

tool. The revised solution can be executed without

errors. The EBL process learns a new case from the

revised solution and an adapting rule that if the

width of the workpiece is not much smaller than (i.e.,

>80% of) the open width of the robot tool, then robot

should slow down before gripping the workpiece.

The apprentice agent reuses the new learned case in

palletizing the rest blocks of the left row successfully.

4 CONCLUSIONS

We propose a method that integrates CBR and EBL

in an apprentice agent to solve the utility problem of

CBR. Its distinctive feature is applying EBL in post-

processing an observed case to reduce its reusing and

adapting cost. While this apprentice agent can be

used for general purposes, in this paper we apply it

in the robotic assembly domain.

REFERENCES

Aamodt, A. and Plaza, E., 1994. Case-based reasoning:

foundational issues, methodological variations, and

system approaches. AI Communications, Vol. 7: 1, pp.

39-59.

Armengol, E., Ontanon, S. and Plaza, E., 2004. Explaining

similarity in CBR. ECCBR 2004 Workshop

Proceedings.

Armengol, E., 2007. Usages of generalization in case-

based reasoning. Lecture Notes In Artificial

Intelligence, Vol. 4626. Proceedings of the 7th

international conference on Case-Based Reasoning:

Case-Based Reasoning Research and Development.

DeJong, G. and Mooney, R., 1986. Explanation-based

learning: an alternative view. Machine Learning, Vol.1,

pp.145-176.

DeJong, G., 2006. Toward robust real-world inference: a

new perspective on explanation-based learning. ECML

2006.

Iglezakis, I., Reinartz, T. and Roth-Berghofer, T., 2004.

Maintenance memories: beyond concepts and

techniques for case base maintenance. In Proceedings

of the Seventh European Conference on Case-Based

Reasoning. Berlin: Springer, pp. 227–241.

Mantaras, R., et al., 2006. Retrieval, reuse, revision and

retention in case-based reasoning. The Knowledge

Engineering Review, Vol.20:3, pp. 215-240.

Mitchell, T., Keller, R. and Kedar-Cabelli, S., 1986.

Explanation-based generalization: a unifying view.

Machine Learning, Vol.1, pp.47-80.

Wang, L., Tian, Y. and Sawaragi, T., 2008. Explanation-

based manipulator learning: acquisition of assembling

technique through observation. Proceedings of the

17th World Congress of IFAC, pp.2412-2417.

Wilson, D. and Leake, D., 2001. Maintaining cased-based

reasoners: dimensions and directions. Computational

Intelligence, Vol.17:2, pp.196–213.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

670
