MAX/C ON SAKAI

A Web-based C-Programming Course

Souichirou Fujii, Kazunori Ohkubo

Graduate School of Science and Technology, Meiji University

1-1-1 Higashi-mita, Tama-ku, Kawasaki-shi, Kanagawa, Japan

Hisao Tamaki

School of Science and Technology, Meiji University, 1-1-1 Higashi-mita, Tama-ku, Kawasaki-shi, Kanagawa, Japan

Keywords:

e-Learning, C programming, Algorithmic feedback.

Abstract:

MAX/C is a web application for C programming education, which has been successfully used in class of a

computer science department for more than 4 years. It features algorithmically generated feedbacks both for

drill questions and for programming exercise submissions. For the latter, source programs submitted by the

students are statically analyzed as well as executed and tested against test cases. The execution is performed

by a C interpreter which is developed for this purpose and designed to facilitate the detection of potential run

time errors and the collection of useful information from the execution. We describe this system, together with

the ideas behind the system. We also describe the recent integration of MAX/C into Sakai, an open source

e-Learning environment.

1 INTRODUCTION

1.1 MAX: Project Overview

MAX (Massive Algorithmic eXerciser) is a project

being undertaken at the computer science department

of Meiji university, to which the authors belong. This

project is motivated by the belief that skills and work-

ing knowledge in science and technology can only be

achieved through a mass exercises. For those exer-

cises to be effective, they must be interactive: an im-

mediate and helpful feedback must be supplied for

each action of the students. To meet this require-

ment, within the limitation of realistic teaching re-

sources, an appropriate use of information technology

is mandatory. Our approach is to let those feedbacks

generated by algorithms that are designed individu-

ally for each problem domain or even for each exer-

cise question or task, rather than by a small set of gen-

eral principles or by artiﬁcial intelligence. Creating

course materials along this line for each subject do-

main is a task that is enormously laborious but also is

worthwhile, as successful outcomes can be used over

and over again and across academic institutions.

The goal of this paper is to describe MAX/C,

a web-based system for C programming education

which is a product of a subproject of this project, and

evaluate its effectiveness.

1.2 MAX/C: Overview

MAX/C is a web application for learning C program-

ming, intended to be used primarily in class. Along

the MAX philosophy stated in the previous subsec-

tion, it aims at letting each student learn through

working on their own, rather than through listening

or reading. Each of the two practice courses that use

MAX/C consists of 14 3-hour classes, one given in

each week. Accordingly, the contents of MAX/C is

divided into two parts, each consisting of 13 lessons;

an extra class is used for a conﬁrmation test, which

tries to conﬁrm that each student has submitted the

results of their own work. The ﬁrst part introduces

basic components of the language such as variables,

assignments, if, while, and for statements, arrays, and

functions. The second part focuses on more advanced

topics such as structures, pointers, and recursive calls.

A lecture-type course on the same subject runs in par-

196

Fujii S., Ohkubo K. and Tamaki H. (2010).

MAX/C ON SAKAI - A Web-based C-Programming Course.

In Proceedings of the 2nd International Conference on Computer Supported Education, pages 196-201

DOI: 10.5220/0002777501960201

 SciTePress

Figure 1: A screen-shot of an exercise problem.

allel in a synchronized manner.

MAX/C provides both online questions, called

drills, and ofﬂine tasks, called exercise problems,

each lesson typically consisting of 10 to 20 drills and

around 10 exercise problems.

Drills are further classiﬁed into yes/no or multi-

ple choice questions and more interactive questions.

A typical example of the latter is a trace question: a

piece of C code, together with the current values of

variables, is given and the student is asked to type in

the changes of variable values that occur during the

execution of the code. The initial values of the vari-

ables are generated randomly, so that the checking of

the answers must be done algorithmically.

Most of the exercise problems are programming

tasks. The input/output speciﬁcation of the code to be

written is described on the web page. Students use an

editor on the local machine to write a program to ful-

ﬁll the requirement, debug it and, when they believe

it is correct, upload it through the same MAX/C page

where the exercise problem is posed. Figure 1 shows

a screen-shot of a page describing an exercise prob-

lem, which asks the student to write a program that

prints consecutive numbers between two given num-

bers using a for statement. How MAX/C deals with

the submissions to exercise problems is described in

Section2 in detail.

Presently, the authors of drills and exercise prob-

lems, except for simple yes/no or multiple choice

questions, have to provide, together with a text de-

scribing the questions, a Java code that checks the an-

swer and generates feedbacks. This is an essential

part of the MAX approach and therefore is inevitable.

Nonetheless, we strongly feel the need of reducing the

burden of the authors. We brieﬂy touch on our current

effort in this direction in Section5.

The new features to support course managements

and communication among teachers, teaching assis-

tants, and students are described in Section3 in de-

tails.

1.3 Related Work

Programming is a challenging target for computer

supported education and there has naturally been a

great amount of work on developing so-called intel-

ligent programming tutors (Anderson and Skwarecki,

1986; Arnow and Barshay, 1999; Hong, 2004; Khu-

dobakhshov, 2009; Lehtonen, 2005; Odekirk-Hash

and Zachary, 2001; Pillay, 2003; Sykes and Franek,

2004; Xu and Chee, 2003; Truong et al., 2002). There

have also been reports on successful uses of such

systems in class (Pillay, 2003) and even some com-

mercial systems that have evolved out of these re-

search efforts, such as CodeLab (Turing’sCraft, 2002;

Arnow and Barshay, 1999). Yet most programming

courses in colleges and universities are still taught

solely by human instructors and the web is full of on-

line programming courses that can hardly be called

intelligent: besides explanatory texts, they only pro-

vide multiple choice quizzes. This is indeed a regret-

table situation in view of the successful cases includ-

ing the one reported in the present paper. Through the

research work so far, it may have become fairly clear

what is needed in such automated tutoring systems

and how to construct those systems in principle. It is,

however, far less understood how we can make such

systems widely available in forms that are adapted to

the needs of individual courses.

The most important function of programming tu-

tors, in our view, is to examine program codes written

by students and immediately give appropriate feed-

backs. This function is typically achieved either by

1. matching the submitted program with model

programs prepared by human teachers, possi-

bly through some transformations (Xu and Chee,

2003; Hong, 2004), or

2. running the submitted program against a few test

cases and matching the output with the correct

output (Arnow and Barshay, 1999; Odekirk-Hash

and Zachary, 2001).

The latter approach is also common in so-called on-

line judges for programming contest (see (The Asso-

ciation for Computing Machinery, 1977; Universidad

de Valladolid, 2002) for example). Carefully selected

test cases are usually sufﬁcient for deciding if the sub-

mitted program is correct, which is the primary pur-

pose of on-line judges. However, for instructional

MAX/C ON SAKAI - A Web-based C-Programming Course

197

purposes, there are concerns besides correctness such

as styles and methods. Although the ﬁrst approach

may be more appropriate to address these concerns, it

is more difﬁcult to determine correctness in that ap-

proach.

In MAX/C we mainly use the latter approach but

enhance it by the use of a specially developed inter-

preter, which enables the collection of more useful in-

formation than by compiler-based executions, such as

potential errors that do not surface as incorrect out-

puts for test cases. In addition, we use pattern-driven

static code analysis of the source code. This differs

from matching with model programs: the exercise au-

thors describe what is desired and not desired of the

program using a pattern language.

2 PROGRAM TESTING

AND CODE ANALYSIS

As can be seen from the overview in the previous sec-

tion, testing and analysis of submitted programs are

major functions of MAX/C. In this section, we de-

scribe these functions in some detail.

2.1 Flow of Submission Processing

Each program submitted by a student is processed in

the steps listed below. Students are required to com-

pile and debug their programs prior to submission,

but MAX/C does not assume that this is always done

and is prepared for syntactic errors. Feedbacks take

two forms: error messages and warnings. When error

messages are generated, the processing terminates at

that point and the feedbacks are given to the students.

In case of warnings, the processing continues until the

submission passes the test or some error messages are

generated. Students have to resubmit a corrected pro-

gram when they receive error messages.

1. The submitted program is parsed using the source

code API. If this is unsuccessful, then error mes-

sages are generated.

2. The parsed program is analyzed statically based

on patterns provided by the author of the exer-

cise problem. If any deviations from the problem

requirement are detected then error messages or

warnings are generated, depending on how seri-

ous those deviations are. (This decision is made

by the problem author and indicated together with

the pattern description.)

3. The submitted program is executed against test

cases provided by the problem author. Execution

is done either by the interpreter developed in this

project or gcc, a Compiler in public domain. If er-

rors are detected, appropriate error messages are

generated.

2.2 Static Code Analysis

In a static code analysis, the system detects some de-

viations of the submitted program from the require-

ments or the purposes of the problem.

For example, the subject of an exercise problem

may be the use of for statements. In this case, the

description of the task clearly indicates that for state-

ments must be used in the code and the submissions

are checked against this requirement. Similarly, if the

purpose of an exercise is to learn the use of recursive

calls, the lack of recursion in a submitted program is

detected.

This analysis is driven by source code patterns

provided by the author of the exercise problems. Re-

call the MAX approach that does not depend on gen-

eral principles or artiﬁcial intelligence but rather on

the mass of accumulated efforts each of which is

small. To describe the patterns and associated actions,

a pattern language(Takeyama, 2008) designed for this

purpose is used.

2.3 Program Execution and Testing

Submitted programs are executed and tested on the

server. In this phase, a run-time error or violations of

the input/output speciﬁcations may be detected.

It is the responsibility of the author of the exercise

problem to write a code (in the form of a Java class)

to examine the outputs of the submitted program on

test inputs and to determine if they satisfy the speciﬁ-

cation. This is again along the MAX approach of not

hesitating to put efforts on individual contents.

We mainly use a custom-made C interpreter to ex-

ecute submitted programs. The advantages of using

this interpreter, over the use of a compiler, is as fol-

lows.

1. Some potential run-time errors that may not sur-

face in a compile-and-run execution, such as an

accesses to an uninitialized variable or to an unal-

located memory location, can always be detected.

2. When run-time errors do occur, it is easier to col-

lect useful information to be included in the feed-

backs to the submitter.

3. It is more secure against attacks to the server em-

bedded in the submitted program. The interpreter

does not implement system calls that can be used

to thwart the system.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

198

In addition, although not utilized in the current

version of MAX/C, the interpreter can be used to pro-

vide more sophisticated interactions with the submit-

ter of the program. For example, the system could

ask questions on the execution process of the submit-

ted program, in order to conﬁrm the understanding of

the submitter, even if the submission is correct. Our

interpreter is designed to facilitate such uses. Exploit-

ing the full potential of the interpreter is part of our

future research.

As an auxiliary means, a compiler is used. This

is limited to the case where the execution time of the

program is expected to be huge.

3 INTEGRATION INTO SAKAI

3.1 Background of the Integration

In the version of MAX/C before integration into

Sakai, the following shortcomings were recognized.

1. The course contents and the system were rather

tightly coupled. For example, adding new con-

tents required the reconﬁguration and redeploy-

ment of the system and there was no support for

adding contents online. It was also necessary for

the contents authors to have some detailed knowl-

edge of the system.

2. There was little support for managing the drill re-

sults and the exercise problem submissions. Logs

and submissions were stored in a ﬁle system and

the teachers relied on ofﬂine codes that process

the information stored in the ﬁle system, when

they examine students’ progress or read submis-

sions. Again, there was no online support for

those tasks.

3. There was no support for communication between

the students and the teaching staff, among the stu-

dents, or among the teaching staff members.

The ﬁrst two issues are clearly serious. We also

felt strongly the need of addressing the third, because

of the following situation in class. The students en-

rolled in the course are grouped into two classes, each

consisting of 50 to 70 students. Each class is taught by

a teaching staff consisting of one faculty member and

3 teaching assistants. The role of the teaching staff

is primarily to answer questions, as there is a lecture-

type course taught in parallel, where the students learn

the concepts necessary to answer the questions and

solve the problems given in our course. The teaching

staff is generally busy and, at peak times, cannot serve

all requests of the students. To ease their burden and

create more time to be spent for students whose needs

are serious, there are several measures to be taken.

1. Improve the quality of the feedbacks provided by

the MAX/C contents. This will help the students

to resolve some of the questions for themselves,

which they may currently ask the teaching staff.

2. Provide communication tools such as Wiki and

FAQ, with which students may be able to resolve

some of the questions. A public forum for stu-

dents helping each other would also help pro-

moting healthy cooperationamong students rather

than outright cheating.

3. Provide tools for the teaching staff to easily grasp

progress of each student and the class as a whole.

This would help the staff to appropriately allocate

their limited resource.

Through the integration of MAX/C into Sakai we

planned to take the second and the third measures, as

well as to address the ﬁrst and the second issues listed

earlier.

3.2 Adding New Functions

Many of the functions to be added, described in the

previous subsection, are standard in typical course

management systems. Therefore, it is reasonable

to employ a course management system rather than

to newly develop those functions and add them to

MAX/C. The course management system we have

chosen is Sakai(Sakai Foundation, 2005).

Sakai is open source e-learning system that is used

by more than 150 educational institutions all over the

world. Each function of Sakai is embodied by what

is called a tool in Sakai. Sakai has many tools for e-

learning which we can readily use. Our strategy of

integration is to port MAX/C as a Sakai tool, as well

as to develop a new independent tool for course man-

agement which satisﬁes our special needs that are not

satisﬁed by the general tools present in Sakai.

Most new features of the integrated system are im-

plemented in the independent management tool de-

scribed in the next section.

The main purpose of the newly developed man-

agement tool is to help the teaching staff to grasp the

progresses of the students in the classroom. Two vi-

sualization features are used for this purpose. The

classroom map is a map of the classroom where the

seats of the students are displayed with colors depend-

ing on their progress. See Figure 2. Students at blue

seats are the most advanced, light blue, green and yel-

low following in this order. Although not shown in

this ﬁgure, students at red seats have made almost no

MAX/C ON SAKAI - A Web-based C-Programming Course

199

Figure 2: Classroom map.

progress and would need special assistance if they re-

main in this state after a certain amount of time has

passed. These colors are consistent with the back-

ground colors of MAX/C pages for individual stu-

dents mentioned earlier. On the other hand, the pie

chart displays the progress of the entire class, using

the same color system. The teaching staff can also

share, through the management system, comments on

individual students that are helpful in adapting the

guidance.

4 EVALUATION

MAX/C has been used in class for more than 4 years,

by more than 100 students each year. There is no

doubt that the system has succeeded in immersing the

students with the mass of exercises we hope them to

be. To conﬁrm the usefulness of the algorithmic feed-

backs, we have conducted a survey over the students.

In this survey, we have asked students whether the

drill questions and the exercise problems are helpful

for learning. We also have asked whether the system

is useful as a whole. 123 students have responded to

this survey.

Figure 3 shows the result of the survey on the use-

fulness of the three types of contents: yes/no or mul-

tiple choice drill questions, trace questions, and exer-

cise problems. To let the student focus on the merit of

the feedbacks for exercise problems, the third ques-

tion asks the students to evaluate the usefulness in

comparison to an imaginary situation where no imme-

diate feedbacks are given. Most of the students con-

sider all of the three types of contents useful. They

are particularly positive about the exercise problems,

for which about a half of the students answered “very

useful”.

However, a non-negligible number of students are

not satisﬁed with the quality of the feedbacks given to

the exercise problem submissions, as shown in Fig-

Figure 3: The survey on the usefulness of the drill questions

and the exercise problems.

Figure 4: The appropriateness of the automatic feedbacks.

ure 4. This shows that there is a large room of im-

provement here.

Figure 5 shows the result of the survey question

asking which factors in the course are useful, allowing

multiple answers. The features provided by MAX/C

slightly outnumber the human support. This is natu-

ral since some students are able to proceed for them-

selves and are seldom in need of a help from the

teaching staff. Although this is an evidence of the ef-

fectiveness of the system, we must not forget that the

human support factor is still important and the system

must help this support to work.

To the question on the whole system’s effective-

ness (Figure 6), most students responded positively.

The integration of MAX/C into Sakai has success-

fully been completed and the new system is currently

in use. With the new management tools, it has be-

come easier for the teaching staff to grasp the progress

of the students in class. The newly added support

for communication has made the interactions between

students and the teaching staff easier. However, the

use of newly introduced communication tools are not

so widespread yet, due partly to the short time since

introduction and partly to the lack of publicising ef-

forts. It will take more time for the users to become

familiar with these new features and for their beneﬁts

to be fairly evaluated.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

200

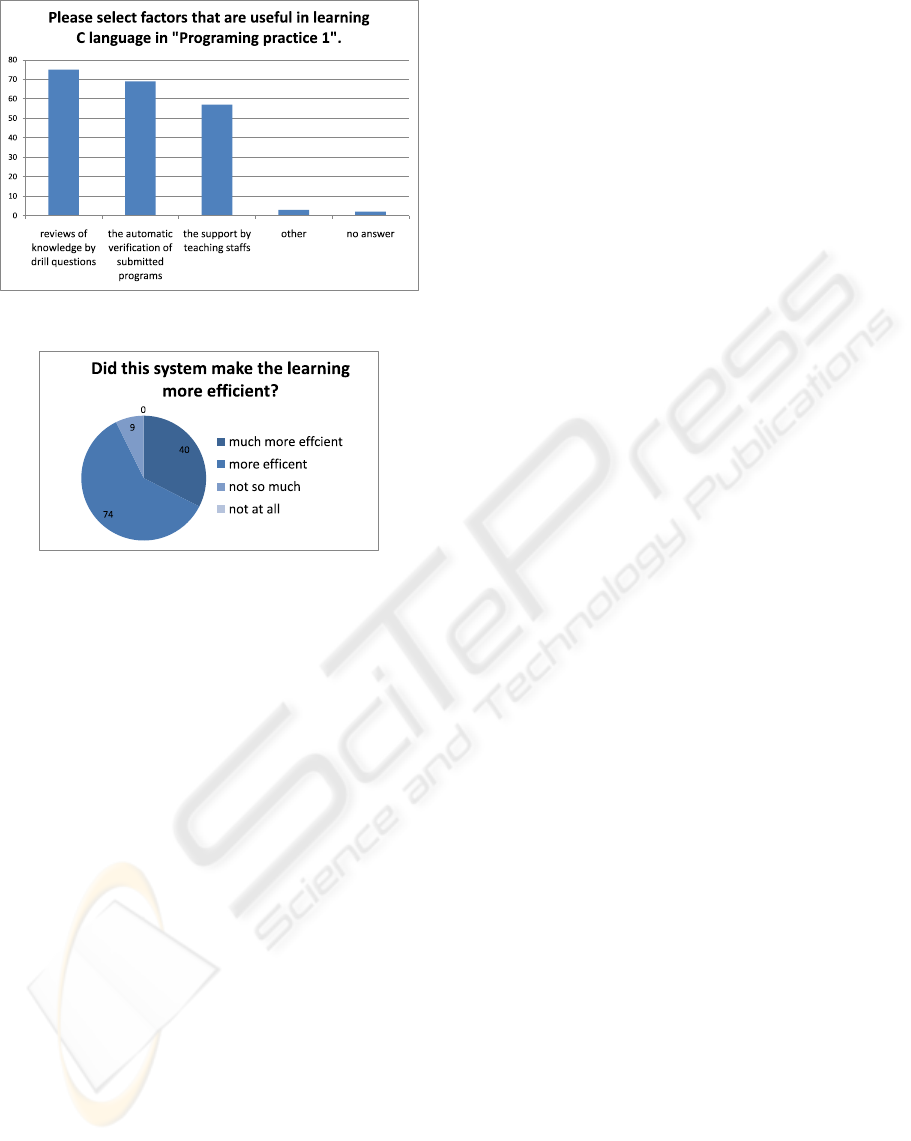

Figure 5: Useful factors for learning.

Figure 6: The overall effectiveness of the system.

5 WORK IN PROGRESS

AND FUTURE WORK

The ﬁrst issue raised Subsection 3.1, the lack of sup-

port for content authors, isn’t resolved yet, although

the integration into Sakai is a ﬁrst step. This issue is

being addressed in an ongoing work, where we isolate

the contents of MAX/C from the system and make it

into an independent repository of exercise problems,

called WASABI. We have implemented WASABI as

a service in Sakai and the new version of MAX/C that

works with WASABI is starting to operate. We plan to

develop tools for authoring on top of this repository.

We have also started a more ambitious project

called MILES (Model-based Interactive LEarning

Support), where not only the feedbacks to submis-

sions but also the choice of the next exercise problem

to be presented to the student is algorithmic. To do

so, a proper model of each student must be built and

updated during the learning process. The idea is old

but there seems to be no working system along this

approach available for programming education. Our

approach again is to rely on the accumulation of ef-

forts put into small parts, rather than a small number

of general principles. A prototype system is being

built by other members of our group and we hope to

report the outcome in the near future.

ACKNOWLEDGEMENTS

We thank all of those who have contributed to this

project in one way or another, especially Takateru

Kojima, Tomokazu Hayakawa, Fuminobu Takeyama,

and Yuta Takasugi.

REFERENCES

Anderson, J. R. and Skwarecki, E. (1986). The auto-

mated tutoring of introductory computer program-

ming. Communications of the ACM, 29(9):842–849.

Arnow, D. and Barshay, O. (1999). WebToTeach: An In-

teractive Focused Programming Exercise System. In

Proceedings of 29th ASEE/IEEE Frontiers in Educa-

tion Conference, pages 39–44. Session 12a9.

Hong, J. (2004). Guided programming and automated error

analysis in an intelligent Prolog tutor. International

Journal of Human-Computer Studies, 61(4):505–534.

Khudobakhshov, V. (2009). Domain-speciﬁc tools for com-

puter science. 10th Sakai Conference.

Lehtonen, T. (2005). Javala - Addictive E-Learning of

the Java Programming Language. In Proceedings of

Kolin Kolistelut/Koli Calling-Fifth Annual Baltic Con-

ference on Computer Science Education, pages 41–

48.

Odekirk-Hash, E. and Zachary, J. L. (2001). Automated

feedback on programs means students need less help

from teachers. In Proccedings of the 32nd Technical

Symposium on Computer Science Education, pages

55–59.

Pillay, N. (2003). Developing intelligent programming tu-

tors for novice programmers. ACM SIGCSE Bulletin,

35(2):78–82.

Sakai Foundation (2005). Sakai project.

http://sakaiproject.org/.

Sykes, E. R. and Franek, F. (2004). A prototype for an intel-

ligent tutoring system for students learning to program

in Java. Advanced Technology for Learning, 1(1).

Takeyama, F. (2008). Static code analysis for MAX/C.

Graduation project, Department of Computer Science,

Meiji University.

The Association for Computing Machinery (1977). The

ACM International Collegiate Programming Contest.

http://cm.baylor.edu/.

Truong, N., Bancroft, P., and Roe, P. (2002). ELP - A Web

Environment for Learning to Program. In the 19th

Annual Conference of ASCILITE, pages 661–670.

Turing’s Craft (2002). CodeLab.

http://turingscraft.com/exers.php.

Universidad de Valladolid (2002). the UVa Online Judge.

http://uva.onlinejudge.org/.

Xu, S. and Chee, Y. S. (2003). Transformation-based di-

agnosis of student programs for programming tutor-

ing systems. IEEE Transansactions on Software En-

gineering, 29(4):360–384.

MAX/C ON SAKAI - A Web-based C-Programming Course

201
