HUMAN COMPUTER COLLABORATION TO IMPROVE

ANNOTATIONS IN SEMANTIC WIKIS

Anne Boyer, Armelle Brun and Hala Skaf-Molli

LORIA-Nancy Universit

e, 615, avenue du jardin botanique, 54506 Vandœuvre les Nancy, France

Keywords:

Recommender systems, Semantic wikis, Automatic annotation.

Abstract:

Semantic wikis are promising tools for producing structured and unstructured data. However, they suffer from

a lack of user provided semantic annotations, resulting in a loss of efﬁciency, despite of their high potential.

We propose a system that suggests automatically computed annotations to users in peer to peer semantic wikis.

Users only have to validate, complete, modify, refuse or ignore these suggested annotations. Therefore, the

annotation task becomes easier, more users will provide annotations. The system is based on collaborative

ﬁltering recommender systems, it does not exploit the content of the pages but the usage made on these pages

by the users. The resulting semantic wikis contain several kinds of annotations with different status: human,

computer or human-computed provided annotations.

1 INTRODUCTION

Web 2.0 provides an easy way to produce new content

and to make it broadly available on Internet. Users

collaborate all together to increase quantity and qual-

ity of available contents by using for instance, wikis

and blogs. This large production increases the difﬁ-

culty to access the right information at the right mo-

ment. The question is no more to determine if a spe-

ciﬁc content exists but to ﬁnd where it is available

and how to access it. Therefore, it is mandatory to

develop tools to help users ﬁnding the pertinent in-

formation on the web. Semantic wikis are one of the

most promising approach to overcome this problem.

Compared to classical wikis, they allow users to add

semantic annotations in the wiki pages. These seman-

tic annotations are not necessarily mapped to an ex-

isting ontology compared to the approaches detailed

in (Reeve and Han, 2005). In semantic wikis, seman-

tic annotations allow the emergence of ”lightweight”

ontologies in a cooperative way. Users do not only

collaborate for writing the content of the wiki pages

but also for writing the semantic annotations that will

allow a better and easier usage of wiki pages. It will

be possible to answer queries by exploiting informa-

tion from different wiki pages, based on the semantic

annotations. However, adding semantic annotations

is not an easy task and is time consuming. The conse-

quence is that only few users annotate pages semanti-

cally. As it is not easy to motivate users to provide an-

notations, many existing semantic wikis contain only

few annotations, that decreases their potential added

value. Having only manual semantic annotations is a

bottleneck for semantic wikis. One possible solution

is to propose a system that suggests pertinent annota-

tions to users.

This paper proposes a new kind of collaboration

between users and machine to produce pertinent, use-

ful and reliable annotations in semantic wikis based

on a recommender system. Many works about recom-

mender systems (Goldberg et al., 1992; Adomavicius

and Tuzhilin, 2005; Pazzani and Billsus, 2007) and

semantic wikis (Kr

otzsch et al., 2007; Buffa et al.,

2008) can be found in the literature. However, few

existing works (Durao and Dolog, 2009) propose to

use recommender systems for navigation personaliza-

tion in semantic wikis. This paper proposes to suggest

new annotations to users by mining the automatically

collected observations about the real usages of wiki

pages. These ”computer recommended” annotations

are suggested to users that can either validate (and/or

complete), modify, refuse or ignore them. Based on

these suggested annotations, the task of the users is

made easier as the users do not have to create the an-

notation from the scratches.

Section 2 gives a brief overview of the proposed

system. Section 3 summarizes the required back-

ground in term of semantic wikis and recommender

systems. Section 4 describes how we use recom-

mender systems to automatically determine possible

Boyer A., Brun A. and Skaf-Molli H.

HUMAN COMPUTER COLLABORATION TO IMPROVE ANNOTATIONS IN SEMANTIC WIKIS.

DOI: 10.5220/0002797900890094

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

additional semantic annotations. It presents also how

the users and machines collaborate to provide reliable

semantic annotations. The last section concludes and

points out the perspectives of this work.

2 OVERVIEW OF THE SYSTEM

Semantic wikis allow users to add semantic annota-

tions in the wiki pages. These semantic annotations

are used for reasoning and ﬁnding pertinent answers

to complex queries. The efﬁciency of semantic wikis

relies among others on the quantity and the quality of

the available semantic annotations. An essential prob-

lem still remains: how can we encourage and support

users to provide semantic annotations? This paper ad-

dresses this question by introducing the machine as a

partner of the collaborative process of annotation in

peer to peer semantic wikis. The community of users

becomes a community gathering humans and com-

puters working together to produce semantic annota-

tions. Humans and computers do not have equivalent

roles within the community: computers can only sug-

gest new semantic annotations but they do not have

any inﬂuence on the ﬁnal decision to keep, modify

or discard them. In contrast, humans can add new

semantic annotations and participate to the ﬁnal deci-

sion of integrating or not a given annotation provided

by computers. We propose a semi-automatic annota-

tion tool for semantic wikis. A speciﬁc recommender

suggests possible annotations to humans. Every hu-

man can decide to ignore, accept (and/or complete)

or refuse them. If agreed, the status of the annotation

will change to become a Human Computer Annota-

tion. If refused, the annotation will be discarded but

memorized by the system as Refused Annotation to

avoid to suggest it again. The validated annotations

will be added to the usual annotations resulting from

human collaboration. An annotation can thus have

four different status :

• Human Annotation (HA) : this annotation results

from human collaboration;

• Computer Annotation (CA) : this annotation is

suggested by the recommender but not reviewed

by humans;

• Human Computer Annotation (HCA) : this is

a computer annotation that has been validated

(and/or completed) by the users;

• Refused Annotation (RA) : this is a computer an-

notation that has been discarded by humans.

Both HA and HCA annotations are used to support

navigation and answer semantic queries, the CA an-

notations can only be used to support navigation when

no other annotation is available.

This work uses collaborative recommendation

based on usage mining to compute annotations. The

recommender exploits the usages of the wiki pages by

the humans to determine pertinent suggestions of an-

notations. It exploits implicit collaboration between

users: we consider that users who share usages col-

laborate implicitly. This approach does not take into

account the content of pages to perform recommenda-

tions, only the usage is considered. The system inte-

grates three levels of collaborations. Level 1: Explicit

human collaboration when users write annotations,

HA. Level 2: Implicit human collaboration when the

system suggests CA. Level 3: Human-computer col-

laboration when users validate and complete CA that

become HCA. Suppose we apply Human-computer

collaboration to a semantic wiki about ”France”, let

two semantic wiki pages ”Eiffel Tower” and ”Mont-

martre”, these two pages are not directly linked by

semantic annotations. The ”Eiffel Tower” page has

the semantic annotation : ”Gustave Eiffel” as a ”De-

signer”. However, ”Eiffel Tower” and ”Montmartre”

are two well known touristic buildings in ”Paris”,

therefore, the semantic wiki pages of these two build-

ings should be semantically linked. And usually

users interested in ”France” often consult both pages.

Our HCA system will automatically discover this link

based on the users usage and it will be recommended

to users as a CA annotation. The semantic annotations

will be enriched and the usability of the semantic wiki

will be improved.

3 BACKGROUND

This section presents backgrounds on semantic wikis

and recommender systems.

Semantic Wikis are an extension of wiki systems,

they embed semantic annotations in the wiki content.

These annotations allow to better organise and struc-

ture the wiki contents. Semantic wikis allow mass

collaboration for creating and emerging ontologies.

They guide the users from informal knowledge con-

tained in texts to more formal structures. Many se-

mantic wikis are being developed such as Semantic

MediaWiki (SMW) (Kr

otzsch et al., 2007), Sweet-

Wiki (Buffa et al., 2008) and Swooki (Skaf-Molli

et al., 2009). In SMW, links between wiki pages are

typed. For instance, a link between the wiki pages

”France” and ”Paris” may be annotated by a user as

”has Capital”. The following example shows of a wiki

page and its corresponding semantic wiki page.

France is l o c a t e d in [ Europe ]

The c a p i tal of France is [ P a r i s ]

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

France is l o c a t e d in [ locat e d In ::

Europe ] The capital of F r a n c e is

[ has C a p i tal :: P a r i s ]

Annotations express semantic relationships be-

tween wikis pages. They are usually written in a for-

mal syntax so they are processed automatically by

machines and are exploited by semantic queries. In

semantic wikis, semantic annotations are added by

users so they are Human Annotations they correspond

to the Level 1 of collaboration as presented in sec-

tion 2. Semantic wikis, as classical wikis, suffer

from scalability, availability and performance prob-

lems and they do not support ofﬂine works (Weiss

et al., 2007). To overcome these limitations, peer

to peer extensions for semantic wiki are proposed.

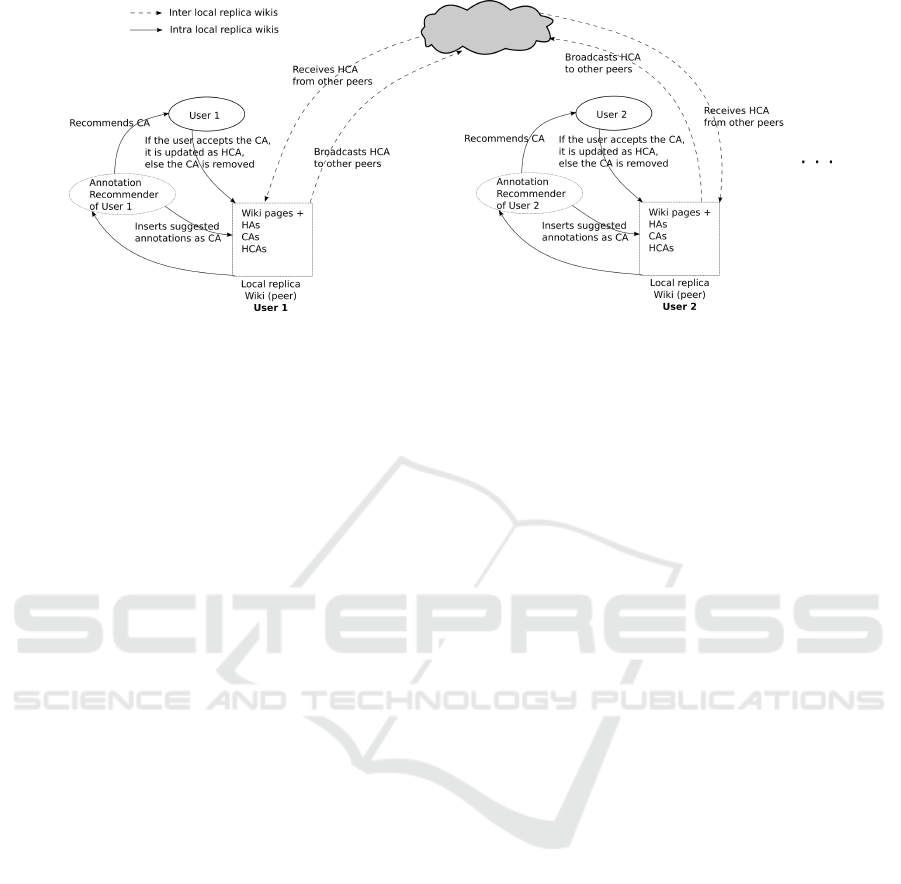

SWooki (Skaf-Molli et al., 2009) is a peer to peer

(P2P) semantic wiki that follows the same annota-

tion principles as SWM. It is a P2P network of au-

tonomous semantic wiki servers, every server hosts

a copy of all semantic wiki pages and the semantic

data. Every peer can autonomously offer all the ser-

vices of a semantic wiki server. When a peer updates

its local copy of data, it generates the corresponding

operation. This operation 1) is executed immediately

against the local replica of the peer, 2) it is broad-

casted to all other peers, 3) it is received by the other

peers, 4) and it is integrated to their local replica. If

needed, the integration process merges this modiﬁca-

tion with concurrent ones, generated either locally or

received from a remote server.

Recommender Systems provide personalization

to users to cope with the well-known problem of

overload of information (Adomavicius and Tuzhilin,

2005). Among the possible approaches in rec-

ommender systems are content-based (Pazzani and

Billsus, 2007) and collaborative ﬁltering approaches

(Goldberg et al., 1992). The ﬁrst approache uses the

content of the resources to compute recommendations

for users, these approaches are accurate. However,

the content of all types of resources cannot be au-

tomatically analyzed (videos, audio, etc.), thus this

analysis often requires human interventions. More-

over, only resources directly linked to the resources

the user has consulted can be suggested: no ”novelty”

can be recommended to users, users may thus be frus-

trated. Collaborative ﬁltering (CF) approaches do not

take into account the content of the resources. They

consider only the usage of these resources to com-

pute recommendations. The usage can be the consul-

tation made by users, the votes given by users, etc.

A CF-based recommender exploits the traces of us-

age to deduce information about the resources. CF-

based recommenders can either compute similarities

between resources (Sarwar et al., 2001) or exploit

data mining techniques to learn relationships between

the resources (Yong et al., 2005). As in content-

based recommender systems, given a user, his pre-

viously consulted resources are used and are linked/-

compared to all possible resources. The comparison

is no more made in terms of content but on the simi-

larities or relastionships computed between resources,

based on their usage. This approach allows to recom-

mend ”original” resources: resources that are not se-

mantically linked to the past resources consulted by

the user (but that are similar in terms of usage) can be

recommended.

4 RECOMMENDER SYSTEMS

FOR ANNOTATION

SUGGESTION

Existing recommender systems for Semantic Wikis

directly transpose recommenders to suggest wiki

pages to users as in (Durao and Dolog, 2009). In our

work, we go a step further by suggesting annotations

to wiki pages based on usage traces. We use CF-based

recommender systems to provide automatically pages

with additional annotations. We exploit the usage of

wiki pages: which users consulted which wiki pages

and which page(s) is(are) frequently consulted after

a given page? to deduce the links/relationships be-

tween pages, by using approaches similar to the ones

presented in (Sarwar et al., 2001; Yong et al., 2005).

Given the relationships between pages and the anno-

tations given by users (HA), the recommender sys-

tem will suggest additional annotations. These anno-

tations can be made on pages that either already have

HA or not. Suggested annotations correspond to the

implicit human collaboration level (level 2) .

4.1 Suggestion of Semantic Computer

Annotations

We propose two algorithms to compute annotations

to suggest to a given page P

. The ﬁrst one is similar

to those used in item-based approaches and classiﬁ-

cation of pages based approach (O’Connor and Her-

locker, 1999), the second one is based on data mining

techniques for recommendations (Mobasher, 2007).

Item-based Approach. The algorithm ﬁrst com-

putes a similarity matrix of wiki pages (Sarwar et al.,

2001). This matrix is computed based on the traces

of usage of the wiki pages. This approach is based

on the hypothesis that two similar pages may have

similar semantic annotations. Thus, given two similar

HUMAN COMPUTER COLLABORATION TO IMPROVE ANNOTATIONS IN SEMANTIC WIKIS

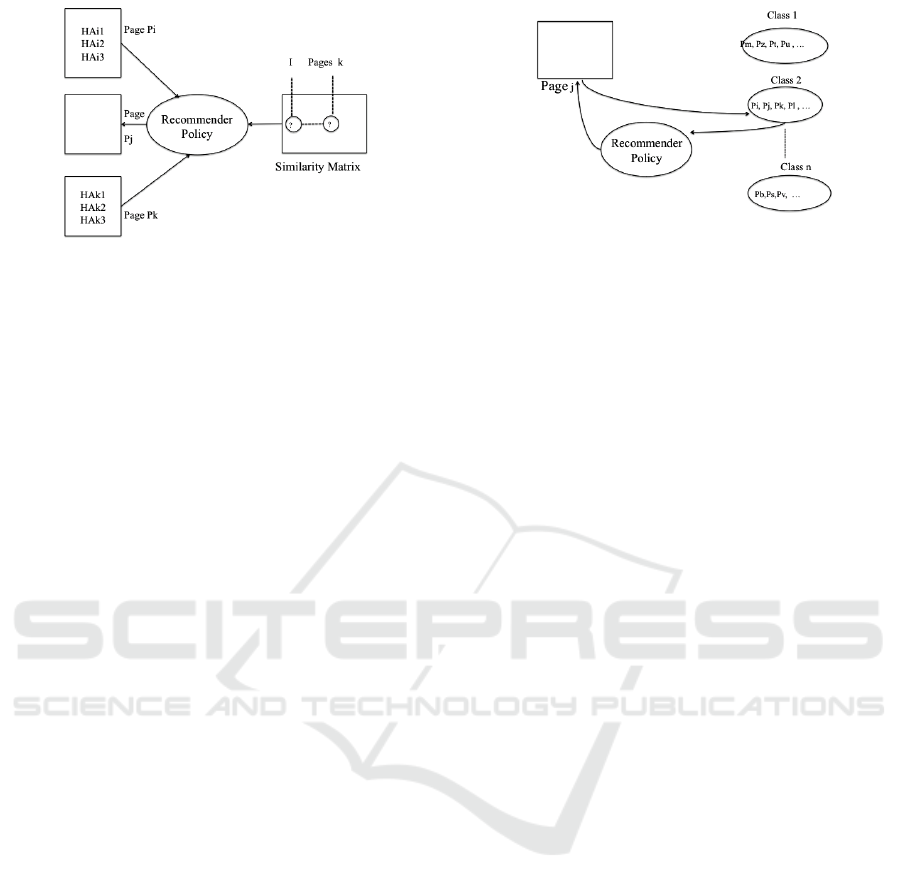

Figure 1: Automatic suggestion of HCA with the item-

based approach.

pages, the recommender suggests the semantic anno-

tations of the ﬁrst one to the second one and suggests

the semantic annotations of the second one to the ﬁrst

one. These suggested annotations are called CA. Fig-

ure 1 presents how the recommender computes candi-

date annotations. Given a page P

, the recommender

searches the pages that are similar to P

, those with

a high similarity value in the similarity matrix. The

recommender collects the HA from the pages simi-

lar to P

. The suggested CA to P

can be computed

by several policies: • The set of HA from the similar

pages are suggested. The recommender may propose

too many annotations, and some of them may be not

pertinent. • The set of HA present in at least n similar

pages are suggested. An appropriate value of n has

to be ﬁxed. This policy proposes a lower number of

annotations and more “reliable” as they are present in

several pages. However, according to the value of n,

some pages may have no annotation. • Given a HA,

the similarity values of the pages containing that HA

are summed up. The HA with a sum of similarity val-

ues above a given threshold are suggested. This policy

is more accurate than the second one as the similarity

values are considered.

Classiﬁcation-based Approach. In this ap-

proach, given a set of pages, the recommender ﬁrst

computes a classiﬁcation of these pages to create

classes of ”similar” pages (see Figure 2). As in the

item-based approach, the classiﬁcation is based on the

usage of the pages by the users, not on the content of

the pages. Then, given a page P

, the recommender

searches its corresponding class, and exploits all the

pages in this class. All the policies presented in the

item-based approach can be used to compute annota-

tions.

The set of pages used to compute annotations is

predeﬁned (the pages in the class) whereas it is dy-

namically computed in the item-based approach, that

can take time.

Data Mining based Approach. It exploits data

mining techniques to extract information about the

Figure 2: Automatic suggestion of HCA with the

classiﬁcation-based approach.

usage of the resources. They study the sequences

of consultation of resources by using, for example,

association rules or Markov models to discover fre-

quent patterns (Bonnin et al., 2009). The algorithm

is based on the hypothesis: if two or more pages

are frequently consulted in sequence, then the links

used to traverse these pages are useful and it is impor-

tant to annotate semantically these links. The recom-

mender suggests CA to the users to annotate seman-

tically the frequently passed links. The provided an-

notations are not semantic annotations, they are just

annotations, as the type of the annotation cannot be

automatically discovered by the system. The recom-

mender suggests that an annotation at a given place

should be important. It can also specify the label of

the annotation. For instance, suppose in the example

given in the section 3, there is no semantic annotation

between the pages ”France” and” Paris”, the recom-

mender can learn that this link is highly passed, thus

annotating semantically this link may be useful. The

recommender suggests to the users the link ”Paris”.

The user can accept, modify, refuse or ignore this sug-

gested annotation and type it with [HasCapital], for

example. The annotation task is made easier as the

system suggests to the user where useful annotations

should be, the user is guided.

4.2 HCA Approach

Every semantic wiki page has three sources of anno-

tations. Those added by humans (HA), they corre-

spond to the explicit human collaboration, those sug-

gested by the recommender system (CA), they come

from implicit human interaction. These annotations

are original annotations, they do not exist in classi-

cal semantic wikis, they will be used to encourage

the users to annotate semantically pages. Those re-

viewed by the user, Human computer collaboration

HCA. To integrate these annotations to a peer to peer

semantic wiki, we have to answer several questions :

how the recommender suggests annotations (CA) to

users? how to make the users validate (and/or com-

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

Figure 3: The way CA are proposed, validated (HCA) and propagated in a P2P semantic wiki.

plete), modify, refuse or ignore a CA? How to make

the other users know these annotations? The way we

propose to answer these questions is presented in Fig-

ure 3. When new annotations are suggested by the

recommender, they are broadcasted to all the local

replica with the status Computer Annotation (CA).

They are proposed to the users, in a pop-up box, for

example, to be differentiated from Human Annota-

tions HA. The user can choose among four possible

operations : 1) Ignore the CA annotation. 2) Accept

it, 3) modify (and) type it or 4) refuse it. If the user

does nothing, the annotations remain with a CA sta-

tus. If the annotations are typed (from item-based or

classiﬁcation-based approaches), the user can either

validate, modify or refuse each of them. If the anno-

tations have no type (from data mining approach), the

user can complete (and thus validate), or modify each

of them. When a validation, completion or modiﬁ-

cation action is made, the local replica of the user is

modiﬁed and the CA is updated to a HCA. The infor-

mation about this action is broadcasted to the other lo-

cal replica and the annotation is suggested to users as

a HCA. Let us notice that when a user does not agree

on a received HCA, he can modify it as in the case of

classical HA in semantic wikis. If the user refuses the

annotation, it is discarded from the set of CA and is

included in the set of RA and is also broadcasted to

other users. This set is used by the recommender to

avoid resuggesting annotations that have already been

refused by users. These RA can however be resug-

gested in the case the content of the wiki page has

been highly modiﬁed.

5 CONCLUSIONS

This paper proposes an original system to encourage

semantic annotations in semantic wikis. This ongo-

ing work is based on the observation that users do not

often semantically annotate pages in semantic wikis

as this task is not easy. This leads to semantic wikis

with few annotations, they are therefore less efﬁcient

than they could be. The HCA system suggests an-

notations on the wiki pages to users. The users can

create semantic annotations as in a normal semantic

wiki and can also use the annotations suggested by the

system to annotate semantically pages. The HCA sys-

tem exploits the usage of the wiki pages by the users

and is based on classical collaborative ﬁltering rec-

ommender systems, it uses item-based, classiﬁcation-

based and data mining-based approaches. These ap-

proaches learn the similarities/links, in terms of us-

age, between the wiki pages. The HCA system ex-

ploits both these similarities/links and the semantic

annotations provided by humans that are present on

the pages, and suggests annotations to wiki pages.

These annotations are not directly stored in the pages,

they are suggested to users that can validate, modify

or refuse these annotations. The resulting annotations

in the semantic wiki is based on several levels of col-

laboration: explicit human collaboration when writ-

ing HA, implicit human collaboration to suggest CA

and human-machine collaboration to produce HCA.

We are currently conducting experimentations and

user studies to validate our approach; the preliminary

results are very encouraging. As a future work, we in-

tend to reﬁne the way the HCA are obtained; we aim

at not making a CA become directly a HCA when a

user validates or modiﬁes it, or being a RA if a user

refuses it, but by waiting to have a consensus about

the actions of the users. This approach, that will be

based on a server of traces, will have the advantage

that annotations will not change constantly.

HUMAN COMPUTER COLLABORATION TO IMPROVE ANNOTATIONS IN SEMANTIC WIKIS

REFERENCES

Adomavicius, G. and Tuzhilin, A. (2005). Toward the next

generation of recommender systems: A survey of the

state-of-the-art. IEEE transactions on knowledge and

data engineering, 17(6):734–749.

Bonnin, G., Brun, A., and Boyer, A. (2009). A low-order

markov model integrating long-distance histories for

collaborative recommender systems. In Proceedings

of the ACM International Conference on Intelligent

User Interfaces (IUI’09), pages 57–66, Sanibel Is-

lands, USA.

Buffa, M., Gandon, F. L., Ereteo, G., Sander, P., and Faron,

C. (2008). Sweetwiki: A semantic wiki. Journal of

Web Semantics, 6(1):84–97.

Durao, F. and Dolog, P. (2009). Tag-based recommenda-

tion in kiwi. In Fourth Workshop on Semantic Wikis

(SemWiki2009) at the 5th European Semantic Web

Conference (ESWC 2009).

Goldberg, D., Nichols, D., Oki, B., and Terry, D. (1992).

Using collaborative ﬁltering to weave an information

tapestry. Communications of the ACM, 35(12):61–70.

otzsch, M., Vrandecic, D., V

olkel, M., Haller, H., and

Studer, R. (2007). Semantic wikipedia. Journal of

Web Semantic, 5(4):251–261.

Mobasher, B. (2007). Data Mining for Web Personalization,

chapter 3, pages 90–135. LNCS 4321 - Brusilovsky,

P. and Kobsa, A. and Nejdl, W.

O’Connor, M. and Herlocker, J. (1999). Clustering items

for collaborative ﬁltering. In Proceedings of the 22th

Annual International ACM SIGIR Conference.

Pazzani, M. and Billsus, D. (2007). The Adaptive Web,

chapter Content-Based Recommendation Systems,

pages 325–341. Springer Berlin / Heidelberg.

Reeve, L. and Han, H. (2005). Survey of semantic annota-

tion platforms. In Proceedings of the 2005 ACM Sym-

posium on Applied Computing.

Sarwar, B., Karypis, G., Konstan, J., and Reidl, J. (2001).

Item-based collaborative ﬁltering recommendation al-

gorithms. In World Wide Web, pages 285–295.

Skaf-Molli, H., Rahhal, C., and Molli, P. (2009). Peer-

to-peer semantic wikis. In Bhowmick, S. S., K

ung,

J., and Wagner, R., editors, DEXA, volume 5690 of

LNCS, pages 196–213. Springer.

Weiss, S., Urso, P., and Molli, P. (2007). Wooki: a p2p wiki-

based collaborative writing tool. In Web Information

Systems Engineering, Nancy, France. Springer.

Yong, W., Zhanhuai, L., and Yang, Z. (2005). Mining se-

quential association-rule for improving web document

prediction. In Proceedings of the Sixth International

Conference on Computational Intelligence and Multi-

media Applications (ICCIMA’05).

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies
