A WEB BROWSER-BASED 3D SIMULATION ARCHITECTURE FOR

EDUCATION AND TRAINING

Miguel

Angel Gam

on, Miguel

Angel Exp

osito,

Angel Rodr

ıguez-Cerro

Marta Pla-Castells and Rafael J. Mart

ınez-Dur

Instituto de Rob

otica, Universidad de Valencia, PO-Box 2085. 46071, Spain

Keywords:

Web-based Learning, Virtual simulation and training, e-Learning platforms, Games for education and training.

Abstract:

This paper shows a web browser-based simulation architecture for education and training. This architecture

integrates multimedia content with an interactive virtual environment. This is achieved combining the use

of OSG4Web, a plugin for managing a scene graph inside a web browser, with the Flash platform. This

architecture has been used to develop a training system focused on building and masonry, and enables students

to practice their skills and acquired knowledge in a 3D immersive environment. It also includes an instructional

design and an evaluation module by means of several didactic units and exams.

1 INTRODUCTION

Nowadays, academic institutions related to Informa-

tion Technologies for communication in education

ﬁelds are progressively incorporating the use of web

browser-based applications (Hosmeier and Dicesare,

2000), including e-learning technologies for learn-

ing and training in different degrees and professional

areas (Garrison and Anderson, 2003) (Michael and

Chen, 2005).

These applications allow students to get access to

educational materials related to a particular course or

qualiﬁcation, (e.g. professional modules of masonry),

and also typically include on-line exams to validate

the correct assimilation of the contents, leading to

self-learning and self-evaluation.

The main goal in these applications is to increase

the skills acquired by the user by means of an efﬁcient

learning method (Holzinger and Ebner, 2003). In fact,

most of them are based on exercises implemented as

interactive 2D animations. However, the limitations

of 2D interactivity in most cases diminishes the effec-

tiveness of this technique (Virvou et al., 2005).

Recently, e-learning solutions, especially those re-

lated to games for education (Squire, 2003)(Amory

et al., 2002), tend to include features like simulation

and virtual reality via 3D interactive environments

(Elliott et al., 2002). This new concept allows the

implementation of real working methods in a realis-

tic way (e.g. placement of protective barriers, or the

removal of building partitions).

Thus, the functionality of the simulators enables

the user to freely navigate through a 3D scene, (e.g. a

building under construction), the selection of objects

like tools and construction materials, the use of work-

ing methods, and the completion of tasks or objec-

tives required in an exercise (Kim, 2005). In addition,

through an instructional design the simulator provides

a better use of the teaching-learning process.

In this context, this paper presents a web browser-

based 3D simulation architecture for education and

training. It shows the techniques that allows to prac-

tice real life tasks, through a realistic environment

based on virtual reality. This architecture has been

used to develop a training system focused on building

and masonry, wich improves the learning process en-

abling the students to practice their skills and acquired

knowledge in the same web page.

The rest of this paper is structured as follows:

section 2 describes the technical background of web

browser-based simulators; section 3 presents the pro-

posed architecture for education and training; section

4 exposes the instructional design of the developed

application; section 5 shows the results and usage of

the system; ﬁnally, section 6 draws some conclusions

and further work.

2 TECHNOLOGY BACKGROUND

As technology evolves, e-learning systems are pro-

gressively moving towards web-based simulation,

307

Ángel Gamón M., Ángel Expósito M., Rodríguez-Cerro Á., Pla-Castells M. and J. Martínez-Durá R. (2010).

A WEB BROWSER-BASED 3D SIMULATION ARCHITECTURE FOR EDUCATION AND TRAINING.

In Proceedings of the 2nd International Conference on Computer Supported Education, pages 307-312

DOI: 10.5220/0002800103070312

 SciTePress

more powerful and didactic. This enables web pages

to display interactive 2D and 3D content as well as

other advanced capabilities such as immersive audio

and video, thus improving the user’s experience. A

brief description of the most commonly used tech-

nologies has been exposed in (Martnez-Dur, 2009).

For this purposes, Adobe Flash is an excellent

option since it’s a popular standard for rich inter-

net content (www.adobe.com) powered by the Ac-

tionScript scripting language (www.actionscript.org).

Flash ﬁles (.swf), also known as Flash movies,

run on a virtual machine that displays animations

and executes ActionScript code. This virtual ma-

chine, also called Flash Player, can be embedded

into a web page as a browser plugin. Adobe Flex

(www.adobe.com/products/ﬂex) is a framework built

on top of the Flash API consisting of an XML-based

language and a set of libraries for building Flash-

based RIAs very quickly. In summary, it’s a really

well-suited development tool for building rich GUIs

and 2D content that runs on almost every browser.

Last versions of the Flash API allow raster op-

erations on 2D polygons, which has been the start-

ing point for emerging Flash-based 3D rendering en-

gines, like PaperVision (www.papervision3d.org) or

Away3D (away3d.com). However, Flash-based 3D

rendering engines can’t take full advantage of the

hardware graphics pipeline due to the lack of support

in the Flash API. That leads to the implementation of

most ”‘hardware”’ tasks in ActionScript, which is a

slow language for the extremely heavy load that these

calculations represent.

In order to ﬁnd a technology capable of supporting

a real-time 3D interactive environment, the main re-

quirements was the ability of handling a scene graph

and OpenGL or DirectX graphics. This way, we have

found several alternatives to take into consideration.

Firstly, Java allows to build web-based simula-

tion applications. Hardware-accelerated 3D graph-

ics in Java are possible through native bind-

ings like jOGL (jogl.dev.java.net) or jMonkey

(www.jmonkeyengine.com), that export operating

system-dependent APIs such as the OpenGL imple-

mentation to the language.

Other alternative developed by Google is

O3D (code.google.com/apis/o3d), an open-source

JavaScript API for creating interactive 3D graphics

applications that run within a browser window, such

as games or virtual worlds. It uses OpenGL or

DirectX through scene graph data structures and API.

Another interesting possibility is OSG4Web

(Calori et al., 2009) (Pescarin et al., 2005), wich

provides an open-source framework for in-browser

OpenGL-based application wrapping. The frame-

work allows the development of OpenGL and Open-

SceneGraph (www.openscenegraph.org) based appli-

cations, that open windows within the browser, allow-

ing bidirectional interaction with page elements via

JavaScript. OSG4Web decouples the application code

from the rendering engine, therefore the same plu-

gin can run totally different applications, also called

cores. Cores are dynamic OS libraries that are loaded

and linked in run-time, making it very efﬁcient but

absolutely dependent on the operating system.

3 ARCHITECTURE

The architecture that is presented in this paper sup-

ports both 2D and 3D contents. 2D graphics are used

to display interactive menus, interface controls and

theoretical content, while 3D graphics provide qual-

ity practice exercises. Our requirements for the 2D

part have been to make an usable, easy and intuitive

interface by means of clear and simple buttons and or-

ganized layouts without sacriﬁcing compatibility. The

Adobe Flex IDE, based on Eclipse, provides an easy

way of designing layout-based GUIs with a visual ed-

itor. It also incorporates all the capabilities and versa-

tility of Flash and ActionScript. Due to this features,

the choice has been to use this tool for all the 2D-

related parts.

Regarding 3D content, the main goal has been to

display fast and neat graphics that supported the for-

mative goal of every e-Learning application. Unfortu-

nately, as mentioned before, Flash can’t provide qual-

ity 3D graphics at this moment. That implied two

main aspects: it would be necessary to choose a sep-

arate platform for rendering only the 3D part, and it

would be needed some kind of integration between

Flash and the former. Thus, OSG4Web has been the

choice for that task due to its high speed OpenScene-

Graph (OSG) infrastructure. It allows quick porting

of existing OSG applications. The fact that the plugin

implements JavaScript bidirectional communication,

as it does Flash, allows a JavaScript-based integration.

Thus, the architecture is composed of four basic

blocks (Figure 1):

• HTML Container. Instantiates both browser plu-

gins. Contains the JavaScript bridge and some

other handy code to manage on-screen elements.

• Flash Plugin. Displays 2D contents and incorpo-

rates the application logic.

• JavaScript Bridge. Supports the communication

between Flash and OSG4Web.

• OSG4Web Plugin. Displays 3D contents, and in-

corporates the 3D scene graph management code

CSEDU 2010 - 2nd International Conference on Computer Supported Education

308

HTML

container

User

Flash

plugin

Osg4Web

plugin

JavaScript

bridge

Server

Network

Osg plugin

cURL

Message

passing

Message

passing

web

access

Object

instantiation

Object

instantiation

Network

Flash Virtual

Machine

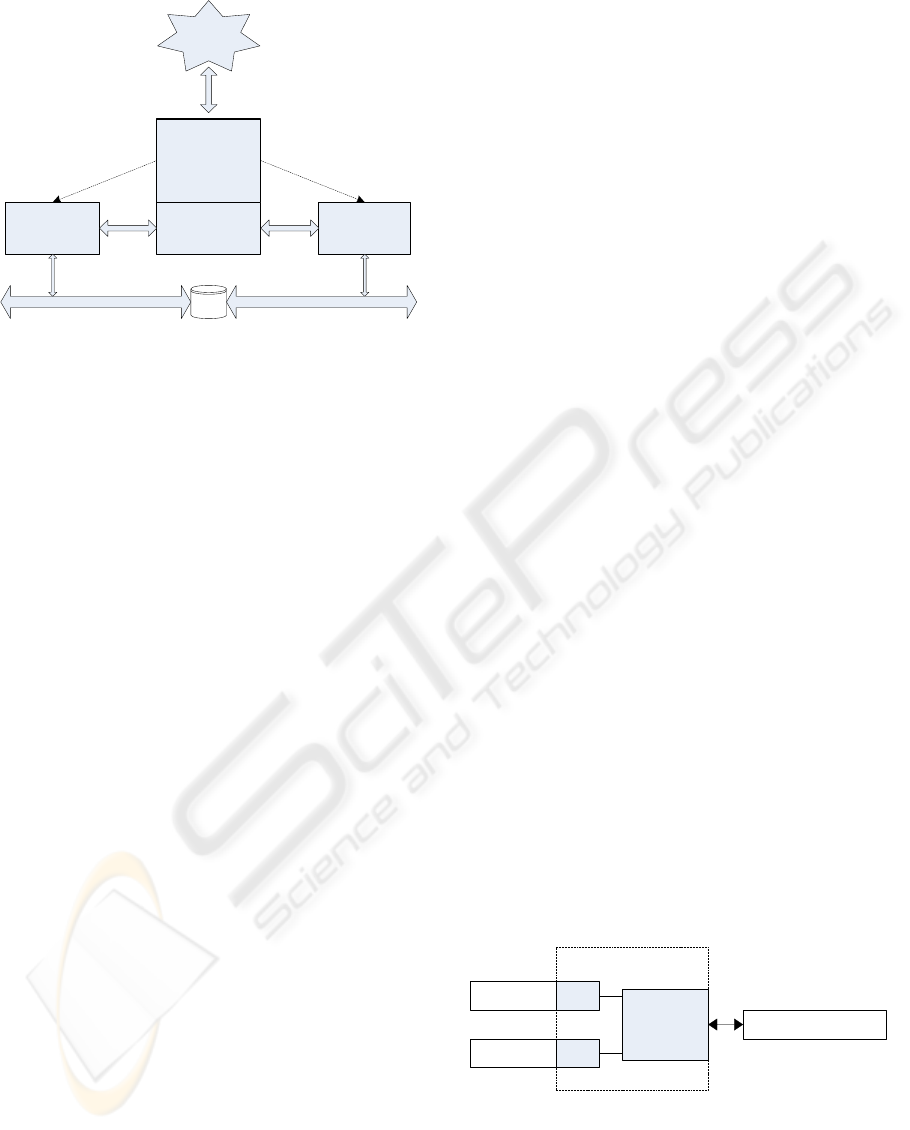

Figure 1: Web simulator architecture.

and the exercises logic.

A detailed explanation of the internals follows:

3.1 HTML Container

When the user’s browser requests the HTML con-

tainer web page by accessing its URL, it (as deﬁned

in its source code) instantiates the Flash Player into

a DIV layer and also the OSG4Web plugin into an-

other one. A JavaScript detection code triggers a pop-

up message in the case the user don’t have either the

OSG4Web plugin or the Flash Player plugin installed

on his machine, and the user is pointed to the right

place where he can download and install it.

3.2 Flash Plugin

The Flash plugin is loaded with a movie when the

page loads. The Flash movie implements the main

application code and logic. On the one hand, it is re-

sponsible for the GUI, the navigation through menus,

the 2D theoretical module management and display,

the multimedia content (images, videos, sounds) load-

ing and managing, and the self-checking tests. On the

other hand, it calls JavaScript for showing/hiding the

OSG4Web layer as necessary, sends commands to the

3D plugin and receives the events from it.

3.3 JavaScript Bridge

As mentioned before, both Flash and OSG4Web are

able of calling functions written in a foreign language

resident in web container. In this particular case,

JavaScript is used because it is a well-known lan-

guage that runs in many browsers. The communica-

tion between Flash and OSG consists of a JavaScript

bridge which sends messages from one to another in

both directions. We have implemented it with a pair

of functions. The ﬁrst one is called by Flash which

calls a OSG4Web-JavaScript interface function, while

the other is called by OSG4Web and calls a Flash-

JavaScript interface function.

Flash can call any JavaScript function, with arbi-

trary name or arguments count and, even, get back

its return value in a transparent way. In the case of

OSG4Web this is more restricted. It only allows cores

to call a function named ”‘eventCatcher”’ which takes

a single argument: a text string. For this reason, we

had only the ability to interchange one text string in

each call.

That led us to design and implement a text based

protocol for communicating messages, consisting of

sub-strings separated by one special separator char-

acter. There are two types of messages: Commands

and Events. Commands are orders or requests that

usually ﬂow from Flash to the 3D core, and events

are asynchronous situations that require a notiﬁcation

from one side to the another, mainly for synchroniza-

tion or other purposes.

Typical tasks that the protocol implements are:

• Request from OSG4Web to load a 3D scene

model.

• Request from Flash to play an MP3 sound.

• Notify to OSG4Web the completion of the playing

of a sound.

• Notify to Flash that the exercise has ﬁnished and

also its results.

3.4 OSG4Web Plugin

OSG4Web is based on two components (Figure 2):

the ﬁrst is a browser plugin, and the other consists of

a communication interface to interact with the partic-

ular graphic application. In this way, as mentioned

before, it is possible load different graphics applica-

tion with the same plugin.

Firefox

IExplorer

plugin

Control

ActiveX

Communication

Interface

OSG application

OSG4Web

Figure 2: OSG4Web components.

OSG4Web works on Microsoft Internet Explorer

and Mozilla Firefox under Windows. We have

improved bidirectional communication between the

OSG4Web plugin and JavaScript which only received

A WEB BROWSER-BASED 3D SIMULATION ARCHITECTURE FOR EDUCATION AND TRAINING

309

messages on the ”window refresh” events. We have

also implemented a queue for avoiding message leaks

that emerged randomly.

OSG Application Core

The OSG4Web plugin is loaded with a custom-

designed core. We have implemented a set of exer-

cises that consist of a typical work scene, where the

user has to pick some elements and interact with them

in a point-and-click fashion. Because of that, there is

a special event to notify Flash when the user picks an

object, receiving the name of the scene graph node

picked. This way, Flash can display it integrated in

the 2D GUI.

When a new exercise starts, Flash provides

OSG4Web with a command telling it to load a XML

ﬁle that contains the name of the exercise scene model

and also other information about the exercise. The

application core downloads the OSG model ﬁle (.ive)

hosted in the web server and attaches the scene model

to the root node.

The simulator logic is splitted across the Flash

movie and the OSG4Web application core. The most

elegant solution would have been extending our pro-

tocol to allow scene graph management directly from

Flash, but for the sake of simplicity, we adopted the

solution of having the main simulator logic in Ac-

tionScript, and keep the exercise-related scene graph

management code in our OSG4Web core, as a com-

promise between functionality and required effort.

As stated before, each exercise is described by us-

ing the XML language. We have also deﬁned a DTD

that describes a pseudo-scripting language, allowing

to deﬁne several conﬁgurable aspects, like the mod-

els to load or the positions of the objects to show. It

also deﬁnes the implementation of the exercise logic

by means of select statements, jumps, loops or condi-

tional branches.

By using this XML scheme, developers can create

new exercises with very few changes and also debug

them with ease.

4 INSTRUCTIONAL DESIGN

The objective of the developed training system is to

teach the procedures, materials and safety measures

needed to perform operations in the construction of

fences and brick walls, while behaving in a safe way.

For this purpose, an instructional design model has

been speciﬁed. This model allows properly to exploit

the teaching process and optimize the training time.

The instructional design for this training system

refers to the exercises that the user have to follow in

order to acquire the relevant skills. Their contents and

the evaluation criteria have been structured in a conve-

nient way, taking into account the age and formative

level of the students.

In ﬁrst place, the instructional design includes a

set of skills related to masonry that the user must ac-

quire through the use of the simulator:

• Prepare and maintain tools, equipment, materials

and aids.

• Wall partitioning.

• Prepare cement mortars.

• Build walls and partitions.

• Position and ﬁx frames to brick structures.

The educational content of the application is di-

vided into ﬁve different units, so each one presents the

techniques and methodologies required to achieve the

skills described above. Each learning unit has been

divided into three parts: a theoretical part, which ex-

plains the theoretical concepts related to each skill;

a practical part in which students must perform a set

of masonry tasks in a 3D virtual environment; and

an evaluation part, where multiple choice questions

extracted from the didactical contents are asked and

then evaluated.

In addition, an evaluation system provides a mea-

surement of the theoretical concepts that are being as-

similited. Thus, it evaluates the right choice of appro-

priate security measures, the mistakes made, and the

correctness in the decisions made to solve the tasks.

The proposed instructional design provides sev-

eral advantages to the learning process. Particularly,

the obtained results are:

• Provide a training tool, empowering the process

of building workers training.

• Give knowledge, skills and abilites to workers,

which are necessary to develop safe behaviors.

• Establish secure protocols for typical operations

and raise workers awareness of the importance of

security within the organization.

• Assess individual workers and evaluate the level

of compliance of security protocols.

In this manner, the instructional system offers a

number of deﬁned characteristics that allows a better

use of the teaching-learning process.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

310

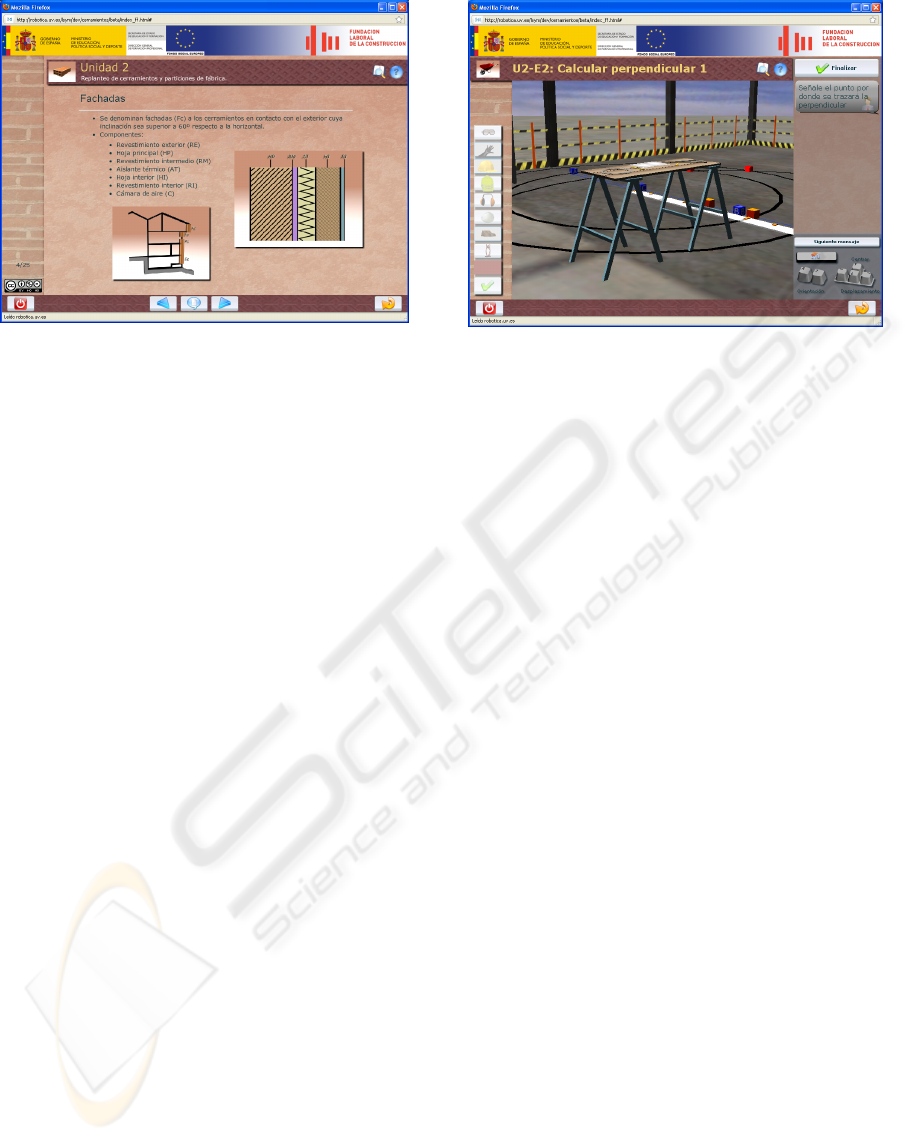

Figure 3: Theoretical module: The slide contains multi-

media elements related to learning content. It also contains

navigation buttons to browse between slides or to access to

the different sections and didactical units.

5 RESULTS

By means of using the proposed architecture deﬁned

before we have developed a training system com-

posed of several units containing: a theoretical mod-

ule with the typical features of an e-learning website,

a practice or simulation 3D-based module, and a test

module in the form of questionnaires.

The operation details of each of the modules are

described below.

5.1 Theoretical Module

In the theorethical module, different multimedia con-

tent (like static pre-rendered images, movies and other

2D content) is shown using a presentation with Flash

(Figure 3). Navigation buttons allow to browse be-

tween slides or access the different sections and di-

dactical units, as well as consulting a glossary of

terms related to construction.

The slides of each module show the above men-

tioned text, images and videos. All the text strings are

deﬁned and indexed in a localized XML ﬁle for multi-

language support. The contents are also supported by

a pre-recorded voice that reads them.

5.2 Practice Module

In the simulation or practice module, the user navi-

gates in a virtual environment similar to a building

site, where he must perform a set of particular actions

that lead to achieve the aim of the exercise (Figure 4).

At the beginning of the exercise, a voice, along

with some screen messages, explain the objectives to

Figure 4: Practice module: The virtual scene shows a build-

ing site. The user can navigate through the environment

using the keyboard and the mouse. Also, the user can select

and use different tools for complete the tasks.

accomplish and indicates the tasks to do in every mo-

ment.

The system provides a mechanism for navigating

through the environment and selecting objects, using

the keyboard and the mouse. The possible movements

are the classic ”ﬁrst person shooter” ones: change

head/pitch with the mouse, and walk with the arrow

keys.

The experience with users has shown that it’s im-

portant to establish properly the camera view when

the exercise starts, focusing on the tools and the work-

place. In addition, a ”home key” has been imple-

mented to allow the user to return to the starting po-

sition when has moved to an undesired area. Another

suggestion has been to identify the selected objects in

the exercise with labels on the screen.

The decisions made by the student may not be

correct, but the implementation of the exercises al-

lows for situations that could become erroneous. This

helps the student to learn from his mistakes by means

of choosing another working methodology.

5.3 Test Module

The test module shows a series of questions spoken by

a voice and deﬁned in an XML ﬁle, where the system

prompts the user for selecting one of up to six possible

answers (Figure 5).

When the student considers that the test is com-

pleted, a button allows the user to submit it. Then, a

summary window is shown, reporting the total taken

time, the number of hits and misses represented by

a pie chart and the qualiﬁcation (test passed or test

failed).

A WEB BROWSER-BASED 3D SIMULATION ARCHITECTURE FOR EDUCATION AND TRAINING

311

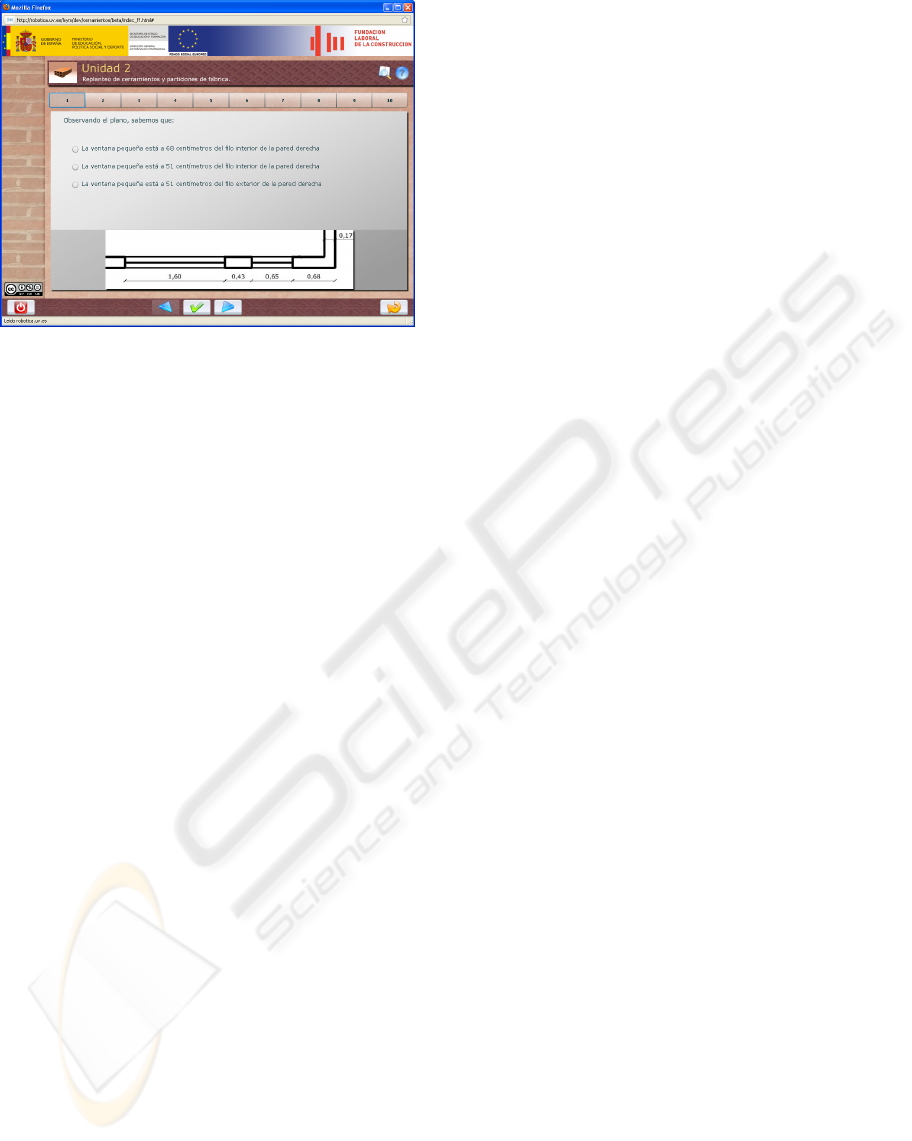

Figure 5: Test module: In this module, the user answers

several questions about the theoretical content. The user

can freely navigate through the different questions using the

upper bar and change his answer at any time.

6 CONCLUSIONS AND FURTHER

WORK

In this paper, a web browser-based simulator architec-

ture for learning and training has been presented. As

a result, a simulator to use in the educational ﬁeld has

been implemented.

The proposed architecture combines the advan-

tages of Flash, which provides rich multimedia pre-

sentations with bright and usable interfaces, with the

advantages of OSG4Web, capable of loading and ex-

ecuting an OSG application for the displaying of fast

and high quality 3D graphics.

The developed application allow the students,

through a web page, to learn new theoretical concepts,

to practice their skills and acquired knowlege in a 3D

immersive environment, and ﬁnally to be evaluated.

The speciﬁcation of an instructional design has al-

lowed to achieve a better use of the learning process.

As future work, we are planning to improve our

web-based simulator’s look and feel by using shaders

and physical simulation. The enhancement of the web

integration, extending its compatibility across differ-

ent browsers and platforms is also planned.

ACKNOWLEDGEMENTS

This work has been supported by Fundacin Laboral

de la Construccin (FLC), Ministerio de Educacin —

Centro Nacional de Investigacin y Comunicacin Ed-

ucativa (CNICE) and European Commision — Euro-

pean Social Fund (ESF).

REFERENCES

Amory, A., Naicker, K., Vincent, J., and Adams, C. (2002).

The use of computer games as an educational tool:

identiﬁcation of appropriate game types and game el-

ements. British Journal of Educational Technology,

30(4):311–321.

Calori, L., Camporesi, C., and Pescarin, S. (2009). Virtual

rome: a foss approach to web3d. In Spencer, S. N., ed-

itor, Proceedings of the 14th International Conference

on 3D Web Technology, pages 177–180. ACM.

Elliott, J., Adams, L., and Bruckman, A. (2002). No magic

bullet: 3d video games in education. Proceedings of

ICLS.

Garrison, D. and Anderson, T. (2003). E-learning in the

21st Century: A Framework for Research and Prac-

tice. Routledge/Falmer, New York.

Holzinger, A. and Ebner, M. (2003). Interaction and usabil-

ity of simulations & animations: A case study of the

ﬂash technology. In Human-Computer Interaction -

INTERACT’03, pages 777–780. IOS Press.

Hosmeier, J. A. and Dicesare, C. (2000). System response

time and user satisfaction: An experimental study of

browser-based applications. AMCIS 2000 Proceed-

ings., page 347.

Kim, G. (2005). Designing Virtual Reality Systems: The

Structured Approach. Springer.

Martnez-Dur, R. J. (2009). Real-time simulators develop-

ments: Current and new trends. International Con-

ference on Harbor Maritime & Multimodal logistics

modeling and simulation, pages 1–9.

Michael, D. and Chen, S. (2005). Serious Games:

Games That Educate, Train, And Inform. Muska &

Lipman/Premier-Trade.

Pescarin, S., Calori, L., Camposeri, C., and Forte, M.

(2005). Interactive landscapes reconstruction: a web

2d and 3d opensource solution. The 6th International

Symposium on Virtual Reality, Archeology and Cul-

tural Heritage VAST, pages 33–38.

Squire, K. (2003). Video games in education. International

Journal of Intelligent Simulations and Gaming, 2:49–

62.

Virvou, M., Katsionis, G., and Manos, K. (2005). Combin-

ing software games with education: Evaluation of its

educational effectiveness. International Forum of Ed-

ucational Technology & Society (IFETS), 8(2):54–65.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

312
