WEB AUTHENTIC AND SIMILAR TEXTS DETECTION USING

AR DIGITAL SIGNATURE

Marios Poulos, Nikos Skiadopoulos and George Bokos

Laboratory of Information Technology, Department of Achives and Library Sciences, Ionian University, Corfu, Greece

Keywords: Data mining, AR model, Semantic web, Information retrieval.

Abstract: In this paper, we propose a new identification technique based on an AR model with a complexity of size

O(n) times in web form, with the aim of creating a unique serial number for texts and to detect authentic or

similar texts. For the implementation of this purpose, we used an Autoregressive Model (AR) 15

order,

and for the identification procedure, we employed the cross-correlation algorithm. Empirical investigation

showed that the proposed method may be used as an accurate method for identifying same, similar, or

different conceptual texts. This unique identification method for texts in combination with SCI and DOI

may be the solution to many problems that the information society faces, such as plagiarism and clone

detections, copyright related issues, and tracking, and also in many facets of the education process, such as

lesson planning and student evaluation. The advantages of the exported serial number are obvious, and we

aim to highlight them while discussing its combination with DOI. Finally, this method may be used by the

information services sector and the publishing industry for standard serial-number definition identification,

as a copyright management system, or both.

1 INTRODUCTION

A challenging issue rising from the phenomenon of

the enormous increase of data and the requirement

of data integration from multiple sources is to find

near duplicate records efficiently. Near duplicate

records create high similarity to each other;

however, they are not bitwise-matching. There are

many causes for the existence of near duplicate data:

typographical errors, versioned, mirrored, or

plagiarized documents, multiple representations of

the same physical object, spam emails generated

from the same template, etc. (Xiao et al, 2008). In

recent, years many systems have been developed in

order to solve the above problems. Furthermore, in

the internet approach with these strongly dynamic

features, many times articles are published and after

a short period, they are removed from the URL

location. This phenomenon many times lead to

plagiarism practices. For this problem, (Phelps &

Wilensky 2000) propose a less burdensome solution:

compute a lexical signature for each document, or a

string of about five key identifying words in the

document. However, while this idea seems quite

practical, this calculation is very complex and as

shown, the observed complexity is achieved O(n2)

times (Klein & Nelson, 2008), where n is number of

the compared characters. The algorithm of the above

case is dependent upon the intention of the search. In

further detail, these algorithms weighted for Term

Frequency (TF: “how often does this word appear in

this document?”) were better at finding related

pages, but the exact page would not always be in the

top N results. Algorithms weighted for Inverse

Document Frequency (IDF: “in how many

documents does this word appear?”) were better at

finding the exact page but were susceptible to small

frequency changes in the document such as a fixed

spelling (Klein & Nelson, 2008). A common

statistical approach is the structure of text vectors

based on values relating the text, like the frequencies

of words or compression metrics (Lukashenko, et al.

2007). Based on statistical measures, each

document can be described with so-called

fingerprints, where n-grams are hashed and then

selected to be fingerprints (Lukashenko, R., et. al

2007). In brief, the above techniques can be

approximately grouped into two categories:

attribute-counting systems and structure-metric

systems (Chen, et al., 2004).

However, this approach causes many problems

due to the pair-to-pair comparison that increases the

Poulos M., Skiadopoulos N. and Bokos G.

WEB AUTHENTIC AND SIMILAR TEXTS DETECTION USING AR DIGITAL SIGNATURE.

DOI: 10.5220/0002803600890094

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

complexity of the algorithm. Moreover, the lexical

signature or fingerprint marks lead to many

statistical errors. In particular, the similarity ‘s’

measuring between documents (clone detection), a

procedure known as “mental templates” (Baxter,

1998), is an example of a typical error. Briefly, these

algorithms are also implemented using suffix trees,

dynamic pattern matching (DPM) and hash-value

comparison (Chanchal et al., 2009). In detail, the

clones’ software detection deal with the problems of

superfluous brackets which are added in the copied

fragment as it compares only the sequence of tokens

and does not remove brackets before comparison.

In this study, we introduce a new approach for

clone and plagiarism detection using a set of

augmented linear model parameters as features for

improved comparison procedure. The augmented set

of linear model parameters, estimated from the

document, is used as the feature vector upon which

comparison procedure is based.

The objective of this paper is to extract

individual-specific information from a document and

to use this information in the form of appropriate

features to develop a comparison clone detection

method. The advantages of this method are focused

on the decreased complexity of the method; in our

case, this complexity is calculated in the order of

O(n) times. However, the spectral linear filtering of

the document data yields 15 orders’ vector which is

carried by all the features included the superfluous

brackets and symbols. Also, we considered that the

participation of these symbols in processing

procedure influence the semantic interpretation of

each document.

In the comparison stage, we adopted a

conventional cross-correlation procedure in order to

calculate the relation significance between the

vectors. We called the degree of relation of these

vectors the degree of similarity. Thereinafter, for

accurate and verification reasons we published this

algorithm in the web in particular URL location.

Finally, the proposed method was divided into

the following parts:

• Pre-processing stage: the characters of a text were

submitted in a conversion to numeric values and a

numerically singular size array (vector) was

constructed.

• Processing stage: analysis of the numeric array via

a well-fitted AR model in order to extract AR

coefficients.

• Comparison procedure: the degree of similarity

between the investigated documents are extracted

using cross-correlation technique

• Internet implementation of the above stages in

Internet online testing.

2 METHOD

2.1 Pre-processing Stage

In this stage, we suppose that a selected text forms

an input vector

123

(, , , )

XXX X=





…

, which

represents the characters of the selected text. Then,

using a procedure which converts a symbolic

expression to American Standard Code for

Information Interchange (ASCII) characters in string

arithmetic values, we obtain a numerical value

vector

( , , ... )

123

SSSSS





, with values ranging

from 1 to 128. In our example, an array of characters

were trialled, and we achieve this conversion by

using the double.m function of the Matlab language.

This function converts strings to double precision

and equates itself by converting an ASCII character

to its numerical representation.

For better comprehension, we provide the

following example via Matlab:

>> S = 'This is a message to test the double

"command".'

>> double(S)

ans =

Columns 1 through 12

84 104 105 115 32 105 115 32 97

32 109 101

Columns 13 through 24

115 97 103 101 32 116 111 32 116

101 115 116

Columns 25 through 36

32 116 104 101 32 100 111 117 98

108 101 32

Columns 37 through 46

34 99 111 109 109 97 110 100 34

2.2 Processing Stage

The methods employed for signal analysis and

feature extraction, along with the comparison step

by appropriate cross-correlation algorithm are

presented in this section. The section is divided into

four main subsections. In the first subsection, the

choice of an AR model and the estimation of its

parameters are considered. In the second subsection,

“Identification Procedure” the comparison between

selected pairs of texts is developed. Finally, in the

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

third and four subsections, the Internet

Implementation and Experimental Part are

described.

2.2.1 The AR Model – Type and

Parameterization

In order to model the linear component of a text-file

numeric conversion is implemented via a linear,

rational model of the autoregressive type, AR (p), is

fitted to the digitized numeric text (t)

(GEP Box, et al.,

1970). This signal is treated as a superposition of a

signal component (deterministic) plus additive noise

(random). Noise is mainly due to imperfections in

the recording process. This model can be written as

tit

xax

−

∑

, (1)

is an independent, identically distributed driving

noise process with zero mean and unknown variance

and model parameters {a

, i = 1, 2,..., p} are

unknown constants with respect to time.

It should be noted that the assumption of time

invariance for the model of the text vector can be

satisfied by restricting the signal basis of the method

to a signal "window" or "horizon" of appropriate

length.

The linear model can usually serve as (more or

less successful) approximations, when dealing with

real world data. In the light of this understanding,

the linear is the simpler among other candidate

models in terms of computing spectra, covariance’s,

etc.;

In this work, a linear model of the specific form

AR(p) is adopted. The choice of the order of the

linear models is usually based on information theory

criteria such as the Akaike Information Criterion

(AIC) (Stone, 1977)

which is given by:

() ( )log 2

AIC r N M r

=− + (2)

Where,

−

∑

(3)

N is the length of the data record; M is the maximal

order employed in the model; (N-M) is the number

of data samples used for calculating the likelihood

function; and r is the number of independent

parameters present in the model. The optimal order

r* is the minimiser of AIC(r).

We have used the AIC to determine the order of

the linear part of the model in i.e. the optimal order p

of the AR part of the model. For each candidate

order p in a range of values [pmin, pmax], the

AIC(p) was computed from the residuals of each

record in the ensemble of the EEG records available.

This is because we deal with recordings of real

world data rather than the output of an ideal linear

model. We have thus seen that AIC(p) takes on its

minimum values for model orders p ranging between

10 and 15, record-dependent. In view of these

findings, we have set the model order of the AR part

to p = 15, for parsimony purposes

2.3 Identification Procedure

In this stage the extracted sets of the 15 order AR

coefficients

C of the vector text are submitted to

the cross-correlation procedure (Morrison, et al.,

1976) see equation (4).

()()

()( )

iiii

ii i i

Cx Cx Cy Cy

−

−−

∑

∑∑

(4)

In particular, the extracted cross-correlation

coefficient of this procedure is a number between -1

and 1, which measures the degree to which two

variable sets are linearly related. This number we

adopted as a degree of similarity between the

compared texts. The procedure of this comparison is

described as follows according to the following

algorithmic step:

1. Two texts are imported

2. The smaller extent text is selected

3. The degree of similarities (Cross correlation

procedure) of the selected text is tested with equal

size parts of the bigger text using a slight moving

window.

4. The greater degree of similarity is selected of

these multiply comparisons.

2.4 Internet

Implementation-Experimental Part

2.4.1 Internet Implementation

For implementing the algorithm into a widely

accessible web application, we used a Common

Gateway Interface (CGI) (

Robinson, et al. 2004) to

interface the functions (packaged and compiled into

a matlab-executable file) with the web server

running on the Information Technology Laboratory.

The algorithm was compiled and packaged using

WEB AUTHENTIC AND SIMILAR TEXTS DETECTION USING AR DIGITAL SIGNATURE

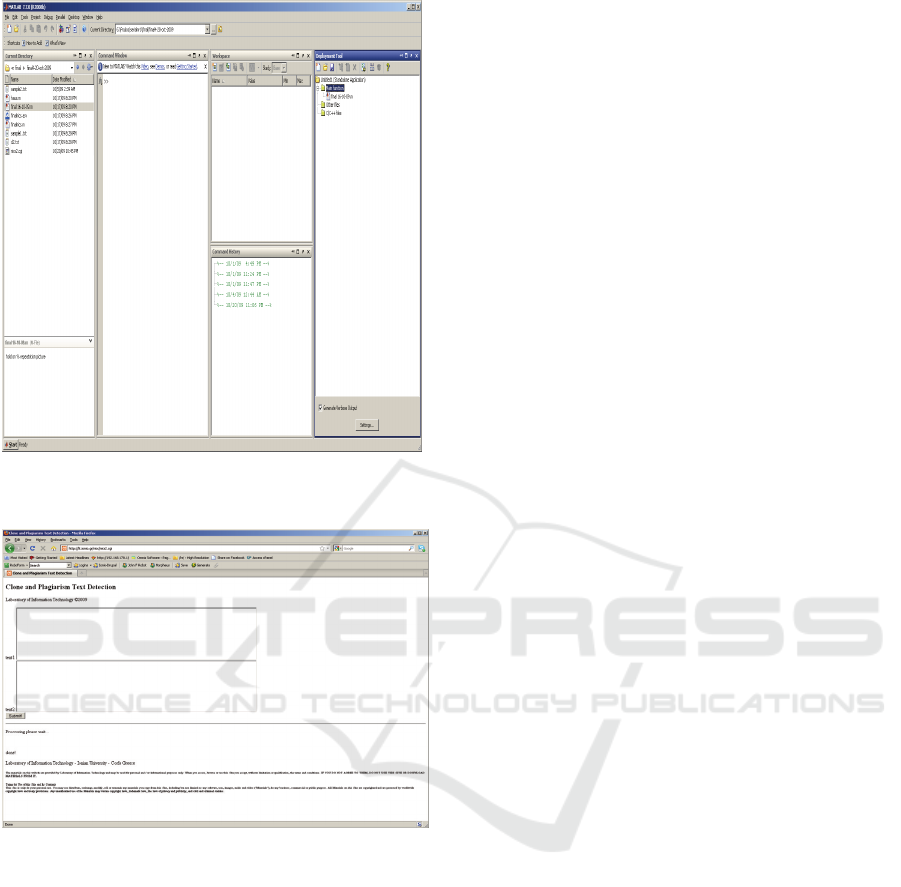

Figure 1: Using Matlab’s Deployment Tool to produce a

windows standalone application.

Figure 2: The Web Application.

Matlab’s compiler (see figure1), producing a

Windows 32-bit executable file, which was copied

to the server.

The proposed algorithm was used to produce the

executable file, which handles two separate text files

and compares their serial numbers.

The CGI script was implemented to allow the

user to input the two texts to be identified. It

produces two different serial numbers, the similarity

and outputs them to the user in a suitable HTML

form (see figure2). Through the following Perl

function, the application manages to get the two text

files that the user inputs and saves them in the

server’s directory. Then the Perl script calls the

matlab-executable file, produced earlier, and outputs

the results in a suitable HTML form.

use strict;

use warnings;

use CGI;

my $cgi = CGI->new();

print $cgi->header('text/html');

print $cgi->start_html('Clone and

Plagiarism Text Detection'),

$cgi->h2('Clone and Plagiarism Text

Detection'),

$cgi->p ('Laboratory of Information

$cgi->start_form,

'text1: ',

#$cgi->textfield(-size=>100,-

name=>'text'), $cgi->br,

$cgi->textarea(-size=>10000,-

name=>'text',-COLS=>100,-ROWS=>10),

$cgi->br,

'text2: ',$cgi->textarea(-

size=>10000,-name=>'text2',-

COLS=>100,-ROWS=>10), $cgi->br,

$cgi->submit('Submit!'),

$cgi->end_form, $cgi->p,

$cgi->hr;

open (MYFILE3, ">sample1.txt")or

die $!;

print MYFILE3 $cgi->param('text');

close (MYFILE3);

open (MYFILE4, ">sample2.txt")or

die $!;

print MYFILE4 $cgi->param('text2');

close (MYFILE4);

print "Processing please

wait...\n";

my @a = (1);

for my $p (@a) {

my $pid = fork();

if ($pid == -1) {

die;

} elsif ($pid == 0) {

exec ".\\nics.exe" or die

"cannot exec program";

}

while (wait() != -1) {}

print $cgi->br;

print "\ndone!\n";

print "\nLaboratory of

Information Technology - Ionian

University - Corfu Greece\n";

Finally, the implementation of this application is

available in the URL location http://lit.ionio.gr/

nics/nics2.cgi

2.4.2 Internet Implementation

In this stage, we distinguish between three (3)

different overlap measures per text:

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

1. Authentication Text - the complete overlap

(degree of similarity =100%) between two equal size

texts

2. Similarity Text - the partial overlap (degree of

similarity>80%) between two equal size texts

3 Different Texts - the partial overlap (degree of

similarity<80%) between two equal size texts.

In the first experiment, we used 50 different texts

for Reuter’s database and for authentication

purposes, we tested a part (sentence) of these texts

and submitted for the original text for example (see

Figure 3)

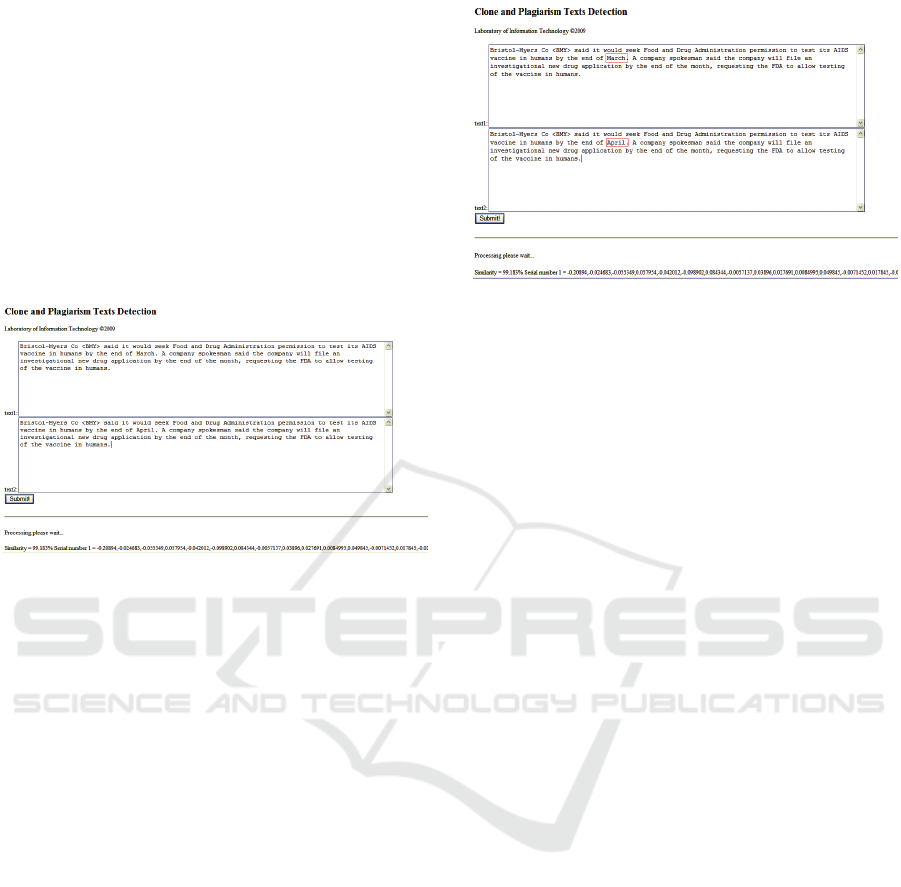

Figure 3: Comparison test between authentic parts of texts

(http://lit.ionio.gr/nics/nics2.cgi).

In this way, we tested the ability of this method

in order to discover the same phrase of an original

text. In total, we tested 100 different cases which

yielded 100% successful results.

In the second experiment, we examined the 50

texts in combination in different pairs each time.

Totally, we executed 2450 tests of the above

combination and all the results gave results less than

60%.

In the third experiment, we manually examined

some similar texts per pair. In example, we

examined texts missing a word, or similar

documents differing only by typos, punctuation, or

additional annotations running time. (see Figure 4).

Generally, the entire test showed that the method

has specific sensitivity of the differences of words

which it deals with.

3 CONCLUSIONS

In conclusion, by conducting this study, evidence

appeared that the proposed system recognized the

authentication and the degree of similarity between

pair of texts in different contexts. This method may

Figure 4: Comparison test between similar parts of texts

(with differences in the red words) (http://lit.ionio.gr/

nics/nics2.cgi).

be used in many cases for the existence of near

duplicate data: such as, typographical errors,

versioned, mirrored, or plagiarized documents,

multiple representations of the same physical object,

and spam emails generated from the same template.

As a possible future application, the extracted

feature vector of the proposed spectral analysis may

be used as serial number for identification purposes.

For example, this can be embedded into the suffix of

the DOI system to enable the text retrieval

capabilities through Open-URL queries. This

solution was adopted because the DOI cooperates

perfectly with such metadata information services as

the CROSSREF and the protocol Open-URL.

Specifically, it is known that an Open-URL consists

of a base URL, which addresses the user's

institutional link-server, and a query-string, which

contains the data of this entry, typically in the form

of key-value pairs. Another point of comparison that

may yield guidance addressing issues in lack of

similarity may be to involve the management bodies

of knowledge. Future research, therefore, should be

focused on further investigating the properties of the

method, through experiments with large collections

of documents. This way it will be possible to

extensively evaluate its validity of the algorithm

against a larger sample base and examine the

utilization of DOI as a metadata platform-

cooperation model with other information networks

such as neural networks. Our long term goal is the

adoption of the proposed model as a strategic

component for organizations and libraries for the

identification and control of the authenticity of

electronically published documents on the web.

WEB AUTHENTIC AND SIMILAR TEXTS DETECTION USING AR DIGITAL SIGNATURE

REFERENCES

Baxter, I. Yahin, A. Moura, L. & Clone Anna, M. S.,

1998. Detection using abstract syntax trees. In: Proc.

ICSM, (Intl. Conference on Software

Maintenance)Conference title. . Location. Date of

Conference, Publisher: Place of publication.

Box, G.E.P. Jenkins, G.M. & Reinsel G.C., 1970. Time

Series Analysis Forecasting and Gontrol. Wiley John

Wiley & Sons, Inc.

Chanchal K. Roya,J. R. Cordy, A. & Koschkeb, R., 2009.

Comparison and evaluation of code clone detection

techniques and tools: A qualitative approach. Science

of Computer Programming, 74(#) pp.470-495.

Chen, X. Francia B., Li, M. Mckinnon, B. & Seker A.,

2004. Shared information and program plagiarism

detection. IEEE Trans. Information Theory, 7

(#),pp.1545–1550.

Klein M.& Nelson M. L., 2008. Revisiting Lexical

Signatures to (Re-)Discover Web Pages. In

Proceedings of ECDL '08, pages 371-382.

Lukashenko, R., et. al., 2007. Computer-Based Plagiarism

Detection Methods and Tools: An Overview. In

(International Conference on Computer Systems and

Technologies Conference title. City,Bulgaria 14-15

June 2007. Publisher, Place of publication.

Morrison, N. & Donald F., 1976. Multivariate Statistical

Methods. New York: McGraw-Hill Book Company.

Phelps, T. A.& Wilensky, R., 2000. Robust Hyperlinks:

Cheap, Everywhere, Now. In Proceedings of

Digital Documents and Electronic Publishing 2000.

(DDEP00), September 2000.

Robinson, D. &Coar K., 2004. The Common Gateway

Interface (CGI) Version 1.1. RFC 3875, Oct. 2004.

Stone, M., 1977. An Asymptotic Equivalence of Choice

of Model by Cross-Validation and Akaike's Criterion.

Journal of the Royal Statistical Society, Ser. B 39,

pp.44-47.

Xiao C. Wang W., Lin X. & Yu, J. X., 2008. Efficient

similarity joins for near duplicate detection, In WWW

’08.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies
