DEVELOPING AN ARCHITECTURE OF GAMES

FOR A BLUETOOTH-BASED UBIQUITOUS ENVIRONMENT

José Miguel Rubio, Francisco Reyes and Jorge Inostroza

Pontificia Universidad Católica de Valparaíso, Av. Brasil 2241, Valparaíso, Chile

Keywords: Mobile technology, PDA, Smartphones, Cell phones, Videogame, Communication, Architecture,

Ubiquitous environment, Bluetooth.

Abstract: Mobile technology is in an increasingly competitive market, and mobile devices, of various ranges and

technologies such as PDAs, smartphones, cell phones, among others are their representatives, offering a

wealth of services and resources to use.

As it grows, the development of these devices and their processing and storage capabilities also increases

the production of larger applications that exploit these capabilities. This is where the mobile gaming market

appears. However due these devices are in a variety of ranges, operating systems and implementations, it

creates a problem in game development area because of the lack of uniformity and consistency in the

communication between devices.

This article proposes an architecture model game under a ubiquitous environment for mobile devices,

primarily focused on the communication of these devices using the Bluetooth protocol with the aim of

standardizing applications for different platforms and devices providing support to developers of video

games.

1 INTRODUCTION

Mobile technology is advancing very fast and with it

the market for mobile devices. A big number of

applications and operating systems for these devices

have been developed over this last period, more and

more powerful applications that use these resources

have evolved in parallel excels the video game

market, which in the beginning marked a fashion

with game consoles, computers and laptops, but at

this period has also migrated to mobile devices

exploiting their resources, regardless of whether they

are classified as limited. Mobile games have evolved

and equally so have the requirements of demanding

users in this field, which is why players and are

unsatisfied when they interacting with their devices,

now they are looking to interact with other players

and measured with them in playing scenarios

through a connectivity medium. This presents a

great challenge for game developers because of the

huge range of devices on the market. Consequently

the development of video games for multiple mobile

platforms has been a constant dilemma.

Because of the problems mentioned in this

article defines an architectural model of video games

that will solve this dilemma, integrating the essential

requirements of game development, and standardize

the components and technologies for communication

between mobile devices that are developed for

platform multiplayer.

2 UBIQUITOUS ARCHITECTURE

OF GAMES

This section aims to introduce the definition of a

gaming architecture under a ubiquitous environment

(Weiser 2001), where mobile devices to interact in

games multiplayer platform game. Before defining

an architecture as such is necessary to define its

functionality and features that this architecture must

meet. The following describes the main features and

technical specifications set by this architectural

model.

2.1 Communication

Communication is the focus of this article and turn

the main body of the proposed architecture model.

191

Miguel Rubio J., Reyes F. and Inostroza J.

DEVELOPING AN ARCHITECTURE OF GAMES FOR A BLUETOOTH-BASED UBIQUITOUS ENVIRONMENT.

DOI: 10.5220/0002808801910194

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

This feature is the configuration and deployment of

technologies of communication between different

mobile devices to interact in a ring game.

Arrange and specify the protocols by which devices

should connect and share common services.

2.2 Processing

Another feature is that the architecture will provide a

module dedicated to processing information wich is

transmitted by the devices.

Represents the core of the architecture and is

responsible for the overall configuration of each one

of the components that interact in the architecture.

Its goal is to generate direct communication with the

videogame in development code and the modules of

the architecture.

That is the request shall be sent

from the game parameters to the modules of the

architecture while sending the response to the logic

of the game.

Within its submodules processing module will

incorporate features that will be present in each of

the modules and be responsible for transferring data

between modules and the videogame code.

2.3 Persistence

Another feature of the architecture is the persistent

storage of the information for the items of the

videogame. In this case the persistence can be

established in two ways: internally or externally.

Internal if the information will remain in the internal

memory or ROM device, or external if the user plans

to store the information on an external server to the

device and can connect to a database and hosted on a

computer or use web services to store information

on the games.

The information will this functionality is directly

related to the logic of the games, ie record of scores,

statistics time items, the possibility, animations,

settings, characters, audio, video, etc.

2.4 Logic

An important feature also is that which relates to the

encoding logic games, this means the management

and control of major characteristics that have the

games and in turn differ from each other.

An important point in this module is the creation of

different Artifical Inteligence(AI) techniques that

provide direct support to game developers and the

grouping of modules focused on the different

categories that have the games.

(Games of strategy,

shooting, role, etc).

2.5 Security

Finally, the architecture will have a functionality

responsible for the security of the transfer of

information for the items in game, very similar as in

most applications security vulnerabilities are always

present, is why this module should responsible for

solving these problems through security algorithms

for different types of games that want to develop.

The module will include features for creating session

for the items in the game, asking the user ID and

password as previously registered when creating the

game, this data should have encryption systems

acceptable to establish safe playing games.

These features listed in most cases will depend on

each other, which means it will generate some

dependency between modules, which is why

development should be highly modular.

After defining the main problems in game

development, and exposed the features that can fill

them, this architecture is defined as a set of packages

containers for code libraries, grouped by features

with the aim of providing support in developing

uniform videogames.

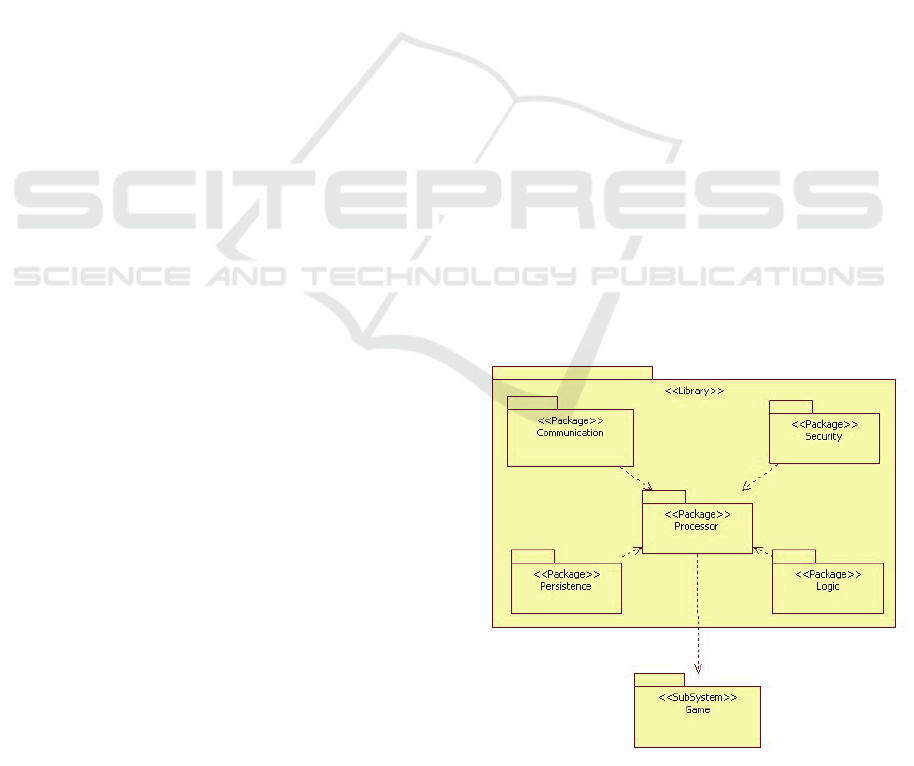

The figure below sets out the package module

architecture, where processing package figure as the

central entity responsible for communicating with

other modules and receive requests from the game

code to return them to these modules.

Figure 1: Architecture Package Diagram.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

192

3 STATIC VIEW

One goal of this architecture is to give the possibility

to extend functionality of existing components and

extend its capabilities after the creation of new ones,

this is why modules are designed with specific

functionalities and black boxes to make this happen.

Each module will have a class called Manager to

process the information and transmit it to the

processing module which will also feature a central

manager, so this way the processor will play a rol

enabling communication between modules .

For the creation of new components within the

architecture of each module will be

called Driver classes that extend from the entities

manager, and will keep the intention of

implementing specific functions associated with

each module.

The drivers should have implemented the extended

methods to work properly, because the drivers are

loaded by the processor and used to make calls to

abstract methods of the manager.

3.1 Bluetooth Driver

After extending CommunicationManager, it

implements the functionality of the bluetooth

technology through a class called

BluetoothDriver.

This implementation addresses all

the methods offered by the abstract class

CommunicationManager.

BluetoothDriver functions are based on client-server

architecture.

Bluetooth protocols implemented for

data transfer are RFCOMM and L2CAP (Brieva

2004). To have better control over the game session,

was created interface GetClientListener, the class

that implements this interface will be who controls

events arrivals of new players to games, and will

achieve a higher order process when new players to

the meeting.

4 DINAMIC VIEW

4.1 Coordination in the Searching for

Devices and Services

The implementation of the Bluetooth standard works

on the concept of mutual exclusion when seeking

services or devices, providing blocking methods,

this in order to provide better control over the work

of searching and have the operation bounded,

resulting in a margin of control, a result at the end of

the blocking method and a clear model to program in

a clear way and standard.

To achieve this in BluetoothDriver methods:

searchDevices() and searchServices(), their

implementation uses a synchronized segment

together with an object called a lock (of

type Object), which at the time of entering into the

search is set to blocked state, and thus do not block

the main program. When the search finishes

releasing the object (notify) allowing to follow the

normal course and return to the main program to

search results.

This represents a process similar to

Facade (Gamma et al. 1995) of the operation on Java

native Bluetooth, wrapping to provide more

reliability at the time of use.

5 USED TECHNOLOGIES

5.1 J2ME

The proposed architecture design using the Java 2

Micro Edition (Li et al. 2005), language for the

development of the mentioned modules.

This

technology comes with certain limitations because

the devices have limitations in its capabilities of

processing and persistence. J2ME virtual machine

also called KVM (Kilobyte Virtual Machine),

works

with a limited 32-bit . There are also two important

points to consider at the moment of developing in

J2ME: the profiles and configutations (Sun 2005).

6 CONCLUSIONS

This article has presented an architectural model for

games focused on ubiquitous mobile devices.

Been

mentioned the main problems associated with the

development of videogames for the wide range of

mobile devices on the market.

It also raised the most suitable communication

technology for this scenario, where Bluetooth has

been chosen to establish connectivity between the

devices during play sessions, for reasons of cost and

portability in devices.

After developed both implementations of

communication protocols: L2CAP and RFCOMM, it

is possible to make comparisons related with

performance, where clearly the speed of

DEVELOPING AN ARCHITECTURE OF GAMES FOR A BLUETOOTH-BASED UBIQUITOUS ENVIRONMENT

193

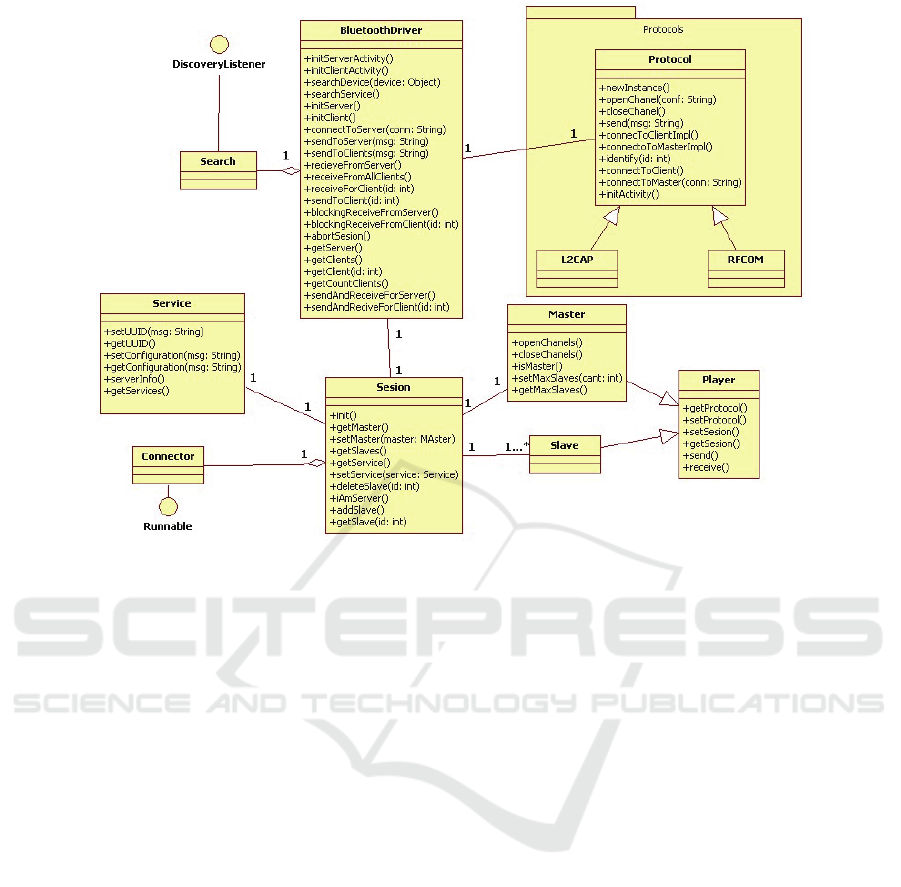

Figure 2: Bluetooth Driver.

transmission in L2CAP protocol is higher because

the data is sent at byte level.

As future work is planned to implement

functionality in Logic modules, Persistence and

Security to thus further enhance the architectural

model proposed here.

To address this will continue with a highly modular

programming to allow extensibility of the

architecture, building powerful and homogeneous

features, and thus allow the development of

multiplayer games on several platforms regardless of

the range of the device for which develops.

REFERENCES

Brieba, A.G., 2004. JSR-82: Bluetooth from Java.

Gamma, E., Helm, R., Johnson, R., Vlissides, J., 1995.

Design Patterns: Elements of Reusable Object-

Oriented Software, Addison-Wesley, Professional

Computing Series.

Li, S., Knudsen, J., 2005. Beginning J2ME: From Novice

to Professional, Third Edition, Apress Editorial.

Sun, 2005. Mobile Information Device Profile (MIDP),

JSR 37, JSR 118 Overview.

Weiser, M., 1991. The Computer for the Twenty-First

Century, Scientific American.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

194
