WSCOLAB: STRUCTURED COLLABORATIVE TAGGING FOR

WEB SERVICE MATCHMAKING

Maciej Gawinecki, Giacomo Cabri

Department of Information Engineering, University of Modena and Reggio Emilia, Italy

Marcin Paprzycki, Maria Ganzha

Systems Research Institute, Polish Academy of Sciences, Poland

Keywords:

Web service, Discovery, Matchmaking, Collaborative tagging, Evaluation.

Abstract:

One of the key requirements for the success of Service Oriented Architecture is discoverability of Web ser-

vices. Unfortunately, application of authoritatively deﬁned taxonomies cannot cope with the volume of ser-

vices published on the Web. Collaborative tagging claims to address this problem, but is impeded by the lack

of structure to describe Web service functions and interfaces. In this paper we introduce structured collabora-

tive tagging to improve Web service descriptions. Performance of the proposed technique obtained during the

Cross-Evaluation track of the Semantic Service Selection 2009 contest is reported. Obtained results show that

the proposed approach can be successfully used in both Web service tagging and querying.

1 INTRODUCTION

The key beneﬁt of utilization of the Service Oriented

Architecture (SOA) is a high degree of reuse of

components, available as readily deployed Web

services (Weerawarana et al., 2005). To achieve this

goal, it is necessary to make Web services discover-

able. In the traditional SOA vision, service providers

requestors use the same broker to discover them.

For the registered services to be usable, service

broker must provide all necessary information about

their functionality (Hagemann et al., 2007). Until

January 2006, the role of service brokers was played

mainly by the UDDI Business Registries (UBRs),

facilitated by Microsoft, SAP and IBM (SOA World

Magazine, 2009). Afterward, a large number of

services has been published on the Web (in the form

of WSDL deﬁnitions) and current service brokers,

like SeekDa (SeekDa, 2009), use focused crawl-

ing to help facilitate their utilization (Lausen and

Haselwanter, 2007; Al-Masri and Mahmoud, 2008a).

However, no “central authority” categorizes indexed

services according to their functionality (as it was in

the case of UBRs). Therefore, WSDL deﬁnitions and

the related documentation remain the only explicit

information deﬁning functionality of Web services.

Unfortunately, methods based on the WSDL match-

ing suffer from the vocabulary problem (Furnas et al.,

1987; Dong et al., 2004; Wang and Stroulia, 2003)

and the intention gap (Fern´andez et al., 2008).

In this context, it is often claimed that the col-

laborative tagging of Web services, used by the Pro-

grammableWeb (ProgrammableWeb, 2009) and the

SeekDa service broker portals, has potential to ad-

dress these issues. Here, the community of users

is provided with mechanisms for annotating indexed

Web services with keywords called tags (Meyer and

Weske, 2006). It is a collaborative process because

users can see how others tagged the same service and

hence the semantics of a service emerges from anno-

tations of the community. The main advantage of this

approach is its simplicity. Users do not need to struc-

ture their annotation according to multiple, complex

features of a service (as it is the case in formal seman-

tic annotation models; e.g. OWL-S (OWL-S, 2009),

SAWSDL (SAWSDL, 2009)).

However, for a class of services (including data-

centric services, i.e. services that only provide or

manipulate data) it would be useful to structure an-

notation and to explicitly split the functional catego-

rization from the description of the service interface.

Speciﬁcally, to differentiate between tags describing

input, output, and behaviour of a service. We call this

Gawinecki M., Cabri G., Paprzycki M. and Ganzha M.

WSCOLAB: STRUCTURED COLLABORATIVE TAGGING FOR WEB SERVICE MATCHMAKING.

DOI: 10.5220/0002809200700077

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

approach structured collaborative tagging.

The paper is organized as follows. We describe

the addressed problem in Section 2, and we formalize

our approach in Section 3. In Section 4 we describe

how the proposed approach can be used for service

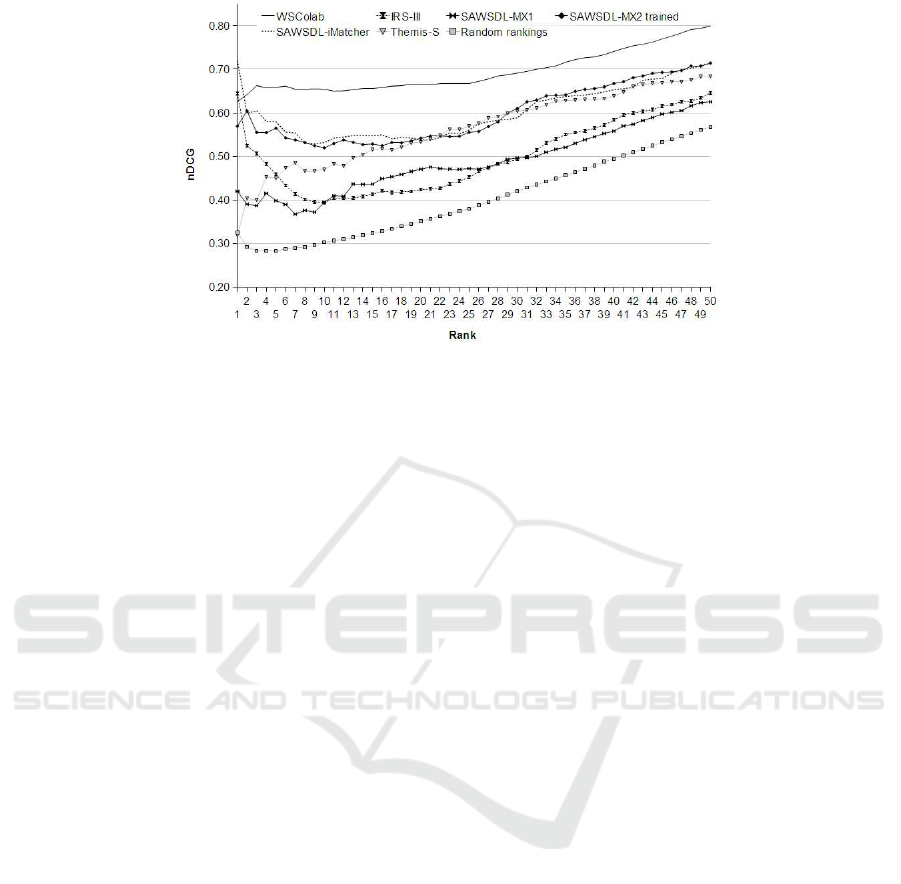

retrieval. In Section 5 we report results of the Cross-

Evaluation track of the Semantic Service Selection

2009 contest (S3, 2009), where the proposed retrieval

mechanism took the ﬁrst place for its effectiveness

and for its short query response time. In Section 6 we

conclude the approach and present issues for further

research in collaborative tagging of Web services.

2 PROBLEM EXPLICATION

We deﬁne the Web service matchmaking as a task of

ﬁnding services that match user-speciﬁed criteria. We

are looking for a Web service classiﬁcation schema

that supports this process.

2.1 Matchmaking Criteria

Inspired by the relevance judgment criteria for the

Web service matchmaking (K¨uster and K¨onig-Ries,

2009), we identify the following user-speciﬁed crite-

ria:

• Functional Equivalence Criterion. A user is

looking for a speciﬁc functionality, for instance,

a service that “geocodes” US city names. Such

service may take the city name and the state code

as input and return the geographic location of the

city (longitude and latitude) as output. However,

a service that provides geocoding of zip codes still

approximates the desired functionality.

• Functionality Scope Criterion. A user is look-

ing for a service realizing quantitatively all the

required functionality. For instance, geocoding

must be done not only for US cities, but for all

countries around the world.

• Interface Compatibility Criterion. A user is

looking for a service with a speciﬁc interface (not

only of required functionality). For instance, ser-

vice inputs and outputs should be available in the

requested format; e.g. input utilizing zip codes.

Web service matchmaking heuristics should support

ﬁnding a service with respect to these criteria.

2.2 Web Service Classiﬁcation Schema

Service categorization is a way to ﬁnd services of

similar functionality or functionality scope. For in-

stance, the aforementioned service for geocoding

of US cities may belong to the Geocoding, US or

Geocoding US category. Note that it may be not triv-

ial for a user to guess the right category for a required

service. Alternatively, a user may deﬁne a service

request in the form of a required service interface.

In this case, it is assumed that services of similar

interfaces realize similar functionality. This heuris-

tics is called function signature matching (Zarem-

ski and Wing, 1995) and used, for instance, by the

Merobase software components registry (Merobase,

2009). Here, two services returning a distance in

miles, for given zip codes, should realize the same

functionality. Independently, for services that provide

or manipulate data, the scope of functionality can be

also described by their input or output, e.g. the US-

City name of an input parameter. However, if ser-

vice X provides the driving distance, whereas service

Y delivers the straight line distance, they may have

compatible interfaces but realize different functional-

ities. Alternatively, two services providingthe driving

distance—one for zip codes, and another for cities—

are not interface-compatible, but still functionally

equivalent. This is because a service interface does

not capture the complete semantics of service func-

tionality (Dong et al., 2004). Summarizing, catego-

rization and function signature matching can be seen

as complementary heuristics. However, no classiﬁca-

tion schema exists to provide data for both of them.

2.3 The Vocabulary Problem

When searching for a service, a user may need to

know the right keyword(s) for the category this

service should belong to, or the right keywords for

the input and output parameters. Using the wrong

word may result in failing to ﬁnd the right service.

This is the vocabulary problem (Furnas et al., 1987).

It relates not only to variability of words used to name

the same thing. Users may also perceive service func-

tionality differently than how the service provider

expressed it in the documentation (Fern´andez et al.,

2008).

Categorization was initially thought as a way to

classify re-usable software components. Software

components were classiﬁed according to authori-

tatively deﬁned controlled vocabulary. Similarly,

UDDI Web service registries and specialized Web

service portals (e.g. XMethods) used authorita-

tively deﬁned taxonomies of business categories

(e.g. (UNSPSC, 2009)). Both controlled vocabulary

and taxonomies introduce common understanding

of service functionality between a service provider

(or broker) and a service requestor (user), but still

does not resolve the vocabulary problem. The way

WSCOLAB: STRUCTURED COLLABORATIVE TAGGING FOR WEB SERVICE MATCHMAKING

that objects have been classiﬁed by an authority is

very often not obvious for the user (Shirky, 2005).

Moreover, hierarchical taxonomies do not allow an

object to belong to more than one category. This

leads to dilemmas such as: Whether a service on

geocoding of USA addresses should be put into the

geocoding or the USA category. Hence, unless the

user gains some intuition on how a particular tax-

onomy is designed, she needs to drill down through

the hierarchy of categories, or guess the right name

for it. Finally, an initial vocabulary may become

incomplete as the collection of software components

grows (Prieto-D´ıaz, 1991), while most taxonomies

are not ﬂexible; e.g. for the UNSPSC taxonomy used

by the UDDI registries, it took up to 5 years for a new

category to be added (Meyer and Weske, 2006).

The vocabulary problem applies also to the func-

tion signature matching heuristics based on the

WSDL deﬁnitions. This is because, ﬁrst, WSDL def-

initions are often sparsely documented (Al-Masri and

Mahmoud, 2008b). Second, keywords of input and

output parameter names are usually assigned by con-

vention or by the preference of the provider. Hence,

they can have related semantics but still be syntacti-

cally different (Dong et al., 2004). As a result, differ-

ent approaches fail when trying to identify parameters

meaning the same thing. Introducing a controlled vo-

cabulary (in the form of shared ontologies (Paolucci

et al., 2002)) to annotate both a service offer (i.e. de-

scription of a service in the registry) and a service re-

quest raises the same problems that the classiﬁcation

heuristics.

3 PROPOSED APPROACH

3.1 Addressing the Vocabulary Problem

The vocabulary problem and related issues occur in

the context of Web services, because of: (1) large

domain of objects to be categorized, (2) categories

difﬁcult to deﬁne, (3) lack of clear demarcating

lines between them, and (4) lack of categorizing

authority(ties). To address these issues, (Shirky,

2005) argued that collaborative tagging may be “bet-

ter” than utilization of taxonomies and ontologies.

Speciﬁcally, it was claimed that collaborative tagging

allows for non-hierarchical categorization, solving

the dilemma of the right category for an object. It

also addresses the vocabulary problem, because users

may generate large number of tags for an object, and

they do it in a similar way they formulate queries

(think about the objects) when searching for the

object (Furnas et al., 2006).

3.2 Specifying Classiﬁcation Schema

We follow the idea of (Meyer and Weske, 2006) to

use collaborative tagging for classifying Web services

but we allow both the behavior and the interface to be

described by tags—to provide data for both function

signature matching and categorization heuristics.

However, an unstructured annotation does not specify

if a given tag describes input, output or a behavior of

a service. For instance, for a given service, tags ﬁnd,

location and zip are ambiguous. They do not specify

whether the service ﬁnds a location for a zip code or

a zip code for a location. To assess the way people

handle such cases we have asked colleagues to tag

a number of similar services from the geographic

domain. Some resolved this problem by mimicking

the interface structure in tags: location to zip, coordi-

nates2ZIP, location from sentence and ﬁnd city. Such

“free patterns” can be very difﬁcult to be processed

by a machine.

We address the problem by introducing structured

collaborative tagging. Here, structured tagging im-

plies: categorization of service functionality (behav-

ior tags), description of a service interface (input and

output tags) and identiﬁcation of additional service

characteristics, like the functionality scope (behavior,

input and output tags). The proposed structure

explicitly implies which facets of a service can be

tagged, and give a uniform pattern for describing the

interface. Note that in the proposed approach, two

facets of a service can be tagged with the same tag.

For instance, a user may tag both behavior of a service

and its output with the distance tag. Hence, the sharp

distinction between the behavior and the output, or

the behavior and the input is not necessary. Moreover,

the larger the number of facets by which a service

has been tagged the more likely a user will be able to

recall the tagged objects in retrieval (Xu et al., 2006).

3.3 Structured Tagging Model

Formally, we model service functionality utilizing

three facets: input, output, and behavior. We describe

each of them using formalization of emergent seman-

tics introduced by (Mika, 2005) and adapted for Web

service annotation by (Meyer and Weske, 2006).

Deﬁnition 1 . A folksonomy F ⊆ A× T× S is a hy-

pergraph G(F) = (V, E) with

• vertices V = A∪ T∪ S, where A is the set of ac-

tors (users and the system), T — the set of tags

and S—the set of services described by service

descriptions (service landscape).

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

• hyperedges E = {(a,t,s)|(a,t,s) ∈ F} connecting

an actor a who tagged a service s with the tag t.

In this way we have speciﬁed three folksonomies

, F

for input, output and behavior. We call

an annotation a single hyperedge (a,t,s) of a folk-

sonomy. To manipulate relations F

, F

we use

two standard relational algebra operators with set

semantics. Projection (π

), projects a relation into

a smaller set of attributes p. Selection (σ

), selects

tuples from a relation where a certain condition

c holds. Hence, π

is equivalent to the

SELECT

DISTINCT p

clause in SQL, whereas σ

is equivalent

to the

WHERE c

clause in the SQL.

3.4 Quality Tags

In social bookmarking systems, like

del.icio.us,

users are responsible for adding new objects to the

system. On the contrary, for Web services, the sig-

niﬁcant contribution comes from focused crawling of

Web and UDDI registries (Lausen and Haselwanter,

2007; Al-Masri and Mahmoud, 2008a). The role of a

user limits to tagging services and bookmarking those

she found relevant for her task. As a result, the sys-

tem may contain a number of services without tags,

which in turn cannot be recommended by a match-

maker. This is called a cold-start problem (Montaner

et al., 2003). To address the problem services may

be initially assigned with system tags. For instance,

SeekDa generates system tags both (1) automatically,

based on generic features that can be guessed from the

endpoint URL of a service (Lausen and Haselwanter,

2007), and (2) manually, by a uniform group of peo-

ple (authors of SeekDa portal and their colleagues).

As a result, there is a minimal overlap between user

queries and popular tags; and many services are de-

scribed by the same combination of tags (Gawinecki,

2009a). We propose to assign system tags manually

by a service broker either on the base of parameter

names (input and output tags), or of the WSDL doc-

umentation (generic functional categories), like ge-

ographical (behavior tags). Usage of speciﬁc facets

may lead to more speciﬁc and varied system tags.

The second issue we address is steering the

community to provide quality tags. The difference

between simple keyword annotation and collaborative

tagging is the social aspect of the latter. Users can

see how other people tagged the same object and

can learn from that. (Sen et al., 2006) observed that

pre-existing tags affect future tagging behavior. Un-

fortunately, some users do not tag because they cannot

think of any tags or simply do not like tagging. Offer-

ing tag suggestions is thus a way to encourage more

people to participate in tagging. Speciﬁcally, the sys-

tem presents top 5 tags for a service; that have been

already provided by at least two actors (including also

the system). During tagging each user is also shown

a set of tags she has already used. In this way we try

to help user to utilize the same, consistent vocabulary.

4 SERVICE MATCHMAKER

A user may describe a service she searches for in

terms of interface it exposes (input, output query

keywords) and the category to which it belongs (be-

havior query keywords). Hence, we model a service

request q as a service template: q = (q

), where

, q

are sets of query terms describing three

facets: input, output and behavior, respectively. The

proposed matchmaker, called WSColab, (a) classiﬁes

service offers as either relevant or irrelevant to the

service request, and (b) ranks relevant service offers

with respect to their estimated relevance to the

service request.

Note some coupling between users annotating

services and users formulating queries is necessary to

grant that the latter share the vocabulary used by the

former ones. Query expansion is a recall-enhancing

technique to satisfy this need. The query is expanded

using a query autocompletion mechanism. As a user

types query keywords, the system suggests matching

tags (completions) for the given facet (maximally the

top 15 commonly used tags).

4.1 Service Binary Classiﬁcation

The matchmaker classiﬁes a service offer as relevant

to a service request if they share input and output

tags (function signature matching), or if they share

behavior tags (categorization). Formally, the results

r(q, (F

)) of the query q for the folksonomies

, F

contain only service offers that satisfy the

following condition:

r(q, (F

)) = r(q

) ∩ r(q

) ∪ r(q

where r(q

) = π

(σ

t∈q

)),

r(q

) =

(

(σ

t∈q

)), q

S, q

r(q

) =

(

(σ

t∈q

)), q

S, q

Empty set of query keywords for a given facet

means that a user does not care about values for this

facet.

WSCOLAB: STRUCTURED COLLABORATIVE TAGGING FOR WEB SERVICE MATCHMAKING

4.2 Ranking Services

The matchmaker should rank higher those service of-

fers that are both functionally equivalent and interface

compatible to the service request. Service offers that

satisfy only function signature matching heuristics or

only categorization heuristics should be ranked lower.

Degree to which a service offer satisﬁes signature

matching heuristics is the similarity of input and

output tags and input and output query keywords. De-

gree to which a service offer satisﬁes categorization

heuristics is the similarity of behavior tags and behav-

ior query keywords. Hence, combination of those two

heuristics can be represented as the weighted sum:

sim(q,s) = w

· sim(q

,σ

))

+ w

· sim(q

,σ

)) + w

· sim(q

,σ

))

of similarity scores for single facets: sim(q

,σ

)),

sim(q

,σ

)) and sim(q

,σ

)). Our initial ex-

periments have shown that categorization heuristics

is more sensitive to false positives, because it may

classify as relevant those services that have similar

scope of functionality (USA), but are not functionally

equivalent. Hence, we give more weight to the in-

put/ouput facets (w

= w

= 0.4) than to the behavior

facet (w

= 0.2).

Similarity for a single facet is measured in the

Vector Space Model (VSM). Speciﬁcally, tags/key-

words for a facet of a single service offer/request are

represented as an m-dimensional document vector

(m = |T|). Tags are weighted using the TF/IDF

weighting model (Salton and Buckley, 1988). Sim-

ilarity between the query keywords and the tags is

a cosine similarity between their document vectors.

For instance, for the input query keywords q

and the

input tags σ

) of the service offer s we deﬁne the

similarity as:

sim(q

,σ

)) =

∑

t∈q

s,t

where w

s,t

= t f

s,t

· id f

, W

∑

t∈q

s,t

t f

s,t

, id f

= log

|S|

1+ |S

where n

s,t

is the number of actors that annotated an

input of the service s with the tag t (|π

(σ

s,t

))|)

and N is the number of annotations all actors made

for the input of the service offer s (|π

(σ

))|). |S|

is the number of all registered services and |S

| is the

number of services having input annotated with the

tag t (|π

(σ

))|). Term frequency (t f

s,t

) promotes

service offers with tags that many actors used to

describe them. Inverse document frequency (id f

)

promotes service offers annotated with more speciﬁc

tags (i.e. tags that have been used for description of

a small number of services). The similarity score

sim(q

,σ

)) promotes service offers sharing more

tags with the query. Normalization of similarity

measure by W

allows the similarity score to be

unaffected by the number of tags used to describe

a facet of a given service offer.

5 MATCHMAKER EVALUATION

An experimental evaluation has been performed

during the Cross-Evaluation track of the Semantic

Service Selection 2009 contest (S3, 2009). The

goal was to compare performance of matchmakers

using different formalisms to describe the same test

collection—Jena Geography Dataset (JDG50).

5.1 Experimental Setup

Below we brieﬂy report the experimental setup of

the contest and describe how the test collection

has been annotated in our approach. The complete

experimental setup is described in (K¨uster, 2010).

Performance Measures. Matchmakers have been

evaluated using the Semantic Web Service Match-

maker Evaluation Environment (SME

) (SME2,

2009). The relevance of Web service responses has

been checked against binary relevance judgments

and graded relevance judgments (K¨uster and K¨onig-

Ries, 2009). Both types of judgments considered

functional equivalence of the answer, functional

scope and interface-compatibility. Due to limited

space we report only the results for graded relevance

judgments. Note, however, that the results were

stable—the position of WSColab in the ranking of

compared matchmakers does not change with respect

to the binary relevance judgments.

The performance against the graded relevance

judgments has been measured using the nDCG

—

a normalized Discount Cumulative Gain at the rank

(cut-off level) i (J¨arvelin and Kek¨al¨ainen, 2002). Let

be a gain value that the i-th returned service gains

for relevance. We deﬁne

DCG

(

,i = 1

DCG

i−1

+ G

/log

(i+ 1) ,i ≥ 2

The Discount Cumulative Gain (DCG) realistically

rewards relevant answers in the top of the ranking

more than those in the bottom of the ranking. Calcu-

lated DCG

is then normalized by the ideal possible

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

Figure 1: The normalized Discount Cumulative Gain (nDCG) curves for the six different matchmakers averaged over 4

different graded relevance judgments. Shown courtesy of the S3 contest organizers.

DCG

to make the comparison between different

matchmakers possible.

The discount factor of log

(i + 1) is relatively

high, to model an impatient user who gets bored

when she cannot ﬁnd a relevant answer in the top

of the ranking. We also plot the nDCG curve,

where the X-axis represents a rank, and the Y-axis

represents a nDCG value for a given rank. An ideal

matchmaker has a horizontal curve with a high nDCG

value; the vertical distance between the ideal nDCG

curve and the actual nDCG curve corresponds to the

effort a user wastes on less than perfect documents

delivered by a particular matchmaker.

The efﬁciency of matchmakers has been measured

in terms of average query response time on an Intel

Core2 Duo T9600 (2.8GHz) machine with 4GB

RAM running Windows XP 32bit.

Test Collection. The test collection provided by the

organizers contained service offers and service re-

quests. The 50 service offers have been annotated by

the community using our structured collaborative tag-

ging model (see Section 3).

System tags were generated manually by the or-

ganizers of the S3 contest. To collect community tags

we developed a collaborative tagging portal (Gawi-

necki, 2009b), where incoming users were given one

of 10 prepared software engineering tasks. For each

service in the portal each user has been asked to:

(a) tag its behavior, input and output, and (b) classify

it as either relevant for the task (potentially useful in

the context of the task) or irrelevant. The tagging pro-

cess has been completed in the open (non-laboratory)

environment, where users could come to the portal

any number of times, at any time. We invited to

participate our colleagues, with either industrial

or academic experience in Web services, SOA or

software engineering in general. Furthermore, we

have sent invitations to the open community, through

several public forums and Usenet groups concerned

with related topics.

The annotation portal was open for 12 days be-

tween September 16 and 27, 2009. Total of 27

users provided 2716 annotations. Our colleagues (17)

have tagged 50 services, providing 2541 annotations

(94%). The remaining 10 users have tagged 10 ser-

vices, providing 175 annotations (6%). The contribu-

tion of users was signiﬁcant: 46% to 61% (depending

on a facet) of tags were new (not system).

The nine service requests have been annotated in

the following way. Each service request was a natural

language (NL) query that needed to be translated into

a system query. However, our query language is not

very restrictive and the same NL query can be trans-

lated into different system queries, depending on the

query translation strategy used by a user. The choice

of a user may have an impact on the ﬁnal evaluation

results of the whole system. Picking up a single neu-

tral user formulating system queries for all the match-

makers (as it is done in (TREC, 2009) approach)

addresses this problem. However, it introduces also

potential variance in the performance of a single neu-

tral user in using different systems formalisms. This

is because for some matchmakers it is far from easy to

formulate queries in their formalism. Therefore, we

collected query formulations from as many users as

possible and the performance of our matchmaker has

been further averaged over all query formulations.

The collection process has been performed in a more

controlled environment than tagging of service offers,

to avoid participation of persons who already have

seen service descriptions. We extended our annota-

WSCOLAB: STRUCTURED COLLABORATIVE TAGGING FOR WEB SERVICE MATCHMAKING

tion portal with a functionality of presenting service

requests and collecting system queries from users.

A user could not see any services in the registry nor

results of her queries. The only information was

shared by means of query autocompletion. Addi-

tionally, a user could also see the whole vocabulary

that has been used during tagging phase to describe

service offers. The vocabulary has been presented

in the form of three tag clouds, one for each facet of

the annotation. No information has been given about

which service has been described by which tags.

We collected query formulations from 5 different

users. Average length of a query per user ranged

from 4.2 to 11.2 words. System queries of different

users provided for the same service requests differed

from 50% to 100% of words. We observed that users

found non-system tags very valuable for describing

service requests—the query keywords were system

tags, for only 22% for the behavior facet, 26% for the

input, and 34% for the output.

Matchmaker Implementation. WSColab indexes

terms for each facet of a service using in-memory

inverted ﬁles, implemented with the

HashMap

standard JDK (JDK, 2009) class. It uses Document-

at-a-Time query evaluation algorithm based on

accumulators (Zobel and Moffat, 2006).

5.2 Experimental Results

WSColab has been compared with ﬁve other match-

makers tested over the same test set and all the

results reported here are courtesy of the S3 contest

organizers. The competitors included 3 matchmakers

based on the SAWSDL formalism, requiring each

service to be annotated manually by ontological con-

cepts: SAWSDL-MX1 (Klusch and Kapahnke, 2008),

SAWSDL-MX2 (Klusch et al., 2009) and SAWSDL-

iMatcher3/1. Two another were the IRS-III (Dietze

et al., 2009), which uses the OCML (OCML, 2009)

rules, and the Themis-S (Knackstedt et al., 2008)

ranking service offered over the enhanced Topic-

based Vector Space Model (eTVSM) and using the

WordNet as its domain ontology.

Figure 1 shows the nDCG curves for the com-

pared systems. The performance of the WSColab

is the closest to the performance of an ideal one

(with respect to the nDCG measure). It has a relative

performance of 65-80% over most of the ranks while

(except for the ﬁrst two ranks) the remaining systems

have a relative performance less than 55-70%. Here,

the intuition is that a user needs to spend less effort to

ﬁnd relevant service with WSColab than using other

matchmakers.

The average query response time of the WSColab

is below 1 millisecond. The second top-efﬁcient

matchmaker is the SAWSDL-iMatcher3/1 with

170 milliseconds of average query response time.

WSColab is very fast thanks to the simple indexing

structure (inverted ﬁles). This can be vital for large

volume of indexed services and can foster active

interaction between a user and the system.

6 CONCLUDING REMARKS

In the context of software component reuse, the

thoroughness of component description is limited by

the user’s willingness to formulate long and precise

queries (Mili et al., 1995). We have shown that

our model of Web service description and retrieval

is a good trade-off between complexity of annota-

tion and query language, and the retrieval quality.

However, it is difﬁcult to estimate annotation effort

and scalability. First, because tags were generated

for a small and speciﬁc collection of service offers.

Second, because evaluation of collaborative tagging

process in the open environment is a difﬁcult prob-

lem. Nevertheless, the fact that most of annotations

(94%) have been provided by our collegues, not

by the open community, may be symptomatic for

the Web services on the Web; e.g. 87% of services

harvested by the SeekDa are without any tags at

all (Gawinecki, 2009a). The process of tagging only

selected services may be the sign of ﬁltering only ser-

vices that are valuable for the community. Whether

this is the case must be validated in further research.

ACKNOWLEDGEMENTS

We would like to thank to: Ulrich K¨uster (for the or-

ganization of the Cross-Evaluation track), Patrick Ka-

pahnke and Matthias Klusch (for their general support

and organization of the S3 contest), Holger Lausen

and Michal Zaremba (for providing SeekDa data), M.

Brian Blake, Elton Domnori, Grzegorz Frackowiak,

Giorgio Villani and Federica Mandreoli (for the dis-

cussion).

REFERENCES

Al-Masri, E. and Mahmoud, Q. H. (2008a). Discovering

Web Services in Search Engines. IEEE Internet Com-

puting, 12(3).

Al-Masri, E. and Mahmoud, Q. H. (2008b). Investigating

Web Services on the World Wide Web. In WWW.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

Dietze, S., Benn, N., Conconi, J. D., and Catta-

neo, F. (2009). Two-Fold Semantic Web Service

Matchmaking—Applying Ontology Mapping for Ser-

vice Discovery. In ASWC.

Dong, X., Halevy, A. Y., Madhavan, J., Nemes, E., and

Zhang, J. (2004). Similarity Search for Web Services.

In VLDB.

Fern´andez, A., Hayes, C., Loutas, N., Peristeras, V.,

Polleres, A., and Tarabanis, K. A. (2008). Closing

the Service Discovery Gap by Collaborative Tagging

and Clustering Techniques. In SMRR.

Furnas, G. W., Fake, C., von Ahn, L., Schachter, J., Golder,

S., Fox, K., Davis, M., Marlow, C., and Naaman, M.

(2006). Why do tagging systems work? In CHI.

Furnas, G. W., Landauer, T. K., Gomez, L. M., and Du-

mais, S. T. (1987). The vocabulary problem in human-

system communication. Commun. ACM, 30(11).

Gawinecki, M. (2009a). Analysis of SeekDa Tags for Web

Service Matchmaking. Technical report, University of

Modena and Reggio-Emilia.

Gawinecki, M. (2009b). WSColab Portal.

http://mars.ing.unimo.it/wscolab/.

Hagemann, S., Letz, C., and Vossen, G. (2007). Web Ser-

vice Discovery - Reality Check 2.0. In NWESP, pages

113–118.

J¨arvelin, K. and Kek¨al¨ainen, J. (2002). Cumulated gain-

based evaluation of IR techniques. ACM Trans. Inf.

Syst., 20(4):422–446.

JDK (2009). Java Development Kit.

http://java.sun.com/javase/.

Klusch, M. and Kapahnke, P. (2008). Semantic Web Ser-

vice Selection with SAWSDL-MX. In SMRR, volume

416.

Klusch, M., Kapahnke, P., and Zinnikus, I. (2009).

SAWSDL-MX2: A Machine-Learning Approach for

Integrating Semantic Web Service Matchmaking Vari-

ants. In ICWS, pages 335–342.

Knackstedt, R., Kuropka, D., Mller, O., and Polyvyanyy, A.

(2008). An Ontology-based Service Discovery Ap-

proach for the Provisioning of Product-Service Bun-

dles. In ECIS.

K¨uster, U. (2010). JGDEval at S3 Contest 2009 - Results.

http://fusion.cs.uni-jena.de/professur/jgdeval/jgdeval-

at-s3-contest-2009-results.

K¨uster, U. and K¨onig-Ries, B. (2009). Relevance Judg-

ments for Web Services Retrieval - A Methodology

and Test Collection for SWS Discovery Evaluation.

In ECOWS.

Lausen, H. and Haselwanter, T. (2007). Finding Web Ser-

vices. In ESTC.

Merobase (2009). http://www.merobase.com/.

Meyer, H. and Weske, M. (2006). Light-Weight Seman-

tic Service Annotations through Tagging. In ICSOC,

volume 4294 of LNCS, pages 465–470.

Mika, P. (2005). Ontologies are us: A uniﬁed model of

social networks and semantics. J. Web Sem., 5(1).

Mili, H., Mili, F., and Mili, A. (1995). Reusing Software:

Issues and Research Directions. IEEE Trans. Softw.

Eng., 21(6):528–562.

Montaner, M., L´opez, B., and De La Rosa, J. L. (2003). A

Taxonomy of Recommender Agents on the Internet.

Artif. Intell. Rev., 19(4):285–330.

OCML (2009). http://kmi.open.ac.uk/projects/ocml/.

OWL-S (2009). http://www.w3.org/Submission/2004/

SUBM-OWL-S-20041122/.

Paolucci, M., Kawamura, T., Payne, T. R., and Sycara, K. P.

(2002). Semantic Matching of Web Services Capabil-

ities. In ISWC, pages 333–347.

Prieto-D´ıaz, R. (1991). Implementing faceted classiﬁcation

for software reuse. Commun. ACM, 34(5):88–97.

ProgrammableWeb (2009). http://programmableweb.com.

S3 (2009). Semantic Service Selection contest. http://www-

ags.dfki.uni-sb.de/ klusch/s3/html/2009.html.

Salton, G. and Buckley, C. (1988). Term-Weighting Ap-

proaches in Automatic Text Retrieval. Inf. Process.

Manage., 24(5):513–523.

SAWSDL (2009). http://www.w3.org/TR/sawsdl/.

SeekDa (2009). http://seekda.com.

Sen, S., Lam, S. K., Rashid, A. M., Cosley, D., Frankowski,

D., Osterhouse, J., Harper, F. M., and Riedl, J.

(2006). tagging, communities, vocabulary, evolution.

In CSCW, pages 181–190.

Shirky, C. (2005). Ontology is Overrated: Categories,

Links, and Tags. http://www.shirky.com/ writings/on-

tology overrated.html.

SME2 (2009). Semantic Web Service

Matchmaker Evaluation Environment.

http://projects.semwebcentral.org/projects/sme2/.

SOA World Magazine (2009). Microsoft, IBM, SAP

To Discontinue UDDI Web Services Registry Effort.

http://soa.sys-con.com/node/164624.

TREC (2009). Trec REtreival Conference.

http://trec.nist.gov/.

UNSPSC (2009). United Nations Standard Products and

Services Code. http://www.unspsc.org.

Wang, Y. and Stroulia, E. (2003). Semantic Structure

Matching for Assessing Web-Service Similarity. In

ICSOC.

Weerawarana, S., Curbera, F., Leymann, F., Storey, T., and

Ferguson, D. F. (2005). Web Services Platform Ar-

chitecture: SOAP, WSDL, WS-Policy, WS-Addressing,

WS-BPEL, WS-Reliable Messaging and More. Pren-

tice Hall PTR.

Xu, Z., Fu, Y., Mao, J., and Su, D. (2006). Towards the Se-

mantic Web: Collaborative Tag Suggestions. In Pro-

ceedings of the Collaborative Web Tagging Workshop

at the WWW 2006.

Zaremski, A. M. and Wing, J. M. (1995). Signature Match-

ing: A Tool for Using Software Libraries. ACMTrans.

Softw. Eng. Methodol., 4(2):146–170.

Zobel, J. and Moffat, A. (2006). Inverted ﬁles for text search

engines. ACM Comput. Surv., 38(2):6.

WSCOLAB: STRUCTURED COLLABORATIVE TAGGING FOR WEB SERVICE MATCHMAKING
