A VISION-BASED HYBRID SYSTEM FOR REAL-TIME ACCURATE

LOCALIZATION IN AN INDOOR ENVIRONMENT

Vincent Gay-Bellile, Mohamed Tamaazousti, Romain Dupont and Sylvie Naudet Collette

CEA, LIST, Laboratoire Vision et Ingnierie des Contenus, Point Courrier 94, Gif-sur-Yvette, F-91191, France

Keywords:

Human Localization, Indoor Environment, Real-Time, Monocular vision.

Abstract:

This paper presents an indoor vision-based system using a single camera for human localization. Without a

priori knowledge of the operating environment, a map has to be built on-line to estimate the relative positions

of the camera. When a model is a priori known, only the camera poses are computed. It results in distinctive

algorithms which have both assets and drawbacks. Localization in an unknown environment is much more

ﬂexible but subject to drift while localization in a known environment is almost drift-less but suffer from

recognition failures. We propose a new approach to localize a camera in an indoor environment. It combines

both techniques described above beneﬁting from the knowledge of Georeferencing information to reduce the

drift (comparatively to localization in unknown environment) while avoiding the user to be lost during long

time intervals. Experimental results show the efﬁciency of our method.

1 INTRODUCTION

Human localization in an Indoor Environment is a

very challenging issue. Indeed, GPS sensor (Brus-

ningham et al., 1989) is indoor ineffective and useful

information, used for vehicles or robots localization,

such as odometry (OKane, 2006) or nonholonomic

motion model (Scaramuzza et al., 2009) can not be

exploited. Other technologies such as WI-FI (Ocana

et al., 2005) or RFID (Hahnel et al., 2004) permit

to overcome such limitation but they require environ-

ment instrumentation through installation of speciﬁc

equipments in the building. For our targeted applica-

tion, i.e. localization of security troops in a building,

a mobile wearable technology equipped with a single

camera appears to be a solution with higher accept-

ability.

This paper proposes a purely vision-based sys-

tem for human localization in an indoor environment.

Vision-based localization algorithms can be classi-

ﬁed into two major types: Localization in Known

and UnKnown Environments. Thereafter, we use the

acronyms LKE and LUKE respectively.

The former exploits a Georeferencing Structure

from Motion point cloud that is built and stored off-

line, see e.g. (Arnold et al., 2009; Schindler et al.,

2007). Interest points, extracted from the images, are

matched with the 3D points of the database: the cam-

era poses are then computing through robust linear

and non linear optimizations. LKE algorithms suffer

from recognition failures mainly due to appearance

variations since the database has been learned. They

are introduced by illumination changes (in the win-

dows and lighting source neighborhoods for indoor

environments), furniture relocation, etc. It results in

many unrecognized areas.

On the other hand LUKE algorithms build a map

(i.e. a 3D point cloud) on the ﬂy, i.e. along with

the camera localization (Davison, 2003; Mouragnon

et al., 2006). They appear to be more generic since

no a priori information is necessary but suffer from

drift due to accumulation of errors (building the map

depends on the camera pose and inversely) and from

the scale ambiguity of monocular vision algorithms.

An hybrid system that constitutes the best of two

worlds is described in this paper. The proposed idea

is to progressively correct the camera poses returned

by the LUKE algorithm when parts of the model are

recognized in the images through the LKE algorithm.

It presents several assets:

• Compare to LUKE: the drift is limited.

• Compare to LKE: the user is not lost when

recognition fails. An other advantage is that the

environment must not be fully learned anymore.

This is very useful for an embedded system since

216

Gay-Bellile V., Tamaazousti M., Dupont R. and Naudet Collette S. (2010).

A VISION-BASED HYBRID SYSTEM FOR REAL-TIME ACCURATE LOCALIZATION IN AN INDOOR ENVIRONMENT.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 216-222

DOI: 10.5220/0002825602160222

 SciTePress

the memory space takes up by the database can be

drastically reduced.

Finally, combining these two algorithms may be

time consuming. Real-time processing is maintained

through parallel computing and a speciﬁc thread man-

agement.

Roadmap. Details on LUKE and LKE algorithms

are given in §2 and in §3 respectively. In §4, we de-

scribe how these algorithms are combined together.

Experimental results on real data are reported in §5.

Finally, we give our conclusions and discuss further

work in §6.

2 LOCALIZATION IN AN

UNKNOWN ENVIRONMENT

LUKE algorithms are used when no a priori on the

observed environment is available. The environment

and the trajectory of the moving camera are simulta-

neously reconstructed from a video. The main draw-

back of LUKE algorithms is the unavoidable drift due

to accumulation of errors and the scale ambiguity.

Various approaches have been proposed for real-time

localization in an unknown environment. They can

be classiﬁed into two major types: local bundle ad-

justment (Mouragnon et al., 2006; Nister et al., 2004)

and Kalman ﬁlter (Davison, 2003) based algorithms.

We rather used the former approach since it has been

proved to be more accurate, see (Klein and Murray,

2007). We describe brieﬂy the solution proposed in

(Mouragnon et al., 2006) which is used in our experi-

ments. A triplet of images is ﬁrstly selected to set up

the world coordinate frames and the initial geometry.

After this initialization, robust pose estimation is car-

ried out for each frame of the video using points de-

tection and matching. Note that in our experiments,

we used Harris corners (Harris and Stephens, 1988)

detector and SURF descriptors (Bay et al., 2008). A

crucial point described in (Mouragnon et al., 2006) is

that 3D points are not reconstructed for all the frames.

Speciﬁc ones are selected as key-frames and are used

for triangulation. A key-frame is chosen when the

motion is sufﬁciently large to accurately compute the

3D positions of matched points but not too much to

keep matching. The system operates in an incremen-

tal way, and when a new key-frame and 3D points

are added, it proceeds to a local bundle adjustment:

cameras associated to the latest key-frames

and 3D

the three latest key frames are updated in (Mouragnon

et al., 2006).

points they observed are updated. This algorithm is

summarized in ﬁgure 1 (Thread # 1).

3 LOCALIZATION IN A KNOWN

ENVIRONMENT

LKE algorithms are used when a priori on the ob-

served environment is available. We concentrate on

algorithms which use a 3D point cloud as model. It

is built through a learning stage that associates accu-

rate 3D positions to images covering the considered

environment. Each image is also resumed in a set of

interest points with their descriptors (about 100-500

points with their SURF descriptors for each image)

and their corresponding 3D points in the scene. All

this information is saved in a database. The online lo-

calization process consists in comparing the observed

image of the scene to all images of the database using

their descriptors. The most similar image, i.e. with

the highest correlation score, should correspond to

the currently viewed scene. The camera pose is then

computed using the 3D points observed in this image.

As the covered environment grows, it becomes im-

possible to compare, in a systematic way, the query

image with all images of the database. Therefore, a

vocabulary tree structure is used to speed-up this re-

trieval step. This structure has proved to be very efﬁ-

cient even for very large database (more than 100000

images) (Arnold et al., 2009; Nister and .Stewenius,

2006; Schindler et al., 2007). It is a hierarchical tree

(with branching factor k and l levels) storing descrip-

tors by similarity in such a way that an exhaustive

search can be done in only k ∗ l descriptor compar-

isons (done with the L1-distance). Therefore, this per-

mits a quick comparison between a descriptor from

the query image and the whole set of descriptors of the

database. In detail, for each query image, we extract

about 400 interest points with their SURF descriptors.

Our vocabulary tree has 6 levels and a branching fac-

tor of 10. Hence, for each descriptor of the query im-

age, only 60 comparisons are computed.

4 COMBINING LOCALIZATION

IN KNOWN AND UNKNOWN

ENVIRONMENTS

4.1 Overview

In this section, we describe how the algorithms pre-

sented above are combined together. The idea is to

A VISION-BASED HYBRID SYSTEM FOR REAL-TIME ACCURATE LOCALIZATION IN AN INDOOR

ENVIRONMENT

217

progressively correct the drift of the LUKE algorithm

when parts of the database are recognized in the im-

ages through the LKE algorithm. Fusion of LUKE

and LKE algorithms is difﬁcult. The latter may not

provide data for long time interval due to unlearned

areas, lighting variation, etc. LUKE algorithm may

have drift too much in the meantime yielding in in-

consistent data. Fusion through Kalman ﬁlter requires

data covariance. However, methods that compute the

covariance of local bundle adjustment such as (Eu-

des and Lhuillier, 2009) do not take into account the

scale factor drift of monocular LUKE algorithm. The

covariance are then underestimate and deconﬂiction

problems (Mittu and Segaria, 2000) will probably ap-

pear.

We propose an alternative approach. Data fusion

is achieved through a drift correction module that ad-

justs the LUKE algorithm history i.e. camera poses

and 3D points used in the local bundle adjustment

only. This additional module compute a Similarity

between the poses returned by the LUKE and LKE al-

gorithms, as described in §4.2. This fusion process is

reasonable if the poses returned by the LKE algorithm

are accurate. This is not always true in practice due

to matching errors. We add a decision module to con-

trol the output of the LKE algorithm. It is composed

of a cascade of ﬁlters such as epipolar geometry, tem-

poral ﬁltering and quality of tracking (deﬁned by the

fraction of inliers when computing the pose through

RANSAC). If one of these ﬁlters gives a negative an-

swer, the pose is rejected and the drift correction not

performed. This ensures a false-positive rate tending

towards zero.

Finally, the LUKE and LKE algorithms are per-

formed on two different cores in parallel to keep pro-

cessing time consistent with real-time constraints. We

also propose in §4.3 a speciﬁc thread management.

It allows maintaining the same frequency than the

LUKE algorithm alone. An overview of our approach

is given in Figure 1.

4.2 Drift Correction Module

This additional module computes a Similarity

W (R

, T

, s

) between the poses returned by the

LUKE and LKE algorithms. A Similarity is required

due to the drift introduced by the scale ambiguity, a

simple Euclidian transformation is not enough.

The Similarity is given by:

= R

LKE

LUKE

= −R

LKE

LUKE

+ T

LKE

− T

LKE

LUKE

− T

LUKE

Matching with

previous frames

Robust pose

estimation

Local Bundle

Adjustment

Keyframe

detected?

Drift Correction

Triangulation

Thread #1: LUKE algorithm

Matching with the

Database

Robust pose

estimation

Filter out?

Keypoint detection

Thread #2: LKE algorithm

Stored

Database

Figure 1: Overview of the processing for one input frame.

A drift correction module is added in the LUKE algorithm.

It takes the output of the LKE algorithm to compute a Sim-

ilarity. LUKE and LKE algorithms are performed on two

different cores in parallel.

where (R

LKE

, T

LKE

) and (R

LUKE

, T

LUKE

) are the current

poses returned by the LKE and LUKE algorithms re-

spectively. T

LKE

and T

LUKE

are respectively the posi-

tions of the camera returned by the LKE and LUKE

algorithms when the scale was lastly updated.

This Simarity is only applied to the cameras and

the 3D points considered in the local bundle adjust-

ment

. For example, updated a camera pose is given

by:

LUKE

← R

LUKE

← s

LUKE

− T

LUKE

) + R

LUKE

+ T

Time interval between two consecutive localization of

the LKE algorithm may be long. Camera poses re-

turned by the LUKE algorithm are then not all cor-

rected. However, for our application, i.e. real-time

localization of security troupes in a building, we are

only interested in the current position of the Secu-

rity Ofﬁcer. It is also essential to propagate the

drift correction to accurately estimate his future posi-

tions. This is achieved automatically with our fusion

scheme during the LUKE process.

4.3 Parallel Computing

As described above, we opt for parallel computing to

keep processing time consistent with real-time. The

proposed framework described in §4.1 implies the

drift correction module to wait the poses from the

As in (Mouragnon et al., 2006) we use the cameras as-

sociated to the last three key-frames, the 3D points observed

by these cameras and the other cameras observing these 3D

points.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

218

LUKE and LKE algorithms, as seen on ﬁgure 1. The

problem is that computing a pose with the LKE algo-

rithm is quite time consuming. The reasons are:

• Matching with the database generally requires

more comparisons for each descriptor than tem-

porally matching.

• Additional processes are essential to verify the

consistency of the computed pose.

We propose a speciﬁc way to manage the threads

based on the key-frame property of (Mouragnon et al.,

2006). Our thread management is described below

and summarized in table 1. The main steps are the

following: the LKE algorithm (thread 2) tries to lo-

calize the key-frame n until a new one (n + 1) is la-

beled by the LUKE algorithm (thread 1). If the pro-

cess of the LKE algorithm is ﬁnished before the next

key-frame (n + 1), thread 2 is ordered to sleep. At

key-frame n + 1, if the LKE algorithm successfully

localizes the key-frame n, the correction module com-

putes the Similarity W . Thread 2 is ﬁnally waked up

and the associated LKE algorithm tries to localize the

key-frame n + 1. Note that if a new key-frame is la-

beled before localization through LKE algorithm is

ﬁnished then thread 2 is stopped, the Similarity is not

computed on this key-frame.

This procedure allows keeping the frequency of

the LUKE algorithm alone. It introduces an unno-

ticeably time delay in the drift correction since the

Similarity computed for key-frame n is applied when

key-frame n + 1 is labeled.

5 EXPERIMENTAL RESULTS

We use a low-cost IEEE1394 GUPPY camera provid-

ing gray-level images with 640x480 resolution at 30

frames per second. Two video sequences (sequence

1 and sequence 2) have been acquired along walk-

ing trips though different rooms and corridors. The

covered distances are about 90m for both sequences.

Note that this kind of environment is quite texture-

less compared to outdoor urban environment as seen

on ﬁgure 2. Sequence 1 start in a known environment:

the two ﬁrst localizations of the LKE algorithm are

used to ﬁx the scale factor and the coordinate frames.

Sequence 2 start in an unknown environment: spe-

ciﬁc markers are then used to ﬁx the scale factor and

the coordinate frame, as in (Davison, 2003).

The database, represented on ﬁgure 2, has been

acquired one and two month before compare to se-

quence 2 and 1 repectively. It is composed of 6374

3D points provided by the LUKE algorithm. We

use the post-processing procedure described in (Lothe

Table 1: Thread management. Only the communications

with thread 2 are reported for thread 1.

Sleep

Localization on key-frame n+1

- Localization through LKE

algorithm is successful:

The Similarity is computed

and the drift corrected

Key-frame n+1

(frame j+4)

Sleep

frame j+3

Localization process is

finished

frame j+2

Localization on key-frame n

frame j+1

Localization on key-frame n

Start Thread 2

Key-frame n

(frame j)

Thread 2

(LKE)

Thread 1

(LUKE)

- Wake up thread 2

Figure 2: The database used for the LKE algorithm. This

Structure from Motion point cloud comes from the LUKE

algorithm. The drift is a posteriori corrected with the pro-

cedure described in (Lothe et al., 2009).

et al., 2009) which exploits a coarse CAD model of

the operating environment to correct the reconstruc-

tion drift. The ”ground truth” of the two trajectories,

represented in ﬁgures 3 and 4 (top left), are obtained

with the same procedure. Note that they differ from

the trajectory follow for buidling the database: several

ofﬁces have not been learned. Moreover, illumination

conditions have drastically changed in the meantime

(cloudy vs sunny weather, light on vs off) and objects

have disappeared and sometimes been substituted.

Figure 3 shows the results obtained with the

A VISION-BASED HYBRID SYSTEM FOR REAL-TIME ACCURATE LOCALIZATION IN AN INDOOR

ENVIRONMENT

219

Figure 3: (top left) The trajectory follow for the ﬁrst sequence: the green ﬂag and the red ﬂag represent the departure and the

arrival respectively. This ”ground truth” visually helps to have an idea about the drift and to roughly quantify them. (top right)

The trajectory obtained with a LKE algorithm. (bottom left) The trajectory obtained with the proposed algorithm. (bottom

right) The trajectory obtained with the LUKE algorithm described in (Mouragnon et al., 2006).

LUKE algorithm (bottom right), with the LKE algo-

rithm (top right) and with the one we propose (bottom

left) on sequence 1. The former is subject to accu-

mulation of errors. Indeed, at point R i.e. where the

drift reaches its peak, the error in position is approx-

imately 7 meters. On the other hand, some areas are

not localized with a LKE algorithm. Recognition fails

in region 2 due to lighting variations in the windows

surroundings and in region 3 since notice boards have

changed in the meantime

. Recognition is also im-

possible in unlearned areas such as region 1. The pro-

Regions 1, 2 and 3 are illustrated on ﬁgure 2.

posed system compensates for the drawbacks of the

two above algorithms. It results in a ”dense” local-

ization with a limited drift. The obtained trajectory is

closed to the ground truth since the maximum error in

position is around 1 meter. Same conclusions are ob-

tained on sequence 2. LUKE algorithm suffers from

an important drift in the trajectory estimation while

the localization returned by the LKE algorithm is very

sparse due to several unknown areas (region 1). The

proposed hybrid algorithm yields in a trajectory very

closed to the ground trouth.

Finally, parallel computing with our speciﬁc

thread management allows keeping the same frame

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

220

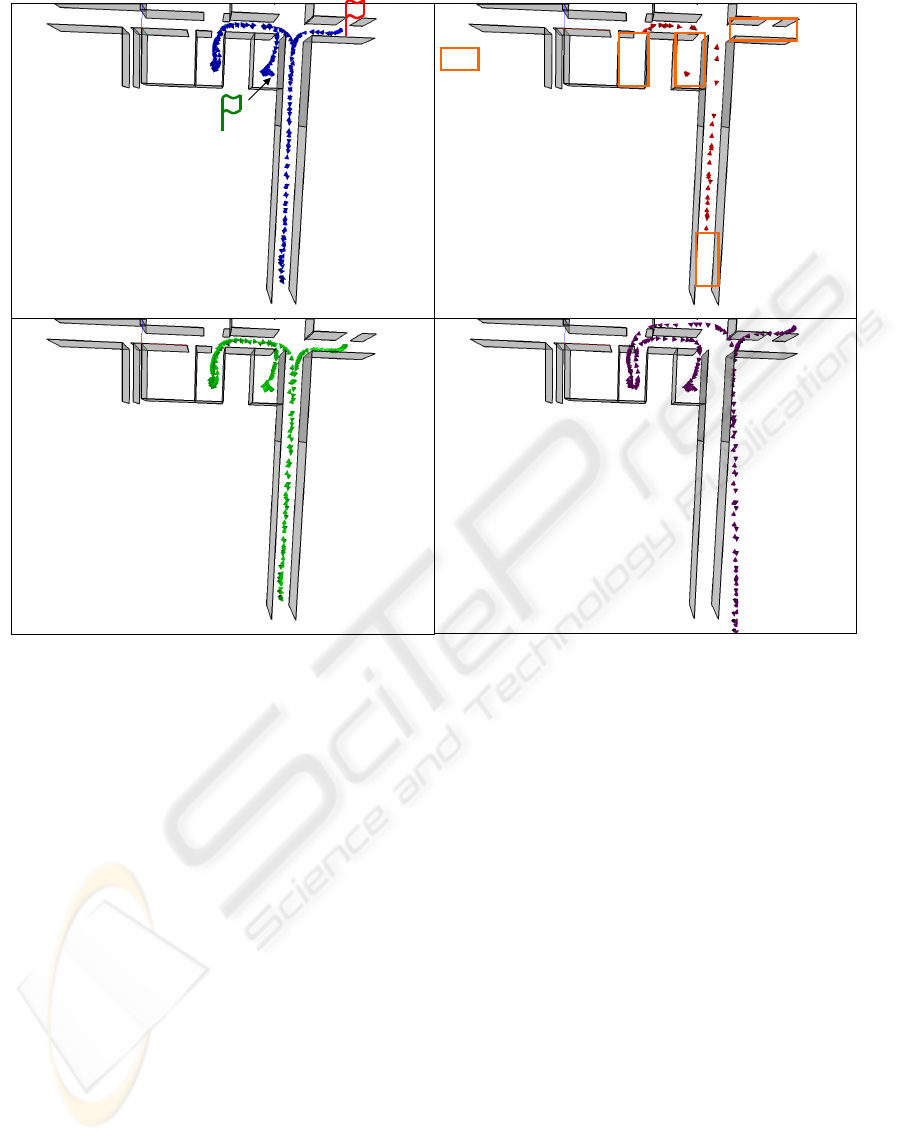

Figure 4: (top left) The trajectory follow for the second sequence (”ground truth”): the green ﬂag and the red ﬂag represent

the departure and the arrival respectively. (top right) The trajectory obtained with a LKE algorithm. The two ﬁrst poses,

estimated with the speciﬁc markers, are also represented (bottom left). The trajectory obtained with the proposed algorithm.

(bottom right) The trajectory obtained with the LUKE algorithm described in (Mouragnon et al., 2006).

rate as the LUKE algorithm alone. The mean frame

rate on the two sequences is approximately 39 fps on

a Pentium IV dual-core 3GHz.

6 CONCLUSIONS AND FURTHER

WORK

We have presented a new system for indoor local-

ization using two reliable and complementary meth-

ods: the absolute approach (LKE) and the relative one

(LUKE). Experimental results have shown its ability

to provide real-time accurate user localization in in-

door environment. Further Work will studied the fu-

sion with others sensor such as inertial ones. This

additional information is useful for both LUKE and

LKE algorithms. It has been proved to improve the

robustness of LUKE algorithm and may help to ﬁlter

erroneous localization of LKE algorithms.

ACKNOWLEDGEMENTS

This work has been conducted as part of the ITEA2

EASY Interactions project and partially funded by the

French industry government.

REFERENCES

Arnold, I., Zach, C., Frahm, J., and Horst, B. (2009). From

structure-from-motion point clouds to fast location

recognition. In CVPR, Miami.

Bay, H., Ess, A., Tuytelaars, T., and Gool, L. (2008). Surf:

Speeded up robust features. CVIU, 110(3):346–359.

Brusningham, D., Strauss, M., Floyd, J., and Wheeler, B.

(1989). Orientation aid implementing the global posi-

tioning system. In NEBEC, Boston.

Davison, A. (2003). Real-time simultaneous localisation

and mapping with a single camera. In ICCV, Nice.

Eudes, A. and Lhuillier, M. (2009). Error propagations for

local bundle adjustment. In CVPR, Miami.

A VISION-BASED HYBRID SYSTEM FOR REAL-TIME ACCURATE LOCALIZATION IN AN INDOOR

ENVIRONMENT

221

Hahnel, D., Burgard, W., Fox, D., Fishkin, K., and Phili-

pose, M. (2004). Mapping and localization with rﬁd

technology. In ICRA, New Orleans.

Harris, C. and Stephens, M. (1988). A combined corner and

edge detector. In AVC, Manchester.

Klein, G. and Murray, D. (2007). Parallel tracking and map-

ping for small ar workspaces. In ISMAR, Nara.

Lothe, P., Bourgeois, S., Dekeyser, F., Royer, E., and

Dhome, M. (2009). Towards geographical referencing

of monocular slam reconstruction using 3d city mod-

els: Application to real-time accurate vision-based lo-

calization. In CVPR, Miami.

Mittu, R. and Segaria, F. (2000). Common operational pic-

ture (cop) and common tactical picture (ctp) manage-

ment via a consistent networked information stream

(cnis). In ICCRTS.

Mouragnon, E., Lhuillier, M., Dhome, M., Dekeyser, F.,

and Sayd, P. (2006). Real-time localization and 3d

reconstruction. In CVPR, New-York.

Nister, D., Naroditsky, O., and Bergen, J. (2004). Visual

odometry. In CVPR, Washington.

Nister, D. and .Stewenius, H. (2006). Scalable recognition

with a vocabulary tree. In CVPR, New-York.

Ocana, M., Bergasa, L., Sotelo, M., Nuevo, J., and Flores,

R. (2005). Indoor robot localization system using wiﬁ

signal measure and minimizing calibration effort. In

ISIE, Dubrovnik.

OKane, J. (2006). Global localization using odometry. In

ICRA, Orlando.

Scaramuzza, D., Fraundorfer, F., Pollefeys, M., and Sieg-

wart, R. (2009). Absolute scale in structure from mo-

tion from a single vehicle mounted camera by exploit-

ing nonholonomic constraints. In ICCV, Kyoto.

Schindler, G., Brown, M., and Szeliski, R. (2007). City-

scale location recognition. In CVPR, Minneapolis.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

222
