GPU-ACCELERATED IMAGE RETEXTURING

IN GRADIENT DOMAIN

Ping Li, Hanqiu Sun

Department of Computer Science & Engineering, CUHK, Hong Kong

Jianbing Shen

School of Computer Science & Technology, BIT, Beijing, China

Keywords: Image-based Rendering, Non-local Means Filtering, High Dynamic Range Image.

Abstract: This paper presents the novel GPU-accelated image retexturing approach for both high and low dynamic

range images using our newly invented fast NLM filtering. Integrating the fast Maclaurin polynomial kernel

filter and the latest GPU-CUDA acceleration, our approach is able to produce real-time high quality

retexturing for objects of the interest, while preserving the original shading and similar texture distortion.

We apply our revised NLM filtering to the initial depth map to ensure smoothed depth field for retexturing.

Our approach using GPU-based fast NLM filtering is designed in parallel, and easy to develop on latest

GPUs. Our testing results have shown the efficiency and satisfactory performance using our approach.

1 INTRODUCTION

Image retexturing is an image processing method

which takes a single image as input and gives a

totally different texture appearance to the objects of

interest in the images. The essential process is to

replace existing textures in region of interest by new

textures, while preserving the original shading and

similar texture distortion (Guo et al., 2005). 2D

textures are usually applied to represent surface

appearances without modelling geometric details.

However, manual design of textures is still a tedious

task. With the great demand from industry such as

movie and game producing, image-based techniques

in such application are becoming popular, thus

important to retexture objects directly in image

space. There are texture editing methods proposed

(Fang and Hart, 2006; Tsin et al., 2001), however,

few of them can replace the texture with just a single

image, and most methods deal with LDR images.

Khan et al. (2006) proposed a novel HDR image-

based material editing method for making objects’

textures transparent and translucent. One limitation

of the approach is the slow processing time, due to

time-consuming bilateral filtering. It is important to

develop efficient approaches for retexturing both

HDR and LDR images.

In this paper, we propose the novel image

retexturing approach by extracting a region of

interest from a single image. Rather than relying on

tedious user interactions, we utilize the spectral

matting strategy (Levin et al., 2008). Alpha matte

automatically identifies the object by minimizing a

quadratic energy function, and retexturing results are

achieved by transferring new textures to the target

object (see Figure 1). In particular, we present

revised fast NLM filtering, and develop the

approach on GPU-CUDA platform. With simple

user interaction, our GPU-accelerated retexturing

approach achieved efficient processing, and high

quality visual effects similar to the previous work

(Fang and Hart, 2004; Khan et al., 2006).

In the remainder of this paper, we first review the

related work in Section 2. We present our image

retexturing in gradient domain in Section 3, and

describe the revised NLM filtering with GPU

acceleration in Section 4. Our experimental results

are shown in Section 5. Finally, the summary of our

work goes to Section 6.

Li P., Sun H. and Shen J. (2010).

GPU-ACCELERATED IMAGE RETEXTURING IN GRADIENT DOMAIN.

In Proceedings of the International Conference on Imaging Theory and Applications and International Conference on Information Visualization Theory

and Applications, pages 29-34

DOI: 10.5220/0002827400290034

 SciTePress

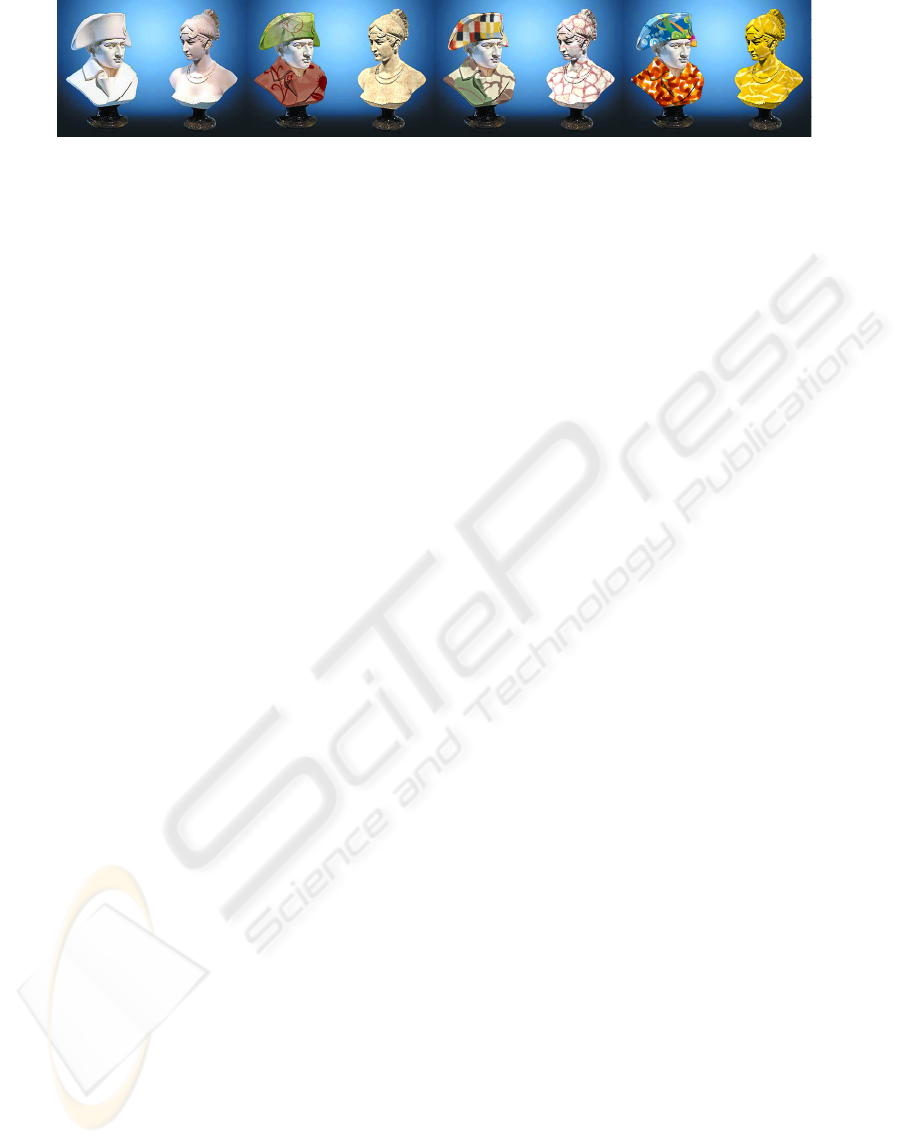

Figure 1: Our image retexturing: (a) the input image, (b-d) image retexturing results generated by us.

2 RELATED WORK

In this section, we mainly review mostly related

techniques in image filters, image/video retexturing,

and GPU-based processing.

Over years, methods are proposed to remove

noise from images. Even algorithms vary, they

basically share the same idea making use of nearby

information to do averaging. Some filters use spatial

information for image blurring such as Gaussian

filters (Lindenbaum et al., 1994), anisotropic filters

(Perona and Malik, 1990) or the rank vale filters

which sort the gray value of the neighbouring pixels

(Jäjne, 2005); some carry out the filtering in frequent

domain: the Wiener filters (Yaroslavsky, 1985) and

Butterworth filters (Gonzalez and Woods, 2008); or

by calculus of variations in spatial or frequent

domain.

Image retexturing has been fascinating lately. Oh

et al. (2001) proposed techniques to change the

shape, color and illumination of objects depicted in

images. Liu et al. (2004) introduced a user-assisted

adjustment on the regular grid of real texture and

obtained a bijective mapping between the regular

grid of texture and the deformed grid of the surface.

However, these methods require elaborate user

interactions and only suitable for regular textures.

Fang and Hart (2004, 2006) proposed a retexturing

technique based on the assumption that lighting

satisfies the Lambertian surface, and object’s macro

structure can be altered. Guo et al. (2008) proposed a

novel image/video retexturing preserving the

original shading effects. Khan et al. (2006)

suggested an image based material editing focusing

on changing objects' micro structure. Shen et al.

(2007) presented an image-based processing for tone

mapping and retexturing of HDR/LDR images.

These schemes are usually slow due to time-

consuming bilateral filtering. Thus, it’s necessary to

develop efficient retexturing approach applicable for

HDR and LDR images.

Driven by the insatiable market demand for real-

time, high-quality 3D graphics, GPU has evolved

into a highly parallel, multi-threaded, and many-core

processor with great computational horsepower in

floating-point calculation. GPU works quite well on

floating-point computation while CPU performance

ordinarily. Kazhdan and Hoppe (2008) proposed a

novel streaming multi-grid GPU solver to solve

large linear systems arising from gradient domain

image processing. McCann and Pollard (2008)

proposed a GPU-based image editing that allows

artists to paint in the gradient space with real-time

feedback on megapixel images. The reason behind

the discrepancy between CPU and GPU is that GPU

is specialized for compute-intensive, highly parallel

computation and more transistors are devoted to data

processing. Here we use GPU-CUDA platform to

accelerate our retexturing approach especially the

time-consuming filtering process.

3 IMAGE RETEXTURING

Our image retexturing approach is proposed in

gradient space using fast NLM filtering for both

HDR and LDR images, which has the following

main processing steps:

 compute the luminance image in I to get an initial

depth map

;

 use the revised NLM filter to get smoothed depth

map,

()

FastNLM I

;

 get the gradient depth map from

(, )

Ixy

;



compute the texture coordinate

(, )

according to

the gradient depth map

(, )

Ixy



;



derive the new color gradient

(, )

new

Ixy

from

(, )

Ixy



and the input texture gradient

T

;



reconstruct the final image from

(, )

new

xy

by solving

Poisson equation.

3.1 Gradient Depth Recovery

Given the revised NLM filtering, the general

retexturing method we adopt is to acquire an image

of the object of interest as input, create an alpha

IMAGAPP 2010 - International Conference on Imaging Theory and Applications

matte to separate the object from the background. By

aligning our image manipulation with the object’s

boundaries, the pixels forming the object are altered

to fit the object with new textures.

Computing a depth map from a single image is

the classic shape from shading problem. Since it is a

severely under-constrained problem (Horn and

Brooks, 1989), good solution for arbitrary images do

not exist and few general solutions can faithfully

compute the depth information. Our method derives

a locally consistent depth map from the luminance

distribution of an object, where higher luminance

values specify the parts of the object closer to the

observer. Similar with khan et al. (2006), an initial

depth map is computed as:

(, ) (, )

dlumi

xy I xy

We use our revised NLM filtering to get the

smoothed depth map

()

I FastNLM I

. Then, the

filtered depth map

is used to estimate and find

the local gradient depth map. The final recovered

gradient depth map

(, )

Ixy

is defined in terms of

neighbouring depth values, as follows:

(, ) ( (, ), (, ))

ggg

xy I xy I xy 

The final gradient information is directly used to

warp the input textures with the image-based models

to achieve image retexturing. Even the depth map

we compute may not be precise in the reconstructed

map, this don’t affect the high-quality retexturing

visual effect in our experimental results.

3.2 Retexturing in Gradient Space

Generally, the gradient space

(, )

Ixy

is sufficient

for estimating the warping of an arbitrary texture,

and can be used to retexture the object of interest.

We use the lazy snapping (Li et al., 2004) to

segment the object in the region of interest. We

introduce two linear scale factors

, and use

linear combination of gradient value and 2D spatial

indices to calculate the texture coordinates

(, )

yyg

uxvI

uyvI















Considering a pixel

(, )

belonging to the

object with a

color gradient

(, )

Ixy

, we

derive the new color gradient

(, )

new

xy

from its

original color gradient

(, )

Ixy



and the input

texture gradient

(, )

gxy

Tuu

using the matting equa-

tion as:

(, ) (, ) (1 ) ( , )

new

gg gxy

xy s I xy s T u u

Where

s is a scalar parameter that linearly

interpolates between the original object color

gradient and the texture color gradient. With the new

retextured gradient

(, )

new

xy

, we can get the

retextured image by solving a Poisson equation

(Perez et al., 2003). Our efficient retexturing

approach produces high-quality visual results of

image retexturing, also with much less time cost

using GPU-CUDA acceleration compared with the

previous work.

4 FAST NLM FILTERING

In our approach, we develop the real-time NLM

filtering to manipulate gradient space, convert the

gradient domain into approximate geometry details

for retexturing in image space.

4.1 Revisited Kernel Filter

The weighting functions used in (Choudhury and

Tumblin, 2003) are standard Gaussian kernel. Let





, the original Gaussian kernel is:

()

Gx e





If we take

as input, there are one division, one

minus and one exponent operation in the original

Gaussian kernel. Exponent operation is very

computationally expensive. We need to develop

approximation functions (Chatterjee & Milanfar,

2008) that don’t involve exponent operation to

reduce the cost of operations.

Maclaurin series is a famous continuous function

approximation rule, a Taylor expansion about zero.

We use Maclaurin series to develop an exponent-

free fast Maclaurin kernel as:

384

() ,



















Taking

as input, the evaluation of

()

in this

form consists of three multiplication, one division

and three addition operations. Computational power

is saved since there are only simple floating-point

operations. Maclaurin series is one of the best math-

proved approximation rules, thus the new kernel is

very close to the original Gaussian kernel, we can

surely use our fast Maclaurin kernel filter to appro-

GPU-ACCELERATED IMAGE RETEXTURING IN GRADIENT DOMAIN

ximate the original Gaussian kernel.

4.2 Simplified NLM Filter

The non-local means filter recently proposed by

Buades et al. (2006) is a tremendous improvement

for the neighbourhood filters (Smith and Brady,

1997). The NLM filter can be represented as:

() (, ) ()

ux w xy f ydy



with the weighting coefficient in the form:

(,)

(, )

dxy

wxy

edy







Different from neighbourhood filters, the NLM

filter quantifies the similarity of pixels

and

taking the similarity of whole

patches around. The

similarity of pixels is evaluated by a distance metric

(, )

dxy

, which contains size r of the compared

patches, and a weighting function

(, )

with a

parameter h describes how fast the weight decays

with increasing dissimilarity of respective patches.

Since the similarity measure uses the information of

the whole nearby patches instead of single pixel

intensity, the NLM filtering is able to remove noise

from textured images without destroying the fine

structures of the texture itself (see Figure 2).

Using the revisited Maclaurin kernel, we further

perform algorithm simplification. Mainly we apply

the NLM filter to smooth the gradient domain, the

gradient NLM filter at pixel

is defined as:

()

()((,))()

GyxGdxy fydy





 



()

(,) (())()

()

()((,))

dxy fy x f d

GyxGdxydy



























Where

()

y

is the noisy gradient image,

()ux



is result produced by our NLM filter with the

parameters



and



, and

()





and

()





are

the kernel filters in the form of eighth order

Maclaurin function.

()cx

is the normalizing

coefficient, and

()

is the area of b . Here,



represents the normalized sum of absolute gradient

differences between blocks around pixel

and

4.3 GPU-accelerated Retexturing

Recently the traditional neighbourhood filters can

run in real time even without hardware acceleration.

But, it is not the case with the NLM filter. We notice

that the latest OpenGL or DirectX hardware allows

high quality filters for even high resolution images.

With the help of latest NVIDIA GPU, we can

benefit from using a general purpose programming

model CUDA. Features such as shared memory and

sync points combined together with flexible thread

control allow us to speed up algorithms in parallel.

Figure 2: Filtering quality: (a) the initial gradient depth, (b)

enlarged detail, (c) KNN filtering result, (d) smoothed

result using our revised NLM filtering.

For GPU-CUDA coding, we define

()bx

be the

spatial neighbourhood of a certain size surrounding

pixel

. We consider it as a block of pixels in the

size



, where

21lr





, thus

is the center of

()bx

, the block radius is r . For every pixel

number of weights need to be counted, where

21nm





; To calculate each weight

number of

weights need to be counted, where

21ki

, texture

fetches are performed here to compute the

(, )

dxy



function. The total

number of texture fetches is

needed, so reducing the number of texture fetches

highly increase the performance.

To achieve the reduction of texture fetches, we

assume that within each block weights do not

change. We compute weights for the pixels in center,

and use these weights as the convolution coefficients

for other pixels within the same block. In this way,

we are able to reduce the number of texture fetches

. For the most common value

5n 

for the

blocks, we can reduce 25 times less texture fetches.

The assumption that weights are uniform within the

block works well, and most of the revised NLM

filter smoothed areas have little visual difference

IMAGAPP 2010 - International Conference on Imaging Theory and Applications

Figure 3: Top line - LDR image retexturing of the decorated cup using our approach; lower line - HDR image retexturing of

the artwork using our approach, in which the left-most is the original image.

from the NLM filter. With the fast Maclaurin kernel

filter we develop, the revised NLM filter works

much faster than the traditional NLM processing.

5 RETEXTURING RESULTS

We used C with NVIDIA CUDA programming and

MATLAB to implement our GPU-accelerated image

retexturing. The samples shown in the paper have

been tested on an Intel(R) Core(TM)2 Duo CPU

2.3GHz PC with a NVIDIA GeForce 8800 GPU and

2GB RAM. We have compared the revised NLM

filtering with bilateral filtering, K-nearest neighbors

filtering and the NLM filtering, in which the filters

tested are implemented in parallel with GPU

acceleration. The resolutions of sample images we

tested are in the range from 50×50 to 1600×1600.

From the tests, our approach using GPU acceleration

can perform more than twice as fast as the NLM

filtering. The computational performance statistics

for GPU-based filtering is listed in Table 1. Even the

GPU KNN filter is somehow faster than our revised

NLM filter, it is shown in Figure 2 that the filtering

quality of KNN is not satisfied as ours.

Table 1: Timing performance (frame/second) for GPU

filters of KNN, bilateral, NLM and our fast NLM filter in

relation to image sizes.

GPU Filters 50×50 200×200 800×800 1600×1600

KNN 1372.3 986.3 178.7 49.7

Bilateral 783.6 108.5 32.6 12.6

NLM 651.9 91.6 6.5 1.6

Our fast NLM 1353.8 886.9 132.2 35.7

Figure 4 shows our texture distortion effect of

sculpture retexturing in comparison with previous

work, where the retextured distortion effect of our

result comparable to the synthesis method of Fang

and Hart (2004). Both generate good distortion

effect conforming to the image underlying geometry.

In Guo et al. (2008), user needs to perform

considerable mesh stretches to deform new texture

conforming to the image geometry. Since we

perform image retexturing in gradient space, our

approach is able to replace the existing textures in

the region of interest, while preserving the original

shading and similar texture distortion using the

gradient difference info and simple user interaction

(i.e. tuning one/two parameters).

More retexturing results are shown in Figure 3

and Figure 5, which showed the impressive visual

effects with real-time performance and simple user

interaction, including HDR image retexturing

(artwork) and LDR image retexturing (decorated cup,

fruits, cloth, sculpture) examples. Our approach can

be applied to both HDR and LDR images, uniformly.

When using HDR display (Hoefflinger, 2007), the

visual effects look much better as the high dynamic

range to manipulate for the light intensity.

Figure 4: Texture distortion effect: The input image is the

inset in (c), (a) is our result, (b) is the result of Guo et al.

(2008) and (c) is the result of Fang and Hart (2004).

6 SUMMARY

In this paper, we present the novel GPU-accelerated

image retexturing using our revised NLM filtering

for both HDR and LDR images. Integrating the fast

Maclaurin kernel filter and parallel GPU-CUDA

acceleration, our approach is able to produce real-

time realistic results of image retexturing with

simple user interactions (i.e. tuning one/two parame-

GPU-ACCELERATED IMAGE RETEXTURING IN GRADIENT DOMAIN

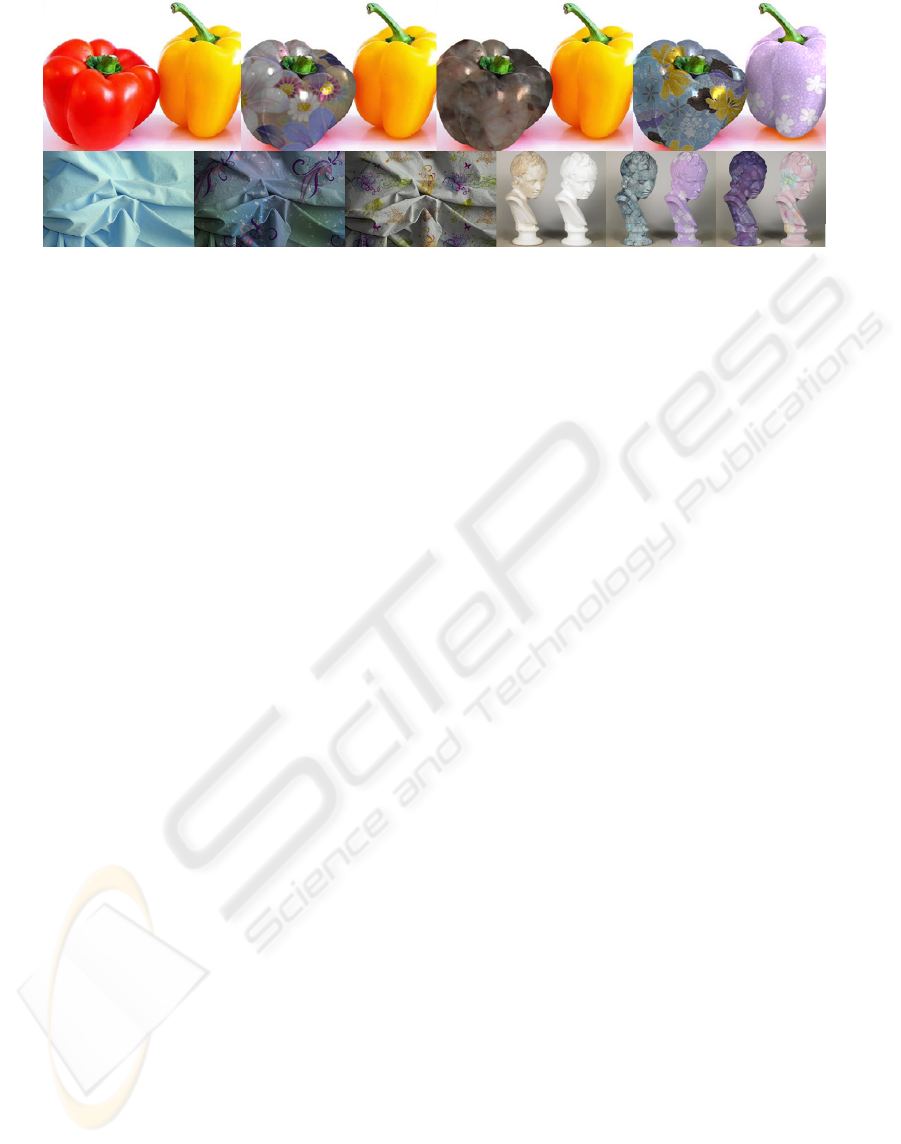

Figure 5: Top line - LDR fruits retexturing using our approach; lower line - LDR cloth retexturing (left) and LDR sculpture

retexturing (right) using our approach.

ters). Using the smoothed depth map in gradient

space, the reconstructed map provides the

retexturing visual qualities. Our experimental results

have shown the feasibility and the efficiency of our

approach. We will further work on utilizing

geometrical properties for retexturing, and extending

the image retexturing to video applications with

better optimizations.

REFERENCES

Buades, A. and Coll, B. and Morel, J. (2006). A review of

image denoising algorithms, with a new one,

Multiscale Modeling and Simulation, 4(2), 490–530.

Chatterjee, P. and Milanfar, P. (2008). A generalization of

non-local means via kernel regression. Proc. of IS&T

Conf. on Computational Imaging VI, San Jose.

Choudhury, P. and Tumblin, J. (2003). The trilateral filter

for high contrast images and meshes. Eurographics

Symposium on Rendering ’03, 186–196.

Fang, H. and Hart, J. (2006). Rototexture: automated tools

for texturing raw video. IEEE Trans. on Visualization

and Computer Graphics, 12(6), 1580–1589.

Fang, H. and Hart, J. (2004). Textureshop: texture

synthesis as a photograph editing tool. International

Conference on Computer Graphics and Interactive

Techniques, ACM New York, 354–359.

Gonzalez, R. and Woods, R. (2008). Digital image

processing (3rd ed.). NJ: Pearson/Prentice-Hall.

Guo, Y. and Wang, J. and Zeng, X. and Xie, Z. and Sun, H.

and Peng, Q. (2005). Image and video retexturing.

Computer Animation and Virtual Worlds, 16, 451-461.

Guo, Y. and Sun, H. and Peng, Q. and Jiang, Z. (2008).

Mesh-Guided Optimized Retexturing for Image and

Video. IEEE Transactions on Visualization and

Computer Graphics, 14(2), 426–439.

Hoefflinger, B. (2007). High-dynamic-range (HDR) vision.

Berlin: Springer.

Horn, B. and Brooks, M. (1989). Shape from shading.

Mass: MIT press Cambridge.

Jäjne, B. (2005). Digital image processing, concepts

algorithms, & scientific app.. Berlin: Springer-Verlag.

Kazhdan, M. and Hoppe, H. (2008). Streaming Multigrid

for Gradient-Domain Operations on Large Images.

Proceedings of ACM SIGGRAPH 2008, 27(3).

Khan, E. and Reinhard, E. and Fleming, R. and Bulthoff,

H. (2006). Image-based material editing. Proceedings

of ACM SIGGRAPH 2006, 25(3), 654–663.

Levin, A. and Rav-Acha, A. and Lischinski, D. (2008).

Spectral matting. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 30(10), 1699–1712.

Li, Y. and Sun, J. and Tang, C. and Shum, H. (2004). Lazy

snapping. ACM Trans. Graph, 23(3), 303–308.

Lindenbaum, M. and Fischer, M. and Bruckstein, A.

(1994). On Gabor’s contribution to image

enhancement. Pattern Recognition, 27(1), 1-8.

Liu, Y. and Lin, W. and Hays, J. (2004). Near-regular

texture analysis and manipulation. Proceedings of

ACM SIGGRAPH 2004, ACM New York, 368–376.

McCann, J. and Pollard, N. (2008). Real-Time Gradient-

Domain Painting. Proceedings of ACM SIGGRAPH

2008, 27(3).

Oh, B. and Chen, M. and Dorsey, J. and Durand, F. (2001).

Image-based modeling and photo editing. Proceedings

of ACM SIGGRAPH 2001, ACM New York, 433–442.

Perez, P. and Gangnet, M. and Blake, A. (2003). Poisson

image editing, ACM Trans. Graphics,

22(3), 313–318.

Perona, P. and Malik, J. (1990). Scale-space and edge

detection using anisotropic diffusion. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 12(7), 629–639.

Shen, J. and Jin X. and Sun H. (2007). High dynamic

range image tonemapping and retexturing using fast

trilateral filtering. The Visual Computer, 23(9), 641-

650.

Smith, S. and Brady, J. (1997). SUSAN - A new approach

to low level image processing. International Journal

of Computer Vision, 23(1), 45–78.

Tsin, Y. and Liu, Y. and Ramesh, V. (2001). Texture

replacement in real images. Proc. IEEE CVPR 2001, 2,

IEEE Computer Society.

Yaroslavsky, L. (1985). Digital picture processing. Berlin:

Springer-Verlag and New York: Springer-Verlag.

IMAGAPP 2010 - International Conference on Imaging Theory and Applications
