ROUTE PLANNING FOR THE BEST VALUE FUEL
Alva Sheehy and Kenneth Dawson-Howe
School of Computer Science and Statistics, Trinity College, Dublin 2, Ireland
Keywords: Route Planning, Optical Character Recognition, Petrol Price Determination, Vision Application.
Abstract: The system described in this paper is an extension to the standard satellite navigation systems used in
vehicles. A new route planning algorithm is developed using both shortest path and simplest path criteria
and then this algorithm is extended to allow the incorporation of a visit to a petrol station along the route.
The choice of petrol station is based on a combination of the relative location of the petrol stations and the
cost of petrol at those stations. The price of petrol at each petrol station is constantly updated on a central
server which is provided with prices by all vehicles which are using the system as they pass by. The price of
petrol is determined using a camera mounted on the dashboard of the car, the images from which are
processed with reasonably standard OCR software. When a vehicle requires fuel the central server provides
prices for petrol stations in the vicinity of the planned route.
1 INTRODUCTION
Satellite Navigations (SatNav) systems are in
everyday use, but are generally based on static route
maps. These systems can be extended by, for
example, using dynamic maps, incorporating
information about road-works, accidents and traffic
flow. This paper looks at a novel way of extending
SatNav systems by incorporating a facility to help
direct the vehicle to the best value fuel. There are
two major questions for such a system. First, how
does the central server get information on petrol
station location and prices? Second, what does the
SatNav do with this information? These questions
essentially divide the system into two main parts, the
acquisition of information and the use of this
information.
To acquire the current fuel prices we assume that
a large number of vehicles are subscribed to the
system and that these vehicles are all fitted with the
required navigation device which will incorporate a
dashboard camera looking forwards through the
windscreen. When the vehicles are being driven
around the system automatically reads (using image
processing) the petrol prices at each station passed
and transmits this price information (along with the
location of the petrol station) to the central server.
See Section 2 (Image Processing).
When a vehicle requires fuel a request is made to
the central server for the most up-to-date fuel prices.
The SatNav system can then determine which station
to incorporate into the route. This decision has to be
based on (1) fuel prices at the different stations, (2)
the additional financial cost of visiting each petrol
station in terms of distance, and (3) the additional
time and complexity cost of visiting each petrol
station. In fact it is necessary for the user to
explicitly decide upon the relative importance of
time/complexity cost vs. financial cost. See Section
3 (Route Planning).
2 IMAGE PROCESSING
In order to obtain the fuel prices images from the
dashboard mounted cameras must be processed to 1)
locate the petrol station signs (See Figure 1) and 2)
determine the price of the petrol. To locate the petrol
station sign we make use of Optical Character
Recognition (Cheriet 2007) by employing the
Tesseract OCR software (Smith2007) to locate the
keywords “Unleaded” and “Diesel”. If either word is
found we proceed to attempt to locate both the other
word and the prices.
The petrol prices are generally to the right of the
“Unleaded” and “Diesel” keywords and so we crop a
section of the image around the keywords located
(See Figure 2). Note that if one of the keywords was
not found in the initial search a larger region than
those shown in Figure 2 is cropped (i.e. including
173
Sheehy A. and Dawson-Howe K. (2010).
ROUTE PLANNING FOR THE BEST VALUE FUEL.
In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 173-178
Copyright
c
SciTePress

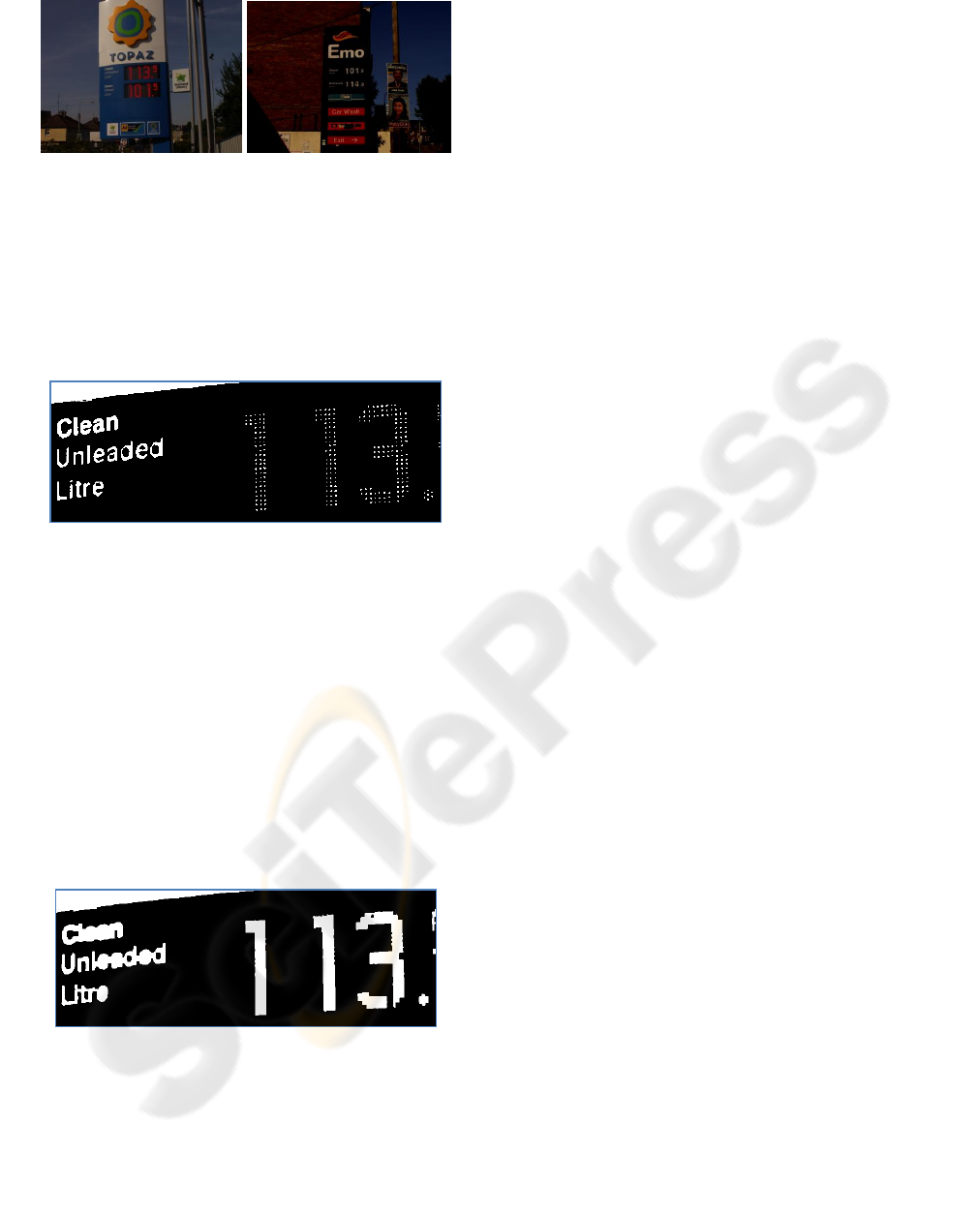

Figure 1: Example images of petrol station signs.
the area above and below the keyword found) and
the keywords are searched for using Tesseract once
again. They frequently allows the other keyword to
be found as the area being processed does not
contain much background clutter (such as that
shown in Figure 1) and hence the processing will
often more reliably threshold and locate the words.
Figure 2: Cropped image based on keyword location.
Many (or perhaps most) petrol station signs use a
large number of LEDs to display the prices (e.g. See
Figure 2). This poses a problem for most OCR
packages as they cannot recognise the characters. To
overcome this a morphological closing operation
(i.e. a dilation followed by an erosion) is applied to
the binary images (See Figure 3). In fact it was
necessary to apply this process iteratively using
progressively later morphological filters until the
petrol price could be reliably determined. Note that
for this demonstrator system it was assumed that the
decimal place was always 0.9 and hence it was not
processed.
Figure 3: The result of closing operations on the binary
image shown in Figure 2.
The method was validated using a small sample set
of 8 images of different petrol station signs.
3 ROUTE PLANNING
This section deals with how the navigation system
chooses routes. Please note that what is presented
here is a summarised version of the route planning
which was developed. For further details including
more motivation behind the developed cost
functions see (Sheehy 2009).
3.1 Background
3.1.1 Simplest Route vs Shortest Route Cost
Functions
Shortest-path methods can take into account a
number of different criteria when computing an
“optimal” path (sequence of roads) between an
origin and a destination. The cost function
associated with any particular route can be weighted
to take into account such criteria as distance
travelled or time taken to travel a route. Penalties
assigned to particular roads can also be taken into
account. By applying weightings to these criteria,
combinations of route finding criterion can be used
in determining an optimal path between two points.
The criteria used with shortest-path methods are
usually “concrete” physical criteria such as the
physical length of a particular road or edge.
Often the driver would prefer to be given a
simple, easy path to follow in preference to a path
which is more complicated but is distance-wise,
shorter. This is especially true if the shortest path
would involve many turns and smaller roads etc. A
number of papers (Riesbeck 1980, Elliott 1982,
Streeter 1986) dealing with cognitive studies suggest
that the overall complexity of a route is just as
important in developing a good navigation system as
being able to find routes with shortest times or
distances. (Riesbeck 1980) emphasises the
importance of clear, concise directions while (Elliott
1982) studies the directions given by people when
asked how to get from a particular origin and
destination. (Streeter 1986) in particular discusses
the important factors which users consider in
choosing a route. The number of turns as well as the
number of traffic lights on a particular route was
given importance by the users, just as was the
“classical” idea of the time taken and the distance
travelled. This all suggests that successful route
planning systems must take all such criteria into
account.
(Mark 1986) conjectures that the simplest routes
to direct would also be the simplest for the driver to
navigate, thus minimising the chance of errors due to
VISAPP 2010 - International Conference on Computer Vision Theory and Applications
174
navigational problems. The algorithm put forward in
(Mark 1986) takes into account both the length of
the route and the complexity of its description. He
does this by classifying intersections by how
difficult they are to guide a user through and
adjusting the weights of each route accordingly.
An improvement suggested in (Duckham 2003),
would be to take into account the type of roads in the
network. Their algorithm relies purely on evaluating
the complexity of navigating a particular route. As
such there is no account made for how quickly a
particular road can be traversed, or indeed the speed
limit or the number of lanes on the road. It would
also be good to direct the algorithm to more
important roads. That said, the authors note that the
simplest route is often already directed to the more
important roads.
3.1.2 Search Algorithm
In order to find an optimal route from a given origin
to a given destination a search algorithm must be
used. While Dijkstra’s algorithm (Dijksra 1959) and
some of its modified versions (Fu 2004, Sanders
2007) are widely recognised as some of the best
route finding algorithms (as they are guaranteed to
give the optimal result), they are very labour
intensive both in terms of time and memory usage.
This is due to the fact that they blindly searches for
routes, looking in all directions equally.
To overcome these problems the A* or Goal-
directed search algorithm (Guzolek 1989, Ikeda
1994) can be used. This algorithm incorporates an
estimate of the remaining cost into the metric (i.e.
f(n) = g(n) + h(n) where g(n) is the actual cost from
the origin to node n and h(n) is an estimate of the
cost from node n to the destination. In order to guide
the search and in order to guarantee an optimal
solution, the value of h(n) must be a lower bound for
the remaining cost from the current node to the
destination. When using shortest path methods, the
value of h(n) is generally based on the Euclidean
distance and the maximum speed limit for the road
network as this would give the minimum time to get
to the destination. However, it is not as easy to use
the A* algorithm when simplest path criteria dictate
in the cost function. This is due to the fact there is no
way to adequately determine a lower bound for the
simplest path criteria from node n to the destination
as these criteria generally do not depend on the
relative position between node n and the destination.
The only lower bound which could be chosen which
would ensure a minimum bound would be zero
(which in most cases would correspond to node n
being on a road which itself leads to the destination
without any instructions needed along the way).
Having h(n) = 0 however, gives the Dijkstra
Algorithm itself and so there would be no speed-up
or increase in efficiency as the search would not be
guided in any way.
3.2 Combined Simplest Route &
Shortest Route Cost Function
We have developed a cost function which combines
both the simplest route and the shortest route costs.
To compute the shortest path we use the following
formulas.
c(R) = Σ
n
c
i
= Σ
n
(TravelTime
i
+ RoadDelay
i
+ TurnDelay
i
)
(1)
TravelTime = Distance / SpeedLimit
(2)
where Distance is the distance of the road,
SpeedLimit is the legal speed limit of the road,
RoadDelay is the time delay in traversing a
particular road (due mainly to traffic), and
TurnDelay is the time needed to complete a specific
turn. Note, the value for TurnDelay is the time delay
in travelling from the previous road (road i-1) to the
current road (road i).
To incorporate the simplest path with this metric
we compute:
COST(R) = ( Σ
n
(TravelTime
i
+ RoadDelay
i
+ TurnDelay
i
) * RoadTypeWeight
i
*
LaneNumberWeight
i
) * Π
n
TurnWeight
i
(3)
where RoadTypeWeight
i
is the road type weight

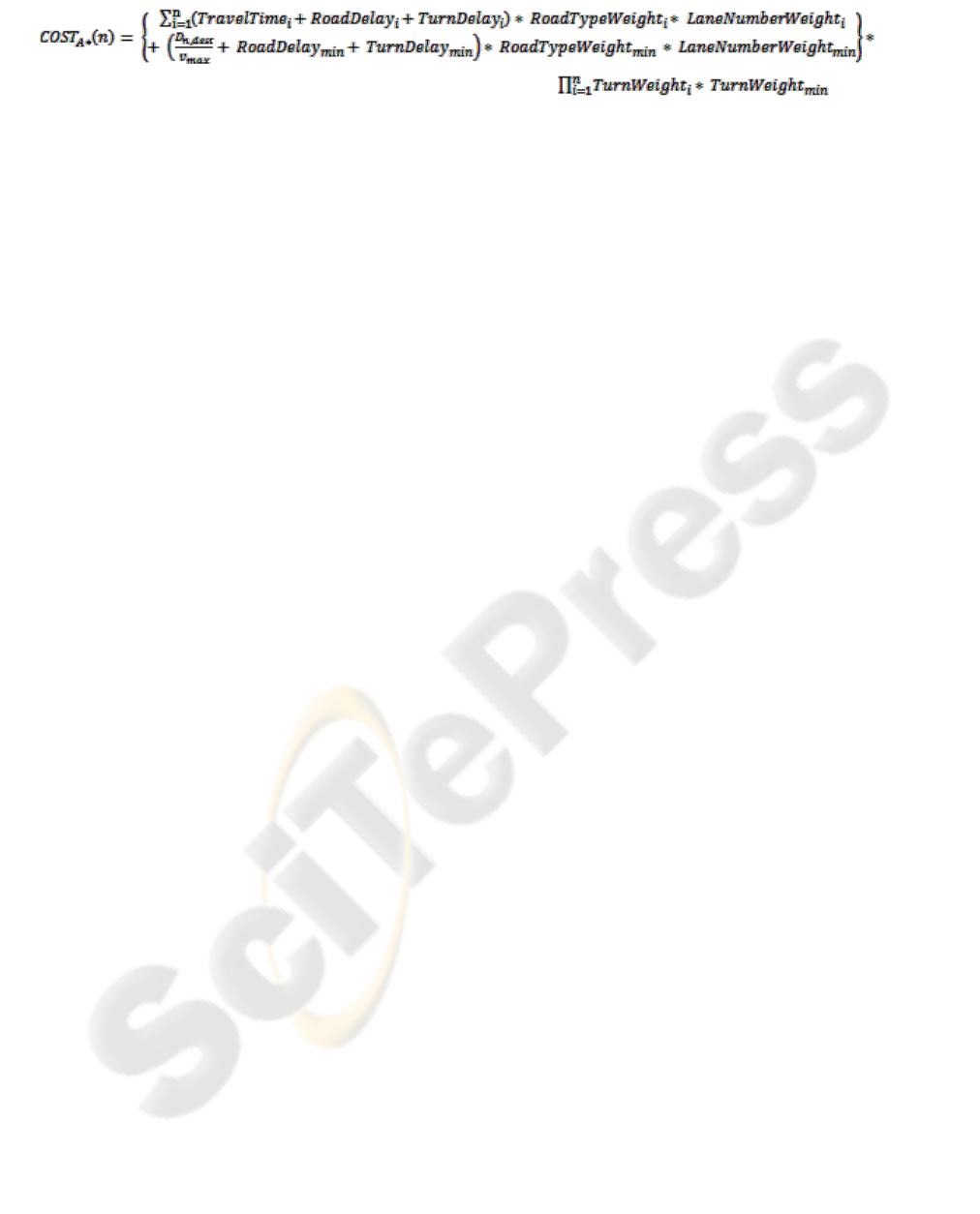

which is assigned to road i. Take the following
example: a minor road has a weighting of 1.1, a
major road (of the same length) a weighting of 1
Each road has an initial cost function (total time of
travel) of 4. When taking road type weighting into
account the cost value ci for the minor road is now
4.4 while the cost value ci for the major road is now
4. Because the major road results in a lower cost
function, an algorithm which favours lower cost
functions will thus favour routes with major roads.
LaneNumberWeight
i
is a similar weighting factor
which gives more cost to roads with single lanes (as
more major roads facilitate easier overtaking of slow
vehicles and are generally better signposted). The
TurnWeight takes into account the complexity
associated with navigating a turn. For example a
right turn off a busy road without the aid of traffic
lights is a much more stressful and complicated turn
to take for the driver than a simple slip road off to
the left.
ROUTE PLANNING FOR THE BEST VALUE FUEL
175

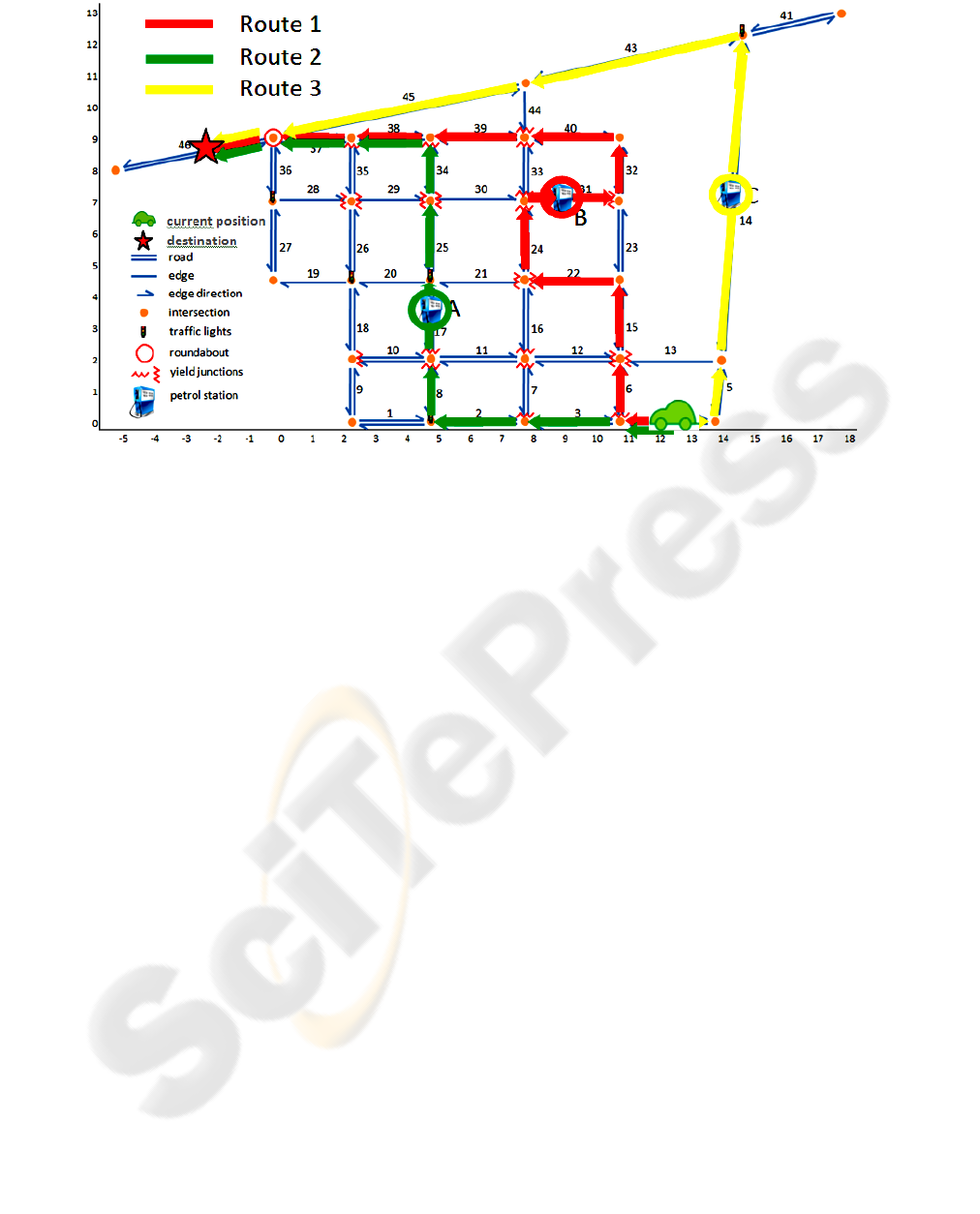

Figure 5: A road network with a car en route to a destination on which are shown three possible routes via different petrol
stations. See text for explanation of route selection.
EuroCost is the cost associated with detouring to a
given petrol station and w is the weighting factor
which is used to weight between the two different
cost functions. A weighting factor of w=1 would
result in choosing a petrol station which would give
the best route, regardless of the monetary cost. A
weighting factor of w=0 on the other hand would
choose a petrol station based on its monetary cost
alone, regardless of the route to get there.
(Remember that even though w=0 results in no
comparison of the routes to different petrol stations,
the route to get to these petrol stations are still
chosen by the normal route finding algorithm and so
are still the optimal routes to get to these particular
petrol stations.)
In examining a particular petrol station, in order
to improve on efficiency and reduce the number of
petrol stations examined, the total overall cost is
calculated at each iteration of the route finding
algorithm. This is to cut off the search for a route to
that petrol station (and hence ignore that petrol
station) if the overall total cost is greater than the
minimum cost found so far.
However, in order to compute the euro savings a
value for the distance of the overall route needs to be
found. As the euro savings value is being computed
during the route search, this is clearly not possible.
An estimate is used however, in a similar idea to that
of the h(n) function in the A* algorithm. A lower
bounds value for distance can be computed using
Euclidean distances. As such, if a route search has
not reached the petrol stations yet the value for the
distance of the route dist
Route
will be;
dist
Route
= dist
RouteSoFar
+ est
n,station
+ est
station,dest
(8)
where dist
RouteSoFar
is the distance of the route
from the origin to the current position n, est
n,station
is
the Euclidean distance from the current position n to
the petrol station and est
station,dest
is the Euclidean
distance from the petrol station to the destination.
4 VALIDATION
The image processing developed in section 2 was
tested on a limited number of test images. The route
planning developed in the previous section has been
tested in a simulated environment. Initially scenarios
were developed to test that the route planning
algorithm worked appropriately in a variety of
situations.
To validate the petrol price metrics a few
different scenarios were considered. In Figure 5
below a car is shown on a road network with a
destination shown by the red star. It is assumed that
petrol is required and three routes which include
petrol stations with associated prices are considered
(A is €1.02, B is €1.00 and C is €1.04). When the
weighting factor, w = 0.3 petrol station B (Route 1)
is chosen. This route is also chosen for w=0 which
implies that this is the route with the best monetary
savings. When w = 0.7 petrol station A (Route 2) is
ROUTE PLANNING FOR THE BEST VALUE FUEL
177
chosen. Finally when w = 0.95 petrol station C is
chosen. This is also true for w = 1 so this choice of
petrol station gives the best overall route.
The scenario of changing petrol prices has also
been considered and examples shown where the
selected petrol station (and route) will change as the
prices vary.
5 CONCLUSIONS
A prototype system has been developed
demonstrating all of the technology required for the
application proposed. More importantly the
mathematics concerned with route planning and with
integrating the choice of petrol station based on
price have been developed and a basic validation
achieved.
To further this work we need to integrate a real
satellite navigation system with a camera system and
a mobile communications system. Practically, this
will require OEM involvement.
REFERENCES
Cheriet, M., Kharma, N., Liu, C., Suen, C., 2007.
Character Recognition Systems: A Guide for Students
and Practioners, Wiley-Interscience.
Dijksra, E., 1959. A Note on Two Problems in Connexion
with Graphs. In Numerische Mathematik, Pages: 269
271.
Duckham, M., Kulik, L., 2003. “Simplest” Paths -
Automated Route Selection for Navigation, In Lecture
Notes in Computer Science: Spatial Information
Theory, October, Vol. 2825, Pages: 169 - 185.
Elliott M., Lesk, M., 1982. Route Finding in Street Maps
by Computers and People, In Proceedings of AAAI-82
Conferences 1982.
Fu, M., Li, J., Deng, Z., 2004. A Practical Route Planning
Algorithm for Vehicle Navigation System, in Fifth
World Congress on Intelligent Control and
Automation (WCICA). Vol. 6, Pages: 5326 - 5329.
Guzolek, J., Koch, E., 1989. Real-time Route Planning in
Road Networks. in Vehicle Navigation and
Information Systems Conference, Sep 1989, Pages
165-169.
Ikeda, T., Hsu, M. Imai, H., Nishimura, S., Shimoura, H.,
Hashimoto, T., Tenmoku, K., Mitoh, K., 1994. A Fast
Algorithm for Finding Better Routes by AI Search
Techniques”, In Proceedings of Vehicle Navigation
and Information Systems Conference, 1994, Pages:
291 - 296.
Mark, D., 1986. Automated Route Selection for
Navigation. in IEEE Aerospace and Electronic
Systems Magazine 1 1986, 2-5.
Riesbeck, C., 1980. You Can’t Miss It’: Judging the
Clarity of Direction. In Cognitive Science 4, Pages:
285 303.
Sanders, P., Schultes, D., 2007 Engineering Fast Route
Planning Algorithms. In Lecture Notes in Computer
Science: Experimental Algorithms, June 2007, Vol.
4525, Pages: 23 - 36.
Sheehy, A., 2009. A Driver’s Assistant: Finding the Best
Routes and Petrol Stations, MSc thesis, Dept. of
Computer Science, Trinity College, Dublin 2. Ireland.
Smith, R., 2007. An Overview of the Tesseract OCR
Engine. In Ninth International Conference on
Document Analysis and Recognition, Vol. 2, Pages:
629 633.
Streeter, L., Vitello, D., 1986. A Profile of Drivers’ Map-
Reading Abilities, In Human Facts, 28, Pages: 223-
239
VISAPP 2010 - International Conference on Computer Vision Theory and Applications
178
