FACE DETECTION AND TRACKING WITH 3D PGA CLM

Meng Yu and Bernard Tiddeman

School of Computer Science, University of St. Andrews

St. Andrews, U.K.

Keywords:

Active appearance models, Multi-view face models, Constrained local model, Face feature tracking, Face

feature detection.

Abstract:

In this paper we describe a system for facial feature detection and tracking using a 3D extension of the Con-

strained Local Model (CLM) (Cristinacce and Cootes, 2006) algorithm. The use of a 3D shape model allows

improved tracking through large head rotations. CLM uses a shape and texture appearance model to generate

a set of region template detectors. A search is then performed in the global pose / shape space using these

detectors. The proposed extension uses multiple appearance models from different viewpoints and a single 3D

shape model built using Principal Geodesic Analysis (PGA) (Fletcher et al., 2004) instead of direct Principal

Components Analysis (PCA). During ﬁtting or tracking the current estimate of pose is used to select the ap-

propriate appearance model. We demonstrate our results by ﬁtting the model to image sequences with large

head rotations. The results show that the proposed multi-view 3D CLM algorithm using PGA improves the

performance of the algorithm using PCA for tracking faces in videos with large out-of-plane head rotations.

1 INTRODUCTION

This paper describes a method for tracking human

face features using a 3D shape model and view-

dependent feature templates. We match the 3D face

model to previously unseen 2D video sequences of

human faces by applying a shape constrained search

method, using an extension of the constrained local

model algorithm.

The original CLM algorithm (Cristinacce and

Cootes, 2006) works with limited rotations from the

front face view. Yu et al. (Yu and Tiddeman, 2010)

extended the algorithm to a multi-view 3D CLM al-

gorithm works not only on the front face view but

also on the face with large head rotations in videos. It

consists of a 3D shape model and several 2D appear-

ance models from multiple views. Fifteen appearance

models at intervals of 30

◦

are used. The system covers

100

◦

in the vertical direction and 160

◦

in the horizon-

tal direction.

Fletcher et al. have shown that principal geodesic

analysis (PGA) (Fletcher et al., 2004) is more effec-

tive for presenting geometric objects. In this imple-

mentation, a PGA shape model is adapted instead of

the direct PCA shape model in the previous methods.

The shape templates are ﬁrst projected to the local

area before the PCA applied to increase the ﬁtting ac-

curacy. The searching process is similar to the pre-

vious methods. First, some suitable initialisation (ap-

proximate rigid body alignment, scaling) is given to

the shape model. In each subsequent iteration square

region are sampled around each feature point and pro-

jected into the allowed appearance model space. The

shape and pose parameters are then found that max-

imise the correlation between the synthesised appear-

ance template patches and patches extracted around

the current estimates of the feature point locations in

image space.

After a brief review of face and face feature detec-

tion, we will describe the model building and ﬁtting

methods in more detail, followed by experimental re-

sults demonstrating the performance of the proposed

multi-view 3D CLM method using PGA.

2 RELATED WORK

The problems of facial feature detection and tracking

have received a great deal of attention in the litera-

ture, here we only cover the more immediately rel-

evant work. Active Shape Models (ASM) (Cootes

et al., 1995) use Principal Component Analysis (PCA)

to learn the main axes of variation from a training set

Yu M. and Tiddeman B. (2010).

FACE DETECTION AND TRACKING WITH 3D PGA CLM.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 44-53

DOI: 10.5220/0002829800440053

 SciTePress

of labelled examples. Fitting the shape model to a

new image involves local searches for matching fea-

tures alternated with projection of the shape estimate

back into the allowed model space.

Active Appearance Models(AAMs) (Cootes et al.,

2001) use the same PCA based shape model as ASMs

together with a PCA based model of appearance

(i.e. shape normalised texture). It has been used

for face modelling and recognising objects (Lanitis

et al., 1997) (Jones and Poggio, 1998), ﬁtting un-

seen images (Gross et al., 2005) (Peyras et al., 2007),

tracking objects(Ahlberg, 2001), (Stegmann, 2001)

and medical image processing (Cootes and Taylor,

2001), (Mitchell et al., 2001). The original imple-

mentation (Cootes et al., 2001) learnt a linear model

relating the error image (between the model and the

image) and the required parameter updated at each

time step. Following the forwards additive algorithm

(Lucas and Kanade, 1981), the inverse additive al-

gorithm (Hager and Belhumeur, 1998), and the for-

wards compositional algorithm (Shum and Szeliski,

2001), Mathews and Baker (Baker and Matthews,

2001), (Baker and Matthews, 2002), (Matthews and

Baker, 2004) derived more mathematically elegant

methods in which the updates are always calculated

in the average shape and then concatenated with the

current guess. This inverse compositional method al-

lows the pre-computation of the gradient images and

inverse Hessian matrix for greater efﬁciency. Later

work demonstrated that the inverse compositional al-

gorithm is only really suitable for person-speciﬁc ﬁt-

ting and tracking, and that simultaneous estimation of

the shape and appearance parameters was required for

robust face ﬁtting (Gross et al., 2005).

Constrained Local Model (CLM) algorithm

(Cristinacce and Cootes, 2006) is a patch based

method with the similar appearance model to that

used in the AAMs (Cootes et al., 2001). It learns

the variation in appearance of a set of template re-

gions surrounding individual features instead of tri-

angulated patches. The ﬁtting algorithm ﬁrst ﬁnds the

best match of the combined shape-appearance model

to the current guess, then searches locally using a non-

linear optimiser to ﬁnd the best match to the model.

Further study on patch based appearance models have

been carried out – exhaustive local search (ELS) algo-

rithm (Wang et al., 2007), generic convex quadratic

ﬁtting (CQF) approach (Wang et al., 2008) and

Bayesian constrained local models (BCLM) (Paquet,

2009). The approach has been proven to outperform

the active appearance models (AAMs) (Cootes et al.,

2001) as it is more robust to occlusion and changes in

appearance and no texture warps are required. ELS,

CQF and BCLM all showed some improvements over

CLM ﬁtting to certain databases.

Active appearance models (AAMs) (Cootes et al.,

2001) were originally formulated as 2D and most

of the algorithms for AAM ﬁtting have been single-

view (Cootes and Kittipanyangam, 2002). Automati-

cally locating detailed facial landmarks across differ-

ent subjects and viewpoints, i.e. 3D alignment of a

face, is a challenging problem. Previous approaches

can be divided into three categories: view (2D) based,

3D based and combined 2D+3D based. View based

methods (Cootes et al., 2000), (Zhou et al., 2005),

(Faggian et al., 2005), (Peyras et al., 2008), train a

set of 2D models, each of which is designed to cope

with shape or texture variation within a small range

of viewpoints. We have found for some applications

that switching between 2D views can cause notable

artifacts (e.g. in face reanimation). 3D based meth-

ods (Blanz and Vetter, 1999), (Romdhani et al., 2002),

(Brand, 2001), (Jones and Poggio, 1998), (Vetter and

Poggio, 1997), (Zhang et al., 2004), in contrast, deal

with all views by a single 3D model. 3D Morphable

model ﬁtting is an expensive search problem in a high

dimensional space with many local minima, which of-

ten fails to converge on real data. 2D+3D based meth-

ods (Xiao et al., 2004), (Hu et al., 2004), (Koterba

et al., 2005), (Ramnath et al., 2008) used AAMs and

estimated 3D shape models to track faces in videos,

but these algorithms are generally most suitable in

the person speciﬁc context. A view-based multi-view

3D CLM algorithm (Yu and Tiddeman, 2010) derived

from the original CLM algorithm (Cristinacce and

Cootes, 2006) have gained some improvements track-

ing unseen faces with large head rotations.

A standard linear technique of shape analysis is

principal component analysis (PCA) which can efﬁ-

ciently represent a complex data set with the reduced

dimension. However, PCA is limited if the data is ly-

ing in a geodesic space instead of an Euclidean vector

space such as the template of the human face features.

Fletcher et al. proposed a principal component analy-

sis (PGA) method (Fletcher et al., 2004), a generalisa-

tion of principal component analysis to the manifold

setting to deal with the problem. Results show that

it can efﬁciently describe the variability of data on a

manifold.

3 ALGORITHM

3.1 An Overview

The model (Figure 1) consists of a model of 3D shape

variation and 15 models of the appearance variations

in a shape-normalised frame. A training set of la-

FACE DETECTION AND TRACKING WITH 3D PGA CLM

Figure 1: The Multi-view CLM consists of a shape model

and several appearance models from different views. There

are 15 rotations and 3 scales used to cover all the likely cir-

cumstances in the application. (There are only 9 rotations in

the ﬁgure because the views from the right side are approx-

imately mirroring copies of the ones from the left side.)

belled images, where key landmark points are marked

on each example object, is required. We use landmark

points placed on a set of 3D face models to generate

the 3D shape model. The appearance model for each

view is found by rendering the face model from the

appropriate viewpoint and sampling square patches

from the rendered image about the projected location

of the feature point.

We use 14 subjects (8 males, 6 females) perform-

ing 7 posed expressions (neutral, happy, sad, disgust,

surprise, fear, anger) and 7 posed vise mes (/ah/, /ch/,

/ee/, /k/, /oo/, /p/, /th/) captured using a stereopho-

togrametric system (www.3dMD.com). From the set

of the landmark points a statistical model of shape

variation can be generated using Principal Geodesic

Analysis (PGA). We extract a 20x20 block of pix-

els around each feature point at each of 3 spatial

scales. (Figure 2) These patches are vectorised and

used to build the appearance model. All the features

are formed into a 500x20 block of the pixel strip be-

fore the PCA analysis is applied.

In the original CLM work (Cristinacce and

Cootes, 2006) a combined shape and appearance

Figure 2: Example of training images

models was created by performing PCA on the com-

bined shape and appearance parameter vectors, and

the search was carried out in this space. The use

of multiple appearance models in multi-view 3D al-

gorithm would require the use of multiple combined

models. In order to simplify the switching of the ap-

pearance model with a single shape model, separate

models of shape and appearance are used instead of

using a combined model in this paper.

3.2 Shape Model

To build a Principal Geodesic Analysis (PGA) shape

model, the global shape co-ordinates s(x, y, z) are con-

catenated into a vector X = (x

, y

, z

, ··· , x

, y

, z

The templates are then normalised into the local shape

vector v by the following equation.

− ¯x

∑

− ¯x)(x

− ¯x)

(1)

Then we can use equation 2 and 3 to fold and un-

fold the vectors from and to the tangent space (Fig-

ure 3).

u(x) = v(x) ·

sinθ

−

θ ·cos(θ)

sinθ

· ¯v (2)

where θ = arccos(

∑

¯v ·v

) is the spherical distance

from the base point p to the point v.

f (x) = u(x) ·

sinθ

+ cos(θ) · ¯u (3)

where θ =

√

∑

·v

The intrinsic mean of the manifold is then estimate

with the following steps.

1. calculate the algorithm mean of the shape vectors

¯v.

2. repeat

(a) unfold the shape vectors into tangent plane iter-

atively and calculate the intrinsic mean s

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

Figure 3: A pictorial representation of the tangent space.

(b) fold the intrinsic mean back into sphere plane.

3. until

< ε

The PGA shape model is built from the vectors

u(x) unfolded to the tangent space. To calculate the

principal components, the covariance matrix of the

vectorised points (u(x)) is created using the formula

and Jacobi’s method is then applied to ﬁnd the eigen-

vectors and eigenvalues, which represent the principal

components and their distributions.

u(x) = ¯u + P

(4)

where ¯u is the mean shape, P

is a set of orthogo-

nal modes of variation and b

is a set of shape param-

eters. The equation can then be used to reconstruct

new shapes by varying the given shape parameters.

The two-dimensional coordinates of the shape

model can be calculated with the following equation:

= M ·V · f ( ¯u + P

·b

)

(5)

where V is a vector of the pose (transla-

tion, rotation, scaling) transforming parameters

, T

, S, θ, φ, γ and M is the opengl frustum projec-

tion matrix.

3.3 Appearance Models

To build a model of the appearance, we render each

3D face model in our training set from a particular

viewpoint and sample a square patch around each fea-

ture point. By transforming the face with different

scale, rotation, shift and lighting parameters, we build

a set of texture patches. After all the patches vec-

torised, PCA analysis is applied to the textures from a

particular viewpoint and scale to build an appearance

model:

g = ¯g + P

(6)

where ¯g is the mean normalized gray-level vector,

is a set of orthogonal modes of variation and b

a set of gray-level parameters. We build 45 appear-

ance models, one for each of 15 viewpoints across 3

Figure 4: The opengl alpha channel for background self oc-

clusion. The upper pair is the average texture patches image

and the alpha channel patches image from the frontal view.

The bottom pair is from a side view.

different scale to cover all the likely circumstances in

the application.

3.4 Other Features

To increase the stability with varied backgrounds, we

use visibility information from the rendered patches

to estimate occluded pixels. We grab the alpha chan-

nel (Figure 4) from the rendering canvas when we

extract the texture patches to mark out the edges be-

tween the face and the background.

A simple way is chosen to build the alpha chan-

nel information into the model. Before computing the

errors between the synthetic I

syn

and extracted image

patches I

ext

, the average image patches of alpha chan-

nel I

al pha

are applied as a mask to both images patches

by using pixel-wise multiplication.

During head rotation, facial features can be

blocked by other parts of the face. On the facial

boundary, the appearance of background pixels can

vary signiﬁcantly. These effects could result in fail-

ure of the matching between the extracted image, g(x)

and the synthetic image, f (x). In order to exclude the

effects of these points, the appearance models for dif-

ferent views are built with different sets of features.

Currently, a ﬁxed visibility model is built for each

viewpoint based on the feature points that are typi-

cally visible in that view. Self occlusion can be de-

tected in the training set by identifying model points

that are further from the virtual camera than the ren-

dered point, as given by the depth-buffer value. If the

point is occluded in more than 50% of the training

examples it is excluded from the model for that view.

An example of an appearance model from a side view

can be seen in Figure 5.

Multi-scale techniques are standard in computer

vision and image processing. They allow short range

models to extend over longer ranges and optimisa-

tion to be achieved in fewer steps. In our model, a

Gaussian function is used to build a multi-scale tex-

ture pyramid. The processing time is much shorter

with lower resolution images. So we ﬁt the unseen

image with the lowest resolution image ﬁrst to im-

prove the performance. When ﬁtting we also use a

Gaussian pyramid built for each frame and then the

CLM search is applied at each layer from the coars-

FACE DETECTION AND TRACKING WITH 3D PGA CLM

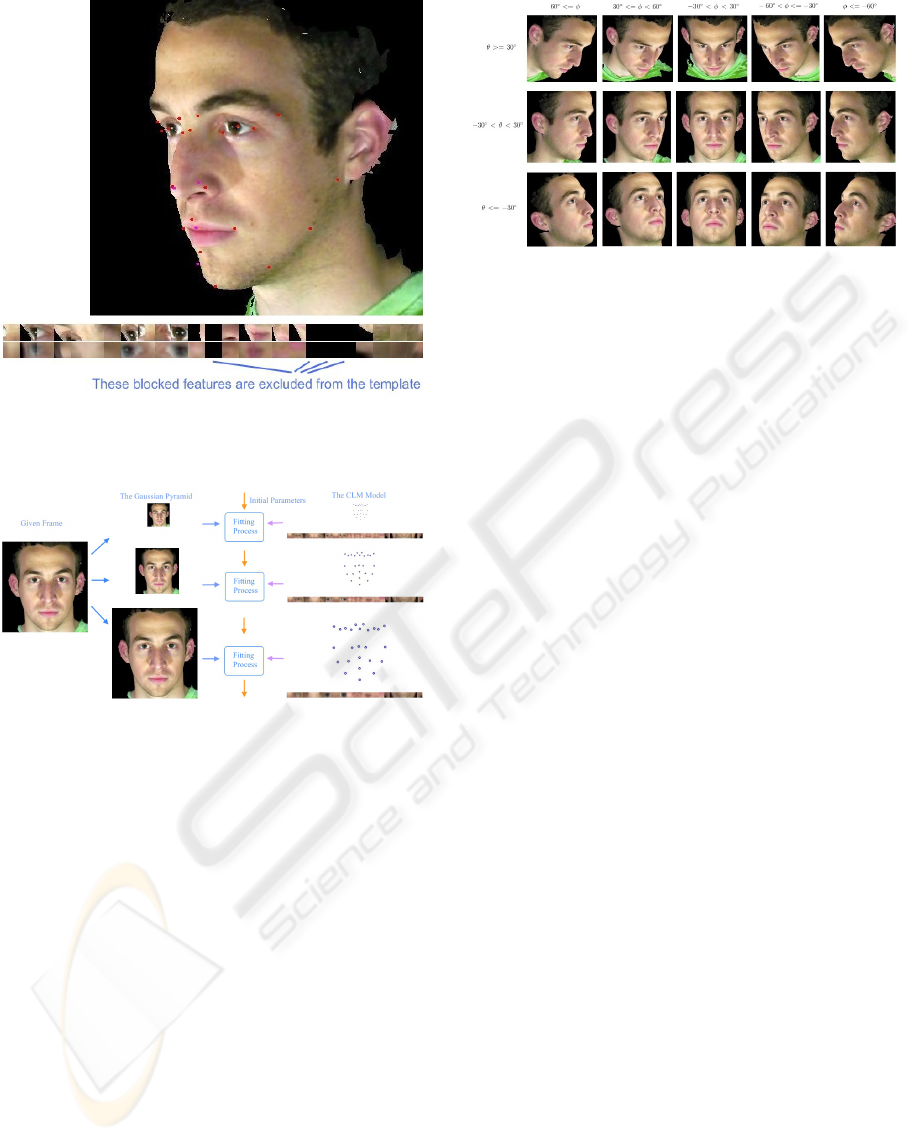

Figure 5: The appearance model with hidden features from

a side view. The hidden features are not extracted for the

model.

Figure 6: A skeleton of the three scales image searching

technique.

est to the ﬁnest. The process can be illustrated in the

Figure 6.

3.5 Search Algorithm

With the texture model selection algorithm, we can

extend the searching method (Cristinacce and Cootes,

2006) for use with a three-dimensional model.

For a given set of initial points, X =

, y

, z

, x

, y

, z

··· , x

n−1

, y

n−1

, z

n−1

), the ini-

tial pose parameters V are estimated for the shape

model built previously. Then the multi-view ap-

pearance CLM algorithm shown in Figure 7 is

applied.

1. Initialise with the global face detector.

2. Estimate the initial pose parameters V .

3. From low to high resolutions

(a) Repeat

Figure 8: Multiple appearance models.

i. Compute the feature coordinates, s, and ex-

tract the feature patches, g.

ii. Estimate the texture model from the pose pa-

rameters V .

iii. Synthesise the feature patches from the up-

dated coordinates and the selected texture

model.

iv. Apply the alpha channel feature, the hidden

points feature to the extracted and synthetic

feature patches.

v. Optimise the error metrics with the shape tem-

plate update methods to get a new set of pose

and shape parameters, V , b

(b) Until converged.

4. Until converged for all selected scales.

3.6 Texture Model Selection

In the proposed algorithm, there is a global three-

dimensional shape model and ﬁfteen texture models.

One additional step to the original algorithm is the se-

lection of the texture model while searching with the

multi-view CLM algorithm. For tracking face move-

ments, the algorithm needs to select the correct tex-

ture model for the current pose automatically. As each

texture model is built from a certain view, we can use

the rotation parameters θ, φ to estimate the view by

testing the criteria shown in Figure 8. θ and φ can

be obtained from the current estimate of head rotation

using one of the shape template update methods.

The texture model selection process is given by

the following steps repeatedly until the end of the

tracking.

1. The multi-view CLM algorithm is applied to the

given frame accompanied with the initial parame-

ters.

2. A set of new parameters are obtained including θ

and φ which is the estimated rotation angles for

the current face pose.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

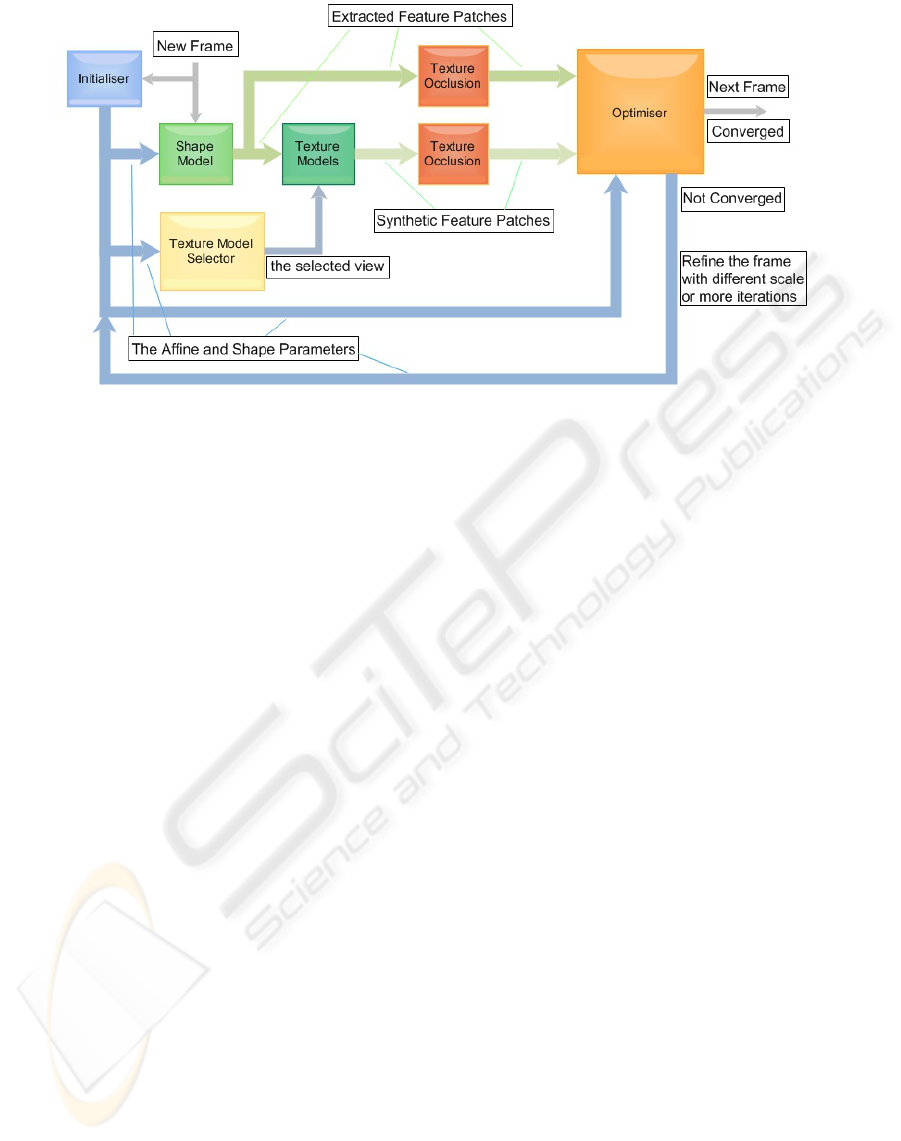

Figure 7: Multi-view CLM tracking process

3. To estimate the next frame, θ and φ is then passed

into the texture model selection module to choose

the proper appearance model.

3.7 Shape Update Methods

The original CLM algorithm (Cristinacce and Cootes,

2006) used the Nelder-Meade simplex algorithm

(Nelder and Mead, 1965) to optimize the Cross Cor-

relation. This algorithm works by using N+1 samples

in the N dimensional parameter space. Each itera-

tion the worst sample is discarded and a new sample

is added based on a set of simple heuristics. In this

work we use Powell’s method (Press. et al., 2007)

as this is supposed to typically require fewer function

evaluations than the Nelder-Meade algorithm.

Optimisation techniques based on off-the-shelf

non-linear optimisers like those described above are

typically slow to converge. We compare optimisation

using Powell’s method with a direct method for op-

timising the global NCC using an estimate of the Ja-

cobean and Hessian matrices and solving a linear sys-

tem and a quadratic equation (Tiddeman and Chen,

2007).

We also compare the techniques described above

with minimisation of the sum of squared errors (SSE)

as an error metric. This is similar to the above, requir-

ing the Jacobean and inverse Hessian matrices and so-

lution of a linear system. This method is essentially

equivalent to the additive inverse compositional AAM

alignment, (Hager and Belhumeur, 1998), (Matthews

and Baker, 2004) wrapped in a slightly different ﬁt-

ting algorithm.

4 RESULTS

We have evaluated the proposed algorithms using a

mixture of synthetic and real data. Synthetic data is

generated by rendering multiple 3D face scans from

different viewpoints, and is useful because the 3D

models provide accurate ground-truth data. We also

test the algorithms on real video data with hand-

labelled feature points.

We have designed two experiments to evaluate

the proposed multi-view appearance 3D CLM using

shape PGA. The ﬁrst is to compare the multi-view

CLM using PCA to the proposed multi-view 3D CLM

using shape PGA. The second set of experiments

compare the various optimisation algorithms within

the multi-view CLM using shape PGA framework.

The most four signiﬁcant components of the shape

model and the apperance models are used in both ex-

periments.

4.1 Synthetic Data Experiments

This experiment aims to compare the performance

of the multi-view 3D CLM algorithm using shape

PGA to the algorithm using shape PCA. A set of

face sequences with ﬁxed expression and head rota-

tion of over 40

◦

were synthesised using rendered im-

ages captured from the 3dMD system. We use 8 se-

quences comprising over 500 images in the experi-

ment. Both algorithms are applied to the same set

of face sequences using the FastNCC algorithm (Tid-

deman and Chen, 2007), Gauss-Newton algorithm

(Hager and Belhumeur, 1998), (Matthews and Baker,

2004), Powell’s method (Press. et al., 2007) as the

FACE DETECTION AND TRACKING WITH 3D PGA CLM

Figure 9: Each row consists of a set of selected frames

from a tracking sequence with the synthetic texture patches

drawn on which indicates the location of the features. The

results at the top are from the single-view approach, at the

middle are from the multi-view CLM using shape PCA ap-

proach and at the bottom are from the multi-view CLM us-

ing shape PGA approach. When the rotating angle reaches

certain degrees(b,c), the algorithm continues tracking the

face well by auto-switching the appearance model to a side

view model while the patches start getting off the position

with single-view model.

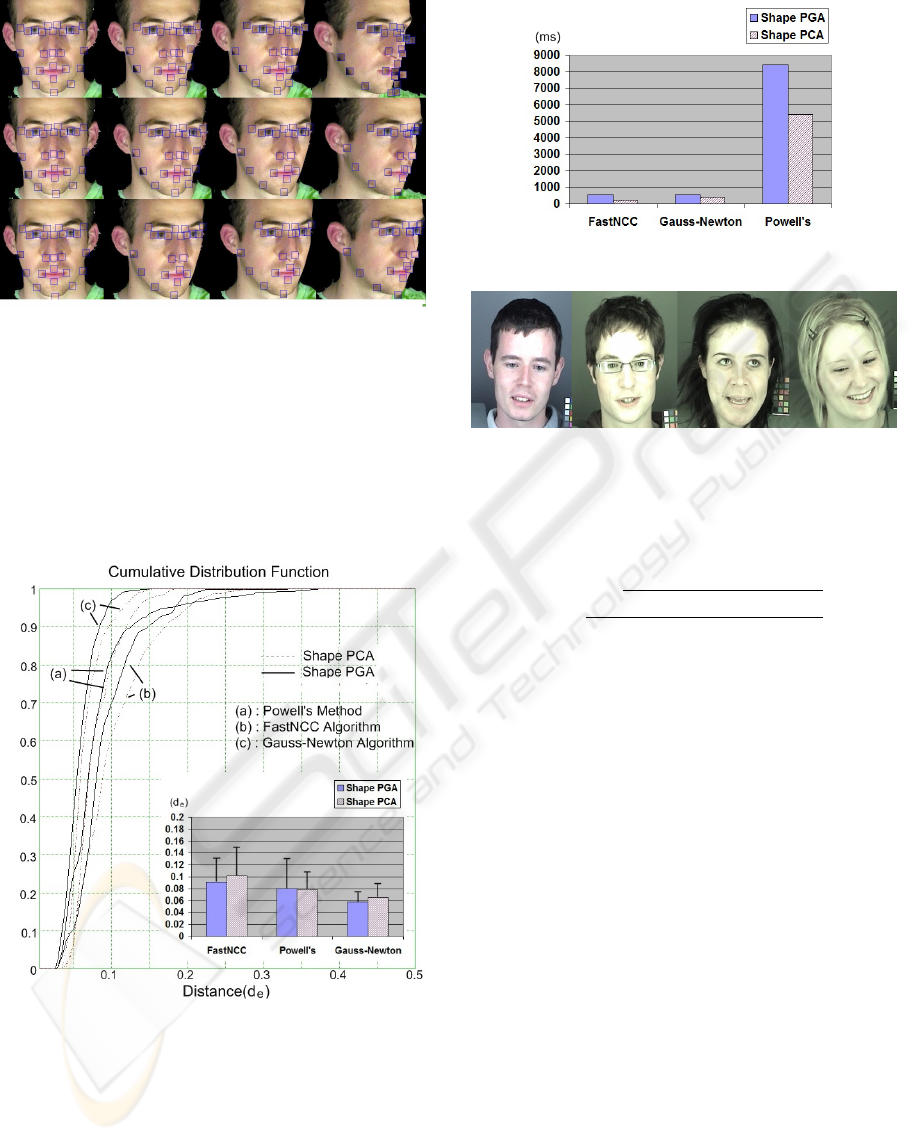

Figure 10: The ﬁtting results on synthetic images between

the multi-view CLM algorithm using shape PCA and shape

PGA. Powell’s method, FastNCC algorithm and Gauss-

Newton algorithm are applied as the optimisation methods.

optimisation methods. Four shape parameters An il-

lustration can be seen in Figure 9.

The statistical results of ﬁtting in Figure 10 show

that the proposed multi-view 3D CLM algorithm us-

ing PGA gives better performance. However, the ex-

tra projecting step reduce the speed of ﬁtting as we

Figure 11: The ﬁtting speed on synthetic images.

Figure 12: Example images from the text video clips ﬁtting

to.

can see in Figure 11.

The alignment accuracy is measured with the fol-

lowing equation:

∑

std

−x

)

+ (y

std

−y

)

(7)

where x

std

, y

std

represent the manually placed

“ground truth” feature points locations, x

, y

repre-

sent the tracked feature points locations, d represents

the distance between the center of the eyes and N is

the number of features.

4.2 Real Data Experiment

We also apply the proposed algorithm on real video

data. The video data consists of four different subjects

showing expression, speech and some head rotation

(1280 frames in total) (Figure 12) These images and

subjects are independent of the training sets.

The image sequences are roughly initialised with

the face detector described in (Chen and Tiddeman,

2008) before a CLM search is applied to the frame and

the following frames while tracking. Three optimis-

ing methods are used for the experiments – Powell’s

method, FastNCC algorithm and the Gauss-Newton

method, a maximum of 4 iterations are used per frame

while tracking.

The ﬁtting results are shown in Figure 13.

For Powell’s method and Gauss-Newton algorithm,

nearly 80 % of the points are within 0.15 d

. For Fast-

NCC algorithm, nearly 80 % of the points are within

0.17 d

. The proposed algorithm using PGA performs

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

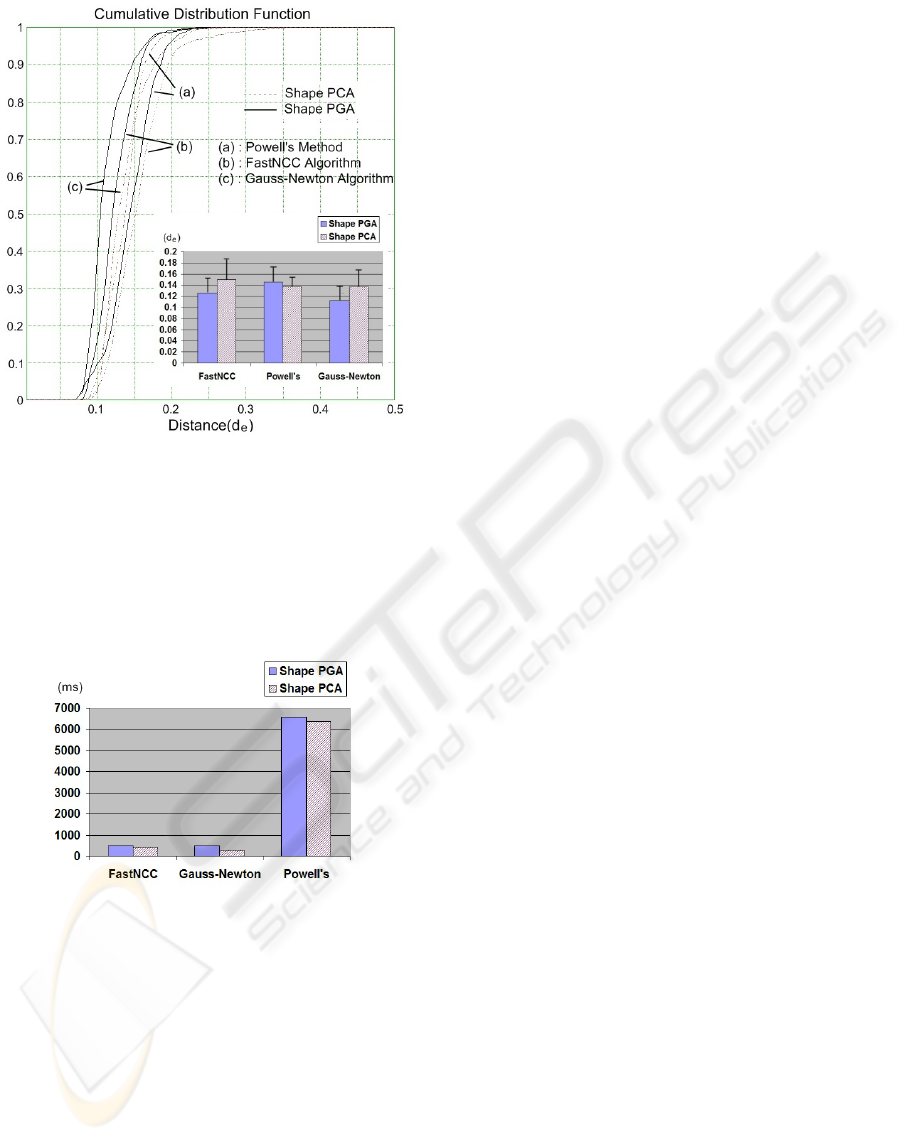

Figure 13: The ﬁtting results on real images between the

multi-view CLM algorithm using shape PCA and shape

PGA. Powell’s method, FastNCC algorithm and Gauss-

Newton algorithm are applied as the optimisation methods.

more robust using FastNCC and Gauss-Newton opti-

mising methods. PGA doesn’t show improvements

over PCA using Powell’s method.

Figure 14: Average ﬁtting time estimated on the ﬁtting us-

ing three optimising algorithms on the set of real images.

The ﬁtting speed of ﬁtting is shown in Figure 14.

Like the experiments on synthetic images, the algo-

rithm using PGA converges slower than the one us-

ing PCA. The Gauss-Newton algorithm is the fastest

method. The FastNCC algorithm performs at the

same level as those two methods. Powell’s method

takes much more time than the other two methods.

5 CONCLUSIONS AND FUTURE

WORK

The presented multi-view 3D CLM algorithm using

shape PGA is derived from the single-view 2D CLM

algorithm (Cristinacce and Cootes, 2006) and multi-

view 3D CLM algorithm (Yu and Tiddeman, 2010).

There are 15 texture models built from different views

of faces and a 3D shape model in the algorithm. For

each view, a constrained local search to match the

given image and the selected texture model and the

shape model. Instead of using the PCA shape model,

the proposed algorithm takes a PGA shape model to

represent the features.

This algorithm can be used to locate and track hu-

man facial feature in sequences with large head rota-

tions. We described two sets of experiments to eval-

uate the performance of ﬁtting comparing to the pre-

vious algorithm using shape PCA. Based on the ex-

periments carried out, we have shown that the algo-

rithm using shape PGA gives better results when ﬁt-

ting to unseen images with large head rotations (the

images are captured from 3dMD). The ﬁtting is more

robust (Figure 10, 13) but slightly slower (Figure 11,

14) than the algorithm simply using shape PCA, es-

pecially at the face contour.

There are some recently proposed methods, which

outperform Cristinacce et al.’s original constrained lo-

cal model (CLM) algorithm (Cristinacce and Cootes,

2006) including Wang et al.’s exhaustive local search

(ELS) CLM algorithm (Wang et al., 2007), generic

convex quadratic ﬁtting (CQF) CLM approach (Wang

et al., 2008) and Paquet et al.’s Bayesian constrained

local model (BCLM). These methods plus the inverse

compositional method and their extensions could be

extended to solve 3D problems and adapted to im-

prove the performance of the proposed multi-view 3D

CLM algorithm.

Pizarro et al. (Pizarro et al., 2008) pointed out

that combining the Light-Invariant theory with AAMs

can ﬁt AAMs to face images efﬁciently for which

the lighting conditions are uncontrolled. Future re-

search could involve lighting and colour and more self

occlusion factors, which could improve the match-

ing rates under variant lighting, colour conditions and

even with unexpected occlusions.

REFERENCES

Ahlberg, J. (2001). Using the active appearance algorithm

for face and facial feature tracking. In International

Conference on Computer Vision Workshop on Recog-

nition, Analysis, and Tracking of Faces and Gestures

in Real-time Systems, pages 68–72.

FACE DETECTION AND TRACKING WITH 3D PGA CLM

Baker, S. and Matthews, I. (2001). Equivalence and efﬁ-

ciency of image alignment algorithms. In IEEE IEEE

Transactions on Computer Vision and Pattern Recog-

nition, pages 1090–1097.

Baker, S. and Matthews, I. (2002). Lucas-kanade 20 years

on: A unifying framework: Part 1. Technical Report

CMU-RI-TR-02-16, Robotics Institute, University of

Carnegie Mellon, Pittsburgh, PA.

Blanz, V. and Vetter, T. (1999). A morphable model for the

synthesis of 3d faces. In Computer graphics, annual

conference series (SIG-GRAPH), pages 187–194.

Brand, M. (2001). Morphable 3d models from video. In

IEEE computer society conference on computer vision

and pattern recognition, volume 2, pages 456–463.

Chen, J. and Tiddeman, B. P. (2008). Multi-cue facial fea-

ture detection and tracking. In International Confer-

ence on Image and Signal Processing, pages 356–367.

Cootes, T. F., Edwards, G. J., and Taylor, C. J. (2001). Ac-

tive appearance models. In IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, pages 681–

685.

Cootes, T. F. and Kittipanyangam, P. (2002). Compar-

ing variations on the active appearance model algo-

rithm. In British Machine Vision Conference, vol-

ume 2, pages 837–846.

Cootes, T. F. and Taylor, C. J. (2001). Statistical models of

appearance for medical image analysis and computer

vision. In SPIE Medical Imaging, pages 236–248.

Cootes, T. F., Taylor, C. J., Cooper, D. H., and Graham, J.

(1995). Active shape models - their training and ap-

plication. Computer Vision and Image Understanding,

61:38–59.

Cootes, T. F., Walker, K., and Taylor, C. (2000). View-based

active appearance models. In IEEE International Con-

ference on Automatic Face and Gesture Recognition,

pages 227–232, Washington, DC, USA. IEEE Com-

puter Society.

Cristinacce, D. and Cootes, T. (2006). Feature detection and

tracking with constrained local models. In British Ma-

chine Vision Conference, volume 3, pages 929–938.

Faggian, N., Romdhani, S., Sherrah, J., and Paplinski, A.

(2005). Color active appearance model analysis using

a 3d morphable model. In Digital Image Computing

on Techniques and Applications, page 59, Washing-

ton, DC, USA. IEEE Computer Society.

Fletcher, P. T., Lu, C., Pizer, S. M., and Joshi, S. (2004).

Principal geodesic analysis for the study of nonlin-

ear statistics of shape. IEEE transactions on medical

imaging, 23:995–1005.

Gross, R., Matthews, I., and Baker, S. (2005). Generic vs.

person speciﬁc active appearance models. Image and

Vision Computing, 23(11):1080–1093.

Hager, G. D. and Belhumeur, P. N. (1998). Efﬁcient region

tracking with parametric models of geometry and illu-

mination. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 20:1025–1039.

Hu, C., Xiao, J., Matthews, I., Baker, S., Cohn, J., and

Kanade, T. (2004). Fitting a single active appearance

model simultaneously to multiple images. In British

Machine Vision Conference.

Jones, M. J. and Poggio, T. (1998). Multidimensional

morphable models: A framework for representing

and matching object classes. In International Jour-

nal of Computer Vision, volume 29, pages 107–131.

Springer Netherlands.

Koterba, S., Baker, S., Matthews, I., Hu, C., Xiao, J., Cohn,

J., and Kanade, T. (2005). Multi-view aam ﬁtting

and camera calibration. In IEEE International Con-

ference on Computer Vision, pages 511–518, Wash-

ington, DC, USA. IEEE Computer Society.

Lanitis, A., Taylor, C. J., and Cootes, T. F. (1997). Auto-

matic interpretation and codeing of face images using

ﬂexible models. IEEE Transactions on Pattern Anal-

ysis and Machine Intelligence, 19(7):742–756.

Lucas, B. D. and Kanade, T. (1981). An iterative image

registration technique with an application to stereo vi-

sion. In International Joint Conference on Artiﬁcial

Intelligence, pages 674–679.

Matthews, I. and Baker, S. (2004). Active appearance mod-

els revisited. International Journal of Computer Vi-

sion, 60:135–164.

Mitchell, S. C., Lelieveldt, B. P. F., Geest, R. J., Bosch,

J. G., Reiber, J. H. C., and Sonka, M. (2001). Multi-

stage hybrid active appearance model matching: Seg-

mentation of left and right ventricles in cardiac mr im-

ages. In IEEE Transanctions on Medical Image, vol-

ume 20, pages 415–423.

Nelder, J. A. and Mead, R. (1965). A simplex method

for function minimization. Computer Journal, 7:308–

313.

Paquet, U. (2009). Convexity and bayesian constrained lo-

cal models. IEEE Transactions on Computer Vision

and Pattern Recognition, pages 1193–1199.

Peyras, J., Bartoli, A., Mercier, H., and Dalle, P. (2007).

Segmented aams improve person-independent face ﬁt-

ting. In British Machine Vision Conference.

Peyras, J., Bartoli, A. J., and Khoualed, S. K. (2008). Pools

of aams: Towards automatically ﬁtting any face im-

age. In British Machine Vision Conference.

Pizarro, D., Peyras, J., and Bartoli, A. (2008). Light-

invariant ﬁtting of active appearance models. In IEEE

Conference on Computer Vision and Patter Recogni-

tion, pages 1–6.

Press., W. H., Teukolsky., S. A., Vetterling, W. T., and Flan-

nery, B. P. (2007). Numerical recipes - The art of sci-

entiﬁc computing. Cambridge University Press.

Ramnath, K., Koterba, S., Xiao, J., Hu, C. B., Matthews, I.,

Baker, S., Cohn, J. F., and Kanade, T. (2008). Multi-

view aam ﬁtting and construction. In International

Journal of Computer Vision, volume 76, pages 183–

204.

Romdhani, S., Blanz, V., and Vetter, T. (2002). Face iden-

tiﬁcation by ﬁtting a 3d morphable model using linear

shape and texture error functions. In European Con-

ference on Computer Vision, pages 3–19.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

Shum, H. Y. and Szeliski, R. (2001). Panoramic vision:

sensors, theory, and applications, chapter Construc-

tion of panoramic image mosaics with global and lo-

cal alignment, pages 227–268. Springer-Verlag New

York, Inc., Secaucus, NJ, USA.

Stegmann, M. B. (2001). Object tracking using active

appearance models. In Danish Conference Pattern

Recognition and Image Analysis, volume 1, pages 54–

60.

Tiddeman, B. P. and Chen, J. (2007). Correlated active ap-

pearance models. In IEEE Transactions on Signal-

Image Technology & Internet-Based Systems, pages

832–838.

Vetter, T. and Poggio, T. (1997). Linear object classes and

image synthesis from a single example image. In

Pattern Analysis and Machine Intelligence, volume

19(7), pages 733–742.

Wang, Y., Lucey, S., Cohn, J., and Saragih, J. M. (2007).

Non-rigid face tracking with local appearance consis-

tency constraint. In IEEE International Conference on

Automatic Face and Gesture Recognition.

Wang, Y., Lucey, S., and Cohn, J. F. (2008). Enforcing con-

vexity for improved alignment with constrained local

models. In IEEE Conference on Computer Vision and

Pattern Recognition, volume Issue 23–28, pages 1–8.

Xiao, J., Baker, S., Matthews, I., and Kanade, T. (2004).

Real-time combined 2d+3d active appearance models.

In the IEEE computer society conference on computer

vision and pattern recognition, volume 2, pages 535–

542.

Yu, M. and Tiddeman, B. P. (2010). Facial feature detection

and tracking with a 3d constrained local model. Sub-

mited to International Conferences in Central Europe

on Computer Graphics, Visualization and Computer

Vision 2010.

Zhang, Z., Liu, Z., Adler, D., Cohen, M. F., Hanson, E., and

Shan, Y. (2004). Robust and rapid generation of ani-

mated faces from video images: A model-based mod-

eling approach. International Journal of Computer

Vision, 58(2):93–119.

Zhou, Y., Zhang, W., Tang, X., and Shum, H. (2005). A

bayesian mixture model for multi-view face align-

ment. In IEEE Computer Society Conference on Com-

puter Vision and Pattern Recognition, pages 741–746,

Washington, DC, USA. IEEE Computer Society.

FACE DETECTION AND TRACKING WITH 3D PGA CLM
