EVALUATION OF DENOISING METHODS WITH RAW IMAGES

AND PERCEPTUAL MEASURES

Matteo Pedone, Janne Heikkil

Department of Electrical and Information Engineering, University of Oulu, Finland

Jarno Nikkanen, Leena Lepist

o, Timo Kaikumaa

Nokia Research Center, Tampere, Finland

Keywords:

Denoise, Demosaic, Evaluation, State-of-the-art, Perceptual quality assessment, Artifacts, Degradation, RAW

images, Real data.

Abstract:

In this paper we present a performance evaluation of different state-of-the-art denoising method, applied to

RAW images in Bayer pattern format. Several measures for assessing objective quality are considered. We

also propose, a novel and straightforward extension to the SSIM-Index that handles color information. The

evaluation is divided in two stages: ﬁrst an entire set of images is artiﬁcially degraded and then restored

with the considered denoising/demosaicking methods. The second stage involved a subjective evaluation

with real noisy RAW images. We observed that the resulting qualities of the considered denoising methods

are in agreement between the two different evaluation stages, and the best performing algorithms are easily

identiﬁed. Moreover, the proposed extension of the SSIM-Index proved to behave more consistently in respect

to the artifacts introduced by the denoising algorithms, and its outcome was always in fair accordance with the

subjective perceived quality.

1 INTRODUCTION

It is a well-known fact that in any digital camera cir-

cuitry, the image which is acquired by the sensor array

is often degraded by different kinds of noise (Kurimo

et al., 2009). The process of estimation of the original

unknown signal, is called denoising, and it constitutes

one of the major research topics in signal and image

processing.

The nature and the intrinsic properties of noise

may vary according to the type of sensor array and

camera model, and they are usually known. This fact

is one of the key advantages of performing denoising

with RAW data; in fact, the ﬁnal image which is com-

monly output to the user, is the result of a pipeline of

operations which would unavoidably alter the proper-

ties of noise.

The literature in denoising of color or grayscale

images is very extensive. A good overview on the

most recent trends in denoising can be found at (ISIT,

2007). In typical real scenarios, one has to face the

necessity of estimating a complete RGB image from

data which are scattered in regular patterns (demo-

saicking), and this led to the development of new

and promising joint-approaches, in which denoising

and demosaicking are treated as a unique problem

(Hirakawa and Parks, 2006). Such methods are cur-

rently in their infancy, and although they are theoret-

ically more appealing and produce perceptually good

results, they still lack an extensive evaluation pro-

cess. The work described in this paper is stimulated

by the fact that it is not a trivial issue to ﬁgure out

which are the most convenient ways to produce a ﬁ-

nal image from noisy sensor data; we therefore at-

tempt to provide reasonable answers to this question

by considering an evaluation framework with several

state-of-the-art denoising algorithms, joint denoising-

demosaicking approaches, different quality measures,

and ﬁnally both real and artiﬁcially generated noise.

This paper is organized as follows: in Section 2

the main goals of this work are accurately stated. Sec-

tions 3-4 justify our choice of algorithms, and set

of images. In sections 5 we discuss the behavior of

the quality measures and propose an extension of the

SSIM-Index for color images. In the remaining part

of the paper we discuss the results obtained.

168

Pedone M., Heikkilä J., Nikkanen J., Lepistö L. and Kaikumaa T. (2010).

EVALUATION OF DENOISING METHODS WITH RAW IMAGES AND PERCEPTUAL MEASURES.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 168-173

DOI: 10.5220/0002831201680173

 SciTePress

2 SCOPE OF THE EVALUATION

We express now the main goals of our work in the fol-

lowing list. In the following sections we will describe

how each of the considered aspects has been treated.

Our goals are:

• Select some among the most promising state-of-

the-art denoising methods, according their per-

formance measured both in PSNR and subjective

quality.

• Choose two suitable image databases for experi-

ments: one consisting of high-quality and virtu-

ally noise-free images; another one consisting of

real RAW data.

• Choose at least two suitable measures for quality

assessment, and justify their use.

• Evaluate the performance of RAW denoising

methods for both artiﬁcially degraded data and

real data.

3 SELECTING THE METHODS

In image denoising, quality is commonly measured

by the Peak-Signal-to-Noise-Ratio (PSNR). However

it has been frequently argued that the PSNR in many

cases may not reﬂect the perceived quality of the ﬁ-

nal image (Wang et al., 2004). The importance of

perceptual quality has been seriously considered by

Vansteenkiste et al. in (Vansteenkiste et al., 2006).

They describe an important experiment carried out

with human subjects, and in summary, the main re-

sults were that the PSNR might sometimes not be in

accordance with the perceived quality, and also that

humans tend to prefer “denoised” images which (in

order of importance), are less blurry, have the least

amount of visual artifacts introduced by the denois-

ing algorithm, have the least amount of noise.

On the other hand this experiment also ended up

in conﬁrming that among the perceptually best de-

noising method, one ﬁnds three methods which are

also state-of-the-art in terms of PSNR; these methods

are known as “Block Matching 3D” (Dabov et al.,

2006), “Shape Adaptive DCT” (Foi et al., 2006), and

“Bayesian Least Square Gaussian Mixtures” (Portilla

et al., 2003); all these have been considered in our

evaluation, as they were proven to yield highest qual-

ity results, both subjectively and objectively.

The aforementioned algorithms were proposed as

denoising methods for ordinary grayscale images

For some of them also a version for color images is

proposed.

and it is not trivial to predict if such methods are

still suitable when applied to a Bayer-pattern image,

followed by demosaicking. In (Hirakawa and Parks,

2006) the authors addressed this issue by showing that

demosaicking and denoising are essentially two prob-

lems of the same nature, and they proposed a joint

approach for denoising-demosaicking; more recent

work following the same lines has been done by Paliy

et al. (Paliy et al., 2007), who introduced a state-of-

the-art demosaicking algorithm, and proposed a vari-

ant that is able to deal with noisy Bayer data. Sum-

marizing the methods we considered are:

• Block Matching 3D (BM3D)

• Shape Adaptive DCT (SA-DCT)

• Bayesian Least Square Gaussian Mixtures in

Wavelet Domain (BLS-GSM)

• Hirakawa’s Joint demosaicking and denoising

• LPA-ICI Color Filter Array Interpolation for

noisy Bayer data (Oracle-Γ).

In order to provide a reasonably fair comparison be-

tween separate and joint approaches, a state-of-the-art

demosaicking method is also needed. Based on the

survey of (Li et al., 2008) we chose the standard ver-

sion of LPA-ICI CFAI Oracle-Γ.

4 CHOOSING DATA-SETS

The database of real noisy images consists of a set

of ten 1152x864 images taken with a consumer-

level mobile phone camera. These images are

used for a subjective evaluation only. Further-

more another database of high quality and vir-

tually noise-free images has been chosen, and

this is the popular Kodak database available

at www.cipr.rpi.edu/resource/stills/kodak.html which

includes 23 still color images (768x512). The im-

ages from the latter database are commonly used as

ground-truth in demosaicking literature (and often in

denoising literature too) for objective comparisons of

methods.

5 QUALITY MEASURES

Whenever the noisy images are obtained by artiﬁ-

cially degrading the original ones, it is possible to use

the ground-truths for objective quality assessment.

The measures that have been considered are: the

Peak Signal-to-Noise Ratio (PSNR), and the Mean-

Structural-SIMilarity (MSSIM), which was recently

EVALUATION OF DENOISING METHODS WITH RAW IMAGES AND PERCEPTUAL MEASURES

169

5 10 15 20 25 30 35 40 45 50

Noise Level σ

Average PSNR

BM3D

SA−DCT

BLS−GSM

LPA-ICI

HIRAK.

5 10 15 20 25 30 35 40 45 50

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Noise Level σ

Average MSSIM

BM3D

SA−DCT

BLS−GSM

LPA-ICI

HIRAK.

5 10 15 20 25 30 35 40 45 50

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Noise Level σ

Average Color−MSSIM

BM3D

SA−DCT

BLS−GSM

LPA-ICI

HIRAK.

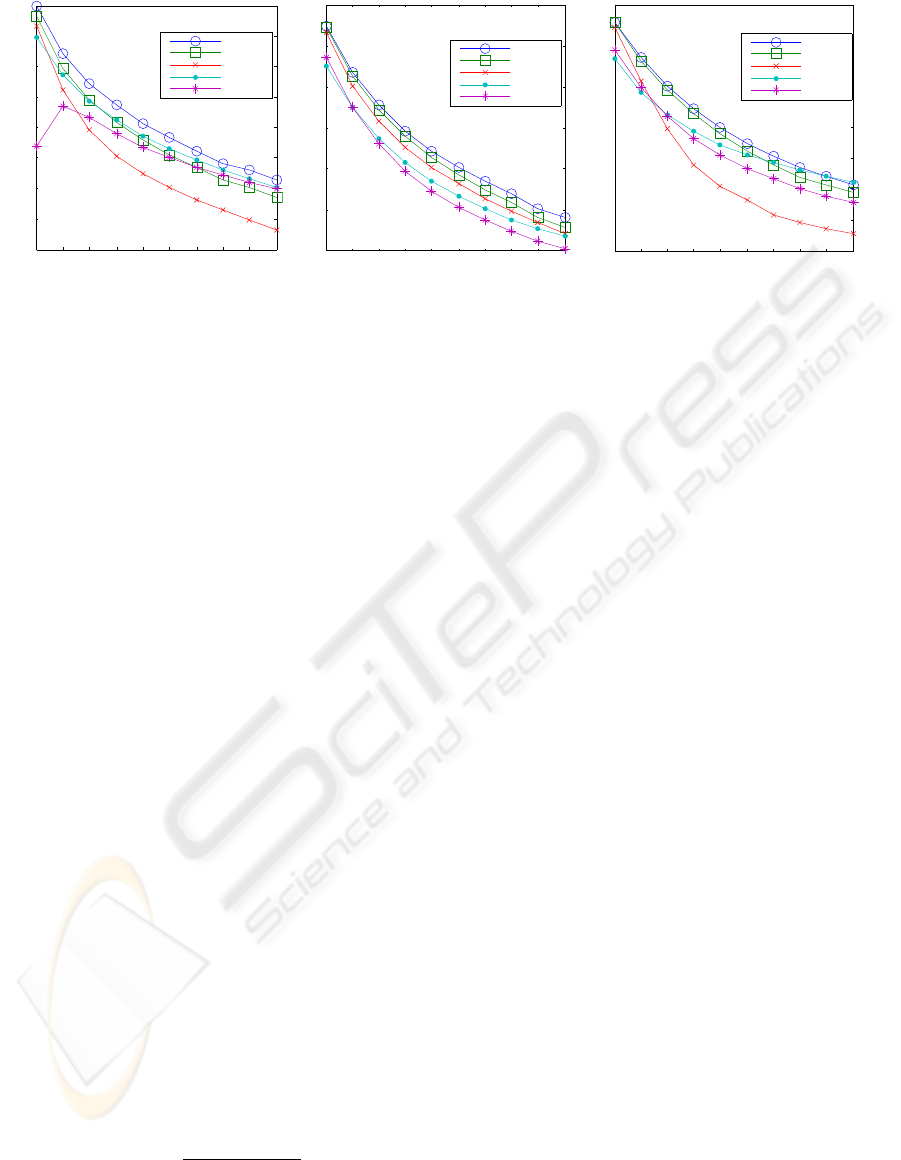

Figure 1: Mean performance of the denoising methods according to: (Left) PSNR; (Middle) Mean SSIM-Index; (Right)

proposed Mean CSSIM-Index.

proposed as a reliable solution for assessing percep-

tual image quality (Wang et al., 2004). The SSIM

is originally designed to work with grayscale images

only. As our application involves color images, we

now propose a straightforward workaround to this

problem. The SSIM-Index for two images x and y

is deﬁned as follows:

SSIM(x, y) = [l(x, y)]

[c(x, y)]

[s(x, y)]

(1)

where l,c,s are functions to measure respectively the

difference in luminance, contrast and structure be-

tween the two images; α, β, γ are parameters used

to adjust the relative importance between l, c and

s. Given two images x and y, all these three mea-

sures satisfy three axioms: symmetry: f (x, y) =

f (y, x), boundedness: f (x, y) ≤ 1 and unique maxi-

mum: f (x, y) = 1 iff x = y (Wang et al., 2004). A

possible extension can be obtained in the following

manner: we apply a color-space transformation from

RGB to CIE-Lab; let’s now denote by x

, y

and by

, Y

respectively the luminance components of the

images (in vector form), and the chrominance com-

ponents of the images treated as matrices with com-

plex elements of the form (a

+ ib

), for a pixel at lo-

cation j. The complex representation is perceptually

justiﬁed by the fact that, given a ﬁxed white-point,

the absolute value encodes the saturation of a pixel,

while the phase angle encodes its hue. We choose to

represent the chrominances of the images by two real

vectors of singular-values σ

, σ

respectively for X

and Y

. At this point, an obvious candidate measure

which satisﬁes the three aforementioned axioms, for

two complex matrices X, Y is:

k(X, Y) =

, σ

+ ε

(2)

where ε is a small number to prevent numerical in-

stability due to low values. This strategy is essen-

tially analogous to the one described in (Wang et al.,

2008), in which the authors associate images to vec-

tor of singular values of matrices with quaternionic

quantities of the form Var

+iR

+ jG

+kB

, whose

components are respectively the local variance, and

the RGB values at the location p. Their measure can

be regarded as an alternative for SSIM and works with

color images too; nonetheless it is computationally

less efﬁcient and it does not offer the ﬂexibility to di-

rectly assign different importances to each single type

of degradation. This has been shown to be critical

in (Vansteenkiste et al., 2006) for modeling correctly

the perceived image quality, and it has been proba-

bly one of the causes for giving inconsistent quality-

scores in our experiments. However a deep investi-

gation regarding the actual performance of our mea-

sure against the others found in literature, remains

out of the scope of this paper. Our proposed mea-

sure k(X, Y) can be multiplied by the right term in (1)

yielding:

CSSIM(X, Y) = SSIM(x

, y

)[k(X

, Y

)]

(3)

The parameter δ is a real exponent needed to adjust

the importance of color consistency in relation to the

other factors in (1). In our experiments we set ε =

0.001, and δ = 12, and use (3) to assess perceptual

quality of denoised/demosaicked color images.

6 EXPERIMENTS

We performed two experiment sessions in relation to

the type of noise considered. In the ﬁrst one we ap-

plied artiﬁcially added noise, while for the second

one, real noisy RAW images were used.

The 23 images from the Kodak database were

down-sampled according to the structure of the Bayer

pattern. They were successively degraded with addi-

tive Gaussian noise, and ﬁnally denoised and demo-

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

170

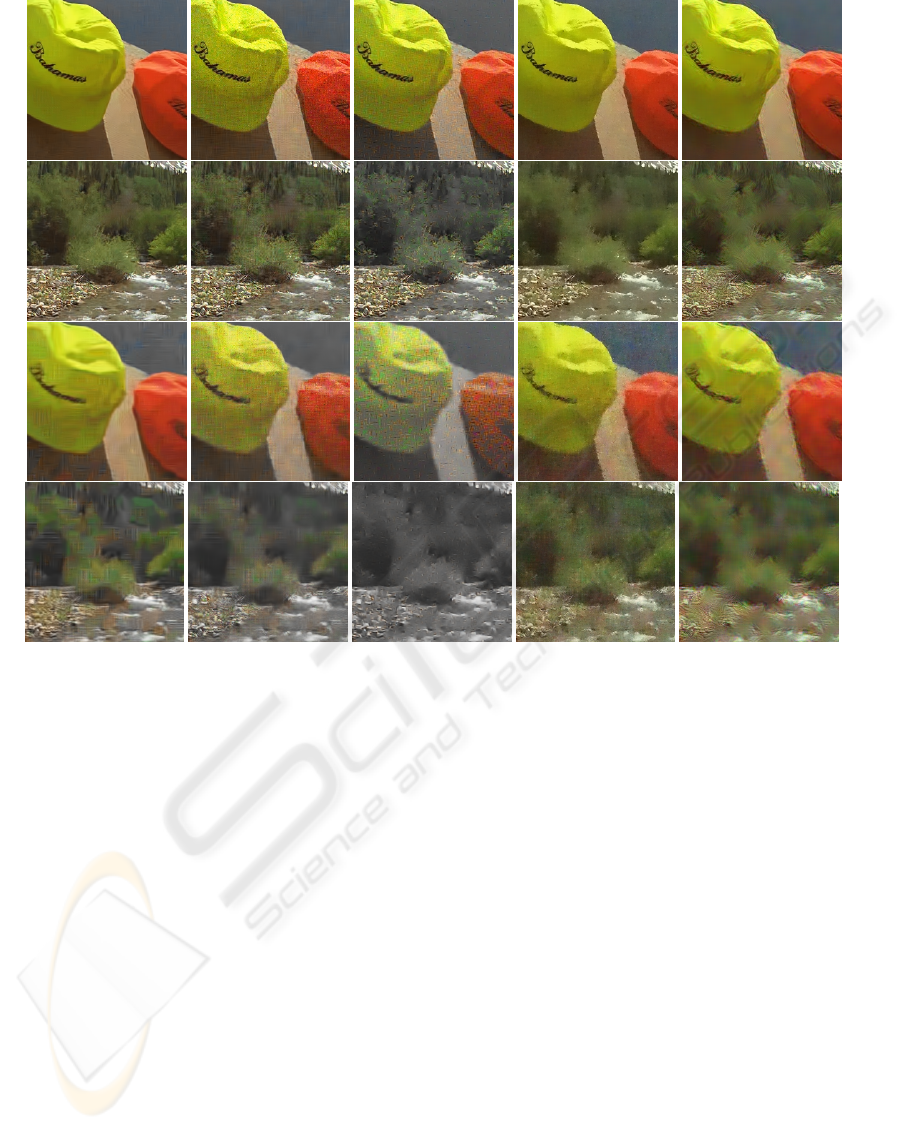

Figure 2: Images corrupted with additive Gaussian noise (σ = 20: ﬁrst two rows, σ = 50: last two rows) and denoised with

(from left to right) BM3D, SA-DCT, BLS-GSM, LPA-ICI (Oracle- Γ), Hirakawa’s method.

saicked. The availability of ground-truth images en-

ables us to compare objectively the performances in

terms of PSNR, Mean-SSIM, and Mean-CSSIM. The

noise levels considered correspond to σ = 5k, with

k = 1..10. When using the Mean-SSIM only the lu-

minance channel is taken into account.

The real noisy Bayer images were denoised with

all the methods previously listed. The noise parame-

ters related to the speciﬁc model of the camera sen-

sor used were not known; as a consequence, for most

denoising methods the noise parameters were manu-

ally calibrated in order to obtain the best visual result,

while the method-speciﬁc parameters were left to the

default values. The images did not have correspond-

ing ground truth, hence they were evaluated only sub-

jectively.

7 DISCUSSION

We report, for each value of σ, the corresponding

mean performance of the denoising methods, ob-

tained by averaging the resulting PSNR’s, SSIM’s and

CSSIM’s of the whole set of images (Figure 1). A

quick analysis of the plots, immediately reveals that

there are several inconsistencies between the three

measures. In fact, the Mean-SSIM suggests that for

all the noise levels, the three separate approaches are

always better than the joint-algorithms. However a

visual inspection revealed that when the amount of

noise increases, the BM3D, SA-DCT and BLS-GSM

fail in rendering correct color tones (see Figure 2).

In this sense, the worst performance is reached by

the BLS-GSM, which produces almost totally desatu-

rated images. We regard such results as unacceptable,

and this fact is indeed reﬂected by the plot related to

the CSSIM, in which the quality factor of the BLS-

GSM immediately drops to very low values, as ob-

served.

EVALUATION OF DENOISING METHODS WITH RAW IMAGES AND PERCEPTUAL MEASURES

171

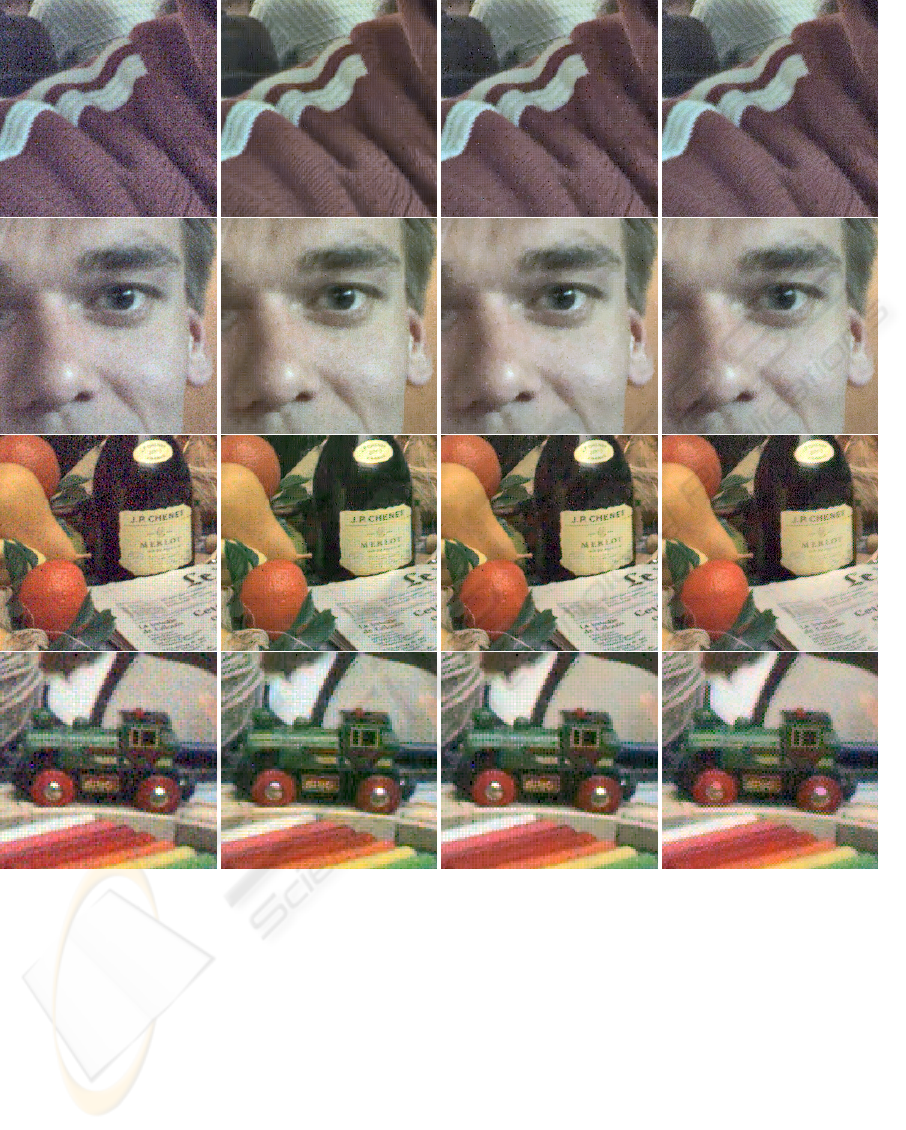

Figure 3: Details of real noisy RAW images and denoised counterparts. (From left to right) Noisy input; denoised with

BM3D; with LPA-ICI; with Hirakawa’s method.

Another interesting observation is that according

to the Mean-CSSIM, the joint approach proposed in

(Paliy et al., 2007), for amounts of noise larger than

σ ≈ 32 and σ ≈ 45, respectively performs better than

SA-DCT and BM3D, ranking as the best method for

critical degradations. In the same scenario the PSNR

classiﬁes the BM3D always as the best method, al-

though it clearly yields images that are spoiled by

the introduction of vertical and horizontal structures

and suffer color desaturation. On the contrary the

CSSIM Index indicates the LPA-ICI be the most ef-

fective. The analysis for lower amount of noise is

more delicate. In fact, when the noise level approx-

imately reaches σ ≈ 20 there is an interesting dis-

agreement between the two measures. According to

the PSNR, the LPA-ICI starts to outperform the SA-

DCT, while the Mean-CSSIM Index still suggests that

the SA-DCT is yielding more perceptually accurate

results. As a matter of fact, the SA-DCT still suc-

ceeds in restoring high frequency details, which in-

stead are lost after applying the LPA-ICI. Nonetheless

when the image contains fairly large homogeneous

regions, the LPA-ICI works better, since the images

produced by the SA-DCT are impaired by visible ar-

tifacts, and look unacceptable (see Figure 2). Both

measures agree in classifying the BM3D as the best

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

172

method for lower noise conditions.

Figure 3 shows some details extracted from the

real-noisy images. Results obtained with BLS-GSM

and SA-DCT are omitted, as they introduced an unac-

ceptable amount of artifacts. The joint approach pro-

posed in (Hirakawa and Parks, 2006) performs rea-

sonably well, however it has the tendency to introduce

zipper artifacts, blurriness (especially in highlight re-

gions), and in some cases fails in preserving high fre-

quency details. More difﬁcult is the comparison be-

tween the BM3D and the joint approach LPA-ICI: the

former is obviously the best in restoring the details

which were present in the original image; on the other

hand the results suffers from the presence of artifacts,

which are anyhow usually tolerable. The latter ap-

proach instead, produces almost artifacts-free images,

but images lack of details where instead the BM3D

performed well; also a considerable amount of noisy

grain is still present. We believe that, in this experi-

ment session, where the noise amount was not drastic,

the BM3D yielded the most satisfactory results. We

shall conclude that in general, for higher noise levels

the joint approach LPA-ICI performs best, while for

lower noise levels the Block-Matching 3D is prefer-

able.

8 CONCLUSIONS

We compared several solutions for noise removal with

RAW images, and evaluated their performances based

on the quality of the demosaicked output images.

Both joint denoise-demosaic, and separate (denoise,

then demosaic) approaches were considered. The

methods have been selected among the state-of-the-

art ones, both in terms of PSNR and perceived qual-

ity. Also, one state-of-the-art demosaicking method

was used whenever it was necessary to demosaic a

previously denoised image. Two different kinds of

comparisons were carried out: one with 23 high-

quality images (Kodak database), which were artiﬁ-

cially degraded, and another one with 10 RAW im-

ages, corrupted by real noise. In the former case the

ground-truths were available. We adopted as quality

measures, the PSNR, the Mean-SSIM-Index, and our

extension to the SSIM-Index for color images (the

CSSIM-Index). We showed how the proposed mea-

sure behaves in satisfactory agreement with the per-

ceptual subjective quality. We also concluded that

among the method considered, the joint approach pro-

posed in (Paliy et al., 2007) is preferable when the

image is severely impaired by noise, while the Block-

Matching-3D is preferable when the amount of noise

is reasonably low. We ﬁnally conﬁrmed this fact, by

visually inspecting the denoised RAW images which

were originally degraded by real noise. We believe

that our work can shed more light on which are the

most promising research directions for further im-

provements in RAW image denoising.

ACKNOWLEDGEMENTS

The authors would like to thank Nokia Corporation

for providing the set of noisy RAW images.

REFERENCES

Dabov, K., Foi, A., Katkovnik, V., and K.Egiazarian (2006).

Image denoising with block-matching and 3d ﬁltering.

In Proc. SPIE Electronic Imaging 2006.

Foi, A., Dabov, K., Katkovnik, V., and Egiazarian, K.

(2006). Shape-adaptive dct for denoising and im-

age reconstruction. In Proc. SPIE Electronic Imaging

2006.

Hirakawa, K. and Parks, T. W. (2006). Joint demosaicing

and denoising. In IEEE TIP August 2006.

ISIT (2007). Recent trends in denoising tutorial. htpp:

//www.stanford.edu/

slansel/tutorial/.

Kurimo, E., Lepisto, L., Nikkanen, J., Gren, J., Kunttu, I.,

and Laaksonen, J. (2009). The effect of motion blur

and signal noise on image quality in low light imag-

ing. In Proceedings of SCIA2009.

Li, X., Gunturk, B., and Zhang, L. (2008). Image demosaic-

ing: a systematic survey. In Visual Communications

and Image Processing 2008.

Paliy, D., Katkovnik, V., Bilcu, R., Alenius, S., and Egiazar-

ian, K. (2007). Spatially adaptive color ﬁlter array

interpolation for noiseless and noisy data. In Int. J.

Imaging Sys. Tech., Sp. Iss. Appl. Color Image Pro-

cess., vol. 17, no. 3, pp. 105-122.

Portilla, J., Strela, V., Wainwright, M., and Simoncelli, E. P.

(2003). Image denoising using scale mixtures of gaus-

sians in the wavelet domain. In IEEE Transactions on

Image Processing. vol 12, no. 11, pp. 1338-1351.

Vansteenkiste, E., van der Weken, D., Philips, W., and

Kerre, E. (2006). Perceived image quality measure-

ment of state of the art noise reduction schemes. In

ACIVS06. Springer DOI Link 0609.

Wang, Y., Liu, W., and Wang, Y. (2008). Color image

quality assessment based on quaternion singular value

decomposition. In cisp, vol. 3, pp.433-439, 2008

Congress on Image and Signal Processing.

Wang, Z., Bovik, A. C., Sheikh, H. R., and Simoncelli, E. P.

(2004). Image quality assessment: From error visibil-

ity to structural similarity. In IEEE Transactions on

Image Processing, vol. 13, no. 4, Apr. 2004.

EVALUATION OF DENOISING METHODS WITH RAW IMAGES AND PERCEPTUAL MEASURES

173
