STRUCTURE FROM MOTION OF LONG VIDEO SEQUENCES

Siyuan Fang and Neill Campbell

Department of Computer Science, University of Bristol, Bristol, U.K.

Keywords:

Camera pose estimation, Sparse 3D structure reconstruction, Bundle adjustment.

Abstract:

In this paper we introduce an approach for “Structure from Motion” from long video sequence. Our approach

starts from an initialization of ﬁrst several frames and adopts an incremental strategy to allow more frames

to be added into the SFM system. The main contribution lies in that we introduce an update propagation

to modify the entire SFM system to accommodate changes brought by the local bundle adjustment applied

to newly added frames. With this step, our approach gains a signiﬁcant accuracy improvement at a cost of

relatively small extra computation overhead.

1 INTRODUCTION

This paper presents a structure from motion approach

for long video sequences with ﬁxed intrinsic camera

parameters. The term “Structure from motion” (SFM)

(Hartley and Zisserman, 2004) refers to the process of

automatically recovering camera parameters and re-

constructing the 3D scene structure from recorded 2D

images. It has been a central issue of computer vision

for decades and there are many implemented systems

(2d3, 2000; Digi-lab, 2005). Many applications of

SFM can be found in different ﬁelds, such as image-

based rendering , virtual reality and stereo.

Most SFM algorithms are based on point cor-

respondence form different views, from which the

epipolar geometry, e.g., the fundamental matrix for

two-views, can be extracted. A projective reconstruc-

tion of camera parameters can be calculated from the

epipolar geometry, which is then upgraded to a metric

one using the intrinsic camera parameter. Once cam-

eras are recovered, 3D points can be constructed us-

ing the triangulation. Up to this stage, we are given a

very coarse estimate, upon which a further optimiza-

tion is required to minimize the reprojection error. For

normal pinhole cameras, the most common optimiza-

tion approach is the bundle adjustment (Triggs et al.,

1999), which minimizes reprojection errors by simul-

taneously reﬁning the 3D structure and cameras in

a non-linear style. The bundle adjustment requires

an initialization for following iterative adjustments.

Currently, most bundle adjustment algorithms are im-

plemented using the Levenberg-Marquardt method

(Hartley and Zisserman, 2004; Lourakis and Argy-

ros, 2009), which, compared to the traditional Gauss-

Newton method, is faster and less sensitive to poor

initial estimates. However, a good initialization is still

of great importance, because it can provide a faster

convergence for the iteration process, and more cru-

cially, in some cases, it can even determine the suc-

cess of the bundle adjustment.

For long sequences, the reconstruction usually

starts from several reference frames, and an incremen-

tal mechanism is necessary to allow more views to

be added into the current system. As the sequence

length increases, the accumulated error may cause

the initial estimate far away from the real one, and

therefore, provide the bundle adjustment a poor ba-

sis. To solve this problem, one may suggest perform-

ing the the bundle adjustment over all frames so far

handled at each increment step. However, the bun-

dle adjustment is computationally expensive. Accord-

ing to (Shum et al., 1999), the complexity of each it-

eration of bundle adjustment is O(m · n

), where m

is the number of 3D points and n is the number of

frames. To improve the efﬁciency, it is desired to

reduce the number of fames involved. For the in-

cremental SFM system, the local bundle adjustment,

which restricts the reﬁnement to only several frames

around the currently added one, is preferable (Zhang

and Shan, 2003; Mouragnon et al., 2009; Zhang et al.,

2007).

This paper aims to deliver a robust incremental

361

Fang S. and Campbell N. (2010).

STRUCTURE FROM MOTION OF LONG VIDEO SEQUENCES.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 361-366

DOI: 10.5220/0002836203610366

 SciTePress

SFM approach, which supplies a good starting point

for global bundle adjustments. In addition, such a in-

cremental system itself is useful in many applications.

Imagining the case that a global bundle adjustment is

not affordable due to the efﬁciency requirement, an

incremental SFM approach which can provide a re-

sult with almost the same precision is really needed.

The local bundle adjustment is adopted in our ap-

proach for incrementally expanding the current recon-

struction. A problem arising is that the local bundle

adjustment of each expansion step might change the

existing reconstruction. Obviously these changes will

bring extra errors to the previous reconstruction. And

more importantly, with increasing sequence length,

these relatively small changes can be accumulated to

a sufﬁcient amount that invalidate the previous recon-

struction. In this case, the incremental algorithm is

at risk of losing the basis for further expansion. To

alleviate this problem, we adopts an update propaga-

tion method, which modify the entire reconstruction

to cater for changes brought by the local bundle ad-

justment. Compared to the pure local bundle adjust-

ment, our approach is clearly slower due to the extra

expense of the update propagation, but gains a signif-

icant accuracy improvement.

In this paper, we assume the intrinsic parameter of

the camera is known and ﬁxed, i.e., we will not deal

with the self-calibration problem.

The rest of this paper is organized as: Section

2 introduces some math notations used in this paper

and presents an overview of our approach. Section

3 describes how the reconstruction is initialized from

reference frames. Section 4 introduce our incremen-

tal method for reconstruction expansion. Section 5

presents the results. Section 6 concludes this paper.

2 THE FRAMEWORK

We ﬁrst introduce the math notation used throughout

this paper. Suppose we are given a sequence with n

frames: {I

}

n−1

. For each I

, the corresponding cam-

era is modeled by the intrinsic parameter K, which is

a 3 ×3 up-triangle matrix, (we assume K remains un-

changed across the frame), and the extrinsic param-

eter [R

| t

], where R

is a 3 × 3 orthonormal rota-

tion matrix and t

= (tx

,ty

,tz

) is a translation vec-

tor. The projection matrix of such a camera is that:

P = K · [R

| t

To reduce the parameter number, the rotation of

each camera can be described by its Euler angle:

= (α

, β

, γ

). In this case, the camera C

is parame-

terized by a 6-vector: C

= (α

, β

, γ

,tx

,ty

,tz

). The

projection of a 3D points X

= [x

, y

, z

]

onto a 2D

image by C

can be expressed by a non-linear func-

tion Θ such that: Θ(C

, X

For a sequence to be reconstructed, sparse points

are matched consecutively, i.e., I

against I

, I

against I

and etc. The point matching is based on cer-

tain feature tracking techniques, (we have tried bother

SIFT (Lowe, 2004) and KLT points (Shi and Tomasi,

1994)). The Random Sample Consensus (RANSAC)

algorithm is used to ﬁt the fundamental matrix that

encapsulates the epipolar constraint. Therefore, the

track of a point can be lost in a given frame for two

reasons: there is no matched point or the match does

not conform to the epipolar constraint. For each track,

a 3D point can be constructed if corresponding cam-

era parameters are known.

If the camera moves slowly, we resample the se-

quence to select some keyframes that have wider

base-lines. In addition, since information contained

in a long track is more reliable than a short one. We

only consider tracks that are not shorter than certain

minimal track length (T ). T is usually set to be 3

keyframes.

The reconstruction process is initialized from ﬁrst

several frames. Then more frames are added incre-

mentally to expand the current reconstruction. Each

expansion is accomplished by two steps: 1. Firstly,

the local bundle adjustment is performed over several

neighbouring frames around the newly added frames.

2. Then, the update brought by the local bundle ad-

justment is propagated to the entire reconstruction.

After all frames are processed, if the remaining re-

projection error is still large, an optional global bun-

dle adjustment is applied to reﬁne the result. Finally,

Cameras of non-keyframes are calculated based on

the reconstructed 3D points, if the sequence has been

resampled.

3 RECONSTRUCTION

INITIALIZATION

The ﬁrst (0

) frame is always selected as the refer-

ence frame, such that R

= I and t

= 0. We select

the ﬁrst s (s ≥ 3) frames to initialize the reconstruc-

tion. The length of s is based on how many tracks

can be seen from both the 0

and the i

(0 < i < s)

frame. The minimal number of such tracks is set to

30. For each of non-reference initialization frames,

its fundamental matrix against the reference frame F

is discovered based on inlier matches. With the intrin-

sic matrix K, the epipolar constraint can be upgraded

from the fundamental matrix to an essential matrix E

= K

· F

· K.

Then, the essential matrix is decomposed into an

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

362

orthonormal matrix corresponding to the rotation ma-

trix and a skew-symmetric matrix corresponding to

the translation vector:

= [t

]

(1)

The decomposition is implemented using the

singlular value decomposition (SVD), which returns

two twisted conﬁgurations of R

and two reﬂected

conﬁgurations of t

, therefore in total four combina-

tions. To remove the ambiguity, these four conﬁgura-

tions are tested with a single reconstructed 3D point to

make sure that such a point is in front of both the 0

and i

camera (Hartley and Zisserman, 2004). Once

the rotation matrix is computed, its corresponding Eu-

ler angle ω

can be extracted.

Since translation vectors achieved from the above

process are normal vectors that only parameterizes di-

rections, relative scales have to be discovered. We de-

ﬁne the translation between the 0

and 1

camera as

a reference scale. The following scale of translation

can be determined using the 3D points triangulated

from the 0

and 1

camera. Suppose that the x

i j

the observed 2D point of the projection from j

point onto the i

frame, the problem of determining

the scale l is formulated into a linear Least Squares

estimation: A · l = B. Each visible X

provides two

linear functions:



((K ·t

)

− u

i j

· (K · t

)

((K ·t

)

− v

i j

· (K · t

)



| {z }

·l =



i j

· (K · R

· X

)

− (K · R

· X

)

i j

· (K · R

· X

)

− (K · R

· X

)



| {z }

(2)

where ()

denotes the i

row of a matrix. The

linear system is solved by SVD.

After all the initialization frames are processed,

tracks falling into this segment are selected to con-

struct the corresponding 3D points using the linear

DLT triangulation (Hartley and Zisserman, 2004).

Then the bundle adjustment is applied to guarantee

an accurate initialization. Suppose that the Euclidean

distance between the observed image and the repro-

jected point from the estimated X

and C

is denoted

by d(x

i j

, Θ(C

, X

). Assuming that, so far, we have

been given s frames and m

3D points (or tracks). The

goal of the bundle adjustment is to ﬁnd an optimal

estimation that has the maximal likelihood given the

observed data, in other words, minimizes the sum of

distances between the observed 2D points and the 2D

points predicted by the estimation, speciﬁcally:

min

}

s−1

,{X

}

−1

∑

j=0

s−1

∑

i=1

d(x

i j

, Θ(C

, X

))

(3)

There are in total 6 ∗ (s − 1) + 3 ∗ m

parameters

involved in the minimization, as we assume the ref-

erence frame is ﬁxed. It is usually not reliable to

initialize from only ﬁrst several frames. In practice,

we make use of more frames s

, which can be cho-

sen based on the total length of the sequence, say

The reconstruction is extended from s to s

using the

expansion strategy presented in the next section.

4 RECONSTRUCTION

EXPANSION

Suppose that frames from I

to I

i−1

has been pro-

cessed, so that the corresponding cameras C

to C

i−1

are recovered and a set of 3D points are reconstructed.

The new frame I

is added into the current SFM sys-

tem. We initialize the camera C

using the previously

reconstructed 3D points that are visible in I

. Suppose

that there are m

such 3D points, the cost function for

calculating C

is that:

min

−1

∑

j=0

d(x

i j

, Θ(C

, X

))

(4)

For each expansion step, we add into the SFM sys-

tem h new frames. h varies according to how many

3D points can be seen in the newly added frame.

The minimal visible 3D points are usually set to be

= 30. For the local bundle adjustment, an over-

lapping number o is chosen to set how many previ-

ously recovered cameras are involved in the current

reﬁnement, i.e., the local bundle adjustment is per-

formed over frames {I

i−o

, ..., I

i−1

, ..., I

i+h−1

}. In order

to maintain information from previous reconstruction,

the ﬁxation number f ix is set to prescribe how many

frames starting from I

i−o

should keep unchanged in

the current local bundle adjustment (2 ≤ f ix ≤ o).

3D points that have been reﬁned by the current lo-

cal bundle adjustment can be divided into two groups:

those have been previously reconstructed and can be

seen from frames {I

, ..., I

i−o−1

}, which is denoted by

V , and those cannot. For the former, changes brought

by the local bundle adjustment have to be propagated.

For each frame falling in {I

, ..., I

i−o−1

}, we check if

there is a 3D point from V is visible in that frame.

If so, we reﬁne the corresponding camera C using 4.

The minimization process takes the current parameter

as the initial guess. An illustration of this process is

presented in Figure 1.

After cameras of all the affected frames haven

been updated, a further reconstruction of all 3D points

that have been involved so far is introduced, such that:

min

}

m−1

∑

j=0

i+h−1

∑

i=1

d(x

i j

, Θ(C

, X

))

(5)

STRUCTURE FROM MOTION OF LONG VIDEO SEQUENCES

363

(a) The Crow.Rd sequence

(b) The Ofﬁce sequence

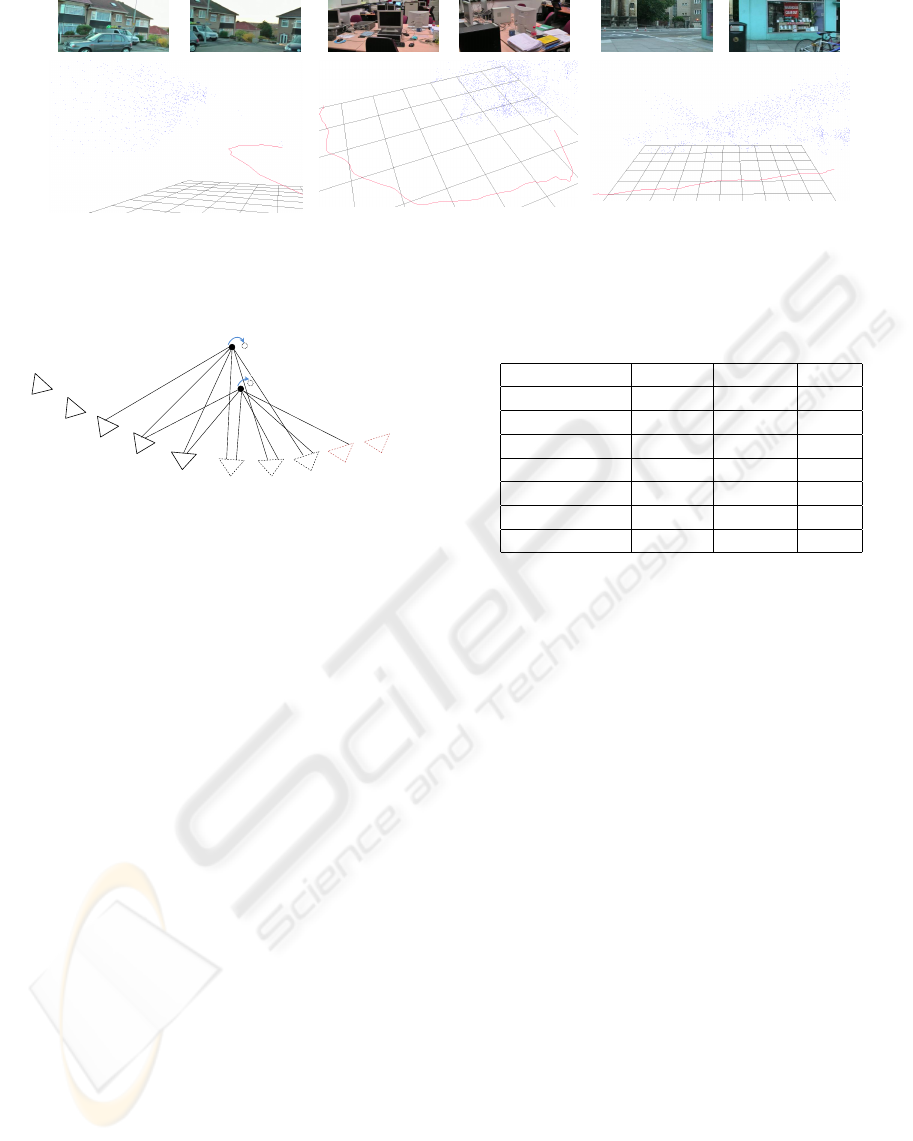

Figure 2: Example frames of testing sequence and visualizations of reconstructed 3D points and cameras.

Ii-o-1

o111

Ii-o

Ii-h+1

Ii- 1

Ii-o-2

Ii-o-3

Figure 1: Illustration of the local bundle adjustment and

update propagation: Newly added cameras are denoted by

red dashed lines and camera involved in current local bun-

dle adjustment are denoted by dashed line. Suppose that

the previously constructed 3D points X

and X

are updated

due to the current local bundle adjustment, X

is visible in

i−o−3

, I

i−o−2

and I

i−o−1

, X

is visible in I

i−o−2

and I

i−o−1

Therefore, these cameras have to be updated.

(Steedly and Essa, 2001) proposes an approach in

a similar style to incorporate updates brought by new

frames. However, we are more concerned with the lo-

cal information propagation, rather than achieving a

global minimum for each expansion step. As men-

tioned above, after cameras of affected frames are

solved, we reconstruct 3D points assuming that all

camera parameters are optimized. Compared to the

section-resection framework that alternates between

the process of camera parameters estimation and 3D

reconstruction (Mahamud et al., 2001), this is concep-

tually equivalent to forcing such process to stop at that

moment, otherwise our update propagation will be-

come another global bundle adjustment. Indeed, we

will show in Section 5 that this will not incur a large

precision lost.

5 EXPERIMENTS

Our SFM system is implemented using the C++ pro-

gramming language on the WindowsXP platform.

The experiment is conducted on a desktop PC with In-

Table 1: Statistics of test sequences.

Crow.Rd Pkway.St Ofﬁce

Frames N 810 227 672

Keyframes N 73 75 112

Tracks (3D pts) N 1712 2020 2784

Projection N 12496 16135 22441

Overlapping (o) N 5 8 5

Fixation ( f ix) N 5 6 5

Initialization (s

) N 15 15 22

tel Pentium 2.40 GHz CPU and 1.50GB RAM mem-

ory.

Three video sequences are used as our testing

data. The Crowther Road sequence is captured around

a corner of a living neighborhood of Bristol with

a hand-held camera. The Parkway street sequence

captures a business street of Bristol with a camera

mounted on a moving vehicle and The Ofﬁce se-

quence ﬁlms scenes of our ofﬁce with a hand-held

camera. All these three sequences are not closed.

Statistics of these three sequence are presented in Ta-

ble 1. Reconstructions are visualized (using our 3D

visualizer) in Figure 2 together with some example

input frames.

To show the strength of our incremental approach

(local bundle adjustment plus update propagation),

we compare our result with those of pure local bun-

dle adjustment and global bundle adjustment. For

simplicity, these three approaches are denoted as

LBA+UP, LBA, and GBA respectively. For compari-

son, we consider two facts, the accuracy and the com-

putation cost, which are used to demonstrate that with

a relatively small expense, our LBA+UP approach is

much more robust than the LBA approach, and some-

times it is even comparable with the GBA approach.

In addition, for showing that our LBA+UP is able to

provide a more solid basis for a ﬁnal GBA, we also

compare results of two types of GBA, one takes the

traditional LBA result as the initial estimate, and the

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

364

Table 2: Comparison results of different approaches.

RMSE (pixel) Time (Second) RMSE of GBA

based on LBA

LBA LBA+UP GBA LBA LBA+UP GBA

Crow.Rd 2.11884 0.906058 0.794769 124.772 170.519 400.033 1.62013

Pkway.St 3.36435 0.898319 0.568826 176.262 247.37 355.945 1.36299

Ofﬁce 1.86079 0.745086 0.663738 133.615 238.804 591.199 0.671995

(a) (b) (c)

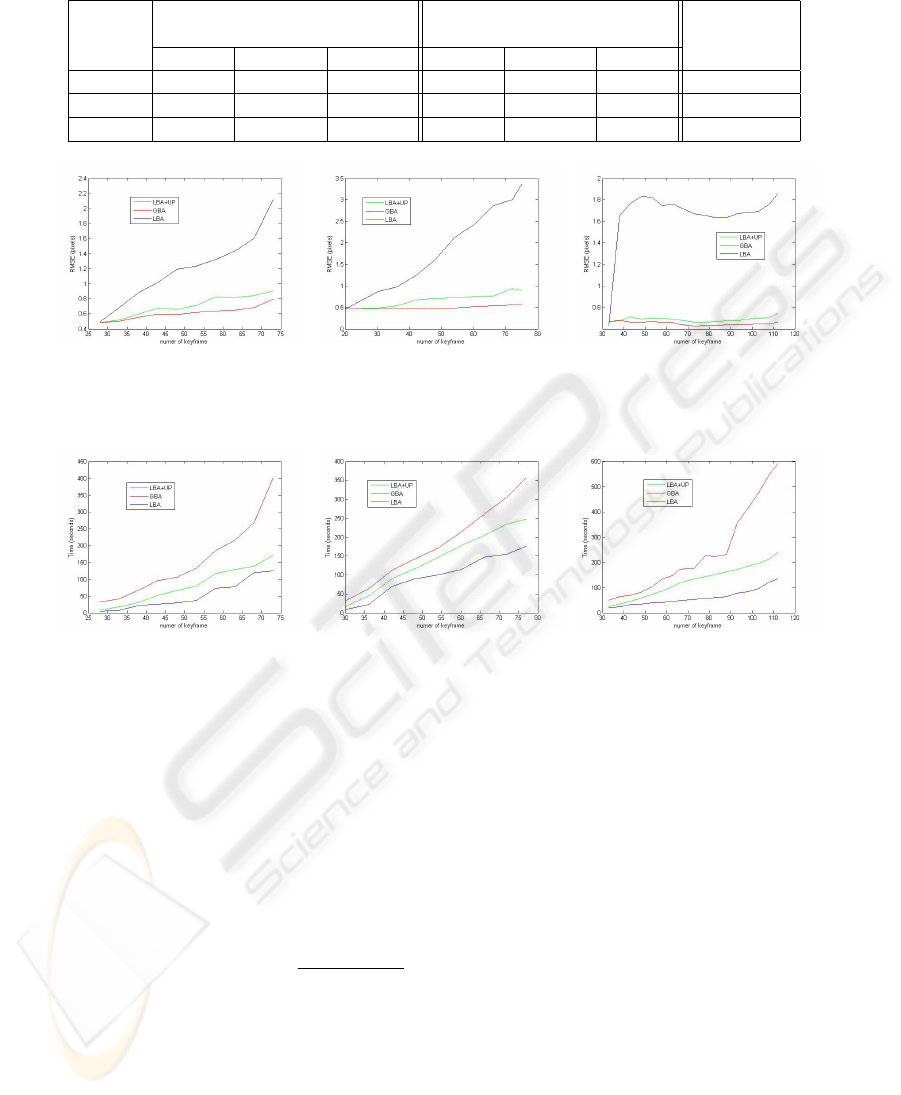

Figure 3: Visualization of how accuracy varies with the increasing keyframe number. From left to right: the Crow.Rd, the

Pkway St and Ofﬁce.

(a) (b) (c)

Figure 4: Visualization of how computation cost varies with the increasing keyframe number. From left to right: the Crow.Rd,

the Pkway St and Ofﬁce.

other takes our LBA+UP result as the initial guess.

For each sequence, experiments are carried out with

the same parameters, such as the overlapping segment

length (o), the ﬁxation number f ix, the initialization

length s

, and other arguments like stopping condi-

tions of the bundle adjustment.

Since there is no ground truth available, the re-

projection error is used to measure the accuracy. The

reproejction error is expressed by the Residual Mean

Squared Error (in pixels): RMSE =

∑

d(x

i j

,Θ(C

))

pro j

where N

pro j

is the total number of projection. The

computation cost is measured by the time (in sec-

onds). We only record the time related to solving

cameras and 3D points, as the efﬁciency of feature

tracking is not considered in this paper.

Table 2 presents comparison results, from which

it can be seen that: for long sequences, the perfor-

mance of pure LBA is not reliable, while the accu-

racy of our LBA+UP approach is quite close to the

GBA (here it takes the result of LBA+UP as the ini-

tial guess). Although our LAB+UP would bring some

extra overhead, compared to the GBA, it still saves a

lot of time. Considering the high precision improve-

ment, we would say that it is worth of accepting such

relatively small efﬁciency lost.

In addition, we also present the RMSE of GBA

that takes the LBA as its initial guess, (the last column

of Table 2). Compared to that based on the LBA+UP

(the third column), we can see that our approach pro-

vides a much better starting point for the GBA.

Figure 3 and 4 visualize how those compari-

son statistics changes with the increase of sequence

length. It is can be observed that with the sequence

extended, the accuracy of LBA drops rapidly and the

computation cost of GBA grows steadily, while our

LBA+UP approach achieves a best tradeoff between

them.

STRUCTURE FROM MOTION OF LONG VIDEO SEQUENCES

365

6 CONCLUDING REMARKS

In this paper we present a new incremental SFM ap-

proach with ﬁxed intrinsic camera parameter. Apart

from the local bundle adjustment carried out for each

expansion step, we introduce an update propagation

step which modify the entire current reconstruction

system to cater for changes brought by the local ad-

justment. Experiments on real data shows our ap-

proach works much better than those with merely lo-

cal bundle adjustment, in that it is more accurate itself

and provides a better initial guess for the global bun-

dle adjustment.

ACKNOWLEDGEMENTS

The author would like to thank Mr Mosalam Ebrahimi

for his insight discussion on implementing the SFM

system.

REFERENCES

2d3 (2000). Boujou. http://www.2d3.com.

Digi-lab (2005). The Voodoo Cam-

era Tracker. http://www.digilab.uni-

hannover.de/docs/manual.html.

Hartley, R. and Zisserman, A. (2004). Multiple view geom-

etry in computer vision. Cambridge University Press,

2 edition.

Lourakis, M. and Argyros, A. (2009). Sba: A software

package for generic sparse bundle adjustment. 36(2).

Lowe, D. (2004). Distinctive image features from scale-

invariant keypoints. 60(2):91–110.

Mahamud, S., Hebert, M., Omori, Y., and Ponce, J. (2001).

Provably-convergent iterative methods for projective

structure from motion. In Proceedings of the IEEE In-

ternational Conference on Computer Vision and Pat-

tern Recognition 2001, pages 1018–1025.

Mouragnon, E., Lhuillier, M., Dhome, M., Dekeyser, F., and

Sayd, P. (2009). Generic and real-time structure from

motion using local bundle adjustment. 27(8):1178–

1193.

Shi, J. and Tomasi, C. (1994). Good features to track. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition 1994, pages 593–600.

Shum, H., Ke, Q., and Zhang, Z. (1999). Efﬁcient bundle

adjustment with virtual key frames: a hierarchicalap-

proach to multi-frame structure from motion. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition 1999, volume 2, pages 538–

543.

Steedly, D. and Essa, I. (2001). Propagation of inno-

vative information in non-linear least-squares struc-

ture from motion. In Proceedings of the IEEE Inter-

national Conference on Computer Vision 2001, vol-

ume 2, pages 223–229.

Triggs, B., McLauchlan, P., Hartley, R., and Fitzgibbon, A.

(1999). Bundle adjustment: A modern synthesis. In

Proceedings of the International Workshop on Vision

Algorithms: Theory and Practice, pages 298–372.

Zhang, G., Qin, X., Hua, W., Wong, T.-T., Heng, P.-A., and

Bao, H. (2007). Robust metric reconstruction from

challenging video sequences. In Proceedings of IEEE

Conference on Computer Vision and Pattern Recogni-

tion 2007, pages 1–8.

Zhang, Z. and Shan, Y. (2003). Incremental motion esti-

mation through modiﬁed bundle adjustment. In Pro-

ceedings of IEEE International Conference on Image

Processing 2003, volume 2, pages 343–346.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

366
