SECURITY ANALYSIS OF TCP/IP NETWORKS

An Approach to Automatic Analysis of Network Security Properties

Miroslav Sveda, Ondrej Rysavy, Petr Matousek, Jaroslav Rab and Rudolf Cejka

Faculty of Information Technology, Brno University of Technology, Bozetechova 2, Brno, Czech Republic

Keywords: Intranet Topology, Dynamic Routing, State-based Reachability, Security, Bounded Model Checking, SAT.

Abstract: This paper deals with an approach to security analysis of TCP/IP-based computer networks. The method

developed stems from a formal model of network topology with changing link states, and deploys bounded

model checking of network security properties supported by SAT-based decision procedure. Its

implementation consists of a set of tools that provide automatic analysis of router configurations, network

topologies, and states with respect to checked properties. While the paper aims at supporting a real practice,

its form strives to be exact enough to explain the principles of the method in more detail.

1 INTRODUCTION

The paper focuses on the area of automatic analysis

of a network that consists of L3 devices (hosts,

routers, firewalls etc.) connected by links and,

optionally, with firewall rules applied on them.

Based on the network configuration and considering

dynamic behavior of the network, we can ask

questions like “Is this network protected against P2P

connections?”, “What packets can be delivered to

the given host?”, or “Is this WWW service

accessible under every configuration of the

network?”

Of course, those questions can be partially

answered by scanning and testing tools (ping,

nmap), or vulnerability assessment tools (Nessus).

However, testing can analyze the network only in

immediate state, which means in practice: for a fixed

configuration. When the topology is changed, the

response of the network can be different. In our

work we explore how security and safety properties

can be verified under every network configuration

using model checking (Clarke et al. 1999). The

model checking is a technique that explores all

reachable states and verifies if the properties are

satisfied over each possible path to those states.

Model checking requires specification of a model

and properties to be verified. In our case, the model

of network consists of hosts, links, routing

information and access control lists. After reviewing

state of the art in section 2, the specification of

network model is laid down in section 3. The next

section deals with network security properties that

are expressed in the form of modal logics formulas

as constraints over states and execution paths. If a

property is not satisfied, the model checker

generates a counterexample that reveals the state of

the network, which violates the property. If the

property is proved, it means that the property is valid

in every state of the system. Those items are

discussed in sections 5 and 6.

This paper primarily focuses on the automatic

analysis of network security properties of the

network. The challenges addressed in the paper

include: (a) automatic generation of the network

model using routers configuration files, (b) creating

templates for specification of network security

properties and (c) a combination of tools that verify

given properties over the model by model checking.

2 STATE OF THE ART

Research in the area of network security and

vulnerability detection has been conducted since the

beginning of the Internet. Many papers concentrate

on detection of vulnerabilities of hosts and their

protection against the network attack, see e,g,

(Tidwell, et al., 2001), (Zakeri, et al., 2005), or

(Shahriari and Jalili, 2005). Most work follows the

similar scheme: (i) Network is modeled as an entity

that includes hosts, connections, user privileges, OS

Sveda M., Rysavy O., Matousek P., Rab J. and Cejka R. (2010).

SECURITY ANALYSIS OF TCP/IP NETWORKS - An Approach to Automatic Analysis of Network Security Properties.

In Proceedings of the International Conference on Data Communication Networking and Optical Communication Systems, pages 5-11

DOI: 10.5220/0002838300050011

 SciTePress

types, running services, and individual

vulnerabilities of hosts; (ii) Host vulnerabilities are

revealed by external automatic tools like Nessus, or

by OVAL scanner (Ou, et al., 2005). Then, detected

vulnerabilities are expressed in the language of pre-

condition and post-condition assertions, or rules; (iii)

An important step is to determine threat tucker goal,

i.e. security violation (e.g. root access on the web

server), and in this case the goal is often expressed

by a predicate; (iv) Having these, vulnerability

analysis follows: it includes an application of

derivation rules based on the initial assumptions

(i.e., network configuration) in order to prove a

predicate (i.e., security violation) − if the predicate is

true, then the deduction path corresponds to the

possible attack scenario.

Despite the statement of authors in (Shahriari

and Jalili, 2005) that “this model lets automatically

verify and prove network safety and vulnerability

against the attack,” the method of logic deduction

and proving requires good knowledge of logics and

deductive systems, since the proof is constructive

and it is made by human.

In (Ou, et al., 2005), an automatic deduction of

network security executed in Prolog is introduced.

The authors define reasoning rules that express

semantics of different kinds of exploits. The rules

are automatically extracted from OVAL scanner and

CVE database (Mitre, 2008).

Another approach is an automatic generation of

network protection in the form of firewall rules as

shown in (Bartal, et al., 1999). The security policy is

modeled using Model Definition Language as the

first step. Then, the model of a network topology is

translated into firewall-specific configurations.

These configuration files are loaded into real devices

(firewalls).

Ritchey and Ammann in (Ritchey and Ammann,

2000) explain how model checking can be used to

analyze network vulnerabilities. They build a

network security model of hosts, connections,

attackers and exploits to be misused by the attacker.

Security properties are described by temporal logics

and verified using SMV model checker. However,

their goal is different from ours. They verify if hosts

on the stable network are vulnerable to attacks. In

our case we concentrate on dynamically changing

networks and reachability of their nodes.

Our approach is close to the work of G. Xie (Xie,

et al., 2005), and J. Burns (Burns et al. 2001). Unlike

these works we build a model that includes both

static and dynamic behavior, i.e. firewall rules and

routing information, see (Matousek, et al,, 2008). In

this model, the verification of reachability properties

can be made. In comparison to Ritchey’s work

(Ritchey and Ammann, 2000) we do not focus on

hosts vulnerability and their resistance to attacks but

on stability of services in dynamic networks. Main

contributions of this paper consists of (i) the creation

of a network transition system that models dynamic

behavior of the network, (ii) the definition of

security properties using modal logics, and (iii) the

algorithm for verification of specified properties

using bounded model checking and SAT-solver.

3 NETWORK MODEL

The aim of this section is to restate a formal model

of a network topology that allows specifying a set of

attributes for security analysis, which was originally

defined formerly and published in (Matousek, et al,,

2008). For the rest of the paper we refer to the

example of the network topology as given in

Figure 1.



f0/0

10.10.12.0/24

10.10.13.0/24

10.10.23.0/24

s0/0

s0/1

s0/0

f0/0

10.10.3.0/24

10.10.1.0/24

www

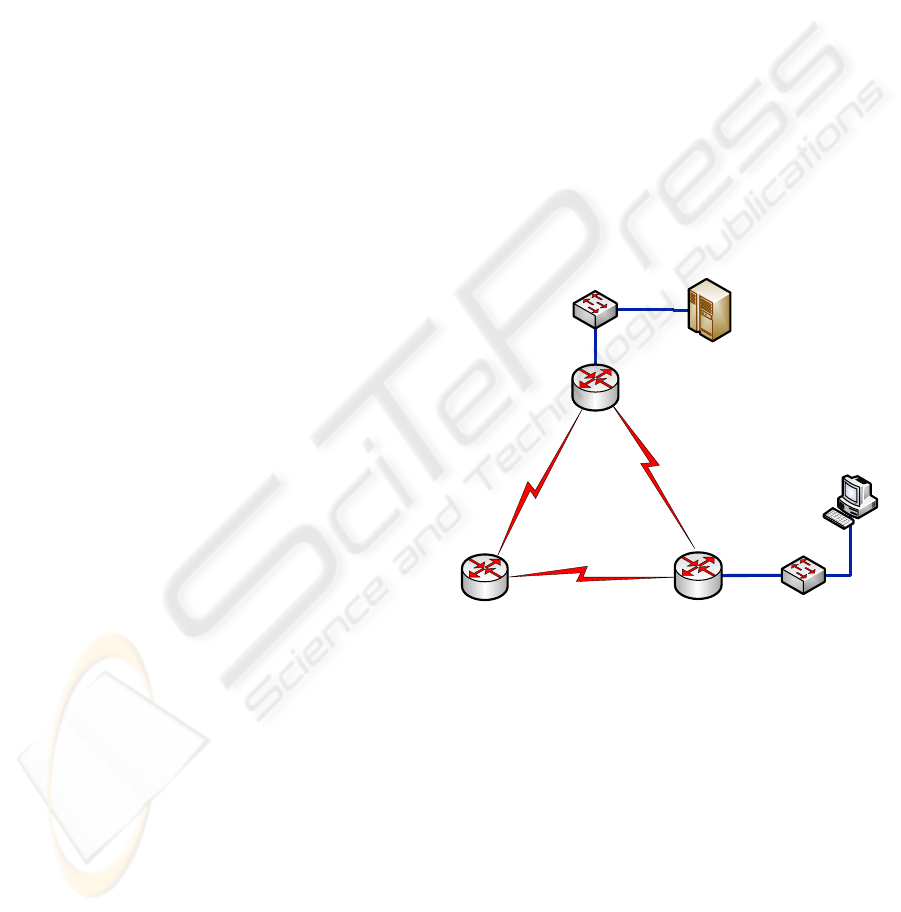

Figure 1: Example of network topology.

The abstract model of the network dealing with

routing processes and packet filtering stems from a

combination of techniques introduced in (Xie, et al.,

2005) and (Christiansen and Fleury, 2004). The

network, see Figure 2, is regarded as a directed

graph where vertices are routing devices and edges

are communication channels that form abstractions

of communication links. Each communication link is

modeled by a pair of unidirectional communication

channels. In real networks there are other network

device then routers. However, every end-point

device, such as PC or Web server, can be

represented using a router with only one interface,

DCNET 2010 - International Conference on Data Communication Networking

and one outgoing filtering rule representing routing

all traffic to default gateway.

Formally, network model, see Figure 2, is a tuple

N = ‹R

, L

, F

›, where

 R

is a finite set of network devices,

 L

⊆ R

×R

is a finite set of links between

routers, such that for every physical link

between R

, R

there is a pair of channels l

‹R

, R

›, l

= ‹R

, R

›, and

 F

= {f : P → {true, false}} is a finite set of

filtering predicates and P is a set of all possible

packets.

A filtering predicate f(p) ∈ F

is able to determine

whether a packet p is allowed to be send. This

function is defined so that it uniformly represents the

interpretation of Access Control List (ACL) and

routing table information adequate to link l. A

simple example is a filter f (p)

f (p) = ¬(p.proto = Tcp ∧ p.dstPort = 80)

that turns down all web traffic, i.e. TCP packets with

destination port 80. Note that dot notation is used to

refer to attributes of the current packet. Both ACL

and routing information of a network node can be

translated to a filtering predicate.

From the ideas mentioned above the following

conclusions can be summarized: (1) The model of a

network includes specification of hosts, their

configurations, network topology and description of

vulnerabilities; (2) The list of host vulnerabilities

and network threats can be downloaded from open

databases, or specified manually; (3) Analysis can

be made manually or automatically, based on

deductive systems or by model checkers,

respectively; (4) Results of the analysis can either

show specific vulnerabilities that require

intervention of an administrator, generate a new safe

configuration for network devices, or prove that the

property is valid under every condition of the

network.

Many papers in this area deal with static network

configuration. If network configuration or topology

changes, a model of the network has to be rebuilt.

Our approach deals with networks with dynamic

behavior. Dynamics is modeled by routing

protocols, e.g. RIP or OSPF. Our goal is to

automatically verify network security properties in a

network model. The network model is constructed

with respect to the configuration files of network

devices and the network topology.

Geoffrey G.Xie et al. in (Xie, et al., 2005) show

that routing information can be added to the static

model of the network using additional filtering rules.

These filtering rules can be changed as the state of

links is changed, so the filtering rules depend on the

actual state of the network.

Hence, the introduced formal model can be

derived automatically from configuration files of

routers. It deals only with IP addressing, and routing

and filtering rules. Other parameters and settings are

abstracted away for the sake of simplicity.

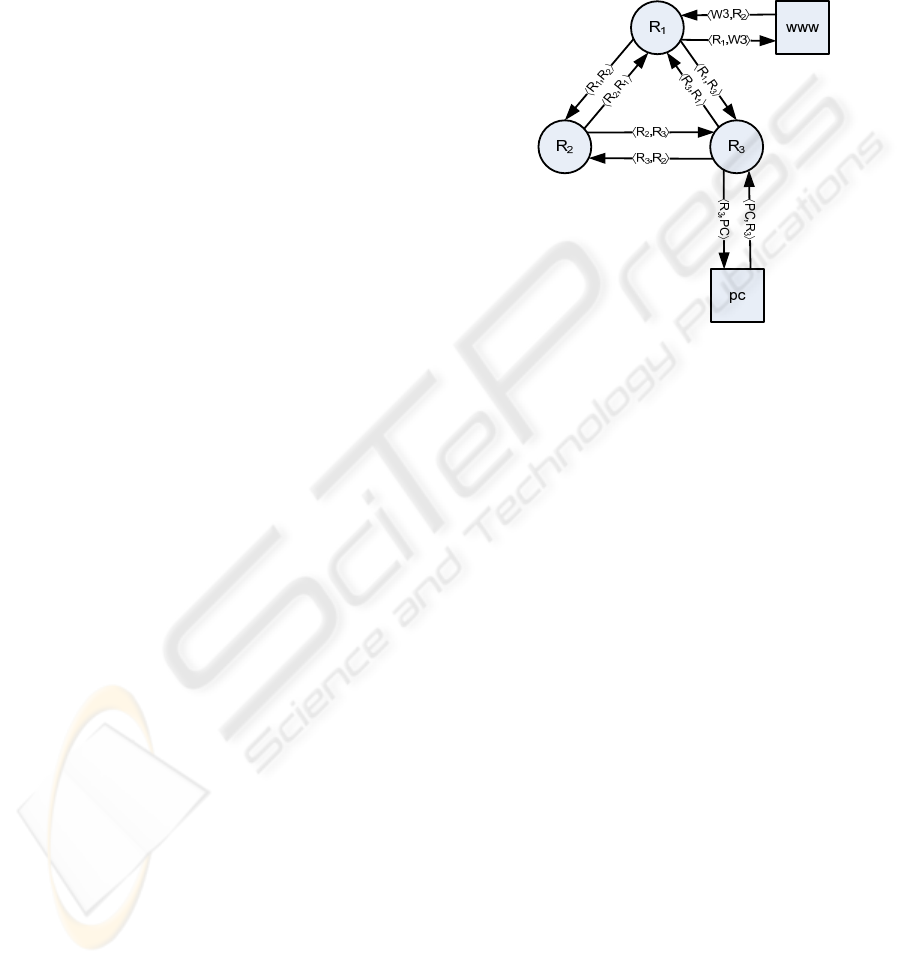

Figure 2: Network model for the example topology.

4 SECURITY PROPERTIES

Description of network security properties is related

to the classification of threats and intrusion. There

are plenty of different network security problems,

such as HTTP attacks, spam, TCP flooding, DoS

attacks, Web server misuse, spoofing and sniffing

etc.

For instance, Kumar in (Kumar, 1995) offers

classification of abstract signatures. Neumann and

Parker (Neuman and Parker, 1989) propose nine

categories of misuse techniques (external misuse,

hardware misuse, masquerading, etc.). Lindquist and

Jonsson (Lindqvist and Jonsson, 1997) describe

intrusion in two dimensions – intrusion technique

and intrusion result. On-line databases of

vulnerabilities have their own categories: CVE

(Common Vulnerabilities and Exposures) (Mitre,

2008) defines many categories like buffer errors,

code injection, configuration, credentials, cross-site

scripting, etc. Intrusion detection database Snort

(Snort, 2008) classifies violation rules mostly with

respect to applications – chat, nntp, mysql, pop,

icmp, imap, web, etc.

Our network model deals only with IP addresses

and services or ports. Therefore, the analysis does

not reflect hardware or OS attacks. We also don’t

examine the contents of TCP/UDP packets. Our

SECURITY ANALYSIS OF TCP/IP NETWORKS - An Approach to Automatic Analysis of Network Security Properties

primary goal is safety or resistance of the network

with respect to dynamic behavior of the network.

Therefore, our classification includes only basic

categories of network security properties. Since it

can utilize typical fields from IP, TCP, or UDP

headers, namely source/destination IP address and

service/port (Matousek, et al,, 2008), it allows to

specify wide range of different communications to

be analyzed in the network.

5 MODEL-CHECKING OF

SECURITY PROPERTIES

5.1 Principles of Implementation

In this subsection, a framework suitable for

implementation of a model-checking algorithm

based on the interpretation of a dynamic network as

a state system with transitions induced by changes of

link conditions is described. The employed

description language is based on propositional

modal logic (Stirling, 1992). For the computation of

the model and evaluation of properties in this model,

a representation of ACLs and routing rules in the

form of filtering predicates F

for network N is

deployed.

We define state predicates that can be interpreted

in each state of the model and state functions that

can be evaluated in each state of the model. In our

case, we use NetReach

(R) function that determines

a set of routers reachable from router R under packet

property φ. Evaluating this function in network

states s

, s

can give different results because

dynamic routing information varies with network

topology.

Putting restrictions on the path between two

routers enables, e.g., to verify if there exists a path

between two routers for Web traffic. This is called

network path under packet property. It restricts the

set of possible paths between routers to those paths

where packet property φ is satisfied on every link of

the path in network state s.

Network reachability under packet property on

the network N in network state s, NetReachs

(R), is

a set of routers reachable from router R for packet

satisfying property φ considering network state s. It

can be computed by a least fixed-point algorithm.

We use a language of modal logic to express

security properties. Modal logic allows us to reason

with validity of packet properties (protocol = TCP,

port = 80) in different network states.

A formula of modal language is interpreted in

network transition system T

. For non-modal

fragments we need to interpret atomic sentences. For

model checking analysis we define a modal model

on the network transition system T

as a pair M

‹T

, V

› where V

is a valuation assigning a subset

of T

’s states to each atomic sentence Q. Truth at a

state s of an arbitrary formula ψ under M

inductively defined using Kripke semantics.

5.2 Decision Procedure

This subsection briefly explains how to construct a

general decision procedure for modal model in realm

of the network transition system T

. The small

modal property, ◊ψ, of the logic guarantees the

decidability of the procedure that tests the

satisfiability of a formula. We adopted bounded

model checking (Biere, 2003) that limits state space

by reachability diameter. In this case, the

reachability diameter equals to the number of links

that we consider in the analysis. It means that we are

interested in checking whether the given property

holds in the given set of network states which are

limited by their distance to some initial state, e.g. we

accept at most three link failures in the analysis. The

problem of performing a full analysis, which means

to check network state for any combination of link

states (

2 ), rises exponentially with the size of the

network (number of links). Using bounded model

checking with a diameter k we can get the most

interesting results quickly as we limit the size of the

problem for a network with n links to

)1(

⋅

nk states that needs to be visited. This is

based on practical consideration because for most of

the time the network is assumed to be in the normal

state, for which we consider that all links in a

network are functioning properly and in the case of a

failure occurs it affects only a small number of

network links. Also depending on a network

topology, a larger number of link failures can lead to

a situation that some network parts will be

inaccessible. If these parts are crucial with respect to

network reachability then we can conclude without

additional computation that the property cannot be

satisfied in this state of the network. One can also

find that if even more links fail then reachability is

not resumed. From this consideration we may

conclude, that for many network properties there

exist such states in network transition system, which

allows us to reduce a state space that needs to be

explored by the variant of the method presented in

DCNET 2010 - International Conference on Data Communication Networking



1 2



www



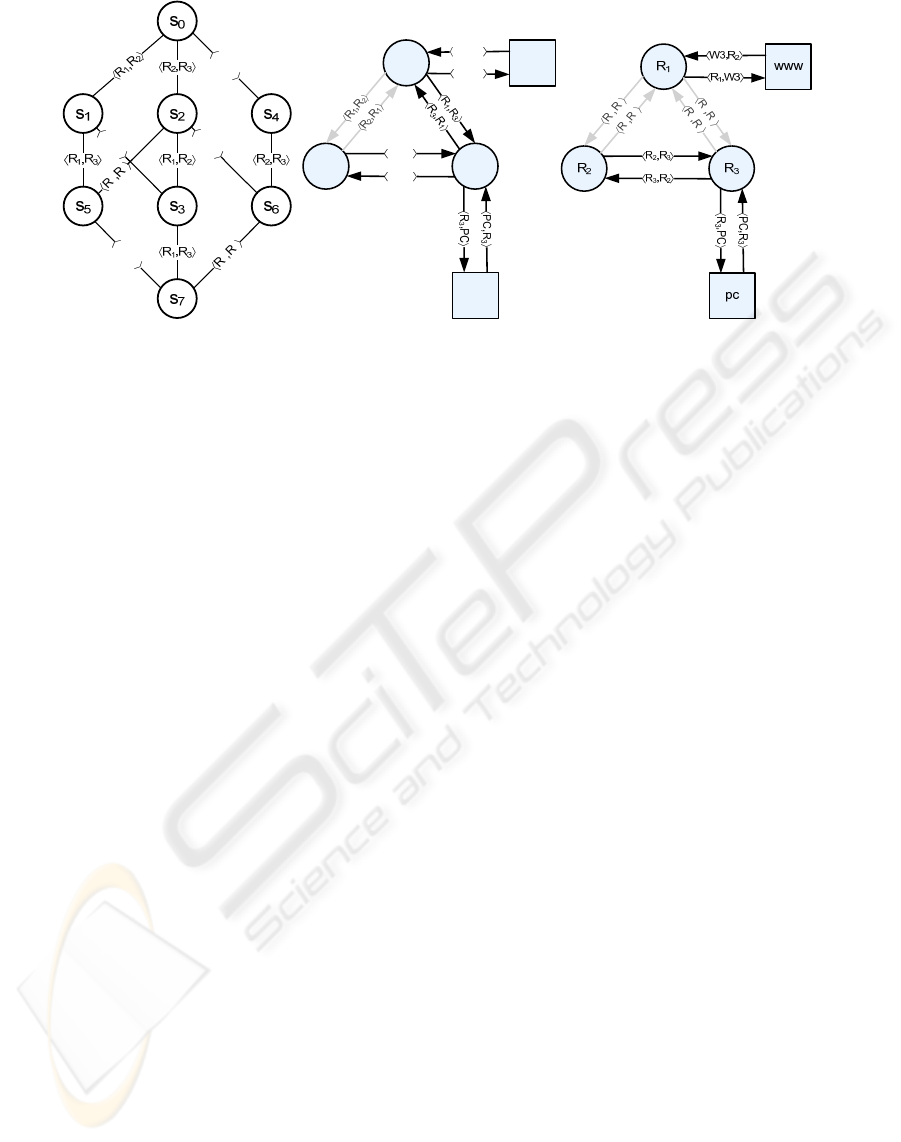

Figure 3: Example of (a) network transition system, network model in (b) state s1, and (c) state s5.

this paper that would provide an exhaustive analysis

of network reachability under packet property.

In the following, the translation of the model-

checking problem to SAT based problem is exposed.

For a modal-model M

and a modal-formula ψ,

the bound k is given by the total number of links that

may change their state. As shown above, expression

NetReachs

(R) can be evaluated in every state s. In

this case, the SAT-based decision procedure

evaluates propositional formula [[M

, ψ]]

that

consists of a propositional representation of

transition system T

and network property ψ with

standard modal interpretation:

[[M

, ψ]]

≙ [[M

]]

∧ [[ψ]]

5.3 Example

Assume the network model drawn in Figure 2,

network transition system shown in Figure 3 and

routing rules that generate filtering predicates. Then

the decision procedure that evaluates property ψ as

defined in this section works as follow. Using

Kleene’s Algorithm (see e.g. Gross and Yellen,

2004, p.66), the reachability matrix for the network

at any given state is computed. Each cell of the

reachability matrix defines a formula consisting of

filtering predicates. The formula specifies overall

filtering predicate for the whole path. Therefore, the

proposition

WWW ∈ NetReach

(PC)

is translated to

1,3

∨(f

1,2

∧f

2,3

))∧φ.

The network transition system is translated into the

following propositional formula:

↓(R

, R

) ↓(R

, R

) ↓(R

, R

) ↓(R

, R

)

M ≙ s

→ s

∧s

→ s

∧ … s

→ s

∧s

→ s

where e.g. ↓(R

, R

) means that the connection from

R1 to R2 changed its state from connected to

disconnected; hence, it is no longer available.

SAT solver takes a boolean proposition and

attempts to find a valuation of the boolean variables

such that the formula is satisfied. To allow

application of SAT solver, the predicates need to be

represented as boolean variables.

This example cannot be run without exploiting at

least a prototype model checker implemented as a

SAT-based decision procedure, and without

converters or handwork that can convert a concrete

network model and a verified property expressed as

a modal formula into the input formats required by

the employed model checker. The other possibility is

development of special tools briefly described in the

next section.

This demonstration example is discussed in more

detail in (Cejka et al., 2008).

6 IMPLEMENTATION

The first step of implementation phase, currently

realized, consisted in transforming the methods

mentioned above into the prototypes of ensuing

software tools. These prototypes enabled us to

perform case studies in order to measure and analyze

attributes of the proposed verification method. To

shorten the design phases as much as possible the

SECURITY ANALYSIS OF TCP/IP NETWORKS - An Approach to Automatic Analysis of Network Security Properties

free software libraries implementing verification

procedures were exploited including high-level

programming techniques because the short run-time

and a small footprint of the tools were not the

primary concerns at that phase. Instead, the rapid

development of tools allowing us to carry out

experiments with the methods proposed was main

apprehension. The resulting set of tools can provide

automatic analysis of router configurations, network

topologies and states with respect to checked

properties.

Evaluation of the project will be based on the

outputs from the experiments with the computer

tools developed in the previous phase. The

experiments are considered to be an inevitable part

of the project. The evaluation can be split into the

following steps:

1. Capability of the proposed methods will be

demonstrated.

2. The comparison of methods based on simulation

with methods based on verification in the domain

of network analysis will be given.

3. Analysis performed on case studies will reveal

how the methods can be applied in real

conditions.

Note that several different methods may be suitable

for modeling and analysis of the environment and

properties in the domain of interest. Most often, the

combination of several methods leads to better

results. The emphasis of the project’s research is put

on the formal verification methods, but other

methods are certainly worthwhile to explore as well.

The other methods may be orthogonal with formal

verification, or they may support the formal

methods.

In particular, monitoring may provide a fruitful

data for classification and definition of security-

related properties based on the real traffic.

Simulation serves as a useful tool to specify and

replay possible dangerous scenarios found by the

formal verification. Therefore, simulators and

monitors are seen as supporting tools for the

network-wide analysis. Their study brings added-

value insight with respect to the main research topic

of the project. We plan to determine relative

positions of all these methods and tools in the next

evaluation report.

7 CONCLUSIONS

In this paper, we demonstrate the problem of

automatic security analysis of TCP/IP based

computer networks. The presented verification

method aims at validating network design against

the absence of security and configuration flaws. The

network model allows describing effects of static

and dynamic routing and access control lists

configured on the network devices. The verification

technique based on the bounded model checking

supported by SAT-based decision procedure counts

for varying link conditions’ checks whether a given

property holds in the network model. It was shown

that the method is able to deal with various classes

of properties, namely availability, safety and

security. In all cases, a language of modal logic was

used to express the property formally while serving

as an input to the model checking algorithm.

Although not validated, we believe the application

of this technique is feasible for a large class of

network models and properties.

It was shown that bounded model checking is a

useful method in this area. The developed

experimental tools provided reasonable data

convincing us that the method is applicable in

practice. Nevertheless, the experiments with real-

size models are still in progress and further analysis

is required to fully evaluate the method. There are

also various possible extensions to the method. First,

the specification language is rather minimalist and it

is challenging to show whether all important security

properties can be specified in it. In case of negative

answer the further work should be focused on

refining classification of properties and proposing an

adequate extension of the language and the

verification procedure. Second, a lot can be done in

the area of optimization of the method. It requires

deeper understanding of the relation of dynamic

routing protocols behavior to the network transition

system. Finally, for conducting practical

experiments it is necessary to implement reliable and

effective tools that would improve and extend the

current experimental tools that need to be sometimes

manually supported.

We believe that currently appearing papers in

some sense inspired by, or at least referencing and/or

developing our approach to modeling of dynamic

networks for security analysis, see e.g. (Jeffrey and

Samak, 2009), (Bera, Ghosh and Dasgupta, 2009),

(Bera, Ghosh and Dasgupta, 2009a) or (Holloway,

2009) can demonstrate usefulness of the presented

conception.

ACKNOWLEDGEMENTS

This project has been carried out with a financial

support from the Czech Republic state budget

through the CEZ MMT project no.

DCNET 2010 - International Conference on Data Communication Networking

MSM0021630528: Security-Oriented Research in

Information Technology, by the Grant Agency of the

Czech Republic through the grant no. GACR

102/08/1429: Safety and Security of Networked

Embedded System Applications, and by the Brno

University of Technology, Faculty of Information

Technology through the specific research grant no.

FIT-10-S-1: Secured, Reliable and Adaptive

Computer Systems. Also, the first co-author was

supported by the grant no. FR-TI1/037 of Ministry

of Industry and Trade: Automatic Attack Processing.

REFERENCES

Bartal, Y., Mayer, A.J., Nissim, K., Wool, A., 1999.

Firmato: A Novel Firewall Management Toolkit. In

IEEE Symposium on Security and Privacy, pages 17–

31.

Bera, P., Ghosh, S.K., Dasgupta, Pallab, 2009. Fault

Analysis of Security Policy Implementations in

Enterprise Networks. In the First International

Conference on Networks & Communications, IEEE

Comp.Soc., pages 240-245.

Bera, P., Ghosh, S.K., Dasgupta, Pallab, 2009a. Formal

Verification of Security Policy Implementations in

Enterprise Networks. In LNCS 5905, Springer Berlin /

Heidelberg, pages 117-131.

Biere, A., Cinnatti, A., Clarke, E., Strichman, O., Zhu, Y.,

2003. Bounded model checking. Advances in

Computers, Advances in Computers, Academic Press.

Burns, J., et al., 2001. Automatic management of network

security policy. In DARPA Information Survivability

Conference and Exposition, pages 1012–1026.

Cejka, R., Matoušek, P., Rab J., Rysavy, O., Sveda, M.,

2008. A Formal Approach to Network Security

Analysis. Technical Report FIT, Brno University of

Technology, Brno, CZ.

Christiansen, M., Fleury, E., 2004. An Interval Decision

Diagram Based Firewall. In 3rd International

Conference on Networking (ICN’04). IEEE, pages 1–

Clarke, E.M., Grumberg, O., Peled, D.A., 1999. Model

Checking. MIT Press.

Gross, J.L., Yellen, J., (editors), 2004. Handbook of Graph

Theory. CRC Press.

Holloway, E.M., 2009. Self Organized Multi Agent

Swarms (SOMAS) for Network Security. Master’s

Thesis, Air Force Inst of Tech Wright-Patterson AFB

OH School of Engineering and Management.

Jeffrey, A., Samak, T., 2009. Model Checking Firewall

Policy Configurations. In IEEE International

Symposium on Policies for Distributed Systems and

Networks, pages 60-67, 2009.

Kumar, S., 1995. Classification and Detection of

Computer Intrusions. PhD Thesis, Purdue, IN.

Lindqvist, U., Jonsson, E., 1997. How to Systematically

Classify Computer Security Intrusions. In IEEE

Symposium on Security and Privacy, Washington DC.

Matousek, P., Rab, J., Rysavy, O., Sveda, M., 2008. A

formal model for network-wide security analysis. In

15th IEEE Symposium and Workshop on ECBS, 2008.

Mitre, 2008. Common Vulnerabilities and Exposures

Database. Available on

http://cve.mitre.org/; accessed on Feb 2008.

Neumann, P.G., Parker, D.B., 1989. A Summary of

Computer Misuse Techniques. In Proc. 12th National

Computer Security Conference, pages 396–407.

Ou, X., Govindavajhala, S., Appel, A.W., 2005. MulVAL:

A logic-based network security analyzer. In Proc. of

the 14th USENIX Security Symposium, Baltimore.

Ritchey, R.W., Ammann, P., 2000. Using model checking

to analyze network vulnerabilities. In IEEE

Symposium on Security and Privacy, Washington,

USA.

Shahriari, H.R., Jalili, R., 2005. Modeling and Analyzing

Network Vulnerabilities via a Logic-Based Approach.

In 2nd Int. Symposium of Telecommunications, pages

13–18.

Snort, 2008. Snort network intrusion and prevention

system. Available from http://www.snort.org/;

accessed on Feb 2008.

Stirling, C., 1992. Modal and temporal logics. pages 477–

563. Oxford University Press, Inc., New York, NY,

USA.

Tidwell, T., Larson R., Fitch K., Hale J., 2001. Modeling

Internet attacks. In Proc. of the IEEE Workshop on

Information Assurance and Security, West Point, NY.

Xie, G.G., Zhan, J., Maltz, D.A., Zhang, H., Greenberg,

A.G., Hjalmtysson, G., Rexford, J., 2005. On static

reachability analysis of ip networks. In INFOCOM,

pages 2170–2183.

Zakeri, R., Shahriari, H.R., Jalili, R., Sadoddin, R. , 2005.

Modeling TCP/IP Networks Topology for Network

Vulnerability Analysis. In 2nd Int. Symposium of

Telecommunications, pages 653–658.

SECURITY ANALYSIS OF TCP/IP NETWORKS - An Approach to Automatic Analysis of Network Security Properties
