AN ADVANCED VOLUME RAYCASTING TECHNIQUE

USING GPU STREAM PROCESSING

org Mensmann, Timo Ropinski and Klaus Hinrichs

Visualization and Computer Graphics Research Group (VisCG), University of M

unster, Germany

Keywords:

Direct volume rendering, Raycasting, Stream processing, CUDA.

Abstract:

GPU-based raycasting is the state-of-the-art rendering technique for interactive volume visualization. The ray

traversal is usually implemented in a fragment shader, utilizing the hardware in a way that was not originally

intended. New programming interfaces for stream processing, such as CUDA, support a more general pro-

gramming model and the use of additional device features, which are not accessible through traditional shader

programming. In this paper we propose a slab-based raycasting technique that is modeled speciﬁcally to use

these features to accelerate volume rendering. This technique is based on experience gained from comparing

fragment shader implementations of basic raycasting to implementations directly translated to CUDA kernels.

The comparison covers direct volume rendering with a variety of optional features, e. g., gradient and lighting

calculations. Our ﬁndings are supported by benchmarks of typical volume visualization scenarios. We con-

clude that new stream processing models can only gain a small performance advantage when directly porting

the basic raycasting algorithm. However, they can be advantageous through novel acceleration methods which

use the hardware features not available to shader implementations.

1 INTRODUCTION

Raycasting is advantageous compared to other in-

teractive volume visualization techniques due to its

high image quality, inherent ﬂexibility, and simple

implementation on programmable GPUs. Implemen-

tations usually apply general-purpose GPU program-

ming techniques (GPGPU), which skip most of the

geometry functionality of the hardware and use frag-

ment shaders to perform raycasting through the vol-

ume data set. Modern GPUs support stream process-

ing as an alternative programming model to classical

graphics APIs such as OpenGL. These stream pro-

cessing models, e. g., NVIDIA’s CUDA or OpenCL,

give a more general access to the hardware and also

support certain hardware features not available via

graphics APIs, such as on-chip shared memory.

Rendering approaches for volumetric data can be

classiﬁed as object-order and image-order traversal

techniques. Object-order techniques like slice ren-

dering simplify parallelization by accessing the vol-

ume data in a regular manner, but cannot easily gener-

ate high quality images and are rather inﬂexible with

regard to acceleration techniques. Image-order tech-

niques such as raycasting (Levoy, 1990), on the other

hand, can generate good visual results and can be

easily accelerated, e. g., with early ray termination

(ERT) or empty space skipping. However, the ray

traversal through the volume leads to highly irregular

memory access. This can undermine caching and also

complicate efforts towards a parallel implementation.

Volume raycasting implemented as a fragment shader

can give interactive results for reasonably sized data

sets, even with on-the-ﬂy gradient calculation and lo-

cal illumination. More advanced techniques such as

gradient ﬁltering or ambient occlusion are still prob-

lematic because of the large number of volume tex-

ture fetches. In contrast to many other applications

of stream processing that often reach high speedup

factors, volume raycasting already uses the graph-

ics hardware instead of the CPU. Hence, no major

speedups are expected simply by porting a raycast-

ing shader to CUDA. However, fragment shader im-

plementations do not allow sharing of data or inter-

mediate results between different threads, i. e., rays,

which therefore have to be fetched or recalculated

over and over again. More general programming

models exploiting fast on-chip memory could allow a

massive reduction in the number of memory transac-

tions and therefore make such advanced visualization

techniques available for interactive use.

190

Mensmann J., Ropinski T. and Hinrichs K. (2010).

AN ADVANCED VOLUME RAYCASTING TECHNIQUE USING GPU STREAM PROCESSING.

In Proceedings of the International Conference on Computer Graphics Theory and Applications, pages 190-198

DOI: 10.5220/0002843201900198

 SciTePress

In this paper we ﬁrst examine the general suitabil-

ity of stream processing for direct volume rendering

(DVR) by comparing CUDA- and shader-based ray-

casting implementations. Afterwards, we discuss ac-

celeration techniques that utilize the additional device

features accessible through CUDA and introduce a

novel slab-based approach, going beyond what is pos-

sible with shader programming.

2 RELATED WORK

GPU-based Volume Raycasting. GPU-based vol-

ume raycasting techniques were ﬁrst published by

ottger et al., 2003) and by (Kr

uger and Wester-

mann, 2003). These approaches use a proxy geome-

try, most often resembling the data set bounding box,

to specify ray parameters, either through an analyti-

cal approach or by rendering the proxy geometry into

a texture.

To speed up rendering, or to support data sets

not ﬁtting in GPU memory, the volume can be sub-

divided into bricks (Scharsach et al., 2006) through

which rays are cast independently, while compositing

the results afterwards. (Law and Yagel, 1996) pre-

sented a bricked volume layout for distributed parallel

processing systems that minimizes cache thrashing by

preventing multiple transfer of the same volume data

to the same processor in order to improve rendering

performance. (Grimm et al., 2004) used this approach

to get optimal cache coherence on a single processor

with hyper-threading.

GPU Stream Processing. New programming inter-

faces for stream processing allow to bypass the graph-

ics pipeline and directly use the GPU as a massively

parallel computing platform. The stream processing

model is limited in functionality compared to, e. g.,

multi-CPU systems, but can be mapped very efﬁ-

ciently to the hardware.

NVIDIA introduced CUDA as a parallel comput-

ing architecture and programming model for their

GPUs (Nickolls et al., 2008). AMD/ATI support sim-

ilar functionality through their Stream SDK (AMD,

2009). To have a vendor-neutral solution, OpenCL

was developed as an industry standard (Munshi,

2008), but at the time of writing this paper stable im-

plementations were not yet publicly available. For

this paper, we have chosen CUDA as a platform

for evaluating raycasting techniques because it is the

most ﬂexible of the current programming models, it

is available for multiple operating systems, and it

shares many similarities with the OpenCL program-

ming model.

Besides for numerical computations, CUDA has

been used for some rendering techniques, including

raytracing (Luebke and Parker, 2008). A simple vol-

ume raycasting example is included in the CUDA

SDK. (Mar

alek et al., 2008) also demonstrated proof

of concept of a simple CUDA raycaster and did a

performance comparison to a shader implementation.

Their results showed a slight performance advantage

for the CUDA implementation, but they did not in-

corporate lighting or other advanced rendering tech-

niques. (Kim, 2008) implemented bricked raycasting

on CUDA, distributing some of the data management

work to the CPU. He focused on streaming volume

data not ﬁtting in GPU memory and did not use all

available hardware features for optimization, such as

texture ﬁltering hardware. (Smelyanskiy et al., 2009)

compared raycasting implementations for Intel’s up-

coming Larrabee architecture and CUDA, focusing

on volume compression and not using texture ﬁlter-

ing. (Kainz et al., 2009) recently introduced a new

approach for raycasting multiple volume data sets us-

ing CUDA. It is based on implementing rasterization

of the proxy geometry with CUDA instead of relying

on the usual graphics pipeline.

3 RAYCASTING WITH CUDA

3.1 CUDA Architecture

While using the same hardware as shader programs,

CUDA makes available certain features that are not

accessible by applications through graphics APIs. In

contrast to shader programs, a CUDA kernel can read

and write arbitrary positions in GPU global memory.

To achieve maximum bandwidth from global mem-

ory, the right access patterns have to be chosen to

coalesce simultaneous memory accesses into a single

memory transaction.

Each multiprocessor on a CUDA device contains

a small amount of on-chip memory that can be ac-

cessed by all threads in a thread block and can be as

fast as a hardware register. This shared memory is

not available to shader programs. The total amount

of shared memory in each multiprocessor—and there-

fore the maximum amount available to each thread

block—is limited to 16 kB with current hardware.

The size and distribution of CUDA thread blocks

must be controlled manually. The block size is lim-

ited by the available hardware registers and shared

memory. Each thread block can use a maximum of

16,384 registers, distributed over all its threads. With

a block size of 16×16 this would allow 64 registers

per thread, while with a smaller block size of 8×8 the

AN ADVANCED VOLUME RAYCASTING TECHNIQUE USING GPU STREAM PROCESSING

191

available registers increase to 256. At most half of

these should be used per block to allow running mul-

tiple thread blocks on a multiprocessor at the same

time. This means that a complex kernel must be run

with a smaller block size than a simple one. A similar

restriction applies to the use of shared memory.

3.2 Accelerating Raycasting

While easy to implement, the basic raycasting al-

gorithm leaves room for optimization. Many tech-

niques have been proposed for DVR, from skipping

over known empty voxels (Levoy, 1990) to adaptively

changing the sampling rate (R

ottger et al., 2003).

Most of these techniques are also applicable to a

CUDA implementation. In this paper, we rather fo-

cus on techniques that can use the additional capabil-

ities of CUDA to get a performance advantage over a

shader implementation.

Many volume visualization techniques take a

voxel’s neighborhood into account for calculating its

visual characteristics, starting with linear interpola-

tion, to gradient calculations of differing complexity,

to techniques for ambient occlusion. As the neigh-

borhoods of the voxels sampled by adjacent rays do

overlap, many voxels are fetched multiple times, thus

wasting memory bandwidth. Moving entire parts of

the volume into a fast cache memory could remove

much of the superﬂuous memory transfers.

As noted in Section 3.1, each multiprocessor has

available 16 kB of shared memory, but less than half

of this should be used by each thread block to get op-

timal performance. Using the memory for caching

of volume data would allow for a subvolume of 16

voxels with 16 bit intensity values. While access-

ing volume data cached in shared memory is faster

than transferring them from global memory, it has

some disadvantages compared to using the texturing

hardware. First, the texturing hardware directly sup-

ports trilinear ﬁltering, which would have to be per-

formed manually with multiple shared memory ac-

cesses. Second, the texturing hardware automatically

handles out-of-range texture coordinates by clamping

or wrapping, and removes the need for costly address-

ing and range checking. Finally, the texture hardware

caching can give results similar to shared memory, as

long as the access pattern exhibits enough locality.

When a volume is divided into subvolumes that

are moved into cache memory, accessing neighbor-

ing voxels becomes a problem. Many per-voxel op-

erations like ﬁltering or gradient calculation require

access to neighboring voxels. For voxels on the bor-

der of the subvolumes much of their neighborhood is

not directly accessible any more, since the surround-

ing voxels are not included in the cache. They can

either be accessed directly through global memory, or

included into the subvolume as border voxels, thus re-

ducing the usable size of the subvolume cache. Mov-

ing border voxels into the cache reduces the usable

subvolume size to 14

, with 33% of the cache occu-

pied with border data. Hence this would substantially

reduce the efﬁciency of the subvolume cache.

Bricking implementations for shader-based vol-

ume raycasting often split the proxy geometry into

many smaller bricks corresponding to the subvolumes

and render them in front-to-back order. This requires

special border handling inside the subvolumes and

can introduce overhead due to the multitude of shader

calls. A CUDA kernel would have to use a less ﬂexi-

ble analytical approach for ray setup, instead of utiliz-

ing the rasterization hardware as proposed by (Kr

uger

and Westermann, 2003), or implement its own ras-

terization method (Kainz et al., 2009). As described

above, due to the scarce amount of shared memory,

the total number of bricks would also be quite high,

increasing the overhead for management of bricks

and compositing of intermediate results. The bricking

technique described in (Law and Yagel, 1996) is spe-

cially designed for orthographic projection, for which

the depth-sorting of the bricks can be simpliﬁed sig-

niﬁcantly, compared to the case of perspective pro-

jection. Their technique also relies on per-brick lists,

where rays are added after they ﬁrst hit the brick and

removed after leaving it. This list handling can be efﬁ-

ciently implemented on the CPU, but such data struc-

tures do not map efﬁciently to the GPU hardware.

(Kim, 2008) works around this problem by handling

the data structures on the CPU. As his aim is stream-

ing of data not ﬁtting into GPU memory, the addi-

tional overhead is of no concern, in contrast to when

looking for a general approach for volume rendering.

To summarize, a direct bricking implementation

in CUDA is problematic because only a small amount

of shared memory is available and the ray setup

for individual bricks is difﬁcult. Therefore we will

introduce an acceleration technique which is better

adapted to the features and limitations of the CUDA

architecture in Section 5.

4 BASIC RAYCASTING

As illustrated in Figure 1, the basic raycasting algo-

rithm can be divided into three parts: initialization

and ray setup, ray traversal, and writing the results. A

fragment shader implementation uses texture fetches

for retrieving ray parameters, applying transfer func-

tions, and for volume sampling, utilizing the texturing

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

192

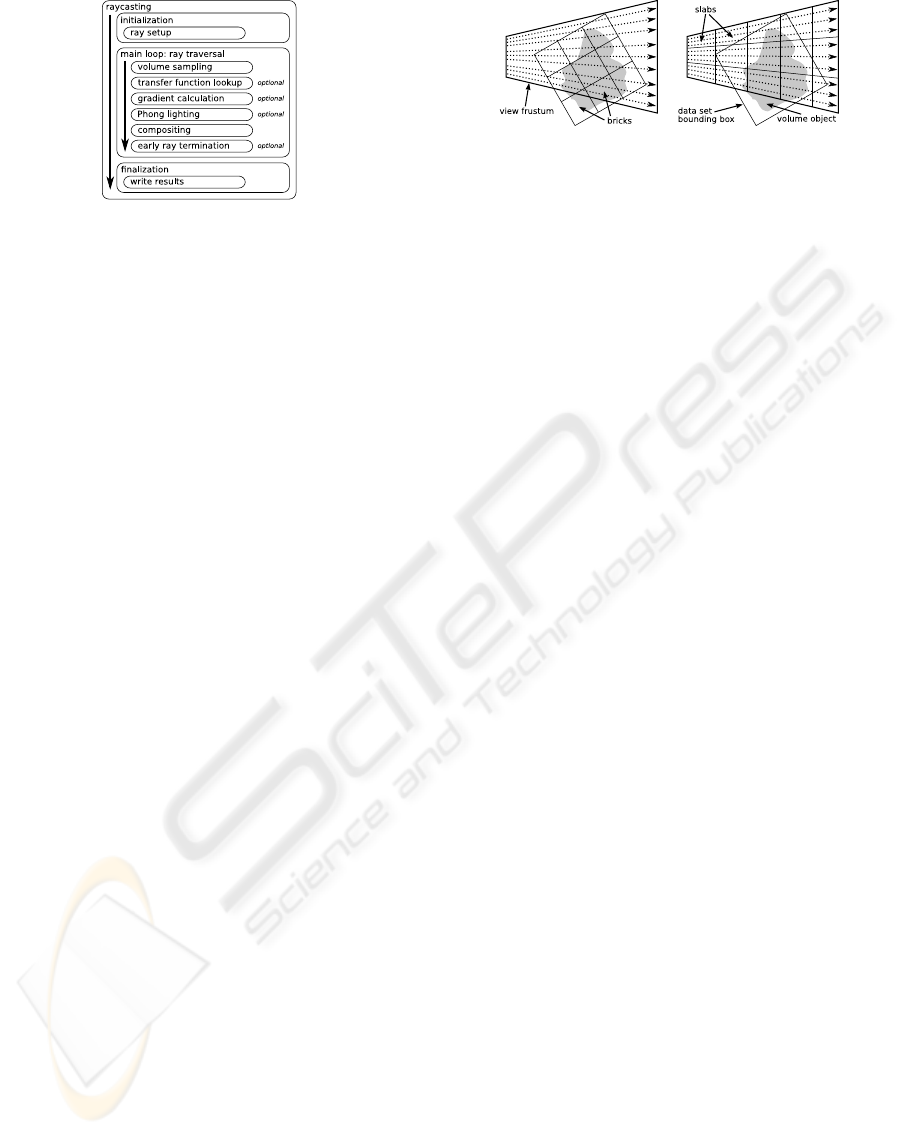

Figure 1: Building blocks for raycasting algorithms.

hardware to get linear ﬁltering.

In a CUDA implementation using textures for the

ray start and end points does not have an advan-

tage over memory reads, as no ﬁltering is necessary

and coalescing can be achieved easily. Performance

differences are more important inside the raycasting

loop. Both voxel sampling and transfer function look-

up require ﬁltering, so using textures is the natural

choice. Our implementation ﬁrst renders the proxy

geometry into OpenGL textures to get the ray start

and end points, which can be accessed as CUDA

buffer objects through global memory.

The raycasting kernel is then started with the cho-

sen thread block size, with each thread in the block

corresponding to a single ray. Following the scheme

illustrated in Figure 1, the kernel ﬁrst performs ray

setup using the ray parameter buffers before entering

the main loop. Inside the loop the texture fetches are

performed and lighting calculation is applied before

compositing the intermediate result and advancing the

current position on the ray. When the end of a ray

is reached the fragment color is written to an output

buffer. It is copied to the screen when processing of

all thread blocks has completed.

If early ray termination is active, the main loop

is terminated before reaching the ray end when the

compositing results in an alpha value above a certain

threshold. Since all threads in a warp operate in lock

step, the thread has to wait for all the other rays to ter-

minate by either reaching their end or through ERT.

This is a hardware limitation, hence it also applies

to the fragment shader implementation. In practice,

however, this is of no concern, as neighboring rays

usually exhibit a coherent behavior with regard to ray

length and ERT.

Figure 2: Bricking (object-order) and slab-based (image-

order) approach for volume raycasting.

5 SLAB-BASED RAYCASTING

5.1 Approach

Since the bricking described in Section 3.2 is an

object-order technique that is not well suited for a

CUDA implementation, we introduce an alternative

caching mechanism that can be used in image-order

by dividing the volume into slabs. In contrast to

bricking, rays instead of voxels are grouped to build

a slab. The screen is subdivided into rectangular re-

gions and stacked slabs reaching into the scene are

created, as shown in Figure 2. While for orthogonal

projection the structure of a slab is a simple cuboid, it

has the form of a frustum for perspective projection.

It would be optimal to move all voxels contained

in a slab into shared memory. But unlike bricks, slabs

are neither axis-aligned in texture space nor do they

have a simple cuboid structure. Therefore either a

costly addressing scheme would be required, or large

amounts of memory would be wasted when caching

the smallest axis-aligned cuboid enclosing the slab.

As described in Section 3.2, both alternatives are not

suitable for a CUDA implementation. However, a

more regular structure can be found after voxel sam-

pling. All rays inside a slab have approximately the

same length and therefore the same number of sample

points. Saving the voxel sampling results for all rays

in a slab leads to a three-dimensional array which can

easily be stored in shared memory.

Caching these data does not give a performance

advantage per se, when samples are only accessed

once. But several lighting techniques need to access

neighborhood voxels regularly, e. g., ambient occlu-

sion or even basic gradient calculation. When these

techniques access the same sample position multiple

times, memory bandwidth and latency are saved. Un-

fortunately, the relation between adjacent samples in

the cache is somewhat irregular, as rays are not par-

allel when applying perspective projection, and there-

fore the distance between sample points differs. How-

ever, often not the exact neighborhood of a voxel is

needed but an approximation is sufﬁcient. For large

viewport resolutions adjacent rays are close to par-

AN ADVANCED VOLUME RAYCASTING TECHNIQUE USING GPU STREAM PROCESSING

193

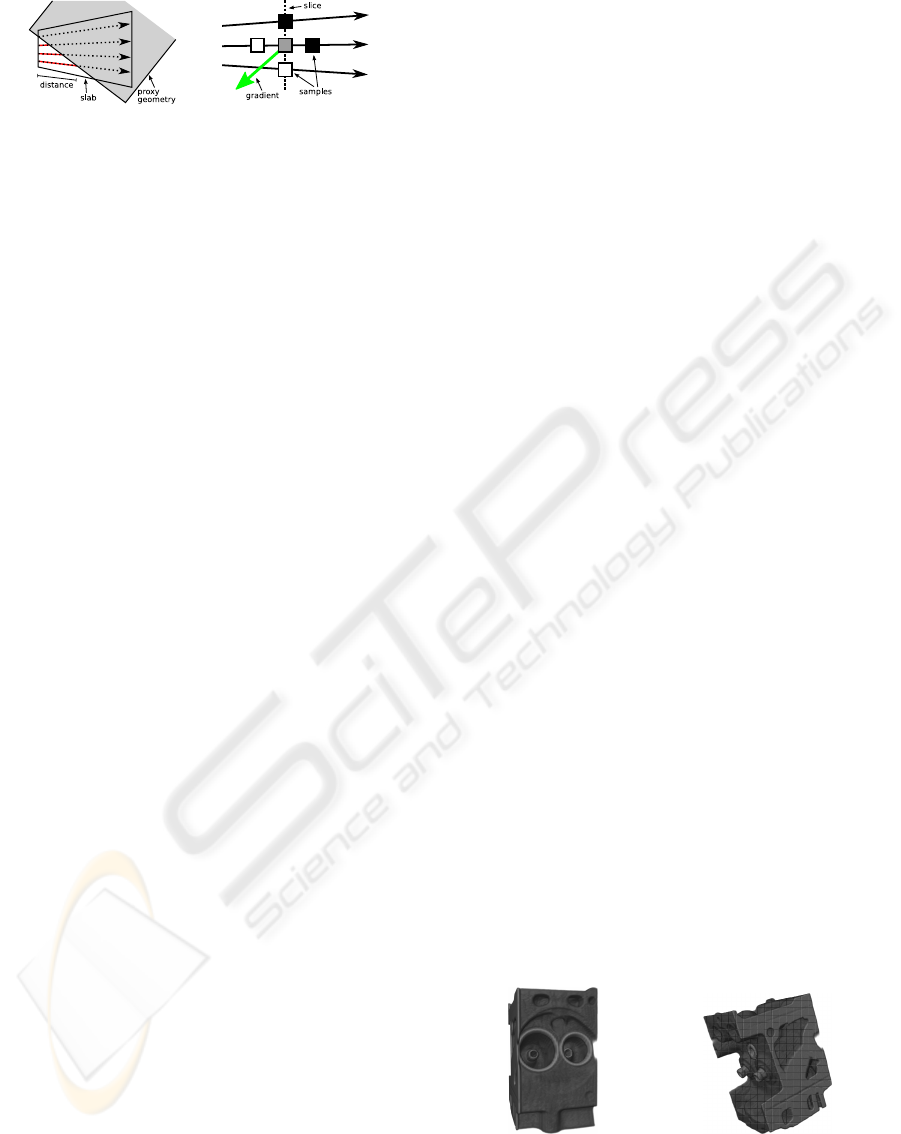

Figure 3: Start point preprocessing (left) and slab-based

gradient calculation (right).

allel even with perspective projection, hence for ap-

proximation purposes one can consider them as paral-

lel. Gradient calculation can then use the same simple

addressing scheme as known from conventional ray-

casting to access neighboring voxels, although in this

case the resulting gradients are relative to the eye co-

ordinate system instead of the object coordinate sys-

tem. While relying on an explicitly managed cache in

shared memory, this method also makes use of the im-

plicit cache of the texturing hardware when sampling

the voxels that get written into shared memory. There-

fore the two cache levels complement each other.

5.2 CUDA Implementation

Just as with the implementation of the basic raycast-

ing algorithm, also for the slab-based raycasting each

thread corresponds to a ray and ray setup is performed

through the ray parameter textures. However, the

start points must be adapted for the slab structure,

as described below. The main loop traverses the rays

through the slabs, calculating the gradients using the

cache memory. Special handling is necessary for bor-

der voxels and for early ray termination.

Start Point Preprocessing. The slab algorithm re-

lies on the fact that voxels are sampled by an advanc-

ing ray-front and that sample points which are ad-

jacent in texture space also lie close together in the

cache. This only holds true as long as the view plane

is parallel to one side of the proxy geometry cube, as

otherwise ray start positions have different distances

to the camera. This would result in incorrect gradi-

ents, since voxels adjacent in the volume may lie on

different slices in the slab cache. A solution to the

problem is modifying all ray start points in a slab to

have the same distance to the camera as the one clos-

est to the camera, as illustrated in Figure 3 (left). We

use shared memory and thread synchronization to ﬁnd

the minimum camera distance over all rays in a block

and then move the start point of each ray to have this

minimum distance to the camera. Moving the start

points does not lead to additional texture fetches, as

the texture coordinates will lie outside of the interval

[0, 1]

, which is checked before each 3D texture fetch.

Main Loop. The main rendering loop consists of

two parts. In the ﬁrst part, the slab cache is ﬁlled

with samples by traversing the ray. As a ray typi-

cally creates too many samples to ﬁt in the slab cache

completely, the slap depth sd controls the number of

samples to write into the cache per ray at the same

time. Rays with the same distance to the camera lie

on the same slice in the slab. After thread synchro-

nization the second part of the main loop uses the re-

cently acquired samples to apply lighting and com-

positing. The ray traversal is started from the begin-

ning for the slab, but now the samples are read directly

from shared memory instead of the texture.

Gradient Calculation. A gradient is calculated by

taking into account adjacent samples on the same

slice from the top, left, bottom, and right rays (as seen

from the view point), and the next and previous sam-

ples on the current ray, as illustrated for the 2D case

in Figure 3 (right). The gradients are therefore cal-

culated in eye space and need to be transformed to

object space for the lighting calculation. This results

in gradients similar to the default gradient calculation,

as shown in Figure 4 (left).

Border Handling. As with bricking, accessing the

neighborhood of samples on the border of a slab re-

quires special handling. This is necessary for gradi-

ent calculation, because ignoring voxels not accessi-

ble through the cache for gradient calculation leads to

discontinuities in the gradients, which get visible as

a grid pattern in the ﬁnal image (Figure 4 right). Di-

rectly accessing surrounding voxels would require re-

trieving additional ray parameters for rays outside the

slab to calculate the relevant voxel positions. Hence,

including the voxels into the cache is more reason-

able, even if this reduces the usable size. To include

surrounding voxels, we add all rays adjacent to the

slab. For these border rays only the ﬁrst part of the

main loop needs to be executed, to write the corre-

sponding samples into the cache for access by the gra-

dient calculation of the inner rays in the second part.

Figure 4: (left) Phong shading applied to the engine data

set with gradient calculation. (right) The grid pattern of the

thread blocks becomes visible through incorrect gradients

when border handling is not performed.

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

194

Early Ray Termination. As data sampled by one

ray is also used for the gradient calculation in adjacent

rays, early ray termination can not stop the traversal

of a single ray without taking its neighbors into ac-

count. Therefore it must be determined if all rays in a

slab have reached the required alpha threshold before

terminating further ray traversal. The necessary syn-

chronization can be easily performed using a ﬂag in

shared memory.

6 RESULTS

6.1 Testing Methodology

To get meaningful performance data for comparing

CUDA and fragment shader raycasting, we have im-

plemented feature-identical versions of a raycaster for

both cases, using CUDA version 2.1 and OpenGL

shaders implemented in GLSL, running on Linux.

The raycasters are integrated into the Voreen volume

rendering framework (Meyer-Spradow et al., 2009)

and use the proxy geometry and corresponding ray

start and end positions generated using OpenGL. To

get comparable results, our measurements were con-

ﬁned to the actual fragment shader or kernel call,

not counting time for rendering the proxy geome-

try or converting textures from OpenGL to CUDA

format. The CUDA kernels were timed using the

asynchronous event mechanism from the CUDA API,

while for shader raycasting a high-precision timer

was used, enclosing the shader execution with calls

of glFinish() to ensure correct results. Each vol-

ume object was rotated around the Y-axis, while mea-

suring the average frame rate over 100 frames. The

tests were conducted on two different systems, one

equipped with an Intel Core 2 Duo E6300 CPU and an

NVIDIA GeForce 8800 GT, the other with a Core 2

Quad Q9550 and a GeForce GTX 280.

The tests start with the simple raycasting algo-

rithm (RC), before adding a transfer function (TF) and

Phong lighting with on-the-ﬂy gradient calculation

using central differences and early ray termination

(PH), and ﬁnally performing an expensive gradient

ﬁltering (GF). Advanced techniques include all previ-

ous features, e. g., Phong lighting includes a transfer

function. Table 1 lists the number of texture fetches

per sample point for the individual techniques. We

have tested our implementations with several data

sets and chose two representative volumes of different

sizes and with different transfer functions for compar-

ing the different techniques. The engine is dense with

few transparency, while the larger vmhead is semi-

transparent. Renderings of the data sets with the dif-

RC TF PH GF

Figure 5: Results of rendering the engine and vmhead data

sets with different raycasting techniques.

Table 1: Register usage and number of texture fetches per

sample point for the different raycasting techniques.

technique regs fetches

basic raycasting (RC) 15 1

transfer function (TF) 19 2

Phong shading (PH) 33 8

gradient ﬁltering (GF) 57 56

ferent techniques are shown in Figure 5.

6.2 Basic Raycaster

Table 2 lists frame rates of our raycasting implemen-

tations, tested with different GPUs, viewport resolu-

tions, and data sets. It is notable that the GeForce

GTX 280 achieves signiﬁcant speedups for the CUDA

implementation for all techniques except PH, while

with the 8800 GT signiﬁcant speedups are only found

with the RC technique and 1024

viewport size, the

GLSL implementation being close to equal or faster

for all other cases. The frame rate differences be-

tween GLSL and CUDA reach up to 30%, with one

outlier even at +42%. For the 8800 GT increasing

the viewport size also increases the speedup, while

the speedup for the 280 GTX mostly stays the same.

Switching from the engine data set to the larger vm-

head increases the speedup for the 280 GTX, while

this is less signiﬁcant for the 8800 GT.

As the selection of thread block size can have a

tremendous inﬂuence on the performance of a CUDA

kernel, we tested all benchmark conﬁgurations with

several block sizes to ﬁnd the optimal block size bs

opt

Figure 6 shows the effect of the block size on the

frame rate.

While the advanced techniques are more costly

since they perform more texture fetches, they also

require more hardware registers to run (compare Ta-

ble 1). Due to the limited availability of hardware reg-

isters, this restricts the number of active thread blocks

per multiprocessor. The GTX 280 has twice as many

AN ADVANCED VOLUME RAYCASTING TECHNIQUE USING GPU STREAM PROCESSING

195

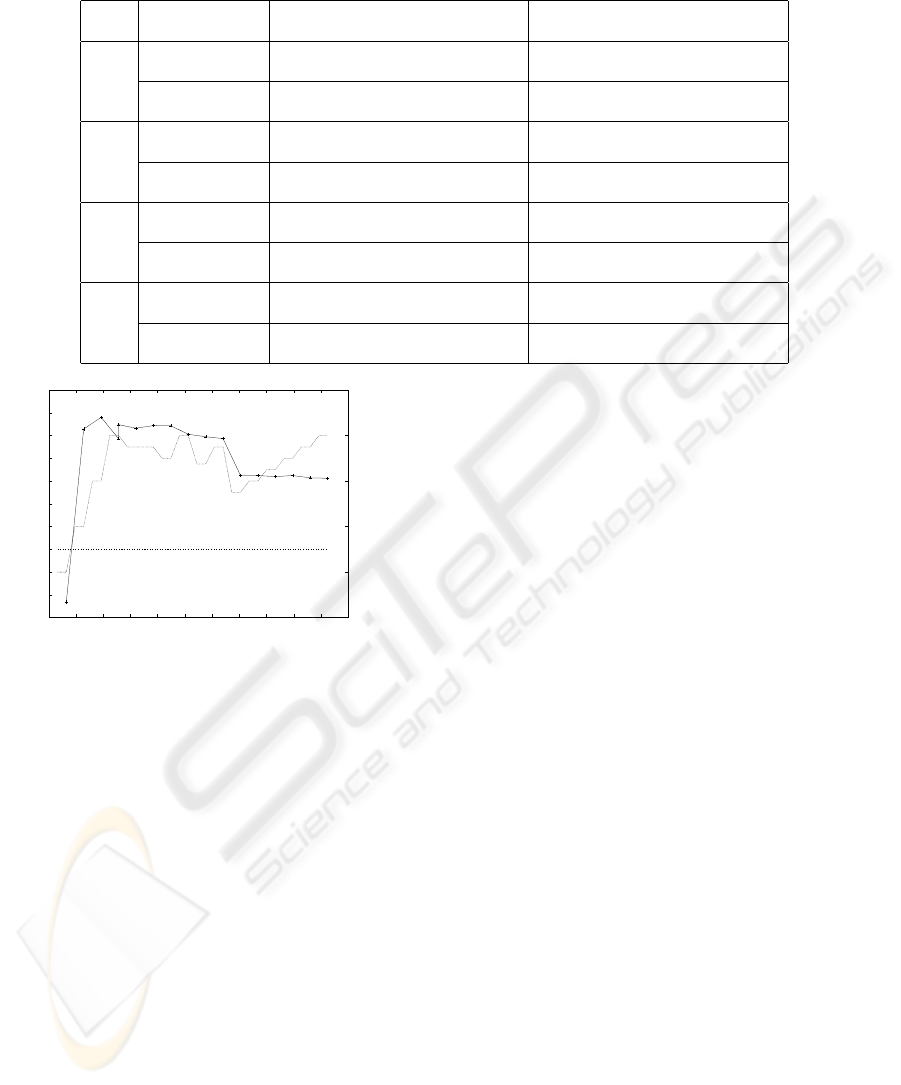

Table 2: Performance results in frames per second for basic raycasting implemented with GLSL and CUDA. The CUDA

raycasting was run with different block sizes and results for the optimal block size bs

opt

are given.

view- engine data set (256

×128, 8 bit) vmhead data set (512

×294, 16 bit)

techn. device port GLSL CUDA speedup bs

opt

GLSL CUDA speedup bs

opt

8800GT

512

291.1 300.4 +3.2% 16 × 8 72.2 64.1 −11.2% 16 ×20

1024

81.0 96.9 +19.6% 16 × 32 48.3 56.3 +16.6% 16 × 28

GTX280

512

380.0 496.0 +30.5% 12 × 8 121.2 158.5 +30.8% 8 × 8

1024

124.5 147.8 +18.7% 16 × 8 70.5 100.2 +42.1% 16 × 18

8800GT

512

194.2 173.5 −10.7% 8 × 16 68.1 59.4 −12.8% 8 × 16

1024

61.1 62.3 +2.0% 16 × 24 38.2 37.4 −2.1% 16 × 24

GTX280

512

317.4 358.1 +12.8% 16 × 12 118.0 153.9 +30.4% 8 × 16

1024

100.9 110.6 +9.6% 8 × 16 64.6 82.7 +28.0% 16 × 16

8800GT

512

60.2 43.6 −27.6% 8 × 8 21.5 22.0 +2.3% 8 × 16

1024

17.1 14.6 −14.6% 16 × 12 12.0 9.9 −17.5% 16 × 12

GTX280

512

95.2 77.6 −18.5% 8 × 8 40.7 38.1 −6.4% 8 × 16

1024

25.5 22.5 −13.3% 16 × 8 18.0 17.2 −4.4% 16 × 8

8800GT

512

8.9 6.7 −24.7% 8 × 16 4.6 3.4 −26.1% 8 × 16

1024

2.5 2.1 −16.0% 8 × 16 1.7 1.6 −5.9% 8 × 16

GTX280

512

9.5 10.4 +9.5% 8 × 8 4.6 5.6 +21.7% 12 × 8

1024

2.5 2.9 +16.0% 8 × 8 1.8 2.3 +27.8% 8 × 8

320

340

360

380

400

420

440

460

480

500

520

0 50 100 150 200 250 300 350 400 450 500 550

fps

multiprocessor warp occupancy

threads per block

occupancy

CUDA

GLSL

8x4

8x8

12x8

16x8

8x16

16x10

16x12

16x14

16x16

16x18

16x20

16x22 16x24

16x26

16x28

16x30

16x32

Figure 6: Inﬂuence of block size on rendering performance:

engine data set rendered using the basic RC technique on a

GeForce GTX 280, viewport size is 512

registers available as the 8800 GT and therefore al-

lows larger block sizes for kernels that use many reg-

isters. It is notable that for gradient ﬁltering (GF),

with both a very high register count and a great num-

ber of texture fetches, the GTX 280 can again achieve

a signiﬁcant speedup, while it was slower than GLSL

for PH.

6.3 Slab-based Raycaster

We tested slab-based raycasting on the GTX 280 only,

as this GPU proved to be inﬂuenced less by high reg-

ister requirements. The size of the shared memory

cache contains bs

×bs

×sd sampled voxels, depend-

ing on the thread block size bs and the slab depth sd.

The optimal slab depth sd

opt

depends on the data set,

just as the block size. Results of the slab-based ray-

caster are presented in Table 3. We added an inter-

mediate viewport size of 768

to better analyze the

connection between viewport size and speedup factor.

For the basic RC technique each sampled voxel

is only accessed once, hence caching the slabs can-

not improve performance. However, this allows us to

measure the overhead for managing the shared mem-

ory cache and for fetching additional border voxels.

For the tested conﬁgurations the overhead is between

23 and 67%. When applying Phong lighting, volume

data is accessed multiple times by the gradient calcu-

lation, and the slab caching can result in a speedup

compared to the basic CUDA raycasting. A perfor-

mance increase between 12 and 78% is only found

with the large 16-bit vmhead data set, presumably

since the hardware texture cache is less efﬁcient with

larger volumes, as for the 8-bit engine data set a slight

performance decrease is measured. Another reason

might be that the early ray termination is less efﬁ-

cient with the slab approach, as only complete slabs

can be terminated, not individual rays. The engine

is solid so the rays are terminated much earlier than

with the semi-transparent vmhead. It is notable that

the speedup decreases with increasing viewport size.

When the viewport gets larger, adjacent rays more of-

ten hit the same voxels. Hence, there is more locality

of texture fetches resulting in more hits in the hard-

ware texture cache. The slab cache is most efﬁcient

in the opposite case, when the data set resolution is

high compared to the viewport size.

The amount of shared memory required by the

raycasting kernels depends on block size and slap

depth. For vmhead the optimal conﬁguration results

in 15,360 bytes which is close to the maximum of

16 kB, hence only one thread block can be active

per multiprocessor. Although engine only uses up

to 7,936 bytes, this does not result in more concur-

rent thread blocks because of the high register require-

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

196

Table 3: Performance results for the CUDA implementation of slab-based raycasting on a GeForce GTX 280. Note that the

RC technique is only used to measure the overhead of the slab-based approach.

engine data set (256

×128, 8 bit) vmhead data set (512

×294, 16 bit)

technique regs viewport basic slab speedup bs

opt

basic slab speedup bs

opt

RC 22

512

496.0 186.4 −62.4% 8 × 16 31 158.5 122.0 −23.0% 16 × 14 16

768

251.6 85.7 −65.9% 16 × 16 31 131.1 74.1 −43.5% 16 × 14 16

1024

147.8 49.2 −66.7% 8 × 16 31 100.2 43.4 −56.7% 16 × 30 16

PH 34

512

77.6 77.1 −0.6% 8 × 16 31 38.1 67.9 +78.2% 16 × 30 16

768

36.2 35.2 −2.8% 16 × 16 31 27.1 34.1 +25.8% 16 × 30 16

1024

22.5 19.6 −12.9% 8 × 16 31 17.2 19.5 +12.7% 16 × 30 16

ments. with a smaller block size which would allow

multiple concurrent thread blocks. This shows that

the stream processing approach is not fully effective

in hiding the latency of the large number of texture

fetches performed by the raycasting algorithm.

6.4 Discussion

The number of required registers seems to be a ma-

jor factor inﬂuencing kernel performance compared

to a feature-equivalent shader implementation. Since

shaders also beneﬁt from the double bandwidth and

twice the number of scalar processors of the GTX

280 compared to the 8800 GT, we suspect that the

reason for the greater speedups with the GTX 280 is

its support for more hardware registers. It seems that

our CUDA implementation is less efﬁcient in utilizing

hardware registers than shaders are, therefore proﬁt-

ing more when more registers are available.

The slab-based raycasting can increase rendering

efﬁciency when the same volume data is accessed

multiple times, e. g., for gradient calculation. How-

ever, it should be noted that the algorithm can be

compared to the basic raycasting only to a certain ex-

tent, as the gradients are less exact for the slab data.

Nonetheless, the results show how much of a differ-

ence the use of shared memory can make. We demon-

strated that the method is most efﬁcient for high res-

olution data sets. This is advantageous for typical ap-

plications of volume rendering, e. g., medical imag-

ing, where data sets typically have a much higher res-

olution than engine. The algorithm is also more efﬁ-

cient with semi-transparent than with non-transparent

data. For data with no transparency this is no real

problem as well, as in this case also simpler tech-

niques such as isosurface rendering could be used.

Our slab-based method is designed for use with di-

rect volume rendering, which is most useful for semi-

transparent data.

7 CONCLUSIONS

We have demonstrated that the CUDA programming

model is suitable for volume raycasting and that a

CUDA-based raycaster—while not a “silver bullet”—

can be more efﬁcient than a shader-based implemen-

tation. Factors inﬂuencing the speedup are the type

of GPU, thread block size, and data set size. We

have also shown that using shared memory can bring

a substantial performance increase when the same

volume data is accessed multiple times. However,

hardware restrictions need to be taken into account,

as managing the shared memory and especially han-

dling border voxels can introduce a signiﬁcant over-

head. Other factors besides rendering performance

should be taken into account as well when choos-

ing a programming model for a raycasting applica-

tion. A shader implementation supports a wider range

of graphics hardware, without depending on a single

vendor. Also the integration into existing volume ren-

dering frameworks is easier, e. g., by being able to di-

rectly use 2D and 3D textures and render targets from

OpenGL. Many of these issues will hopefully be re-

moved by implementations of the OpenCL standard,

which is vendor-neutral and supports closer coupling

with OpenGL.

As future work it should be investigated whether

more complex visualization techniques, such as am-

bient occlusion, can beneﬁt from the additional hard-

ware resources accessible through stream processing

APIs by applying a slab-based approach. As the cur-

rently available on-chip memory is a scarce resource,

particularly for storing volume data, volume render-

ing would especially beneﬁt from improvements in

this area, which are expected for future hardware.

ACKNOWLEDGEMENTS

The work presented in this publication was partly sup-

ported by grants from Deutsche Forschungsgemein-

schaft, SFB 656 MoBil (project Z1). The presented

AN ADVANCED VOLUME RAYCASTING TECHNIQUE USING GPU STREAM PROCESSING

197

concepts have been integrated into the Voreen volume

rendering engine (http://www.voreen.org).

REFERENCES

AMD (2009). Stream Computing User Guide, 1.4-beta.

Grimm, S., Bruckner, S., Kanitsar, A., and Gr

oller, M. E.

(2004). A reﬁned data addressing and processing

scheme to accelerate volume raycasting. Computers

& Graphics, 28(5):719–729.

Kainz, B., Grabner, M., Bornik, A., Hauswiesner, S.,

Muehl, J., and Schmalstieg, D. (2009). Ray cast-

ing of multiple volumetric datasets with polyhedral

boundaries on manycore GPUs. ACM Transactions

on Graphics, 28(5):1–9.

Kim, J. (2008). Efﬁcient Rendering of Large 3-D and 4-

D Scalar Fields. PhD thesis, University of Maryland,

College Park.

uger, J. and Westermann, R. (2003). Acceleration tech-

niques for GPU-based volume rendering. In Proceed-

ings of IEEE Visualization, pages 287–292.

Law, A. and Yagel, R. (1996). Multi-frame thrashless ray

casting with advancing ray-front. In Proceedings of

Graphics Interfaces, pages 70–77.

Levoy, M. (1990). Efﬁcient ray tracing of volume data.

ACM Transactions on Graphics, 9(3):245–261.

Luebke, D. and Parker, S. (2008). Interactive ray tracing

with CUDA. Presentation at NVISION conference.

Mar

alek, L., Hauber, A., and Slusallek, P. (2008). High-

speed volume ray casting with CUDA. IEEE Sympo-

sium on Interactive Ray Tracing, page 185.

Meyer-Spradow, J., Ropinski, T., Mensmann, J., and Hin-

richs, K. (2009). Voreen: A rapid-prototyping envi-

ronment for ray-casting-based volume visualizations.

IEEE Comp. Graphics and Applications, 29(6):6–13.

Munshi, A., editor (2008). The OpenCL Speciﬁcation, Ver-

sion 1.0. Khronos OpenCL Working Group.

Nickolls, J., Buck, I., Garland, M., and Skadron, K. (2008).

Scalable parallel programming with CUDA. ACM

Queue, 6(2):40–53.

ottger, S., Guthe, S., Weiskopf, D., Ertl, T., and Straßer,

W. (2003). Smart hardware-accelerated volume ren-

dering. In VISSYM ’03: Proceedings of the Sympo-

sium on Data Visualisation, pages 231–238.

Scharsach, H., Hadwiger, M., Neubauer, A., Wolfsberger,

S., and B

uhler, K. (2006). Perspective isosurface and

direct volume rendering for virtual endoscopy appli-

cations. In Eurographics/IEEE VGTC Symposium on

Visualization, pages 315–322.

Smelyanskiy, M., Holmes, D., Chhugani, J., Larson, A.,

et al. (2009). Mapping high-ﬁdelity volume render-

ing for medical imaging to CPU, GPU and many-core

architectures. IEEE Transactions on Visualization and

Computer Graphics, 15(6):1563–1570.

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

198
