FPGA-BASED NORMALIZATION FOR MODIFIED

GRAM-SCHMIDT ORTHOGONALIZATION

I. Sajid, Sotirios G. Ziavras

Electrical and Computer Engineering Department, New Jersey Institute of Technology, Newark, NJ 07102, U.S.A.

M. M. Ahmed

Department of Electronic Engineering, Mohammad Ali Jinnah University (MAJU), Islamabad, 44000, Pakistan

Keywords: Modified Gram-Schmidt, Orthogonalization, Normalization, FPGA.

Abstract: Eigen values evaluation is an integral but computation-intensive part for many image and signal processing

applications. Modified Gram-Schmidt Orthogonalization (MGSO) is an efficient method for evaluating the

Eigen values in face recognition algorithms. MGSO applies normalization of vectors in its iterative

orthogonal process and its accuracy depends on the accuracy of normalization. Using software, floating-

point data types and floating-point operations are applied to minimize rounding and truncation effects.

Hardware support for floating-point operations may be very costly in execution time per operation and also

may increase power consumption. In contrast, lower-cost fixed-point arithmetic reduces execution times and

lowers the power consumption but reduces slightly the precision. Normalization involves square root

operations in addition to other arithmetic operations. Hardware realization of the floating-point square root

operation may be prohibitively expensive because of its complexity. This paper presents three architectures,

namely ppc405, ppc_ip and pc_pci, that employ fixed-point hardware for the efficient implementation of

normalization on an FPGA. We evaluate the suitability of these architectures based on the needed frequency

of normalization. The proposed architectures produce a less than 10

-3

error rate compared with their

software-driven counterpart for implementing floating-point operations. Furthermore, four popular

databases of faces are used to benchmark the proposed architectures.

1 INTRODUCTION

Eigen values are used for the extraction of features

in face recognition. Their evaluation is a time

consuming but important part of pattern recognition

algorithms (Niklas, P., and Franz-Erich, etl.)

(Stavros, P, Peter, L, and Miroslaw, B.). Gram-

Schmidt orthogonalization (GSO) is fast and deals

with an orthogonal space for the computation of

Eigen values (Sharma, A., and Paliwal, K.K.).

Orthogonality usually provides better decision

power in face recognition. However, GSO may face

convergence problems with the co-variance matrix

of high-resolution images. The modified GSO

(MGSO) approach used in fast principal component

analysis (FPCA) does not increase the time

complexity while solving the convergence problem

(Sajid, I., Ahmed, M.M., and Taj, I.). However,

MGSO requires additional vector normalization.

Normalization is an essential but time consuming

part of MGSO, and is applied iteratively. Euclidian

length normalization that applies floating-point

operations may provide more accurate results in face

recognition (Sajid, I., Ahmed, M.M., and Taj, I.)

(He, X., and Yan, S etl.). But floating point

operations are costly in hardware, especially the

square root; they use more on-chip resources and

consume more cycles as compared to integer

operations (Sajid, I., Ahmed, M.M. etl.) (Oberstar,

E. L.) (Liao, J.R.) (Yamin, L., and Wanming, C.)

(Peter, S., and Mirian, L.). On the other hand, fixed-

point arithmetic hardware can be used to provide

efficient calculations with precision near that of

floating-point. The precision of fixed point depends

upon the chosen Q.N format (Wilkinson, J. H.)

(Ortega, J.M.) (Burden, R. L., and Faires, J. D.).

Normalization involves a square root operation

in addition to other arithmetic operations. A fixed-

227

Sajid I., G. Ziavras S. and M. Ahmed M. (2010).

FPGA-BASED NORMALIZATION FOR MODIFIED GRAM-SCHMIDT ORTHOGONALIZATION.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 227-232

 SciTePress

point square root operation is more time and power

efficient than its floating-point counterpart, but it

loses slightly in precision due to its algorithmic

complexity. For the sake of efficiency, non-restoring

algorithms for the fixed-point square root operation

have been implemented on FPGAs (Piromsopa, K.,

and Aporntewan, C. etl.). Non-restoring can provide

precision up to three decimal places for an operand

less than unity, which is the observed operand range

in normalization for MGSO.

Co-design methodologies are employed to

achieve trade-offs among resource utilization,

execution time and power consumption. The

software realization of Euclidian length

normalization has time complexity O (n logn)

(Stavros, P, Peter, L, and Miroslaw, B.) (Gavish, B.,

and Sridhar,S.), where n is the rank of the square

matrix. This complexity can be reduced using a co-

design process to involve fixed-point arithmetic,

pipelining and instruction-level parallelism (ILP) for

arithmetic operations (Chin-Chin, H. and Shin-Ichi,

Y. etl.) (Benkrid, K., Crookes, D. etl.).

In this paper, three novel co-design architectures

are presented that use fixed-point operations,

pipelining and ILP for vector and matrix

normalization on FPGAs. Our analysis of power

consumption and execution time for these

architectures reveals a desirable/optimal way of

implementing normalization. We validate the

proposed design methodology via benchmarking that

involves image normalization for four popular

databases of human faces. Our results show a close

to 20% improvement in execution time when using

just 3% additional power, while keeping the

precision within three decimal places which has

been proven to be adequate for face recognition with

MGSO (Giraud, L. and Langou, J. etl.).

2 ARCHITECTURES

2.1 Software Implementation: ppc405

The ppc405 architecture of three layers for matrix

and vector normalization is implemented on an

FPGA. The application layer is composed of the data

producer (DP), the data consumer (DC) and the

fixed-point normalization unit (FxN). DP and DC

are in charge of providing data to the FxN unit and

getting back data from the real-time operating

system (RTOS) layer, respectively. FxN is a

computation unit that also translates floating-point

instructions into sequences of fixed-point integer

instructions determined at compilation. To facilitate

these interactions, two FIFO queues are involved in

one-way communication. The hardware in the third

layer does not contain floating-point units (FPUs)

since it targets fixed-point operations created by

FxN. FPUs are avoided because of their high cost in

FPGA resources and per-operation large number of

machine cycles. Thus, ppc405 presents a more time

and power efficient architecture than an FPU-based

architecture. However, a pure software

implementation of the required conversion of

floating-point operations will prove much slower

compared to an implementation that utilizes

appropriate fixed-point hardware components.

Therefore, an efficient hardware implementation of

the FxN unit becomes our primary objective.

2.2 IP-based Architecture: ppc_ip

The ppc_ip presents our second architecture which is

intellectual property (IP) based. For the new

architecture, the FxN unit of Section 2.1 was

designed in the VHDL language and the name

IP_NM was assigned to it. This IP core was then

integrated into the processor local bus (PLB) of the

PowerPC core processor as IP_FxN instead of

integrating it with the on-chip peripheral bus (OPB)

of the previous architecture. IP_FxN requires pairs

of multiplication and add/subtraction operations to

be carried out in an indivisible manner, similar to

MAC (multiply-and-accumulate) operations. In

addition to the MAC operation, division and square

root operations are required as well. IP_FxN was

designed towards efficiency by considering the

architecture of the target FPGA device XC2VP30.

The fixed-point square root (FxSqr) operation is

not advisable to be implemented within IP_FxN

because FxSqr needs a dedicated implementation on

the FPGA. Nested hardware processes require stack

memory for the call back function pointer. The

alternative is to design FxSqr in a separate process

and connect it through FIFOs with IP_FxN. This

will remove the need of the stack memory and its

associated controller. The stack memory may be a

less expensive solution but its management requires

customization of the embedded core’s functionality,

a task which is cumbersome. This architecture

moves the fixed-point normalization module from

the software layer of ppc405 to the hardware layer.

This increases slightly the consumed resources. On

the other hand, it improves significantly the

execution time for desired operations which is our

primary objective. Thus, the ppc_ip architecture is

more time and power efficient than the ppc405

architecture. The resources consumed by the

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

228

hardware layer of ppc_ip can be reduced further by

appropriately eliminating the processor core from

the hardware layer.

2.3 PCI-based Architecture: pc_pci

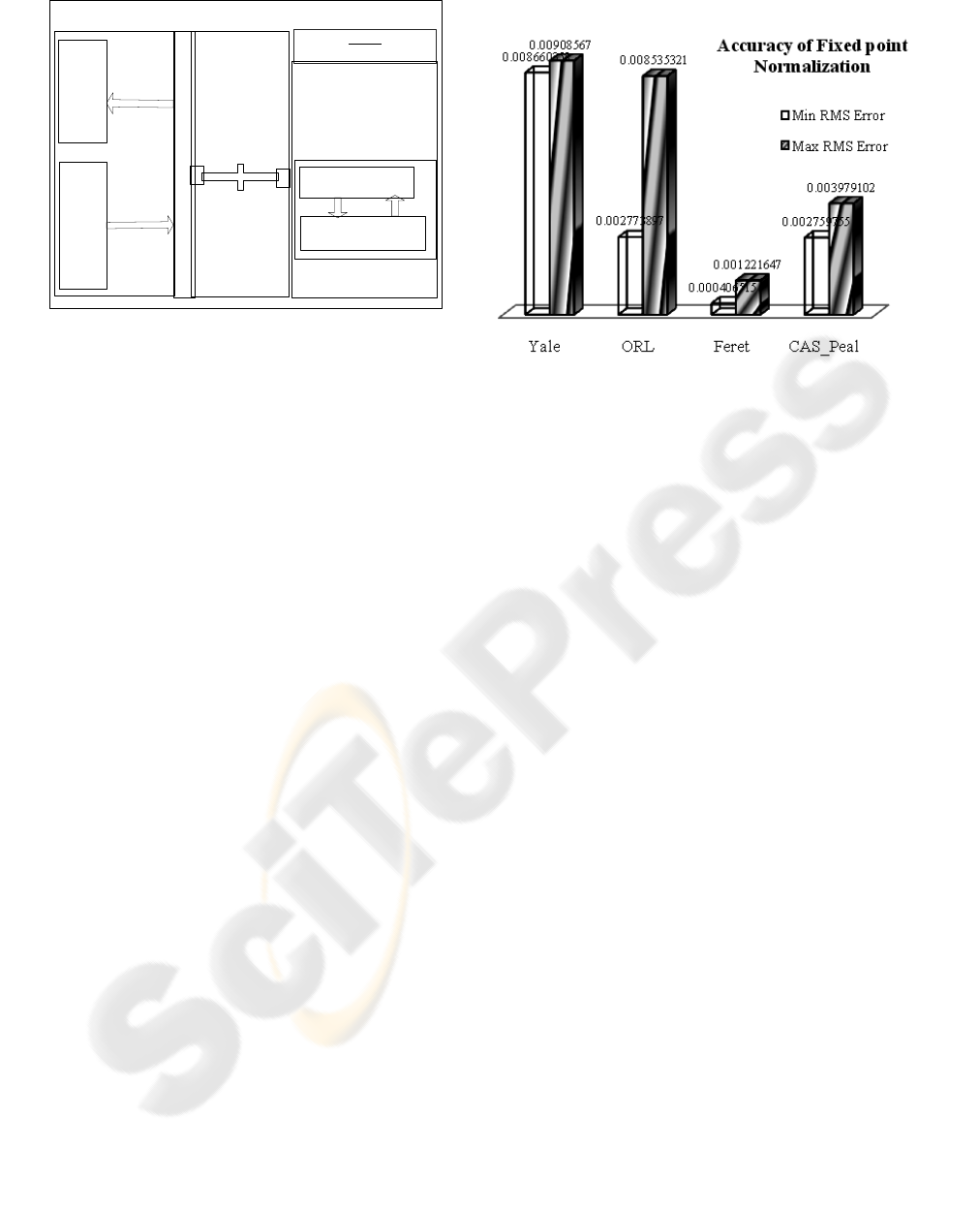

Figure 1 presents our PCI-based FPGA architecture

without a PowerPC embedded processor core. In this

architecture, only the computational unit IP_FxN is

placed inside the FPGA device. The data producer

(DC) is implemented by a C shell on the host

machine and the PCI bus acts as the interface

between DC and the FPGA. The execution time can

be estimated using the following Equation:

ippifHex

ttttt 

(1)

Where t

is the execution time for the normalization

of the matrix or vector, t

is the time consumed by

the host application, t

is the time taken by the two

ends of the hardware layer for data transfers, t

is the

time consumed on the PCI bus and t

is the time

taken by the IP core. The IP core has the same

design as in ppc_ip architecture. The two ends in

the hardware layer are: (a) the FPGA on the

Annapolis MicroSystems WildStar II-PCI board

with two Xilinx Virtex II XC2V6000-5 user-

configurable FPGAs; and (b) the software controller

at the PC OS side. The PCI bus operates at 133 MHz

and can send 32-bit data in 8 nanoseconds for a

matrix of rank 20. But usually the PCI bus takes

more time due to some acknowledgement signals

and possible packet loss overheads. It has been

observed that t

is about 6.4 microseconds for a

square matrix of rank 20. On the other hand, t

dominates in Equation (1) for this architecture

because the respective process executes in a C shell

on the PC. This architecture uses the minimum

resources on the FPGA because it does not require

FIFOs and an embedded core. Furthermore, it could

be beneficial to improve the FPGA frequency

sufficiently, so that the ratio of t

to other terms can

be reduced.

3 EXPERIMENTS, RESULTS AND

COMPARATIVE ANALYSIS

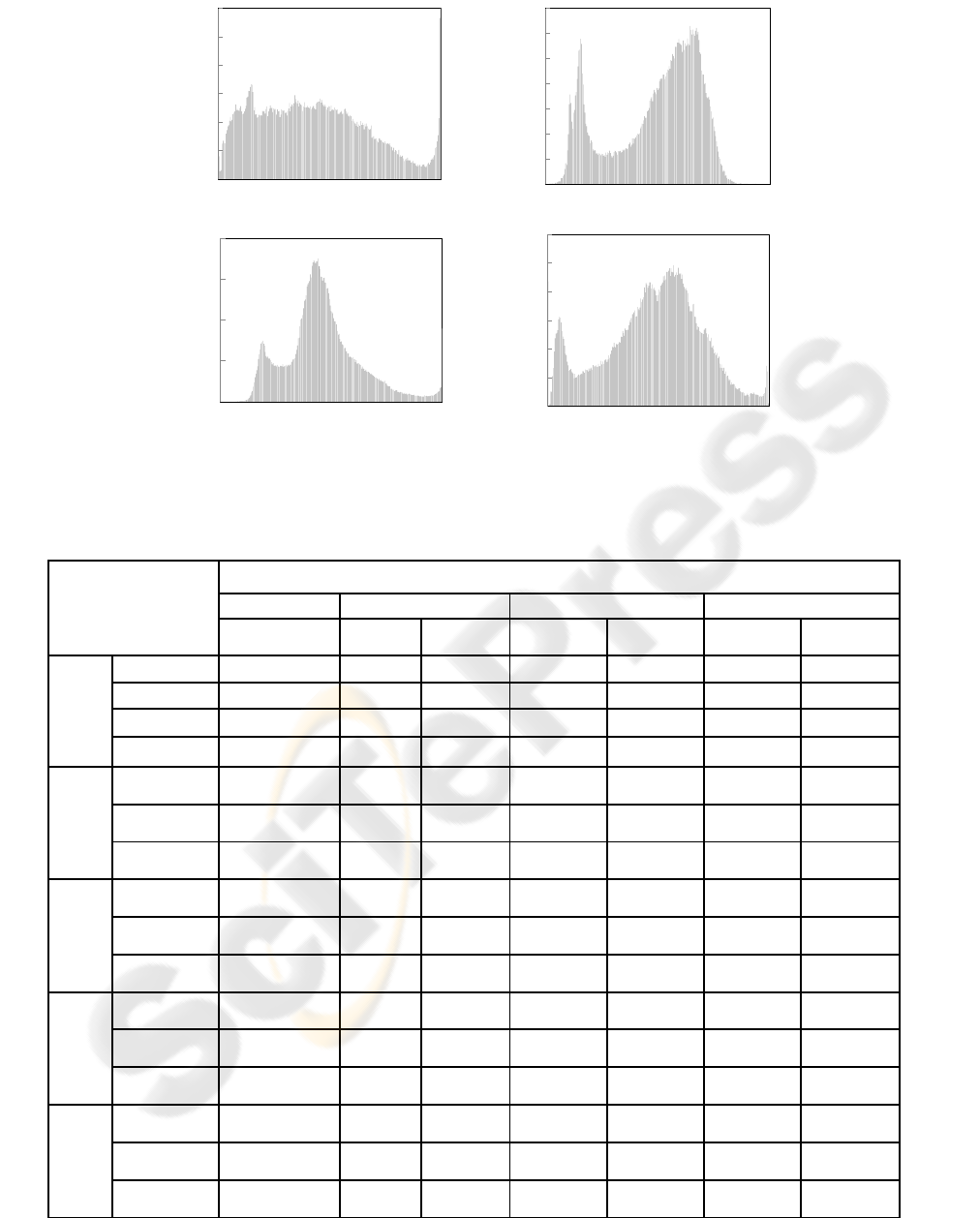

The accuracy of normalization depends upon Q.N

format and values of the matrix elements. The

proposed architectures were designed for the

normalization of matrices used in face recognition

tasks. In this regard, four popular databases with

human faces have been selected to validate our

design methodology. They are the Yale, Olivetti

Research Laboratory (ORL), Feret database and

CAS-PEAL databases (Yale Database) (Face

Database) (Wen,G., and Bo, Ce. etl.) (Phillips, P. J.,

Moon. etl.).

The Yale faces database contains 165 images of

15 subjects, with 11 images per subject. The ORL

faces database contains 400 images of 40 personnel.

These images have different variations in facial

expression, like open or closed eyes, smiling or non-

smiling, and facial details such as with glasses or

without glasses. CAS-PEAL is a Chinese faces

database containing 99,594 images of 1040 subjects.

A total of nine cameras were used to simultaneously

capture images across different poses, facial

expressions, lighting and angles. Feret is a big

database containing 14,126 images of 1199 subjects.

The performance of the proposed architectures is

judged based on the parameters of accuracy,

execution time and power consumption. A set of

twenty randomly selected images from the four

databases were tested to investigate the performance

of our implementations. The images in these four

databases were captured with different resolutions.

To measure the accuracy of the implementations,

the root mean square (RMS) metric is used. Initially,

values are recorded using the proposed fixed-point

arithmetic system with Matlab for the IEEE754

double-precision floating-point standard. The

minimum, maximum and average RMS values are

calculated for the said databases as shown in Figure

2. In Figure 2, the highest error is produced by Yale

whereas the minimum RMS error is for Feret. The

average histograms of gray levels for randomly

selected images from these databases could reveal

the error variation in the proposed system. The

Feret-based histogram shows a relatively close to

normal Gaussian distribution curve as shown in

Figure 3. Figure 3 shows average histogram of

twenty images from the said databases. Gaussian

distribution of pixel values suits our proposed

approach because truncation errors due to the least

significant digits are small. CAS-PEAL also follows

the Gaussian curve but its frequency of peaks is low

compare to Feret. On the other hand, ORL and Yale

have the smallest distribution of values in the central

region than Feret and CAS_PEAL. Furthermore

their maximum frequency of central region is

smaller than Feret and CAS-PEAL. The RMS error

range for all the databases is on the order of 10

-3

shown in Figure 2, which is quite acceptable for face

recognition using MGSO.

FPGA-BASED NORMALIZATION FOR MODIFIED GRAM-SCHMIDT ORTHOGONALIZATION

229

PC OS Layer

FPGA

xc2vp30ff896c

Data Producer (DP)

Input Matrix

Data Consumer

(DC)

Normalized

Matrix

PCI

Hardware layer

Application layer

32-bits fixed point

Square root

IP_FxN

Fixed point

Normalization

Figure 1: pc_pci architecture.

Table 1 shows the execution time and power

dissipation comparison of our architectures

presented in Section 2. The architectures were

evaluated based on their required FPGA resources

and the time taken to complete the normalization

process. The power dissipation was estimated using

Xilinx data sheets and the Xilinx XPower tool in the

integrated simulation environment (ISE). The

execution time for software processes was noted

using the Xilinx embedded development kit (EDK)

and the execution time of IP_FxN was estimated

using the synthesis report. FIFOs and the PCI bus

were used for communication purposes. The FIFOs

were implemented in hardware and were

incorporated in the IP_FxN module. The PCI bus is

not part of IP_FxN in pc_pci. Therefore, the time

taken by pc_pci is on the higher side compared to

ppc_ip. The PCI time depends upon the

specifications of the host machine.

In Table 1, ppc405. ppc_ip and pc_pci are the

architectures proposed in Sections 2.1, 2.2 and 2.3,

respectively. ppc405 cannot be implemented using

pipelining and ILP techniques because this

architecture uses Fx_N in the software layer. The

ppc_ip and pc_pci architectures were implemented

with pipelining and loop unrolling (ILP) techniques.

Therefore, seven implementation scenarios can be

seen in Table 1. Architectures employing pipelining

and ILP are more time efficient than the same

architectures without pipelining and ILP. On the

other hand, the maximum power is consumed by

ppc_ip (PL_ILP) and the minimum power by pc_pci

(WPL). The data feeding time for the ppc405 and

ppc_ip architectures is consumed by the DP

component; in the case of the pc_pci architecture,

this time is consumed by the PCI bus and the DP

unit. The bandwidth of the PCI bus depends upon

the host machine. However, the PCI bus time is sig-

nificantly high compared to using DP.

Figure 2: Error Analysis of fixed-point normalization for

the four databases.

In MGSO, approximately 4000 normalization

operations are required for a matrix of rank 20. The

ppc_ip (PL_ILP) architecture consumes the

minimum execution time for a matrix of rank 20.

But a matrix of rank 200 requires approximately a

fraction of a million normalization operations to

complete MGSO. In this situation, the ppc_ip

(PL_ILP) and pc_pci (PL_ILP) architectures

consume almost similar execution times. On the

other hand, pc_pci (PL_ILP) consumes 62% less

power than the ppc_ip (PL_ILP) architecture. Most

of the image and signal processing applications

require thousands of thousands of normalization

operations. Thus, pc_pci (PL_ILP) proves to be the

optimal solution for FPGA-based normalization

considering the accuracy, execution time and power

consumption.

Moments, which are projections of the image

function to the basis function, are used in object

tracking. High speed normalization of moments has

been has been implemented on the XCV1000 device

using parallel accumulators. It resulted in a

maximum calculation of 190 frames per second for

images having resolution 512x512 (Stavros, P, Peter,

L, and Miroslaw, B.). On the other hand, the

proposed architecture using a smaller XC2V30P

device produces 190 frames for the same resolution

in 0.116 seconds. Our system operates

approximately nine times faster than the one

proposed in (Stavros, P, Peter, L, and Miroslaw, B.).

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

230

100

120

101

151

201

251

Frequency

Gray Level

Yale

101

151

201

251

Frequency

Gray Level

ORL

100

200

300

400

101

151

201

251

Frequency

Gray Level

Feret

100

120

101

151

201

251

Frequency

Gray Level

CAS-PEAL

Figure 3: Average histogram of twenty images from four face databases.

Table1: Comparisons of execution time, and resource and power consumptions for the XC2VP30ff896c FPGA

XC2VP30ff896c FPGA.

Architectures

Software-Based

Unpipelined (WPL)

Pipelined (PL)

PL_ILP

Performance

Parameters

PPC405

PPC_IP

PC_PCI

PPC_IP

PC_PCI

PPC_IP

PC_PCI

Resources

Slices

1979

4587

1750

4615

1765

4641

1794

LUTs

2266

7399

3402

7471

3443

7514

3489

Flip-flops

1981

2709

930

2710

936

2900

1157

mWatts

5.78

13.39

5.11

13.48

5.15

13.55

5.24

Exec. Time (1

Oper)

Data feeding

time (µs)

346.28

15064

346.28

15064

346.28

15064

Exec.

Time(µs)

232.15

11.3

13.2

11.11

12.15

9.32

Total time

(µs)

578.43

357.58

15077.2

357.385

15076.2

355.6

15073.3

Exec. Time

(1000 Oper)

Data feeding

time (µs)

346.28

15064

346.28

15064

346.28

15064

Exec.

Time(µs)

232148.32

11295

13200

11105

12150

9320

Av. Time

(µs)

232.49

11.64

28.26

11.45

27.21

9.67

24.38

Exec. Time

(10

Oper)

Data feeding

time (µs)

346.28

15064

346.28

15064

346.28

15064

Exec.

Time(µs)

2.32E+10

1.12E+08

1.32E+07

1.10E+07

1.20E+07

9.32E+06

Av. Time

(µs)

232.15

11.3

13.22

11.1

12.17

9.32

9.33

Exec. Time (10

Oper)

Data feeding

time (µs)

346.28

15064

346.28

15064

346.28

15064

Exec.Time

(µs)

2.32E+10

1.13E+08

1.32E+08

1.10E+08

1.20E+08

9.32E+07

9.30E+07

Av. Time

(µs)

232.14833

1.129504

1.32

1.1105

1.21515

0.932004

0.93215

FPGA-BASED NORMALIZATION FOR MODIFIED GRAM-SCHMIDT ORTHOGONALIZATION

231

4 CONCLUSIONS

Three layers for three FPGA-based architectures

were proposed targeting at the normalization of a

matrix or vector. These architectures were designed

and analyzed on the basis of accuracy, execution

time and power consumption. The impact of

pipelining and instruction level parallelism was

studied as well using an architecture co-design

methodology. The host-to-PCI based architecture

provides an optimum combination of accuracy,

processing time and power consumption. The pc_pci

architecture provides a more than 200 times faster

solution than the software-based solution running on

an embedded system and is 62% more efficient than

the IP-based architecture. Furthermore, this

architecture is about nine times faster than a

previously proposed architecture while also yielding

an accuracy of within 10

-3

as compared to a

hardware-based floating-point architecture.

REFERENCES

Benkrid, K., Crookes, D., Bouridane, A., Con, P., and

Alotaibi, K., 1999, A High Level Software

Environment for FPGA Based Image Processing,

Image Proc. And Its Applications. Seventh Inter.

Conf., Manchester, U.K.

Burden, R. L., and Faires, J. D., 2005. Numerical

Analysis, seventh ed., Thomson.

Chin-Chin, H., Shin-Ichi, Y., 1996. Hideji Fujika, W., and

Koichiro, S., A Fuzzy Self-Tuning Parallel Genetic

Algorithm For Optimization, Computers ind. Engng

vol. 30, no. 4.

Gavish, B. and Sridhar,S., 2006. “Computing the 2-

median on tree networks in O (n lg n) time, Inter.

Jour. of networks, vol. 26, issue 4, Wiley InterScience.

Giraud, L., Langou, J. and Rozloznik, M., 2003. On the

loss of orthogonality in the Gram-Schmidt

orthogonalization process, Technical Report

TR/PA/03/25, CERFACS.

He, X., Yan, S., Hu, Y., Niyogi, P., and Zhang, H., 2005.

Face Recognition Using Laplacian faces”, IEEE

Trans. on Pat. Anal and Machine Intelligence, vol. 27,

no. 3.

IBM 64-bit processor local bus architecture specification

version 3.5, patent no. SA-14-2534-01, May, 2001.

Liao, J.R., 2000. Real-Time Image Reconstruction for

Spiral MRI Using Fixed-Point Calculation, IEEE

Trans. on Medical Imaging, vol. 19, no.7.

Niklas, P., Franz-Erich, W. and Martin, R., 2007. Laplace

spectra as fingerprints for image recognition,

Computer Aided Design, vol. 39.

Oberstar, E. L., 2007. Fixed-point representation &

fractional math, Report Oberstar Consulting.

Ortega, J.M., 1963. An Error Analysis of Householder's

Method for the Symmetric Eigenvalue Problem”,

Numerische Mathematik, 1-225.

Peter, S. and Mirian, L., 1996. Area and Performance

Tradeoffs in Floating-point Divide and Square-Root

Implementations, ACM Comp. Sur., vol. 28, no. 3.

Piromsopa, K., Aporntewan, C., and Chongsatitvatana, P.,

2009. An FPGA Implementation of a Fixed-point

Square Root Operation, ISCIT, 2001.

Phillips, P. J., Moon, H., Rizvi, S. A., and Rauss, P. J,

2000. The Feret Evaluation Methodology for Face-

Recognition Algorithms”, IEEE Trans. Pat. Anal.

Mach. Intell., vol. 22, no. 10.

Sajid, I., Ahmed, M. M. and Sageer, M., 2010 PGA based

optimized architecture for face recognition using fixed

point Householder algorithm, Acceptance for

publication, VI South. Prog. Logic Conf., Brazil.

Sajid, I., Ahmed, M. M., and Taj, I., 2009. Time Efficient

Face Recognition Using Stable Gram-Schmidt

Orthonormalization, Inter. Jour of Signal and Image

Proc. and Pat. vol. 1, no.2.

Sajid, I., Ahmed, M. M., Taj, I., Humayun, M., 2008.

Design of High Performance FPGA based Face

Recognition System, Proc. of Prog. In Electro.

Stavros, P, Peter, L, and Miroslaw, B, 2003. An FPGA

System for the High Speed Extraction, Normalization

and Classification of Moment Descriptors, Lecture

notes in computer science, 2003 - Springer.

Sharma, A., and Paliwal, K. K., 2007. Fast principal

component analysis using fixed-point algorithm, Patt.

Recog. Letters, vol. 28, no. 10.

The Database of Faces at a glance, 2009.

http://www.cl.cam.ac.uk/research/dtg/attarchive/facesatagl

ance.html.

Wilkinson, J. H., 1962. Error Analysis of Eigenvalue

Techniques Based on Orthogonal Transformations,

Journal of the Society for Industrial and Applied

Mathematics, vol. 10, no. 1.

Wen,G., Bo, C., Shiguang, S., Xilin, C., Delong, Z.,

Xiaohua, Z., and Debin, Z., 2008. The CAS-PEAL

Large-Scale Chinese Face Database and Baseline

Evaluations, IEEE Trans. Systems, man, and

cybernetics—part a: systems and humans, vol. 38, no.

1, JANUARY http://www.jdl.ac.cn/peal/index.html

Yamin, L., and Wanming, C., 1997. Implementation of

Single Precision Floating Point Square Root on

FPGAs, Proceeding of the 5th IEEE symposium on

FPGA-based custom computing Machines, April

http://www.superkits.net/whitepapers.htm.

Yale Univ. Face Database, 2002

http://cvc.yale.edu/projects/yalefaces/yalefaces.html.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

232
