ON-DEMAND HIGH-PERFORMANCE VISUALIZATION OF

SPATIAL DATA ON HIGH-RESOLUTION TILED

DISPLAY WALLS

Tor-Magne Stien Hagen, Daniel Stødle and Otto J. Anshus

Department of Computer Science, Faculty of Science and Technology, University of Tromsø, Norway

Keywords:

Visualization, High-resolution tiled display walls, Live data sets, On-demand computation.

Abstract:

Visualization of large data sets on high-resolution display walls is useful and can lead to new discoveries

that would not have been noticeable on regular displays. However, exploring such data sets with interactive

performance is challenging. This paper presents live data sets, a scalable architecture for visualization of large

data sets on display walls. The architecture separates visualization systems from compute systems using a live

data set containing data customized for the particular visualization domain. Experiments conducted show that

the main bottleneck is the compute resources producing data for the visualization side. When all data is cached

in the live data set, the main bottleneck (decoding images to create OpenGL textures and constructing geometry

from raster data) is on the visualization side. On a 22 megapixel, 28 node display wall, the visualization system

can decode 414.2 megapixels of images (19 frames) per second. However, the decoding is multi-threaded, and

increased performance is expected using multi-core computers.

1 INTRODUCTION

This paper presents live data sets, a new architec-

ture for interactive visualization of images, maps, the

Earth and other data sets on tiled display walls. A

display wall is a high-resolution wall-sized display

typically built by tiling many projectors. Each pro-

jector is driven by a computer called a display node

(Fig. 1). Traditional approaches to computation and

visualization of spatial data on display walls use a

three-tier display-compute-data architecture (Zhang,

2008; Jeong et al., 2006; Smarr et al., 2003; Cor-

rea et al., 2007) where display nodes communicate

directly with the compute resources. Live data sets

use a data space architecture where display nodes

communicate with compute resources through a data

set. This yields several advantages. First, the display

and compute sides become simpler since the logic

for communication between compute and rendering

nodes is hidden by the data set. Second, the data set

can be close to the rendering side, which reduces la-

tency and makes higher bandwidth possible. Finally,

the data set remains accessible from the display side

also in cases where the compute resources are ofﬂine.

In the live data set architecture the data set re-

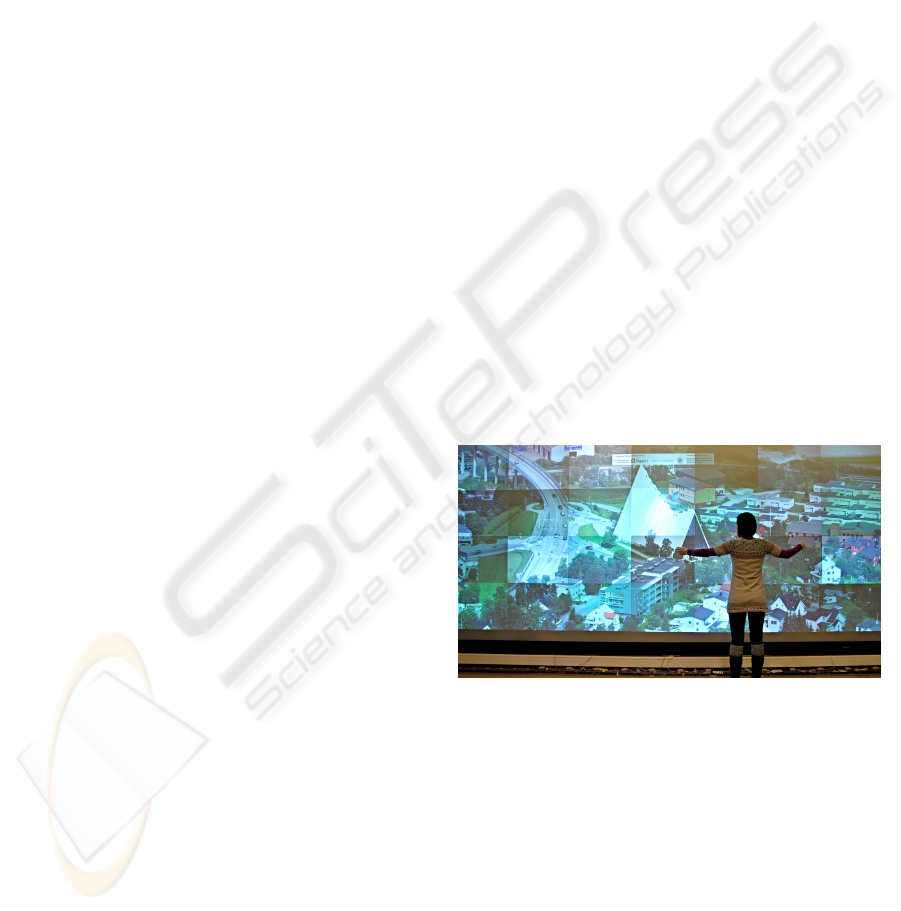

Figure 1: A user navigates in a 13.3 gigapixel image on a 22

megapixel tiled display wall using hand- and arm-gestures.

quests data from compute resources on-demand. This

is in contrast to existing systems such as Google Earth

where the data set is pre-processed by the server side.

On-demand computation and revalidation of data en-

sures that the display side always has the latest version

of the original data sets used. Further, on-demand

computation and acquisition of data reduces storage

requirements since data is collected and computed

only when needed. The live data set architecture re-

quires no custom code running on the compute side to

communicate with the display resources. The data set

adapts to the protocol used by compute resources and

112

Stien Hagen T., Stødle D. and J. Anshus O. (2010).

ON-DEMAND HIGH-PERFORMANCE VISUALIZATION OF SPATIAL DATA ON HIGH-RESOLUTION TILED DISPLAY WALLS.

In Proceedings of the International Conference on Imaging Theory and Applications and International Conference on Information Visualization Theory

and Applications, pages 112-119

DOI: 10.5220/0002849601120119

 SciTePress

not the other way around. Additionally, the system

can utilize remote compute and data resources like

GRIDs and supercomputers where outgoing connec-

tions are often administratively prohibited.

WallScope is an implementation of the live data

set architecture. WallScope comprises visualization

systems, live data sets and compute/data resources.

The visualization systems run a client on each com-

puter in the display wall’s display cluster. Each client

requests data from the live data set which it then uses

as part of the rendering. The data set initiates a local

or remote computation to satisfy the client’s request,

or returns a cached copy of the request if the compu-

tation has been performed recently. To manage the

visualization systems’ view, a central state server is

used which broadcasts a heartbeat message at a con-

ﬁgurable rate to update each client’s view of the visu-

alization’s state.

This paper makes three main contributions: (i)

live data sets, a new architecture for visualization of

high-resolution data sets on tiled display walls; (ii)

WallScope, a system realizing the live data set archi-

tecture; and (iii) an evaluation of the system docu-

menting its performance characteristics.

2 RELATED WORK

Spatial data, and in particular geographic informa-

tion, can be accessed and visualized using numerous

software applications. Table 1 summarizes the differ-

ences between WallScope and related work.

Google Earth (Chang et al., 2006) is a popular ge-

ographic information system. It is implemented using

the BigTable system on the server side. BigTable is

a distributed storage system for managing structured

data. It uses the Google File System (GFS) (Ghe-

mawat et al., 2003) to store its data. For Google Earth,

BigTable uses one table to pre-process data, and a

different set of tables for serving client data. The

pre-processing pipeline uses MapReduce (Dean and

Ghemawat, 2008) to transform data. Google Earth

has been shown running on a display wall (Williams,

2007). The system uses Chromium (Humphreys et al.,

2002) to distribute rendering primitives from one cen-

tral computer running Google Earth, to software run-

ning on each display cluster node. Chromium has

scalability issues as the network often becomes a bot-

tleneck (Kunz et al., 2003). Google Earth can also run

on the HIPerWall (Calit2, 2008), using one or more

instances per display cluster node. The instances are

controlled using Google Earth’s API. A controller re-

ceives input from a user and forwards the resulting

view state to the instances. This solution does not sup-

port on-demand computation of domain speciﬁc data,

and the system’s performance is not documented.

ArcGIS Engine (ESRI, 1997) is a collection of

components that are used to create custom GIS ap-

plications. One such system (Liang et al., 2007) uses

ArcGIS Engine to do parallel map rendering on a tiled

display wall. This system uses a master node and

six rendering nodes, all running ArcGIS Engine and

connected to a back-end GIS database. The master

shows the full scene of the data set and takes con-

trol input from a user. The rendering nodes retrieve

layer data from the back-end and view information

from the master. However, in contrast to WallScope

this system has no separate compute resources. Ad-

ditionally, the ArcGIS components are only available

for Windows.

Tellurion (Kooima, 2008) is a planetary visualizer

with real-time capabilities for data-manipulation. Us-

ing a GPU centric approach the system is able to com-

bine disparate planetary-scale data sets to produce a

uniform composite visualization of them. The visu-

alizer has been ported to several display walls. Al-

though the visualizer has real-time capabilities for

blending data sets with different projections, the

data sets have to be downloaded to disk in advance.

WallScope uses on-demand fetching and revalidation

of data to ensure that the system is using the latest

version of real-time data sets.

Several other visualization systems can transform

and visualize spatial data, including Active Data

Repository (Kurc et al., 2001), DataCutter (Beynon

et al., 2001), Active Semantic Caching (Andrade

et al., 2007), Scalable Parallel Visual Networking

(Correa et al., 2007), ParVox (Li, 2002), OptiStore

(Zhang, 2008), OptiPuter (Taesombut et al., 2006),

The Digital Light Table (Katz et al., 2004), Multi-

Surface Light Table, The Remote Interactive Visu-

alization and Analysis System (Li et al., 1996) and

The Scalable Adaptive Graphics Environment (Jeong

et al., 2006), based on TeraVision (Singh et al., 2004)

and TeraScope (Zhang et al., 2003). However, these

systems have tightly integrated the compute resources

with the display resources, and require both the dis-

play side and the compute side to run custom code.

This limits the compute capabilities to local compute

resources. Additionally most systems require the data

to be located on the compute nodes’ disks. WallScope

extends this by utilizing a live data set to provide the

rendering applications with domain speciﬁc data from

local and remote data and compute resources, trans-

parent to the display side of the system.

ON-DEMAND HIGH-PERFORMANCE VISUALIZATION OF SPATIAL DATA ON HIGH-RESOLUTION TILED

DISPLAY WALLS

113

Table 1: WallScope compared to visualization and compute systems presented in the litterature.

Visualization system Separate Compute Remote Compute On-Demand

Resources Resources Computation

WallScope Yes Yes Yes

Google Earth / Maps (BigTable) Yes No No

ArcGIS (Display Wall Version) No No No

Active Data Repository Yes No Yes

DataCutter Yes No Yes

Scalable Parallel Visual Networking Yes No Yes

ParVox Yes No Yes

Tellurion No No No

OptiStore Yes No Yes

OptiPuter Yes No Yes

Digital Light Table Yes No Yes

Remote Interactive Visualization and ... Yes No Yes

Multi-Surface Light Table Yes No Yes

Scalable Adaptive Graphics Environment Yes No Yes

3 ARCHITECTURE

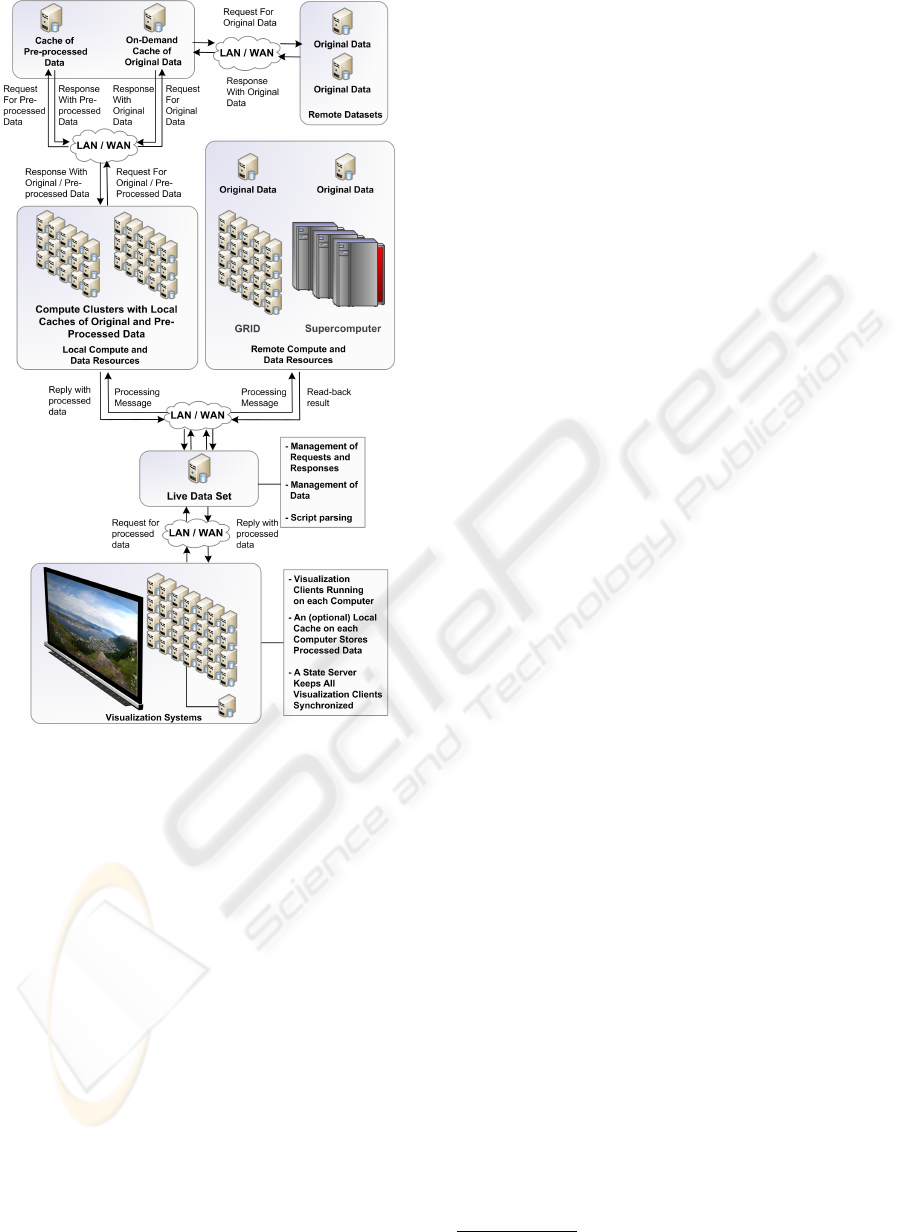

Fig. 2 shows the WallScope architecture. A visual-

ization client runs on each display cluster node. The

view state of the clients is provided by a state server.

Each client requests data from the live data set which

it then uses for the rendering. The live data set re-

turns the data immediately if it is available. Other-

wise, a processing message is sent to local or remote

compute resources that generate domain speciﬁc data

for the visualization system. The compute resources

generate customized data according to the client re-

quest. For local compute resources, the request is sat-

isﬁed using two caches, the ﬁrst containing original

data and the second containing pre-processed data.

The WallScope architecture enables load-balancing

by separating compute intensive tasks from the vi-

sualization clients and executing them on the back-

end compute resources. This makes it possible to add

compute resources as needed, and not limit the sys-

tem’s compute power to the number of display clus-

ter nodes. Data with realtime properties may pass

through the system without modiﬁcation, reducing la-

tency for this kind of data.

4 DESIGN

The WallScope visualization systems execute as a set

of clients, one client per display node. Each client is

responsible for requesting and displaying its part of

the output image calculated from its position in the

display wall grid. A state server maintains the state

and updates all clients at a conﬁgurable rate using

a heartbeat state message. The clients combine the

state received in the heartbeat message with their lo-

cal view frustum to calculate the data they need for

rendering. The state server accepts user input which

is merged into the state and propagated to the clients.

The live data set stores all data processed by

WallScope. WallScope uses a single centralized live

data set to hide data fetching and computing to the

visualization systems. However, the live data set can

become a bottleneck if the load from the clients ex-

ceeds the processing speed of the computer running

the live data set, or if the network between the data

set and the clients is saturated. For this reason each

display node also comprises a local cache. The lo-

cal caches support different conﬁgurations: (i) local

caching; (ii) peer-to-peer exchange of cached data;

and (iii) no caching at all. The latter approach is pre-

ferred if neither the network nor the computer running

the live data set is a bottleneck, because it limits the

amount of duplicate entries caused by having objects

cached in both the local cache clients and the visual-

ization system’s clients.

The local compute resources execute as a set of

clients on one or several compute clusters. Each com-

pute node comprises an on-demand cache of original

data and a cache of pre-processed data. The compute

nodes receive processing messages from the live data

set. From the processing message the compute en-

gine requests original and pre-computed data from its

local caches and generates data according to the re-

quest. The local compute system uses a single on-

demand centralized cache of original data between the

Internet and the local compute resources. This de-

IVAPP 2010 - International Conference on Information Visualization Theory and Applications

114

Figure 2: The WallScope architecture. The live data set

provides visualization clients with customized data from lo-

cal and remote data and compute resources.

sign choice was made to: (i) make the system appear

as a single entity to the outside world; (ii) limit the

number of outgoing connections to prevent external

servers from being overloaded or banning WallScope

due to excessive resource usage; and (iii) authenti-

cate and keep track of external session state required

by external servers. The cache of pre-processed data

contains pre-downloaded and pre-computed data that

is pre-processed for the local compute resources. For

example to reduce latency, reduce number of passes

over the data, or for converting data to a more efﬁ-

cient memory layout.

5 IMPLEMENTATION

Two visualization systems have been implemented for

the WallScope system. WallGlobe is a visualization

system for planetary scale data sets. It is implemented

in Java, using Java OpenGL (JOGL) for rendering.

WallView is a visualization system for gigapixel im-

ages, similar to Seadragon

. It is implemented in C++

and uses OpenGL for rendering. Both visualization

systems use a sort-ﬁrst rendering approach and run on

Linux, Windows and Mac OS X. Users can pre-fetch

data to the live data set by running these visualization

systems on their laptops.

The main components of the visualization clients

are the rendering engine, the request queue and the

request threads. Although OpenGL is a thread-safe

API, most implementations are not. Therefore the

rendering engines have a single thread of execution.

The rendering thread draws at a conﬁgurable num-

ber of iterations per second. The thread performs view

frustum clipping and back-face culling before it re-

quests data for all the objects that are visible using

the request queue. Request threads fetch data from

this queue and notiﬁes the rendering thread as soon as

the data is downloaded and decoded.

Every computer driving the display wall executes

a local copy of the visualization clients. A state server

accepts input from external controllers and broadcasts

this state to the other clients using UDP multicast.

The live data set and the Internet cache of orig-

inal data are implemented using Squid. Squid is a

high-performance web caching proxy (Wessels et al.,

1995). Squid was chosen because it is a open source,

highly conﬁgurable, cross-platform and several Squid

servers can be conﬁgured to co-operate in various

cache hierarchies.

The local compute resources execute a custom

map system implemented in Common Lisp. Each

node uses two different caches. A web cache of orig-

inal data realized using Squid, and a cache of pre-

processed data realized using the network ﬁle sys-

tem (NFS) and memory mapping. The pre-computed

cache is indexed and memory mapped when the com-

pute application is initially started. Files in this cache

are not updated when WallScope executes, as opposed

to the on-demand cache of original data which might

invalidate and download new content during execu-

tion.

6 EXPERIMENTS

To measure the performance of WallScope three ex-

periments were conducted. The ﬁrst experiment mea-

sured the time used to request 900 512x512 image

tiles from one display node, with the purpose of iden-

http://www.seadragon.com/

ON-DEMAND HIGH-PERFORMANCE VISUALIZATION OF SPATIAL DATA ON HIGH-RESOLUTION TILED

DISPLAY WALLS

115

tifying performance characteristics when data is ac-

cessed from different locations in the architecture.

The second experiment measured the speedup when

going from 1 to 26 compute nodes, to understand the

scalability of the live data set and the local compute

resources. The third experiment used a WallGlobe

camera trace to isolate bottlenecks in the WallScope

architecture, and measure the system’s performance

under different conﬁgurations and loads.

6.1 Methodology

The hardware used in the experiments was: (i) a 28

node display cluster (Intel P4 EM64T 3.2 GHz, 2GB

RAM, Hyper-Threading, NVidia Quadro FX 3400

w/256 MB VRAM) interconnected using switched

Gigabit Ethernet and running the 32-bit version of the

Rocks Linux cluster distribution 4.0; (ii) a computer

running the state server; (iii) a computer running the

live data set; and (iv) a 26 node compute cluster. Each

display node was connected to a projector with a reso-

lution of 1024x768 pixels, arranged in a 7x4 grid for a

total of 7168x3072 pixels (22 megapixels). The state

and live data set computers had the same speciﬁca-

tions as the display cluster nodes. The compute nodes

also had the same speciﬁcations, but were running the

64-bit version of Rocks.

To conduct the ﬁrst experiment, a custom Java ap-

plication was written to perform 900 image requests.

The following statistics were measured: (i) the time

used to compute images on one compute node; (ii) the

time used to read the processed data from the live data

set to one display node; and (iii) the time used to read

the processed data from the display node’s local cache

with and without the time used to decode the images

at the display node. The 900 image tiles requested

during the experiment correspond to 236 megapixels,

in total 31.84 megabytes of JPEG image data. Each

image tile used the Landsat data set as the base layer

with the ocean masked with data from the Blue Mar-

ble data set. The original data sets that comprised

the processed images were pre-fetched to the origi-

nal data cache. The vector data used in the masking

of the ocean was replicated from the centralized cache

of pre-processed data to every compute node.

For the second experiment, the speedup was mea-

sured when going from 1 to 26 compute nodes. The

experiment used the same 900 image requests. All

requests were divided between the computers round-

robin.

The third experiment used a camera trace played

back at varying speeds. The trace consisted of a set

of waypoints. Each waypoint described the position

and rotation of the camera at the waypoint. The cam-

era’s position and rotation was then interpolated over

a spline curve calculated between the waypoints. The

trace started with the entire Earth visible in the view

frustum, and then zoomed into a speciﬁc part of the

Earth. All waypoints were picked in such a way that

the camera only visited new tiles. The time spent in-

terpolating between each waypoint was 30, 25, 20,

15, and 10 to 1 seconds. The WallGlobe state server

was conﬁgured to multicast the global state derived

from the camera trace to each of the WallGlobe clients

50 times per second (matching the refresh rate of the

projectors). The total number of requests generated

by the trace was 8585. 5111 (59.53%) of these re-

quests were requests for images and 3474 (40.47%)

were requests for elevation data. All the image tiles

were 512x512 pixels. This corresponds to approxi-

mately 1340 megapixels of image updates. All way-

point times were repeated over different WallScope

cache- and compute-conﬁgurations. The conﬁgura-

tions were: (i) full local caches; (ii) a live data set

containing all requested data; and (iii) computing on

1, 2, 4, 8, 16 and 26 nodes.

6.2 Results

Table 2 shows the measured times for experiment 1.

The ﬁrst column shows the location of the requested

data. The second column shows the time used to com-

plete all the 900 requests. The third column shows the

mean time per request.

Table 2: Time used to request 900 512x512 pixel (236

megapixels) image tiles.

Data Location Time Used Mean

Compute Node 296.238 sec 329.2 ms

Live data set 1.411 sec 1.6 ms

Local Cache 0.716 sec 0.8 ms

Local Cache (w/dec.) 13.850 sec 15.4 ms

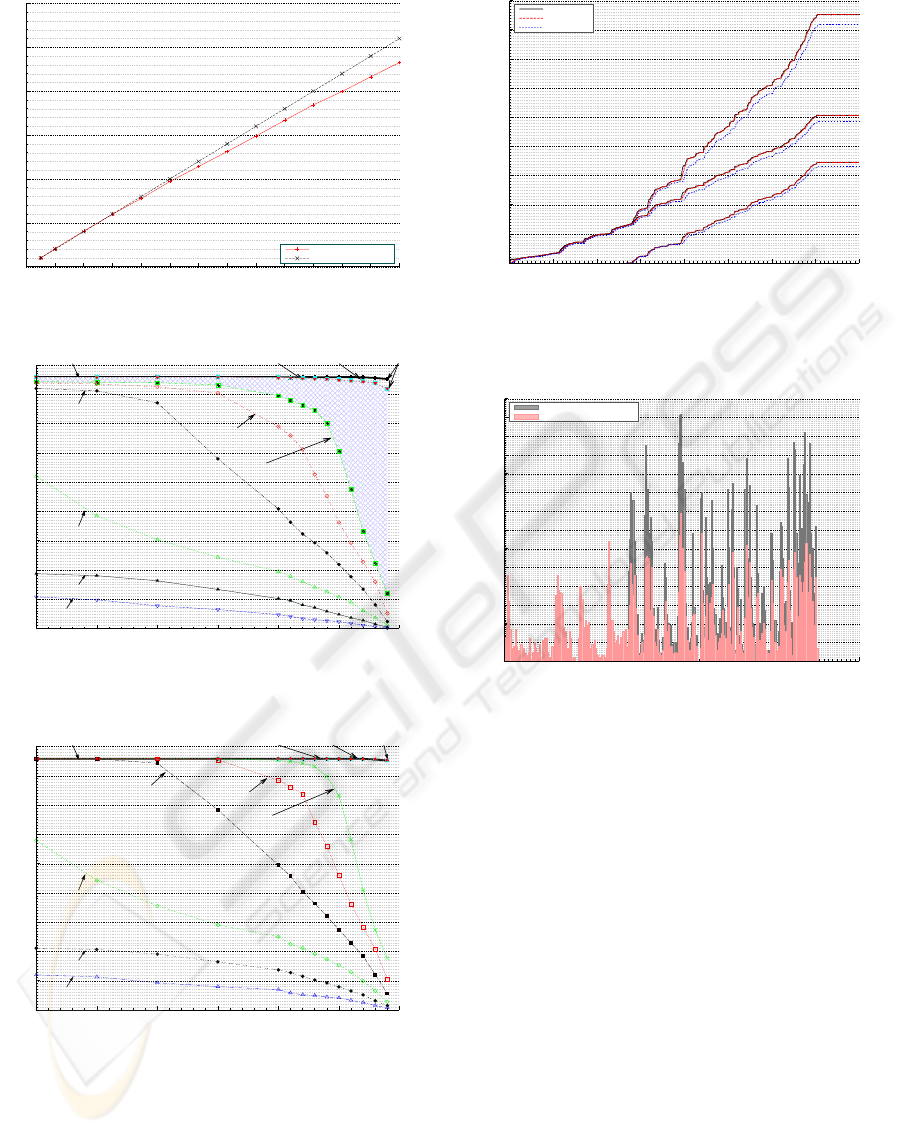

Fig. 3 shows the result of experiment 2. In the

ﬁgure the actual speedup is plotted against a linear

speedup.

Fig. 4, 5, 6 and 7 show the result of experiment 3.

Fig. 4 shows the displayed requests from each of the

experiment conﬁgurations. The y-axis is the number

of requests that were displayed during the experiment.

A ”displayed request” is a request that was loaded in

memory and displayed at least one frame during the

experiment. The x-axis is the seconds used between

waypoints. The upper bold line is the total number of

requests generated by the trace.

Fig. 5 shows the number of completed requests

during the experiment. This is the sum of the dis-

played requests and the requests that were down-

IVAPP 2010 - International Conference on Information Visualization Theory and Applications

116

0 2 4 6 8 10 12 14 16 18 20 22 24 26

Speedup

Number of Compute Nodes

Actual Speedup

Linear (1:1) Speedup

Figure 3: Speedup when going from 1 to 26 compute nodes.

1000

2000

3000

4000

5000

6000

7000

8000

9000

0 5 10 15 20 25 30

Displayed Requests

Seconds between Waypoints

Total Requests

1 Compute Node

2 Compute Nodes

4 Compute Nodes

8 Compute Nodes

16 Compute Nodes

26 Compute Nodes

Live Data Set Local Cache Fig. 5

Figure 4: The number requests that were loaded into mem-

ory and contributed to at least one frame.

1000

2000

3000

4000

5000

6000

7000

8000

9000

0 5 10 15 20 25 30

Completed Requests

Seconds between Waypoints

Total Requests

1 Compute Node

2 Compute Nodes

4 Compute Nodes

8 Compute Nodes

16 Compute Nodes

26 Compute Nodes

Live Data Set Local Cache Fig. 5 and 6

Figure 5: The total number of completed requests. (The

displayed and non-displayed requests).

loaded and decoded but not displayed because the

planet’s source tile of the request was outside the

view-frustum at the time the data was available.

Fig. 6 shows the requested, completed and dis-

played requests for the full local cache conﬁguration

using one second between waypoints (marked by an

1000

2000

3000

4000

5000

6000

7000

8000

9000

0 2000 4000 6000 8000 10000 12000 14000 16000

Requests Accumulated

Milliseconds

Images + Elevation Data

Images

Elevation Data

Requested

Completed

Displayed

Figure 6: The cumulative number of requested, completed

and displayed requests with full local caches. The time be-

tween each waypoint is 1 second.

100

110

120

130

140

0 2000 4000 6000 8000 10000 12000 14000 16000

Completed Requests

Milliseconds

Images + Elevation Data

Images

Figure 7: The number of completed requests for the full

local cache conﬁguration using one second between each

waypoint. Each of the requests are stacked in 50 millisec-

onds intervals.

arrow in the upper right corner of both Fig. 4 and Fig.

5). The y-axis is the number of requests accumulated

and the x-axis is the time in milliseconds.

Fig. 7 shows the completed requests of the same

trace stacked in intervals of 50 milliseconds, also

marked in Fig. 5.

6.3 Discussion

The time to request data from the local cache is twice

as fast as requesting data from the live data set. How-

ever, the time used to request and decode images on

one node is 13.85 seconds. This is over 9 times slower

than just requesting the images from the live data set,

and therefore contributes to a much larger part of the

overall time, compared to local versus central storage.

Requesting data stored in the live data set is two or-

ders of magnitude faster than computing the data on

one compute node. For each processed image tile the

ON-DEMAND HIGH-PERFORMANCE VISUALIZATION OF SPATIAL DATA ON HIGH-RESOLUTION TILED

DISPLAY WALLS

117

compute node must request the original image tiles

that comprise the processed image tile. This requires

data from at least one image tile from the Landsat data

set and one image tile from the Blue Marble data set.

Further, the compute node must create a raster sur-

face matching the speciﬁcation from the client request

(512x512 pixels) and ﬁll the raster surface with data

from both data sets based on the meta information

from the vector shape data. During decoding of JPEG

images the display node had a CPU load of 100%.

From 1 to 6 compute nodes the system has a near

linear speedup, as shown in Fig. 3. However, when

the number of nodes increases beyond 6, the speedup

is slightly reduced. This is caused by the round-

robin work distribution. Because each data request

has varying amounts of ocean to mask, the workload

for each work request varies. Work is handed out in

a round-robin fashion without any feedback mecha-

nism. Therefore some of the nodes will get more work

than others, which is why the performance does not

increase linearly with the number of compute nodes

added.

During experiment 3 all WallGlobe clients kept

the same framerate as the refresh rate between the

computer and the display. This shows that the sort-

ﬁrst approach used by WallGlobe is sufﬁcient for driv-

ing the 22 megapixel display wall. Fig. 4 shows that

the main bottleneck of the system is the computation

of customized data, illustrated by the difference be-

tween the graphs when everything is computed and

the graphs when everything is stored in the live data

set or the local cache. As the graphs illustrate the

system beneﬁts from increased number of compute

nodes. Documenting performance characteristics of

different cache replacement policies is outside the

scope of this paper. However, the shaded area on the

graph is where the expected performance of the sys-

tem would be using all compute nodes with caching

enabled. Different cache replacement policies will re-

sult in a system performance that will fall within this

area.

Fig. 4 and Fig. 5 show that the difference be-

tween local caching on each node and central storage

using the live data set on one node is small. Thus nei-

ther the network nor the live data set is a bottleneck

of the system. From 8 to 1 seconds the system does

not display all requests, despite the fact that they are

stored in the local cache (Fig. 4). This is explained

by the time used to decode JPEG images to create

OpenGL textures, and the time used to parse eleva-

tion data to create geometry in the WallGlobe clients

(Fig. 6). At 8000 milliseconds the trace generates

more requests than the WallGlobe clients are able to

display, illustrated by the graphs showing displayed

requests for both image and elevation data. When the

request threads can’t keep up with the frequency of

the updates, the amount of displayed data decreases.

At 8000 milliseconds the completed requests peeks

at 132 requests (Fig. 7). This corresponds to 2640

requests per second (132 x (1000 ms / 50 ms)). Of

these 132 requests 79 are requests for images corre-

sponding to a peak rate of 1580 images per seconds

(414.2 megapixels/s) the equivalent of 18.83 updates

per second on the 22 megapixel display wall. As de-

coding of JPEG images and parsing of elevation data

is performed in separate request threads, the system

will beneﬁt from multi-core CPUs.

7 CONCLUSIONS

This paper presented live data sets, a new architec-

ture for interactive visualization of images, maps, the

Earth and other data sets on high resolution tiled dis-

play walls. To demonstrate live data sets WallScope

was built. By separating data processing from dis-

play rendering and using local and remote data-

and compute-resources to provide on-demand cus-

tomized data for the particular visualization domain,

WallScope’s visualization capabilities are not limited

to the processing power of the display resources. The

experiments conducted show that the sort-ﬁrst render-

ing approach used by the visualization systems com-

bined with a simple state server enables each visual-

ization client to keep the same framerate as the refresh

rate between the computer and the display. When vi-

sualizing the Earth by combining data from the Land-

sat data set with data from the Blue Marble data set,

the bottleneck of the system is the merging process

of the data sets on the compute nodes. However, the

time used to combine data sets decreases by a factor

of 23 when increasing the number of compute nodes

from 1 to 26. When all data is stored, the bottle-

neck of the system is decoding JPEG images to create

OpenGL textures and processing geometry from el-

evation data. The visualization system can produce

414.2 megapixels per second, resulting in 19 decoded

frames per second. However, the decoding is multi-

threaded, and higher framerates are expected using

multi-core computers. This tracks the current trend

towards more CPU cores.

ACKNOWLEDGEMENTS

The authors wish to thank Espen Skjelnes Johnsen,

Lars Ailo Bongo and Joseph Ricci for discussions, as

well as the technical staff at the CS department at the

IVAPP 2010 - International Conference on Information Visualization Theory and Applications

118

University of Tromsø. The authors also wish to thank

Eirik Helland Urke for providing the 13.3 gigapixel

image. This work has been supported by the Nor-

wegian Research Council, projects No. 159936/V30,

SHARE - A Distributed Shared Virtual Desktop for

Simple, Scalable and Robust Resource Sharing across

Computer, Storage and Display Devices, and No.

155550/420 - Display Wall with Compute Cluster.

REFERENCES

Andrade, H., Kurc, T., Sussman, A., and Saltz, J. (2007).

Active semantic caching to optimize multidimen-

sional data analysis in parallel and distributed envi-

ronments. Parallel Comput., 33(7-8):497–520.

Beynon, M. D., Kurc, T., C¸ ataly

urek, U., Chang, C., Suss-

man, A., and Saltz, J. (2001). Distributed process-

ing of very large datasets with datacutter. Clus-

ters and computational grids for scientiﬁc computing,

27(11):1457–1478.

Calit2 (2008). http://hiperwall.calit2.uci.edu/?q=node/1.

Chang, F., Dean, J., Ghemawat, S., Hsieh, W. C., Wallach,

D. A., Burrows, M., Ch, T., Fikes, A., and Gruber,

R. E. (2006). Bigtable: A distributed storage system

for structured data. In In Proceedings of the 7th Con-

ference on USENIX Symposium on Operating Systems

Design and Implementation - Volume 7, pages 205–

218.

Correa, W. T., Klosowski, J. T., Morris, C. J., and Jack-

mann, T. M. (2007). SPVN: a new application frame-

work for interactive visualization of large datasets.

In SIGGRAPH ’07: ACM SIGGRAPH 2007 courses,

page 6.

Dean, J. and Ghemawat, S. (2008). Mapreduce: simpli-

ﬁed data processing on large clusters. Commun. ACM,

51(1):107–113.

ESRI (1997). http://www.esri.com/software/arcgis/.

Ghemawat, S., Gobioff, H., and Leung, S. T. (2003).

The google ﬁle system. SIGOPS Oper. Syst. Rev.,

37(5):29–43.

Humphreys, G., Houston, M., Ng, R., Frank, R., Ah-

ern, S., Kirchner, P. D., and Klosowski, J. T. (2002).

Chromium: a stream-processing framework for inter-

active rendering on clusters. In SIGGRAPH ’02: Pro-

ceedings of the 29th annual conference on Computer

graphics and interactive techniques, pages 693–702.

Jeong, B., Renambot, L., Jagodic, R., Singh, R., Aguil-

era, J., Johnson, A., and Leigh, J. (2006). High-

performance dynamic graphics streaming for scalable

adaptive graphics environment. In SC ’06: Proceed-

ings of the 2006 ACM/IEEE conference on Supercom-

puting, page 108.

Katz, D., Bergou, A., Berriman, G., Block, G., Collier,

J., Curkendall, D., Good, J., Husman, L., Jacob, J.,

Laity, A., Li, P., Miller, C., Prince, T., Siegel, H., and

Williams, R. (2004). Accessing and visualizing scien-

tiﬁc spatiotemporal data. In Scientiﬁc and Statistical

Database Management, 2004. Proceedings. 16th In-

ternational Conference on, pages 107–110.

Kooima, R. (2008). Planetary-scale Terrain Composition.

PhD thesis, Computer Science, Graduate College of

the University of Illinois, Chicago.

Kunz, A., (editors), J. D., Staadt, O., Walker, J., Nuber, C.,

and Hamann, B. (2003). A survey and performance

analysis of software platforms for interactive cluster-

based multi-screen rendering.

Kurc, T., C¸ ataly

urek, U., Chang, C., Sussman, A., and Saltz,

J. (2001). Visualization of large data sets with the

active data repository. IEEE Comput. Graph. Appl.,

21(4):24–33.

Li, P. (2002). Supercomputing visualization for earth sci-

ence datasets. In Proceedings of 2002 NASA Earth

Science Technology Conference.

Li, P., Duquette, W. H., and Curkendall, D. W. (1996). Riva:

A versatile parallel rendering system for interactive

scientiﬁc visualization. IEEE Transactions on Visu-

alization and Computer Graphics, 2(3):186–201.

Liang, H., Arangarasan, R., and Theller, L. (2007). Dy-

namic visualization of high resolution gis dataset on

multi-panel display using arcgis engine. Computers

and Electronics in Agriculture, 58(2):174 – 188.

Singh, R., Jeong, B., Renambot, L., Johnson, A., and Leigh,

J. (2004). Teravision: a distributed, scalable, high res-

olution graphics streaming system. In CLUSTER ’04:

Proceedings of the 2004 IEEE International Confer-

ence on Cluster Computing, pages 391–400.

Smarr, L. L., Chien, A. A., DeFanti, T., Leigh, J., and Pa-

padopoulos, P. M. (2003). The optiputer. Commun.

ACM, 46(11):58–67.

Taesombut, N., Wu, X. R., Chien, A. A., Nayak, A., Smith,

B., Kilb, D., Im, T., Samilo, D., Kent, G., and Orcutt,

J. (2006). Collaborative data visualization for earth

sciences with the optiputer, future generation com-

puter systems. Future Gener. Comput. Syst, 22:955–

963.

Wessels, D., Claffy, K., and Braun, H.-W. (1995).

NLANR prototype Web caching system,

http://ircache.nlaur.net/.

Williams, C. (2007). http://blog.irisink.com/2007/06/14/

display-wall-with-google-earth-on-mac-os-x/.

Zhang, C. (2008). OptiStore: An On-Demand Data pro-

cessing Middleware for Very Large Scale Interactive

Visualization. PhD thesis, Computer Science, Gradu-

ate College of the University of Illinois, Chicago.

Zhang, C., Leigh, J., DeFanti, T. A., Mazzucco, M., and

Grossman, R. (2003). Terascope: distributed visual

data mining of terascale data sets over photonic net-

works. Future Gener. Comput. Syst., 19(6):935–943.

ON-DEMAND HIGH-PERFORMANCE VISUALIZATION OF SPATIAL DATA ON HIGH-RESOLUTION TILED

DISPLAY WALLS

119
