TOWARDS LOW-COST ROBUST AND STABLE HAND TRACKING

FOR EXERCISE MONITORING

Rui Liu and Burkhard W¨unsche

Graphics Group, Department of Computer Science

University of Auckland, Private Bag 92019, Auckland, New Zealand

Keywords:

Hand tracking, Hand segmentation, Feature detection, Perceptual-based colour space.

Abstract:

Applications for home-based care are rapidly increasing in importance due to spiraling health care and elderly

care costs. An important aspect of home-based care is exercises for rehabilitation and improving general

health. However, without caregivers supervising these exercises it is difﬁcult to monitor them, i.e., to determine

whether the exercises have been performed correctly and for the prescribed duration.

In this paper we present the ﬁrst steps toward a computer-based tool for monitoring hand exercises. Hand

exercises are important for various diseases such as Parkinson disease. While many algorithms exist for

gesture recognition, most of them do require special set-ups and are difﬁcult to use for very inexperienced

users in home-based environments. In this paper we present a robust hand region segmentation method which

represents the ﬁrst step toward a hand-tracking algorithm. Our solution requires no calibration and is easily

set-up. We evaluate its robustness with regard to complex backgrounds, changes in illuminations, and different

hand colours. Our results indicate that the robust hand region segmentation provides a solid foundation for

monitoring hand exercises.

1 INTRODUCTION

Injuries and diseases such as inﬂammatory and

autoimmune diseases (arthritis), degenerative mus-

cle diseases (Welander distal myopathy), overuse

syndromes and neurological damage and diseases

(stroke, Parkinson’s disease) may cause reduced or

complete loss of control of hand and ﬁngers which

would be a catastrophic event for patients. For many

of the above diseases surgical or drug treatment does

not exist, is expensive, or only partially effective.

Finger and hand exercises have been shown to be

a very effective alternative or complementary treat-

ment (Wessel, 2004).

A major problem with exercise training is the

lack of supervision by qualiﬁed instructors over time.

While patients are encouraged to exercise at home,

many patients lack motivation without monitoring

and evaluation of their performance. The popular-

ization of personal computers and web-cams offers a

solution to this problem. We can use existing hard-

ware in combination with animation technology to

teach patients the correct exercises and to use web-

cam based gesture recognition technology to evaluate

the correctness of the exercises, to give instructions

for improvement, and to monitor the success of the

exercise program over time. Such home-based care

applications are rapidly increasing in importance due

to spiraling healthcare and elderly care costs and are

becoming an integral part of government health poli-

cies (UK Department of Health, 2009).

Our goal is to provide an affordable platform for

novice users and patients to set up their own exercise

environmenteasily. With the help of a region-growing

approach and a perception-based colour space, a

calibration-free application is presented based on

web-cam input.

2 LITERATURE REVIEW

A large variety of hand tracking algorithms have been

proposed. A good survey is given in (Mahmoudi and

Parviz, 2006). Two important categories are marker-

based and marker-less methods.

2.1 Marker-based Tracking Methods

Marker-based hand tracking algorithms require the

user to wear point or area markers such as LED-

263

Liu R. and Wuensche B. (2010).

TOWARDS LOW-COST ROBUST AND STABLE HAND TRACKING FOR EXERCISE MONITORING.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 263-266

DOI: 10.5220/0002850002630266

 SciTePress

gloves and colour coded markers. An example is

the inexpensive 3D articulated hand tracking system

by (Wang and Popovi´c, 2009). The hand position and

motion of the users are tracked by wearing a glove

with a custom colour pattern. Robustness and interac-

tive speed are illustrated by applications such as driv-

ing an animated character using ﬁnger motion.

Marker-based tracking applications can provide

highly accurate results, but the need for auxiliary de-

vices (markers, gloves) can be inconvenient for the

user and often requires some type of calibration.

Our preliminary studies and interviews with

healthcare and geriatrics specialists suggest that pa-

tients and elderly prefer a marker-less application. In

order to make current marker-based methods accept-

able the marker devices must become cheaper, more

readily available, and more ﬂexible and easier to use.

2.2 Marker-less Tracking Methods

Without the use of markers, alternative techniques

must be employed in order to identify a hand on the

camera image and determine its 3D position.

The easiest way to identify (potential) hand shapes

is by using a skin colour classiﬁer. A large amount of

literature exist on this topic. Some of the more re-

cent surveys and comparative studies include (Kaku-

manu et al., 2007; Vassili et al., 2003). Re-

cently a perception-based colour space has been pro-

posed (Chong et al., 2008) which can be used to make

image processing techniques more robust to different

lighting conditions.

By using a 3D hand model and searching for a

mapping (Stenger et al., 2001), the (potential) hand

shape can be veriﬁed and its 3D position and orien-

tation can be determined. An opposite approach can

also be taken by matching a hand image to a set of

hand templates (Stenger et al., 2006).

Due to its robustness to noise and lighting

changes, Haar-like features are also widely used to

achieve fast matching and rapid elimination of wrong

candidates (Chen et al., 2007).

3 DESIGN

The results of the review in the previous section

demonstrate that with the current limitations a mark-

erless method using a monocular web cam is the most

appropriate set-up for home-based healthcare applica-

tions. Designing such a system requires three steps:

1. A robust way for detecting the hand image (it

should work for different backgrounds, different

illuminations and different skin colours)

2. Pose estimation

3. Hand tracking

In this paper we only describe the ﬁrst step, i.e., a

robust way for detecting hand images using a low-cost

web-cam.

3.1 Overview

Our hand region segmentation algorithm utilizes a

pixel-based region-growing technique. A seed point

is obtained by displaying a target (e.g., hand template)

in the center of the screen and requiring the user to

move their hand until it matches the target. This type

of initialization does not require technical know-how

and can be accomplished by anyone able to do hand

exercises. The seed point is added to the currently de-

tected hand region and all its neighbours are stored in

a queue data structure. In each iteration we now re-

move a pixel from the queue, test whether it belongs

to the hand region, and if yes add its not yet tested

neighbours to the queue. In order to decide whether a

pixel belongs to the hand region we use a perception-

based colour space and compute the current pixel’s

colour distance to the mean value of the hand region

detected so far. Only pixels with a distance below a

given threshold are added. The algorithm continues

until the queue is empty.

3.2 Classiﬁcation Criteria

Two pixels are considered to belong to the same re-

gion if their colour distance is within a given thresh-

old. The colour distance is computed using the ℓ

−

norm and transformation function F which converts a

pixel’s colour into the perception-based colour space

from (Chong et al., 2008). The perceptual colour dis-

tance d between two colours~x and~x

′

is hence:

d(~x,~x

′

) = kF(~x) − F(~x

′

)k (1)

Therefore, if

′

<= d(~x,~x

′

) (2)

the pixel is classiﬁed as a point within the region in

which the seed point belongs to, otherwise the next

pixel will be tested.

Finding a suitable value for thresholding is dif-

ﬁcult. Making the inclusion of pixels only depen-

dents on comparison with its direct neighbours is er-

ror prone because of “colour leaking” (a continuous

change of colours from hand regions to other regions

due to shadows, highlights and other inﬂuences). Gra-

dient based methods are common in other segmen-

tation applications, but work unsatisfactory because

of strong local illumination changes over the hand

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

264

surface. We used instead a mixed approach com-

bining a colour distance criteria with edge detection.

The colour distance is computed by using the mean

colour value of the current hand region for compari-

son. We apply thresholding to the ℓ

-norm of colour

differences in the perception-based colour space. We

also experimented with applying thresholding to each

channel separately, but we were unable to ﬁnd a con-

sistently superior combination and hence decided to

keep using the ℓ

-norm. In order to avoid “colour

leaking” over object boundaries we compute image

edges using a Canny edge detector. New pixels are

only accepted if they do not lie on an edge.

4 IMPLEMENTATION

We implemented our algorithm in C/C++ using the

Open Source Computer Vision (OpenCV) library.

The following results were obtained using an iMac

(Intel(R) Core(TM)2 Duo CPU E8335 2.66GHz,

3.00GB RAM) with an inbuilt 640×480-pixel VGA

resolution iSight camera and a laptop (Intel(R) Cen-

trino CPU 1.60GHz, 1.00GB RAM) with a low qual-

ity external web-cam of unknown brand and with

320×240 resolution.

5 RESULTS

We tested our algorithm using web cam input and AVI

video clips and in all experiments processing was per-

formed in real time (i.e., 20 frames/second). We have

not yet determined the maximum speed possible.

We compared our algorithm with segmentation re-

sults obtained by using different skin classiﬁers using

different colour spaces (RGB, YCbCr and CIE XYZ).

In all cases the results were inferior to our method as

illustrated in Figure 1.

Figure 2 shows the results of testing our segmen-

tation method under different lighting conditions. The

identiﬁcation of the hand region works similarly well

in both examples. However, under dim light the skin

region around the wrist is missing.

We tested different backgrounds including a tex-

tured desk chair, a computer lab, and the user’s face

(ﬁgure 3). Surprisingly the algorithm works well even

when the hand covers the face, which seems to be

a much harder segmentation task. The results indi-

cate that the algorithm is robust, but requires some

ﬁne tuning and modiﬁcations might be necessary for

highly saturated image regions.

Figure 3 (right) demonstrates the robustness of

our algorithm when applied to different skin colours.

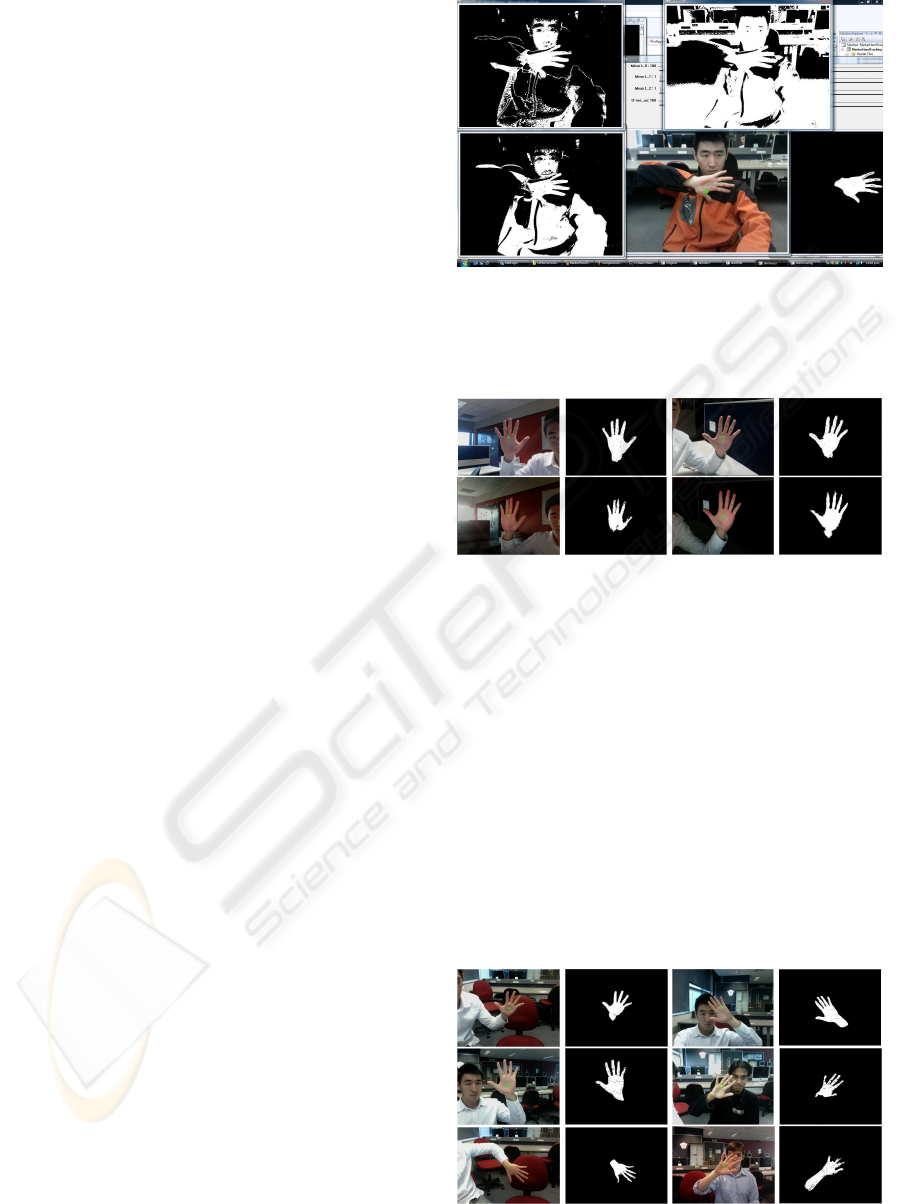

Figure 1: Comparison of the hand detection and segmen-

tation results using our region growing technique (bottom-

right) and the skin classiﬁers from (Hsu et al., 2002) (top-

left), (Yang et al., 1998; Stauffer and Grimson, 1999) (top-

right) and (Kovac et al., 2003) (bottom-left).

Figure 2: Segmentation results under indoor conditions

with daylight and ﬂuorescent ceiling lamps (ﬁrst row) and

dim environment without ﬂuorescent ceiling lamps (second

row).

We used users from three different ethnic groups and

found that the algorithm worked similarly well in all

cases.

Section 3 described our region growing algorithm

and explained that the testing of candidate pixels is

performed by computing their colour distance to the

mean colour of the current hand segment. An alterna-

tive application is to only consider the neighbours of

the candidate pixels which are within the segmented

region. We found that using the mean constraint re-

sults in better segmentation for the wrist region, but

causes one artifact in the ﬁnger region. Overall we

Figure 3: Evaluation of the sensitivity of our hand segmen-

tation algorithm to different backgrounds and skin colours.

TOWARDS LOW-COST ROBUST AND STABLE HAND TRACKING FOR EXERCISE MONITORING

265

found that using the mean value gives visually more

pleasing and consistent results. A quantitative study

is necessary to conﬁrm this observation.

6 CONCLUSIONS

We have presented a novel region-growingmethod for

hand segmentation. The main difference to previous

methods is the use of a perception-based colour space

and a classiﬁcation function using edge detection in-

formation in combination with mean colour values

rather than neighborhood information.

We have compared our method with traditional

skin classiﬁers and demonstrated that it is superior.

While the comparison has to be treated with caution

due to the lack of edge information when using the

skin classiﬁers, we believethat the results still demon-

strate the usefulness of our method as a starting point

for hand tracking applications.

We evaluated our method for different illumina-

tion conditions, backgrounds and skin colours, and

found that it is sufﬁciently stable and forms a suitable

foundation for low-cost hand tracking applications.

We have started to experiment with active contour

models, but found less improvement than expected

due to the high curvature of the hand silhouette.

7 FUTURE WORK

The next steps for our application are to estimate 3D

motion of the hand by using a 3D hand model with

kinematic constraints. In order to resolve ambigui-

ties in the mapping process we plan to use simpliﬁed

markers, e.g., stickers, coloured rubber bands or lip-

stick marks. This type of markers gives less reliable

results than traditional markers and we can not expect

users to place them correctly - however, such markers

are easy to use, cost effective, do not constrain mo-

bility, and can be used even if the patient suffers from

conditions such as swellings and sores on the hand.

REFERENCES

Chen, Q., Georganas, N., and Petriu, E. (2007). Real-time

vision-based hand gesture recognition using haar-like

features. In Instrumentation and Measurement Tech-

nology Conference Proceedings, 2007. IMTC 2007.

IEEE, pages 1–6.

Chong, H. Y., Gortler, S. J., and Zickler, T. (2008).

A perception-based color space for illumination-

invariant image processing. ACM Trans. Graph.,

27(3):1–7.

Hsu, R.-L., Abdel-Mottaleb, M., and Jain, A. K. (2002).

Face detection in color images. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 24:696–

706.

Kakumanu, P., Makrogiannis, S., and Bourbakis, N. (2007).

A survey of skin-color modeling and detection meth-

ods. Pattern Recogn., 40(3):1106–1122.

Kovac, J., Peer, P., and Solina, F. (2003). Human skin color

clustering for face detection. In EUROCON 2003.

Computer as a Tool., volume 2, pages 144–148.

Mahmoudi, F. and Parviz, M. (2006). Visual hand tracking

algorithms. In GMAI, pages 228–232.

Stauffer, C. and Grimson, W. (1999). Adaptive background

mixture models for real-time tracking. In IEEE Com-

puter Society Conference on Computer Vision and

Pattern Recognition, volume 2, page 252.

Stenger, B., Mendona, P. R. S., and Cipolla, R. (2001).

Model-based 3d tracking of an articulated hand. Com-

puter Society Conference on Computer Vision and

Pattern Recognition, 2:310.

Stenger, B., Thayananthan, A., Torr, P. H. S., and Cipolla,

R. (2006). Model-based hand tracking using a hierar-

chical bayesian ﬁlter. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 28(9):1372–1384.

UK Department of Health (2009). UK telecare policy and

strategy. http://www.pasa.nhs.uk/PASAWeb/

Productsandservices/Telecare/

Governmentpriorities.htm.

Vassili, V. V., Sazonov, V., and Andreeva, A. (2003). A

survey on pixel-based skin color detection techniques.

In Proc. Graphicon-2003, pages 85–92.

Wang, R. Y. and Popovi´c, J. (2009). Real-time hand-

tracking with a color glove. In SIGGRAPH ’09: ACM

SIGGRAPH 2009 papers, pages 1–8, New York, NY,

USA. ACM.

Wessel, J. (2004). The effectiveness of hand exercises for

persons with rheumatoid arthritis: A systematic re-

view. Journal of Hand Therapy, 17(2):174–180.

Yang, J., Lu, W., and Waibel, A. (1998). Skin-color model-

ing and adaptation. In ACCV ’98: Proceedings of the

Third Asian Conference on Computer Vision-Volume

II, pages 687–694, London, UK. Springer-Verlag.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

266
