REAL-TIME CAMERA POSE ESTIMATION USING

CORRESPONDENCES WITH HIGH OUTLIER RATIOS

Solving the Perspective n-Point Problem using Prior Probability

Tobias N

oll, Alain Pagani and Didier Stricker

Augmented Vision, DFKI, Trippstadterstr. 122, D-67663 Kaiserslautern, Germany

Keywords:

Real-time camera pose estimation, Low quality correspondences.

Abstract:

We present PPnP, an algorithm capable of estimating a robust camera pose in real-time, even if being provided

with large sets of correspondences containing high ratios of outliers. For these situations, standard pose

estimation algorithms using RANSAC are often unable to provide a solution or at least not in the required

time frame. PPnP is provided with a probability distribution function which describes all valid possible camera

pose estimates. By checking the correspondences for being compatible with the prior probability, it can be

decided effectively at a very early stage, which correspondences can be treated as outliers. This allows a

considerably more effective selection of hypothetical inliers than in RANSAC. Although PPnP is based on a

technique called BlindPnP which is not intended for real-time computing, a number of changes in PPnP allows

to estimate a camera pose with the same high quality as BlindPnP while being considerably faster.

1 INTRODUCTION

In this paper, we address the problem of camera pose

estimation from correspondences. Our goal is to ﬁnd

a solution for the Perspective n-Point (PnP) problem

for correspondences with high ratios of outliers in

real-time.

Usually the camera pose for a given image is es-

timated solely using a set of n correspondences. A

large amount of different markerless pose estimation

algorithms already exists. Those algorithms presented

in (Dhome et al., 1989), (Fischler and Bolles, 1981),

(Gao et al., 2003), (Haralick et al., 1994), (Quan and

Lan, 1999) typically search for the roots of an eight-

degree polynomial with no odd terms. Their complex-

ity varies from O(n

) to even O(n

). In (Lepetit et al.,

2009) a method called EPnP (Efﬁcient Perspective n-

Point Camera Pose Estimation) is proposed which al-

lows the computation of an accurate and unique solu-

tion in O(n) for n ≥ 4.

In practice, the estimation of the camera pose is

problematic if solely relying on the correspondences:

Often correspondences are established automatically

using feature detectors and a certain amount will be

misleadingly classiﬁed (outliers). In order to identify

and exclude the outliers, stochastic approaches such

as RANSAC (Fischler and Bolles, 1981) have been

developed. However RANSAC tends to fail or needs

an unacceptable large iteration count especially if the

outlier ratio grows.

In (Moreno-Noguer et al., 2008) a method to com-

pute the camera pose from correspondences called

BlindPnP is developed which integrates additional in-

formation beside the correspondences. BlindPnP as-

sumes that only two sets of 3D points and 2D points

are given without any correspondences. As additional

input, BlindPnP uses a probability distribution regard-

ing the ﬁnal camera pose estimate (pose prior proba-

bility). This prior probability is then used to estab-

lish a camera pose and the corresponding correspon-

dences in parallel.

BlindPnP delivers good results even if no cor-

respondences are given at all. However due to its

slow runtime performance, BlindPnP is not applica-

ble in real-time reactive systems. The authors men-

tioned, that BlindPnP can be modiﬁed for using cor-

respondences without providing results of this modi-

ﬁcation. We called this modiﬁed version BlindPnPC

(BlindPnP with correspondences) and implemented

and evaluated it in order to check whether it is appli-

cable for real-time camera pose estimation. We will

show, that BlindPnPC delivers high quality solutions,

even if being provided with low quality correspon-

dences. However the experiments also showed, that

the runtime of BlindPnPC highly depends on n. As

n grows, BlindPnPC is not able to provide solutions

381

Nöll T., Pagani A. and Stricker D. (2010).

REAL-TIME CAMERA POSE ESTIMATION USING CORRESPONDENCES WITH HIGH OUTLIER RATIOS - Solving the Perspective n-Point Problem

using Prior Probability.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 381-386

DOI: 10.5220/0002850403810386

 SciTePress

in real-time. To also provide solutions in real-time

for large values of n, we developed a new algorithm

called PPnP (Prior probability Perspective n-Point

Camera Pose Estimation) based upon BlindPnPC. We

will show, that PPnP is capable of estimating a robust

camera pose even though being provided with sets of

noisy correspondences having high outlier ratios. We

will also show, that PPnP reaches both higher pre-

cision and speed than the comparable conventional

RANSAC+EPnP method as well as the prior proba-

bility based BlindPnPC method.

The remainder of this paper is organized as fol-

lows: Section 2 summarizes the underlying theory

used for BlindPnPC. Section 3 covers the concept

and implementation of PPnP. In section 4 we provide

quality and performance analyses of both algorithms

using synthetic and real data scenarios. We ﬁnally

conclude in section 5 with an outlook to future work.

2 PNP WITH PRIOR

INFORMATION

PPnP has similar concepts as BlindPnPC. This algo-

rithm is explained in detail in (Moreno-Noguer et al.,

2008). The underlying theory is summarized in this

section.

Let C be the set of correspondences, containing a

ratio of λ outliers. Our aim is to ﬁnd the true cam-

era pose P =



R | t



as well as the set of inliers. Each

camera pose Q can also be parametrized as a 6 di-

mensional vector x

. Let V be the pose prior prob-

ability which describes all valid parameterizations of

possible solutions Q. V is modeled using a Gaussian

mixture model with a number of g Gaussian compo-

nents. Each of the Gaussian components consists of

a mean value x

∈ R

along with a covariance matrix

∈ R

6×6

. Figure 1 gives an example of a possible

modeling. For simplicity, only the translation uncer-

tainty is visualized (green ellipsoids). The mean val-

ues x

hereby specify the position, the covariances

the shape of the ellipsoids. A real pose prior prob-

ability would normally consist of a 6D covariance.

Let M

⊆ {P

←→ p

| i ∈ {1, . . . , n}} be the

set of pairs that match under the assumption that Q

is the correct pose. Let additionally F

= C \ M

the set of correspondences for which no match can be

established hypothesizing pose Q. The correct pose is

found by minimizing the error function E

E(x

)

def

∑

←→p

∈M

− Pro j

)k + θ|F

| (1)

with Pro j

) deﬁned as the projection of P

on the

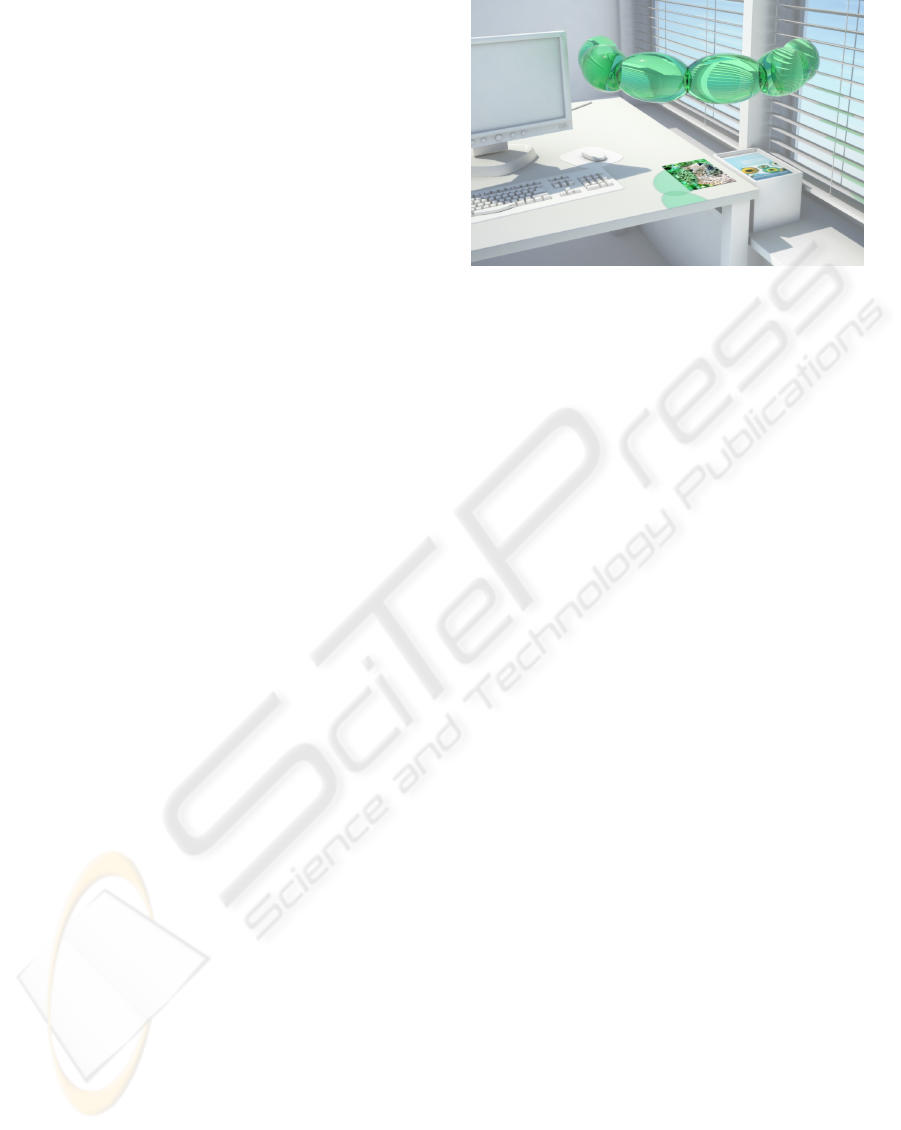

Figure 1: Modeling the camera pose prior probability by

mixtures of Gaussians.

image using pose x

and θ ∈ R as a penalty term

that penalizes unmatched points. The minimization

is computed by utilizing the prior probability.

Roughly summarized, in each iteration Blind-

PnPC hypothesizes consecutively three 3D to 2D

point correspondences which are compatible with the

prior probability. Since the camera pose x

has an

uncertain position indicated by the covariance Σ

there exists also an uncertainty Σ

regarding the po-

sition of the projected points which can be calcu-

lated by error propagation using the Jacobian J

Pro j

). A correspondence is marked as compati-

ble with the prior probability if its projected 3D point

lies within that uncertainty Σ

around p

. Hypothesiz-

ing of one correspondence is realized using a Kalman

ﬁlter. Hereby the 6 dimensional pose parameter is

interpreted as the system state and each correspon-

dence is interpreted as a measurement. During this

process, the camera pose x

evolves and the assigned

covariance Σ

(i.e. uncertainty) reduces. After three

correspondences are hypothesized, the remaining cor-

respondences can be checked for validity using this

camera pose by projecting the 3D points P

on the im-

age and checking the distance to their corresponding

2D point p

. This way the sets M

and F

can be con-

structed. The pose with the least error function value

E(x

) is then chosen as result.

Discussion. We ran a number of experiments with

different ratios of outliers and compared BlindPnPC

to usual pose estimation approaches. As a represen-

tative common pose estimation approach we chose

RANSAC combined with EPnP (RANSAC+EPnP).

The experiments conducted showed, that by effec-

tive usage of the prior probability, BlindPnPC esti-

mates high quality results, mostly independent of the

outlier ratio. However for low outlier ratios, RAN-

SAC+EPnP outruns BlindPnPC in precision. Addi-

tionally, the runtime of BlindPnPC grows very fast

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

382

with the number n of correspondences used. This pro-

hibits an application in real-time reactive systems. We

present the results of these experiments in detail in

section 4.

3 NEW APPROACH

To overcome the problems of BlindPnPC, we de-

veloped an algorithm called PPnP which utilizes the

prior probability similar to BlindPnPC in order to ef-

fectively reduce the search space of the correspon-

dence problem.

3.1 Idea

Similar to BlindPnPC, in PPnP consecutively a num-

ber of correspondences which are valid with respect to

the prior probability are hypothesized using a Kalman

ﬁlter. Thereby the camera pose evolves from its initial

position.

BlindPnPC. Problematic in BlindPnPC is that each

consecutively selected correspondence has to be valid

in order to converge towards the real pose. If once

in BlindPnPC a wrong hypothesis is made, the pose

evolves in a bad way because future hypotheses cho-

sen will be outliers with a higher probability.

Hypothesizing an outlier will always badly affect

the current pose estimation Q. When projecting the

3D points P

and constructing the image projection

covariance Σ

, many inliers previously correctly clas-

siﬁed will now be marked as outliers and thereby not

be considered in the next selection process. Addition-

ally, by badly evolving the pose, outliers can now be-

come compatible with the current pose prior proba-

bility and are therefore treated as hypothetical inliers.

Combined, these effects lead to an increased outlier

ratio for the hypothesizing possibilities in the next

selection process. Thereby an outlier is also chosen

in the next selection process with a higher probabil-

ity, evolving Q even worse. BlindPnPC tries to solve

this issue by recursively hypothesizing all arguable

sequences of compatible correspondences containing

only three elements and selecting the one with the

least error function value. Thus a very large number

of consecutive hypotheses has to be made.

PPnP. PPnP tries to solve this issue by using a dif-

ferent approach: Consecutively a number of c corre-

spondences are hypothesized. Similar to BlindPnPC,

hypothesizing a correspondence P

←→ p

is realized

using a Kalman ﬁlter. Different than in BlindPnPC,

c is usually a number much higher than three. While

in BlindPnPC the whole sequence of hypotheses has

to be free of outliers, this is not a necessary condi-

tion for PPnP: At each step, all hypothesizing pos-

sibilities are stored for future use along with the un-

certainty information Σ

and J

. When it comes to

selecting a new hypothesizing candidate, it is ran-

domly selected from all available hypothesizing pos-

sibilities (containing also the ones not hypothesized in

the past). The key point is, that once an outlier is hy-

pothesized, the number m

of compatible candidates

when just considering the actual pose probability at

hypothesizing step i is relatively small compared to

the number of all hypothesizing possibilities from the

previous steps m

old

def

∑

i−1

j=0

. Since in the past a se-

quence of correct hypotheses was made, the majority

of all previous hypothesizing possibilities will contain

correctly identiﬁed inliers. Since the new hypothesis

is randomly chosen among all those m

new

def

= m

old

possibilities with approximately m

old

correct hypoth-

esizing possibilities and only approximately m

out-

liers misleadingly classiﬁed as inliers, a correct cor-

respondence is selected with a relatively high prob-

ability. Hence, if an outlier is hypothesized at step

i, PPnP selects with a high probability an inlier for

the next candidate and thereby pushes the wrongly

evolved pose back to a valid state.

To gain a similar precision as RANSAC+EPnP,

the ﬁnal camera pose estimate is only used in order

to classify M

and F

. M

is then used in order to

calculate a high precision solution using EPnP.

Combined, this allows evolving the pose from a

relatively small ﬁxed number of hypothesizing se-

quences containing c correspondences, instead of

considering each permutation combination of three

correspondences.

3.2 Optimization

Accelerating the Hypothesizing Process. Before

a correspondence from all available possibilities is

randomly selected for hypothesizing, all correspon-

dences are checked for validity with the current pose

prior probability. The information of each compat-

ible correspondence is then added to the set of se-

lectable options. If the number of correspondences

grows, the procedure of testing each correspondence

at each step for validity may lead to large overhead.

Fortunately this procedure can be optimized: A cor-

respondence being invalid with the pose prior proba-

bility at step i is unlikely to become valid in later steps

i + 1, i + 2, . . . because the overall reprojection uncer-

tainty reduces. This way, one can skip the successive

testing for validity of a certain correspondence, once

REAL-TIME CAMERA POSE ESTIMATION USING CORRESPONDENCES WITH HIGH OUTLIER RATIOS -

Solving the Perspective n-Point Problem using Prior Probability

383

it has been declared as invalid. Also it became appar-

ent that the correspondences chosen for hypothesiz-

ing at step i need not to be tested for validity again

at later steps. Thereby the computation can be eased

by keeping an exclusion list containing the correspon-

dences which will not be checked for validity with the

pose prior probability in later steps. The exclusion list

contains the correspondences already hypothesized or

once marked as invalid.

Optimizing the Hypothesis Picking Process. The

more information from steps far beyond the current

step is hypothesized, the slower the pose will con-

verge to its correct position. In order to select the

hypothesizing possibilities with the right balance be-

tween previous and current possibilities, all available

possibilities are kept in a list, linearly ordered accord-

ing to their degree of uncertainty (i.e. hypothesizing

possibilities appearing at later steps are pushed at the

end of the list). If a correspondence is randomly cho-

sen from that list, this is not realized uniformly but

with a probability linearly increasing towards the end

of the list.

4 EXPERIMENTS

4.1 Synthetic Test Setting

In order to compare the different approaches, the al-

gorithms are evaluated with respect to quality ε and

runtime performance µ. ε is measured in terms of

the mean reprojection error in pixel. µ is simply the

time in milliseconds it needs to ﬁnd any solution. In

our scenario we assumed that the camera was located

somewhere inside a torus around the object in focus

and approximately directed towards it. The diame-

ter of the torus hereby deﬁnes the degree of uncer-

tainty with respect to the cameras’ position. This sce-

nario was modeled using a Gaussian mixture model

of g = 20 Gaussian components. We then constructed

a set C of n correspondences having an outlier ratio of

λ. We added normal distributed values up to 5 pixel

to the 2D points in order to simulate noise.

4.1.1 Results

Due to the large number of required hypothesizing

combinations, BlindPnPC suffers from a high run-

time, allowing a proﬁtable use of the pose prior prob-

ability only for outlier ratios of 60% and above. If

an outlier ratio of 80% and above is reached, Blind-

PnPC and PPnP both are the only algorithms evalu-

ated which still are able to estimate a robust camera

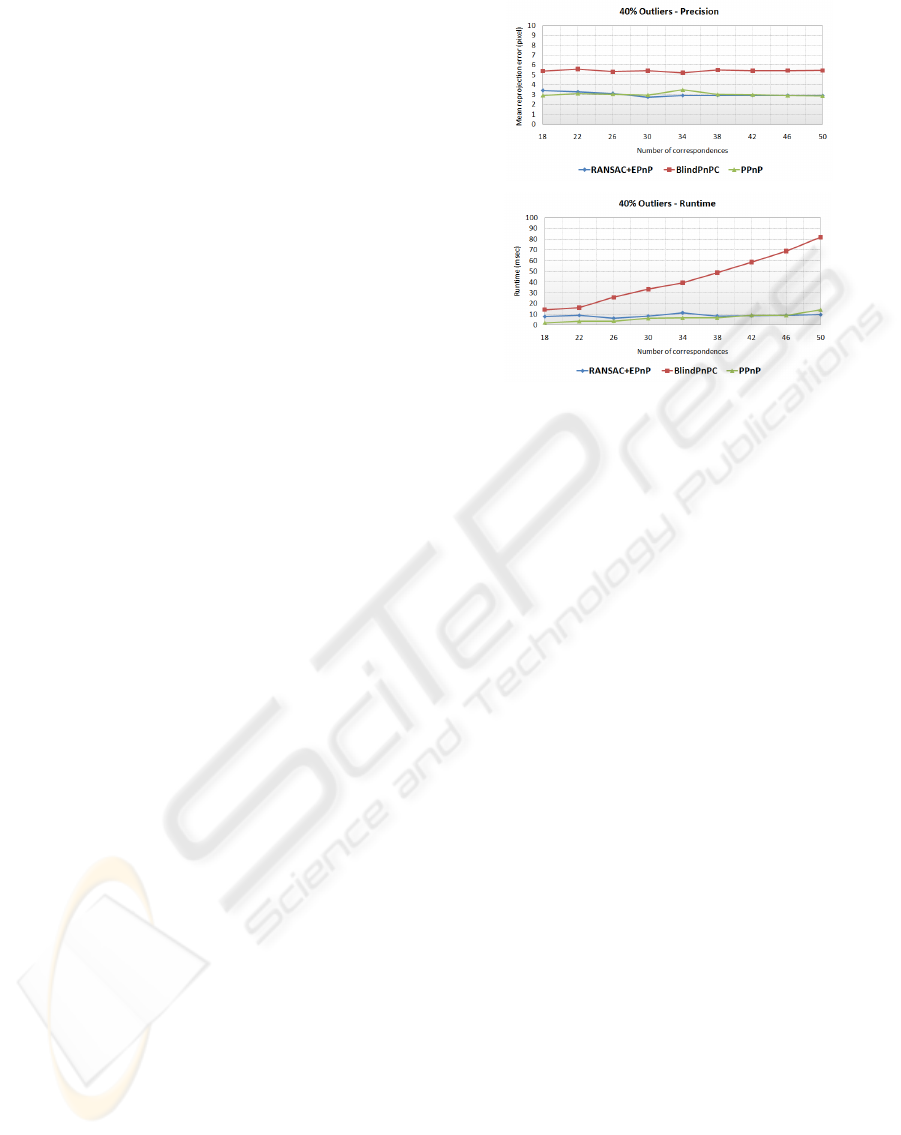

Figure 2: 40% outlier ratio measurement results.

pose. For these large outlier ratios the prior probabil-

ity seems to be crucial in order to estimate a reliable

camera pose.

For low outlier ratios, BlindPnPC consequentially

returns camera pose estimations with larger repro-

jection errors than the corresponding estimations of

RANSAC+EPnP. This is related to the fact, that only

three Kalman ﬁlter iterations are applied to evolve the

pose. However this unnecessary error is still tolerable

since it could be easily decreased by numerical opti-

mization techniques without signiﬁcantially increas-

ing the runtime.

PPnP uses EPnP in order to gain results of sim-

ilar precision as RANSAC+EPnP for low outlier ra-

tios. Additionally, PPnP is implemented in an itera-

tive way, runs with a ﬁxed number of iterations and

is thereby considerably faster than BlindPnPC. This

way the runtime can be lowered to a level which al-

lows an efﬁcient usage of pose prior probability for

outlier ratios of 40% and above.

The measurements taken in the experiment are

displayed in Figures 2, 3 and 4.

4.2 Real Data Test Setting

A real data test setting was constructed with the inten-

tion to acknowledge the results gained in the synthetic

test setting:

Scenario. The scene ﬁlmed by the camera (640 ×

480, 30fps) was a desk. On the desk two images

with distinctive patterns were positioned whose coor-

dinates were known with respect to some coordinate

system.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

384

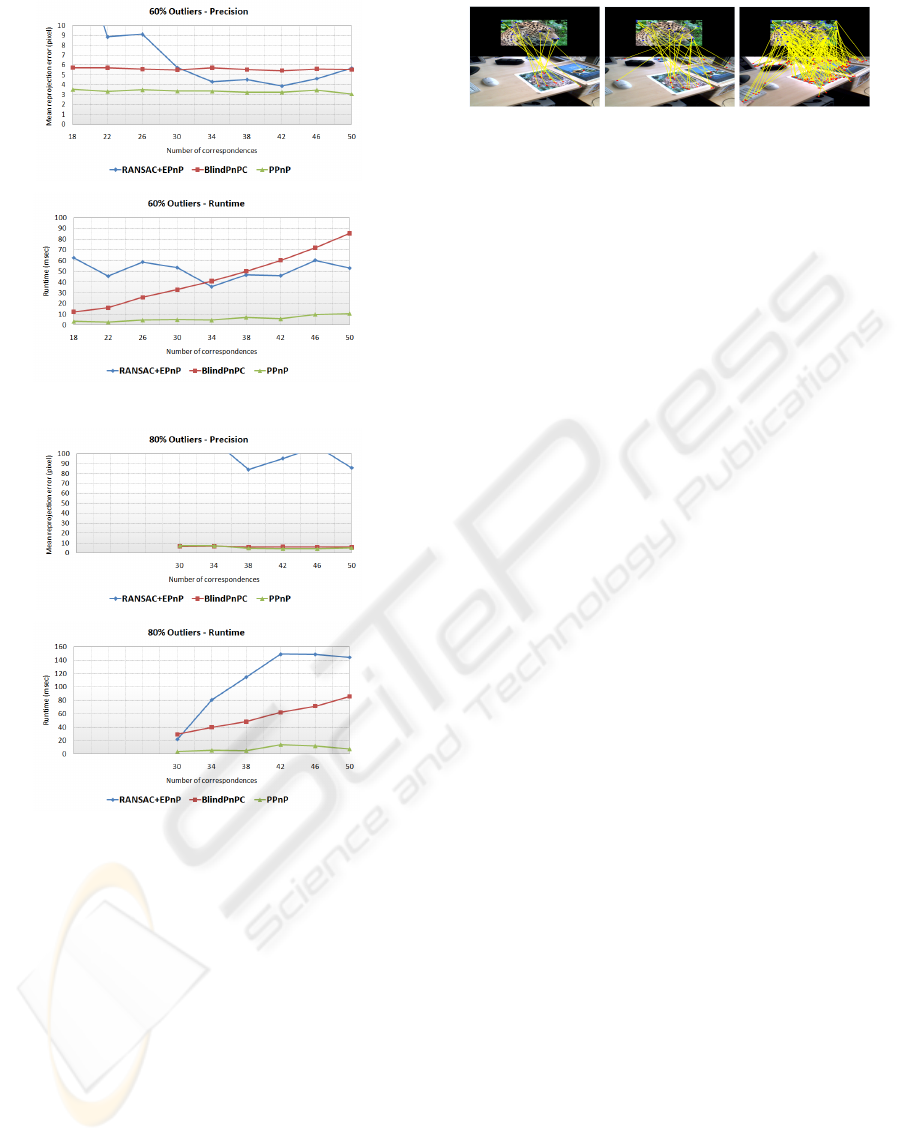

Figure 3: 60% outlier ratio measurement results.

Figure 4: 80% outlier ratio measurement results.

The prior probability V was established using a

Gaussian mixture model of g = 6 components as

sketched in Figure 1.

Correspondences. The correspondences were es-

tablished in real-time using randomized trees as clas-

siﬁers. The technique is explained in detail in (Lepetit

et al., 2005). As seen in Figure 5 a threshold value τ

allows to control the certainty of the correspondences.

Because no ground truth camera pose is available

in a real data setting, we used the calculated set of

inliers I in order to check the quality. Using I as

provided by the respective algorithm, we used EPnP

for calculating a camera pose estimate Q. The border

rectangle of the object is then projected in yellow into

the scene using Q. This resulted in correctly framing

the object on the captured image if I was estimated

Figure 5: Threshold values τ from 0.1, over 0.05 to 0 control

the quality of the correspondences. This results in outlier

ratios ranging from λ ≈ 30% over λ ≈ 60% up to λ ≈ 80%.

correctly. Thus we were able to visually check the

integrity of I. As evidence of robustness, we counted

the frames where the inliers were correctly calculated.

We consider an algorithm as ‘robust’, if I was cor-

rectly calculated for more than 90% of the frames.

For values less than 50%, an algorithm is considered

as ‘not robust’. Values between are considered as ‘in-

termediate robust’. Based on I we also calculated the

average outlier ratio λ

≈

4.2.1 Results

Three experiments with different values for the cor-

respondence generator threshold τ were made. The

results are presented in Table 1.

Summarized, the experiments using a real data test

setting conﬁrmed the results deduced from the syn-

thetic test settings. Standard methods such as RAN-

SAC+EPnP only deliver reliable results for small out-

lier ratios λ. As λ grows, standard methods tend to

fail or require an unacceptable large RANSAC itera-

tion count in order to deliver results at all.

BlindPnPC and PPnP use the available pose prior

probability and thereby are signiﬁcantly less error

prone and faster than the standard methods. The esti-

mations computed by BlindPnPC and PPnP are both

robust and comparable. A difference however exists

with respect to runtime performance: Especially if n

is large, PPnP is able to provide results much faster.

Images series taken from the test setting using low

quality correspondences (τ = 0) with PPnP are shown

in Figure 6. Hereby the correspondences detected by

the feature detector are represented as red and green

dots. Red dots have been declared as outliers using

the respective algorithm, green dots as inliers.

5 CONCLUSIONS

In this paper we developed and evaluated a new al-

gorithm called PPnP, capable of estimating a robust

camera pose in real-time even though being provided

with large sets of noisy correspondences having high

outlier ratios. PPnP is based upon BlindPnPC which

we also implemented and evaluated. Both algorithms

REAL-TIME CAMERA POSE ESTIMATION USING CORRESPONDENCES WITH HIGH OUTLIER RATIOS -

Solving the Perspective n-Point Problem using Prior Probability

385

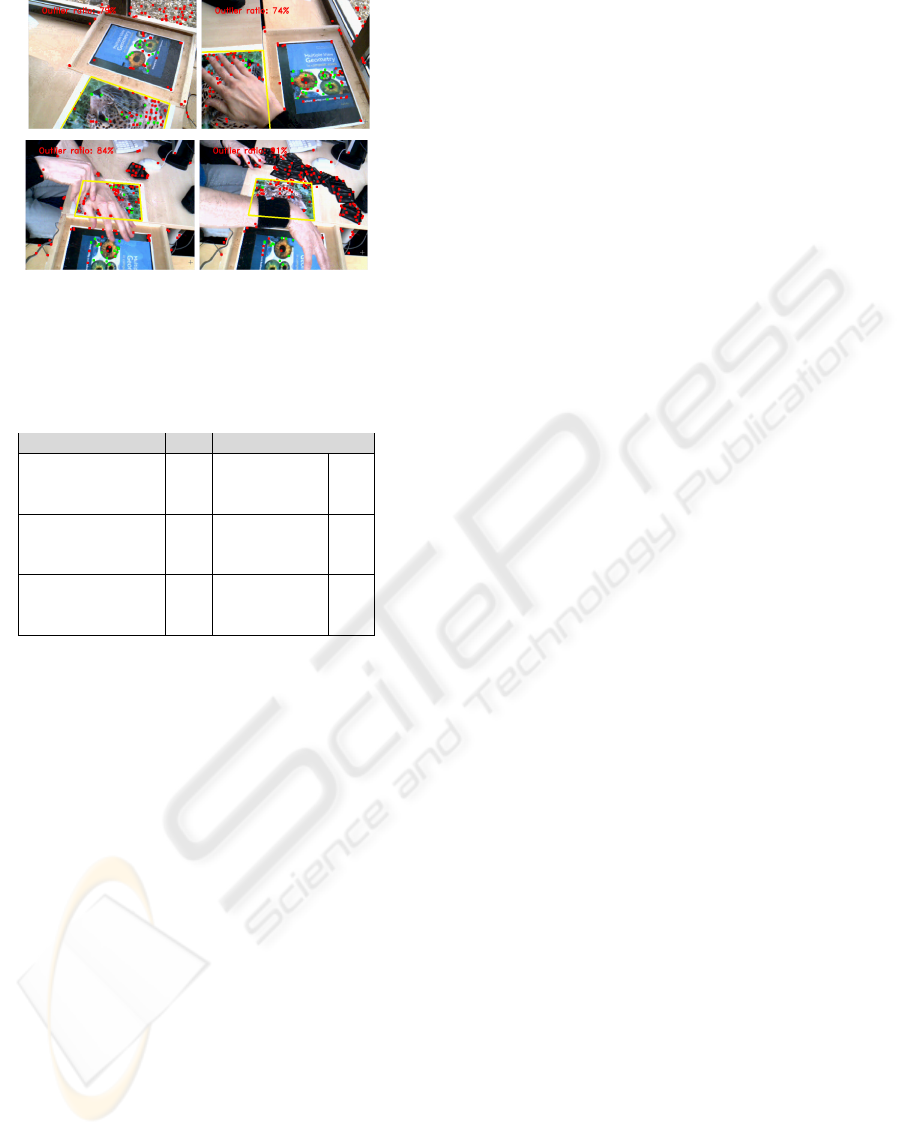

Figure 6: PPnP: High number of correspondences, high out-

lier ratio. A correct camera pose estimation is possible in

95% of the cases within at most 20 iterations. Even for

outlier ratios larger than 90% and in occurence of partial

occlusions, PPnP delivers reliable results. Speed: 25 fps.

Table 1: Real data test setting results.

Algorithm λ

≈

Robustness fps

0.3 Yes 30

RANSAC+EPnP 0.6 Intermediate 6

0.8 No 2

0.3 Yes 30

BlindPnPC 0.6 Yes 15

0.8 Yes 4

0.3 Yes 30

PPnP 0.6 Yes 30

0.8 Yes 25

use a probability distribution as additional informa-

tion beside the correspondences in order to handle

correspondences with high ratios of outliers.

In both synthetic and real data test settings we

have shown, that as the ratio of outliers grows, stan-

dard pose estimation approaches using RANSAC fail

in providing a robust camera pose estimate. In con-

trast to this, BlindPnPC and PPnP provide reliable re-

sults independent of the outlier ratio in the correspon-

dences. The pose prior probability allows BlindPnPC

and PPnP to ease the direct dependency of the esti-

mated camera poses’ quality on the ratio of outliers.

This direct dependency on the input data represents

the major weakness of standard methods.

In contrast to BlindPnPC – as the number of corre-

spondences used is raised – PPnP still is able to pro-

vide reliable results in real-time for these situations.

This is related to the optimization techniques intro-

duced in PPnP which allow to evolve the camera pose

requiring a much smaller number of consecutive hy-

pothesizing steps than in BlindPnPC.

5.1 Future Work

In our experiments both BlindPnPC and PPnP showed

good results. We would like to investigate, in how far

these algorithms can replace standard pose estimation

techniques in practice. Comparing to standard meth-

ods, BlindPnPC and PPnP depend on a large number

of variables which have to be assigned for each situ-

ation accordingly (e.g. pose prior probability, thresh-

old values, iteration count, . . .). Since these variables

are mutually dependent, the assignment is not intu-

itive and usually a certain effort has to be put into test-

ing different assignments before using the algorithms

appropriately. Hence additional techniques should be

developed, intending in improving the usability.

ACKNOWLEDGEMENTS

This work has been partially funded by the project

CAPTURE (01IW09001) and the German BMBF

project AVILUSplus (01M08002).

REFERENCES

Dhome, M., Richetin, M., Laprest

e, J.-T., and Rives, G.

(1989). Determination of the attitude of 3-d objects

from a single perspective view. In IEEE Transactions

on Pattern Analysis and Machine Intelligence, Vol. 11.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: A paradigm for model ﬁtting with applica-

tions to image analysis and automated cartography. In

Communications of the ACM, Vol. 24.

Gao, X.-S., Hou, X.-R., Tang, J., and Cheng, H.-F. (2003).

Complete solution classiﬁcation for the perspective–

three–point problem. In IEEE Transactions on Pattern

Analysis and Machine Intelligence, Vol. 25.

Haralick, R. M., Lee, C.-N., Ottenberg, K., and N

olle, M.

(1994). Review and analysis of solutions of the three

point perspective pose estimation problem. In Inter-

national Journal of Computer Vision, Vol. 13.

Lepetit, V., Lagger, P., and Fua, P. (2005). Randomized

trees for real–time keypoint recognition. In IEEE

Computer Society Conference on Computer Vision

and Pattern Recognition, Vol 2.

Lepetit, V., Moreno-Noguer, F., and Fua, P. (2009). EPnP:

An accurate O(n) solution to the PnP problem. In In-

ternational Journal of Computer Vision, Vol. 81.

Moreno-Noguer, F., Lepetit, V., and Fua, P. (2008). Pose

priors for simultaneously solving alignment and cor-

respondence. In ECCV ’08: Proceedings of the 10

European Conference on Computer Vision.

Quan, L. and Lan, Z. (1999). Linear n–point camera pose

determination. In IEEE Transactions on Pattern Anal-

ysis and Machine Intelligence, Vol. 21.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

386
