BUILDING AND ROAD EXTRACTION ON URBAN VHR

IMAGES USING SVM COMBINATIONS AND MEAN

SHIFT SEGMENTATION

Christophe Simler and Charles Beumier

Signal & Image Centre, Royal Military Academy, 30 Av. de la Renaissance, 1000 Brussels, Belgium

Keywords: Support vector machine, Mean shift, Classifier combination, Very high spatial resolution image.

Abstract: A method is proposed for building and road detection on very high spatial resolution multispectral aerial

image of dense urban areas. First, objects are extracted with a segmentation algorithm in order to use both

spectral and spatial information. Second, a spectral-spatial object-level pattern is formed, and then

classification is performed using a 3-class SVM classifier, followed by a post-processing using contextual

information to handle conflicts. However, in the particular case where many building roofs are grey like the

roads and have similar geometry, classification accuracy is inevitably limited. In order to overcome this

limitation, different classifiers are combined and different patterns used, improving the accuracy of 10%.

1 INTRODUCTION

The accurate classification of remote sensing images

is an important task for applications such as

development planning, emergency response or earth

survey. Many investigations are currently done in

order to provide both efficient and (semi-)automated

classification algorithms. Our study deals with

building and road extraction on very high spatial

resolution (VHR) aerial images of dense urban

areas. The sensor is multispectral and covers a range

of three optic spectral channels (RGB), having a

spatial resolution of 0.5m per pixel.

Most of the remote sensing classification

applications work at the pixel level, and use only

spectral information. The first step consists generally

in extracting pixel spectral features, then patterns are

classified usually with the classical Gaussian

maximum likelihood (ML) supervised classifier

(Bishop, 2006). However, when only spectral

information is used classified data often manifest a

salt-and-pepper appearance (Lilesand and Kieffer,

1994). In addition, VHR images of urban areas

contain a significant amount of spatial information,

which should be used to make possible the precise

identification of small structures such as houses or

narrow roads.

Approaches involving Markov random fields

(MRF) use the contextual information (Jackson,

2002).

A faster and more recent technique intensively

used in hyperspectral imaging consists in building

morphological profiles (MPs) from the original data

to obtain (local) spatial information about size and

shape (Palmason et al., 2005), (Fauvel, 2008), (Tuia,

2009). Once geometrical features are extracted (the

MPs for example) they can be concatenated with the

spectral pattern to form a composite pattern, which

is then classified (Fauvel, 2008). Another solution is

to classify separately the spectral and spatial patterns

with two (or more) different classifiers and to

perform a decision fusion for the final class

attribution. The decision fusion processing and

interpretation can be performed using fuzzy (Fauvel

et al., 2006) or probabilistic (Benediktsson, 1999),

(Benediktsson et al., 2007) framework. The

difficulty with these approaches is to find adequate

source weights reflecting source reliabilities. Fusion

can also be performed on the final decision of each

classifier. In this case, conflicts between classes are

handled by another classifier (Benediktsson, 1999),

randomly or with additional information. Overviews

of multiple classifier system (MCS) are presented in

(Bishop, 2006), (Benediktsson et al., 2007). When

geometrical features are considered (the MPs for

example), the class distributions can generally not be

assumed to be Gaussian and nonparametric

supervised classifiers such as decision trees, K-

neirest-neighbors, neural networks (Fauvel et al.,

2006) (Benediktsson, 1999) or Support Vector

Machines (SVMs) (Fauvel, 2008) (Tuia, 2009) are

451

Simler C. and Beumier C. (2010).

BUILDING AND ROAD EXTRACTION ON URBAN VHR IMAGES USING SVM COMBINATIONS AND MEAN SHIFT SEGMENTATION.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 451-457

DOI: 10.5220/0002851104510457

 SciTePress

generally used. These different classifiers are

presented in (Bishop, 2006). In the context of

multispectral images, SVMs are generally more

effective in terms of classification accuracy than

most of the other methods (Melgani, 2004), (Foody,

2004). Also, the “geometric” nature of the SVMs

enables them to handle small ratio between the

number of available training samples and the

number of features. Thus, even in the hyperspectral

context they generally do not need a feature

reduction pre-processing step (Melgani, 2004).

However, SVMs have the drawback to be originally

developed to solve binary classification problems,

and multi-class SVMs are generally handled by the

“one-against-all” or the “one-against-one” strategy

(Bishop, 2006), (Melgani, 2004).

Another approach to exploit spatial information

is suggested in (Tarabalka et al., 2009). First, a

classical pixel wise spectral classification is

performed, and a segmentation algorithm is applied

independently. Then, spatial information is included

by merging the segmentation and the classification

maps by assigning to a segmented area the

predominant pixel class within it.

In this paper another strategy is suggested,

exploiting the fact that in VHR images our two

classes of interest (road and building) are objects

with specific geometry. The idea consists in building

object (global) geometric features. First, extraction

of interest objects is performed with a segmentation

algorithm applied to the image. Second, a composite

object pattern is formed with geometrical and

spectral features, then this pattern is classified into

class “road”, building” or “other”. The method

provides good classification accuracy with most

rural, peri-urban and urban areas. However, in this

paper we focus on the difficult case of dense urban

areas containing many building roofs of similar

spectral signature (and geometry) than the roads.

Whatever the classifier used, this leads to a

systematic problem of false alarms for the class

“road” and of bad detections for the class “building”

(many buildings are classified as roads). In this case

the building heights would have been useful to

discriminate the classes, but with a single image we

have no access to this information. In order to

compensate this lack of information about the

features, we suggest combining several classifiers in

a way to exploit simultaneously the ability of all of

them to recognize buildings. The paper is organized

as follows. The classification technique with a single

classifier is presented in part 2. Part 3 deals with the

suggested classifier combinations. Finally, part 4 is

the conclusion.

2 CLASSIFICATION

TECHNIQUE

2.1 Data Specifications

Figure 1 shows a part of multispectral VHR aerial

image of dense urban area (2833x2618 pixels). In

can be seen that with this example the spectral

characteristics of many buildings are similar to the

one of the roads. Also, many roads are very narrow,

often because partially occluded by houses.

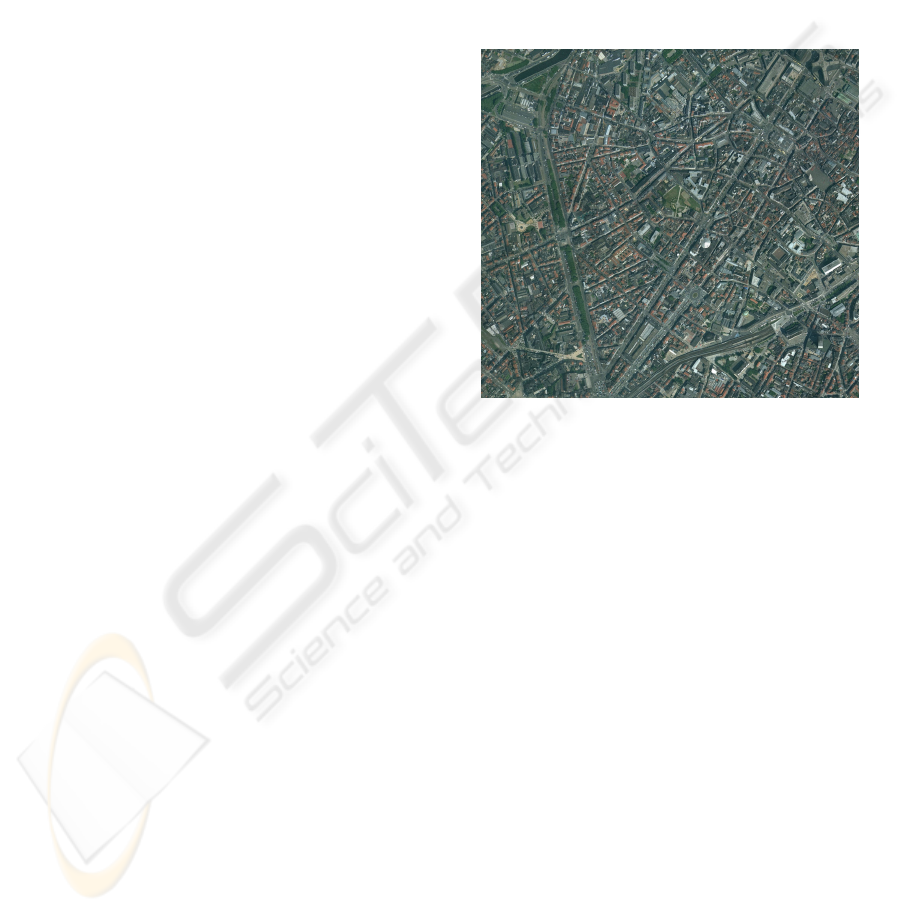

Figure 1: Part of a color aerial image (Brussels center,

Belgium) with a spatial resolution of 0.5m.

2.2 Object Extraction with

Segmentation

The aim of this part is to extract coherent regions

corresponding to actual image objects such as roads,

buildings or others. The literature provides many

segmentation algorithms divided into three

categories: edge-based, region-based and clustering.

Some of them are Graph-Cut, region growing,

watersheds (Debeir et al., 09), K-means (Bishop,

2006), EM (Bishop, 2006) and mean shift

(Comaniciu and Meer, 02). The mean shift algorithm

was chosen for the following reasons:

- it was designed for vector processing and thus is

adapted to process multispectral images,

- the integration of the spatial coherence property

is straightforward,

- it is robust with respect to spectral noise because

based on a smoothing process,

- no assumption has to be done about the feature

space (number of clusters, underlying distri-

bution).

- There is only one parameter to tune: the

segmentation resolution.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

452

The limitation is that if the dimension is high it

can suffer from the curse of dimensionality. In our

application, a 5-dimensional spectral-spatial feature

space is built. In this space, a pixel corresponds to a

vector whose components are its three spectral

values, and its two spatial coordinates. The mean

shift operates on this space by estimating in an

iterative way the local maxima of the underlying

nonparametric spectral distribution. At each

iteration, the components of each vector are replaced

by the means of the components of all the vectors

situated in a spectral-spatial neighborhood (we use a

flat kernel). The convergence toward the local

maxima is ensured (Comaniciu and Meer, 02). Then,

the pixels having converged toward the same

maximum are grouped together to form an object.

After observation of the image of figure 1, it has

been noticed that our actual objects of interest have

always an area upper than one hundred pixels. Thus,

an additional step merges (with the other objects) all

the mean shift objects smaller than this threshold.

The parameter of the mean shift is (in case of a flat

kernel) the radius of the spectral-spatial

neighborhood. Because this radius is different in

spectral than in spatial (the neighborhood is a hyper-

ellipsoid), there are in fact two regularization

parameters. However, results are not very sensitive

with respect to the spatial radius (Comaniciu and

Meer, 02), and it can be fixed to an a priori suitable

value. In our application it is fixed to seven pixels.

The spectral radius is manually tuned in order to find

a good compromise between under and over

segmentation. With the image of figure 1, a value of

20 is visually optimal. It can be seen in the figure 2

that roads and buildings are generally precisely

extracted. Also, there are very few under and over

segmentation. It is an advantage with respect to the

watershed algorithm, which generally suffer from

important over segmentation (Debeir et al., 2009).

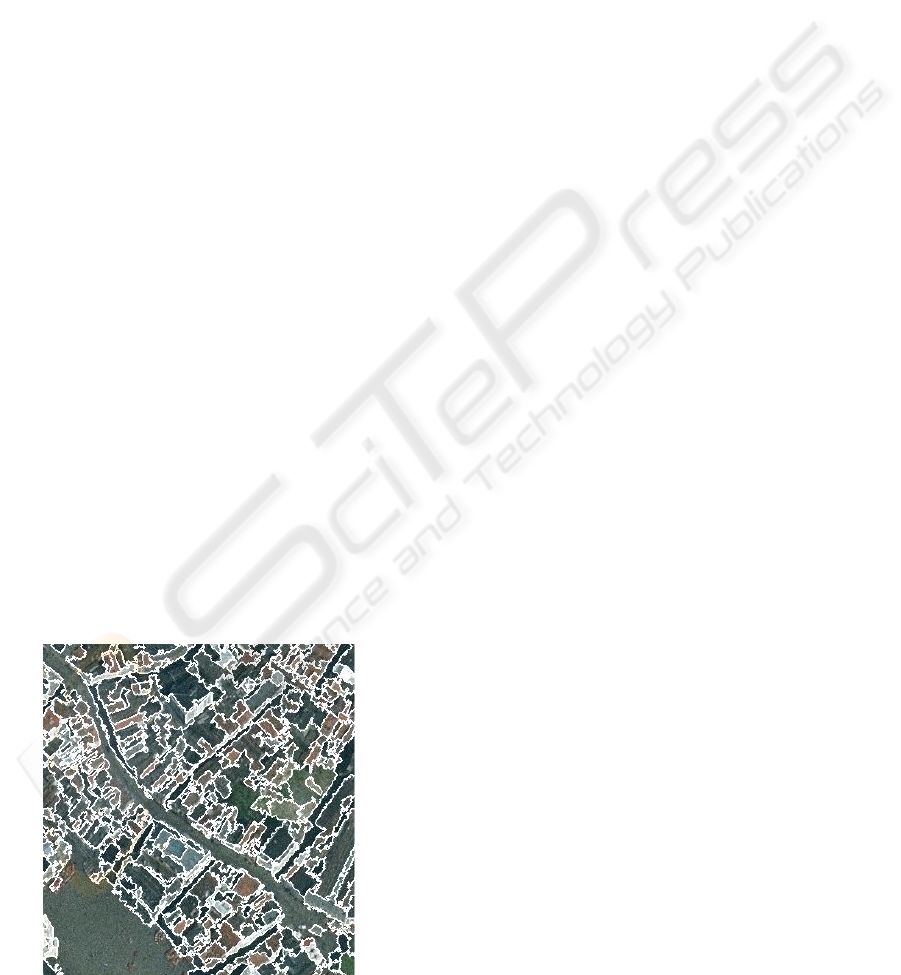

Figure 2: Mean shift segmentation results on a zoom of the

image of figure 1.

2.3 Spectral-spatial Object Pattern

The aim of this part is to establish an object pattern

able to separate the “building”, “road” and “other”

classes. It exists many geometrical, spectral or

textural features to characterize an area. In our

application, the features were selected by observing

the mean shift areas in figures such as the figure 2.

An idea to discriminate our classes was to use the

specific polygonal geometries assumed for roads and

buildings. However, the boundaries of mean shift

areas are often too jagged to fit suitably polygonal

models. The area (size) and eccentricity (shape)

descriptors are retained because of their abilities to

discriminate roads. The eccentricity (the ratio of the

lengths of the two main inertia axis of the area) is

estimated by computing the ratio of the two

eigenvalues of the (spatial) pixel vector covariance

matrix. Textural features are not retained, because

the mean shift objects are generally low textured,

especially in urban area. Some man-made objects

have sometimes some kinds of texture, but it is

exception (chimneys on a roof) or perturbations

(cars on a road). In addition, the image is filtered

before feature computation in order to limit the noise

effect and other small perturbations or occlusions,

decreasing also the texture. The spectral features

retained are the means of the multispectral (RGB)

vector computed on the area. It discriminates the

classes “road” and “other”. The buildings are

generally grey or brown-red. Also a building is often

divided into two parts, the sun part and the shadow

part. Another color space is tested, the (L*, a*, b*),

because it corresponds better to human visual

perception. In summary, we suggest testing two

spectral-spatial mean shift object patterns: {area,

eccentricity, mean of the RGB vector}, and {area,

eccentricity, mean of the L*a*b* vector}. Each

component is normalized to work in Euclidean

space. The main limitation is that some buildings

have both similar geometry and color than roads. It

exists many automatic feature reduction techniques

intensively used in hyperspectral imagery before

applying the classification (Fauvel, 2008) (Tuia,

2009) (Melgani, 2004). They are not considered

here for the following reasons: feature selection has

been done above by observing mean shift areas, five

dimensions is a low dimensional problem and

redundancy is low with these features, feature

reduction is seldom justified with the SVM classifier

used in part 2.4 (Melgani, 2004).

BUILDING AND ROAD EXTRACTION ON URBAN VHR IMAGES USING SVM COMBINATIONS AND MEAN

SHIFT SEGMENTATION

453

2.4 Object Classification with SVM

Among the numerous existing supervised

nonparametric classification methods, the compact

kernel SVM classifier was chosen because of its

superiority in terms of classification accuracy in the

context of remote sensing images, and its ability to

handle the curse of dimensionality (Bishop, 2006),

(Fauvel, 2008), (Melgani, 2004), (Foody, 2004). The

SVM algorithm is a 2-class classifier. We consider

the general case of a training set of two overlapping

classes. First, a nonlinear kernel function is applied

on the input space in order to obtain a higher

dimensional feature space having a better class

separability. The Gaussian kernel provides often the

best results, and is used in this paper. Second, the

parameters of the hyperplan linear model are

estimated according to the maximal margin criterion

and by penalizing the classification errors. The SVM

algorithm with Gaussian kernel has two

regularization parameters: the misclassification

penalty term and the Gaussian width. In this paper,

these parameters are optimized using cross-

validation, by minimizing the false classification rate

over a 2D-grid of ten thousand couples of values for

the two tuned parameters. This is costly but ensures

to find the global minimum. In order to have a very

high precision, this procedure is repeated three times

in a coarse to fine scheme. Finally, the optimal

values are used to learn the classifier on the entire

training set. In our application we have three classes

(“road”, “building” and “other”), and the “one-

against-all” multiclass SVM strategy is used. It

consists in using three binary SVM classifiers

independently, one for each class. During the

learning of one class, the elements of the training set

of the considered class are opposed to the elements

of the two other classes. This technique can provide

unbalanced training sets. However, in our

application this phenomenon is limited because we

have only three classes, and the training set is

composed of four hundred buildings, four hundred

roads and two hundred others. This training set was

built by manually assigning to a class some mean

shift areas situated outside the classification part

(outside the image of figure 1). It can be noted that

such a training set is designed only to classify parts

of the considered aerial image, and not parts of other

images with different illuminations. In fact, in our

application for each aerial image a training set is

built on parts of it, and the other parts are classified.

With the “one-against-all” approach, the final

decision can be taken by applying the “winner-take-

all” to the binary classifier probabilities (Melgani,

2004). Another possibility is to consider the final

binary classifier decisions (binary word) (Bishop,

2006). In that case, for three classes there are eight

possibilities and the five conflict situations (multiple

assignments) are generally handled by choosing

randomly one of the classes. In our application, it is

possible to handle conflicts by using a priori

knowledge and contextual information. In dense

urban area, the classes “building” and “road” are

largely predominant and have priority in case of

conflicts with the class “other”. Also, it has been

noticed by visualizing the “building” and “road”

conflict areas that contextual information can be

advantageously used. For example, if buildings (or

roads) mainly surround a conflict area, most of the

time it is a building (or a road). It would be

interesting in further work to compare this approach

with the one using the binary classifier probabilities

(Melgani, 2004). Also, combining contextual

information with probabilities would certainly be

optimal.

2.5 Classification Accuracy

Figure 3 shows the SVM classification results for

the image of figure 1, with the pattern {area,

eccentricity, mean of the RGB vector}. On the top:

superimposition of the binary SVM results. Detected

roads, buildings, and others are respectively drawn

in yellow, green and black. The “building” and

“road” conflict areas are shows in red. It can be

noticed that there are few conflicts. On the middle:

3-class SVM results after handling the previous

conflicts with contextual information. Conflicts were

generally well handled. Bottom: ground truth built

by visual interpretation. The red on the ground truth

corresponds to areas where it was visually difficult

to discriminate roads and buildings, and road or

building detection on these areas are considered as

exact. Computing the 3x3 confusion matrix (in terms

of pixels) between the classified image (an example

is in the middle of figure 3) and the ground truth

assesses classification accuracy. Some descriptive

measures computed from the confusion matrix are in

table 1.

Table 1: Classification accuracy measures.

3-class SVM, pattern {a,e,R,G,B}

Overall accuracy 0.60

Producer’s accuracy road 0.66

Producer’s accuracy building 0.58

Producer’s accuracy other 0.59

User’s accuracy road 0.47

User’s accuracy building 0.86

User’s accuracy other 0.35

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

454

As expected with a dense urban area containing

similar spectral and spatial “road” and “building”

objects, results are poor. It can be seen in table 1 that

the false alarm rate is high for both the classes

“road” and “other”, in the detriment of the class

“building” having a high bad detection rate. In fact,

many grey building roofs are classified roads. This is

because the class “road” contains only grey elements

(pure class) and the class “building” contains both

grey and brown-red elements. Some other classifiers

were tested and without surprise the same problem

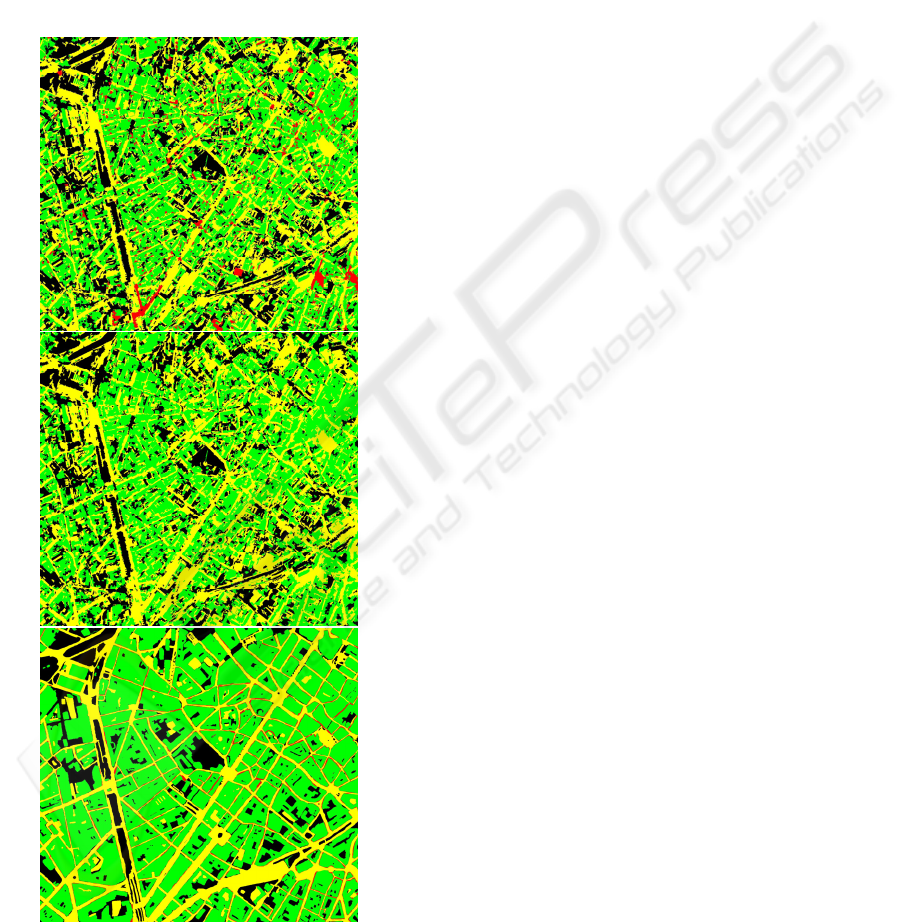

Figure 3: Top: superimposition of the binary SVM results,

with the pattern {area, ecc., meanRGB}. Yellow: roads;

green: buildings; black: other; red: building and road

conflicts. Middle: 3-class SVM results. Bot.: ground truth.

occurs, with even worse results than the SVM

classifier. In order to overcome this problem, a finer

class definition could be used. For example the class

“building” can be divided into two sub-classes, one

for the grey buildings and the other for the brown-

red ones. Another idea consists in increasing the

number of features. However, it is not ensured at all

that much better classification accuracy will be

obtained. In this paper, another strategy is suggested.

It consists in combining the decisions of different

classifiers and is the topic of part 3.

3 CLASSIFIER COMBINAISONS

Our aim is to solve the false alarm problem for the

classes “road” and “other”, and the bad detection

problem for the class “building”. The solution

consists in covering some road and other areas by

building areas. However, if some roads are

automatically eliminated, some correct roads will

also be lost and it is not conceivable because they

are already too divided up and cut. On the contrary,

some other areas can be eliminated with fewer risks.

In a dense urban area they are not numerous, and in

addition the class “other” is by far the less

important. Several classifiers were tested and the

bad detection problem for the class “building” is

recurrent to all of them. However, by observing the

visual results it was noticed that they are

complementary in the sense that each of them

detects correctly a little part of grey buildings, which

are classified roads by the others. In fact, a union of

all the detected building will certainly leads to a

much lower bad detection rate, without significant

increase of the false alarms. We suggest adding the

building areas detected by another classifier to the

building areas of the SVM of part 2, while

preserving its road network. This second classifier is

a single class SVM (Tax and Duin, 2001). The

difference between a single class and a two class

SVM can be illustrated as follows: while the two

class SVM attempts to separate two classes with a

linear hyperplan, the single class SVM attempts to

encircle the target class with a hypersphere to isolate

it from the rest. Also, only target samples are needed

for the training. In this paper, it uses the same

training set and has the same parameters than the

classical 2-class SVM. Of course the cross-

validation scheme is slightly different and the cost

function minimized in the one suggested in (Tax and

Duin, 2001), with equal weighting. The results can

be seen in table 2.

BUILDING AND ROAD EXTRACTION ON URBAN VHR IMAGES USING SVM COMBINATIONS AND MEAN

SHIFT SEGMENTATION

455

Table 2: Classification accuracy measures.

3-class SVM + buildings of the

single class SVM while roads

preserving, pattern {a,e,R,G,B}

Overall accuracy 0.66

Producer’s accuracy road 0.66

Producer’s accuracy building 0.69

Producer’s accuracy other 0.48

User’s accuracy road 0.47

User’s accuracy building 0.81

User’s accuracy other 0.53

Table 2 shows that such a combination of two

classifiers improves of 6% the overall accuracy. As

expected, the building bad detection rate is much

lower, with just a small increase of the building false

alarm rate. In summary, performances are better

concerning the buildings, but not excellent. Also, the

problems with the roads remain. Up to now, only

one of our two patterns has been considered, but the

same experiments were done with the pattern using

the (L*, a*, b*) color space. There is one significant

improvement with respect to the color space (R, G,

B): the producer’s accuracy road increases of 11%,

without adding many more false alarms. An idea to

decrease both the road false alarm rate and the

building bad detection rate is to combine this last

classifier combination with the buildings of the

previous classifier combination. In this last fusion,

all the buildings are added while no road

preservation is done. The risk is thus to loose some

correct roads. However, despite this drawback, the

classification accuracy is significantly better than all

the results obtained previously, as shown in table 3.

This four-classifier fusion improves the overall

accuracy of 9% with respect to the SVM classifier

used individually. The road false alarm rate is lower

but remains high. Encouraging results concern

mainly the “building” class with a much lower bad

detection rate. Visual results are shown on figure 4.

Figure 4: Classification results of the four-classifier

combination of table 3 (ground truth on figure 3).

Table 3: Classification accuracy measures.

(3-class SVM + buildings of the single

class SVM while roads preserving,

pattern {a,e,L*,a*,b*} ) + buildings of

the combination of table 2

Overall accuracy 0.69

Producer’s accuracy road 0.67

Producer’s accuracy building 0.76

Producer’s accuracy other 0.42

User’s accuracy road 0.49

User’s accuracy building 0.80

User’s accuracy other 0.75

4 CONCLUSIONS

Building and road detection on VHR images of

dense urban areas has been investigated. The

suggested approach contains segmentation and

classification algorithms especially well adapted to

multispectral data, and both spatial and spectral

information are used at the object level. Also,

contextual information around objects is used to

solve the SVM conflicts between roads and

buildings. In order to overcome the high road false

alarm rate and the high building bad detection rate in

the presence of similar road and building objects,

some classifier combinations were suggested and

different features used. Significant improvements

are achieved in terms of accuracy. Our current

research aims at filling road gaps and smoothing

road borders, on the basis of straight segment

detection.

ACKNOWLEDGEMENTS

We thank the financer IRSIB and the data provider

IGN (Be).

REFERENCES

Bishop, C., 2006. Pattern recognition and machine

learning, Springer.

Lilesand, T., Kieffer, R., 1994. Remote sensing and image

interpretation, Third edition, John Wiley & Sons, Inc.

Jackson, Q., 2002. Adaptative Bayesian contextual

classification based on Markov random fields, IEEE

TGRS, Vol. 40, No. 11, pp. 2454-2463.

Palmason, J. and all, 2005. Classification of hyperspectral

data from urban areas using morphological

preprocessing and independent component analysis.

Proc. IGARSS, vol. 1, pp. 176-179.

Fauvel, M., 2008. Spectral and spatial classification of

hyperspectral data using SVMs and morphological

profile. IEEE TGRS, Vol. 46, No. 11, pp. 3804-3814.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

456

Tuia, D., 2009. Classification of very high spatial

resolution imagery using mathematical morphologie

and support vector machine. IEEE TGRS, Vol. 47, No.

11, pp. 3866-3879.

Fauvel, M and all, 2006. Decision fusion for the

classification of urban remote sensing images. IEEE

TGRS, Vol. 44, No. 10, pp. 2828-2838.

Benediktsson, J., 1999. Classification of multisourse and

hyperspectral data based on decision fusion. IEEE

TGRS, Vol. 37, pp. 1367-1377.

Benediktsson and all, 2007. Multiple classifier systems in

remote sensing: from basics to recent developments.

MCS, 7

International Workshop, Praque, Tchèque.

Melgani, F., 2004. Classification of hyperspectral remote

sensing images with support vector machines. IEEE

TGRS, Vol. 42, No. 8, pp. 1778-1790.

Foody, G., 2004. A relative evaluation of multiclass image

classification by support vector machines. IEEE

TGRS, Vol. 42, No. 6, pp. 1335-1343.

Tarabalka, Y., and all, 2009. Spectral-spatial classification

of hyperspectral Imagery based on partitional

clustering techniques. IEEE TGRS, Vol. 47, No. 8, pp.

2973-2987.

Debeir, O., Atoui H., Simler 2009. Weakened Watershed

Assembly for Remote Sensing Image Segmentation

and Change Detection. VISAPP, Portugal.

Comaniciu, D., Meer, P., 2002. Mean Shift: A Robust

Approach Toward Feature Space Analysis. IEEE

PAMI, Vol. 24, No. 5.

Tax, D., Duin, R., 2001. Uniform object generation for

optimizing one-class classifiers. JMLR 2, pp. 155-173.

BUILDING AND ROAD EXTRACTION ON URBAN VHR IMAGES USING SVM COMBINATIONS AND MEAN

SHIFT SEGMENTATION

457
