ARTIFICIAL IMMUNE SYSTEM FRAMEWORK FOR PATTERN

EXTRACTION IN DISTRIBUTED ENVIRONMENT

Rafał Pokrywka

Institute of Computer Science, AGH University of Science and Technology, al. Mickiewicza 30, 30-059 Krak

ow, Poland

Softq s.c. Szuwarowa 8/40, 30-384 Krak

ow, Poland

Keywords:

Pattern extraction, Artiﬁcial immune system, Multiagent system.

Abstract:

Information systems today are dynamic, heterogeneous environments and places where a lot of critical data

is stored and processed. Such an envrionment is usually build over many virtualization layers on top of

backbone which is hardware and network. The key problem within this environment is to ﬁnd, in realtime,

valuable information among large sets of data. In this article a framework for a pattern extraction system

based on artiﬁcial immune system is presented and discussed. As an example a system for anomalous pattern

extraction for intrusion detection in a computer network is presented.

1 INTRODUCTION

In heterogeneous environments like information sys-

tems, with multiple virtualization layers and service

providers build on top of hardware and network, the

quantity of information is huge. Obviously informa-

tion is constantly processed through various work-

ﬂows and procedures which creates, at the end, value

for the end user. But in particular situation only rel-

evant fragments of information carry the core data

which is interesting within particular context and use

case. Those fragments are buried in overﬂow of ir-

relevant details. Additionally useful information can

also be that who, what and when sends, receives and

process data. Some parts of general information about

activities stays on sender, receiver and within trans-

porting infrastructure but what is often missed dur-

ing data processing and analysis is the correlation be-

tween them.

In this article a framework for pattern extraction

system is proposed. The framework architecture is

based on multiagent system concept. There are also

analogies to the natural immune system used - intro-

duction to immune system is provided below. The

system consists of a common layer that abstracts

infrastructure speciﬁc information and creates dis-

tributed environment for a second layer of agents

which are able to make decisions and are also able

to migrate through the whole network carrying neces-

sary piece of extracted information. Information re-

trieval is not always correct in a sense that systems

like this sometimes miss to correctly extract and clas-

sify data. Such errors can be potentially dangerous

especially in intrusions detection and are called false

alarms or type I errors. This problem is handled by

the architecture through applying a method for reduc-

ing false alarms rate, called Layered Filtering which is

described in (Pokrywka, 2008). The method helps to

decrease a base-rate fallacy inﬂuence on a false alarm

rate. The fallacy is connected with base rates of nor-

mal and abnormal events and is directly implicated by

Bayes theorem. It has been pointed out by Axelsson

in (Axelsson, 2000).

2 OVERVIEW OF THE NATURAL

IMMUNE MEMORY

The human immune system is designed to protect an

organism against pathogens. The most important el-

ements of the system are lymphocytes which in great

number circulate through the body and detect foreign

cells. Basically there are two types of lymphocytes:

T and B. They both cooperate in detection and elimi-

nation of pathogens. They also cooperate in creation

of immune memory which we would like to model.

Immune memory is created during the primary

immune response. This response is usually slow and

has low intensity. The secondary immune response

is initiated by memory cells and is very fast, inten-

sive and often runs without any clinical symptoms

179

Pokrywka R. (2010).

ARTIFICIAL IMMUNE SYSTEM FRAMEWORK FOR PATTERN EXTRACTION IN DISTRIBUTED ENVIRONMENT.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 179-183

DOI: 10.5220/0002866001790183

 SciTePress

of infection. Additionally the fact that it is triggered

by infection with new, but similar to previously seen,

pathogens means that immune memory is associative.

The primary response consists of several steps.

First the lymphocyte of type B detects newly encoun-

tered pathogen, which is presented by antigen pro-

cessing cell (APC). APCs are the ﬁrst cells which

processes pathogens in a certain way - they look

for small chunks of amino acid chains and bind

them to molecule complex (MHC) which is then pre-

sented to lymphocytes. Next B-lymphocytes receive

conﬁrmation of positive detection from lymphocytes

T, which are activated only in the presence of cy-

tokines molecules. Cytokines are signals of the sit-

uation in the body and are released for example when

body tissue is damaged. This conﬁrmation from T-

lymphocytes is called co-stimulation. After activation

B-lymphocyte starts to mutate with a very high rate

until it becomes speciﬁc to this one particular kind of

pathogens. After the completion of this step the spe-

ciﬁc B-cell proliferate and differentiate into plasma

cells and memory cells. The former secrete antibod-

ies which participate in elimination of the pathogen,

the later memorise the pathogen. Memory cells do

not need any co-stimulation to become activated and

to mount the secondary response, during which they

rapidly proliferate and differentiate into plasma cells.

This results in a fast increase of number of antibod-

ies and a very fast elimination of the threat. A de-

tailed description of the entire immune system can

be found in (Hofmeyr, 2000), (Wierzcho

n, 2001) and

(Kim, 2002).

3 MULTIAGENT SYSTEM FOR

PATTERN EXTRACTION

The system is explained a little more by example of

an Intrusion Detection System extracting patterns of

anomalies. Let’s consider a sample network. On each

host there are installed several agents called Detector

Agents or simply Detectors. These agents forms ﬁrst

layer of system events processing and follows analogy

to APC cells of immune system. Processed events are

then send further to the Mobile Agents layer or bet-

ter: lymphocytes. These agents are not limited to in-

formation from detectors from one host but can use

information from agents placed around the entire en-

vironment and on each virtualization layer - hence

distributed. The idea is that these agents can view

all data and capture correlated events from the whole

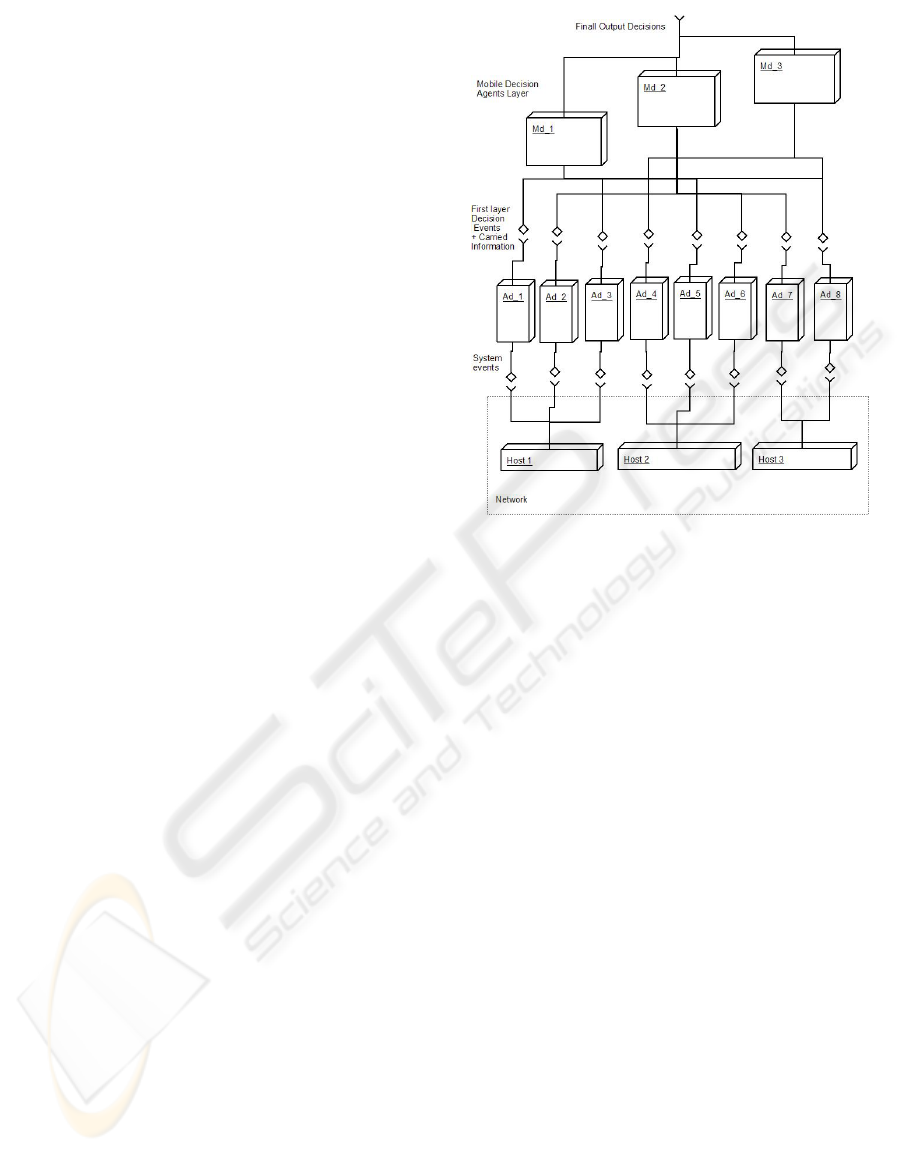

network. Figure 1. presents schema of the system.

Figure 1: Layered ﬁltering schema.

3.1 APC Detector Agents

For the example Intrusion Detection System (IDS) de-

tectors Ad

, ..., Ad

are agents installed on particular

hosts and responsible for detecting anomalies within

one aspect of the system activities. These can include:

• process’s system calls (grounds for this choice can

be found in (Warrender et al., 1999))

• process’s opened ﬁle handlers

• process’s opened ports

• list of processes

These agents signal symptoms of anomalies and

outputs additional event information like its source,

outcomes, etc. The Detection Rate is important in

case of these agents and it should be as high as possi-

ble. However the requirements for False Alarm Rate

can be relaxed signiﬁcantly - following results from

(Pokrywka, 2008). The agent population is constant

on each host and does not change with time. Each de-

tector can be of one particular type - which is impor-

tant as types of detector are used by the second layer.

These agents decrease the event quantity for process-

ing by upper layer and changes signiﬁcantly the base

rates of events (see (Pokrywka, 2008) for details).

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

180

3.1.1 Example Detector in Anomaly Extraction

System

The example detector (APC cell) is responsible for

monitoring system calls made by process. Analysis

of conditional entropy of the sequences suggests that

it is reasonable to choose one of the statistical model

which incorporates conditional probability to build a

proﬁle of system calls sequences. Markov chain with

variable order is the choice here. This model provides

a probability of the next system call having seen pre-

vious n. In this case n is a length of history and de-

pends on the actual context — hence variable order.

The proﬁle is created during the training phase from

the sequences of system calls representing normal be-

haviour according to the algorithm presented in (Ron

et al., 1996). An overview of Markov models can

be found in (Bengio, 1999). The detector provides

a probability of the next system call.

3.2 Lymphocytes Mobile Agents

Mobile agents Md

, ..., Md

forms the second layer of

the system architecture. They use signals from detec-

tors as a trigger for further processing of events. Ini-

tial mobile agent population is empty. The ﬁrst agent

is born after ﬁrst signal from a detector. A newly

born agent captures all processed information from all

APC detectors in a given time slot T

- it can be sus-

pected that these events are correlated and a system

wide information could be captured. The captured

pattern becomes the system output. Because of the

possibility of wrong information corellation - a false

alarm - this newly created agent needs a second signal

to become fully functional. For now this signal comes

from external source - usually an administrator. After

the administrator’s decision the agent is turned into

one of the two types:

• pattern speciﬁc — in case when valuable pattern

has been found and in the same time it becomes

an immune memory agent.

• anergic — in case it was a false alarm. This

agent’s aim is to remember false alarm pattern and

prevent future appearances of this pattern in sys-

tem output.

3.2.1 Life Energy

To maintain a stable in number population of mobile

agents and also to build a population which can dy-

namically adapt to the most current information main-

tained by the environment an idea of life energy is

used. At the beginning an agent receives some ﬁxed

amount of life energy E

. In each step the energy is

decreased by 1. A certain probability of death of the

agent is also determined, which depends on the ac-

tual level of the agent’s life energy. The probability is

given by the following function:

p(x) =



−

+ 1 forx < E

0 forx ≥ E

(1)

where E

is an arbitrarily chosen value. When the

agent happens to detect something its life energy in-

creases also by arbitrarily chosen value E

. This

mechanism makes it possible to delete agents which

detect obsolete patterns. It also keeps alive those

agents responsible for detection of frequently occur-

ring patterns.

3.2.2 Example of a Lymphocyte Agent

The probability output of APC detector agent is

mapped to some amount of penalty points. It is done

through a penalty function ξ : [0, 1] → R. To be use-

ful this function should give a large amount of penalty

points for probability equal to 0 and small amount if

the probability is close to 1. In my research the fol-

lowing function was used:

ξ(x) =

x + b

+ c . (2)

The a parameter controls how convex the function is,

b and c parameters modiﬁes the amount of points the

function returns for a given probability. All three pa-

rameters must be carefully chosen. In each step the

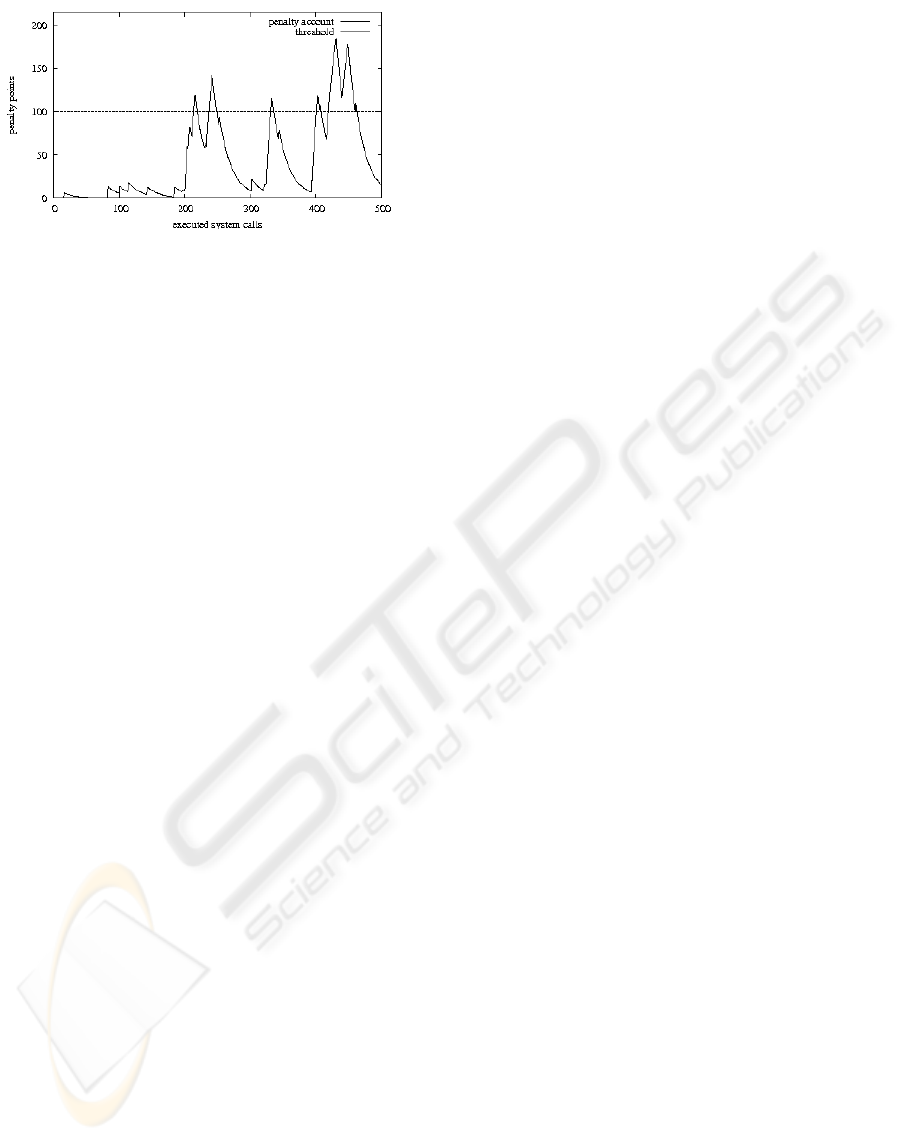

computed penalty points are added to a penalty ac-

count Ξ. To limit aggregation of history the penalty

account is also multiplied by dumping factor ζ < 1

(4).

= 0 (3)

i+1

= ζ(Ξ

+ ξ

i,i+1

) (4)

where ξ

i,i+1

is the amount of the penalty points com-

puted when going from i-th step to (i + 1)-th step. If

the penalty account exceeds a certain threshold τ a

pattern is stored. Figure 2 presents example plot of

the penalty account and the threshold. From observa-

tions it can be concluded that each process has its own

characteristic plot of behaviour that is a very impor-

tant feature.

Subsequent values of the penalty account form a

signal which is unique for a particular process and is

also unique for an information pattern. It is reason-

able though to remember and analyse this signal and

through this recognise patterns. For this purpose a

very simple neural network is used. Since the agent

is (in this version) responsible only for detection of

one particular pattern, and with the assumption that it

is in linearly separable set, its neural network consists

ARTIFICIAL IMMUNE SYSTEM FRAMEWORK FOR PATTERN EXTRACTION IN DISTRIBUTED

ENVIRONMENT

181

Figure 2: Example plot of the penalty account and the

threshold.

of one ADALINE neuron. The pattern is represented

by a vector of m last values of the process signal. The

neuron also has m inputs and m input weights. For

now it is assumed that the length of the pattern is con-

stant.

The activation of the neuron is given by the fol-

lowing formula:

y =

∑

i=1

xi (5)

where w

is the i-th weight and x

is the i-th input

value. Inputs are often written simply as vector X and

weights as vector W . From properties of ADALINE

the more input vector X is similar to the weight vector

W the greater the activation.

The neuron is learned through delta-rule which is

an iterative process of adjusting the vector of weights

according to the formula below:

= W + ηδX (6)

δ = t − y (7)

where η is the learning ratio, t is the target value that

the neuron should give for this particular input vector

X, y is the actual neuron’s output for the input vector

X. The agent’s decision is positive when the current

output is close enough to the target value, for example

when it is s = 99% of the t. On the choice of s depends

agent’s capabilities of generalisation. The s parame-

ter deﬁnes also patterns similarity. In other words the

agent groups similar patterns of similar anomalies (for

simpliﬁcation it is assumed that patterns are linearly

separable).

4 RESULTS SUMMARY

Tests of the example agent implementations have

been performed on sample traces of system calls.

At ﬁrst a learning phase have been conducted on a

fraction of samples. After that tests have been per-

formed on rest of data. The population of pattern spe-

ciﬁc agents, which represent extracted patterns, have

grown rapidly at the beginning and then stabilized

which is normal as there is limited number of anoma-

lies to extract. The information from multiple hosts

have not been used in this tests so the memory agent

population have been isolated for a given host.

5 CONCLUSIONS AND FURTHER

WORK

In this article a framework for Multiagent Pattern Ex-

traction system has been proposed. It emerged from

previous works on Anomaly IDS system presented in

(Cetnarowicz et al., 2006). The ﬁrst important as-

pect are the properties of the ﬁrst layer formed by

APC detector agents which decrease events quantity

and base-rates for further processing. One of the as-

sumptions and requirements for APC detectors was

that they have little memory and computing power

requirements what increases processing speed. Re-

duced events quantity makes it possible to use more

sophisticated detectors, with greater resource require-

ments, in subsequent layers. The second aspect is the

ability to gather information from distributed environ-

ment and - with detector layers - to mimic the vir-

tualization layers of the system under monitoring if

necesary. In case of several different service providers

used in monitored system adequate detector types can

be used. At the end multiagent system is naturally

parallel and distributed which opens wide range of

possible applications.

In the presented example only two layers were

used but there is no limit to that number. The results

from (Pokrywka, 2008) suggest that the number of

layers depends heavily on area of application as well

as characteristics of detectors used.

Considering the possible implementation methods

of APC detectors there could be capabilities of mod-

ern, heavilly parallelized GPUs utilized. This should

greately increase overall performance.

For further improvements great source of inspi-

ration comes from natural immune systems and it

is planned to include artiﬁcial immune system algo-

rithms into the framework like hypermutation and cy-

tokines carring context information. The context of

the event is important for its semantics and possible

detector outcome.

There is still a lot of work especially in aspect of

agents types and number of layers as well as corel-

lation of information coming from different sources.

Deﬁnatelly a comparative evaluation in one of the ap-

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

182

plication domains is needed as well as more exam-

ples of possible application domains but for now the

results seems to be promising.

REFERENCES

Axelsson, S. (2000). The base-rate fallacy and the difﬁculty

of intrusion detection. In ACM Trans. Inf. Syst. Secur.

3, pages 186–205.

Bengio, Y. (1999). Markovian models for sequential data.

In Neural Computing Surveys 2, pages 129–162.

Cetnarowicz, K., Rojek, G., and Pokrywka, R. (2006). In-

telligent agents as cells of immune memory. In In-

ternational Conference on Computational Science (3),

pages 855–862. Springer.

Hofmeyr, S. (2000). Design Principles for the Immune Sys-

tem and other Distributed Autonomous Systems, chap-

ter An Interpretative Introduction to the Immune Sys-

tem. Oxford University Press.

Kim, J. (2002). Integrating Artiﬁcial Immune Algorithms

for Intrusion Detection. PhD thesis, Department of

Computer Science, University College London.

Pokrywka, R. (2008). Reducing false alarm rate in anomaly

detection with layered ﬁltering. In International Con-

ference on Computational Science (1), pages 396–

404. Springer.

Ron, D., Singer, Y., and Tishby, N. (1996). The power of

amnesia. learning probabilistic automata with variable

memory length. In Machine Learning 25 (2–3), pages

117–149.

Warrender, C., Forrest, S., and Perlmutter, B. (1999). De-

tecting intrusions using system calls: Alternative data

models. In IEEE Symposium on Security and Privacy,

pages 133–145.

Wierzcho

n, S. (2001). Sztuczne systemy immunologiczne.

Teoria i zastosowania. (in polish). EXIT, Warsaw.

ARTIFICIAL IMMUNE SYSTEM FRAMEWORK FOR PATTERN EXTRACTION IN DISTRIBUTED

ENVIRONMENT

183
