AN ACCESS CONTROL MODEL FOR MASSIVE

COLLABORATIVE EDITION

Juliana de Melo Bezerra, Celso Massaki Hirata and Edna Maria dos Santos

Computer Science Department, Instituto Tecnologico de Aeronautica, S. J. Campos, Brazil

Keywords: Access control, RBAC, Collaborative editing, Massive collaborative editing.

Abstract: The Web has enabled the elaboration of documents, through editing systems, by a large number of users

collaboratively. An access control model is essential to discipline the user access in these systems. We

propose an access control model for massive collaborative edition based on RBAC, which takes into

account workflow, document structure and organizational structure. Workflow is used to coordinate the

collaboration of participants. The document structure allows the parallel edition of parts of the document;

and organizational structure allows easier management of users. We designed and implemented an editing

system based on the model. We show that the model is useful to specify collaborative editing tools and can

be used to categorize and identify collaborative editing systems.

1 INTRODUCTION

Collaborative editing (CE) systems aim to support a

distributed group of people editing a shared

document collaboratively over a computer network.

The major benefits of CE include reduced task

completion time by taking advantage of parallelism

and improved solution quality by leveraging

collective intelligence. Over the past decades, a large

number of CE systems have been developed in

academia as well as in industry, but most of them

were designed for single group and single shared

document.

The concept of Massive Collaborative Edition

(MCE) is not new. Massive Collaborative Edition is

seen as the task of editing a document by a large

number of users (ECOO); the number of users may

vary from tens to millions. The most well-known

example of a system that employs MCE is

Wikipedia.

The definition of MCE is starting to be accepted,

and we argue that its access control model should be

more elaborated. In our view, the document can be

structured in a specific manner so that dependencies

of edition between the items of documents may

arise. Similarly, users can be organized in various

groups that can have different roles in the edition of

documents. In a single group, users in general have a

single role related to the edition of the document

(editor role). In some systems users may have other

complementary roles such as reviewers and

coordinators, but they all in general belong to a

single group. Therefore a more complex

organization of users is required. In general, groups

are part of an organization and their relations form

the structure.

Besides, MCE may require a process that can be

defined using workflow. Workflow is the

automation of a business process during which

documents, information or tasks are passed from one

participant to another (WfMC, 2003). So, the access

control model for MCE shall also include workflow.

RBAC (role-based access control) (NIST, 2001)

has been successfully employed in many systems.

We propose an extended RBAC model to take into

account workflow, document structure and users

organizational structure in order to address Massive

Collaborative Edition. Our goal is to provide a

comprehensive model to aid in the construction of

massive collaborative edition tools.

The article is organized as follows. Section 2

discusses MCE, RBAC, workflow, document

structure and users organizational structures. Section

3 presents the model for Massive Collaborative

Editing, and discusses its possible usages. Section 4

presents some related work and Section 5 concludes

our work and discusses future work.

2 FOUNDATIONS

In this section, some concepts are described to

135

de Melo Bezerra J., Hirata C. and dos Santos E. (2010).

AN ACCESS CONTROL MODEL FOR MASSIVE COLLABORATIVE EDITION.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

135-140

DOI: 10.5220/0002868401350140

 SciTePress

support the proposed access control model for MCE.

Most of the concepts are originated from well

established subjects such as RBAC, Workflow, and

Organization Structure.

2.1 MCE

The most prominent example of MCE tool is wiki

and, to some extent, Content Management System.

A wiki is a website that allows the easy creation and

edition of any number of interlinked Web pages,

using a WYSIWYG (What You See Is What You

Get) text editor, within the browser. Most wikis

serve a specific purpose and material is promptly

updated by the user community. Such is the case of

the collaborative encyclopaedia Wikipedia. Open

purpose wikis accept all sorts of content without

rigid rules as to how the content should be organized

and who can create and modify the pages.

A content management system (CMS) is a

collection of procedures used to manage work

process in a collaborative environment. The

procedures allow for a large number of people to

access shared data according to user roles. User roles

are used to define what information users can view

or edit.

Wiki can be seen as a web content management

system (WCMS) software, implemented as a Web

application, for creating and managing HTML

content. The software provides authoring (and other)

tools designed to allow users with little knowledge

of programming languages or markup languages to

easily create and manage content.

The two tools, wiki and WCMS, illustrate why

the web is becoming a space where hundreds or

thousands of people share their knowledge and

resources. One of the reasons of the success of these

collaborative tools is that they do not require any

specific skills for publishing and editing. However,

the tools provide limited functionalities for

collaborative authoring of shared documents.

Based on the previous experience in research of

collaborative editing, the ECOO project-team has

been concerned with various issues specific to the

mass collaboration such as consistency maintenance

of structured data, consistency maintenance in peer-

to-peer environments and awareness aspects in large

groups. A research direction adopted by ECOO team

is to use P2P techniques to distribute collaborative

documents. The P2P techniques raise the issues of

supporting collaborative edits, and of maintaining

consistency, over a massive population of users,

shared documents, and sites. Ignat and Norrie (2008)

studied a number of alternative P2P, decentralized

approaches, applied to collaborative wiki editing,

contrasted with current centralized systems.

However no access control model is provided.

2.2 RBAC and Workflow

The RBAC (Sandhu et al., 2000), role-based access

control (also called role-based security), has become

the predominant model for advanced access control

because it reduces the complexity and its related

cost. Within an organization, roles are created for

various job functions. The permissions to perform

certain operations are assigned to specific roles.

Users are assigned to particular roles, and through

those role assignments, acquire the permissions to

perform particular tasks. Since users are not

assigned to permissions directly, but only acquire

them through their role (or roles), management of

individual user rights becomes a matter of simply

assigning appropriate roles to the user.

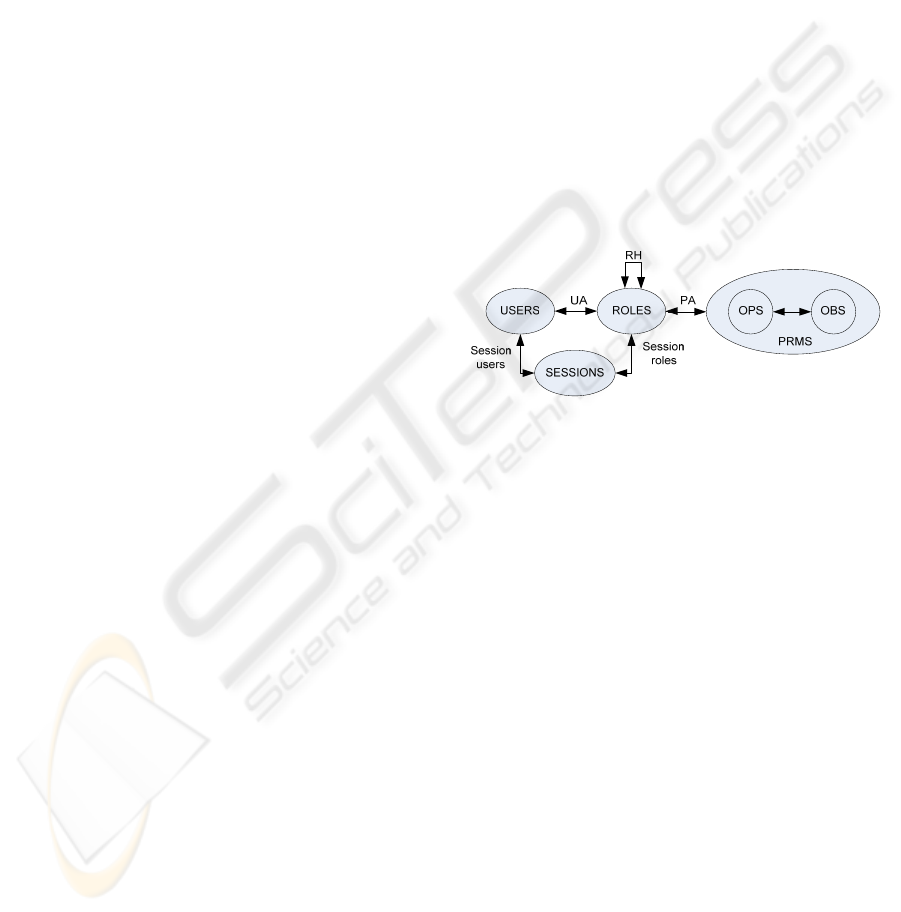

Figure 1: RBAC model.

When defining a hierarchical RBAC model

(Figure 1) the following conventions are useful

(Sandhu et al., 2000):

 OBS: the set of objects. An object is a resource

used in some operation.

 OPS: the set of operations. An operations is an

activity that can be performed (e.g. edit, save,

and to include a picture).

 USERS: the set of users.

 ROLES: the set of roles. A role is a job function

or title which defines an authority level.

 PRMS: the set of permission. A permission is an

approval of a mode of access to an object.

PRMS = 2

(OPS x OBS)

 PA (permission assignment): a many-to-may

permission-to-role assignment relation.

PA ⊆ PRMS x ROLES

 UA (user assignment): a many-to-many user-to-

role assignment relation.

UA ⊆ USERS x ROLES

 SESSIONS: the set of sessions. A session is a

mapping between a user and a possible role.

 RH (role hierarchy): a partial order on the

ROLES called inheritance relation, written as ≥.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

136

For r1, r2 ∈ ROLES, it is true that r1 ≥ r2, only if

all permissions of r2 are also permissions of r1.

The RBAC simplifies authorization management,

because authorization can be administrated as a

whole for all users belonging to a role, rather than at

the level of individual users. The hierarchical

characteristic of RBAC is granted due to the

possibility to define a role hierarchy. The use of

RBAC to manage user privileges within a single

system or application is widely accepted as a best

practice.

A workflow is a pattern of activity enabled by a

systematic organization of resources, defined roles

and information flows, into a work process that can

be documented and learned. Workflows are designed

to achieve processing intents of some sort, such as

service provision or information processing. In

collaborative editing, a workflow consists of a

sequence of connected editing tasks over a

document, i.e. a partial order of tasks. With respect

to RBAC, each task is seen as a subset of

permissions (operations over objects). Although

users have the permissions stated by their roles, only

the permissions specified by the current task in the

workflow can be performed by the users.

Workflow is required to MCE systems since

users are expected to perform different tasks through

different roles at different situations or states.

2.3 Document Structure

In a Massive Collaborative Edition, a document is

edited by a large number of users. The document can

be classified into basic or structured.

Basic documents are artifacts that can be

independently published. They are self contained

and they do not rely or rely very little on other

contents. In other words, their edition can be

independent from the edition of other artifacts.

Examples of basic documents are research articles

and newspaper articles in proceeding and

newspaper, respectively.

On the other hand, there are artifacts whose

contents are dependent on the contents that are

placed on other artifacts. Therefore their edition

must take into account the edition of the documents

which they rely on. They are called structured

documents. Example of that artifact is book chapter

which rely on other chapters. For some documents,

the dependency can be weak and they can be seen as

basic documents. An example of that document is

pages of Wikipedia.

The document organization enables the parallel

work of items of document by various users

simultaneously. In order to discipline the access

control by various users on the artifacts, some

scheme of control is required.

2.4 Organization Structure

Organizations are a variant of clustered users. The

structure of an organization determines the modes in

which the users collaborate to meet a goal (Daft,

2008). Organizational structure allows the expressed

allocation of responsibilities for different functions

and processes to different entities such as the branch,

department, workgroup and individual.

Users within the functional divisions of an

organization tend to perform a specialized set of

tasks, for instance the engineering department would

be staffed only with engineers. Functional

organization leads to operational efficiencies. As

examples of organizanial structure, there are

hierarchical and matrix organizations.

The hierarchical organization groups each

organizational function into a division (or product).

Each division contains all the necessary resources

and functions within it. An example of divisional

structure is the computer manufacturer, with the

following divisions: printers, computers, and

cameras. Each division has its own personnel

(users) and tasks. The organization business

objectives are met through the divisions’ work.

The matrix organization groups users by both

function and division (or product). A matrix

organization is a response to the weaknesses of

functional structure. Matrix organization, however,

may lead to management conflicts since users can be

subordinated to two different managers. An example

of matrix organization is a university that is

structured into departments (Computational,

Electrical, Mechanics, etc) and pro-rectories (for

instance, graduate and undergraduate).

An organizational structure may group hundreds

to thousands of users who have positions in the

organization. In MCE, the positions may both be

structured, for instance in a hierarchy, and may have

specific roles, therefore some the access control

model to discipline of the access control of positions

should be available.

3 ACCESS CONTROL MODEL

FOR MASSIVE

COLLABORATIVE EDITING

The access control model for Massive Collaborative

AN ACCESS CONTROL MODEL FOR MASSIVE COLLABORATIVE EDITION

137

Edition is based on the RBAC model and considers:

workflow, document structure, and organization

structure.

3.1 Key Components

In our proposed model, the document can be

structured in items, which are the objects of RBAC.

The workflow is a partial order of tasks (subsets of

permissions) in order to accomplish its life cycle.

Besides, the organization is represented by a

structure of groups that contain users. So, a user can

belong to multiple groups; while a group can have

multiple roles.

Figure 2 depicts the proposed model. The

majority of the conventions are from RBAC, except

for the following:

 OS (Object Structure): a partial order on the

OBS written as ≥. For o1, o2 ∈ OBS, it is true

that o1 ≥ o2, only if o2 is a part of o1,

consequently all permissions related to o2 are

also permissions to o1.

 Workflow: a partial order on the tasks written

as ≤. A task is a subset of permissions. For t1,

t2 ∈ 2

PRMS

, it is true that t1 ≤ t2, only if it is

required to perform t1 before t2.

 GROUPS: the set of groups. A group comprises

of users.

 GS (Group Structure): a partial order on the

GROUPS written as ≥. For g1, g2 ∈ GROUPS,

it is true that g1 ≥ g2, only if all roles of g2 are

also roles of g1.

 UA (user assignment): a many-to-many user-to-

group assignment relation.

UA ⊆ USERS x GROUPS

 GA (group assignment): a many-to-many role-

to-group assignment relation.

GA ⊆ ROLES x GROUPS

 SESSIONS: the set of sessions. A session is a

mapping between a user, a group and a

possible role.

Items of document (or objects) are assigned to

operations. This assignment is called permission.

Permissions are organized in workflow tasks.

Permissions are also assigned to role. However, a

role has permissions only if the current task of the

workflow enables those permissions. So, the tasks

discipline the permissions during the work process.

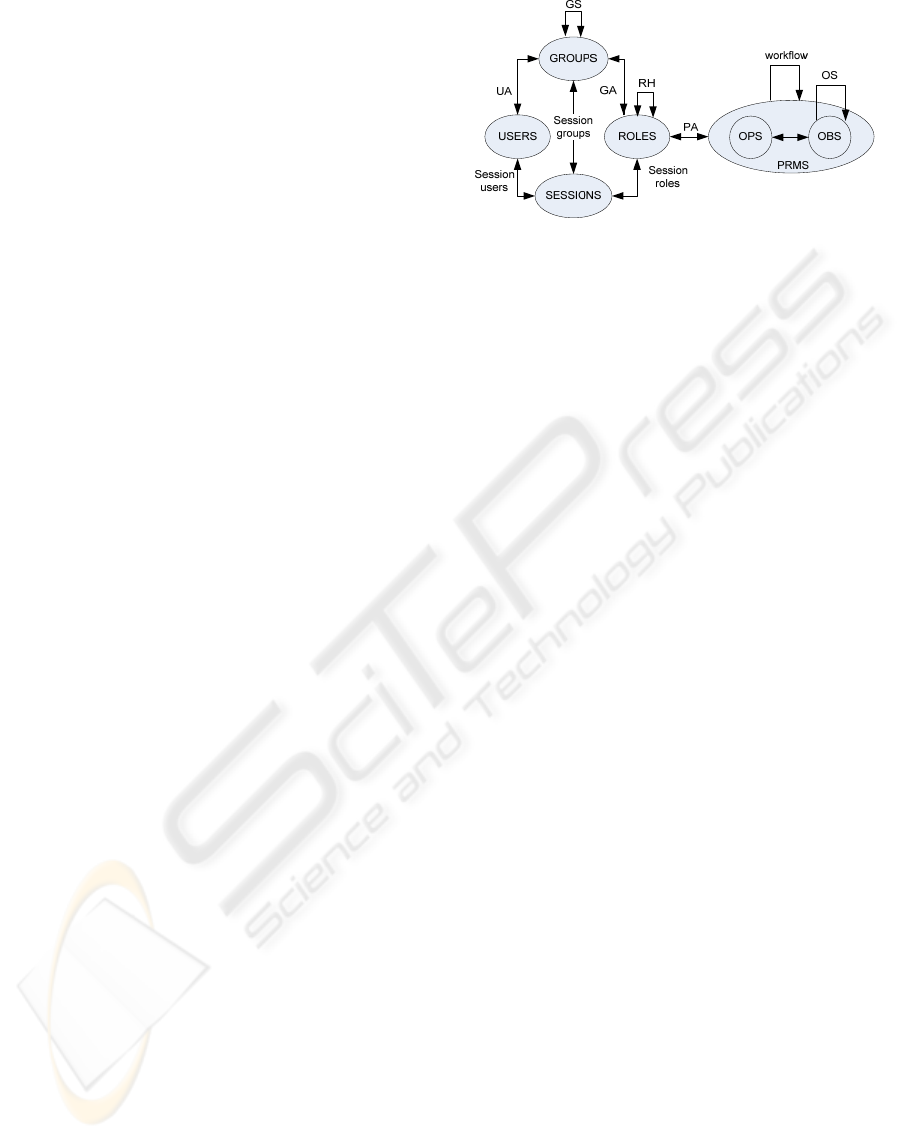

Figure 2: Model for Massive Collaboration Editing.

3.2 Discussion

In the proposed model, the objects can be structured,

for instance into a hierarchical structure. The

catalogue of products in virtual shop or courses of

university are example of such a structure. In

general, the completion of an operation of objects in

higher level depends on the completion of operations

of lower level in its tree. In order to ensure the

upwards completion, workflows should be defined

so that completions of operations of lower levels

enable the completion of operations in higher level.

A similar policy can be defined to start operations of

sub-objects. In this case, the downwards initiation

can be used. With workflow, objects have a

discipline to be worked with.

In a hierarchical organization, users have

positions and positions are structured according to a

tree hierarchy. In general, positions of higher

hierarchies have access or can perform roles of

lower hierarchy positions. In order to ensure the

downwards authorization, groups should be defined

so that users of higher positions must belong to all

groups of lower positions in the tree. With groups,

the assignment of roles to groups is easier to both

make and verify. So, the group structure (GS) allows

that a user to have at least the same access of his/her

subordinates in a hierarchical organization. The

proposed model can also be applied to a matrix

organization, where a user can belong to two groups:

the functional group (e.g. engineering group) and the

technical one (e.g. electrical system of some

product).

It is possible to include organization aspects

using only RBAC by representing each group as a

role. However, it is not easy to adapt this model in

case of organization changes. So, our approach

separates roles and groups. In our approach the

organization is well defined and structured into

groups, and any change in this structure can be

reflected to the access control model. As examples

of organization changes, there are the creation,

elimination, and fusion of groups.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

138

The proposed model also allows for user

delegation and organizational cooperation.

Delegation is to give to a user u

the same

permissions of another user u

during a specific

period. In general during this period, u

is out of

work. The delegation can be represented in the

proposed model by adding u

into the same group of

. Besides, organizational cooperation can be

represented too. Cooperation between companies

occurs when a company c

is contracted by another

company c

in order to develop together a solution

(product or service). In this case company c

has its

own access control model and needs to give access

to c

for specific objects. So, an organization

structure can be introduced into the existent model

to represent c

and the relations between groups from

and

can be well established.

The proposed model is quite general and can be

used for both specifying collaborative editing tools

and determining classes of collaborative tools. The

specification of massive collaborative editing

systems may require the configuration of web tools,

which may be awkward and tiresome. The

configuration can require thousands of assignments

of users, roles, operations, and objects to provide the

functionality with access control if one chooses to

use the conventional RBAC model. Using the

proposed model, the number of assignments can be

reduced significantly and are easier to make.

Our experience with the construction of

collaborative editing system of a graduate studies

catalogue, with 18 users, 21 groups, 21 document

items, 1 workflow, 6 roles, and 5 tasks, showed a

significant reduction of assignments of roles to the

users. It was possible to reduce from 178 to 74. In

the implementation of the catalogue, we also

benefited from other reductions. The proposed

model allows using one workflow definition and 6

role definitions for all the document items. It is

expected that for larger numbers of users and

document items, the reductions of assignment

numbers are very significant.

The group structure allowed also an easier

maintenance of the system. When a user enters or

leaves the system (or when she/he is replaced) it

suffices to make changes in the groups that she/he

belongs to.

We also advocate that the model can be used to

classify the collaborative editing systems. For

instance, Wikipedia can be seen as an instance of the

model with the following definitions:

 USERS: any web user.

 GROUPS: world (not structured).

 OBS: any page regarding some subject.

 OPS: edit.

 PRMS: edit any object.

 ROLES: collaborator, which can edit any page.

Since there is one group in Wikipedia, every user

belongs to it. The group has just one role

(collaborator), and this a role is assigned to the

group. The objects are not structured. Since there is

one permission, a workflow is not defined.

Therefore, it is possible to use instances of the

model to classify collaborative systems. It is not

difficult to model other systems such as Google

Docs (2008). The model for Google Docs is

presented below:

 USERS: any person invited by the document

owner.

 GROUPS: world (not structured).

 OBS: a document, including DOC, XLS, ODT,

ODS, RTF, CSV, PPT, etc.

 OPS: to create, to read, and to change a

document by inserting tables and images,

adding comments and formulas, changing letter

style, etc. It is also possible to organize the

documents in folders, and to publish the

document as a web page.

 PRMS: the same as OPS, but applied to a

specific document.

 ROLES: author, reader and collaborator. The

author is the document owner. Readers and

collaborators are chosen by the author. A

reader can only read the document, while a

collaborator can read and change it.

4 RELATED WORK

The related work proposes extensions of RBAC

model that can partially address MCE systems,

according to the following characteristics: workflow,

document structure and organization structure.

The concept of document structure is proposed

by Buegge et al. (2006) within the scope of the

management of artefacts produced in distributed

software development. In their work, the goal is not

MCE, and workflow and organization structure are

not mentioned.

Sun and Pan (2005) propose the FRWM model,

where the relation between roles and permissions is

made via workflow tasks. Although the workflow

concept is considered, they do not take into account

the document and organization structure.

Wang and Long (2007) present a model

associating a workflow task to the users and not to

the permissions. In their proposal, document

structure is not addressed. Their model also

considers organization that contains users, but the

organization is not related to roles. In our approach,

AN ACCESS CONTROL MODEL FOR MASSIVE COLLABORATIVE EDITION

139

a group has roles and a user is associated only with

groups.

Li et al. (2008) propose the H-TRBAC which

extends the concept of hierarchy to tasks, roles and

permissions. The task hierarchy is the own

workflow. The role hierarchy is already defined in

the RBAC model (Sandhu et al., 2000). The

permission hierarchy is a partial order of

permissions; therefore if a role grants permission,

the role also grants all the permissions downwards in

the hierarchy. Our model does not allow this type of

hierarchy, but it provides the object hierarchy to

represent the document structure. Li et al. (2008) do

not consider organization structure.

Zhu and Lv (2008) propose the ACEC model,

where the document, being used in a cooperative

editing, is defined by a set of sections. Their

representation is a type of document structure. Their

model also includes the concept of workflow

activity, but the organization structure is not

mentioned.

5 CONCLUSIONS

We presented an access control for massive

collaborative edition that considers workflow,

document structure and organization structure. The

proposed model is an extension of the RBAC model.

The model can be used to ease the specification

work of collaborative editing systems and we

advocate that the model can used to classify systems.

We expect that the model can aid the collaborative

editing systems with hundreds to millions of users

with significant reductions in the numbers of

assignments.

The research is not complete. Now, we are

currently investigating more ways of assignments

using particular structures. For instance, we would

like to have flexible assignments in order to cope

with the dynamic changes in organizations. For

instance, the delegation of role if a certain condition

is met presents itself as interesting research problem.

Another problem is how to specify or extend the

model for conflict resolution in matrix organization.

As mentioned, entities can respond to two different

entities, therefore some form of specifying priorities

may be required.

REFERENCES

Daft, R. L. (2008). Organization Theory and Design.

Cengage Learning. 10

ed. pp 88-132.

Cooperation Environment. ECOO project.

http://www.loria.fr/equipes/ecoo/english/index.html

Fischer, L. The Workflow Handbook 2003 Published in

association with the Workflow Management Coalition

(WfMC) 3

ed.

Google. Google Docs & Spreadsheets. (2008). Create and

share your work online. http://docs.google.com.

Ignat, C.L. and Norrie, M.C. (2008). Multi-level editing of

hierarchical documents. Journal of Computer

Supported Cooperative Work, 17(5-6):423-468.

Sandhu, R., Ferraiolo, D.F. and Kuhn, D.R. (2000). The

NIST Model for Role Based Access Control: Toward

a Unified Standard. In 5th ACM Workshop Role-Based

Access Control. pp 47-63.

Wang W. and Long Y. (2007). Research on extension to

role based access control mechanism on workflow

platform. In Third International Conference on

Natural Computation (ICNC).

Sun, Y. And Pan, P. (2005). PRES-A Practical Flexible

RBAC Workflow System. In 7

International

Conference on Electronic Commerce (ICEC).

Li, J, LI, X., Xie, S. et al. (2008). Multi-Hierarchy and

Fine-Grained Task-role-based Access Control in

Collaborative Environments. In Industrial Engineering

and Engineering Management (IEEM).

Bruegge, B., De Lucia, A., Fasano, F and Tortora, G.

(2006). Supporting Distributed Software Development

with fine-grained Artefact Management. In

International Conference on Global Software

Engineering (ICGSE).

Zhu, F. and Lv, Qiang. (2008). ACEAC: A Novel Access

Control Model for Cooperative Editing with

Workflow. In International Symposium on Electronic

Commerce and Security.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

140
