E. del Toro
Centro de Investigaciones de Microelectrónica (CIME), CUJAE, Ciudad de La Habana, Cuba
S. Sánchez-Solano
Instituto de Microelectrónica de Sevilla (CNM-CSIC), Sevilla, Spain
M. Brox
Dpto. Arquitectura de Computadores, Electrónica y Tecnología Electrónica, Univ. Córdoba, Spain
A. J. Cabrera
Dpto. Automática y Computación, CUJAE, Ciudad de La Habana, Cuba
Keywords: Fuzzy Control, Hardware/Software Codesign, FPGA.
Abstract: This paper describes a hardware/software codesign strategy for fuzzy control systems implementation using
FPGAs. The main contribution of the paper consists of a methodology for joint development of hardware
and software components intended for rapid and verifiable design of a fuzzy control system. The design
flow combines specific tools for fuzzy inference systems included in the XFuzzy environment, simulation
and modelling tools from Matlab and FPGA synthesis, and implementation tools provided by Xilinx. The
advantages of this proposal are described in section 4 as it is used for the control system development of an
autonomous vehicle.
Fuzzy logic provides a mathematical framework to
deal with the uncertainty and the imprecision typical
of the human reasoning system. One of its main
characteristics is the capability to describe the
behaviour of a complex system in a linguistic way
(Zadeh, 1973). Unlike classical logic systems, fuzzy
logic aims to model approximated reasoning modes
that play a significant role in the human ability to
make rational decision without using precise
mathematical models. These advantages have led to
an increase in the number of applications using
fuzzy logic controller (Ross, 2004).
A great number of different design proposals,
which range from software implementation to
complete hardware design, have been reported in the
last year (Baturone et al., 2000). The level of
complexity attained by many of the current
applications of control systems requires designing
the fuzzy inference modules (FIM) as components to
be included in a bigger system that, not only will be
able to apply the control responses, but also to
interface to other systems, reconfigure itself to
different states, and perform other tasks not related
to the fuzzy inference process. In these systems,
common tasks and configuration may be realized by
the software part using a general purpose processor,
while time consuming functions must be
implemented by means of specialized hardware
(Cabrera et al., 2004).
The progress in integrated circuits manufacturing
technologies allows the integration of complex
control systems on a single chip. Also, the resources
available in current FPGA families can be used to
implement a system on a programmable chip
(SoPC). However, to benefit from these
del Toro E., Sánchez-Solano S., Brox M. and J. Cabrera A. (2010).
In Proceedings of the 7th International Conference on Informatics in Control, Automation and Robotics, pages 213-216
DOI: 10.5220/0002879602130216
technological advances, new design methodologies
and powerful CAD tools must be developed to cut
down the development cycle of new products and
make them more competitive in market terms.
A fuzzy control system design methodology is
described in this paper. The codesign strategy and
the basic components of the control systems are
introduced in Section 2. In Section 3, the design
flow and the tools are described. An application of
the proposed methodology is explained in Section 4.
Finally, the main contributions and future goals are
resumed in Section 5.
The proposed HW/SW codesign methodology for
development of a fuzzy control system as a SoPC
combines the use of a general purpose processor,
available as IP-module for FPGA, connected to
specific fuzzy IP-modules that allow fuzzy inference
The processor used is MicroBlaze, which is a 32-
bit RISC processor soft core optimized for
implementation in Xilinx FPGAs. The system
architecture of MicroBlaze consists of several buses
that allows using multiple interfaces to connect
The main characteristics of the fuzzy module
used in this design are the efficient use of resources,
low power and high speed. In order to accomplish
these characteristics it is important to remark the use
of simplified defuzzification methods, the limited
overlap degree of input membership functions and
the implementation of a processing strategy that
evaluates only the active rules (Sánchez-Solano et
al., 2007).
The proposed design flow combines the use of
specific tools for development of fuzzy systems
from the XFuzzy environment, modelling and
simulation using Matlab, and Xilinx EDK for
synthesis and implementation in FPGAs. According
to the proposed methodology, the development of a
fuzzy control system will be implemented at
different stages which are described in next sections.
3.1 FIMs Design using Xfuzzy
The Xfuzzy environment has been developed to ease
the design of fuzzy systems by starting from
linguistic and/or numerical knowledge to final
implementing them as hardware and/or software
components. It provides a wide set of new featured
tools which offer Graphical User Interfaces to ease
the design flow at the stages of description,
verification and synthesis. It can be also used for
extracting fuzzy rules from numerical data and
includes tuning and simplification facilities (López
et al., 1998).
The first stage of the aforementioned
methodology aims at functional description and
verification of the fuzzy inference modules. The
FIMs may be described in Xfuzzy using a
hierarchical architecture that combines fuzzy
modules (for implementation of fuzzy rules bases)
and crisp modules (to perform arithmetic and logic
Knowledge bases may be generated directly via
xfedit or using identification and supervised learning
tools, like xfdm and xfsl, with training data. xfplot
may be used for functional verification. In addition,
a closed loop simulation may be done with xfsim,
using the fuzzy module in connection with a high-
level model of the plant.
Once concluded the specification stage, a tool
named xfsg is used to perform hardware synthesis.
This tool generates the required files for the next
3.2 Synthesis and Verification using
Using the SysGen library (Xilinx, 2008b),
XFuzzyLib is generated as a specific library that
provides basic modules for implementation of fuzzy
controllers. XFuzzyLib library contains basic
building blocks and other module descriptions
including different connectives and defuzzification
methods. See Figure 1 for description of an
inference module.
Automatic translation between the fuzzy
inference description and the Simulink module is
made using the files generated by the above
mentioned xfsg. These files are a Simulink module
describing the fuzzy system and a Matlab file that
contains the definition of size and functionality of
FIM components.
ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

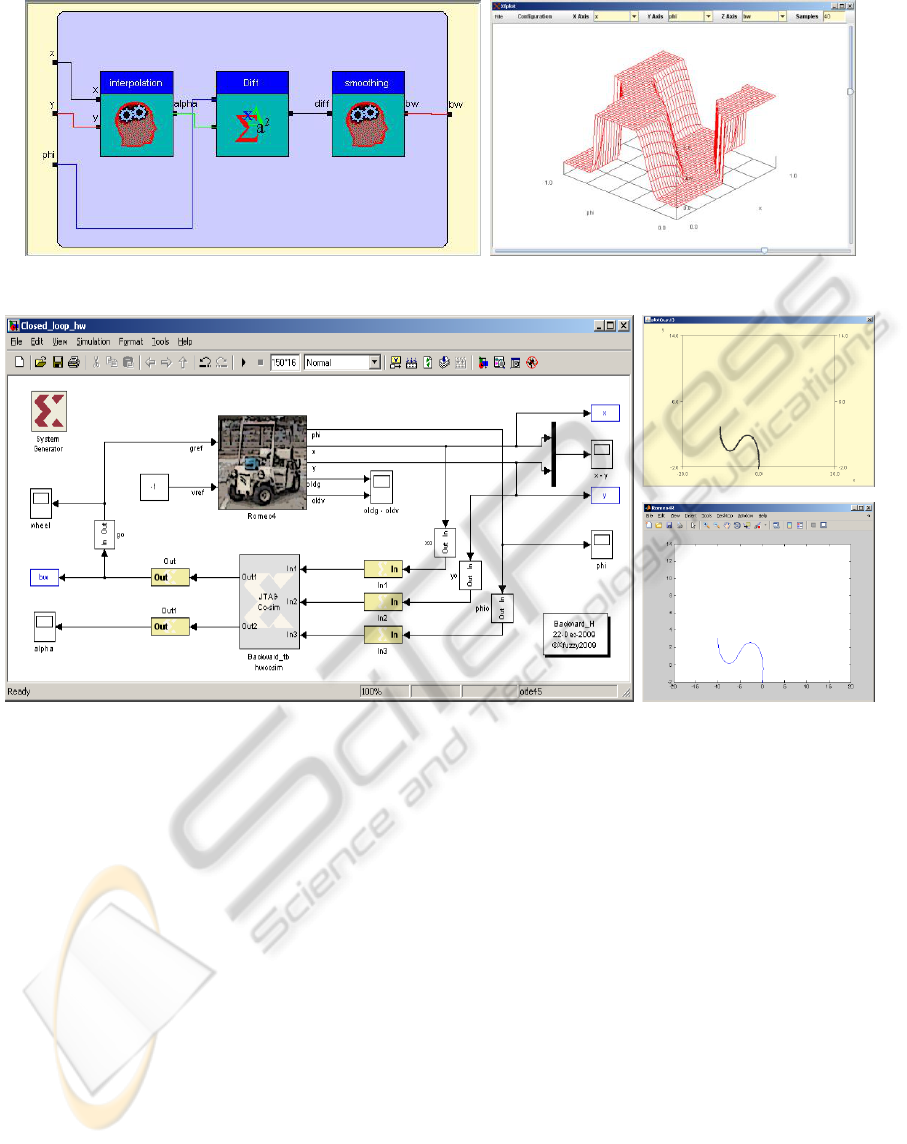

Figure 1: Description of a fuzzy inference module in Xfuzzy (left) and associated control surface (right).
Figure 2: Left: Hardware/software cosimulation using the FPGA implementation of the fuzzy controller in a closed loop
with a plant model. Top right: Xfuzzy simulation results of parking maneuvers, Bottom right: Simulink simulation.
Design correctness can be verified at this stage
by means of the facilities provided by Matlab. The
use of a System Generator Block allows hardware
synthesis. Also, it is possible to perform functional
verification in closed loop through hardware-
software cosimulation as shown in Figure 2.
3.3 IP Module Construction
and Integration with MicroBlaze
SysGen has options to connect hardware design with
MicroBlaze implementation in a smooth way.
Basically this consists in defining input and output
registers so they can be addressed by MicroBlaze in
various forms, see (Xilinx, 2008a).
The import process in EDK adds interface (glue)
logic according to the selected BUS for connection
as well as basic drivers for software
3.4 Control System Implementation
MicroBlaze hardware synthesis connected with the
fuzzy controller and with other IP modules is
possible thanks to Xilinx XPS tool. According to the
design needs and constraints, the designer follows
basic steps in order to correctly implement the whole
system. Numerous options can be used, including
that where the system (MicroBlaze processor and
peripherals including the fuzzy controller) can be
taken again to Simulink in order to verify
correctness of implementation and perform a much
more complex simulation.
Parking of autonomous vehicles in a constrained
space is a typical control problem in robotics (Li et
al., 2003). Starting from any given position and
orientation (x, y, Φ), the autonomous mobile robot
must drive forward and backward (as required) at
speed v and with a wheel curvature γ in order to
always arrive backward at target position (0, 0, 0).
The above methodology has been applied to the
realization of a fuzzy control system for autonomous
parking of an electric vehicle. The used mobile robot
has been an autonomous electric vehicle called
Romeo-4R. Romeo-4R is a four-wheeled car with
standard Ackerman steering, DC traction and
steering electrical motors. A digital signal processor
(DSP) TMS-320LF provides support for motor
control (encoder inputs and PWM outputs), A/D
conversion, and communication links through serial
ports, thus easing the low level control of the
vehicle. The DSP acquires information from sensors
(a gyroscope and encoders) and processes it by using
a kinematical model usually employed for car-like
robots in order to resolve the actual position (x, y)
and orientation (Φ) (Cuesta et al., 2004).
The state of the vehicle is transmitted every 50
ms, thus determining the duration of the control
cycle. The fuzzy high-level controller performs the
parking control strategy and sends back to the DSP
the new required values of speed and wheel
curvature, so that the DSP controls the traction and
direction motors. This hierarchical control structure
allows developing different control strategies in the
high-level controller and frees it from the low-level
control task of Romeo-4R.
Once known the values of the current state (x, y,
Φ, v, γ) of Romeo-4R, the DSP transmits them to the
FPGA containing the fuzzy controller through a RS-
232 serial interface and using a specific
communication protocol (which is also implemented
by the program running in the MicroBlaze
In order to give physical support to the
development platform, a Xilinx University Program
Virtex2-Pro Development System Board has been
employed. This board allows cosimulation to be
carried out using Matlab.
Figure 2 (right) shows simulation results
illustrating the trajectories of parking maneuvers.
A realization strategy for the development of hybrid
HW/SW embedded fuzzy controllers on FPGA
devices has been described. The design flow
combines specific tools for development, simulation,
synthesis and implementation using FPGAs. The
main contribution of this paper is a methodology for
the joint construction of hardware and software
components in every stage of design. The proposed
methodology is applied to solve a classic robotic
Project TEC2008-04920 financed by “Ministerio de
Ciencia e Innovación” and P08-TIC-03674 by
“Junta de Andalucía”. E. del Toro is a MAEC-
AECID scholarship PhD. student.
Baturone, I., Barriga, A., Sánchez-Solano, S., Jiménez,
C.J., and López, D., 2000. Microelectronic Design of
Fuzzy Logic-Based Systems. CRC Press.
Cabrera, A., Sánchez-Solano, S., Brox, P., Barriga, A., and
Senhadji, R.. 2004. Hardware/software codesign of
configurable fuzzy control systems. Applied Soft
Computing, 4, 271-285.
Cuesta, F., Gómez-Bravo, F., and Ollero, A., 2004.
Parking maneuvers of industrial-like electrical
vehicles with and without trailer, IEEE Trans. on
Industrial Electronics, 51, 2, 257-269.
Li, T. H. S., Shih-Jie, C., and Yi-Xiang, C. 2003.
Implementation of human-like driving skills by
autonomous fuzzy behavior control on an FPGA-
based car-like mobile robot. IEEE Trans. Ind.
Electron., 50, 867 880.
López, D., Jiménez, C.J., Baturone, I., Barriga, A., and
Sánchez-Solano, S. 1998. Xfuzzy: A Design
Environment for Fuzzy Systems. IEEE International
Conference on Fuzzy Systems, Anchorage.
Ross,, T. J. 2004. Fuzzy Logic with Engineering
Applications, Wiley.
Sánchez-Solano, S., Cabrera, A., Baturone, I., Moreno-
Velo, F.J., and Brox, M., 2007. FPGA Implementation
of Embedded Fuzzy Controllers for Robotic
Applications. IEEE Trans. on Industrial Electronics,
54, 1937-1945.
Xilinx. 2008a. MicroBlaze Reference Guides.
Xilinx. 2008b. Xilinx System Generator v10.1 for
Simulink. User Guide.
Zadeh, L. A., 1973. 1973. Outline of a new approach to
the analysis of complex systems and decision
processes. IEEE Trans. on Systems, Man, and
Cybernetics, 3, 28-44.
ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics
