LEARNING FROM ‘TAG CLOUDS’

A Novel Approach to Build Datasets for Memory-based Reasoning Classification

of Relevant Blog Articles

Ahmad Ammari and Valentina Zharkova

School of Computing, Informatics and Media, University of Bradford, U.K.

Keywords: Blogs, Memory-based reasoning, Singular value decomposition, Tag clouds.

Abstract: The advent of the Social Web has created massive online media through turning the former information

consumers to present information producers. The best example is the blogosphere. Blog websites are a

collection of articles written by millions of blog writers to millions of blog readers. Blogging has become a

very popular means for Web 2.0 users to communicate, express, share, collaborate, and debate through their

blog posts. However, as a consequence to the very massive number of blogs as well as the so diverse topics

of blog posts available on the Web, most blog search engines encounter the serious challenge of finding the

blog articles that are truly relevant to the certain topic that blog readers may look for. To help handling this

problem, an intelligent approach to blog post search that takes advantage from the concept of ‘tag clouds’

and leverages many open source libraries, has been proposed. A Memory-Based Reasoning model has been

built using SAS Enterprise Miner to assess the approach effectiveness. Results are very encouraging as

retrieval precision has indicated a significant improvement in retrieving relevant posts to the user compared

with traditional means of blog post retrieval.

1 INTRODUCTION

Blogs are one of web 2.0 outcomes. Over the past

few years, blog websites, collectively known as the

‘blogosphere,’ have evolved from simple personal

web pages to professional sources for various types

of information, including politics, economics, sports,

technology, engineering, statistics and every other

field of human activity. Organizations have created a

rich diversity of informational blogs which many see

as a means to bypass the traditional media, such as

radio, television and newspapers (Depken et al,

2008). Blog writers, or ‘bloggers’, can easily create,

manage, and maintain posts in their blogs at zero to

very low cost by using free software tools. Access to

blogs is generally free to all web users, allowing

them to read blog posts created by bloggers and

write their comments and reviews, adding an extra

wealth of information sharing and knowledge

acquisition opportunities.

1.1 The Need for an Efficient Blog

There are currently many blog search engines that

enable users to search for blog posts of interest

either directly at the search engine site, or through

Abstract Programming Interfaces (APIs) that can be

easily integrated into any web application. However,

recent studies suggest that blog search has not yet

reached its full potential and more could be done to

achieve finding blog articles to read that match a

desired topic (Hearst et al, 2008). Moreover, most of

the blogs are not well-connected because bloggers

may write on a variety of subjects (Herring et al,

2005), reducing the efficiency of search for posts

relevant to a specific subject. One of the main ways

used by blog search engines to solve this problem

was ‘user-tagging’ or ‘social-tagging’ (Millen et al,

2006), which is a feature that enables the use of a

keyword or ‘tag’ that is explicitly entered by the

user for each blog post he reads. These tags allow

the blog reader to organize and display their blog

post collection with tags that are meaningful to

them. They also allow the user to search for articles

325

Ammari A. and Zharkova V.

LEARNING FROM â

AŸTAG CLOUDSâ

Z - A Novel Approach to Build Datasets for Memory-based Reasoning Classiﬁcation of Relevant Blog Articles.

DOI: 10.5220/0002884003250331

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

of a certain subject using a tag relevant to this

subject that has been associated to these articles by

other users who have previously read them. For

example, a programmer who wants to read blog

posts relevant to programming languages can use the

‘programming’ tag to retrieve the posts that have

been associated with this tag by previous readers.

User-tagging has gained wide popularity and has

been even used by researchers to learn user profiles

(Michlmayr et al, 2007) and improve social

navigation (Millen et al, 2006). Although user-

tagging may seem a good solution, a simple

experiment reveals that it is still not enough to

obtain an efficient collection of relevant posts. Out

of 248 blog posts that have been retrieved by the

Technorati Search Engine API (Technorati Blog

Directory) using tags directly related to

programming languages, such as ‘java servlet JSP’,

and ‘perl python PHP Ruby’, only 92 posts (37%)

could be classified as relevant to programming

languages after inspection. This was even less than

the relevance rate obtained (52%) when we used the

query search instead of the tag search.

1.2 Contributions

This work is an extension to our work in (Zharkova

et al, 2009). We aim to add ‘intelligence’ to blog

search, so that blog readers can find their desired

articles efficiently. To achieve this, we propose a

web mining ‘predictive searcher’ that first retrieves

a collection of blog posts using a blog search engine

API, then ‘scores’ each post in this collection,

returning only the relevant subset of posts that will

most likely satisfy the user’s search needs.

Contributions toward creating this intelligent

searcher could be summarized as follows:

1. The development of a Java-based text analysis

framework based on (Apache Lucene) to

prepare the data set required to train the

proposed searcher.

2. A novel approach based on the ‘tag-cloud’

concept (Alag, 2009) to classify the prepared

training data set.

3. The use of memory-based reasoning and

singular value decomposition implementations

in the (SAS Enterprise Miner) software to build

the predictive blog searcher.

The rest of this paper is organized as follows:

The novel approach to prepare and classify the

learning dataset used in building the intelligent blog

searcher is described in Section 2. The algorithms

used to build the predictive blog searcher are

described in Section 3. Experimentations and results

are discussed in Section 4. Finally, conclusions are

drawn in Section 5.

2 LEARNING FROM TAG

CLOUDS

2.1 Overview of ‘Tag Clouds’

Tag clouds are visual representations of social tags,

displayed in a ‘cloud-like’ layout. Each tag in the

cloud appears in a relatively different size than the

size of the other tags in the cloud. Figure 1 shows a

sample tag cloud appeared at Flickr.com. The

creator of the tags in a tag cloud can be one of three:

First, a domain expert who has a good knowledge

about the domain of the website where the tag cloud

should appear. Tags created in this way are called

‘professionally-generated’ tags. Second, a user who

is allowed to tag items in the website with keywords.

These tags are called ‘user-generated’ tags. Finally,

tags can be created by a text analysis program that

analyzes the textual content of the website and

generates the tags. These are called ‘machine-

generated’ tags (Alag, 2009). Whoever the creator

of the tag cloud is, the size of each tag in the cloud

always reflects how important this tag is in the

domain that the cloud represents. Importance is

usually defined by either how frequently the tag is

used by users (e.g. as a search query), or how

frequently it occurs in the overall text resources that

make the website content. Tags with higher

frequency are appeared in the cloud with a larger

font than the other tags with less frequency (Hearst

et al, 2008).

Figure 1: A Tag Cloud from (Flickr.com).

Because of this ‘tag size / tag importance’

relationship in the tag cloud, we argue that if we

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

326

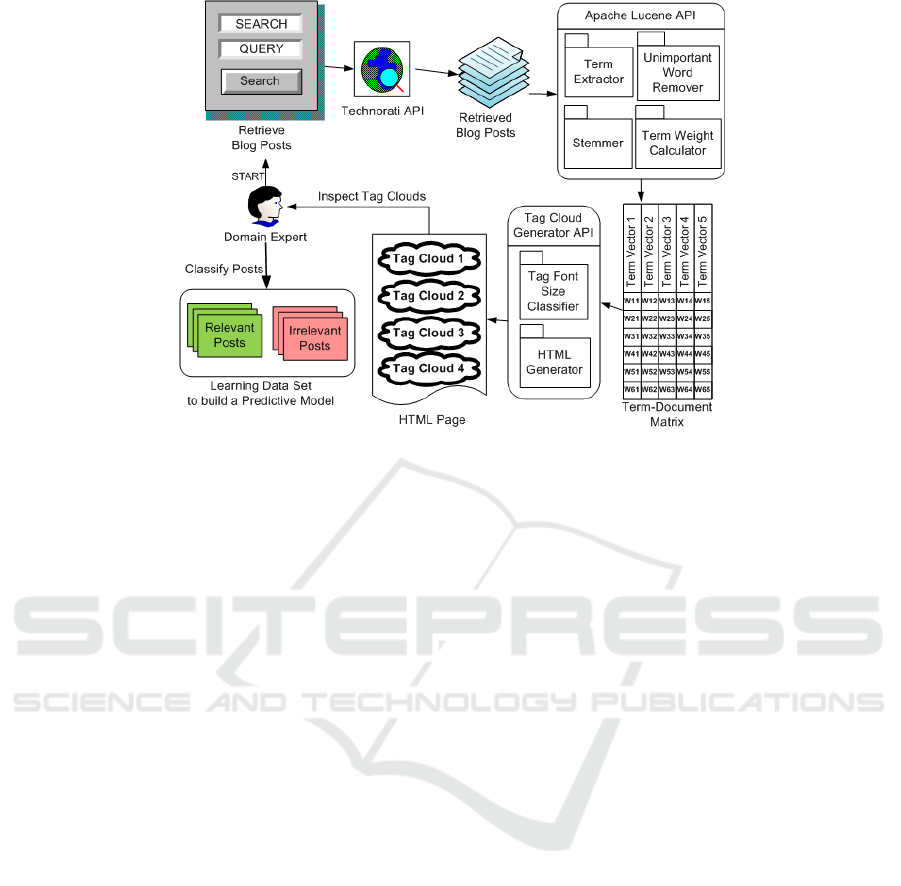

Figure 2: A Framework to create and classify a Learning Dataset.

have a tag cloud that represents the content of a

specific document within a document collection, and

we inspect a considerable number of relatively large

tags that are strongly relevant to a specific topic of

interest, we can assume that the document

represented by this tag cloud is strongly relevant to

that topic. For example, it is clear that the tags in the

cloud shown in Figure. 1 are strongly relevant to

holidays travel and tourism. Therefore, if this cloud

happens to represent an article in a news or blog

website, it is safe to assume that this article is

strongly relevant to the topic of holidays travel and

tourism.

2.2 The Dataset Creation Framework

Building a data set from a textual collection of blog

articles to train a classifier normally consists of three

main parts:

1. Retrieving a collection of blog posts using a

blog search engine API.

2. Analyzing the unstructured content of the

collection, which is a special data

transformation technique in which each article

is converted to a bag-of-words model (Cios et

al, 2007) by extracting the important terms,

synonyms, and phrases from the article,

stemming the terms to their original linguistic

roots, and computing a numerical weight to each

stemmed term. The result is a term weight

vector representation for each article, and the

transformed data set is usually called a term-

document matrix.

3. Classifying each article in the collection to

either relevant or irrelevant to the topic of

interest that triggered the search. Because

classification is a supervised learning process

(Hornick et al, 2007), we need to add a column,

called the target attribute, to the term-document

matrix to store a value that represents the

relevance of the article to the topic of interest.

We can use a binary data type {1 ≡ relevant, 0 ≡

irrelevant} for the target attribute.

For parts 1 and 2, we customize a Java-based

framework that leverages a couple of open – source

APIs:

• A Technorati Search API is used to retrieve a

collection of blog posts containing specified

keywords of interest that are input by a domain

expert.

• An Apache Lucene API is used to transform the

retrieved collection of blog posts into a term-

document matrix. Each vector in the matrix

represents a blog post and the elements of this

vector are the numerical weights of the

extracted terms of the whole blog collection

with respect to the article that this vector

represents.

For part 3, a tag cloud generator API (Alag, 2009) is

used to transform each term weight vector in the

term-document matrix into a tag cloud

representation. Then, all the resulted tag clouds are

visualized in a regular web page. In this way, the

domain expert who triggered the search can easily

LEARNING FROM 'TAG CLOUDS' - A Novel Approach to Build Datasets for Memory-based Reasoning Classification of

Relevant Blog Articles

327

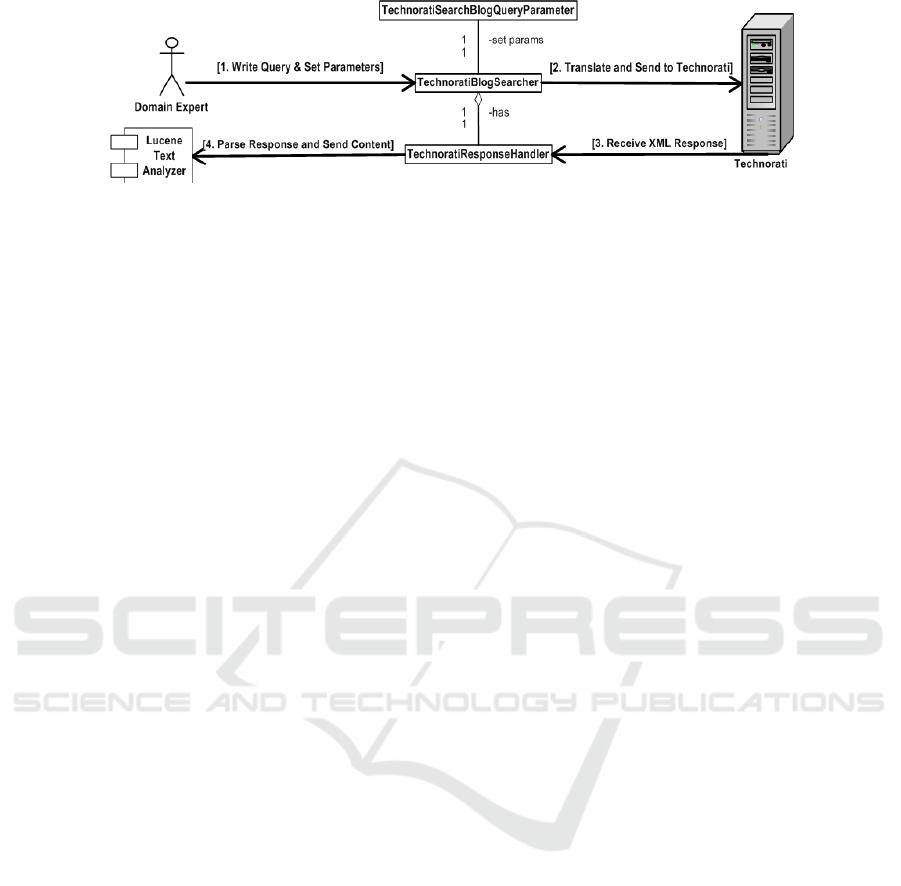

Figure 3: The process of searching the blogosphere with the Technorati API.

and quickly inspect each tag cloud and then

accurately determine whether the blog post that the

inspected cloud represents is relevant or irrelevant to

the query that he used to trigger the search. The

whole process of building the learning data set is

described in Figure 2.

2.3 Searching the Blogosphere for

Relevant Posts

Technorati is a popular blog search engine that

provides an API that can be used by web developers

to integrate many blog-related activities into their

applications. Using the API provided by Technorati,

it is possible to search for blog posts using three

different methods: using keywords that are found in

the content, using tags that are associated to posts by

users, or search for posts that are linked to a

particular URL. Moreover, the API allows

developers to retrieve a list of the most popular N

tags, get detailed information about a blog, and even

view information about a Technorati member.

Searching the blogosphere using the Technorati

API involves four main steps:

1. Writing a query string and setting the search

parameters: The search parameters involve

selecting the preferred search method, the

output format, the search language, and the

number of posts to be returned. Two Java

classes are responsible for processing this step:

TechnoratiBlogSearcher, and

TechnoratiSearchBlogQueryParamete.

2. Translating the query string to Technorati-

understandable format and send it to Technorati

search engine: The TechnoratiBlogSearcher

class processes this step.

3. Receiving the XML response containing the

search result. The TechnoratiResponseHandler

class processes this step.

4. Extracting the important content of the retrieved

blog posts, such as the title, name, and excerpt

of each retrieved blog post, merging the

extracted content, and sending it to the text

analyzer. The TechnoratiResponseHandler class

processes this step.

Figure 3 illustrates the four steps of the searching

process.

2.4 Analyzing the Retrieved Posts

Our text analyzer is built over Apache Lucene.

Lucene is an open-source Java-based search engine.

It provides a number of classes that can be used to

build a customized text analysis tool. In order to

transform the retrieved blog posts into a term-

document matrix, our text analyzer performs the

following four main activities:

• Term extraction: the unstructured content is

parsed to generate individual terms. Each term

may be a single word, a small phrase, or a

synonym. Lists of considerable phrases and

synonyms are fed into the analyzer so it can

detect them during the parsing process.

• Unimportant word removal: terms irrelevant

with respect to the main subject of the search

are removed (Cios et al, 2007).

• Stemming: reducing the remaining terms to their

root form by removing common prefixes and

suffixes (Cios et al, 2007). For example, the

words programming, programmers, and

programs share the root program, and so can be

treated as different occurrences of the same

term.

• Term weight calculation: a numerical weight is

computed for each term in each blog post,

generating the term weight vector that

represents the post. This term weighting takes

into account the frequency of appearance of the

term in the post, as well as the total frequency

of appearance of this term in the whole retrieved

posts.

The popular Term Frequency - Inverse Document

Frequency (tf-idf) weighting scheme (Kobayashi et

al, 2008) is used to calculate the term weight ω

follows:

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

328

Figure 4: Tag Clouds for Blog Posts classified as (a) relevant, and (b) irrelevant to ‘programming languages’.









log











is the normalized frequency of term x in the blog

post y, Ρ is the total number of retrieved blog posts,

and 



is the frequency of term x in the whole

retrieved posts.

Attributes are often normalized to lie in a fixed

range (e.g. zero to one). Term frequencies are

normalized using the equation below:













∑









where 



is the frequency of term x in the blog

post y and 



is the frequency of each term in the

blog post y.

2.5 Building the Tag Cloud

Representation

As previously mentioned, to improve the accuracy

and speed of the classification of the training blog

data set by the domain expert, a tag cloud generator

API is implemented to create a tag cloud from each

term weight vector in the term-document matrix.

The first component of our tag cloud generator API

is a tag font-size classifier that divides the available

term weights into a number of ranges of values and

then allocates a specific font size to each term

weight range. The larger the values in the term

weight range, the larger the allocated font size is.

Therefore, each term in the cloud appears in a size

that reflects its relative importance in the blog post.

The second component of the API is an HTML

generator that allows the domain expert to visualize

all the generated tag clouds, separated by a blog post

identifier, in a regular web page. After classification,

each vector in the matrix will contain an additional

element, the target attribute element, that stores a

binary value {1, 0} indicating the relevance or

irrelevance of the associated blog post to the topic of

interest.

3 BUILDING THE SEARCHER

3.1 Memory-based Reasoning

Classification

Memory-based reasoning (MBR) consists of

variations on the nearest neighbor techniques. A

description of MBR is found in (Rachlin et al, 1994).

It has been used in previous research projects to

classify text documents, such as news stories, with

good results obtained (Masand et al, 1992). MBR

solves a new task based on its computed similarity

with other tasks found in previous remembered

examples. In this context, MBR can predict whether

a new unseen blog post is relevant or not by finding

near matches from the learning dataset of posts and

then choosing the best relevance value based a

confidence threshold.

3.2 Performance Improvement with

SVD

As discussed in section 2, analyzing the blog post

collection generates the term-document matrix. For a

collection of text documents such as blog posts, the

generated matrix can contain hundreds of thousands

of words. Such very high dimensional data requires

too much computing time and space to analyze and

model. To improve the searcher performance,

singular value decomposition (SVD) is a popular

feature extraction technique (Cios et al, 2007) that

can be implemented to reduce the dimensions of the

term-document matrix by transforming the matrix

into a lower dimensional and more compact matrix.

LEARNING FROM 'TAG CLOUDS' - A Novel Approach to Build Datasets for Memory-based Reasoning Classification of

Relevant Blog Articles

329

4 EXPERIMENTAL RESULTS

An experiment has been done to address the

evaluation of the proposed tag cloud-based approach

to the learning dataset classification. Two blog post

collections have been retrieved by the Technorati

API and then their textual contents have been

analyzed programmatically using the Apache

Lucene API to create a learning dataset from each

collection. The first collection has been retrieved

using query strings directly relevant to programming

languages, such as ‘classes objects’, ‘perl python

php’, and ‘polymorphism inheritance’. Then, a tag

cloud for each retrieved post has been generated and

inspected by a programmer to classify its relevance

to programming languages. Figure 4 shows four of

the 248 generated tag clouds for the retrieved posts.

The first two clouds (a) have been classified as

relevant, whereas the other two (b) as irrelevant.

129 out of a total of 248 retrieved posts (52%) have

been classified as being relevant to the target subject

(programming languages).

The second collection contains 584 posts that

have been retrieved using user-tagging. The first half

of the posts has been retrieved using user-tags

directly relevant to programming languages and so

has been automatically classified as being relevant to

this topic, whereas the other half has been retrieved

using irrelevant user-tags, such as "Football",

"Swine flu" and "Pop music" and similarly has been

automatically classified as being irrelevant to

programming languages.

Next, SAS Enterprise Miner has been used to

build a predictive model based on each built dataset

described above. First, two supervised data sources

have been created based on the two created datasets.

Second, each dataset has been partitioned to 60% for

training, 20% for validation, and 20% for testing.

Third, SVD with maximum of 50 features

(attributes) has been applied to reduce the

dimensionality of each generated term-document

matrix before building the predictive model. Finally,

The MBR classification node has then been chosen

to build the predictive searcher.

Table 1 shows a comparison of five performance

measures between the training parts of the two data

sets. Table 2 shows this comparison between the

validation parts. Compared to the user-tagging

approach, it is clear that the tag cloud inspection of a

learning dataset leads to a good classification quality

to this dataset, and that the argument proposed in

section 2.1 is valid when applied on blog post

retrieval.

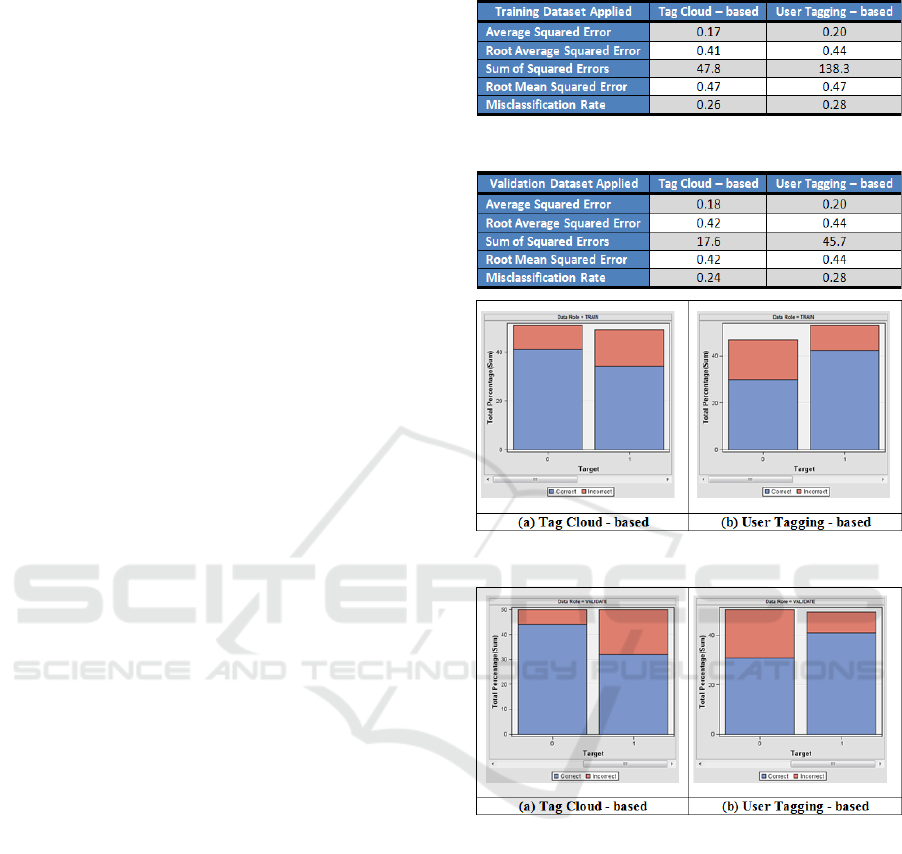

Table 1: Performance of Searchers on Training Data.

Table 2: Performance of Searchers on Validation Data.

Figure 5: Prediction Percentage on Training Data.

Figure 6: Prediction Percentage on Validation Data.

Another two popular measures to assess

information retrieval systems are precision and

recall (Cios et al, 2007). Precision measures the rate

of truly relevant posts from the total posts that the

model has predicted to be relevant.

Recall measures the ability of the model to

retrieve a good rate of relevant posts from the total

original relevant posts available. To compare

between the precision and recall of the two

searchers, we study figure 5 that shows the

prediction percentages of the two searchers on the

training datasets, and figure 6 that shows these

percentages on the validation datasets.

Both figures (5 and 6) clearly show that the

predictive searcher (a) that has been trained by the

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

330

tag cloud-based dataset is more able than the user

tagging-based searcher (b) to correctly classify those

posts irrelevant (Target = 0) to the topic of interest.

Consequently, it is more likely (higher precision) for

a post collection retrieved by the searcher (a) to

contain more relevant posts than a post collection

retrieved by the searcher (b), if the two searchers

retrieve the same number of posts.

However, the searcher (b) is more able than the

searcher (a) to correctly classify those posts relevant

(Target = 1) to the topic of interest, which means

that it is more likely (higher recall) to read more

posts from the totally available relevant posts if we

use the user tagging-based searcher.

5 CONCLUSIONS

In spite of the many available blog search engines on

the web, a little attention has been paid on how

much the blog posts that these search engines

retrieve are truly relevant to what the users look for.

There is a crucial need to add intelligence to the

searching mechanisms of blog posts in order to

improve their precision and recall results. This work

has proposed an efficient framework based on open

source APIs, as well as on tag cloud inspection, in

order to retrieve, analyze, and classify a collection of

blog posts used to train and build an intelligent

predictive searcher for filtering the results of search

engines, thus improving the relevance rate of the

posts returned to the user.

In comparison with another popular approach to

blog search improvement, user-tagging, results show

that relying on tag cloud inspection to classify a

collection of blog posts for training a predictive blog

searcher is a good decision to take. Moreover, it is

recommended by this work to apply the tag cloud-

based dataset learning approach for building blog

post classification models when precision in the

returned results of the model is more important for

the application domain than recall.

REFERENCES

Alag S., 2009. Collective Intelligence in Action. Manning

Publications, Greenwich

Apache Lucene, http://lucene.apache.org/java/docs/

Cios, K. J., Pedrycz, W., Swiniarski, R. W., Kurgan, L. A.,

2007. Data Mining, a Knowledge Discovery

Approach. Springer, New York

Depken II, Craig A., 2008. “Benford, Zipf and the

blogosphere.”, Applied Economics Letters, 15:9, 689

– 692

Hearst M., Hurst M., Dumais S., 2008. “What should blog

search look like?”, In: Proceedings of the 2008 ACM

workshop on Search in social media, pp. 95 – 98,

California, USA

Hearst M., Rosner D., 2008. “Tag Clouds: Data Analysis

Tool or Social Signaller?”, In: Proceedings of the 41st

Annual Hawaii International Conference on System

Sciences, p.160

Herring S., Kouper I., Paolillo J., Scheidt L., Tyworth M.,

Welsch P., Wright E., Yu N., 2005. “Conversations in

the Blogosphere: An Analysis from the Bottom Up.”,

In: Proceedings of the 38th Hawaii International

Conference on System Sciences HICSS’05

Hornick, M. F., Marcadé, E., Venkayala, S., 2007. Java

Data Mining: Strategy, Standard, and Practice. The

Morgan Kaufmann Series in Data Management

Systems, Morgan Kaufmann, San Francisco

Kobayashi M., Aono M., 2008. “Vector Space Models for

Search and Cluster Mining.”, In: Survey of Text

Mining II, Springer-Verlag, London

Masand B., Linoff G., Waltz D., 1992. “Classifying news

stories using memory based reasoning.”, In:

Proceedings of the 15th annual international ACM

SIGIR conference on Research and development in

information retrieval, p.59-65, Denmark

Michlmayr E., Cayzer S., 2007. “Learning user profiles

from tagging data and leveraging them for

personalized information access.”, In: Proceedings of

the Workshop on Tagging and Metadata for Social

Information Organization, 16th International World

Wide Web Conference

Millen D., Feinberg J., 2006. “Using social tagging to

improve social navigation.”, In: AH2006 workshop,

Social navigation and community-based adaptation,

Dublin, Ireland

Rachlin J., Kasif S., Aha D., 1994. “Toward a better

understanding of memory-based reasoning systems.”

In: Proceedings of the Eleventh International Machine

Learning Conference. Morgan Kaufmann. 242–250

SAS Enterprise Miner: a Data Mining Software,

http://www.sas.com/technologies/analytics/datamining

/miner/

Technorati Blog Directory, http://technorati.com/blogs/

directory/

Zharkova V., Ammari A., 2009. “Combining Tag Cloud

Learning with SVM classification to achieve

Intelligent Search for Relevant Blog Articles”, In:

Proceedings of the 1st International Workshop on

Mining Social Media, paper#7, Sevilla, Spain

LEARNING FROM 'TAG CLOUDS' - A Novel Approach to Build Datasets for Memory-based Reasoning Classification of

Relevant Blog Articles

331
