IMPROVING REAL WORLD SCHEMA MATCHING WITH

DECOMPOSITION PROCESS

Sana Sellami, Aïcha-Nabila Benharkat, Youssef Amghar

University of Lyon, CNRS, INSA-Lyon, LIRIS, UMR5205, F-69621, France

Frédéric Flouvat

University of New Caledonia, PPME laboratory BP R4, 98851 Noumea, New Caledonia

Keywords: XML Schemas, Scalable Matching, Decomposition.

Abstract: This paper tends to provide an answer to a difficult problem: Matching large XML schemas. Scalable

Matching acquires a long execution time other than decreasing the quality of matches. In this paper, we

propose an XML schema decomposition approach as a solution for large schema matching problem. The

presented approach identifies the common structures between and within XML schemas, and decomposes

these input schemas. Our method uses tree mining techniques to identify these common structures and to

select the most relevant sub-parts of large schemas for matching. As proved by our experiments in e-

business domain, the proposed approach improves the performance of schema matching and offers a better

quality of matches in comparison to other existing matching tools.

1 INTRODUCTION

Nowadays, within the business area, the industry

builds large scale distributed systems and

middlewares that are more and more based on XML

technology. In fact, there are many databases and

information sources available through the web

covering different domains: semantic Web, deep

Web, E-business, digital libraries, etc. In such

domains, the generated data (XML schemas,

ontologies, etc) are heterogeneous and voluminous.

The presence of vast heterogeneous collections of

data arises one of the greatest challenges in data

integration field. For example, real-life E-business

schemas of catalogs and messages such as BMEcat,

OAGIS

or XCBL

present an “amazing scale” of

elements (20

≈ 10000 elements). One of the most

critical steps to integrate heterogeneous e-Business

applications that contain different XML schemas is

to use large schema matching.

Matching techniques are solutions to

automatically search correspondences between these

data in order to obtain useful information. In fact,

matching is an operation that takes data as input (e.g

XML schemas, ontologies, relational database

schemas) and returns the semantic similarity values

of their elements. Schema matching has attracted

the attention of research community (Do et al.,

2002) (Rahm et al., 2001). However, most matching

tools are applied on two schemas with human

intervention, whereas in practice, real world

schemas are voluminous. Matching these schemas at

large scale represents a laborious process. Moreover,

matching the whole input schemas will take long

execution time. Then, one of the challenges of the

matching community is to efficiently search for

correspondences between large schemas and to

compute reasonable results in a reasonable time.

Our main motivation is to decrease scalable

match overload. E-business domain has to deal with

large schemas. Matching XML business schemas

have two main characteristics. First, an XML

business schema may include identical redundant

structures called intra-schemas structures or shared

sub-structures. Intra-schemas structures are frequent

within large XML schemas. In fact, there are many

shared XML schema components (elements,

attributes, and types) that are referenced in several

places (figure 1) in a schema.

Second, schemas from the same domains may

share common structures called inter-schemas

structures (i.e. similar structures in different

schemas). These structures represent an important

source of structural and semantic information.

151

Sellami S., Benharkat A., Amghar Y. and Flouvat F. (2010).

IMPROVING REAL WORLD SCHEMA MATCHING WITH DECOMPOSITION PROCESS.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

151-158

DOI: 10.5220/0002887001510158

 SciTePress

Figure 2 shows an example of the inter-schemas

structures. Both schemas share {Invoice To,

Contact, Tel, Name, E-mail} and {Deliver To,

Contact, Tel, Name, E-mail} sub-schemas.

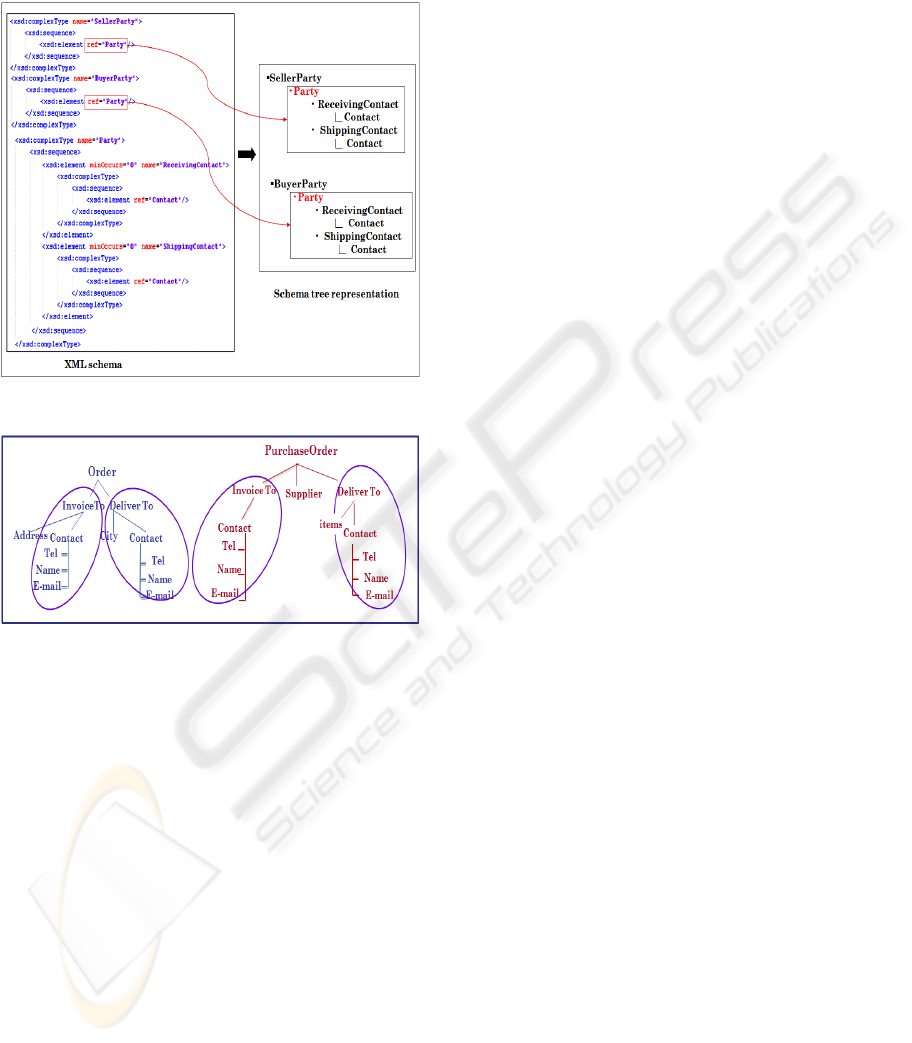

Figure 1: Schema tree representation.

Figure 2: Example of inter-schemas structures.

Motivated by these observations, we propose an

XML schema decomposition approach based on

inter-schemas and intra-schemas identification. Our

approach attempts to find the most similar parts

between all the schemas, at once. To this end, we

use tree mining techniques to identify these common

structures between and within XML schemas. Tree

mining is a classical data mining problem which has

received lots of efforts in this last years.

Our approach is composed of three steps:

transforming XML schemas into trees, extracting

frequent trees from these transformed schemas and

processing these sub-trees to find the more relevant

candidates for matching.

The goal of our paper is then to provide a pre

matching approach based on decomposing large

schemas into smaller ones to improve the quality

and performance of large schema matching. Then

matching will be performed between small schemas.

The remainder of this paper is organized as

follows. Section 2 reviews the research works

related to the different matching strategies. The aim

of this study is to show how existing works deal

with scalability problem. In section 3, we present

our decomposition approach. Section 4 presents

experimental evaluation results. Finally, we

conclude and discuss future works.

2 RELATED WORK: MATCHING

STRATEGIES

Being a central process for several research topics

like data integration, data transformation, schema

evolution, etc, matching has attracted much attention

by research community. Several matching tools have

been proposed in the literature including different

strategies to deal with scalability problem. These

approaches represent an effective attempt to resolve

large scale matching problem. We distinguish three

different strategies: fragmentation, clustering and

statistical approaches.

• Fragmentation Strategy: This is a divide and

conquers strategy which decomposes a large

matching problem into smaller sub-problems by

matching at the level of fragments. The issue of

fragmentation large-scale schemas and ontologies

has been recently addressed by (Hu et al., 2008),

(Rahm et al., 2004) and (Wang et al., 2006). The

authors (Rahm et al., 2004) presented the fragment-

based approach as an effective solution to

decompose two large schemas into small fragments.

The fragment can be a schema, or sub-schema that

represents parts of a schema which can be separately

instantiated, or shared that is identified by a node

with multiple parents. The proposed strategy is

composed of two matching steps: The first step is

the fragments identification of two schemas and the

second step is to match fragments. This approach

has been implemented in COMA++ tool (Do and

Rahm, 2007). The authors (Hu et al., 2008) propose

a method for partition-based block matching that

considers both linguistic and structural

characteristics of domain entities based on virtual

documents for the relatedness measure. Partitioning

ontologies is achieved by a hierarchical bisection

algorithm to provide block mappings. Like

partitioning approach, Modularization-based

Ontology Matching approach (MOM) (Wang et al.,

2006) decomposes a large matching problem into

smaller sub-problems by matching at the level of

ontology modules. This approach includes sub-steps

for large ontology partitioning, finding similar

modules, module matching and result combination.

This method uses the

-connection to transform the

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

152

input ontology into an

-connection with the largest

possible number of connected knowledge bases.

• Clustering Strategy: This approach has been

proposed by (Pei et al., 2006). First, schemas are

clustered based on their contextual similarity.

Second, attributes of the schemas that are in the

same schema cluster are clustered to find attribute

correspondences between these schemas. Third,

attributes are clustered across different schema

clusters using statistical information gleaned from

the existing attribute clusters to find attribute

correspondences between more schemas.

• Statistical Strategy: This approach has been

introduced by (He et al., 2003) and (He et al., 2004)

with MGS (for hypothesis modeling, generation, and

selection) and a DCM (Dual Correlation Mining)

framework. The MGS framework is an approach for

global evaluation, building upon the hypothesis of

the existence of a hidden schema model that

probabilistically generates the schemas we observed.

This evaluation estimates all possible “models,”

where a model expresses all attributes matchings.

Nevertheless, this approach does not take into

consideration complex mappings. DCM framework

has been proposed for local evaluation, based on the

observation that co-occurrence patterns across

schemas often reveal the complex relationships of

attributes. However, these approaches suffer from

noisy data. HSM (Holistic Schema Matching) and

PSM (Parallel Schema Matching) have been

proposed by (Su et al., 2006) to find matching

attributes across a set of Web database schemas of

the same domain. HSM integrates several steps:

matching score calculation that measures the

probability of two attributes being synonymous,

grouping score calculation that estimates whether

two attributes are grouping attributes. PSM forms

parallel schemas by comparing two schemas and

deleting their common attributes. HSM and PSM are

purely based on the occurrence patterns of attributes

and require neither domain-knowledge, nor user

interaction.

In our work, we propose a decomposition

approach which divides XML schemas into small

sub-schemas with the use of linguistic and tree

mining techniques. Our approach is similar to the

fragmentation strategy. The main difference lies in

the way to find intra-schemas structures called

shared sub-structures in COMA++ (Do and Rahm,

2007). More precisely, our approach extends

fragmentation method to find inter-schemas

structures in automatic manner and is applied on

several schemas at once.

3 XML SCHEMAS

DECOMPOSITION APPROACH

We propose a decomposition approach, as a pre-

matching phase, which break down large XML

schemas into smaller sub-schemas to improve the

performance of large schema matching. Our

approach identifies and extracts common structures

between and within XML schemas (inter and intra-

schemas) and finds the sub-schemas candidates for

matching.

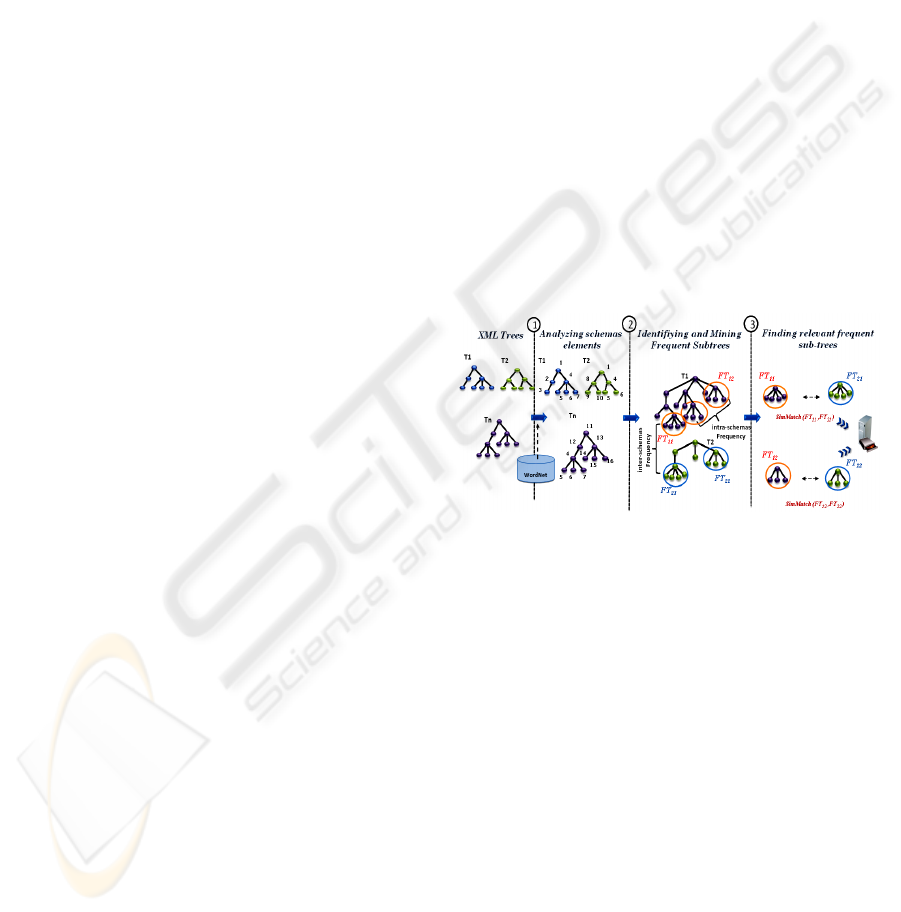

As illustrated in figure 3, our proposed approach

is composed of three phases: (1) converting XML

schemas in trees, (2) identifying and mining frequent

sub-trees, (3) finding relevant frequent sub-trees.

Our approach is based on the following

observations and assumptions: a) Schemas at large

scale are various and voluminous, b) Schemas in the

same domain contain the same domain concepts, and

c) In one schema, several sub-schemas are

redundant.

We discuss in this section the different phases of

decomposition approach.

Figure 3: Decomposition approach.

3.1 XML Trees:

From Schemas to Trees

The goal of this initial phase is to transform XML

schemas into trees and to find linguistic relations

between elements. This aims at improving

decomposition with considering not only exactly the

same labels of elements but also the linguistic

similar elements.

We firstly need to parse the XML schemas and

transforming them into trees. The main feature of

these large schemas is that they contain referential

constraints. Then parsing these schemas becomes a

difficult exercise. To cope with these constraints, we

duplicate the segment which they refer to resolve

their multiple contexts. We notice that most previous

match systems focused on simple schemas without

referential elements.

An XML schema is then modeled as a labeled

unordered rooted tree. Each element or attribute of

IMPROVING REAL WORLD SCHEMA MATCHING WITH DECOMPOSITION PROCESS

153

the schema is translated into a node. The child

elements and attributes are translated into children of

the element node. The names, types and constraints

of elements and attributes represent the labels of the

nodes.

We present the formal definition of basic XML

tree concept.

Definition 1 (XML Tree). T= (r, N, E,

) is a

labeled unordered rooted tree, where r is the root, N

is a set of nodes (elements or attributes), E is the set

of edges, and

is a labeling application

: N →

L assigning a label (element name, type or

constraint) to each node of the tree, where L is the

set of labels of nodes.

Definition 2 (Tree Size and Depth). T= (r, N, E,

) is a labeled unordered rooted tree. The size of T,

denoted |T| is the number of nodes in T. The depth

of a node N is the number of ancestors of N. The

root node is at depth zero.

Moreover, we parse the element names and

gather them into sequences of tokens. A tokenizer

identifies punctuation (e.g PARTY_IDÆ <Party,

ID>), special symbols, etc. We use WorldNet

thesaurus to find synonym elements. This analysis

allows the identification of the most relevant

elements in the next step. These elements are then

mapped into integer representation to make faster

the mining process.

3.2 Identifying and Mining Frequent

Sub-trees

The main goal of this phase is to decompose the

input schemas into smaller ones. To this end, we

identify and extract the common sub-structures from

XML schemas describing the same domains. Then

we distinguish between two sub-structures: inter

and intra schemas structures.

 Inter-schemas: They are the common structures

between different XML schemas. They represent an

important source of structural and semantic

information

 Intra-schemas: They are the frequent structures

within an XML schema. Identifying such structures

plays a key role for decomposition.

The problem of discovering these structures can be

defined as follows:

Frequent Tree Mining. Given a set of trees F (also

called the forest) and a user defined threshold

, the

problem is to find all the sub-trees included at least

times in F. The solutions are called the frequent

trees of F w.r.t.

Definition 3 (Tree Inclusion). Let T

1 = (r1, N1, E1,

1) be a labeled unordered sub-tree and T2 = (r2, N2,

2) be a labeled unordered tree. T1 is included

into T

2 (noted T1 ⊆ T2) if there exists an injective

mapping M: N

1 → N2 that satisfies the following

rules:

1 : M preserves the labels :

∀

∈

N1 ,

(u)=

2 (M (u)) (

: N → L is an application that

assigns a label to each node).

2 : M preserves the parent (a) and ancestor

relationship (b) :

(a)

∀

u, v

∈

N1 , (u, v) ∈ E 1 ⇔ (

(u),

(v))

∈

E 2

(b)

∀

u, v

∈

si (u, v)

∈

⇔ (

(u),

(v))

∈

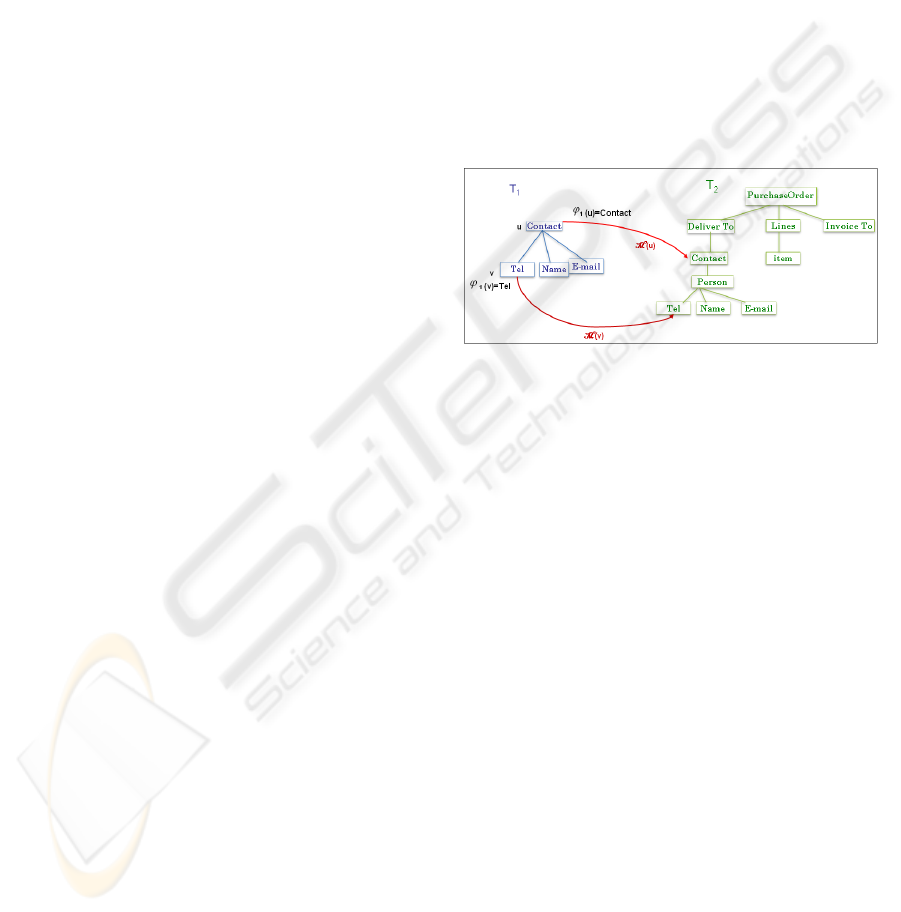

Figure 4: Example of tree inclusion.

We consider the tree inclusion as shown in

Figure 4 T1 = (r1, N1, E1,

1) and T2 = (r2, N2, E2,

) are two trees.

T1 ⊆ T2 means That:

∃

∈

N1 |

1 (u)= Contact ⇒

1 (u)=

(

(u))= Contact

∃

u, v

∈

N1 | (u, v)

∈

E 1 ⇔ (

(u),

(v))

∈

The frequency is computed using the notion of

frequency support. The support of a tree X is noted

Support(X,F). The basic definitions of these

concepts are listed as follows:

Definition 4 (Frequency Support). Let F = {T

,… T

} be a set of trees (or forest).

The frequency Support of a tree X noted

Support(X,F) is defined as:

Support(X,F) =

∑

i 1

intra-support( X,Ti)

Where intra-support( X, T

i) is the number of

occurrence of X in T

i Note that this support

definition considers both intra and inter-schemas.

Definition 5 (Frequent Tree). A tree X is said to be

frequent in a forest F w.r.t. a minimum support

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

154

threshold

iff Support(X,F) ≥

The set of all frequent trees of a forest is noted FT =

{FT

, FT

, …, FT

} and FT

= {FT

, FT

, …, FT

in}

represents the set of elements in the frequent tree FT

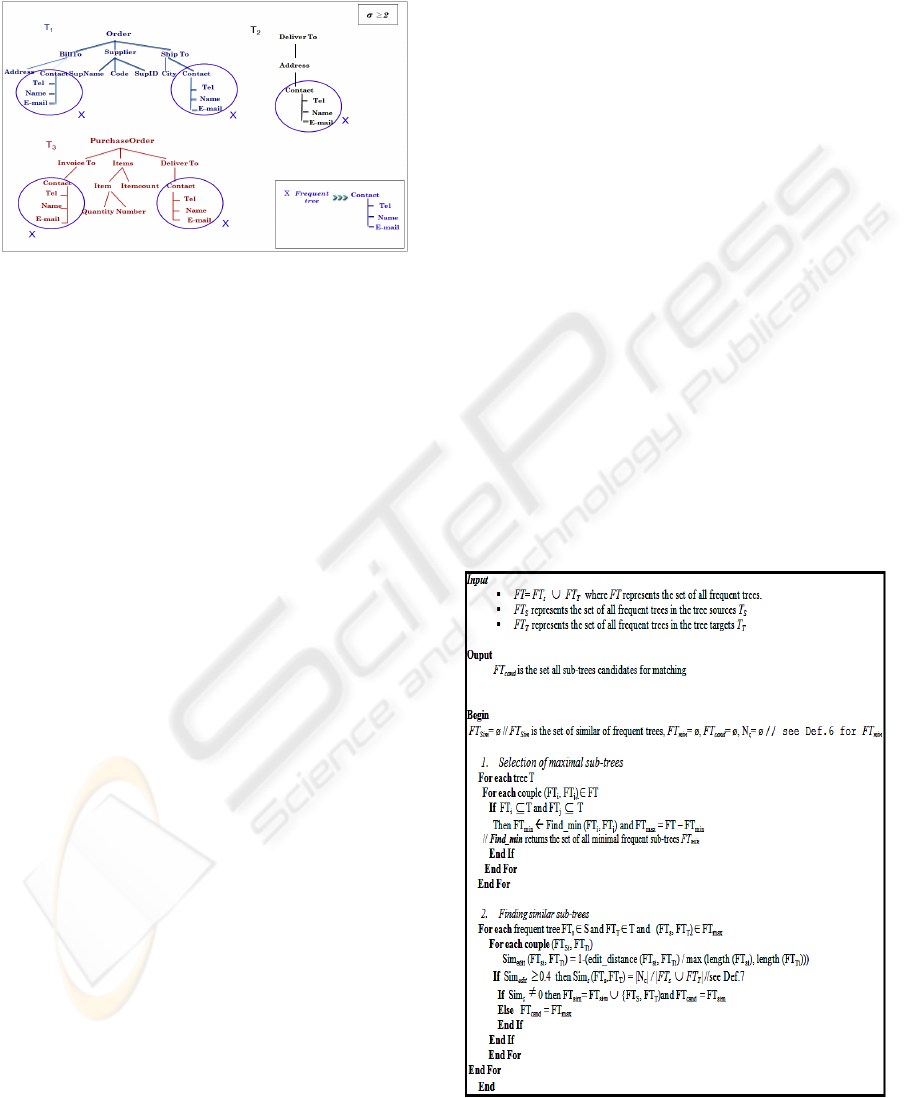

Figure 5: Example of frequent tree mining.

Figure 5 illustrates an example of frequent tree

mining. For a threshold

=2, the sub-tree X

containing the nodes {Contact, Tel, Name and E-

mail} appears in T

, T

and T

. The intra-support of

X in T

, T

and T

is respectively 2, 1 and 2.

Consequently, Support (X, F) = 5 

and X is a

frequent tree FT.

We propose to use tree mining techniques to

identify these common structures. More precisely,

we use the algorithm proposed by (Termier et al.,

2004). Tree mining is a classical pattern mining

problem (an important class of data mining problem)

which aims at discovering automatically sub-trees

that appear frequently in a set of trees.

3.3 Relevant Frequent Sub-trees

Calculus

The focus of this phase is to identify the sub-trees

candidates for matching. This aims at reducing

match effort by only matching relevant parts from

the other schemas. These sub-schemas are then

selected for matching.

This pre-matching phase includes two main steps:

3.3.1 Selection of Maximal Sub-trees

The goal of this operation is to find the maximal

frequent trees to avoid redundant calculation

between the same nodes. Our approach pruned out

all the minimal ones (FT

min

) (see Def. 6).

Definition 6 (Minimal Frequent Sub-tree). A

frequent sub-tree is said to be minimal (FT

min

)

⇔¬∃ FT ⊆ FT

min

/ FT is a frequent sub-tree

3.3.2 Finding Similar Sub-trees

The goal of this step is to identify the most similar

sub-trees (FT

Sim

) for matching. This is done in two

phases:

a) Testing the Linguistic Similarity between

Element Sub-trees to Find the Most Related Nodes

The objective is to find similar nodes between the

frequent sub-trees. This similarity (Sim

edit

) is done

with the use of edit distance function (Cohen et al.,

2003).

Sim

edit (FTsi, FTTj) = 1- (edit_distance (FTsi, FTTj) /

max (length (FT

si), length (FTTj)))

b) Computing the Similarity Measure between

Frequent Trees:

Definition 7 (Frequent Tree Similarity). Let FT

and FT

two frequent trees source and target

represents the set of all the common and

similar element pairs between FT

and FT

: N

{(FT

, FT

) | Sim

edit

(FT

, FT

)

≥

0.4 }

The similarity (Sim

) between FT

and FT

is:

Sim

(FT

, FT

)= | N

| / | FT

∪

where Sim

(FT

, FT

) value is included in [0,1].

| N

|: represents the cardinality of N

3.3.3 Pre-matching Algorithm

Figure 6: Pseudo-code of pre-matching phase.

IMPROVING REAL WORLD SCHEMA MATCHING WITH DECOMPOSITION PROCESS

155

3.4 Matching Sub-schemas

In this phase, the resulted sub-schemas of

decomposition approach are selected for matching.

Then matching large schemas is reduced to the

matching of much smaller ones. For every pair of

schemas of FT

cand

set, we apply our matching

algorithm called EXSMAL (Chukmol et al., 2005) to

discover semantic and structural correspondences

between pair of schema elements (figure 7). Our

algorithm considers the element types, descriptions

(basic similarity) and structural similarities.

Structural similarity is very important because, the

same element may appear in many different

contexts, for example, DeliverTo.Address and

BillTo.Address which should be differentiated for a

correct matching.

Algorithm EXSMAL

Input: FT

, FT

: two XML sub-schemas source and

target

Ouput: set of triplets < FT

, FT

, V

sim

With FT

, an element of FT

sim

the similarity value between FTsi and FTTj

Figure 7: Short description of EXSMAL algorithm.

4 EVALUATION

We conducted our experiments on real XML

schemas (XCBL

and OAGIS²). XCBL (XML

Common Business Library) is a set of XML

schemas for business-to-business e-commerce. The

standard OAGIS (Open Application Group Inc.)

represents a set of business process schemas. The

main goal of our experiments is to show that our

approach deals with both quality and performance of

large schema matching. We have implemented the

XML schema parser, the decomposition approach in

our PLASMA (Platform for LArge Schema

MAtching) prototype. Firstly, we evaluate the

performance of schema parsing comparing to

COMA++ tool and schema matching execution.

Secondly, we determine the quality of matching that

we use to compare with fragmentation results of

COMA++ tool.

Experimental Environment. Our experiments were

conducted on a Windows machine with a 2.80GHz

Intel Pentium and 2Go RAM.

Table 1 summarizes the major characteristics E-

business schemas

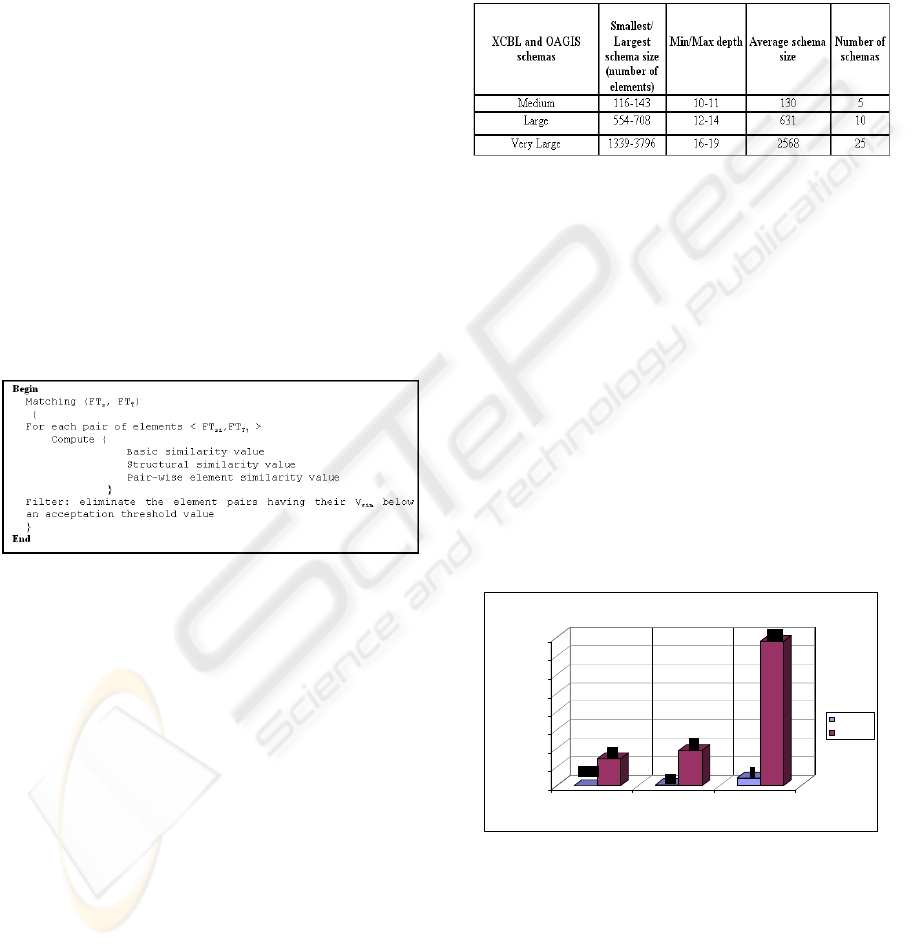

Table 1: Characteristics of E-business schemas.

www.xcbl.org,

www.oagi.org

4.1 Parsing XML Schemas Evaluation

We have evaluated the time elapsed in loading and

parsing XML schemas by our parser implemented

within PLASMA and compared in the same

conditions with the time elapsed by COMA++. This

experience was done on medium schemas with 245

elements (154ko), large schemas with 630 elements

(330ko) and very large with 3796 elements (950ko).

Parsing schemas depends on elements number and

on files size. Figure 8 illustrates these results

showing clearly a better performance of the

PLASMA parser. In fact, COMA++ loads schemas

in a repository before parsing. This step is very low

and can spent several minutes for very large

schemas.

0,085

0,9

156

100

120

140

160

se conds

Medium Large Very Large

sch em a s siz e

Evaluation of Loading and Parsing XML schemas

PLASMA

COMA++

Figure 8: Parsing XML schemas by PLASMA and

COMA++.

4.2 Performance of Decomposition

Approach

We have evaluated the performance of the

decomposition approach applied on different size of

schemas (medium, large and very large) and

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

156

compare it with the approach without decomposition

(direct matching with EXSMAL). The performance

is described in terms of the execution time gain

(figure 9) defined as follows:

Execution_time_gain =

iondecompositwithoutexecutiontime

iondecompositexecutiontimeiondecompositwithoutexecutiontime

___

_____ −

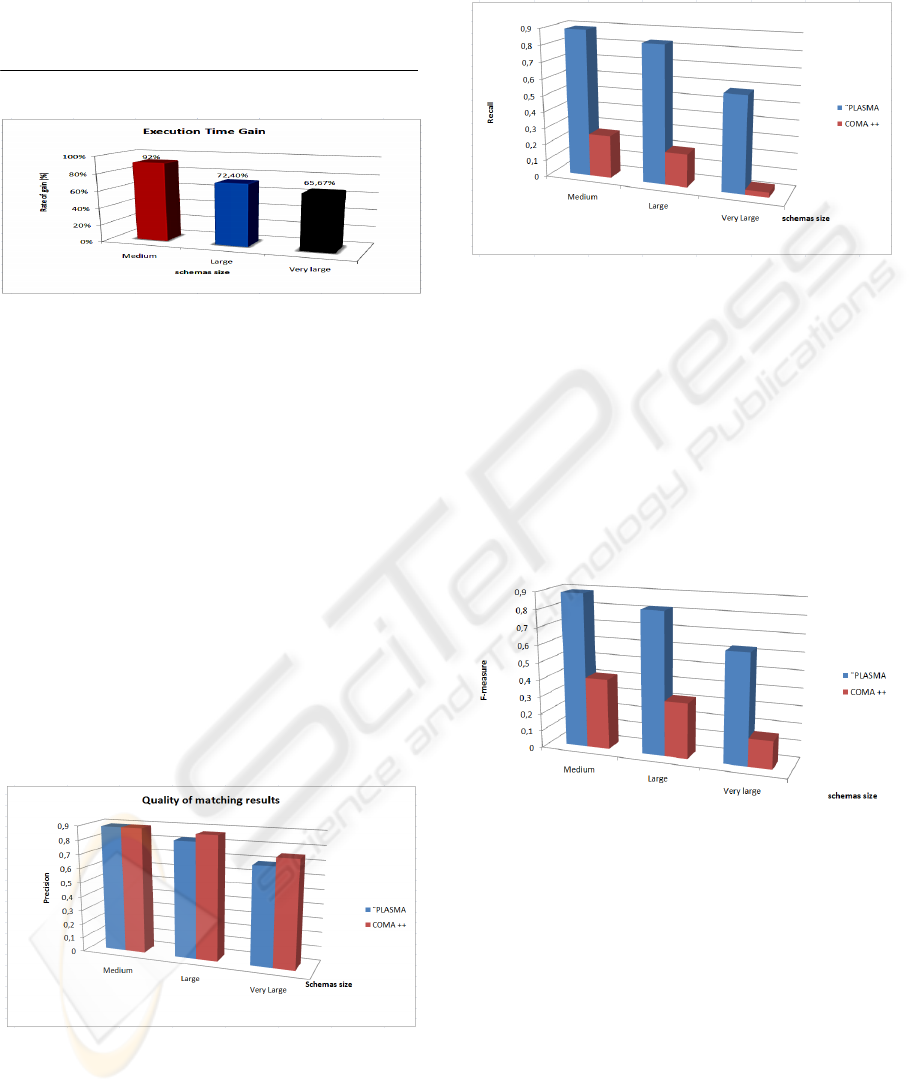

Figure 9: Execution time gain with decomposition

approach.

We have observed that using our decomposition

approach, we optimize the EXSMAL matcher’s

execution (e.g 65.67% for the very large schemas).

Note that, in our experimentations, the execution

time of the tree mining algorithm is only few

seconds.

4.3 Quality of Matching

To determine the quality of a decomposition

approach, we use the three metrics namely precision,

recall and f-measure (Do et al., 2002). We

compared our decomposition results with those of

fragmentation COMA++ approach. PLASMA and

COMA ++ have been tested within the same

experimental conditions. Furthermore, COMA ++ is

configured to be as close as possible to PLASMA.

Figure 10: Precision obtained by decomposition approach

in PLASMA and fragmentation approach in COMA++.

Figure 10 shows the precision for the PLASMA

decomposition and COMA++ fragmentation

approaches. In the medium schemas, PLASMA and

COMA++ achieve a higher precision value.

However, precision decreases with growing schema

size.

Figure 11: Recall obtained by decomposition approach in

PLASMA and fragmentation approach in COMA++.

Figure 11 depicts the recall of the both matching

strategies in PLASMA and COMA++. The results

proved that our decomposition approach

outperforms the fragmentation approach. This is due

to limitation of the fragmentation approach to find

only the shared fragments (or intra-schemas). Unlike

our approach, fragmentation does not cover all the

possible matches. F-measure is given in figure 12.

Due to its previous recall results, COMA++ obtains

a lowest f-measure than PLASMA.

Figure 12: F-measure obtained by decomposition approach

in PLASMA and fragmentation approach in COMA++.

5 CONCLUSIONS

In this paper we have proposed a decomposition

approach as a first attempt to reduce large scale

matching problem. Our approach identifies common

structures between and within XML schemas and

tries to break down these input schemas. Our aim is

to find the most similar sub-schemas between large

input schemas using scalable and efficient

techniques. Then we have described the way to

effectively decompose large XML schemas using

tree mining and our proposed pre-matching

algorithms. The originality of our work w.r.t.

IMPROVING REAL WORLD SCHEMA MATCHING WITH DECOMPOSITION PROCESS

157

existing approaches is the techniques used to

decompose several schemas at once in a scalable and

automatic manner. Our experiments confirm that the

most of schemas from the same sub-domains share

an important rate of common structures and

matching is more efficient. Moreover, experiments

show that decomposition approach provides a better

quality of matching in comparison to the

fragmentation approach in COMA++.

In the future, we plan to do further experiments

with more XML schemas and complete our

PLASMA system implementation with Wordnet and

edit distance function.

REFERENCES

Chukmol, U., Rifaieh, R. and Benharkat, A.,2005.

EXSMAL: EDI/XML semi-automatic Schema

Matching Algorithm. In the 7

International IEEE

Conference on E-Commerce Technology (CEC), pp.

422—425.

Cohen William W., Ravikumar P., Fienberg S.E., 2003. A

Comparison of String Distance Metrics for Name-

Matching Tasks. In Proceedings of IJCAI-03

Workshop on Information Integration on the Web, pp.

73—78.

Do, H.H., Melnik, S., and Rahm, E., 2002. Comparison of

schema Matching Evaluations. In GI-Workshop Web

and Databases. Erfurt, Germany, pp.221—23.

Do, H.H., and Rahm, E., 2007. Matching large schemas:

Approaches and evaluation. In Journal of Information

Systems, pp 857-885.

He, B., Chen-Chan Chang, K.n 2003. Statistical Schema

Matching across Web Query Interfaces. In

Proceedings of the ACM SIGMOD International

Conference on Management of Data, pp. 217—228.

He, B., Chen-Chan Chang, K.,Han, J.,2004. Discovering

complex matchings across Web Query Interfaces: A

Correlation Mining Approach. In Proceedings of the

Tenth ACM SIGKDD International Conference on

Knowledge Discovery and Data Mining (KDD), pp.

148--157, ACM Press New York, NY.

Hu W., Qu Y., Cheng G.,2008. Matching large

ontologies: A divide-and-conquer approach. Journal

on Data and Knowledge Engineering, 67, 140—160

Pei, J., Hong, J., Bell, D.A.,2006. A Novel Clustering-

based Approach to Schema Matching. In Proceedings

of the 4th International Conference on Advances in

Information Systems (ADVIS), pp. 60--69

Rahm, E., Bernstein, P.A., 2001.A survey of approaches to

automatic schema matching. In The International

Journal on Very Large Data Bases.

Rahm E., Do H.H. , and Maβmann S., 2004. Matching

Large XML Schemas. In SIGMOD Record. ACM

Press, NY, vol.33, pp. 26--31, New York

Su, W., Wang, J., Lochovsky, F., 2006. Holistic Schema

Matching for Web Query Interface. In Proceedings of

the 10

International Conference on Extending

Database Technology (EDBT), pp. 77—94

Termier A., Rousset M-A., Sebag M.,2004. DRYADE: a

new approach for discovering closed frequent trees in

heterogeneous tree databases. In Proceedings of the 4

IEEE International Conference on Data Mining

(ICDM), pp. 543—546

Wang Z., Wang Y., Zhang S., Shen G., Du T., 2006.

Matching Large Scale Ontology Effectively.

Proceedings of the First Asian Semantic Web

Conference (ASWC), pp. 99—106.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

158
