RECOGNIZING USER INTERFACE CONTROL GESTURES FROM

ACCELERATION DATA USING TIME SERIES TEMPLATES

Pekka Siirtola, Perttu Laurinen, Heli Koskim¨aki and Juha R¨oning

Intelligent Systems Group, P.O. BOX 4500, FI-90014, University of Oulu, Finland

Keywords:

Gesture recognition, Accelerometer, Template-based matching.

Abstract:

This study presents a method for recognizing six predeﬁned gestures using data collected with a wrist-worn tri-

axial accelerometer. The aim of the study is to design a gesture recognition-based control system for a simple

user interface. The recognition is done by matching the shapes that user’s movements cause to acceleration

signals to predeﬁned time series templates describing gestures. In this study matching is done by using three

different trajectory distance measures, the results show that the weighted double fold gives the best results. The

superiority of this distance measure was shown using a statistical signiﬁcance test. A user-dependent version

of the method recognizes gestures with accuracy of 94.3% and a recognition rate of the user-independent

version is 85.5%. This work was supported by the EU 6th Framework Program Project XPRESS.

1 INTRODUCTION AND

RELATED WORK

In some situations gesture recognition is a good op-

tion for handling human-computer interaction be-

cause it enables natural interaction and no input de-

vices, such as a keyboard and a mouse, are needed. In

fact, in recent years gesture recognition systems have

become more widely known among the public as new

products controlled by gestures have become avail-

able. For instance gesture-controlled game consoles

have recently appeared in stores.

This work studies the recognition of six gestures:

punch - pull, pull - punch, left - right, right - left, up -

down and down - up. These gestures were selected for

this study because the future purpose of the gesture

recognition system is to control a simple user inter-

face. The interface view is a table and each cell of the

table is a button. Using gestures, the user can decide

which button to push. All the gestures selected for this

study include two phases, action and counter-action,

because it is natural for a human to return the hand

to the original position after each performed gesture.

Moreover, the gestures of this study were selected so

that they can be performed by moving hand along one

out of three coordinate axis so gestures contain move-

ment mainly in one dimension, though the data is tri-

dimensional. Therefore, for each gesture, two out of

three acceleration channels are considered useless and

are removed in order to improve the recognition rates.

Mainly two different types of methods have been

used to recognize gestures: template-based methods

and HMM methods. However, in (Ko et al., 2008) it

is shown that gestures can be recognized more accu-

rately using templates than by using HMM. Several

template-based gesture recognition systems are pro-

posed in the literature. In (Corradini, 2001) dynamic

time warping (DTW) was used to recognize a small

gesture vocabulary from ofﬂine data. The study did

not use body-worn sensors, instead the system was

trained with video sequences of gestures. A recogni-

tion accuracy of 92% was attained when ﬁve gestures

such as stopping and waving were recognized.

In (Stiefmeier and Roggen, 2007) gesture signals

were transformed into strings to make similarity cal-

culations faster and real-time. The study used sev-

eral inertial sensors: the sensors were attached to the

lower arms, upper arms and the torso of the body. Hu-

man motion was presented by strings of symbols, and

by combining the data provided by different sensors,

the relative position of the arms with respect to the

torso was computed. The method was demonstrated

by spotting ﬁve predeﬁned gestures from a bicycle

maintenance task. An average classiﬁcation rate of

82.7% was achieved when the method was tested with

three persons.

Methods similar to those in our study were used

in (Ko et al., 2008). The study used two wrist-worn

176

Siirtola P., Laurinen P., Koskimäki H. and Röning J. (2010).

RECOGNIZING USER INTERFACE CONTROL GESTURES FROM ACCELERATION DATA USING TIME SERIES TEMPLATES.

In Proceedings of the 7th International Conference on Informatics in Control, Automation and Robotics, pages 176-182

DOI: 10.5220/0002899601760182

 SciTePress

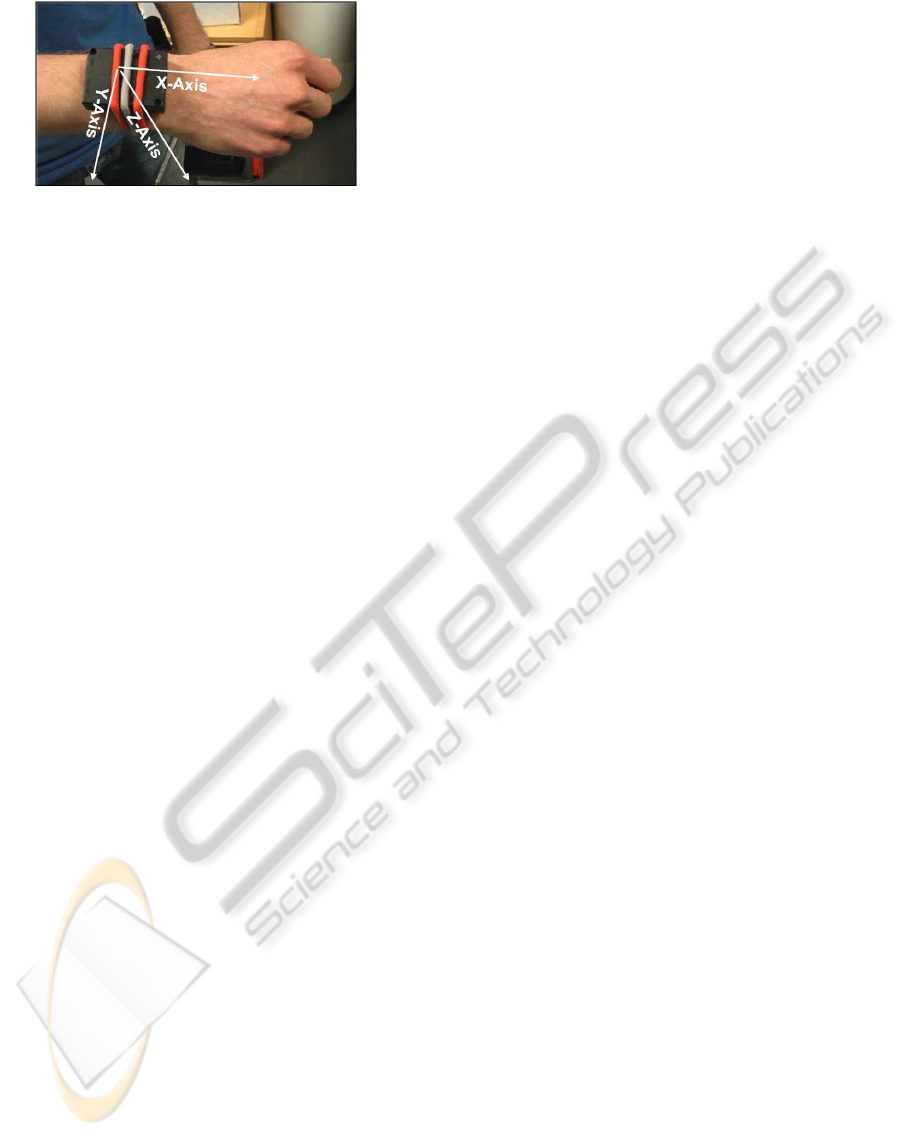

Figure 1: Accelerometer attached to the user’s active wrist.

accelerometers, one on each wrist, and DTW as a dis-

tance measure. The frequency of the accelerometers

was 150 Hz. Because DTW was used, the parameters

for endpoint detection had to be deﬁned by hand or by

using a complex automated way. This made the DTW

approach less generic. To make recognition faster, Ko

et al. transformed the signal into a more compact rep-

resentation by sliding a window of 50 samples with

a 30-sample overlap through the signal. This way

the number of points was reduced, making the system

faster but at the same time making the system less sen-

sitive to fast changes in the signal. Therefore, if fast

movement is an important part of the gesture, this can

cause problems. In the study 12 gestures of a cricket

umpire, performed by four actors, were recognized.

The system was tested using many different settings,

for example ofﬂine and online. Each actor performed

each gesture only once, and these data were used for

testing, so the total number of gestures in the test data

was only 48. The accuracy of the system was 93.75%

when recognition was done using one template per

gesture, as was done in our study, also.

The paper is organized as follows: Section 2 de-

scribes sensors and data sets. Section 3 introduces the

techniques and gestures used in this study. Section

4 evaluates the performance and accuracy of the pro-

posed method with the data sets presented in Section

2. Finally, conclusions are discussed in Section 5.

2 DATA SET

The data were collected using a mobile device

equipped with a 3D accelerometer, 3D gyroscope,

3D magnetometer and two proximity sensors. In this

study only accelerometers were used and the mea-

suring device was attached to the active wrist of the

user, see Figure 1. The sampling frequency of the ac-

celerometer was 100Hz.

The data were collected from seven persons. Two

separate gesture data sets were collected from each

person: a training data set that included ﬁve repeti-

tions each of six gestures and a test set that included

ten repetitions of each gesture. These data sets were

used to test how well the presented method detects the

performed gestures from continuous data streams.

In addition, a performance data set around 30

minutes long that does not include any gestures was

also collected from each person. This data set in-

cluded other activities such as walking and working.

This data set was used to test the speed and accu-

racy of the gesture recognition method. Accuracy was

tested with this data set by testing how many false

positive results the system found from a signal that

did not include any predeﬁned gestures.

3 METHODS

The purpose of the proposed method is to ﬁnd pre-

deﬁned gestures from continuous accelerometer data

streams. Basically, the system compares the shapes

of studied signals with the shapes of template patterns

describing gestures the system is trained to recognize.

If the shape of the studied gesture is similar to the

shape of some template, we know which gesture is

performed. The quality of the proposed method de-

pends mostly on four things: the quality of the tem-

plates, the accuracy of the similarity measure, selec-

tion of a proper similarity limit and the goodness of

the sliding method. Of course, pre-processing also

has its own important role.

3.1 Data Pre-processing

The raw acceleration data were pre-processed by ﬁrst

smoothing and then compressing them.

Smoothing was done using moving average (MA)

ﬁlter and same weight were given to each point.This

way the number of disturbances could be reduced and

the signal became smoother and easier to handle.

After the smoothing, the signals were compressed

in order to speed up calculations. The data were com-

pressed so that they contained points of the original

data where the derivative is equal to zero. Neverthe-

less no more than m sequential points were allowed to

be removed from the original data. Therefore, if the

number of points between two sequential derivative

points was r and r > m, r,m ∈ Z

then ⌊r/m⌋ points,

located at equidistant intervals, were also included in

the compressed signal, see Figure 2.

3.2 Choosing Time Series Templates

The gestures of the study includes two phases, action

and counter action. The use of gestures consisting

of only one phase seemed to confuse users and the

recognition system, because users tend to move their

RECOGNIZING USER INTERFACE CONTROL GESTURES FROM ACCELERATION DATA USING TIME SERIES

TEMPLATES

177

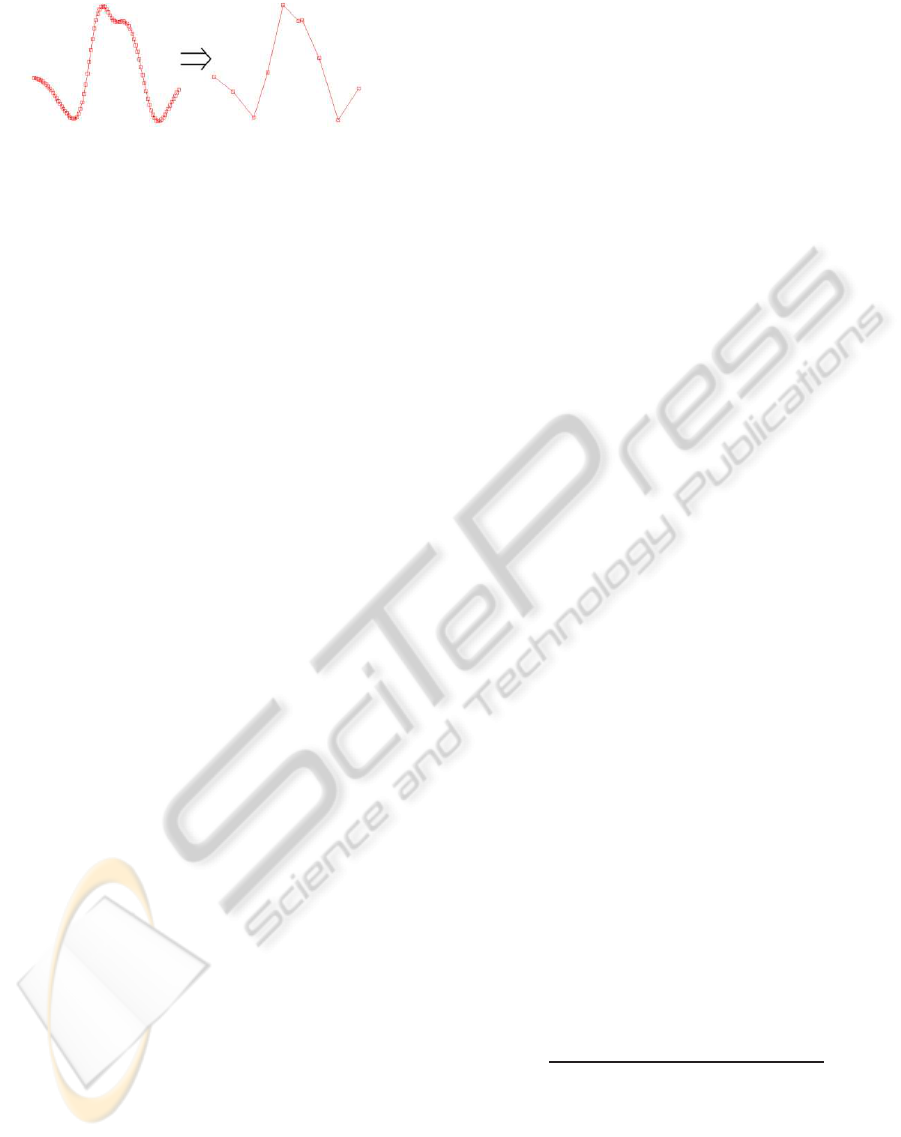

Figure 2: Template and a compressed version of it.

hand back to its original position. So, if both the ac-

tion and counter-action are predeﬁned as gestures that

the system is trying to recognize, users easily acci-

dentally perform two gestures instead of one. Select-

ing the gestures so that they contain an action and a

counter-action solves this problem.

All six gestures of the study were selected so that

movement is performed along only one out of three

coordinate axis and thus only the data of this accel-

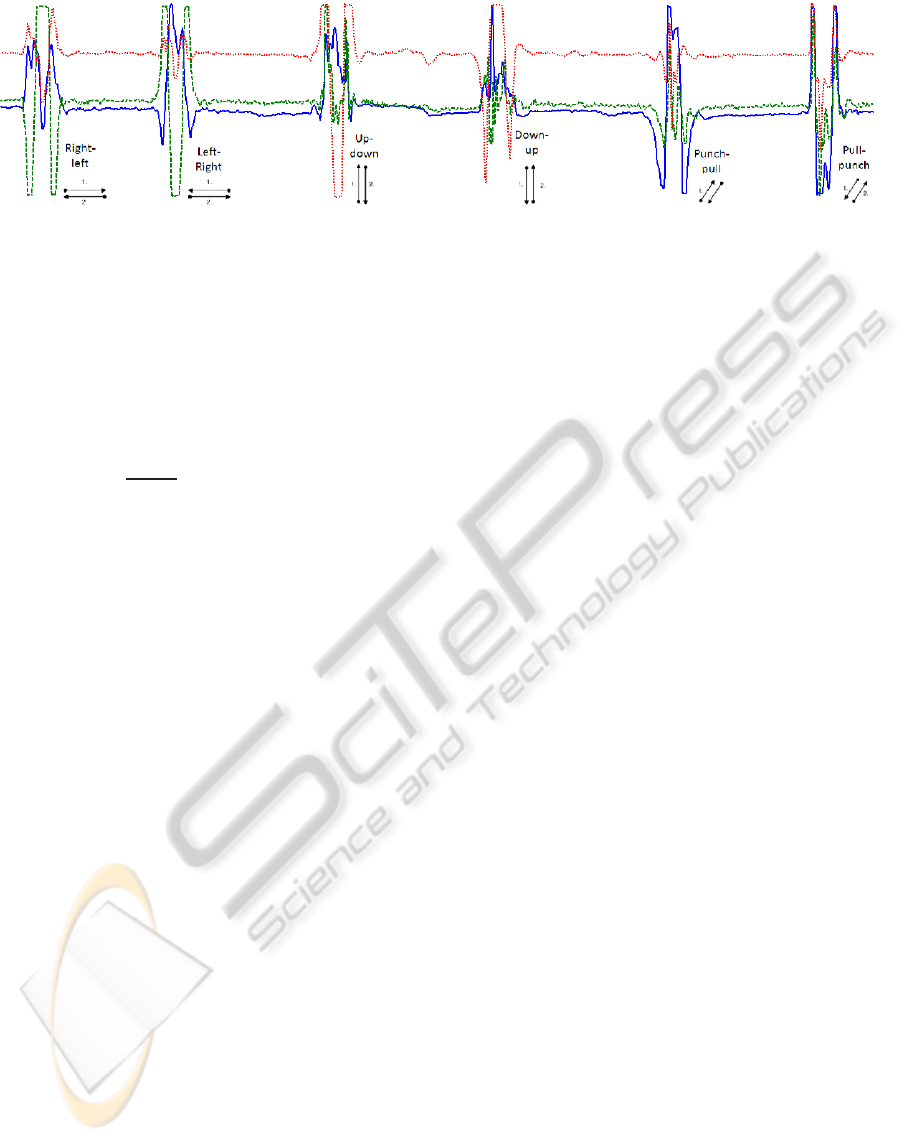

eration channels is needed in recognition, see Figure

3. So, the data given by two other channels is not

important and it can be considered that it mostly con-

sist disturbances, white noise and other non-valid in-

formation and therefore these channels are not used

in recognition. Thereby the gestures and gesture

templates are one-dimensional but the data are tri-

dimensional and therefore templates are only needed

to slid through one acceleration channel. The sensor

was attached to the wrist so that the templates of the

gestures punch - pull and pull - punch are slid through

the x-axis accelerometer data, because these gestures

cause mainly x-axis movement, see Figure 1. Corre-

spondingly, left - right and right - left are slid through

the y-axis data and up - down and down - up through

the z-axis data. Elimination of two acceleration chan-

nels makes gesture recognition not only more accu-

rate but also faster, because similarity calculation is

faster from the one-dimensional acceleration signal

than from the tri-dimensional signal.

3.2.1 User-dependent Case

In the user-dependent case, a class template, which is

a template that is used to recognize a certain gesture,

was selected for each gesture using a training data

set. The class templates for each gesture were labeled

from the training data set and they were used as train-

ing templates. Among these training templates, one at

a time was selected as a candidate class template and

used to recognize other training templates. As a class

template describing gesture A was selected candidate

class template P

A,i

which minimizes the sum

∑

j=1

d(P

A,i

A, j

), (1)

when 1 ≤ i ≤ n and n is the total number of training

templates of class A, P

A, j

is a training template of ges-

ture A and d(·,◦) is some similarity measure.

3.2.2 User-independent Case

A user-independent version of the presented gesture

recognition system was tested using gesture templates

selected in three different ways. The ﬁrst two were

suggested by (Ko et al., 2008).

Minimum Selection. In the case of minimum se-

lection a class template describing gesture A was se-

lected using Equation 1. In the user-dependent case

the training and test data sets were performed by the

same person, but in the user-independent case Equa-

tion 1 was applied to the training template set ex-

tracted from six persons. One person was left out as a

test person.

Average Selection. Average selection was also done

using Equation 1. Now the data of six persons were

also used for training and the data of one person were

left out for testing. Equation 1 was performed sepa-

rately for each of the six training data sets to ﬁnd six

templates that have minimum inter-class distances,

and the resultant six class templates were combined

as one average template using the method presented

in (Gupta et al., 1996). The method was used, though

in (Niennattrakul and Ratanamahatana, 2007) it is

claimed that the method does not produce the real av-

erage of two templates. Still, this DTW-based method

works really well, giving a good estimation of the av-

erage template of two templates, and no better aver-

aging methods seem to be available.

Evolutionary Selection. Evolutionary selection of

a class template was done using a slightly modiﬁed

version of the algorithm presented in (Siirtola et al.,

2009). This evolutionary algorithm produces an op-

timal template describing some periodic time series.

In this case the training data sets of six persons were

fused so that the training gestures of each gesture A

were combined as a periodic time series. This time

series was given as an input to the algorithm presented

in (Siirtola et al., 2009), and using it an optimal tem-

plate describing the periods was found. The purpose

of the algorithm is to ﬁnd a template P that maximizes

the ﬁtness function

f(P) =

Number of found gestures using P

Correct number of gestures

. (2)

Template P which maximizes this function was se-

lected as the class template.

3.3 Sliding and Decision Making

The purpose of sliding is to ﬁnd every shape of time

series T that is similar to class template P. In the case

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

178

Figure 3: Gestures and corresponding tri-axial acceleration.

of online recognition, the functioning of the sliding

method is in an important role because the starting

point and ending point of the performed gesture is not

known in advance. This means that if sliding method

cannot ﬁnd these points, it is not possible to recog-

nize the gestures, either. In this study sliding method

presented in (Siirtola et al., 2009) was used.

If more than one template P

is found similar to

some subsignal S, then the class of template P

for

which the ratio

d(S

)

is the smallest, where δ

predeﬁned similarity limit for template P

, is consid-

ered as a class of subsignal S

. Note that different

templates can have different similarity limits because

some gestures are more difﬁcult to perform and rec-

ognize than others.

4 EXPERIMENTS

4.1 Gesture Data

The gesture data presented in Section 2 were tested

in two cases: a user-dependent case where the ges-

ture recognition method was trained and tested with

the same person’s data, and a user-independent case

where the data of the test person were not used in

training.

4.1.1 User-dependent Case

User-dependent version of the method was tested us-

ing three different distance measures: weighted dou-

ble fold (WDF) distance measure (Siirtola et al.,

2008), double fold (DF) (Laurinen et al., 2006)

and DTW. Also two different point-to-point distance

measures were tested, Euclidean distance (ED) and

Chebychev distance (CD).

The results (see Table 1) show that the combina-

tion of WDF and ED produces the highest total recog-

nition accuracy; on average 94.3% of the gestures

were recognized correctly. In fact, this combination

gave the best recognition rates for six out of seven test

persons. It seems that user-dependent version is very

reliable because the gestures of every person can be

recognized with an accuracy of at least 90%. When

DTW and ED are used, the total recognition rate is

4.3 percentage units smaller. According to paired t-

test with 6-degrees of freedom and p = 0.95 this im-

provement is statistically signiﬁcant.

Note that the recognition rates drop when CD is

used instead of ED as a point-to-point distance mea-

sure. The results show that using Chebychev distance

and DTW or WDF, the gestures of some persons can

be recognized with very high accuracy but the ges-

tures of other persons seem to be difﬁcult to recog-

nize. For instance, using WDF the difference between

the highest and lowest rates is almost 40 percentage

units. CD considers only one dimension relevant, but

the results show that by considering both dimensions

relevant, as is done in the case of ED, better recogni-

tion rates are gained.

The good results using WDF came as no surprise

since WDF is specially designed to measure the simi-

larity of sparse signals, where the data points of the

signals are not distributed at equal-length intervals

(Siirtola et al., 2008). Compression presented in Sec-

tion 3.1 produces such sparse signals.

4.1.2 User-independent Case

In the user-independent case a combination of WDF

and ED was used as a distance measure because the

results of Table 1 show that this combination gives the

highest recognition rates.

Three different ways of choosing class templates

for user-independent gesture recognition were intro-

duced in Section 3.2.2. These methods were com-

pared and the results are given in Table 2.

The highest recognition accuracy of 85.5% was

achieved by using evolutionary selection. This tem-

plate choosing method produced the best recogni-

tion results for ﬁve out of seven test persons. Based

on these results it can be seen that the proposed

method can be used for reliable user-independentges-

ture recognition. The other two methods seem to be

almost equally accurate between themselves by rec-

ognizing gestures with an accuracy around 82%.

RECOGNIZING USER INTERFACE CONTROL GESTURES FROM ACCELERATION DATA USING TIME SERIES

TEMPLATES

179

Table 1: Recognition accuracy in a user-dependent case. Comparison of local distance measures and similarity measures.

Measure / Test

person

Person 1 Person 2 Person 3 Person 4 Person 5 Person 6 Person 7 Total

DTW + ED 95.0% 95.0% 93.3% 83.3% 88.3% 93.3% 81.7% 90.0%

DTW + CD 90.0% 91.7% 95.0% 86.7% 60.0% 91.3% 90.0% 86.4%

WDF + ED 95.0% 96.7% 98.3% 90.0% 90.0% 98.3% 91.7% 94.3%

WDF + CD 96.7% 65.0% 91.7% 71.7% 58.3% 96.6% 81.7% 88.6%

DF + ED 95.0% 91.7% 96.7% 78.3% 88.3% 85.0% 81.7% 88.1%

DF + CD 75.0% 88.3% 86.7% 60.0% 66.7% 70.0% 78.3% 74.6%

Table 2: Recognition accuracy in a user-independent case using different template choosing methods. MS = Minimum

selection, AS = Average selection, ES = Evolutionary selection.

Method / Test

person

Person 1 Person 2 Person 3 Person 4 Person 5 Person 6 Person 7 Total

MS 91.7% 81.7% 91.7% 85.0% 85.0% 58.3% 81.7% 82.1%

AS 100.0% 81.7% 91.7% 85.0% 85.0% 60.0% 76.7% 82.9%

ES 100.0% 83.3% 90.0% 80.0% 90.0% 68.3% 86.7% 85.5%

Table 3: User-independent recognition results using the evolutionary template selection method.

Gesture / Test

person

Person 1 Person 2 Person 3 Person 4 Person 5 Person 6 Person 7 Total

Punch-Pull 100.0% 90.0% 90.0% 70.0% 70.0% 80.0% 80.0% 82.6%

Pull-Punch 100.0% 90.0% 90.0% 60.0% 90.0% 80.0% 90.0% 85.7%

Right-Left 100.0% 70.0% 100.0% 100.0% 80.0% 50.0% 90.0% 84.3%

Left-Right 100.0% 100.0% 60.0% 100.0% 100.0% 50.0% 70.0% 82.6%

Up-Down 100.0% 80.0% 100.0% 70.0% 100.0% 80.0% 100.0% 90.0%

Down-Up 100.0% 70.0% 100.0% 80.0% 100.0% 70.0% 90.0% 87.1%

Total 100.0% 83.3% 90.0% 80.0% 90.0% 68.3% 86.7% 85.5%

When the results of the best methods of the user-

dependent and -independent versions are compared, it

can be seen that in most cases the user-independent

version using evolutionary template selection gave

around 10 percentage units worse results than the

user-dependent version using WDF and ED. Still, the

gestures of every person were recognized with high

accuracy using evolutionary selection: the recogni-

tion rates for the gestures of person 1 were in fact

better using the user-independent version. The only

difference was person 6, whose gestures were rec-

ognized user-independently with an accuracy of only

68.3%. Using user-dependent templates, the gestures

of person 6 were recognized almost perfectly, at a rate

of 98.3%. Therefore, the problem is not that the ges-

tures of the test data of person 6 were of low quality

and impossible to recognize. One explanation for the

weak user-independent recognition results is that per-

son 6 had his/her own personal way of performing the

gestures; person 6 especially seemed to perform the

left-right and right-left gestures differently than the

others. These gestures were recognized with an the

accuracy of only 50%, see Table 3. Because persons

seem to have at least two different ways of performing

gestures, it could be wise to choose at least two tem-

plates per gesture, and not just one as was done in this

study, to make user-independent gesture recognition

more reliable.

4.2 Performance Test Data

Performance test data were collected to test the per-

formance and accuracy of the gesture recognition sys-

tem. These data did not include any of the six gestures

and therefore all the detected gestures could be con-

sidered as false positive.

The gesture recognition system was tested using

a Pentium D (3GHz, 2GByte RAM)) powered com-

puter, and the results presented in Table 4 show that

the running time of the presented method was about

15.0% of the duration of the performance test data

sequences. This means the system is over six times

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

180

Table 4: Performance and accuracy of the method.

Person Duration of

performance

data

CPU time

for template

matching

False

positive

results

1 1732s 306s 0

2 1672s 296s 2

3 1604s 340s 0

4 1557s 358s 3

5 1609s 218s 0

6 1791s 297s 5

7 1609s 206s 0

Total 11574s 1745s 10

faster than real-time, without any optimization, there-

fore the method can be used online.

A gesture recognition system is not allowed to

produce false positive results often, because it would

make the user-interface very frustrating to use. Table

4 also shows that the method is very accurate, mean-

ing that it very seldom produced false positive results.

The test sequences were all together over three hours

long and the number of false positive results was only

10. So, on average, the proposed method produced

one false positive result per 20 minutes.

5 CONCLUSIONS

This article presented a gesture recognition method

for recognizing six predeﬁned gestures. The method

is based on template matching and the results show

that it can recognize gestures very accurately and

in real time. Three different distance measures

were tested and the best results were achieved us-

ing weighted double fold distance measure. A user-

dependent version of the system can recognize ges-

tures with an accuracy of 94.3% when WDF distance

measure is used. It was also shown that the improve-

ment gained using WDF is statistically signiﬁcant.

User-independent version of the method can rocog-

nize gestures with an accuracy of 85.5%. Compared

with other studies, the recognition rates are really

competitive. Most other studies use more than one

sensor, unlike this study, and therefore the achieved

results can be considered state-of-the-art.

The presented method works really well. It sel-

dom produces false positive results and can recognize

gestures with high accuracy. Still, the accuracy of

the user-independent version could be improved by

choosing more class templates, because people seem

to have at least two different ways of performing ges-

tures. Now only one template per gesture was used.

The problem is that this would of course make the

system slower.

The presented gesture recognition system is de-

signed to control a simple user interface, and the next

task is to fuse the gesture recognition system and the

interface together.

ACKNOWLEDGEMENTS

This study was carried out with ﬁnancial support from

the Sixth Framework Programme of the European

Community for research, technological development

and demonstration activities in an XPRESS (FleXi-

ble Production Experts for reconﬁgurable aSSembly

technology) project. It does not necessarily reﬂect

the Commission’s views and in no way anticipates the

Commission’s future policy in this area.

Pekka Siirtola would like to thank GETA (The

Graduate School in Electronics, Telecommunications

and Automation) for ﬁnancial support.

REFERENCES

Corradini, A. (2001). Dynamic time warping for off-line

recognition of a small gesture vocabulary. In RATFG-

RTS ’01: Proceedings of the IEEE ICCV Workshop

on Recognition, Analysis, and Tracking of Faces and

Gestures in Real-Time Systems, page 82, Washington,

DC, USA. IEEE Computer Society.

Gupta, L., Molfese, D., Tammana, R., and Simos, P. (1996).

Nonlinear alignment and averaging for estimating the

evoked potential. Biomedical Engineering, IEEE

Transactions on, 43(4):348–356.

Ko, M., West, G., Venkatesh, S., and Kumar, M. (2008). Us-

ing dynamic time warping for online temporal fusion

in multisensor systems. Inf. Fusion, 9(3):370–388.

Laurinen, P., Siirtola, P., and R¨oning, J. (2006). Efﬁcient al-

gorithm for calculating similarity between trajectories

containing an increasing dimension. pages 392–399.

Proc. 24th IASTED international conference on Arti-

ﬁcial intelligence and applications, February 13 - 16,

Innsbruck, Austria.

Niennattrakul, V. and Ratanamahatana, C. (2007). Inaccu-

racies of shape averaging method using dynamic time

warping for time series data. In ICCS ’07: Proceed-

ings of the 7th international conference on Computa-

tional Science, Part I, pages 513–520, Berlin, Heidel-

berg. Springer-Verlag.

Siirtola, P., Laurinen, P., and R¨oning, J. (2008). A weighted

distance measure for calculating the similarity of

sparsely distributed trajectories. In ICMLA’08: Pro-

ceedings of the Seventh International Conference on

Machine Learning and Applications.

Siirtola, P., Laurinen, P., and R¨oning, J. (2009). Min-

ing an optimal prototype from a periodic time se-

ries: an evolutionary computation-based approach. In

RECOGNIZING USER INTERFACE CONTROL GESTURES FROM ACCELERATION DATA USING TIME SERIES

TEMPLATES

181

Congress on Evolutionary Computation (CEC 2009),

pages 2818–2824.

Stiefmeier, T. and Roggen, D. (2007). Gestures are strings:

Efﬁcient online gesture spotting and classiﬁcation us-

ing string matching. In In: Proceedings of 2nd In-

ternational Conference on Body Area Networks (Bo-

dyNets).

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

182
