AUTOMATIC SEARCH-BASED TESTING

WITH THE REQUIRED K-TUPLES CRITERION

Anastasis A. Sofokleous, Andria Krokou

Department of Computer Science, University of Cyprus, Nicosia, Cyprus

Andreas S. Andreou

Department of Electrical Engineering and Information Technologies, Cyprus University of Technology

31 Archbishop Kyprianos Str. 3036, Lemesos, Cyprus

Keywords: Automatic Testing, Required k-tuples, Genetic Algorithms.

Abstract: This paper examines the use of data flow criteria in software testing and uses evolutionary algorithms to

automate the generation of test data with respect to the required k-tuples criterion. The proposed approach is

incorporated into an existing test data generation framework consisting of a program analyzer and a test data

generator. The former analyses JAVA programs, creates control and data flow graphs, generates paths in

relation to data flow dependencies, simulates test cases execution and determines code coverage on the

control flow graphs. The test data generator takes advantage of the program analyzer capabilities and

generates test cases by utilizing a series of genetic algorithms. The performance of the framework is

compared to similar methods and evaluated using both standard and randomly generated JAVA programs.

The preliminary results demonstrate the efficacy and efficiency of this approach.

1 INTRODUCTION

Software testing approaches that follow a structural

(white-box) scheme, use the source code to reveal

any errors, whereas in a functional (black box)

scheme the testing process does not rely on the

actual source code and the testing techniques use

only the specifications of the program under testing;

a combination of both schemes called gray-box has

been also pursued (Nebut and Fleurey 2006). This

work focuses on white-box testing using JAVA

source code and automatically adapting the testing

process based on the output of the test cases

exercised on the code.

This work presents the implementation of the

required k-tuples criterion, a data flow criterion

incorporated into the automatic test data generation

framework presented in (Csallner and Smaragdakis

2004). The framework utilizes a fusion of program

analysis and test data generation techniques in order

to parse the source code of the program under

testing, create the control and data flow graphs,

extract paths and determine a near to optimum set of

test cases according to a coverage criterion (Korel

1996). This work extends the framework in order to

support the required k-tuples criterion and uses a

new path extraction algorithm, along with the

dependencies defined on the data flow graphs, to

generate the required k-tuples paths. A new

approach to both the encoding of the chromosomes

of the genetic algorithm and the way the fitness

function is calculated allows the test data generator

to achieve high coverage with respect to the required

k-tuples criterion (Sofokleous and Andreou 2008b).

The rest of this paper is organized as follows:

Section 2 presents related work on test data

generation and briefly discusses similar approaches.

Section 3 describes the proposed approach, while

section 4 presents an assessment of its performance

over a number of standard and sample programs and

provides a short comparison with other approaches.

Finally, the last section concludes the paper and

outlines future research steps.

250

A. Sofokleous A., Krokou A. and S. Andreou A. (2010).

AUTOMATIC SEARCH-BASED TESTING WITH THE REQUIRED K-TUPLES CRITERION.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

250-255

DOI: 10.5220/0002902302500255

 SciTePress

2 RELATED WORK

Test cases generation systems aim to determine an

optimum set of test cases with respect to a testing

coverage criterion (Frankl and Weyuker 1988).

While there is a variety of testing criteria, the most

widely known and pursued are the ones which are

defined with respect to control and data flow graphs

(Clarke et al 1989). Related research focused more

on control flow criteria, such as the statement and

edge, as for example the work of (Sofokleous and

Andreou 2008b), which pursues high testing

adequacy based on the edge/condition control flow

criterion (Michael et al 2001, Pargas et al 1999,

Harman 2007).. To achieve high coverage, this

paper utilizes two algorithms, the first runs on the

complete control flow graph to generate test data

massively, whereas the second algorithm is executed

on partial control flow graphs created dynamically

according to uncovered paths.

Recent challenges involve the definition and

implementation of robust data flow coverage criteria

that could be equal or better than the control flow

criteria. This paper presents an attempt to produce

automatically test data with the required k-tuples

data flow criterion (see section 3) (Ntafos 1981,

Ntafos 1984) by utilizing evolutionary algorithms.

To the best of our knowledge, implementation work

and empirical results on this particular criterion has

not been reported elsewhere, despite the fact that this

criterion can achieve better results compared to

those reported thus far. This work extends previous

work that uses the ALL-DU Paths data flow

criterion (Andreou et al 2007, Sofokleous and

Andreou 2008a), where the execution of a test case

is simulated with control flow graphs and the results

of the execution are evaluated using data flow

graphs. We should note here that the ALL-DU Paths

criterion is a data flow criterion proposed by Rapps

and Weyuker, 1982. While the ALL-DU Paths

criterion has not been compared empirically with the

criterion used in this work, many authors support

that the two criteria are equal and can determine the

same errors in a program under testing (Clarke et al

1989, Ntafos 1988). In section 4, however, we show

that in some cases the required k-tuples criterion

generates more paths than the ALL-DU Paths

criterion, which implies a higher level of testing

capability. Section 4 also compares the performance

of our test data generator with a generator that uses

the ALL-DU Paths criterion. Note that some of the

original definitions of the data flow criteria are

ambiguous and, in some cases, differ from the

objective set by their authors (Clarke et al 1989).

Recent work on data flow-based testing can be

found in (Ghiduk et al 2007), where the authors use

genetic algorithms to generate test data according to

data flow criteria. Their approach uses a multi-

objective fitness function to evaluate the produced

data and experiments have showed that their

approach is more efficient over a random test data

generator. A similar approach has been used to

generate test data for FORTRAN programs (Girgis

2005). Data flow based test data generation has been

also addressed in (Khamis et al 2000). This

approach supports both arrays and loops, and the

data generator domain uses partition and reduction

methods on the input data in order to improve the

performance of the generator.

The objective of this work is to present an

evaluation of the required k-tuples criterion and

implement a test data generator that can work

efficiently based on this criterion. The genetic

algorithm implemented for this purpose is guided by

the data flow dependencies given as input to the test

data generator.

The next section shows the implementation

details of the framework supporting the criterion.

3 FRAMEWORK LAYOUT

This paper extends the Automatic Test Cases

Generation System (ATCGS) presented in

(Sofokleous and Andreou 2008b). ATCGS is a

graphical user interactive system that analyses

JAVA programs, creates control flow graphs,

generates test cases and evaluates test data according

to control flow criteria. An extended version of the

framework was introduced in (Andreou et al 2007,

Sofokleous and Andreou 2008a) that generate test

data for data flow paths produced according to the

ALL-USE data flow criterion.

The contributions of this work may be

summarized as follows:

(i) ATCGS is the first tool reported in literature that

can generate test cases according to the required k-

tuples data flow criterion; to achieve the latter, the

system has been enhanced with new modules and

techniques. First, it creates data flow graphs and

utilizes embedded data flow algorithms in order to

generate the paths. Second, the system formulates

test data generation as an optimization problem and

utilizes specially designed genetic algorithms to

solve it, the details of which are given in subsequent

sections.

(iI) This is the first study reporting empirical results

with this particular data flow criterion. Experiments

AUTOMATIC SEARCH-BASED TESTING WITH THE REQUIRED K-TUPLES CRITERION

251

thus far show the efficacy of our system and depict

the applicability of this kind of testing. Both

standard and sample JAVA programs used in this

work are available for downloading from http://

www.cs.ucy.ac.cy/~asofok/testing/testdata.html.

3.1 The Required k-tuples Criterion

in the Basic Program Analyzer

System (BPAS)

In this work BPAS (Sofokleous and Andreou 2008b)

is modified and extended so as to use the control

flow graph and create its corresponding data flow

graph, which is also presented graphically to the

user. The data flow graph is used for generating the

paths which will be executed through test cases

provided by the test data generator. The total testing

coverage is expressed in relation to the coverage

percentage of these paths.

Compared to previous work (Sofokleous and

Andreou 2008b), the test data generator is now able

to generate test cases in relation to the required k-

tuples criterion. According to this criterion the paths

are propagated using the k-dr interactions method

and the data flow graph of the program under testing

(Ntafos 1981, Ntafos 1984). In such types of graphs,

a variable can take any of the forms of a definition

(def), or a computation (c-use) or a predicate (p-use)

(Frankl and Weyuker 1988). Interactions between

different variables are captured in terms of

alternating definitions and uses, called k-dr

interactions; an m-interaction is defined as

[

]

udududud ,,...,,,,,,

, where

variable x

is defined at node n

and used at node n

variable x

is defined at node n

and used at node n

etc. Based on number k, which is set by the user,

BPAS generates all possible paths that satisfy the k-

dr interaction criterion.

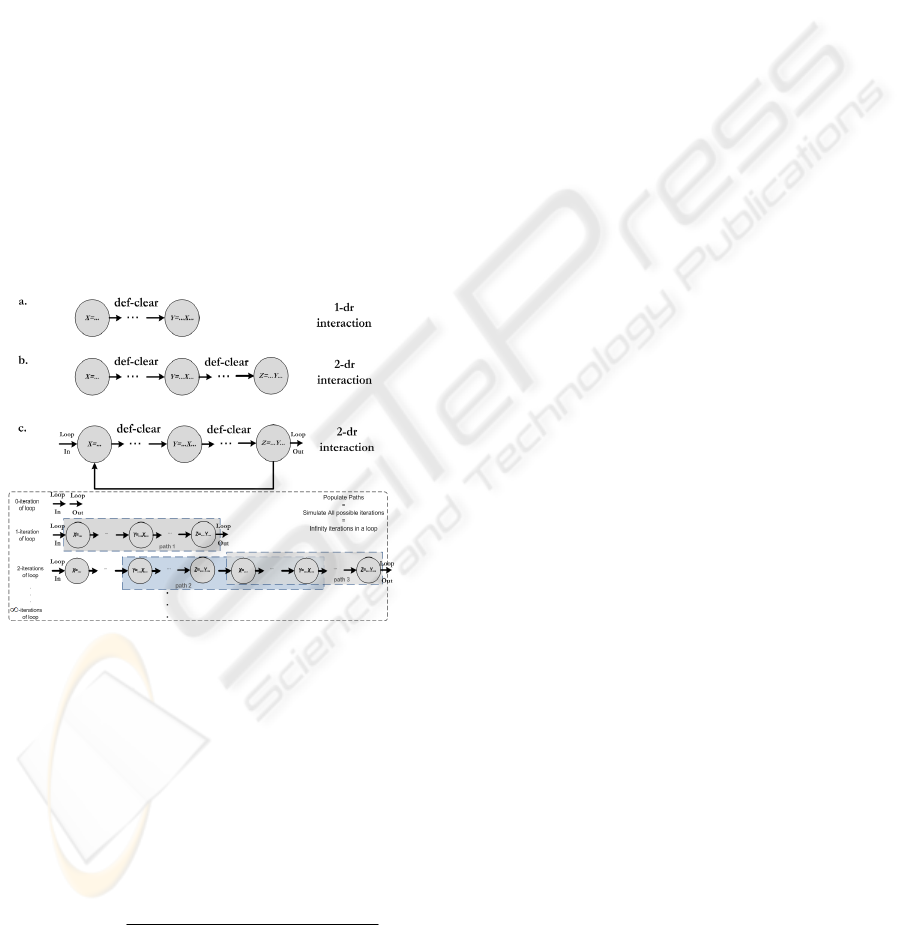

Figures 1a and 1b depict the nodes that satisfy

the 1-dr and 2-dr interaction criteria, respectively. A

def-clear path between two nodes, with respect to

variable X, is a path on which none of its nodes is a

definition (def) of X. Note that a k-interaction set of

paths includes also all the j-interaction paths, where

j=1,...,k.

If a graph contains one or more loop blocks, e.g.

a representation of a FOR or WHILE loop, then, one

or more k-dr interaction paths may be formed using

a sequence of nodes from any of its possible

executions, i.e. the loop can be traversed n times,

where n=0,1,...,

∞ . For example, consider Figure

1c, which shows the source code of a loop. The

problem in this case is that the particular code can

populate an undefined number of 2-dr interaction

paths, the coverage of which cannot be guaranteed

even by exhausting testing. For each loop, we only

populate two groups of paths, if such paths exist; the

first group describes k-dr interaction paths that can

be populated while not entering the loop (i.e. 0-

iteration of the loop), whereas the second group

describes the k-dr interaction paths that can be

populated by traversing i=1,...,k times the loop. Note

that for the latter if at least one path cannot be found

in a maximum of k-iterations of the loop, then a k-dr

interaction path cannot exist even for the case where

the loop is iterated w-times, where w>k.

3.2 Generating Test Data with ATCGS

for the Required k-tuples Criterion

ATCGS communicate with BPAS to utilise the

analysis modules of the latter and then searches the

input space in order to determine and select a near to

optimum set of test cases in relation to the required

k-tuples criterion. The modified ATCGS follows a

focus-based approach as opposed to the batch

optimistic generation described in previous work.

Basically, ATCGS utilises sequentially a series of

genetic algorithms, one GA for each path; if

{

}

, , ...,

Ppp p=

is the set of paths generated

by BPAS, the invocation of the i

GA focuses on

path p

, initially i=1. The basic steps of a standard

genetic algorithm are adapted accordingly to reflect

the problem addressed in this work as follows:

Initial Population Generation: First the GA

generates the initial population. Each chromosome

describes a test case, whereas each gene represents

one of the input variables of the code under testing;

some of the details encoded in a gene are the

variable name, type and initial value. Suppose the

testing code entails x, y and z input variables, then

each chromosome will contain three genes to

describe these three variables. Note that both the size

of the chromosomes and the content of the genes

depend on the program under testing and is

automatically adapted.

Evaluation: The GA uses a specially designed

fitness function (see section 3.2.1) which helps

adapting its behaviour based on the selected path;

the objective of the fitness function is to guide the

search process to determine the test case that can

cover the selected path p

. The GA communicates

with BPAS so as to execute the test case of each

chromosome, identify the executed nodes and

determine the coverage in relation to path p

. If a test

case that covers path p

is found, then the GA

terminates and the path is removed from the

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

252

uncovered set of paths, i.e. P’=P-{p

}; in this case,

ATCGS proceeds to the next uncover path, if there

is one, otherwise it presents the final results to the

user. The GA may also terminate if it reaches a

maximum number of generations defined by the

user. Note that while the fitness value of each

chromosome is calculated based on the selected path

, the GA may discover that the test case of a

chromosome accidentally covers a different path,

say p

, where j≠i and

∈

; in this case, the GA

associates the test case to the path that it accidentally

covers, removes the path from the set P, and

continues the search for path p

Selection: The roulette wheel selection operator

selects the chromosomes to participate to the next

generation. Selected

chromosomes are entered to a

pool that is used in the next phase (Mitchell 1999).

Reproduction: Chromosomes are reproduced with

crossover and mutation operations (Michalewicz

1996). The algorithm, then, proceeds to the

evaluation phase.

Figure 1: (a) 1-dr interaction, (b) 2-dr interaction, (c)

populating 2-dr interaction paths for the loop.

3.3 The Fitness Function for the k-dr

Interaction Paths

The fitness function is dynamic as it depends on the

selected path; thus, the same chromosome may have

two different fitness values if it is evaluated in

relation to two different paths. The fitness function

is expressed as follows:

(, )

p nodes covered using TC

FpTC

nodes in P

(1)

where

is the selected path and

TC is the test

case encoded in a chromosome of the population in

the current generation. The maximum fitness value

is 1, which denotes that test case TC

achieves full

coverage on path

. If the fitness function returns 1,

then the current GA terminates and ATCGS selects

the next path in the sequence. However, if the GA is

unable to find a test case after the predefined

maximum number of evolutions, then it assumes that

this is a dead path and terminates the current process

so as to allow ATCGS to continue with the rest of

the uncovered paths.

4 EXPERIMENTAL RESULTS

This section describes several experiments carried

out on both standard and sample JAVA programs.

The experiments were executed on a computer with

Intel Pentium 4 processor at 3.6GHz, 2GB memory

Ram and JDK 1.6 running ON Windows XP

Professional (SP2). The GA population size was set

to 100 chromosomes, while the crossover and

mutation rates were set to 0.5 and 0.2, respectively.

Section 4.1 presents the empirical results of the

system over a series of standard programs and

compares the proposed approach against previous

work. Section 4.2 presents the results on a set of

experiments carried out using a pool of sample

programs with varying lines of codes (LOC) and

complexity.

4.1 Experiments on Standard

Programs

A number of standard programs have been selected

as benchmarks. These programs are:

• Fibonacci.java: Returns the sum of n Fibonacci

sequence of numbers.

• FindMaximum.java: Returns the largest

between two numbers.

• FindMinimum.java: Returns the smallest

between two numbers.

• SumExample.java: Returns the sum of n

numbers, where n is given as a parameter.

Table 1 lists the results of the execution on the

standard programs. The proposed system achieves

100% coverage with respect to the 1-dr interaction

criterion, whereas an algorithm that uses the All-DU

Paths criterion achieves less coverage. The details

of the All-DU Paths algorithm including the design

details of the fitness function, can be found in

(Andreou et al 2007)

. It is worth noting that in this

set of experiments both criteria generate the same

paths. The better performance exhibited by the

AUTOMATIC SEARCH-BASED TESTING WITH THE REQUIRED K-TUPLES CRITERION

253

proposed approach is due to the better design of the

fitness function compared to (Andreou et al 2007):

First it isolates each path, and therefore it does not

bias the population with irrelevant information as it

searches for a specific path; second, it guides the

search process better as it provides an indication on

how close the GA is to cover the selected path. Also,

the good performance and efficiency of the proposed

algorithm is obvious in the second series of

experiments carried out using the 2-dr interaction

criterion; note that this set of experiments is feasible

only in the present work.

Table 1: Comparative results using two different test data

generation algorithms.

Program

Name

Required k-tuples

Criterion

(% coverage)

All-DU

Paths (%

coverage)

(Andreou

et al 2007)

1-dr 2-dr

Fibonacci

100% 100% 83%

FindMaximum

100% 100% 100%

FindMinimum

100% 100% 100%

SumExample

100% 92% 91%

Table 2: Experiments: Complexity as (a) Low if the code

does not contain nested IFs (b) Medium if it contains 1

nested IF, (c) High if it contains 2 or more nested IFs.

LOC

nested

Complexity

#test

cases

Coverage

Evolutions

Time

(sec)

20 0 1 L 8

100 % 7 0

20 1 2 M 8

100 % 16 0

20 2 3 H 7

85 % 304 53

50 0 1 L 10

100 % 69 0

50 1 2 M 8

100 % 42 1

50 2 3 H 8

85 % 304 60

80 0 2 L 14

100 % 70 4

80 1 2 M 8

100 % 58 2

80 2 3 H 6

85% 303 60

100 0 4 L 14

100 % 50 17

100 1 3 M 13

100 % 58 5

100 2 4 H 14

85% 314 62

Both approaches of Table 1 extract paths

according to their respective data criterion. If P

ALL-DU

and P

k-tuples

are the sets of paths extracted by the

ALL-DU Paths and required k-tuples criteria,

respectively, experiments show that

k-tuples

P P

ALL-DU

, if k=1, whereas

LL DU k tuples

kP P

∀

>⊇

. The latter is supported

by the fact that the paths are propagated according to

k-dr interactions and involve the paths of all j-dr

interactions, j=1,…,k-1; also, both of the criteria

begin from a definition of a variable and then

require the use of that variable (p-use or c-use),

with the difference being, however, that in the k-dr

interactions criterion, there are chains from

definitions to uses.

4.2 Experiments on Sample Programs

Experiments reported in this section were carried out

on a pool of programs varying on both their lines of

codes (from 10 to 200 LOC) and their complexity

(simple, medium, high). The programs were

produced manually and do not serve any particular

purpose. Note that testing is on a unit basis and LOC

represent the size of a method; thus, testing larger

programs is the same as aggregating the independent

testing of many such methods. Furthermore,

increasing the size (in terms of LOC) of a method

does not affect complexity as the latter depends on

the difficulty of covering a path, i.e. the condition

that participates in a path.

The experimental results listed in Table 2 reveal

a number of important conclusions. The more IF

statements a program has, the more paths it contains

and hence the more test cases are required to cover

its paths; additionally, more time is required to

determine the appropriate test cases for covering all

these paths. As shown in the results, complexity

plays a significant role along with LOC in the time

required for executing the algorithms. The findings

of Table 2 show also that in most cases the test data

generator achieves a 100% testing coverage, while

for programs with high complexity it manages to

reach up to 85% testing coverage with respect to the

required k-tuples criterion. The latter may be the

result of many factors, such as the existence of dead

code and the high complexity of the IF statements.

For small and simple programs the system

terminates in negligible time, whereas there is a

linear dependency between time and lines of code.

As the test data generator of this system works with

a heuristic algorithm, each experimental result

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

254

included in Table2 is the average value over 15 runs

of the same experiment.

5 CONCLUSIONS AND FUTURE

WORK

This paper presented the implementation of a testing

approach based on the required k-tuples data flow

criterion which depends on the paths propagated

with k-interactions. The framework presented in this

work uses a program analyser to generate the control

and data flow graphs, builds dynamically the paths

according to data flow criterion, and searches and

discovers test cases for each of the paths; the user

can view the test cases and interact with the graphs

to view graphically the coverage of each test case.

Experimental results were presented on a number of

standard and random generated JAVA programs.

Future work will carry out additional experiments

using alternative implementations of the fitness

function in order to compare their performance and

investigate whether further improvements may be

achieved. Additionally we plan to implement a

representation model that will combine control flow

graphs with UML diagrammatical notations. This

will allow us to extend the representation models

depicting the execution flow so as to support various

features of object oriented code, such as interfaces

aspects, inheritance, polymorphism and dynamic

binding. Future work will also consider

implementing other data flow criteria (Rapps and

Weyuker 1982, Laski and Korel 1983), and compare

them with the current and previous work. Our

objective is to embed different types of errors in the

programs and compare the efficiency of the

implemented criteria in revealing these errors.

REFERENCES

Andreou, A. S., Economides, K. A. and Sofokleous, A. A.,

2007, An automatic software test-data generation

scheme based on data flow criteria and genetic

algorithms, in: Proceedings of the 7th IEEE

International Conference on Computer and

Information Technology, Fukushima, Japan, October,

(IEEE Computer Society: Los Alamitos, CA, USA),

pp 867-872.

Clarke, L. A., Podgurski, A., Richardson, D. J. and Zeil, S.

J., 1989, A Formal Evaluation of Data Flow Path

Selection Criteria, IEEE Transactions on Software

Engineering, 15(11), pp. 1318-1332.

Csallner, C. and Smaragdakis, Y., 2004, JCrasher: an

automatic robustness tester for Java, Software Practice

and Experience, 34(11), pp. 1025-1050.

Frankl, P. G. and Weyuker, E. J., 1988, An applicable

family of data flow testing criteria, IEEE Transactions

on Software Engineering, 14(10), pp. 1483-1498.

Ghiduk, A. S., Harrold, M. J. and Girgis, M. R., 2007,

Using Genetic Algorithms to Aid Test-Data

Generation for Data-Flow Coverage, in: Proceedings

of the 14th Asia-Pacific Software Engineering

Conference (APSEC '07), Nagoya, Japan, December,

(IEEE Computer Society: Washington, DC, USA), pp

41-48.

Girgis, M. R., 2005, Automatic Test Data Generation for

Data Flow Testing Using a Genetic Algorithm,

Journal of Universal Computer Science, 11(6), pp.

898-915.

Harman, M., 2007, The Current State and Future of Search

Based Software Engineering, in: Proceedings of the

29th International Conference on Software

Engineering (ICSE 2007): Future of Software

Engineering (FOSE '07), Minneapolis, MN, USA,

May 2007, (IEEE Computer Society: Los Alamitos,

CA, USA), pp 342-357.

Khamis, A., Bahgar, R. and Abdelaziz, R., 2000,

Automatic Test Data Generation Using Data Flow

Information, Dogus University Journal, (2), pp. 140-

153.

Korel, B., 1996, Automated test data generation for

programs with procedures, in: Proceedings of the 1996

ACM SIGSOFT international symposium on Software

testing and analysis , San Diego, California, United

States, (ACM Press: pp 209-215.

Laski, J. W. and Korel, B., 1983, Data flow oriented

program testing strategy, IEEE Transactions on

Software Engineering, 9(3), pp. 347-354.

Michael, C. C., Mcgraw, G. and Schatz, M. A., 2001,

Generating Software Test Data by Evolution, IEEE

Transactions on Software Engineering, 27(12), pp.

1085-1110.

Michalewicz, Z., 1996, Genetic. Algorithms + Data

Structures = Evolution Programs, 3rd edn., (Springer-

Verlag: London, UK).

Mitchell, M., 1999, An Introduction to Genetic

Algorithms, 1st edn., (MIT Press: London, Uk).

Nebut, C. and Fleurey, F., 2006, Automatic Test

Generation: A Use Case Driven Approach, IEEE

Transactions on Software Engineering,

32(3), pp. 140-

155.

Ntafos, S. C., 1988, A comparison of some structural

testing strategies, IEEE Transactions on Software

Engineering, 14(6), pp. 868-874.

Ntafos, S. C., 1984, On required element testing, IEEE

Transactions on Software Engineering, 10(6), pp. 795-

803.

Ntafos, S. C., 1981, On testing with required elements, in:

Proceedings of IEEE-CS COMPSAC, November 1981,

(IEEE CS: pp 132-139.

AUTOMATIC SEARCH-BASED TESTING WITH THE REQUIRED K-TUPLES CRITERION

255
