TOWARDS THE FORMALISATION OF THE TOGAF CONTENT

METAMODEL USING ONTOLOGIES

Aurona Gerber, Paula Kotz´e and Alta van der Merwe

Meraka Institute of the CSIR, Pretoria, School of Information Technology, North-West University, Pretoria, South Africa

Keywords:

Formal ontologies, TOGAF content metamodel, Enterprise architecture, Conceptual model, Metamodel.

Abstract:

Metamodels are abstractions that are used to specify characteristics of models. Such metamodels are gen-

erally included in speciﬁcations or framework descriptions. A metamodel is for instance used to inform the

generation of enterprise architecture content in the Open Group’s TOGAF 9 Content Metamodel description.

However. the description of metamodels is usually done in an ad-hoc manner with customised languages and

this often results in ambiguities and inconsistencies. We are concerned with the question of how the quality

of metamodel descriptions, speciﬁcally within the enterprise architecture domain, could be enhanced. There-

fore we investigated whether formal ontology technologies could be used to enhance metamodel construction,

speciﬁcation and design. For this research, we constructed a formal ontology for the TOGAF 9 Content Meta-

model, and in the process, gained valuable insight into metamodel quality. In particular, the current TOGAF

9 Content Metamodel contains ambiguities and inconsistencies, which could be eliminated using ontology

technologies.

In this paper we argue for the integration of formal ontologies and ontology technologies as tools into meta-

model construction and speciﬁcation. Ontologies allow for the construction of complex conceptual models, but

more signiﬁcant, ontologies can assist an architect by depicting all the consequences of a model, allowing for

more precise and complete artifacts within enterprise architectures, and because these models use standardized

languages, they should promote integration and interoperability.

1 INTRODUCTION

Dijkstra (2001) introduced the concept of a model into

computer science in the early ’70s. Models were rec-

ommended to simplify unmastered complexity. He

argued that the programmer and his mind are an im-

portant part of the computing process and that modu-

larised, goto-less programs lead to more efﬁciency in

the use of the computer. In order to create these mod-

ularised, goto-less programs, it was necessary to con-

struct models (Weiner, 1978). Avison and Fitzgerald

(2003) deﬁne a model as an abstraction and represen-

tation of part of the real world. Within this context,

abstraction means the process of stripping an idea or

a system of some concrete or physical features in or-

der to create a simpliﬁed representation of a complex

application. The true value of any model thus lies in

the fact that it is an abstraction or representation of re-

ality, which is useful for analytical purposes (Lippitt,

1973).

When using models, it is possible to represent va-

rious levels of system abstraction within different con-

texts. A model thus provides a way of viewing the

important aspects of a system at a speciﬁc level of

abstraction and within a speciﬁc context in such a

way that higher levels depict the essence of the sys-

tem and the lower levels show detail that does not

compromise the essence. An example of the this is

the popular Zachman Framework for enterprise archi-

tecture (Zachman, 2003). Zachman deﬁned a frame-

work that deﬁnes the logical structure of models and

other descriptive representations necessary to clas-

sify and organise an enterprise. The Zachman frame-

work deﬁnes six different contexts or dimensions, and

within each dimension, different levels of abstraction

are speciﬁed.

In addition to models, metamodels is yet another

abstraction that is used to specify characteristics of

models. A model generated from a metamodel would

conform to the metamodel in the way that a com-

puter program conforms to the grammar of its pro-

gramming language (Pidcock, 2002). Common uses

Gerber A., Kotzé P. and van der Merwe A. (2010).

TOWARDS THE FORMALISATION OF THE TOGAF CONTENT METAMODEL USING ONTOLOGIES.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

54-64

DOI: 10.5220/0002903200540064

 SciTePress

for metamodels are 1) a schema for semantic data

that needs to be exchanged or stored; 2) a language

that supports a particular method or process, and 3)

a language to express additional semantics of exist-

ing information (B´ezivin, 2003; Pidcock, 2002; Ernst,

2002). Metamodels are generally used in speciﬁca-

tions or frameworks to describe models. For exam-

ple, TOGAF 9 uses a metamodel in its Content Meta-

model description to inform the generation of enter-

prise architecture content (The Open Group, 2009b),

the OMG (Object Management Group) uses meta-

models in speciﬁcations such as SPEM (Software

Process Engineering Metamodel) (OMG, 2008), and

HL7 (Health Level Seven, Inc. - the global authority

on standards for interoperability of health information

technology) speciﬁed the HL7 RIM (Reference Infor-

mation Model) as part of HL7 Version 3 (HL7, 2009;

Yang et al., 2009). HL7 RIM speciﬁes the grammar of

HL7 V3 messages and speciﬁcally, the basic building

blocks of the language (nouns, verbs etc.), their per-

mitted relationships and data types (Benson, 2009).

The use of metamodels gained importance due to

the proliﬁc growth of web-based and distributed ap-

plications. Metamodels are used to deﬁne the stan-

dards necessary for interoperability between applica-

tions and integration of systems. However, often these

metamodels are unclear and ambiguous and this de-

feats the purpose of using a metamodel at all. For ex-

ample, after the release of TOGAF 9, Walker (2009)

comments that the Content Metamodel is too high

level:

’TOGAF 9 does a great job at exploring the

architecture metamodel at a high level. There

needs to be a level or two deeper of consider-

ation here. I was looking for more detail...’

In another example, Adrian Campbell (2009)

comments:

’It’s great to ﬁnally see a metamodel pub-

lished with TOGAF 9. However for me the

centrality of Business Service concept seems

a bit wrong somehow. In some TOGAF 9 di-

agrams there is a confusion between Business

Service and Application Service...’

’There is also a confusion in TOGAF 9 with

the concept Function...’

’In TOGAF 9 there is much discussion of Ca-

pability, but in the metamodel this concept

seems to hang on it’s own somewhat...’

This paper is concerned with the question of how

metamodels, speciﬁcally within the enterprise archi-

tecture domain, could be enhanced with regards to

ambiguity and clarity. Speciﬁcally we investigate

whether ontology technologies could be used to en-

hance metamodel construction, speciﬁcation and de-

sign.

Ontologies made an appearance within Computer

Science during the past ten to ﬁfteen years. This

is mainly due to advances in reasoning and model-

ing technologies. Roughly speaking, an ontology for-

mally describes a domain model in a way that attaches

meaning to the terms and relations used for describ-

ing the domain. A more formal and widely used deﬁ-

nition is that of Gr¨uber (1993)) who deﬁnes an ontol-

ogy as a formal speciﬁcation of a conceptualisation.

The importance of this technology is evidenced by the

growing use of ontologies in a variety of application

areas, and is in line with the view of ontologies as the

emerging technology driving the Semantic Web ini-

tiative (Berners-Lee et al., 2001).

Ontologies allow for the construction of complex

models, but more signiﬁcant, ontologies can assist

a modeler by depicting all the consequences of her

model. Formal ontology technologies also allow a

modeler to view and understand the implicit conse-

quences of explicit statements and can help to en-

sure that a model is consistent. With regards to the

use of ontology technologies for metamodel construc-

tion, not a lot has been published. Pidcock (2002) de-

scribes the relationship between a metamodel and an

ontology as close, but not necessarily equivalent:

’IF: you create an ontology, which is a set

of terms naming concepts (classes) and rela-

tions, and you use that vocabulary to create a

set of data (instances of the classes, and as-

sertions that the instances are related to each

other according to the speciﬁc relations in the

vocabulary), and you think of the set of data

you create as the model of your domain

THEN: the ontology is the meta-model and the

set of data created is the model.’

The above statement enforced our notion that an

ontology could be used for a metamodel description,

and if successful, coherent and consistent models

could be constructed from the metamodel using on-

tology technologies. In this paper we want to argue

for the integration of formal ontologies and associated

technologies as mechanisms for metamodel develop-

ment and speciﬁcation. In particular, we develop an

ontology for the TOGAF 9 Content Metamodel as ex-

ample to show that formal metamodel descriptions are

clear and less ambiguous.

The paper is structured as follows: Section 2 will

provide background information on ontologies in 2.1

and enterprise architectures and TOGAF in Section

2.2. Section 3 describes the case study where we con-

structed a formal ontology for the TOGAF 9 Content

Metamodel. Section 4 discusses our ﬁndings, as well

TOWARDS THE FORMALISATION OF THE TOGAF CONTENT METAMODEL USING ONTOLOGIES

as perceived advantages and disadvantages, and the

paper concludes in Section 5.

2 BACKGROUND

This section provides some background on ontologies

(Section 2.1), and then on enterprise architectures and

TOGAF (Section 2.2).

2.1 Ontologies

A formal ontology speciﬁes a machine-readable vo-

cabulary in computer systems technology descrip-

tions. Generally such an ontology is deﬁned as a

shared, formal, explicit speciﬁcation of a conceptual

model of a particular domain (Broekstra et al., 2001;

Decker et al., 2000). A formal ontology typically

describes a hierarchy of resource concepts within a

domain and associates each concept’s crucial proper-

ties with it. Ontologies are used to deﬁne and man-

age concepts, attributes and relationships in a precise

manner (Bussler et al., 2002).

The concept of an ontology was inherited from

philosophy and only recently became commonplace

in computer systems technology descriptions where

an ontology speciﬁes a machine readable vocabu-

lary (Palmer, 2001). The term ontology has become

widespread within ICT and is used at present to refer

to anything from a taxonomy, a domain vocabulary

and a conceptual model, to a formal ontology. Lassila

and McGuinness (2001) gave a spectrum of ontolo-

gies as depicted in Figure 1. Even Zachman refers

to his enterprise architecture framework as an ontol-

ogy, but this is in the sense that it depicts a conceptual

model of the architecture models necessary to depict

an enterprise (Zachman, 2003).

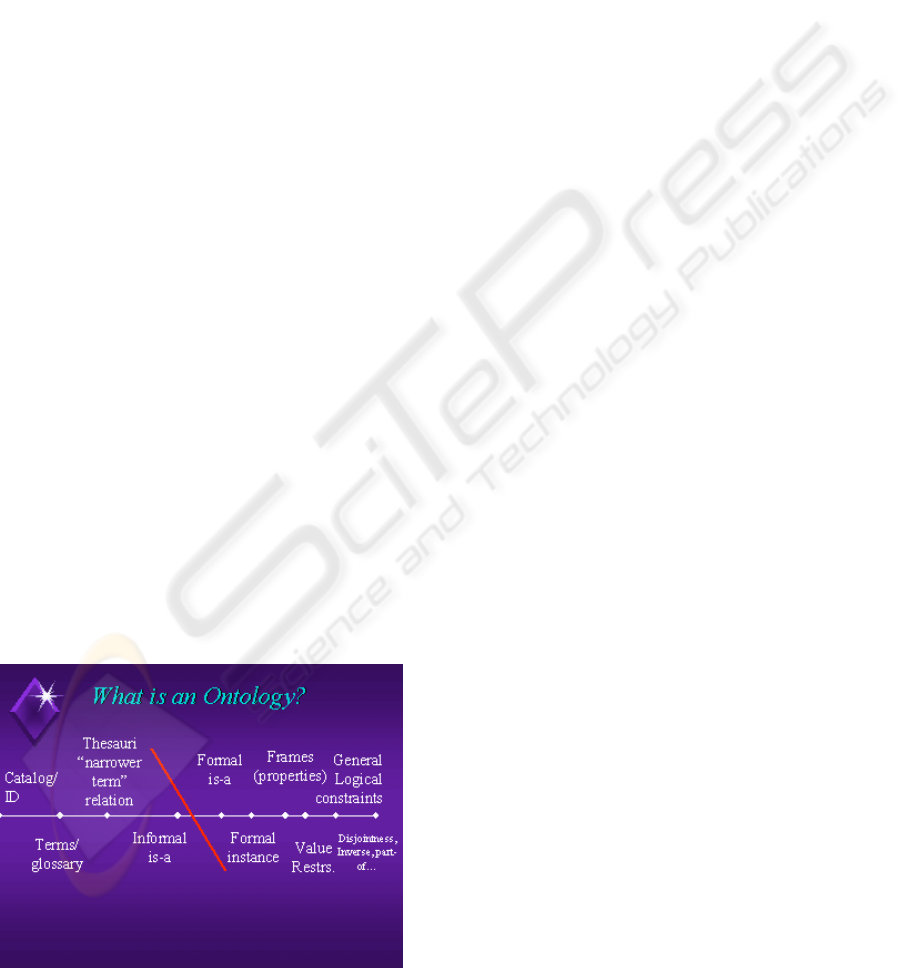

Figure 1: Ontologies may be viewed as a spectrum of detail

in their speciﬁcation (Lassila and McGuinness, 2001).

The construction and maintenance of formal on-

tologies greatly depend on the availability of ontol-

ogy languages equipped with a well-deﬁned seman-

tics and powerful reasoning tools. Fortunately there

already exists a class of logics, called description log-

ics or DLs, that provide for both, and is therefore the

ideal candidate for ontology languages (Baader et al.,

2003). That much was already clear ﬁfteen years ago,

but at that time, there was a fundamental mismatch

between the expressive power and the efﬁciency of

reasoning that DL systems provided, and the expres-

sivity and the large knowledge bases that ontologists

needed. Through the basic research in DLs of the last

ﬁfteen years, this gap between the needs of ontolo-

gists and the systems that DL researchers provide has

ﬁnally become narrow enough. Due to these advances

in DL research, there is growing interest in the use

of ontologies and related semantic technologies in a

wide variety of application domains. Arguably the

most successful application area in this regard is the

biomedical ﬁeld (Wolstencroft et al., 2005; Hahn and

Schulz, 2007). Some of the biggest breakthroughs in

ontological reasoning can be traced back to the pi-

oneering work of Horrocks (2007), who developed

algorithms speciﬁcally tailored for medical applica-

tions. These advances have made it possible to per-

form standard reasoning tasks on large-scale medical

ontologies such as SNOMED CT—an ontology with

more than 300 000 concepts and more than a million

semantic relationships—in less than half an hour; a

feat that would have provoked disbelief ten years ago

(Suntisrivaraporn et al., 2007).

The Web Ontology Language OWL is based on a

family of expressiveDLs. OWL was accorded the sta-

tus of a World Wide Web Consortium (W3C) Recom-

mendation in 2004 and is the ofﬁcial Semantic Web

ontology language (W3C, 2006; McGuinness and van

Harmelen, 2004). One of the consequences of the

standardisation of OWL by die W3C is the develop-

ment of several tools and reasoners that support the

development of formal ontologies based on the OWL

standard. Notable ontology editors are Prot´eg´e 4 and

SWOOP (Prot´eg´e, 2009; SWOOP, 2009). Reason-

ers provide computable and complete reasoning for

OWL ontologies, and some are integrated into the

ontology editors. Notable reasoners are Fact++ and

Pellet (Fact++, 2009; Pellet, 2009). A summary of a

substantial number of Semantic Web tools, including

OWL ontology editors and reasoners, can be found at

http://esw.w3.org/topic/SemanticWebTools

From the above it is clear that, even though several

of these tools are still under development, the mo-

mentum generated will soon ensure that formal on-

tologies with their supporting technologies and tools

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

enter mainstream modeling applications and the use

of ontologies for metamodeling should result in valu-

able advantages.

When we use the term ontology in this paper, we

mean a formal ontology based on one of the OWL

standards which is DL-based.

2.2 Enterprise Architecture and

TOGAF

The term enterprise architecture (EA) originated from

the thinking around both the terms ’business’ and ’ar-

chitecture’. EA describes the business process of IT

by creating a relationship between the IT structure

that is used in the organization and in each speciﬁc

system, also ensuring that business and IT are aligned

with business strategy and policy (Kim et al., 2005;

Rood, 1994). Enterprise is thus an holistic term for

’business entity’ in all its facets.

Probably the most widely adopted deﬁnition for

enterprise architecture (EA) is the IEEE deﬁnition

where EA is described as a widely adopted means for

coping with organizations’ ever-increasing complex-

ity and for ensuring that organizations appropriately

use and optimize their technical resources. EA is an

integrated and holistic vision of a system’s fundamen-

tal organization, embodied in its elements (people,

processes, applications, and so on), their relationships

to each other and to the environment, and the princi-

ples guiding its design and evolution (IEEE, 2000).

The deﬁnition that is preferred by the authors is

deﬁned by the Enterprise Architecture Research Fo-

rum (EARF, 2009), which states that ’Enterprise ar-

chitecture is the continuous practice of describing the

essential elements of a sociotechnical organization,

their relationships to each other and to the environ-

ment, in order to understand complexity and manage

change’.

In 1997 John Zachman already coined enterprise

architecture as the issue of the century, mainly be-

cause it is primarily concerned with bridging the

gap between strategy and implementation, and mak-

ing sure business activities are aligned (Zachman,

1997). Recent activities and the adoption rate of en-

terprise architecture within industry. government and

academia indicate fast growing interest in enterprise

architecture as a practice, or even a discipline (Kaisler

et al., 2005; Ernst et al., 2006). Notable is the adop-

tion by various governments of enterprise architecture

frameworks as a mechanism for interoperability and

alignment between policy and practice (Janssen and

Hjort-Madsen, 2007; GITOC, 2009). Another recent

example of government enterprise architecture adop-

tion is the South African government that is now the

ﬁrst public sector entity to formally adopt and adapt

TOGAF 9 for enterprise architecture (EA) delivery in

government. The framework that resulted is referred

to as the Government Wide Enterprise Architecture

(GWEA) Framework (GITOC, 2009).

TOGAF is an acronym for The Open Group

Architecture Framework. It is described by The Open

Group as ’a comprehensive architecture framework

and methodology which enables the design, evalua-

tion and implementation of the right architecture for

an enterprise’. The Open Group is a vendor- and

technology-neutral consortium focused on a diverse

range of open standards and afﬁliated certiﬁcation

programmes, and also the advancement of the enter-

prise architecture profession. TOGAF was developed

through the collaborative efforts of 300 Architecture

Forum member companies from some of the world’s

leading IT customers and vendors, and it currently

maintained as a standard by The Open Group. TO-

GAF is seen as one of the four most popular meth-

ods used in enterprise architecture (The Open Group,

2009a; Session, 2007). The most recent version of

TOGAF, TOGAF 9, is at present regarded as an ac-

ceptable industry standard for enterprise architecture

development due to factors such as listed below (The

Open Group, 2009b; Walker, 2009):

• TOGAF has logged more than 90,000 downloads

proving at least signiﬁcant interest. All documen-

tation for TOGAF is published online.

• In 2009 there were over 8,491 certiﬁed TOGAF

practitioners.

• There are more than 180 corporate members of

The Open Group Architecture Forum.

• In 2009 over 20,000 TOGAF series books were

shipped.

• The online forum Association of Open Group En-

terprise Architects has had a signiﬁcant impact

and it membership is at more than 8,500.

The ﬁrst version of TOGAF was released in 1995.

TOGAF 7 (’Technical Edition’) was published in De-

cember 2001, TOGAF 8 (’Enterprise Edition’) was

ﬁrst published in December 2002 and updated and

republished TOGAF 8.1 in 2003 and TOGAF 8.1.1

2006. The latest version is TOGAF 9, launched on 2

February 2009 (The Open Group, 2009a).

One of the enhancements introduced by TOGAF

9 is the introduction of a Content Metamodel. The

TOGAF 9 manual states ’The core metamodel pro-

vides a minimum set of architectural content to sup-

port traceability across artifacts. Additional meta-

model concepts to support more speciﬁc or more in-

depth modeling are contained within a group of ex-

tensions that logically cluster extension catalogs, ma-

trices, and diagrams, allowing focus in areas of spe-

TOWARDS THE FORMALISATION OF THE TOGAF CONTENT METAMODEL USING ONTOLOGIES

ciﬁc interest and focus’. The core metamodel entities

are based on the terminology used to deﬁne the TO-

GAF architecture development method (ADM) as ba-

sis. All the extension entities added to the metamodel

are optional and should be selected during the prelim-

inary phase of the architecture development to meet

the needs of the organization. This core and exten-

sion concept is intended as a move towardssupporting

formal method extension approaches within TOGAF

(The Open Group, 2009b).

Given the importance and adoption of TOGAF 9

for enterprise architecture development, the TOGAF

Content Metamodel will be play a crucial role in the

future of enterprise architecture development. How-

ever, as indicated, metamodels are often ambiguous

and unclear even though they sometimes use a stan-

dard language such as UML for their description. The

TOGAF Content Metamodel is no exception. Even

though it seems to be using a variant of the UML class

diagram, this is not stated explicitly anywhere. We

will however use UML notation to interpret its mean-

ing.

3 USING A FORMAL ONTOLOGY

TO MODEL THE TOGAF 9

CONTENT METAMODEL

In this section we discuss the developmentof an OWL

2.0 ontology using the latest versions of Prot´eg´e 4 for

the TOGAF 9 Content Metamodel.

3.1 Approach

The steps followed were roughly based on the on-

tology engineering methodology deﬁned by Horridge

(2009) and the steps followed include:

1. Identiﬁcation of the concepts and concept hierar-

chy.

2. Identiﬁcation of the disjoint concepts.

3. Modeling composition.

4. Addition of all the relationships between con-

cepts.

5. Identiﬁcation of deﬁnitions.

6. Addition of annotations.

7. Reﬁnement of the ontology through various itera-

tions of the above steps.

We used Prot´eg´e 4 to develop an OWL 2.0 on-

tology for this metamodel. We used Build 112

of Prot´eg´e 4 on a laptop with Ubuntu 9.10. The

level of the ontology engineer could be described as

intermediate-advanced if we deﬁne three levels: be-

ginner, intermediate and advanced. During the exe-

cution of the above mentioned steps, numerous am-

biguities and unclarities were encountered and cer-

tain modeling decisions were made in the ontology

in order to have an unambiguous, clear and consistent

model description. It is also noteworthy that we re-

ﬁned the model by executing various iterations of the

abovesteps, and not necessarily in the same sequence.

During modeling both reasoners included in Prot´eg´e 4

(Fact++ and Pellet 1.5) were used constantly to de-

bug the ontology and ensure consistency. Problems

encountered, modeling decisions, as well as our solu-

tions are discussed according to the mentioned steps

in the next section.

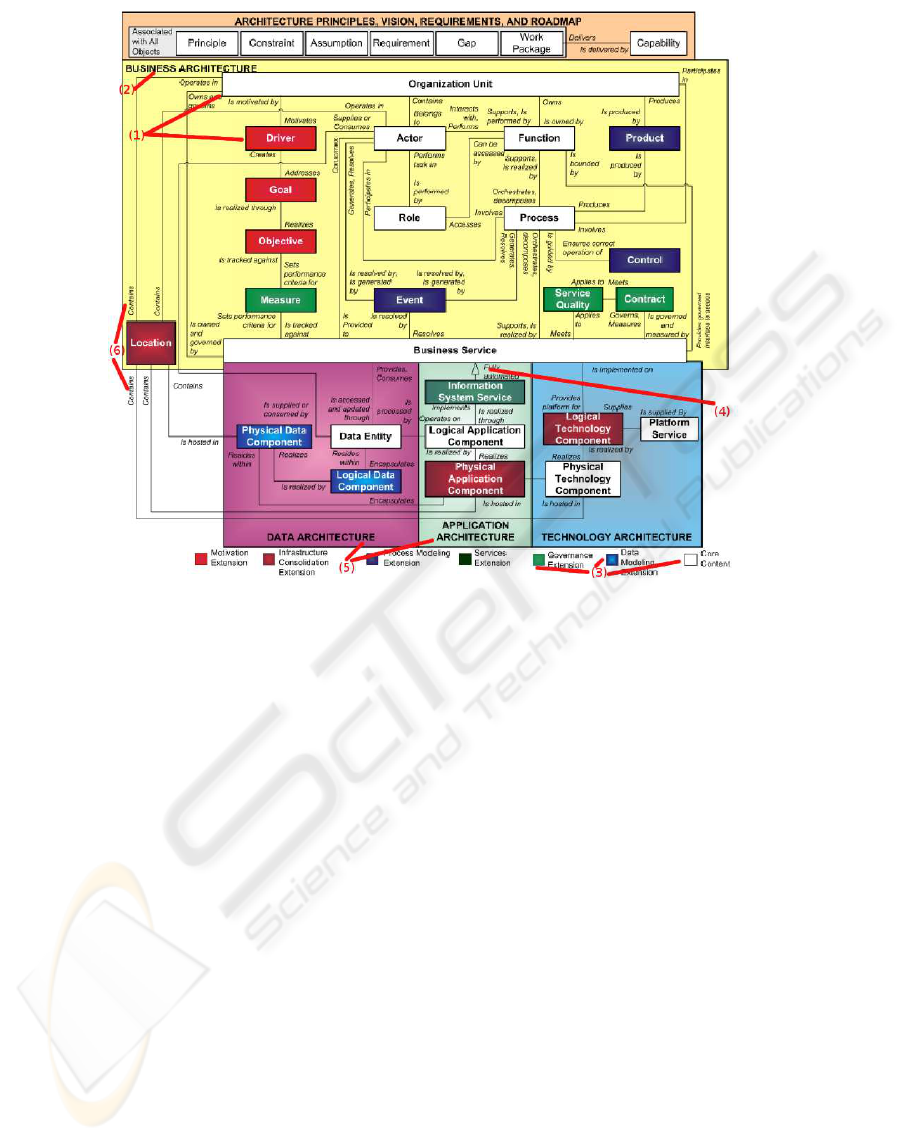

The complete TOGAF 9 Content Metamodel with

entities and their relationships as speciﬁed in TOGAF

9 is depicted in Figure 2. We added some numbering

for reference purposes.

3.2 Experience

In this section our experience with the construction

of the TOGAF 9 Content Metamodel ontology is dis-

cussed with regards to the different steps in the ap-

proach.

Step 1: Identiﬁcation of the Concepts and Con-

cept Hierarchy. Initially the execution of this step

seems straightforward as each object in the Meta-

model would translate into a concept. However, fur-

ther investigation shows that the model is not triv-

ial. The Metamodel consists of a multi-layer diagram

not adhering to any speciﬁc notation (UML class di-

agrams does not support multi-layer diagrams other

than packages). In a multi-layer diagram, classes such

as Organization and Driver (indicated by (1) in Figure

2) are on top of the block indicating the Business Ar-

chitecture (indicated by (2) in Figure 2). In addition,

colours of classes are used to indicate speciﬁc features

such as the content extensions (see (3) in Figure 2).

When constructing an ontology, we are concerned

with concept hierarchies, so we will be identifying

more general concepts from the information avail-

able. We therefore deﬁned a concept Architecture-

Component as a superconcept of all the architecture

classes depicted in the metamodel. In addition, the

concept Architecture was deﬁned as a superconcept

and the four types of architectures depicted, namely

BusinessArchitecture, DataArchitecture, Application-

Architecture and TechnologyArchitecture, were added

as subconcepts. Subconcepts for ArchitectureCom-

ponent concept were deﬁned to represent the compo-

nents of the different architectures.

The meaning of top block in the metamodel is un-

clear. It is labeled ARCHITECTURE PRINCIPLES, VI-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

Figure 2: The TOGAF 9 Content Metamodel (The Open Group, 2009b). The numbering is our own.

SION, REQUIREMENTS, AND ROADMAP. It is there-

fore clearly not an architecture even though it, to-

gether with its components, are depicted in a similar

manner as the other architectures in the model. The

components are also not named according to the list

in the label: refer to, for example, VISION in the la-

bel and Gap or Constraint components. In addition,

the ﬁrst six components are blocked together with a

label Associated with all objects, but Capability is not

included. It is not clear whether all architecture com-

ponents must have these objects associated with them

or whether they may have associations with these ob-

jects. We made a modeling decision to model these

objects as AssociationObjects, and the superconcept

AssociationObject have subconcepts Principle, Con-

straint, etc.

Another interesting characteristic of the meta-

model is Information System Service which is indi-

cated as being a subclass of Business Service. This

is identiﬁed by number (4) in Figure 2. In our ontol-

ogy we made the concept InformationSystemService

a subconcept of the concept BusinessService.

Lastly, we addressed the colour coded content ex-

tensions ((3) in Figure 2). We deﬁned a concept Con-

tentClassiﬁcation and modeled the Core Content and

all the extensions as subconcepts. Subsequently, we

used multiple inheritance to state that all architecture

components and association objects are also subcon-

cepts of the ContentClassiﬁcation concepts. This cap-

tures the meaning of the colour coded concepts that

are architecture components but also adhere to some

content classiﬁcation criteria. In Figure 4, the arrows

depict concepts that have both CoreContent and Busi-

nessArchitectureComponent as superclasses.

We used both reasoners included in Protg´eg´e 4

(Fact++ and Pellet 1.5) to ensure that the concept hier-

archy is consistent. The concept hierarchy is partially

depicted in Figure 3.

Step 2: Identiﬁcation of Disjoint Concepts. Dur-

ing this step we speciﬁcally stated disjointness in the

ontology. This is a speciﬁc feature of DL based on-

tologies that disjointness of concepts should be ex-

plicitly stated, otherwise concepts may be the same

or partially the same as other concepts. Generally, in

UML diagrams, classes are assumed to be disjoint.

Therefore we deﬁned all association objects, archi-

tecture components and architectures to be disjoint

among themselves and at superconcept level. An ar-

chitecture component, for instance, is clearly not an

architecture, and a data architecture not a application

architecture.

Because of the multiple parent model we used for

TOWARDS THE FORMALISATION OF THE TOGAF CONTENT METAMODEL USING ONTOLOGIES

Figure 3: The Content Metamodel concept hierarchy.

the ContentClassiﬁcation concept, we did not specify

disjointness of ContentClassiﬁcation with other sib-

ling or subconcepts.

We used the reasoners to verify consistency, and

the result was that InformationSystemService was

an inconsistent concept (see Figure 5). This is ex-

plainable since BusinessArchitecture with all its ar-

chitecture components (BusinessArchitectureCompo-

nents), including BusinessService, is disjoint with Ap-

plicationArchitecture with all its architecture compo-

nents (ApplicationArchitectureComponents), includ-

ing InformationSystemService. This means that none

of the BusinessArchitectureComponentscould ever be

the same as any of the ApplicationArchitectureCom-

ponents. However, in our concept hierarchy, we spec-

iﬁed InformationSystemService as a subconcept of

BusinessService which has the semantics that Infor-

mationSystemService is-a BusinessService. This ex-

plains that InformationSystemService is inconsistent.

The subclass relationship in the Content Meta-

model as indicated by number (4) in Figure 2 was in-

tentional and is described as follow in the TOGAF 9

manual (The Open Group, 2009b):

• IS Service is added as a new metamodel entity,

extending business service.

• IS Service inherits all the relationships of a busi-

ness service.

• A new relationship is created linking an IS service

to a business service.

The above indicate that the subclass relationship

in the Content Metamodel was considered to be cor-

rect. What the ontology technologies could do, is

point out the inconsistency in the meaning. If Archi-

tectures are disjoint as depicted in the model, their

components have to be disjoint and cannot inherit

from superconcepts across architecture boundaries.

In order to remove the inconsistency, we hence-

forth removed the subsumption or is-a relationship

between BusinessService and InformationSystemSer-

vice. Subsequent information obtained from the TO-

GAF 9 model indicates also a realizes relationship

between BusinessService and InformationSystemSer-

vice which we then used rather than the is-a relation-

ship.

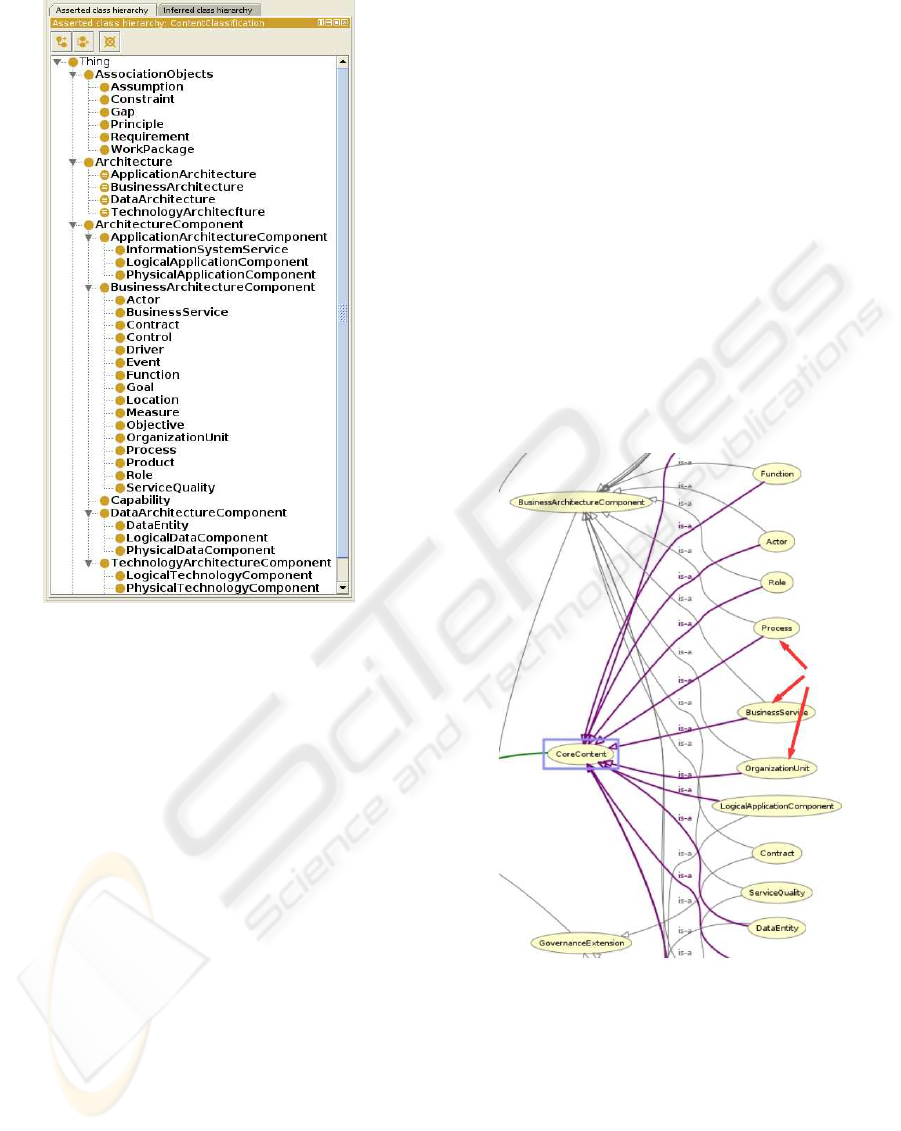

Figure 4: ContentClassiﬁcation hierarchy is also a super-

class of architecture components.

Step 3: Modeling Composition. It is not unrea-

sonable to interpret the multi-layering in the Content

Metamodel diagram as composition. Classes such as

Organization and Driver (indicated by (1) in Figure

2) are on top of the block indicating the Business Ar-

chitecture (indicated by (2) in Figure 2) and we inter-

preted this as that they are part-of the Business Ar-

chitecture. We modeled this by asserting a hasCom-

ponent object property in Protg´eg´e and then using ex-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

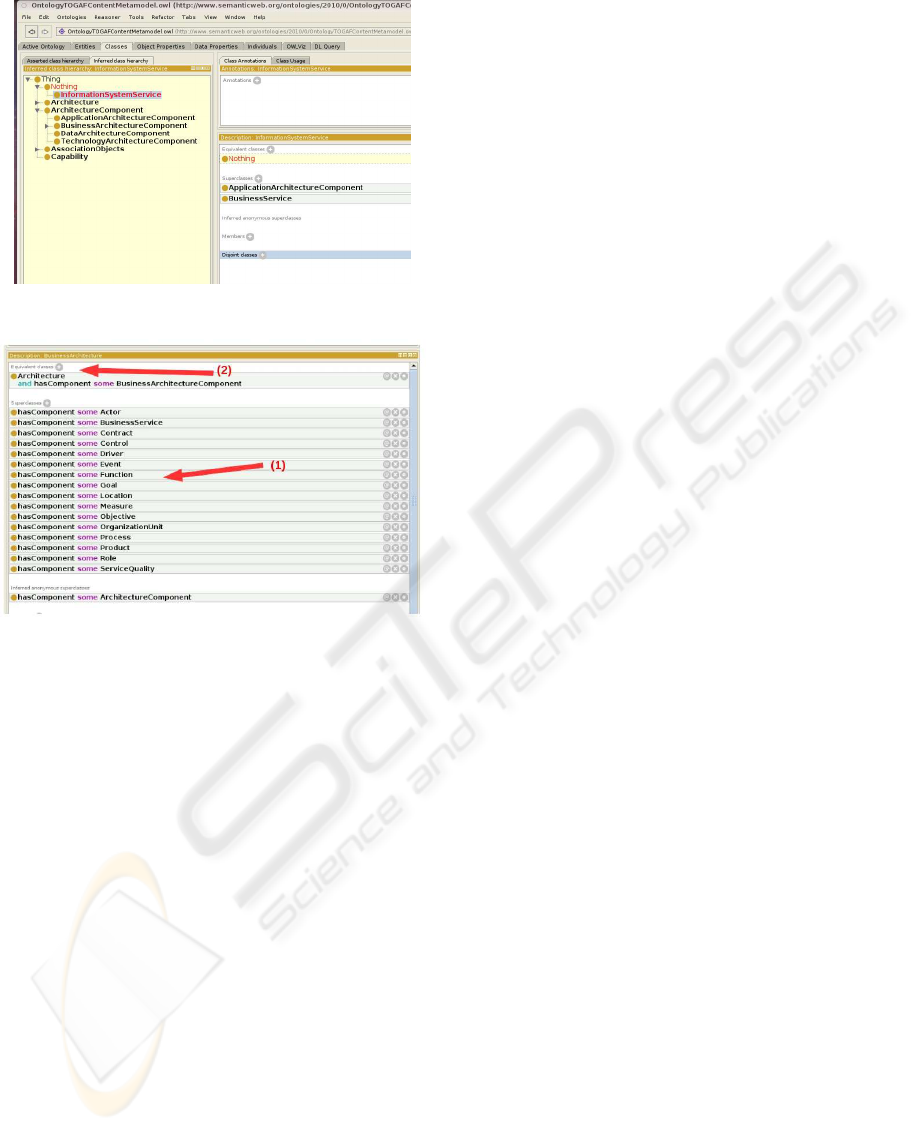

Figure 5: Inconsistency of InformationSystemService.

Figure 6: Architecture hasComponent Composition.

istential quantiﬁcation to declare that an Architecture

concept has at least one ArchitectureComponent, We

then asserted that the BusinessArchitecture concept

has at least one of each of its architecture components.

As example, the BusinessArchitecture composition is

indicated by (1) in Figure 6.

Step 4: Addition of all the Relationships between

Concepts. For each relationship indicated in the

Content Metamodel, we asserted two object proper-

ties that are each others inverse in Prot´eg´e and then

used existential quantiﬁcation to model the relation-

ships in both directions. This has the semantics that

there should exist at least one such link between the

concepts. A problem we experienced during this ac-

tivity is that several relationships have the same name

even though they are clearly not the same. As exam-

ple, see the Location object that has all relationships

labeled Contains (see (5) in Figure 2). In the ontology

construction we named each object property uniquely.

There is of course redundancy in the way we asserted

the relationships. It is only necessary to assert the in-

verse object property characteristic after deﬁning the

two object properties and deﬁne a existential restric-

tion in one direction. The reasoner would infer the

inverse relation. Normally redundancy in ontologies

should be avoided due to possible maintenance issues

and performanceof the reasoners. The ontology could

therefore be reﬁned in future.

It is also interesting to note that no cardinality was

indicated in the Content Metamodel. This seems to

be an omission as it is possible to deﬁne some cardi-

nality of relationships in the metamodel. A Physical

Data Component should, for instance, have only one

Location.

Step 5: Identiﬁcation of Deﬁnitions. When build-

ing an OWL ontology, it is very useful to assert de-

ﬁned concepts. This means that these concepts are ex-

actly deﬁned and it is a powerful mechanism used by

reasoners for inferences. Given the ambiguity of the

Content Metamodel, it is not easy to deﬁne concepts

with such rigour. However, we decided that some de-

ﬁned concepts could be added such Architecture. An

Architecture hasComponent ArchitcetureComponent,

and when anything has an ArchitectureComponent, it

is an Architecture. This was a modeling decision and

it is indicated by (2) in Figure 6.

Step 6: Addition of Annotations. We used the TO-

GAF 9 manual and added annotations of all the con-

cepts based on the provided descriptions of the ob-

jects. Annotations provide textual comments and de-

scriptions in an ontology.

Step 7: Reﬁnement of the Ontology. We reﬁned

the ontology by executing the steps in several itera-

tions and using the reasoners to check consistency and

syntax.

The next section summarises some ﬁndings of the

case study.

4 FINDINGS

The case study to construct a formal ontology

for the TOGAF 9 Content Metamodel resulted

in a ﬁrst version ontology with expressivity 52

concepts and 89 object properties. The ontol-

ogy is available on the project page at

http:

//sites.google.com/site/ontologyprojects/

home/togaf-core-content-metamodel

. It is clear

that such an ontology could be constructed, but the

reﬁnement and usefulness require further research.

Ontology engineering is also a collaborative exercise

because an ontology should reﬂect consensus about

a domain. Input from other stakeholders should also

TOWARDS THE FORMALISATION OF THE TOGAF CONTENT METAMODEL USING ONTOLOGIES

be obtained when reﬁning the ontology in further

research.

The most signiﬁcant ﬁnding is that our approach

allowed us to detect an inconsistency in the current

TOGAF 9 Content Metamodel, which is not evident

at ﬁrst glance. Such an inconsistency in the model

have severe consequences for anybody trying to use

the model. It is not possible to construct a consistent

architecture from the current metamodel. An architect

will have to make a decision to ignore some of the

assertions of the model that leads to the inconsistency,

and different architects will ignore different assertions

resulting in interoperability issues.

The following lists describes our ﬁndings with

regards to the approach and tools (notably Prot´eg´e,

FaCT++ and Pellet 1.5) used, as well as our ﬁndings

with regard to the use of ontology technologies for

metamodel construction.

Findings with regard to the Approach and Tools.

• An ontology could only be constructed by making

several modeling decisions about aspects of the

Content Metamodel that were unclear. The deci-

sions are often based on assumptions that may not

be correct. However, anybodyintending to use the

metamodel will be confronted with the same am-

biguities and lack of information and clarity. It is

therefore useful to construct a formal model with

explicit meaning that we could reﬁne rather than

to have an unclear model.

• Familiarity with the DL modeling constructs re-

main a prerequisite for ontology construction, ir-

respective of the tools used.

• Prot´eg´e 4 was easy to use and enabled us to eas-

ily create the formal ontology. The only drawback

was the graphical rendering of the model similar

to the original diagram. Graphical displays will

always remain important for modeling and ontol-

ogy comprehension.

• The reasoners bundled with Prot´eg´e 4 (FaCT++

and Pellet 1.5) depict all consequences of our

model, not only the explicit statements we made,

but also implicit consequences. In our case study

these are relatively trivial, but it was evident that

implicit consequences will be very valuable once

the model is complex.

• Ontology editors such as Prot´eg´e 4 assists archi-

tects to specify models in a standardised formal

language (usually OWL) which promote interop-

erability for enterprise architectures derived from

the metamodel.

• Prot´eg´e 4 still lacks graphical rendering of differ-

ent aspects of the models often making it difﬁcult

to understand or comprehend consequences. It is

not standard with tools such as Prot´eg´e 4 to graph-

ically display property characteristics, as well as

existential and universal restrictions.

• There are still at present no ﬁrmly established

methodologies for ontology engineering. It is

generally recognised that this is a research topic

that warrants urgent attention (G´omez-P´erez et al.,

2004). Within an enterprise architecture frame-

work, this is even more important and will proba-

bly have to be tailored towards the speciﬁc archi-

tecture model required within the framework.

• Available ontology tools still have limited func-

tionality. The most evident was mentioned al-

ready, namely the ability to generate advanced

graphical displays of an ontology that resembles

the original departure point. In addition, assis-

tance with debugging such as tools that explains

an inference, are only experimental. This remains

a drawback, especially when models are complex.

• It was also evident that, although a variety of tools

exist for ontology construction and maintenance

(Sirin et al., 2007; Kalyanpur et al., 2005; Prot´eg´e,

2009), these tools remain really accessible mainly

to those users that have specialised knowledge

about the theory of ontologies. A good example

of this are inconsistencies. The reasoner only de-

pict a concept as inconsistent and does not offer a

reason or explanation. A modeler has to resolve

errors using trial and error, and these errors were

often due to unexpected consequences of asser-

tions made earlier.

Findings with regard to the use of Ontology Tech-

nologies for Metamodel Construction.

• The most signiﬁcant advantage is that the use

of formal ontology technologies allow for clear

and consistent metamodels because the ontology

is constructed with assertions that has speciﬁc

meaning. The assertions are unambiguous and

their meaning is clear. Even if domain experts do

not agree completely with an assertion, the mean-

ing thereof is clear and could be altered to reﬂect

consensus.

• The use of ontology technologies allowed us to

detect an inconsistency in the current TOGAF 9

Content Metamodel which could be eliminated.

• The use of this approach allows an architect to

specify concise deﬁnitions of concepts and rela-

tions for his metamodel descriptions that could be

used by architects to construct models that adhere

to the core speciﬁcation. These models should en-

able interoperability and integration.

• The use of a precise and formal deﬁnition of con-

cepts assists with debugging of a metamodel such

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

as demonstrated by the elimination of the incon-

sistency we detected in the Content Metamodel

with Information System Service that is a subclass

of BusinessService.

5 CONCLUSIONS

From the case study it is clear that formal ontologies

and the associated technologies can play a substantial

role to enhance the quality of metamodels in enter-

prise architecture frameworks. Ontologies are more

explicit, precise and consequences can be exposed.

Ontologies can represent the required information of

metamodels but in a much more precise and unam-

biguous manner than that of metamodel notations cur-

rently being used. Ontologies are also based on stan-

dardised languages and this should promote interop-

erability of models within an enterprise architecture

framework and enterprise architecture implementa-

tions. The formalisation of metamodels, and speciﬁ-

cally the TOGAF 9 Content Metamodel using ontol-

ogy technologies should assist in the generation of en-

terprise architectures that are clear and unambiguous.

REFERENCES

Avison, D. and Fitzgerald, G. (2003). Information Systems

Development: Methodologies, Techniques and Tools.

McGraw-Hill, UK, third edition.

Baader, F., Calvanese, D., McGuinness, D., Nardi, D., and

Patel-Schneider, P. (2003). The Description Logic

Handbook: Theory, Implementation, and Applica-

tions. Cambridge University Press.

Benson, T. (2009). Principles of Health Inter-

operability HL7 and SNOMED. Springer

(http://www.springer.com).

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

semantic web. Scientiﬁc American, 284(5):34–43.

B´ezivin, J. (2003). On the uniﬁcation power of models. In

UML’2003. http://atlanmod.emn.fr/www/papers/ On-

TheUniﬁcationPowerOfModels.pdf.

Broekstra, J., Klein, M., Decker, S., Fensel, D., van Harme-

len, F., and Horrocks, I. (2001). Enabling knowl-

edge representation on the web by extending rdf

schema. In Proceedings of the 10th International

World Wide Web Conference (WWW10), Hong Kong,

volume ACM 1-58113-348-0/01/0005, page 467. last

accessed 18/3/2006.

Bussler, C., Fensel, D., and Maedche, A. (2002). A concep-

tual architecture for semantic web enabled web ser-

vices. ACM SIGMOD, SPECIAL ISSUE: Special sec-

tion on semantic web and data management, 31, issue

4:24 – 29.

Campbell, A. (2009). Enterprise architecture: From strat-

egy to execution. meta model post. Wiki. Accessed

January 2010 at http://iea.wikidot.com/.

Decker, S., Melnik, S., van Harmelen, F., Fensel, D., Klein,

M., Broekstra, J., Erdmann, M., and Horrocks, I.

(2000). The semantic web: The roles of xml and rdf.

IEEE Internet Computing, 4:63–74.

Dijkstra, E. W. (2001). The end of computing science?

Communications of the ACM, 44(3):92.

EARF (2009). Deﬁnition of enterprise archi-

tecture. Retrieved January, 2010, from

http://earf.meraka.org.za/earfhome/deﬁning-ea/.

Ernst, A. M., Lankes, J., Schweda, C. M., and Witten-

burg, A. (2006). Tool support for enterprise archi-

tecture management - strenghts and weaknesses. In

10th IEEE International Enterprise Distributed Ob-

ject Computing Conference, Hong Kong., pages 13 –

22.

Ernst, J. (2002). What is metamodeling, and what is it

good for? wIKI. http://infogrid.org/wiki/Reference/

WhatIsMetaModeling.

Fact++ (2009). Fact++ ontology reasoner. Web.

GITOC (2009). Government wide enterprise architecture

(gwea) framework. GITOC Website.

G´omez-P´erez, A., Fern´andez-L´opez, M., and Chorco, O.

(2004). Ontological Engineering. Springer.

Gr¨uber, T. (1993). A translation approach to portable on-

tology speciﬁcations. Knowledge Acquisition, 5:199–

220.

Hahn, U. and Schulz, S. (2007). Ontological founda-

tions for biomedical sciences. Artiﬁcial Intelligence

in Medicine, 39(3):179–182.

HL7 (2009). Health level seven. HL7 Website. Retrieved

on 5 January 2010 from http://www.hl7.org/.

Horridge, M. (2009). A practical guide to building owl on-

tologies using prot´eg´e 4 and co-ode tools: Edition 1.2.

WWW.

Horrocks, I. (2007). Semantic web: the story so far. In W4A

’07: Proceedings of the 2007 international cross-

disciplinary conference on Web accessibility (W4A),

pages 120–125, New York, NY, USA. ACM.

IEEE (2000). Recommended practie for architectural

description of software-intensive systems. IEEE Re-

port.

Janssen, M. and Hjort-Madsen, K. (2007). Analyzing enter-

prise architecture in national governments: The cases

of denmark and the netherlands. In Proceedings of

the 40th Hawaii International Conference on System

Sciences, pages 1530–1605.

Kaisler, S., Armour, F., and Valivullah, M. (2005). Enter-

prise architecting: Critical problems. In 38th Hawaii

International Conference on System Sciences, Hawaii,

USA.

Kalyanpur, A., Parsia, B., Sirin, E., Cuenca-Grau, B., and

Hendle, J. (2005). Swoop: A Web Ontology Editing

Browser.

TOWARDS THE FORMALISATION OF THE TOGAF CONTENT METAMODEL USING ONTOLOGIES

Kim, J.-W., Kim, Y.-G., Kwon, J.-H., Hong, S.-H., Song,

C.-Y., and Baik, D.-K. (2005). An enterprise archi-

tecture framework based on a - common informa-

tion technology domain (eaﬁt) for improving interop-

erability among heterogeneous information systems.

In Third ACIS Int’l Conference on Software Engineer-

ing Research, Management and Applications, Cen-

tral Michigan University, Mount Pleasant, Michigan,

USA.

Lassila, O. and McGuinness, D. L. (2001). The role

of frame-based representation on the semantic web.

Technical report, Knowledge Systems Laboratory Re-

port KSL-01-02, Stanford University.

Lippitt, G. L. (1973). Visualizing Change: Model Building

and the Change Process. University Associates, Inc.

McGuinness, D. L. and van Harmelen, F. (2004). Owl web

ontology language overview. W3C Web site. Last

accessed 13/9/2006.

OMG (2008). Software process engineering meta-

model. OMG Website. Retrieved 4 January 2010

from http://www.omg.org/technology/documents/

formal/spem.htm.

Palmer, S. B. (2001). The semantic web: An introduction.

W3C Web site. Last accessed 16/9/2006.

Pellet (2009). Pellet: The open source owl dl reasoner. Web.

Pidcock, W. (2002). What are the differences be-

tween a vocabulary, a taxonomy, a thesaurus,

an ontology, and a meta-model? Wiki.

http://infogrid.org/wiki/Reference/PidcockArticle.

Prot´eg´e (2009). The prot´eg´e Ontology Editor.

http://protege.stanford.edu/.

Rood, M. (1994). Enterprise architecture: deﬁnition, con-

tent and utility. In Third Workshop on Enabling

Technologies: Infrastructure for Collaborative Enter-

prises, Morgantown, West Virginia.

Session, R. (2007). A comparison of the top four enterprise-

architecture methodologies, building distributed ap-

plication. Web.

Sirin, E., Parsia, B., Grau, B. C., Kalyanpur, A., and Katz,

Y. (2007). Pellet: A practical OWL-DL reasoner.

Journal of Web Semantics, 5(2).

Suntisrivaraporn, B., Baader, F., Schulz, S., and Spackman,

K. (2007). Replacing SEP-Triplets in SNOMED CT

using Tractable Description Logic Operators. In Pro-

ceedings of AIME 2007.

SWOOP (2009). Swoop - semantic web ontology editor.

Web.

The Open Group (2009a). The open group. The Open

Group Website. http://www.opengroup.org/.

The Open Group (2009b). TOGAF 9: The Open Group Ar-

chitecture Framework (TOGAF). Document Number:

G091. http://www.opengroup.org/architecture/togaf9-

doc/arch/.

W3C (2006). The world wide web consortium (w3c). W3C

Web site.

Walker, M. (2009). Togaf 9 release and impres-

sions. Blog. Accessed January 2010 from

http://blogs.msdn.com/mikewalker/archive/2009/02/

02/togaf-9-release-and-impressions.aspx.

Weiner, L. H. (1978). The roots of structured programming.

In Papers of the SIGCSE/CSA technical symposium

on Computer science education, pages 243–254, New

York, NY, USA. ACM Press.

Wolstencroft, K., Brass, A., Horrocks, I., Lord, P., Sattler,

U., Stevens, R., and Turi, D. (2005). A little semantic

web goes a long way in biology. In Proceedings of the

2005 International Semantic Web Conference (ISWC

2005), LNAI. Springer.

Yang, W.-Y., Lee, L.-H., Gien, H.-L., Chu, H.-Y., Chou, Y.-

T., and Liou, D.-M. (2009). The design of the hl7

rim-based sharing components for clinical informa-

tion systems. World Academy of Science, Engineering

and Technology, 53.

Zachman, J. (2003). The Zachman Framework for Enter-

prise Architecture. a primer for enterprise engineering

and manufacturing. Zachman International.

Zachman, J. A. (1997). Enterprise architec-

ture: The issue of the century. Database

Programming and Design Magazine.

http://www.cioindex.com/nm/articleﬁles/63503-

EAIssueForTheCenturyZachman.pdf.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems
