USING NATURAL LANGUAGE PROCESSING FOR

AUTOMATIC EXTRACTION OF ONTOLOGY INSTANCES

Carla Faria

Federal Institute for Education, Science, Technology of Maranhão, Computer Science Department

São Luiz, Maranhão, Brazil

Rosario Girardi, Ivo Serra, Maria Macedo, Djefferson Maranhão

Federal University of Maranhão, Computer Science Department, São Luiz, Brazil

Keywords: Ontology, Ontology population, Natural language processing, Knowledge acquisition.

Abstract: Ontologies are used by modern knowledge-based systems to represent and share knowledge about an

application domain. Ontology population looks for identifying instances of concepts and relationships of an

ontology. Manual population by domain experts and knowledge engineers is an expensive and time

consuming task so, automatic and semi-automatic approaches are needed. This article proposes an initial

approach for automatic ontology population from textual sources that use natural language processing and

machine learning techniques. Some experiments using a family law corpus were conducted in order to

evaluate it. Initial results are promising and indicate that our approach can extract instances with good

effectiveness.

1 INTRODUCTION

Ontologies are an approach for knowledge

representation capable of expressing a set of entities,

their relationships, constraints and rules (conditional

statements) of a given area (Guarino, Masolo and

Vetere, 1999) (Nierenburg and Raskin, 2004). They

are used by modern knowledge-based systems for

representing and sharing knowledge about an

application domain. These knowledge representation

structures allow the semantic processing of

information and, through more precise interpretation

of data, systems have greater effectiveness and

usability.

Ontology population is the term used to

designate the techniques for extracting and

classifying instances of concepts and relationships of

an ontology. Manual population of ontologies by

domain experts and knowledge engineers is an

expensive and time-consuming task. Therefore,

automatic or semi-automatic approaches are

required.

This paper proposes an approach for automatic

ontology population from textual resources based on

natural language processing (Allen, 1995) (Dale,

Moisl, Somers, 2000) and machine learning

techniques (Russel and Norvig, 1995) (Bichop,

2006). It details the process techniques used in

corpus creation and identification of candidate

instances phases. An experiment conducted to

evaluate these techniques is also described. The

experiment consists of extracting instances from a

corpus of jurisprudence to populate FAMILYLAW,

an ontology developed for the family law domain.

This article is organized as follows. Section 2

introduces the ontology definition used in this work.

Section 3 summarizes related work. Section 4 gives

an overview of the proposed process for automatic

ontology population. Section 5 details the

identification of the candidate instances phase.

Section 6 describes an experiment conducted to

evaluate the proposed technique for the

identification of candidate instances and finally,

section 7 concludes the work.

2 AN ONTOLOGY DEFINITION

Ontologies are formal specifications of concepts in a

domain of interest. Their classes, relationships,

278

Faria C., Girardi R., Serra I., Macedo M. and Maranhão D. (2010).

USING NATURAL LANGUAGE PROCESSING FOR AUTOMATIC EXTRACTION OF ONTOLOGY INSTANCES.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

278-283

DOI: 10.5220/0002904402780283

 SciTePress

constraints and axioms define a common vocabulary

to share knowledge (Gruber, 1995).

Formally, an ontology can be defined as:

O = (C, H, I, R, P, A) (1)

where

C = C

U C

is the set of entities of the ontology.

They are designated by one or more terms in natural

language. The set C

consists of classes, i.e.,

concepts that represent entities that describe a set of

objects (for example, “Person” ∈ C

) while the set

is constituted by instances, (for example “Erik” ∈

H = {kind_of (c

) | c

∈ C

, c

∈ C

} is the set

of taxonomic relationships between concepts, which

define a concept hierarchy and are denoted by

“kind_of(c

)”, meaning that c

is a subclass of c

for instance, “kind_of(Lawyer,Person)”.

I = {is_a (c

) | c

∈ C

, c

∈ C

} is the set of

relationships between classes and instances of an

ontology, for example, “is_a (Anne,Client)”.

R = {rel

,..., c

) | ∀



i, c

∈ C} is the set of

ontology relationships that are neither “kind_of” nor

“is_a”. Some examples are “represents(Lawyer,

Client)” and “represents(Erik, Anne)”.

P = {prop

,datatype) | c

∈ C

} ∪ {prop

,value) | c

∈ C

} is the set of properties of

ontology entities. The relationship prop

defines the

basic datatype of a class property while the

relationship prop

defines its instance value. For

instance, subject (Case, String) is an example of a

prop

property and subject (Case12, adoption) is an

example of a prop

property.

A = {condition

⇒ conclusion

,..., c

) |

∀



∈ C

} is a set of axioms, rules that allow checking

the consistency of an ontology and infer new

knowledge through some inference mechanism. The

term condition

is given by condition

= {

(cond

,cond

,…,cond

) | ∀z, cond

∈ H ∪ I ∪ R}.

For example, “applied_to(Defense_Argument22,

Case12), similar_to(Case12, Case13) ⇒ applied_to

(Defense_Argument22, Case13)” is a rule that

indicates that if two legal cases are similar then, the

defense argument used in one case could be applied

to the other one.

As an example, consider a very simple ontology

describing the domain of a law firm (Figure 1),

which has lawyers responsible for the cases of

clients they serve.

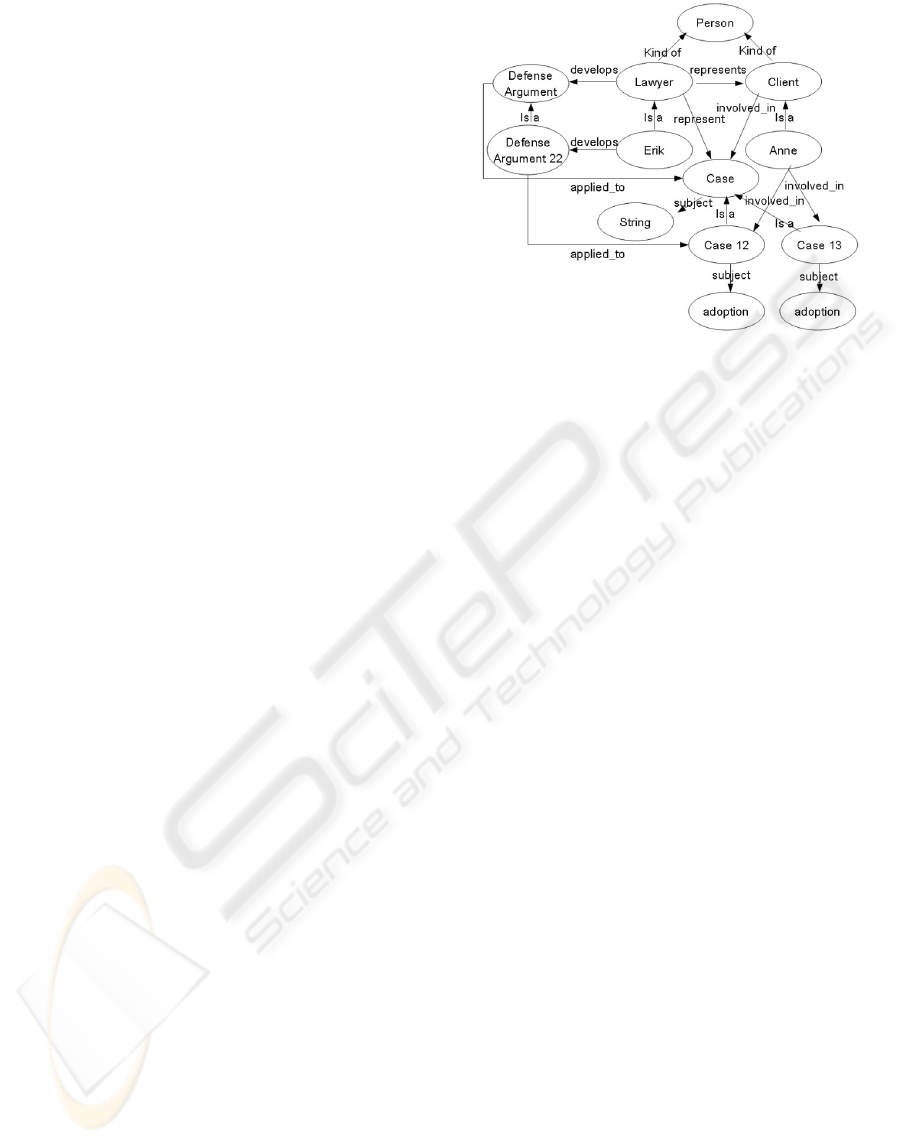

Figure 1: Example of an ontology of a law firm.

According to the previous ontology definition,

from the ontology in the Figure 1, the following sets

can be identified.

= {person, lawyer, client, case}.

= {Erik, Anne, Case12, Case13,

DefenseArgument22}.

H = {kind_of(Person, Lawyer), kind_of(Person,

Client)}.

I = {is_a(Erik, Lawyer), is_a(Anne, Client),

is_a(DefenseArgument22, DefenseArgument),

is_a(Case12, Case), is_a(Case13, Case)}.

R = {represents(Lawyer, Client), represent

(Lawyer, Case), applied_to(DefenseArgument,

Case), develops (Lawyer, Defense_Argument),

involved_in(Client, Case)}.

P = {subject(Case, String), subject(Case12,

adoption), subject(Case13, adoption)}.

A = applied_to(Defense_Argument22, Case12),

similar_to(Case12, Case13) ⇒ applied_to

(Defense_Argument22, Case13).

3 RELATED WORK

There are two main paradigms in ontology

population (Tanev and Magnini, 2006). In the first

one, the population of ontologies can be performed

using patterns (Hearst, 1998) or analyzing the

structure of terms (Velardi, Navigli, Cuchiarelli and

Neri, 2005). For example, in the phrase "Umberto

Eco is an author", “Umberto Eco” can be considered

an instance of the “author” class and therefore there

is an “is-a” relationship between these two terms. In

the second paradigm, the task is addressed using

contextual features (Cimiano and Volker, 2005).

USING NATURAL LANGUAGE PROCESSING FOR AUTOMATIC EXTRACTION OF ONTOLOGY INSTANCES

279

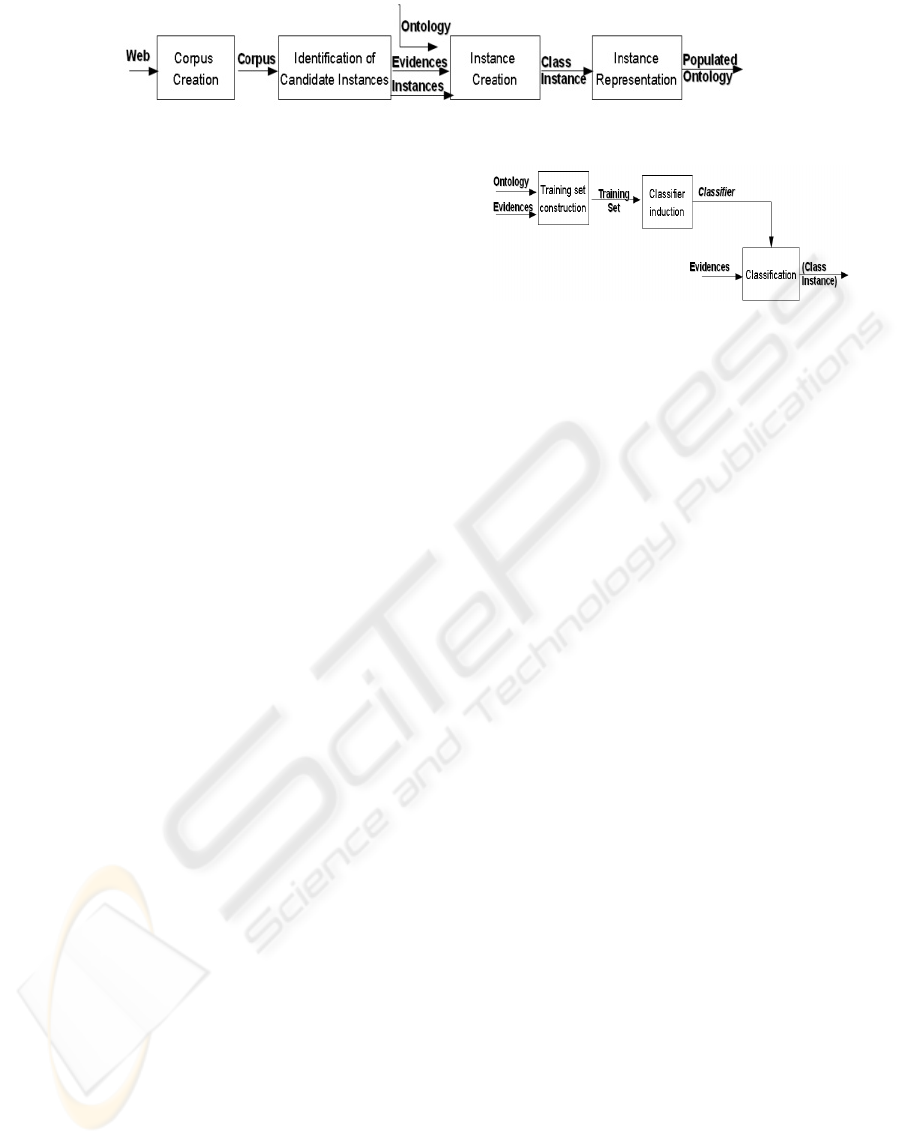

Figure 2: An automatic ontology population process.

Context feature approaches use a corpus to extract

features from the context in which a semantic class

tends to appear (Fleischman and Hovy, 2002). For

example, to classify John Smith as a teacher, the

features that indicate the classification of “John

Smith” as a teacher could be the verb “to teach”.

A hybrid approach using both pattern-based, term

structure, and contextual feature methods is

presented in (Cimiano, Pivk, Thieme and Staab,

2005).

4 AN OVERVIEW OF A

PROCESS FOR AUTOMATIC

ONTOLOGY POPULATION

The process proposed in this paper is a hybrid

approach, considering that it uses both contextual

features and recognition based on lexical patterns.

The tasks of the process are supported by supervised

machine learning and natural language processing

techniques. It consists of four phases: Corpus

Creation, Identification of Candidate Instances,

Instance Creation and Instance Representation

(Figure 2).

The corpus creation phase aims at capturing

documents through a web crawler to construct a

corpus to be used in the following phase.

The identification of candidate instances phase

looks for structuring the documents in the corpus by

applying techniques of natural language processing

and statistic measures in order to extract instance

candidates.

The instance creation phase aims at classifying

an instance into a particular class by applying

machine learning techniques. The products of this

phase are: the CI set of the ontology definition in

section 2 and the set of all “is_a” relationships

between classes and instances, corresponding to the

I set of the ontology definition in section 2. This

phase has as input: evidences, candidate instances

and an ontology. It is divided into three tasks,

training set construction, building a classifier and

classification, as shown in Figure 3.

Figure 3: The instance creation subprocess.

The training set construction task generates a set

of positive examples of the type (evidence, class),

where “evidence” is a syntactic dependence

obtained in the identification of candidate instances

phase and the class name is obtained from the

ontology to be populated; “class” is the class of the

domain ontology where that candidate instance

should be classified. The instances are assigned to

their respective classes of the ontology, this task is

performed manually.

The classifier induction task submits the training

set to a machine learning algorithm, that induces a

classifier matching the best approximation of the

"is_a" relationship. The classifier used was Naïve-

Bayes (Mitchell, 1997.), the simplest of Bayesian

classifier (Witten and Frank, 2005).

Instances are associated with ontology classes,

generating as a result a set of pairs (instance, class)

in the classification task.

The instance representation phase aims at

representing instances in a particular ontology

specification language.

5 THE IDENTIFICATION OF

CANDIDATE INSTANCES

PHASE

The identification of candidate instances phase

consists of the tasks illustrated in Figure 4. Each one

of the tasks is following described with an example

using the simple corpus of Figure 5.

The tokenization/normalization task aims at

dividing the text into tokens (Figure 6) and

identifying standards such as dates, times, hours,

among others. For instance, the tokens “five” and

“two” in the corpus of Figure 5 are of the standard

time.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

280

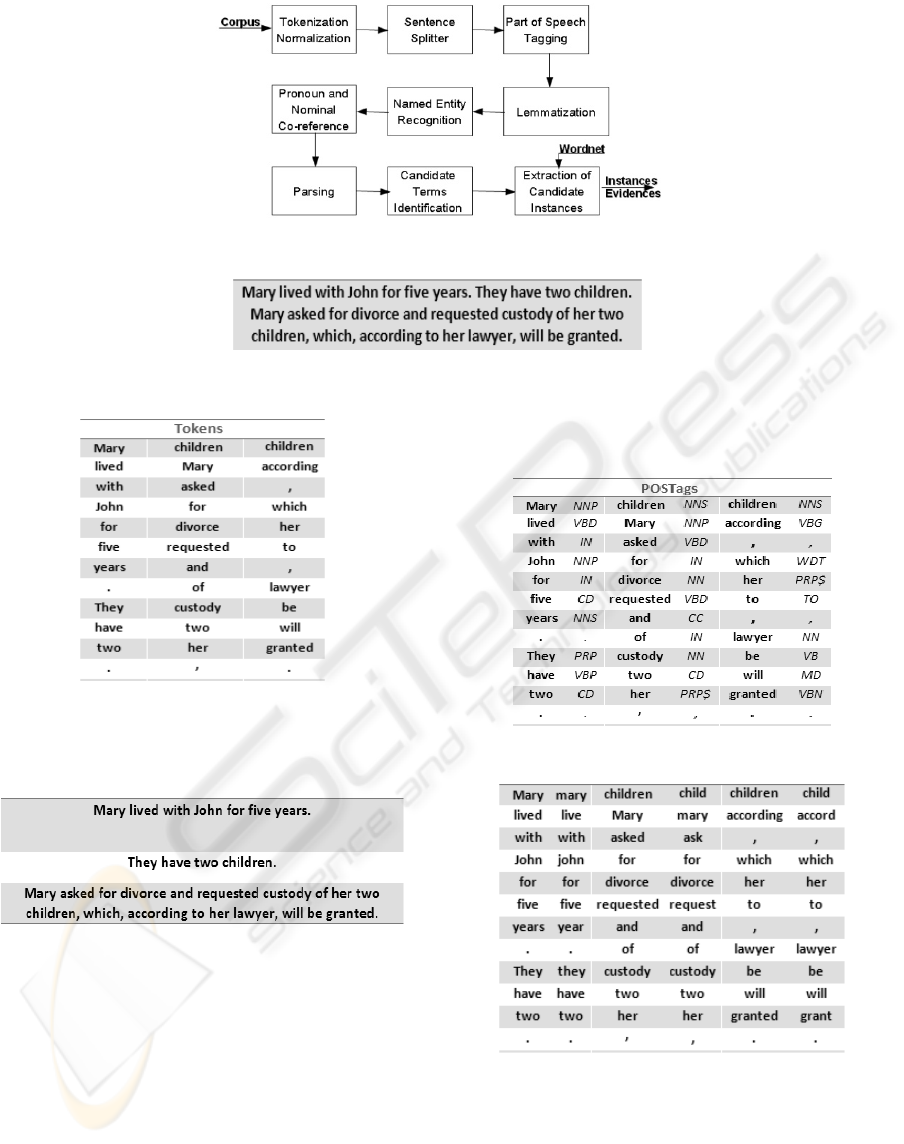

Figure 4: Identification of candidate instances phase.

Figure 5: A simples corpus in the family law domain.

Figure 6: Tokens extracted from the corpus of Figure 5.

The sentence splitter task aims at identifying

sentences in the text, as shown in Figure 7.

Figure 7: Sentence splitter from the corpus of Figure 5.

The Part of Speech Tagging (POS tagging) task

looks for assigning syntactic categories to each

token, according to the Penn TreeBank set of tags

(Marcus, Santorini, Marcinkiewicz 1993), as shown

in Figure 8.

In the lemmatization task tokens are reduced to

their basic forms. For example, nouns are

represented in their male single form and verbs in

the infinitive form, as shown in Figure 9.

The Named Entity Recognition task identifies

names that refer to unique objects in the world such

as names of person, organizations and places. For

instance, in the corpus of Figure 5 the only two

named entities are “Mary” and “John”.

Figure 8: Pos tagging from the corpus of Figure 5.

Figure 9: Lemmatization from the corpus of Figure 5.

The co-reference task identifies both pronoun

and nominal co-references. The first one consists of

pronouns that refer to previously described entities.

For instance, “her” is the pronoun that refers to

“Mary” in the corpus of Figure 5. The nominal co-

reference consists of nouns that refer to the same

USING NATURAL LANGUAGE PROCESSING FOR AUTOMATIC EXTRACTION OF ONTOLOGY INSTANCES

281

entity. For instance, “Barak Obama”, “Mr. Barak

Obama” and “President Obama” refer to Barak

Hussein Obama, president of the United States.

The parsing task aims at building a parse tree of

each sentence in the text and identifying syntactic

dependences according to the Stanford dependences

among terms (Marneffe and Manning, 2008), as

shown in Figure 10.

Figure 10: Parsing from the corpus of Figure 5.

The candidate terms identification task aims at

selecting the terms identified as proper nouns and

eliminate others, as proper nouns are probably

instances. For instance, “Mary” and “John” could be

candidate terms in the corpus of Figure 5.

The extraction of candidate instances task aims

at extracting candidate instances based on the

Inverse Document Frequency measure (IDF) (Salton

and Buckley, 1987) which measures the general

importance of a term in the corpus. The normalized

inverse document frequency of term i (IDF

∈ [0, 1])

is defined as:

IDF

= log (N / n

) / log (N) (2)

where N is the number of documents in the corpus

and n

is the number of documents where the term i

occurs.

IDF

is calculated for each term and those having

a value between an experimentally defined interval

are selected as candidate instances. Those terms

having an IDF

out of such predefined interval are

compared with a set of instances available in the

Wordnet lexical database (Felbaum, 1998) are also

selected. The final list of candidate instances is

composed of the terms selected from the Wordnet

and the terms identified in the IDF

predefined

interval. For instance “Mary” and “John” could be

candidate instances in the corpus of Figure 5.

6 EVALUATION

An experiment was conducted for an initial

evaluation of the effectiveness of the proposed

approach for identifying candidate instances already

described in section 5.

A corpus composed of 919 documents captured

from the site “family.findlaw.com” and containing

jurisprudence cases in the domain of family law was

used in the experiment performed with the GATE

platform (GATE, 2009).

An adaption of the classical measures of recall

and precision from the information retrieval area

was used for effectiveness evaluation (Dellschaft

and Staab, 2006) considering the number of

candidate instances that were identified correctly

under an interval value of the IDF

. Precision

measures the ratio between the number of relevant

instance candidates identified and the number of

extracted candidates; and recall, the one between the

number of relevant instance candidates identified

and the number of instances in the corpus.

Precision = N

Rel Iden

/ N

Iden

(3)

Recall = N

Rel Iden

/ N

Rel Cor

(4)

where N

Rel Ident

is the number of relevant instance

candidates identified, N

Ident

is the number of instance

candidates identified, and N

Rel Corpus

is the number of

instances in the corpus.

Figure 11 show the precision and recall graphics,

for different IDF

values. It can be experimentally

observed that, the IDF

interval [0,56, 0,93] has the

best balance between recall and precision. A sample

of one thousand terms was analyzed in this interval

getting a precision of 54%.

Figure 11: Precision and Recall x IDF

results.

A second experiment to extract instances from

the same corpus using IDF

and instances taken from

the Wordnet out of the selected interval was

performed. With a sample of one thousand terms a

precision of 64% was obtained which represent an

improvement of 10% when compared with the first

experiment.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

282

7 CONCLUDING REMARKS

Manual population of ontology by domain experts

and knowledge engineers is an expensive and time

consuming task so, automatic and semi-automatic

approaches are needed.

This article gives an overview of a domain

independent process for automatic ontology

population from textual resources and details the

phase where candidate instances of an ontology are

identified. The process is based on natural language

processing and supervised machine learning

techniques and consists of four phases: corpus

creation, identification of candidate instances,

instance creation and instance representation.

Two experiments were performed to evaluate the

proposed approach. The first experiment used

natural language processing techniques and the IDF

statistical measure. Candidate instances were

extracted from a corpus in the family law domain

and a precision of 54% was obtained. The second

experiment used the previously described techniques

and Wordnet getting an improvement of 10% in the

precision value.

The combination of natural language processing

techniques and statistical measures seems to be a

promising approach for automatic extraction of

ontology instances considering the initial results

reported here. However, more experimentation is

needed.

Currently we are evaluating different supervised

machine learning algorithms (Bayesian networks,

decision trees and statistical relational learning,

among others) in order to select a suitable approach

for the classification of instances in ontology

classes. We are also evaluating the advantages of

combining information extraction techniques with

the proposed approach to improve its effectiveness.

ACKNOWLEDGEMENTS

This work is supported by CNPq, CAPES and

FAPEMA, institutions of the Brazilian Government

for scientific and technologic development.

REFERENCES

Allen, J. 1995. Natural Language Understanding.

Redwood City, CA: The Benjamin/Cummings

Publishing Company, Inc.

Bichop, C. M. 2006. Pattern Recognition and Machine

Learning, Springer.

Cimiano, P. and Volker, J., 2005. Towards large-scale,

open-domain and ontology-based named entity

classification. In: Proceedings of RANLP’05, p. 166–

172, Borovets, Bulgaria.

Cimiano,P., Pivk, A., Thieme, L. S. and Staab, L. S., 2005.

Learning Taxonomic Relations from heterogeneous

Sources of Evidence. In Ontology Learning from

Text: Methods, Evaluation and Applications. IOS

Press.

Dale, R., Moisl, H. and Somers, H. L. 2000. Handbook of

natural language processing. CRC Press.

Dellschaft, K. and Staab, S. 2006. On how to perform a

gold standard based evaluation of ontology learning.

In: Proceedings of the 5th International Semantic Web

Conference, p. 228 – 241, Athens. Springer.

Fellbaum, C., 1998. Wordnet: An Electronic Lexical

Database, MIT Press.

Fleischman, M. and Hovy, E., 2002. Fine Grained

Classification of Named Entities. In: Proceedings of

COLING, Taipei, Taiwan.

General Architecture for Text Engineering, 2009,

http://gate.ac.uk, December.

Gruber, T. R., 1995. Toward Principles for the Design of

Ontologies used for Knowledge Sharing. International

Journal of Human-Computer Studies, nº43, pp. 907-

928.

Guarino, N., Masolo, C., and Vetere, G. 1999. Ontoseek:

Content-based Access to the web. IEEE Intelligent

Systems, v. 14(3), p. 70-80.

Hearst, M., 1998. Automated Discovery of Word-Net

Relations. In WordNet: An Electronic Lexical

Database. MIT Press.

Marcus, M., Santorini, B. and Marcinkiewicz, M. 1993.

Building a Large Annotaded Corpus of English: Penn

TreeBank. Computational linguistics: Special Issue on

Using Large Corpora, [S. I.], v. 19, n.2, p. 313 – 330.

Marneffe, M. and Manning, C. 2008. The Stanford typed

dependencies representation. In: Workshop on Cross-

Framework and Cross-Domain Parser Evaluation,

Manchester. Proceedings of the Workshop on Cross-

Framework and Cross-Domain Parser Evaluation.

p. 1 - 8.

Mitchell, T. 1997. Machine Learning, Mc Graw Hill.

Nierenburg, S. and Raskin, V. 2004. Ontological

Semantics, MIT Press.

Russel, S. and Norvig, P. 1995. Artificial Intelligence: A

Modern Approach, Prentice-Hall.

Salton, G. and Buckley, C., 1987. Term Weighting

Approaches in Automatic Text Retrieval. Cornell

University.

Tanev, H. and Magnini, B., 2006. Weakly Supervised

Approaches for Ontology Population. In: Proceedings

of EACL.

Witten, I. H. and Frank, E. 2005. Data Mining Practical

Machine Learning Tools and Techniques, Elsevier 2

edition.

USING NATURAL LANGUAGE PROCESSING FOR AUTOMATIC EXTRACTION OF ONTOLOGY INSTANCES

283
