FONTE

A Protégé Plugin for Engineering Complex Ontologies by Assembling Modular

Ontologies of Space, Time and Domain Concepts

Jorge Santos, Luís Braga

Departamento de Engenharia Informática, Instituto Superior de Engenharia, Porto, Portugal

Anthony Cohn

School of Computing, Leeds University, Leeds, U.K.

Keywords:

Ontologies, Knowledge engineering, Temporal/Spatial reasoning and representation.

Abstract:

Humans have a natural ability to reason about scenarios including spatial and temporal information but for

several reasons the process of developing complex ontologies including time and/or space is still not well

developed and it remains a one-off, labor intensive experience. In this paper we present FONTE (Factorising

ONTology Engineering complexity), an ontology engineering methodology that relies on a divide and conquer

strategy. The targeted complex ontology will be built by assembling modular ontologies that capture tempo-

ral, spatial and domain (atemporal and aspatial) aspects. In order to support the proposed methodology we

developed a plugin for Protégé, one of the most widely used open source ontology editor and knowledge-base

framework.

1 INTRODUCTION

Temporal and spatial concepts are ubiquitous in

human cognition hence representing and reasoning

about these knowledge categories is fundamental for

the developmentof intelligent applications (Harmelen

et al., 2008). Despite the extensive research regarding

the engineering of complex domain ontologies with

time and/or space (Staab and Maedche, 2001; Vale

et al., 2002; Milea et al., 2008) this process is still not

well developed and it remains a one-off, labour inten-

sive experience, mainly because: i) the engineering

process requires the consideration of several ontolog-

ical issues (e.g., primitives, density, granularity, di-

rection) often implying a complex trade-off between

expressiveness and decidability; ii) the domain ex-

perts often have an intuitive and informal perception

of time and space, whereas the existing models of

time and space are complex and formal; and iii) the

temporal componentintroduces an extra dimension of

complexity in the veriﬁcation process, making it dif-

ﬁcult to ensure system completeness and consistency.

These issues have been considered in the development

of FONTE (Factorising ONTology Engineering com-

plexity), an ontology engineering methodology that

relies on a divide and conquer strategy (Santos and

Staab, 2003a; Santos and Staab, 2003b). This type of

strategy has been successfully applied in the resolu-

tion of other complex problems (Cormen et al., 2000)

(e.g., mathematical induction or recursive algorithms

in computer sciences). The targeted complex ontol-

ogy will be built by factorising concepts into their

temporal, spatial and domain (atemporal and aspatial)

aspects, and then assembling the temporally/spatially

situated entity from these primitive concepts. This is

more similar to a Cartesian Product than a union of

ontologies. Each of these component ontologies will

be built/acquired independently, allowing a factorisa-

tion of complexity. The ontologies assembly will be

performed through an iterative and interactive process

that combines two types of inputs: i) human assem-

bly actions between the component ontologies; and

ii) automatic assembly proposals obtained from se-

mantic and structural analysis of the ontologies. This

process is propelled by a set of rules and a set of

constraints. The set of rules drives a semi-automatic

process proposing assembly actions; the set of con-

straints allows the assessment of which generated pro-

posals are valid.

A prototype tool implemented in Prolog was de-

Santos J., Braga L. and Cohn A. (2010).

FONTE - A Protégé Plugin for Engineering Complex Ontologies by Assembling Modular Ontologies of Space, Time and Domain Concepts.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

93-102

DOI: 10.5220/0002908900930102

 SciTePress

signed to support the previous version of FONTE

method (just for time, not space), which provides

the essential functionalities for the assembly process

through a simple command line interface (Santos and

Staab, 2003b). This prototype was tested in the as-

sembly of ontologies speciﬁed in F-Logic. In this

paper, we present a plug-in for the Protége platform

that was designed to take beneﬁt of the OWL format,

in particular of OWL-DL. Using OWL is an advan-

tage since it is currently the standard language for

the representation of ontologies; however, it does not

allow some operations of temporal assembling that

are based in the existence of generic axioms used by

F-Logic, which were very rich in expressivity. As

described further in this paper, the assembly method

uses a set of assembly rules that allow the tool be-

haviour to be deﬁned. Additionally, a tool to facilitate

the speciﬁcation of meta-modeling rules was devel-

oped.

The rest of the paper is organised as follows.

Firstly we provide a summary of related work in sec-

tion 2. Then we describe FONTE, the semi-automatic

process of assembling two ontologies (section 3),

with some detail for its main algorithm, data struc-

tures, assembling of classes and properties. Some ex-

amples of the engineering of temporal aspects in on-

tologies will be presented to illustrate the potential-

ities of the proposed methodology. To this end, the

temporal ontology Time-Entry and the domain ontol-

ogy SWRC about the Semantic Web Research Com-

munity will be used. We describe the support tool (a

Protégé plug-in) developed to drive the process, and

the tool developed for editing assembly rules (section

4). Finally in the section 5 we present the conclusions

and some possible directions for future work.

2 RELATED WORK

As mentioned above, temporal and spatial concepts

are ubiquitous in human cognition. Representing

and reasoning about these concepts is therefore fun-

damental in Artiﬁcial Intelligence, particularly when

approaching problems and/or applications like plan-

ning, scheduling, natural language understanding,

common-sense and qualitative reasoning and multi-

agent systems (Stock, 1997; Fisher et al., 2005).

A temporal representation requires the characterisa-

tion of time itself and temporal incidence (Vila and

Schwalb, 1996). Space must be characterised by ele-

ments representing basic spatial entities and primitive

spatial notions expressed over them (Stock, 1997).

Moreover, whereas the principal relations between

temporal entities are based on ordering, in the case

of space, many more different kinds of relations are

possible due to the higher dimensionality, includ-

ing richer mereotopological and directional relations

(Cohn and Renz, 2007).

An ontology is an explicit speciﬁcation of a con-

ceptualisation about a speciﬁc portion of the world

(Gruber, 1993). The main purpose of ontologies is to

provide formal representations of models that can be

easily shareable and understandable both by humans

and machines. Ontologies have become an important

topic of research and are used in many areas, includ-

ing Knowledge Engineering (Staab and Studer, 2004).

The fast growth of the WWW has estab-

lished a knowledge sharing infrastructure, increas-

ing the importance of Knowledge Engineering

(Studer et al., 2004); consequently, ontologies

have gained renewed usage as artifacts within dis-

tributed and heterogeneous systems. The most re-

cent development in standard ontology languages is

OWL – Web Ontology Language (

www.w3.org/TR/

owl-features

). This has three sub-languages (Lite,

DL and Full) which present different grades of ex-

pressiveness/decidability; OWL-DL (based on De-

scription Logics) provides the most interesting and

widely accepted trade-offbetween expressivenessand

decidability.

In recent years, different ontologies about time

and space have been developed and are now

available in the public domain. There are two

types of such ontologies: speciﬁc ontologies about

time and/or space like OWL-Time (

www.w3.org/

TR/owl-time

), SWEET-Time and SWEET-Space

(

sweet.jpl.nasa.gov/ontology

) and upper on-

tologies (also called general) that include compo-

nents describing time and/or space like SUMO (

www.

ontologyportal.org

), OpenCYC (

www.opencyc.

org

) and GUM (

www.ontospace.uni-bremen.de/

ontology/gum.html

There is a growing interest in the topic of mod-

ularity in ontology engineering (Welty et al., 2006;

Lutz et al., 2007; Grau et al., 2007) mainly because

ontology engineering is a complex process that com-

prehends multiple tasks (e.g., design, maintenance,

reuse, and integration of multiple ontologies). Modu-

larity has been used to tackle complex processes such

as:

• engineering a rule-based system by task analysis

(Schreiber et al., 1999);

• engineering an ontology-based system by devel-

oping with patterns (Clark et al., 2000; Staab

et al., 2001) or developing sub-ontologies and

merging them (Noy and Musen, 2000).

All these methods promote the idea of sub-

dividing the task of building a large ontology by en-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

gineering, re-using and then connecting smaller parts

of the overall ontology.

The MADS system (Parent et al., 2006) also

aims to support the engineering of temporal and spa-

tial aspects through a graphical system that supports

an Entity-Relationship analysis. MADS allows the

knowledge engineer to deﬁne temporal/spatial char-

acteristics for the model concepts. However, this

approach is very distinct from the one proposed by

FONTE, because the temporal/spatial modeling ac-

tions are not generated in a semi-automatic mode; and

the temporal and spatial theories are embedded in the

application interface so the ontology engineer is un-

able to select a speciﬁc theory of time and/or space.

3 FONTE METHOD

The assembly process comprises two main building

blocks. First, the speciﬁcation of temporal and/or spa-

tial aspects for a domain ontology (atemporal and as-

patial) remains dependent on the conceptualisation of

the ontology engineer. Second, in order to facilitate

and accelerate the joint assembly of timeless domain

concepts with temporal and/or spatial notions, the in-

teractive process is supported by heuristics for asking

and directing the ontology engineer.

3.1 Assembling Algorithm

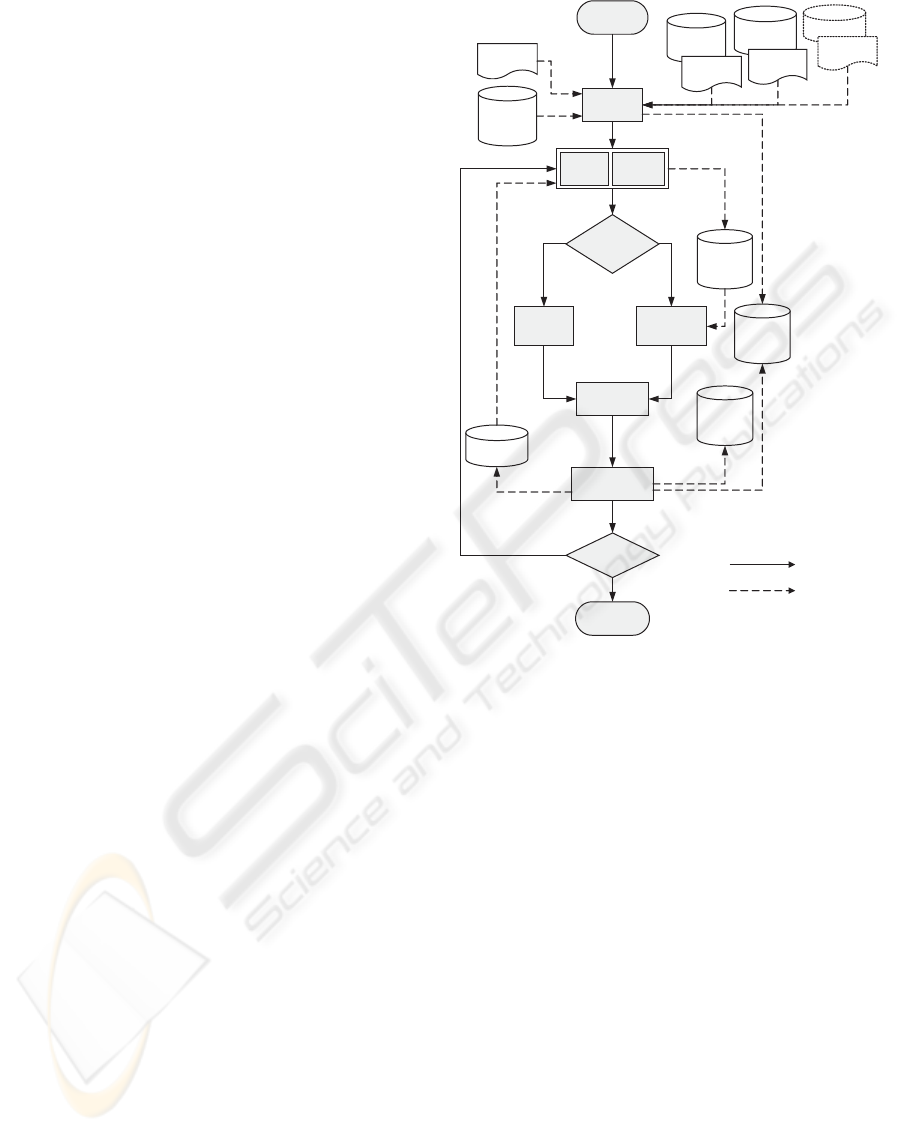

The assembly process runs as depicted in ﬁgure 1.

The process starts by an

Initial Setup

. Some basic

operations are performed, namely loading the ontolo-

gies to be assembled, loading a set of rules (one set

for each ontology) to drive the process and initialis-

ing some process parameters. The rules and param-

eters are deﬁned separately from the tool in order to

allow for adaptations to the particular needs of differ-

ent time ontologies. However the rules and parame-

ters do not change when a new domain ontology is to

be assembled. The

Target Ontology

initially corre-

sponds to the union of the timeless domain ontology

and the time theory.

The user may commence by restructuring some

part of the domain ontology to include temporal

and/or spatial aspects through deﬁning and perform-

ing (what we call) task instances. Each task in-

stance (either user initiated or automatically pro-

posed) aims to create a new temporal/spatial concept

by assembling an atemporal/aspatial domain concept

or role with a temporal/spatial one. When perform-

ing such restructuring task instances, a

Structural

Analysis

aims to ﬁnd related classes (e.g., sub or

super classes in the domain ontology) and puts the

Historic

of Task

Instances

USER:

Iterate

Conclude

Process

Execute Task

Instance

Proposed

Task

Instances

Constraints

USER:

Create or

Process Flow

Data Flow

Create new

Task

Instance

proposed

Task Instance

Verify

Consistency

Domain

Concepts

Ontology

Structural

Analysis

Semantic

Analysis

Begin

Process

Initial

Setup

Target

Ontology

Ontology 1

(e.g. Time)

Assembling

Rules 1

Ontology 2

(e.g. Space)

Assembling

Rules 2

Ontology N

Assembling

Rules N

Parameters

Figure 1: Assembly process.

appropriate task instances into the

Proposed Task

Instances

In the

Structural Analysis

step, a set of tests

is performed that restrict the set of possible task in-

stances to plausible ones, which are then proposed by

insertion into the

Proposed Task Instances

. As

more information becomes available in subsequent

iterations, the usefulness of results provided by the

structure analysis improves.

In subsequent iterations, the engineer decides

whether to accept an automatically proposed task in-

stance from the

Proposed Task Instances

. Alter-

natively, the user may take new initiatives and deﬁne

and execute a new task instance from scratch.

For manually deﬁned task instances, a set of log-

ical tests (

Verify Consistency

) is performed to

detect the existence of any knowledge anomalies

(e.g., circularity or redundancy). In contrast, the ac-

ceptance of a proposed task instance does not require

further checks since no invalid task instance can be

proposed.

In the

Execute Task Instance

step, the corre-

sponding changes are made to the target ontology.

The user may subsequently decide either to perform

FONTE - A Protégé Plugin for Engineering Complex Ontologies by Assembling Modular Ontologies of Space, Time and

Domain Concepts

another iteration or to go to

Conclude Process

and

accept the current

Target Ontology

as the ﬁnal ver-

sion.

3.2 Data Structures

We have already informally used the notion of

task

in order to describe to an action template (i.e., a

generic task) that may be instantiated and executed

in order to modify a current target ontology. A task

is deﬁned by the

Task Code

and the

Task Question

Task Code. A procedure that uses: a set of keywords

with the commonly expected semantics of structured

programming (e.g.,

then

else

); some special

keywords (

propose

and

check

, whose semantics

we provide later in this section); and the evocation of

other tasks.

Task Question. Before the execution of a task, the

system prompts a task question in natural language

to the engineer in order to determine if the proposal

should really be accepted or not and in order to ask

for additional constraints that the user might want to

add. The task question is deﬁned by a List of words

and parameters used to compose a sentence in natural

language.

In order to manage various task instances, the

assembling algorithm uses the following data struc-

tures:

Proposed Task Instances. List of tuples

(TaskInstance, TriggersList, Weight)

storing proposed task instances together with the

triggers that raised their proposal and their weight

according to which they are ranked on the task list.

TriggersList. Denotes the list of items that

have triggered the proposal. A trigger is a pair

(TriggerType,TriggerId)

where

TriggerType

has one of the values

class

property

axiom

and

the

TriggerId

is the item identiﬁer. For instance, the

pair

(concept,

Person

)

is a valid trigger. The list is

useful to query for proposals raised by a speciﬁc item

TriggerType

Weight. Since competing task instances may be pro-

posed,

Weight

is used to reﬂect the strength of the

proposal on the

TaskList

. Additionally, since a task

instance may be proposed as a consequence of the as-

sembly different classes and/or properties, the weight

is increased in order to reﬂect the probability of being

accepted.

History of Task Instances. List of all tasks that were

previously performed. This list is useful to allow the

undo operation and to provide statistics about the

assembly process.

Task Constraints List. List of tuples

(TaskInstance,Expression)

storing logical

constraints about previously performed task in-

stances.

do(TaskInstance). The function

performs

logical tests over existing task constraints about

TaskInstance

. If there is no impediment, it executes

the task instance and creates a corresponding entry

on the

Task History

propose(TaskInstance,Trigger,Weight). The

function

propose

creates a proposal by asserting the

corresponding tuple in the list of

Proposed Task

Instances

check(Condition). The function

check

performs a

logical test in order to check if the

Condition

is true

or false in the scope of the participant ontologies.

3.3 Input Modular Ontologies

In order to illustrate the assembly process two ontolo-

gies will be used as building blocks for the target on-

tology, the temporal ontology Time-Entry and the do-

main ontology SWRC about Semantic Web Research

Community.

The Time-Entry (

www.isi.edu/~hobbs/

owl-time.html

) is a sub-ontology of OWL-Time

(see ﬁgure 3 for the UML-like depiction of an ex-

cerpt) that embodies concepts like Instant or Interval

often found in ‘standard’ ontologies like SUMO and

assumes a standard interpretation by representing

time points and time intervals as real numbers and

intervals on the real line. As mentioned before, a

temporal representation requires the characterisation

of time itself and temporal incidence; these are rep-

resented in our temporal ontology by TemporalEntity

and Event, respectively.

Temporal Entities. In the temporal ontology we

used as a case study there are two subclasses of

TemporalEntity: Instant and Interval. The relations

before,after and equality can hold between Instants,

respectively represented by the symbols:≺, ≻, =,

allowing to deﬁne an algebra based on points (Vilain

et al., 1989). It is assumed that the relations before

and after are irreﬂexive, asymmetric, transitive

and strictly linear. The thirteen binary relations

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

Event

InstantEvent

TemporalEntity

IntervalInstant IntervalEvent

InstantThing

TemporalThing

before:TemporalThing

begins:InstantThing

ends:InstantThing

IntervalThing

inside: InstantThing

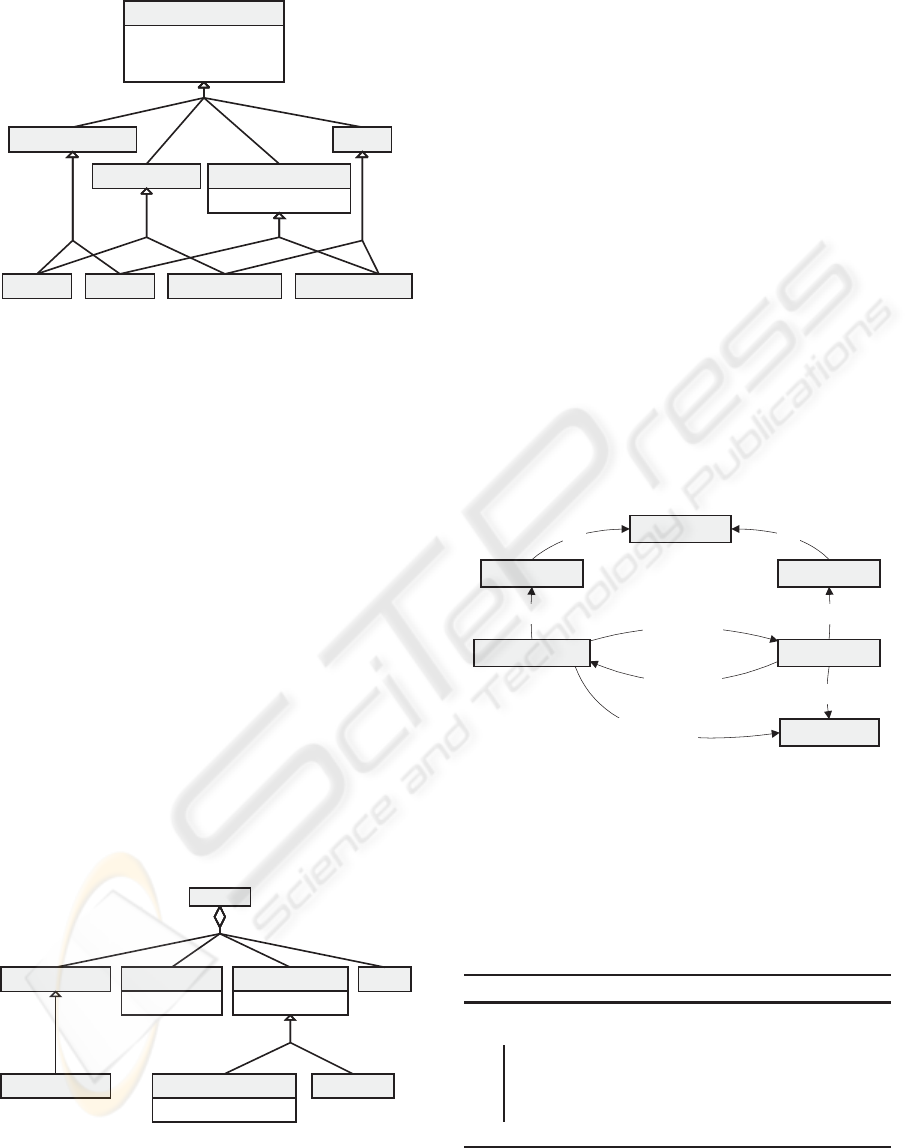

Figure 2: Excerpt of Time-entry ontology.

proposed in Allen’s interval algebra (Allen, 1983)

can be deﬁned in a straightforward way based on the

previous three relations (Freksa, 1992).

Events. There are two subclasses of Event, Inter-

valEvent and InstantEvent, in order to be possible to

express continuous and instantaneous events. This

temporal ontology provides the properties begins and

ends which allow to capture the beginning and ending

instants of an event.

The assembly process can be used either for the

development of ontologies with time from scratch, or

for re-engineering existing ones in order to include

time. For our case study we have used the time-less

SWRC-Semantic Web Research Community (

www.

ontoware.org/swrc/

) ontology that served as a

seed ontology for the knowledge portal of OntoWeb.

SWRC comprises 54 classes, 68 restrictions and 44

properties. In ﬁgure 3 we present an excerpt of the

SWRC ontology that was used in order to elucidate

the assembly process.

Organization Topic

SWRC

EmployeeUniversity

Project

isAbout:Topic

Person

member:Project

Student

studiesAt:University

Figure 3: Excerpt of the SWRC ontology.

3.4 Assembly of Classes

As mentioned before, system proposals are generated

based on rules and constraints. In the initial phase, the

engineer takes the initiative. From the initial modiﬁ-

cations, some proposals may then be generated auto-

matically, and from these, further new proposals are

spawned. Furthermore, the assembly of classes with

temporal attributes needs to fulﬁll fewer constraints

than the assembly of properties. Thus, proposals for

modiﬁcations with classes are typically made ﬁrst —

and elaborated in this subsection.

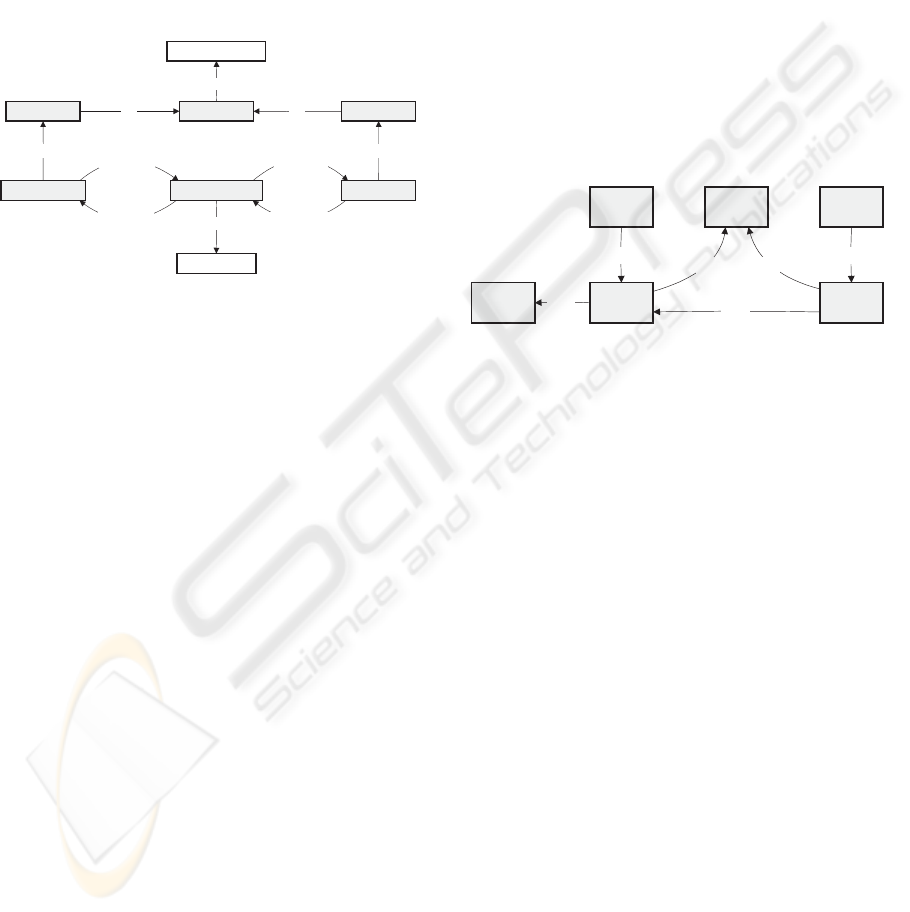

Figure 4 shows an excerpt of the ontology SWRC

emphasising some of its classes and properties,

namely, the classes Project and Person, as well as

the sub-classes of the latter: Employee, Student, Aca-

demicStaff and PhDStudent. The property supervises,

and its inverse property supervisor, capture the re-

lationship between AcademicStaff and PhDStudent;

the property worksAtProject captures the notion that

both an AcademicStaff as a PhDStudent can work in a

given Project.

Employee Student

AcademicStaff PhDStudent

worksAtProject

Project

worksAtProject

isA isA

supervises

supervisor

Person

isA isA

Figure 4: Excerpt of the SWRC ontology.

For the running example here, we assume that

a user links the classes Person (from SWRC ontol-

ogy) with TemporalThing (from Time-Entry ontol-

ogy). This action triggers the execution of the rule

assembleClass

that subclasses a concept c1, viz.

Person, from a c2, viz. TemporalThing. The corre-

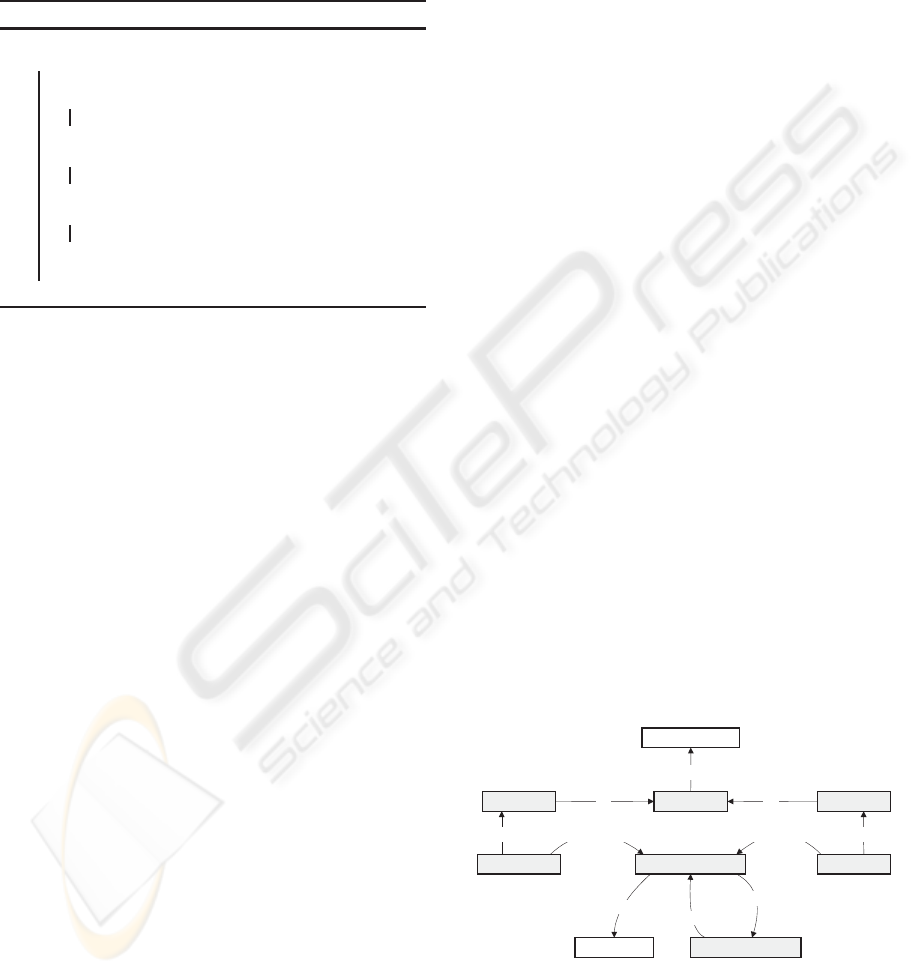

Algorithm 1: Assemble class task.

rule

assembleClass

(c1,c2)

if c2=TemporalThing then

do:

createRelation

(isA,c1,c2);

do:

assembleRelatedClasses

(c1,c2);

do:

assembleRelatedProperties

(c1,c2);

propose:

specializeClass

(c1,c2);

end

sponding task

assembleClass

(see algorithm 1) cre-

ates a new isA relation between the Person and Tem-

poralThing and then proposes further assembling tasks

FONTE - A Protégé Plugin for Engineering Complex Ontologies by Assembling Modular Ontologies of Space, Time and

Domain Concepts

for related classes and properties. Additionally, a pro-

posal will be created in order to allow further spe-

cialisation of Person; depending on the engineering

options Person could be later deﬁned as IntervalTh-

ing, InstantThing, Event or TemporalEntity as detailed

specializeClass

task (see algorithm 2).

Algorithm 2: Specialize class task.

rule

specializeClass

(c1,c2)

if c2=TemporalThing then

answer ←

ask

(Select subclass of #c1);

if answer=IntervalThing then

do:

assembleClass

(c1,time:IntervalThing);

end

if answer=InstantThing then

do:

assembleClass

(c1,time:InstantThing);

end

if answer=Event then

do:

assembleClass

(c1,time:Event);

end

...;

end

The reader may note that this result crucially de-

pends on the temporal theory used, but that rules

could be easily modiﬁed to accommodate other the-

ories. Additionally, as mentioned before, the assem-

bly rules do not need to be modiﬁed when a new do-

main ontology (e.g., medicine, power systems) is to

be assembled since they are only dependent on the

time/space theory.

3.5 Assembly of Properties

From the assembly of classes there follow proposals

for the modiﬁcation of properties (captured by OWL

restrictions). For instance, if Person has been mod-

iﬁed to become a subclass of TemporalThing it be-

comes plausible that also the properties that are re-

lated to Person should also be temporalised. Also,

because the isA relation is transitive, is plausible to

say that some/all of its subclasses (direct or indirect)

are also temporal, so the properties that are related to

them should incur in changes too.

From the example, FONTE produces proposals for

temporal assembling the following restrictions:

• supervises(AcademicStaff, PhDStudent);

• supervisor(PhDStudent, AcademicStaff);

• worksAtProject(AcademicStaff, Project);

• worksAtProject(PhDStudent, Project).

The changes occur analogously to the tasks de-

ﬁned for the assembly of classes. In addition however,

there arise further possibilities in order to constrain

the life-time of the actual relationship by the life-time

of the participating classes instances. Thus, super-

vises(AcademicStaff, PhDStudent) is replaced by su-

pervises(AcademicStaff, PhDStudent, Interval) and —

maybe — further constraints on the time instant as

added by the engineer. The most common approach to

dealing with predicates of higher arity than two in lan-

guages like OWL is to reify the relationships through

extension of each relation into an concept that itself

has binary relationships (Welty et al., 2006). One

of the approaches that isused to represent n-ary re-

lations is introducing a new class (token) for a rela-

tion. This pattern is well documented (

www.w3.org/

TR/swbp-n-aryRelations/

) and will be used in our

use case example. The methodology we propose is

independent from the approach used for processing

temporal/spatial reiﬁcation.

Considering that one member of the academic

staff may work at a project during some time, the

restriction worksAtProject(AcademicStaff,Project)

should be temporalized. Through the use of the

chosen pattern, a new class is created/selected to play

the role of token class (WorksAtProjectRel). This

token captures the relation between AcademicStaff,

Project and Interval. So, it has two restrictions:

• has_value(WorksAtProjectRel, Project) (for

reasoning purposes its inverse property

is_value_for(Project, WorksAtProjectRel) is

also deﬁned;

• intDuring(WorksAtProjectRel, Interval).

Since the restrictions worksAtPro-

ject(AcademicStaff, Project) and worksAtPro-

ject(PhDStudent, Project) proposed to be tempor-

alized are very similar (both use the same property

with the same range), the token class used to describe

the temporal relation would be the same, avoiding

the duplication of token classes. The ﬁnal result of

temporal assembling is presented in ﬁgure 5.

Employee Student

AcademicStaff PhDStudent

isA isA

Person

isA isA

IntervalThing

isA

WorksAtProjectRel

Interval

worksAtProject

intDuring

worksAtProject

Project

has_value

is_value_for

Figure 5: Excerpt of the temporalised SWRC ontology -

property worksAtProject.

The restriction supervises(AcademicStaff, PhD-

Student) may also be temporal, since some mem-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

ber of academic staff supervises PhD students dur-

ing a time-span. The process of temporal assem-

bling of this restriction is analogous to that previ-

ously described, with the assertion of an extra re-

striction supervisor(PhDStudent, AcademicStaff) that

may be speciﬁed to ensure the inverse reasoning

and keep the structural logic. The restriction super-

visor(PhDStudent, AcademicStaff) follows the same

procedure. Hence, the ﬁnal result of the temporal as-

sembly with those two restrictions is presented in ﬁg-

ure 6.

Employee Student

AcademicStaff PhDStudent

Person

isA

IntervalThing

isA

SupervisesRel

Interval

supervises

supervisor

startsOrDuring

has_value

is_value_for

isA

isAisA

Figure 6: Excerpt of the temporalized SWRC ontology -

property supervises.

4 PROTÉGÉ PLUG-IN AND RULE

EDITOR

As described in section 3, a task consists of the deﬁ-

nition of the actions to be performed in the target on-

tology after the performance of an assembly action

(e.g., creation of a relation isA between a domain and

a temporal concept).

Due to the characteristics of the platform (Pro-

tégé), two types of tasks were deﬁned:

Internal Tasks. Allow basic operations to be per-

formed to manipulate the ontologies (e.g., create,

delete and modify classes or properties), and provide

access to the API functionalities of the Protégé

platform in a transparent mode;

External Tasks. Procedures (also called assembly

rules) written in a pseudo-code language that in-

cludes common programme language instructions

(e.g., if, then, else) and special keywords (e.g., do,

propose, check) which semantics has been previously

provided.

In order to facilitate editing/creation of tasks, a

speciﬁc tool supported with a graphical interface was

developed; details of this tool are presented in section

4.2.

The FONTE plug-in architecture (see ﬁgure 7) re-

lies on different abstraction levels which present sev-

eral advantages for the knowledge engineer, such as:

• the knowledge engineer does not need to know the

speciﬁcs of the Protégé API to manipulate the on-

tologies. In addition, the Internal Tasks provide

an abstraction level between External Tasks and

Protégé API assuring independency between the

External Tasks and the Protégé API;

• the External Tasks may be created/edited during

execution time and do not require the alteration of

the application and consequent compilation;

• different rules set (which should be stored in

distinct ﬁles) allow the use of different tempo-

ral/spatial theories in the assembly process in a

ﬂexible way.

Internal

Task

isA

External

Task

uses

isA

Protégé

API

uses

FONTE

plugin

provides

Rule

Editor

create/edit

Figure 7: FONTE plug-in architecture.

4.1 FONTE Plug-in for Protégé

Protégé is one of the most widely used open source

ontology editor and knowledge-base frameworks,

which provides a powerful graphical interface. In

order to support the iterative and interactive process

used in FONTE, a plug-in for Protégé (version 3.4)

was developed. This plug-in provides a set of func-

tionalities, such as: i) linking concepts of the domain

and temporal/spatial ontology; ii) to accept, reject or

even delay the execution of a task; iii) and to visualise

statistics of the assembly process.

As presented in ﬁgure 8, the plug-in presents two

panels for the manipulation of ontologies (in the left-

hand side) and a list of proposals (in the right-hand

side). The panel further to the left contains the domain

ontology (SWRC, which is timeless and spaceless);

from this panel it is possible to access the classes and

properties hierarchies. The other panel contains the

temporal/spatial ontologies to be used as construction

blocks for the production of the target ontology. The

list of proposals contains the records of the task in-

stances generated by the system. Details of this list

are presented below.

To promote the assembly process, the knowl-

edge engineer needs to select the ontologies that will

participate in the assembly process as well as the

ﬁles containing the assembly rules for each ontology;

FONTE - A Protégé Plugin for Engineering Complex Ontologies by Assembling Modular Ontologies of Space, Time and

Domain Concepts

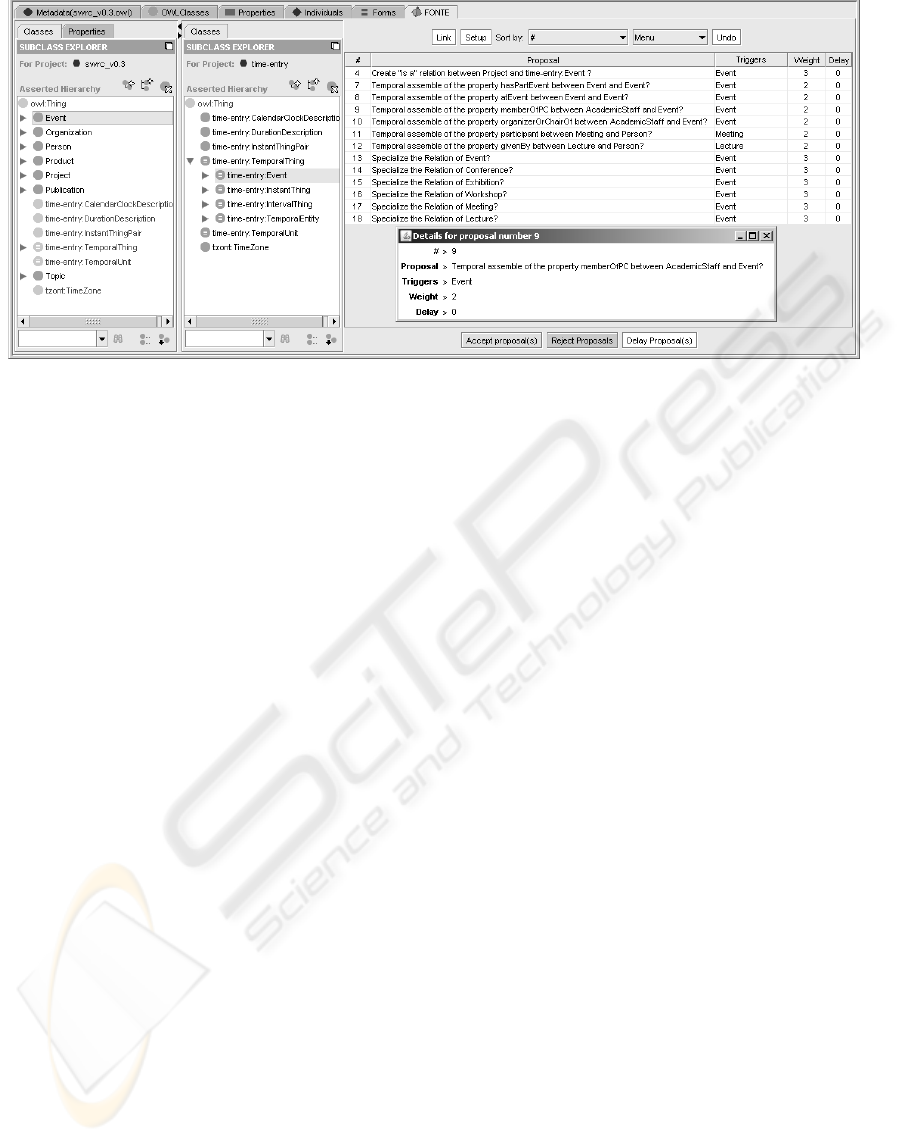

Figure 8: FONTE plug-in for Protégé.

these can be selected using the setup window (trig-

gered by the setup button showed in the ﬁgure).

All the tasks that are successfully performed (ei-

ther triggered manually by user-driven action or auto-

matically by the structural analysis module) are added

to a list containing the instance tasks history.

Associated to each task instance proposal there is

a question in natural language, a trigger list and the

task weight. The question in natural language is com-

posed of a phrase that summarises the proposal’s ob-

jective, instantiated with the elements contained in the

instance task. The trigger list is composed of the el-

ements that triggered the proposal. The weight pro-

vides an indication of the importance of each pro-

posal: the higher the weight, the higher the probabil-

ity of the proposal being accepted during the assem-

bly process.

As the assembly process progresses, more propos-

als are generated. If different concepts happen to pro-

pose the same task instance, all the elements that have

triggered that proposal are included in the trigger list

and the proposal weight is increased to reﬂect its rel-

evance.

All the proposed task instances are stored in the

list of proposals, which can be sorted by different cri-

teria (e.g., id, trigger or weight). The user can then

accept, reject, or even delay for later analysis, each of

the proposals.

In order to avoid overloading the knowledge engi-

neer with useless proposals, the system does not al-

low a reject proposal to be automatically re-proposed

However, the knowledge engineer has the ability to

manually recover a rejected proposal.

In addition to the functionalities previously de-

scribed, the plug-in also provides statistics about the

assembly process and allows to produce assembly

script ﬁles. The assembly process statistics sum-

marises the results of the tool performance, including

the initial and current status of the domain ontology,

the number of tasks that has been initiated by the user

and how many proposals have been accepted or re-

jected. A script ﬁle contains a sequence of performed

tasks; this is particularly useful when the knowledge

engineer needs to totally or partially repeat a certain

set of tasks.

4.2 External Rules Editor

An application was developed to facilitate the creation

of external ﬁles of rules. This supports the knowledge

engineer through a simple and interactive graphical

interface. The ﬁles management system (see ﬁgure

9) provides a graphical visualisation of the rules in-

cluded in each ﬁle and offers several functionalities,

such as: to sort the list through different criteria, to

modify the order in which the rules are interpreted

during the assembly process, to visualise the rules in

XML or pseudo-code, and also to remove, edit or cre-

ate new assembly rules.

The ﬁles of rules and the rules included in each

ﬁle can be enriched with a description.

In addition, the tool has a mechanism to support

the creation/edition of rules (see ﬁgure 10). This

mechanism alerts the knowledge engineer about po-

tential consistency errors (e.g., using a non declared

variable) or warnings (e.g., declaring a variable that is

not used).

The variables can also be enriched with a descrip-

tion. In addition, and as with most programming lan-

guages, comments can be added to the code, which

will be ignored by the plug-in parser/interpreter.

Several advantages acrue from the use of this tool,

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

100

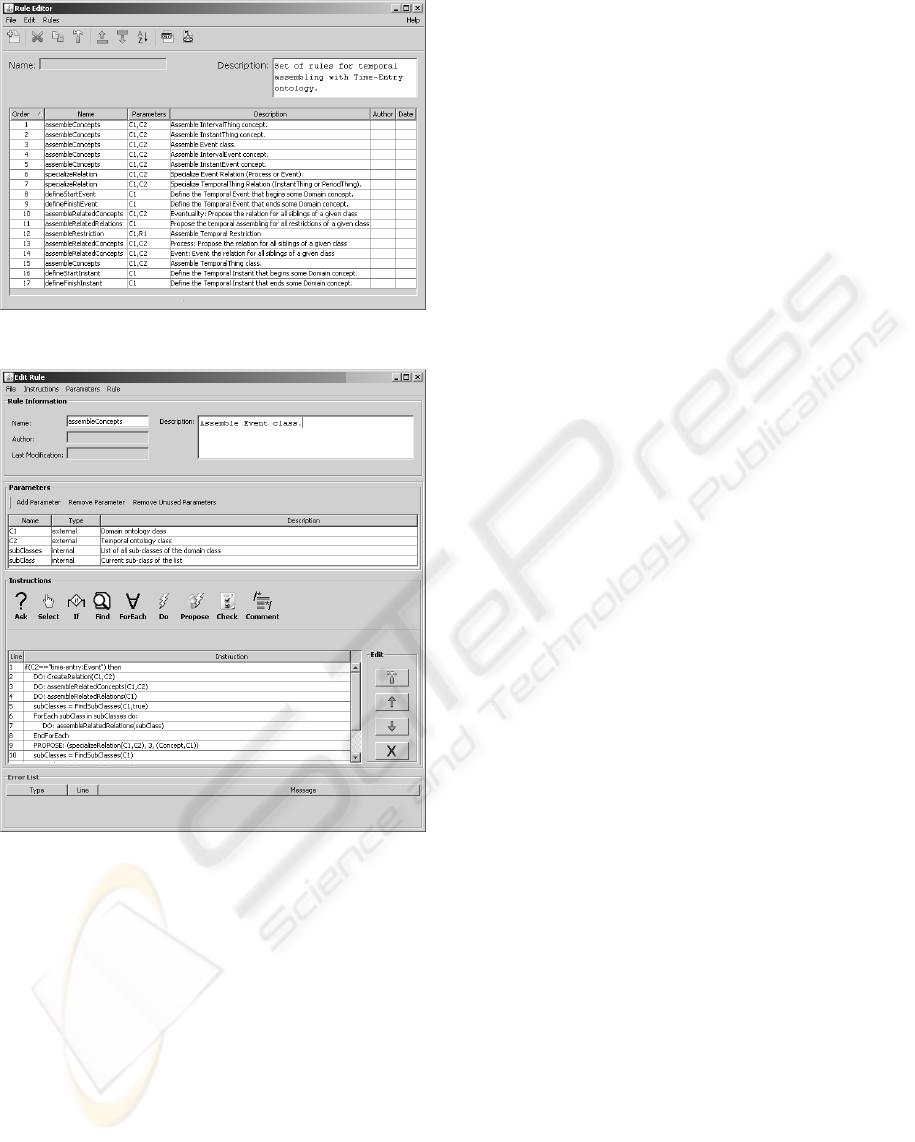

Figure 9: Assembly rule ﬁle manager.

Figure 10: Editing an assembly rule.

namely:

• simple and intuitive manipulation of the ﬁles of

rules;

• the XML code is automatically generated, without

syntactic errors;

• easy management of the existing ﬁles of rules;

• automatic veriﬁcation of consistency during the

creation/editing of rules.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we described FONTE, a method that sup-

ports the engineering of complex ontologies including

temporal and/or spatial knowledge that allows factori-

sation of the process complexity by dividing the prob-

lem in parts: modelling the domain concepts ontology

(atemporal and aspatial), modelling or acquiring the

temporal and /or spatial ontology, and ﬁnally produc-

ing the target ontology by assembling these modular

ontologies.

A Protégé plug-in was developed in order to sup-

port the FONTE method , which allows FONTE to be

used in an integrated form in the development of on-

tologies. The FONTE methodology works indepen-

dently of the temporal/spatial theory since it allows

the deﬁnition/use of sets of assembly rules for each

speciﬁc theory. A tool to support the creation/editing

of these rule sets was also presented.

The tasks remain for future work:

• the generic characteristics of the proposed method

should be tested with different spatial/temporal

ontologies, including spatio-temporal ontologies

(also called 4D ontologies);

• it would also be interesting to develop a function-

ality to predict the impact of the acceptance of a

certain proposal;

• improving the generation of automatic propos-

als during the assembly process. This may be

achieved through the use of semantic analysis,

previously successfully used in diverse processes

of ontology engineering (e.g., merging, mapping

and alignment). This will allow the generation of

more and better assembly proposals at an earlier

stage of the process and consequently making it

progressively more automated, given that the cur-

rent FONTE version is limited to structural analy-

sis of the classes and properties hierarchy;

• application of the assembly process

in the automatic modiﬁcation of rules

for ontology querying such SWRL

(www.w3.org/Submission/SWRL/) and RIF

(www.w3.org/2005/rules/wiki/RIF_Working_

Group).

REFERENCES

Allen, J. (1983). Maintaining knowledge about temporal

intervals. Communication ACM, 26(11):832–843.

Clark, P., Thompson, J., and Porter, B. (2000). Knowledge

patterns. In Proc. KR2000, pages 591–600.

FONTE - A Protégé Plugin for Engineering Complex Ontologies by Assembling Modular Ontologies of Space, Time and

Domain Concepts

101

Cohn, A. G. and Renz, J. (2007). Handbook of Knowledge

Representation, chapter Qualitative Spatial Represen-

tation and Reasoning, pages 551–596. Elsevier.

Cormen, T. H., Leiserson, C. E., and Rivest, R. L. (2000).

Introduction to Algorithms. MIT Press.

Fisher, M., Gabbay, D., and Vila, L., editors (2005). Hand-

book of Temporal Reasoning in Artiﬁcial Intelligence,

volume 1 of Foundations of Artiﬁcial Intelligence Se-

ries. Elsevier Science & Technology Books.

Freksa, C. (1992). Temporal reasoning based on semi-

intervals. Artiﬁcial Intelligence, 54(1):199–227.

Grau, B. C., Horrocks, I., Kazakov, Y., and Sattler, U.

(2007). A logical framework for modularity of ontolo-

gies. In In Proc. IJCAI-2007, pages 298–304. AAAI.

Gruber, T. (1993). Towards Principles for the Design of On-

tologies Used for Knowledge Sharing. In Formal On-

tology in Conceptual Analysis and Knowledge Repre-

sentation, pages 93–104. Kluwer.

Van Harmelen, F., Lifschitz, V., and Porter, B. (2008).

Handbook of Knowledge Representation. Elsevier.

Lutz, C., Walther, D., and Wolter, F. (2007). Conserva-

tive Extensions in Expressive Description Logics. In

Veloso, M., editor, In Proc. of Twentieth International

Joint Conference on Artiﬁcial Intelligence (IJCAI’07),

pages 453–458. AAAI Press.

Milea, D., Frasincar, F., and Kaymak, U. (2008). An

OWL-Based Approach Towards Representing Time

in Web Information Systems. In In Proc. of 20th

Belgian-Dutch Conference on Artiﬁcial Intelligence,

pages 343–344.

Noy, N. and Musen, M. (2000). PROMPT: Algorithm and

Tool for Automated Ontology Merging and Align-

ment. M. P., editor, Proc. AAAI-2000, Austin, Texas.

Parent, C., Spaccapietra, S., and Zimányi, E. (2006).

Conceptual Modeling for Traditional and Spatio-

Temporal Applications: The MADS Approach.

Springer-Verlag New York, Inc., Secaucus, NJ, USA.

Santos, J. and Staab, S. (2003a). Engineering a complex

ontology with time. In 18th International Joint Con-

ference on Artiﬁcial Intelligence (IJCAI), pages 1406–

1407, Acapulco/Mexico.

Santos, J. and Staab, S. (2003b). FONTE - Factorizing

ONTology Engineering complexity. In The Second

International Conference on Knowledge Capture (K-

Cap’03), pages 146–153, Florida/USA.

Schreiber, G., Akkermans, H., Anjewierden, A., Hoog, R.,

Shadbolt, N., Van de Velde, W., and Wielinga, B.

(1999). Knowledge engineering and management,

The CommonKADS Methodology. MIT Press.

Staab, S., Erdmann, M., and Maedche, A. (2001). Engi-

neering ontologies using semantic patterns. In Proc.

IJCAI-01 Workshop on E-Business & the Intelligent

Web.

Staab, S. and Maedche, A. (2001). Knowledge portals: On-

tologies at work. AI Magazine, 22(2):63–75.

Staab, S. and Studer, R., editors (2004). Handbook on On-

tologies. Springer.

Stock, O. (1997). Spatial and Temporal Reasoning. Kluwer

Academic Publishers, Norwell, MA, USA.

Studer, R., Decker, S., Fensel, D., and Staab, S. (2004).

Knowledge Engineering and Agent Technology, vol-

ume 52, chapter Situation and Perspective of Knowl-

edge Engineering. IOS Press.

Vale, Z., Ramos, C., Faria, L., Malheiro, N., Marques,

A., and Rosado, C. (2002). Real-time inference for

knowledge-based applications in power system con-

trol centers. Journal on Systems Analysis Modelling

Simulation (SAMS), Taylor&Francis, 42:961–973.

Vila, L. and Schwalb, E. (1996). A theory of time and

temporal incidence based on instants and periods.

Proc.International Workshop on Temporal Represen-

tation and Reasoning, pages 21–28.

Vilain, M., Kautz, H., and Beek, P. (1989). Constraint

propagation algorithms: a revised report. Readings

in Qualitative Reasoning about Physical Systems.

Welty, C., Fikes, R., and Makarios, S. (2006). A reusable

ontology for ﬂuents in OWL. In In Proceedings of

FOIS, pages 226–236.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

102
