A SPEM BASED SOFTWARE PROCESS IMPROVEMENT

META-MODEL

Rodrigo Santos de Espindola and Jorge Luis Nicolas Audy

Faculty of Informatics, PUCRS, Av. Ipiranga 6681, Porto Alegre, RS, Brazil

Keywords: Software Process Improvement, Meta-model, Integration.

Abstract: Nowadays the organizations are using Software Process Improvement (SPI) reference models as the starting

point to their quality improvement initiatives. There is a consensus that by understanding and improving the

software process we could achieve the improvement of the software product as well. Several studies also

indicate the concurrent adoption of multiples SPI reference models by the organizations. The need for new

approaches to integrate those SPI reference models with each other and with the software process developed

aiming compliance with them has increased. This paper propose a SPEM based SPI meta-model as a way to

support those kinds of integration.

1 INTRODUCTION

The modern organizations are working in an

environment of rising competition. Every day new

technologies, markets and competitors emerges.

Then, the organizations are continuously looking for

solutions to improve their products and processes.

In the case of software engineering industry,

several approaches were proposed for the software

process improvement (SPI). One of those

approaches is the adoption of SPI reference models

like ISO 15504, ISO 9003, ISO 12207, CMMI and

MR-MPS. Despite the different terms used to refer

to those SPI reference models (like standards,

quality models, reference models, etc.) they are

being called in this paper by the general term of SPI

reference models in order to ease the discussion and

improve the paper readability. These SPI reference

models are important because there is a consensus

that by understanding and improving the software

process quality we could achieve the improvement

of the software product as well (Rocha, 2001),

(Sommerville, 2003), (Pressman, 2004) and

(Schulmeyer, 2008).

Several criteria can be used in order to choose

which SPI reference model is better appropriate to a

particular organization and its goals. However, there

are no impeditive of using more than one SPI

reference model in the same organization or SPI

initiative. In fact, there are several papers (Sallé,

2004), (Edgeman, 2005), (Cater-Steel, 2006),

(Mingay, 2006), (Espindola, 2009) and (Espindola,

2009b) about the concurrent adoption of multiples

SPI reference models by the organizations. Those

papers also discuss the issues emerging in this

context and the possibilities of integration of the SPI

reference models.

This paper presents an approach to integrate

different SPI reference models in a way not

disruptive with the current process engineering

practices. The goal is to create a SPI meta-model

that allows representing both the SPI reference

models and the process models developed based on

those SPI reference models. In order to do that we

propose a meta-model based on an extension of the

Software Process Engineering Meta-Model version

2.0 (SPEM) (OMG, 2007).

This paper contributes to the research in SPI field

proposing a way to raise the formalism used to

represent the SPI reference models and the

integration among them. Contributes to the industry

deploying a meta-model useful for the creation of

software process engineering tools that cover the SPI

initiatives too.

Study developed by the Research Group of the PDTI 001/2010,

financed by Dell Computers of Brazil Ltd. with resources of

Law 8.248/91.

301

Santos de Espindola R. and Luis Nicolas Audy J. (2010).

A SPEM BASED SOFTWARE PROCESS IMPROVEMENT META-MODEL.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

301-306

DOI: 10.5220/0002910503010306

 SciTePress

2 RELATED WORKS

There are several SPI reference models adopted by

the industry. The following studies are related to the

integration of quality models.

In (Pickerill, 2005) a relationship between

IDEAL (developed by SEI) and Six Sigma is

demonstrated. Using IDEAL as reference model,

this works proposes the usage of both Six Sigma

implementation methods (DMADV and DMAIC) to

develop and implement process with CMMI.

(Siviy and Hallowell, 2005) has complemented

this research, evaluating the usage of Six Sigma as a

facilitator on CMMI implementation. The

conclusions demonstrated that the implantation

process and ROI verification have been accelerated.

(Rout, Tuffley and Cahill, 2001) presents a

technical report that evaluates the compatibility

between CMMI and ISO/IEC 15504-2. As a result, a

mapping table is presented and the report states that

the ISO/IEC 15504-2 significant elements are

addressed by CMMI.

A definition of a meta-model to integrate CMMI

and ISO/IEC 15504 is presented in (Lepasaar and

Mäkinen, 2002). The meta-model was applied in

both models to identify the existing structures. That

study distinguishes from other studies by proposing

a meta-model to support integration. As stated in

(OMG, 2005), (OMG, 2006), and (OMG, 2007),

meta-models are utilized to support integration of

processes, workflows, tools, database, and

middleware’s.

3 SPEM BASED SPI

META-MODEL

In order to begin the analysis of the SPI reference

models concepts and determine which elements

should be included in the meta-model, we have

chosen the ISO/IEC 15504. The ISO/IEC 15504, as

known as Software Process Improvement and

Capability dEtermination (SPICE), defines a

reference model for software processes and process

capabilities that forms the basis for software process

assessment (ISO, 1998). Nowadays there are several

SPI reference models based on the ISO/IEC 15504

specifications. Thus, dealing with the ISO/IEC

15504 concepts makes the meta-model applicable to

all SPI reference models based on ISO/IEC 15504,

like CMMI (SEI, 2006) and MR-MPS (Softex,

2009).

Besides, in order to build up the SPI meta-model

we have used the approach proposed by (Espindola,

2009b). That method aims to develop a SPI meta-

model from the scratch. In this paper we followed a

similar method, but started from the SPEM in order

to allow a better integration between the SPI

reference model representation and the software

process representation.

In this section, the SPEM based SPI meta-model

is described in three steps. First, we describe the

meta-model architecture. Second, we describe the

packages of the SPEM extension. And third, the

meta-model elements are detailed.

In this paper, due to space reasons, we only

present the main contributions, despite the whole

meta-model includes more elements.

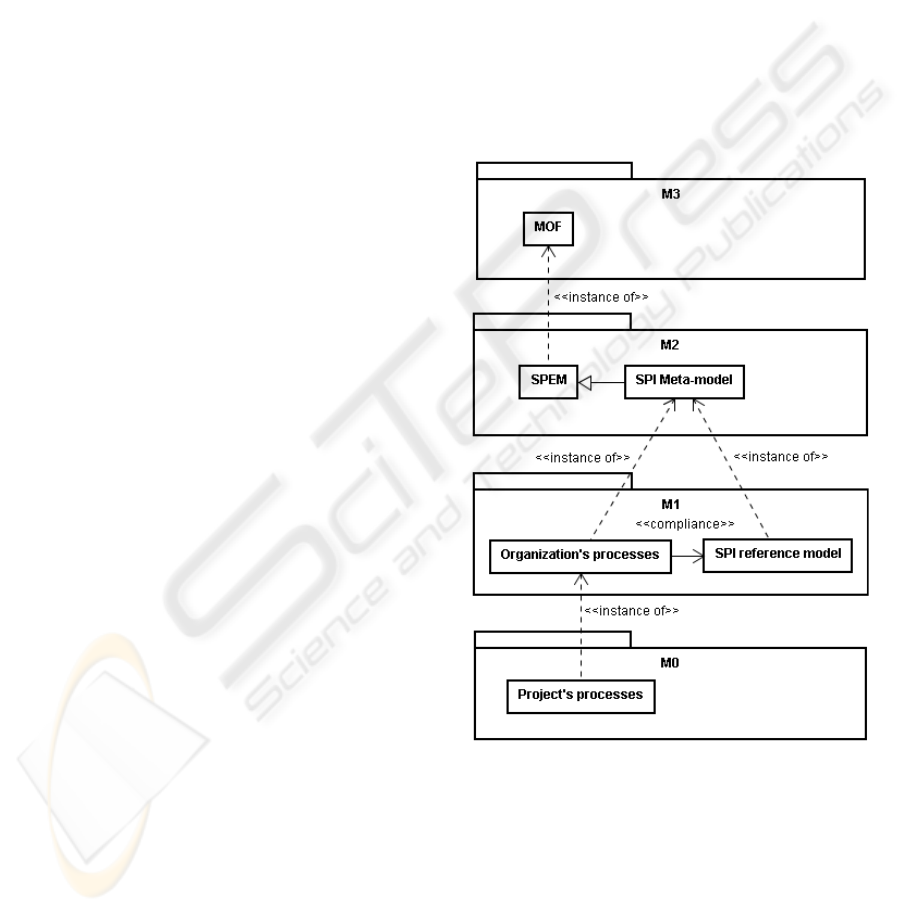

Figure 1: Proposed SPI Meta-model in the OMG

modelling architecture.

3.1 SPI Meta-model Architecture

Since the proposed SPI meta-model is a SPEM

extension, the OMG modelling architecture [(OMG,

2005), (OMG, 2007) and (OMG, 2007)] is the

natural choice for the SPI meta-model architecture

description. Figure 1 shows how the SPI meta-model

relates to SPEM and the OMG modeling

architecture.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

302

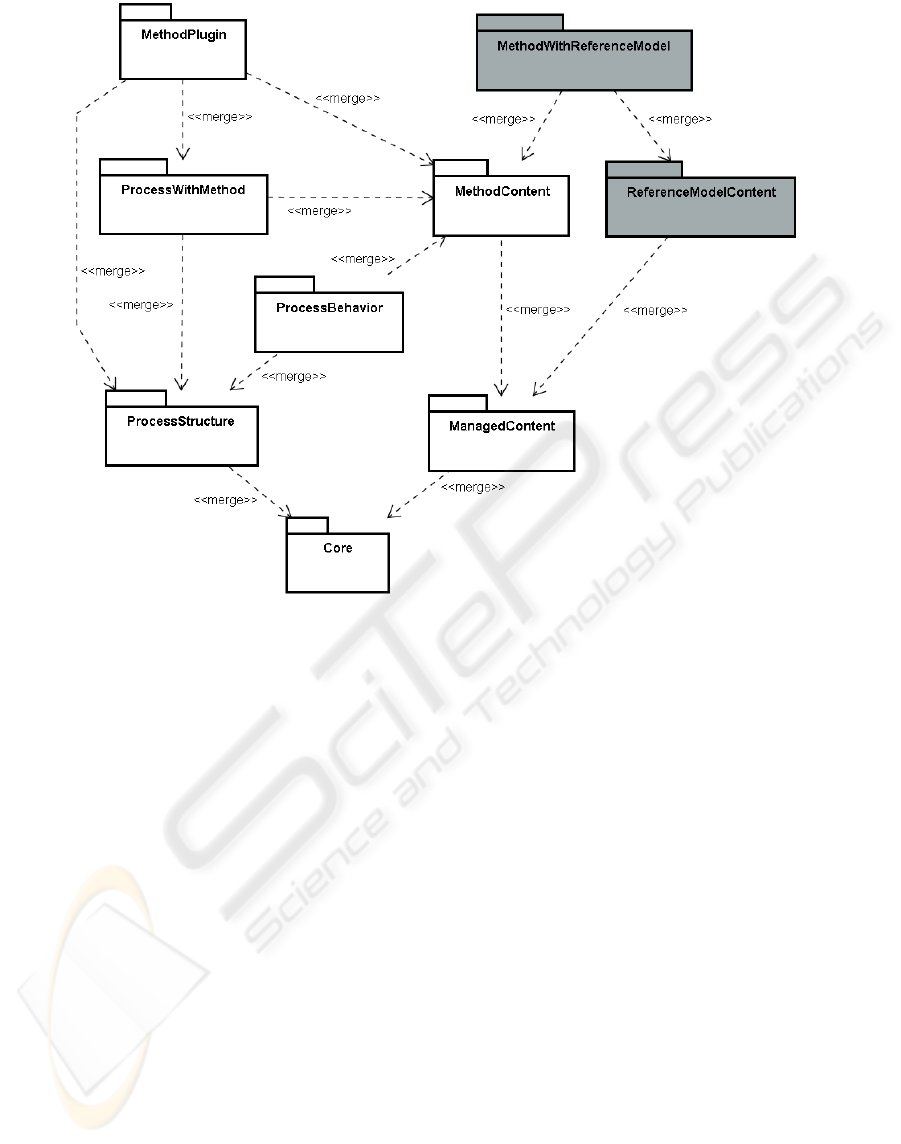

Figure 2: SPI Meta-model package diagram.

As illustrated in figure 1, the process enacted in a

specific project is in the object layer. Each project

follows his processes, since each project is a new

effort, has its own goals and has its own

characteristics. But, even being totally different

efforts, all the projects follow processes tailored

from the same organization’s standard processes.

This assumption is true at least in organizations

adopting some SPI reference model, which are in the

scope of this papers discussion. While the

organization’s standard processes define the overall

projects behavior, in several aspects it still defines

just the processes attributes and not their actual

values (e.g.: roles, artifacts and activities). Since the

project’s processes define the actual values for those

attributes (real people, real docs and real tasks), we

can characterize those project’s processes as

instances of the organization’s standard processes.

An organization engaged in an SPI program

defines its organization’s standard processes

following one or more SPI reference models and

aims for compliance between the organization’s

standard processes and the SPI reference models.

Both the organization’s standard processes and the

SPI reference models are just models. Them, cannot

be actually enacted in a real project because of their

lack of actual information about what should be

done, who should do the job and what should be the

results. In other words, they don’t define actual

values but just the attributes. In this case both the

organization’s standard processes and the SPI

reference models are in the same layer, the model

layer.

Finally, the proposed SPI Meta-model belongs to

the M2 layer, the meta-modelling layer. Nowadays,

the organization’s processes can be defined as

instances of the SPEM meta-model. But the SPI

reference models can’t be defined in the same way,

because SPEM don’t have all the appropriate

concepts. From a process engineering point of view,

that creates a gap between what we could do in

terms of defining a process and defining a SPI

reference model. Besides, using different approaches

to define processes and to define their reference

models also doesn’t help the integration between

them. Thus, we propose a SPEM based SPI meta-

model. By extending SPEM we aim to create a SPI

meta-model that could be used for both the

processes representation and the SPI reference

models representation, in an integrated way. Since

A SPEM BASED SOFTWARE PROCESS IMPROVEMENT META-MODEL

303

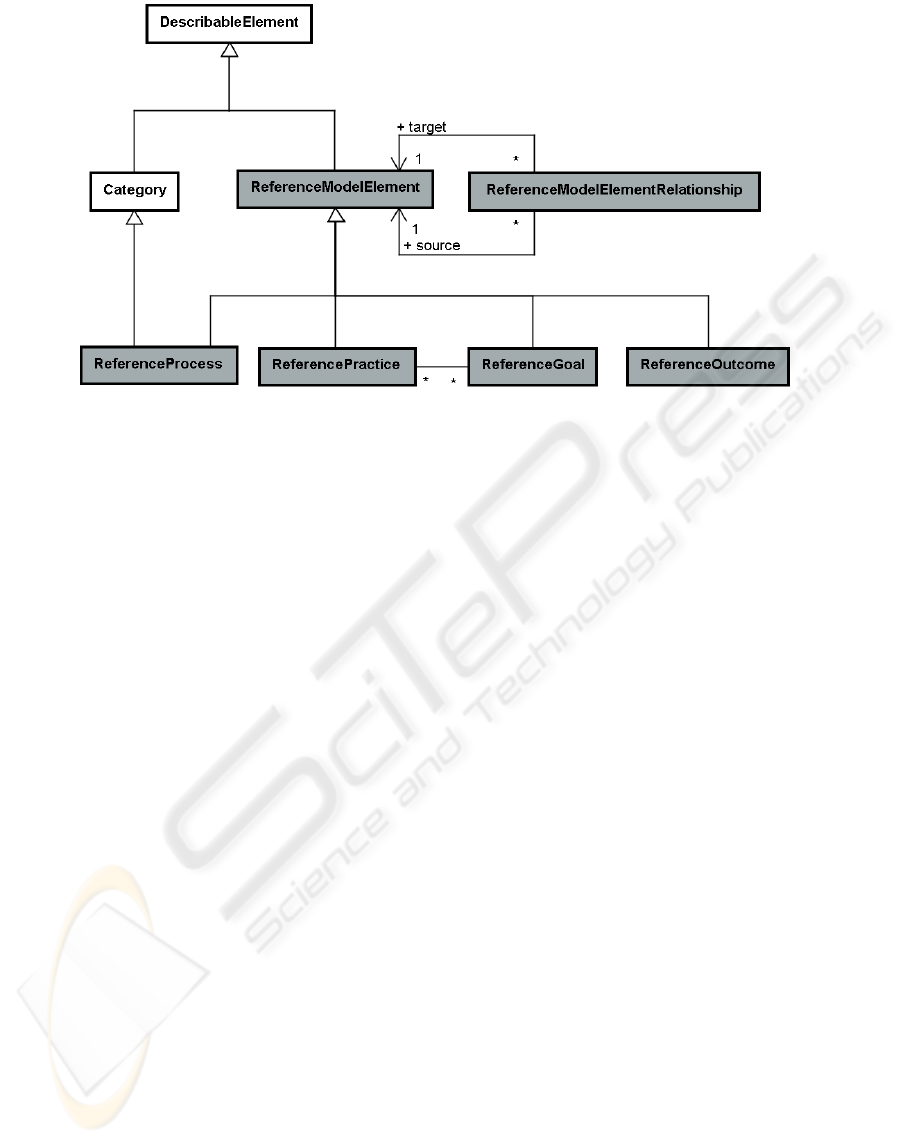

Figure 3: ReferenceModelContent class diagram.

this SPI meta-model is a SPEM extension and so

inherits all its characteristics, we can define the

processes, its reference models and the relationships

between them as instances of the same meta-model.

Of course the organization’s processes defined in

this way stay compatible with SPEM, but the new

SPI meta-model aggregates the concepts required to

deal with SPI reference models that are not present

there today.

3.2 SPI Meta-model Packages

The figure 2 shows, in a package level, the extension

done. The white packages are the original SPEM 2.0

packages. The gray packages are the packages added

in order to deal with SPI reference models concepts

and the integration between the original SPEM’s

process engineering concepts and the SPI reference

models concepts. The same coloring schema is used

in the other diagrams of this paper section.

The two packages are using the same package

merge mechanism used in the SPEM construction.

This mechanism allows to gradually build up the

meta-model providing optional building blocks.

Using this mechanism, concepts defined on a lower

layer package, from the package merge perspective,

can be extended in higher layer packages with

additional properties and relationships to realize

more complex modeling requirements (OMG, 2007).

The first package added to the SPI meta-model is

the ReferenceModelContent package. That

package introduces the concepts required to the SPI

reference models representation. The package uses

the concepts of the ManagedContent SPEM’s

package that provide the concepts required to the

textual representation and documentation of any

concept defined in the SPEM meta-model. The

ReferenceModelContent package is detailed

described in the section 4.3 of this paper.

The second package added to the SPI meta-

model is the MethodWithReferenceModel

package. That package introduces new concepts and

changes other concepts already existing in the SPEM

in order to allow the representation of the integration

between the concepts of the MethodContent SPEM’s

package and the concepts introduced in the

ReferenceModelContent package. In other words,

this package deals with the associations between the

process concepts and the reference models concepts

allowing, in this way, the meta-model users to deal

with compliance concerns. This package is detailed

described in the section 4.4 of this paper.

3.3 ReferenceModelContent Package

The ReferenceModelContent package introduces

the SPI reference models concepts. The figure 3

shows its elements.

The element used to represent the new concepts

is the DescribableElement. A DescribableElement is

an extensible element that represents an abstract

generalization for all the SPEM’s elements requiring

textual documentation. Since the concepts required

to represent a SPI reference model also need to be

textually documented, then these elements are also

extensions of the DescribableElement.

Another characteristic shared by these elements

is the need for some mechanism that allows

representing the equivalence relationship between

elements belonging to different SPI reference

models but having some degree of equivalence

between them. For example, the process area called

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

304

Figure 4: MethodWithReferenceModel class diagram.

Configuration Management is present in several

reference models, like CMMI, MR-MPS and ISO

12207. Each one of this reference models have then

a different instance of this specific ReferenceProcess

meta-class, because this process area has not exactly

the same content in each reference model, having

particular characteristics in each one. But, besides

the different characteristics, all this different

instances represent the same or at least an equivalent

concept in the modeling layer. In other words they

are all Configuration Management process even

having differences among their different reference

models. Besides, this equivalence relationship can

occurs between instances of different meta-classes.

There is no impeditive of equivalence between a

practice in one reference model and a process in

another one. Therefore, we need some way in the

meta-modelling layer to express the equivalence

between instances of concepts that have any degree

of equivalence between them in the modeling layer.

In order to do that, two elements were introduced in

this meta-model: the ReferenceModelElement and

the ReferenceModelElementRelationShip.

The ReferenceModelElement is an extensible

element that represents an abstract generalization for

all the elements used to represent SPI reference

models. In this way, all its specializations are

capable of having equivalence relationships with

other elements. The specializations are the following

elements:

• ReferenceProcess: represents a process area

used to group practices and goals;

• ReferencePractice: represents practices that

must be done in the organization in order to

achieve the goals of the process areas;

• ReferenceGoal: represents the goals and

benefits that a process adoption intends to

achieve;

• ReferenceOutcome: represents the results

expected from the adoption of a process area.

3.4 MethodWithReferenceModel

Package

The MethodWithReferenceModel package

introduces the concepts required to the integration

between the original SPEM’s process engineering

concepts and the SPI reference models concepts.

The figure 4 shows its elements.

The MethodContentElement, from the

MethodContent SPEM’s package, is an element that

represents an abstract generalization for all the

elements in the MethodContent SPEM’s package.

Those elements are used to represents the content of

a process. Being the generalization of all the

elements used to represent process contents, the

MethodContentElement is the ideal element to be

changed in order to allow that process elements

become capable of reference the SPI reference

model’s elements with which they aims for

compliance. This change is done by adding a

relationship between the MethodContentElement and

a new element called ReferenceModelElementUse.

The ReferenceModelElementUse is a abstract

generalization of all elements which a

MethodContentElement extensions can use to

reference any SPI reference model concept. Its

specializations are:

• ReferenceOutcomeUse;

• ReferenceProcessUse;

• ReferencePracticeUse;

• ReferenceGoalUse.

Which one of those specializations aims to

reference a specific element from the

ReferenceModelContent package. A

A SPEM BASED SOFTWARE PROCESS IMPROVEMENT META-MODEL

305

ReferenceProcessUse is intended to reference

ReferenceProcess and so long.

This strategy allows, for example, that an

instance of a process called “Project Management”

can be associated to an instance of a process area

called “Project Management” of some SPI reference

model through the use of an instance of the meta-

class ReferenceProcessUse. In this way it would be

represented the compliance goal of that process.

4 CONCLUSIONS

The diversity of SPI reference models being used by

the organizations creates new challenges related to

the concurrent adoption of them and their

integration. This paper reports a result of a research

aiming the development of approaches and tools to

deal with SPI reference models integration.

From a theoretical point of view, this paper

contributes with the software engineering and with

the process engineering through a proposal of a

meta-model to represent SPI reference models

allowing their integration. It also contributes to those

research fields through rising the formalism used to

represent the SPI reference models.

From a practice point of view, this paper

contributes to the software industry through a

proposal of a meta-model that could support the

development of new process engineering tools

capable of support the reuse of process assets

developed aiming compliance with multiples SPI

reference models concurrently.

As future works, the author intends to develop a

process engineering tool based on the meta-model

and use that tool to support an experiment to validate

the meta-model.

REFERENCES

Cater-Steel, A.; Tan, W. G.; Toleman, M. Challenge of

Adopting Multiple Process Improvement Frameworks.

Proceedings of the 14th European Conference on

Information Systems, 2006.

SEI - Software Engineering Institute. “CMMI for

Development, Version 1.2”. Carnegie Mellon

University, 2006.

Edgeman, R.L.; Bigio, D.; Ferleman, T. Six Sigma and

Business Excellence: Strategic and Tactical

Examination of IT Service Level Management at the

Office of the Chief Technology Officer of

Washington, DC. Quality and Reliability Engineering

International, vol. 21, 2005.

Espindola, R. S.; Luciano, E. M. ; Audy, J. L. N. An

Overview of the Adoption of IT Governance Models

and Software Process Quality Instruments at Brazil -

Preliminary Results of a Survey. 2009, Proceedings of

the Forty-Second Annual Hawaii International

Conference on System Sciences. Los Alamitos : IEEE

Computer Society, 2009.

Espindola, R. S.; Audy, J. L. N. An Evolutionay Approach

for Quality Models Integration. In: ICEIS 2009 -

International Conference on Enterprise Information

Systems, Milan. Proceedings of ICEIS, 2009.

ISO - International Standard Organization. “ISO/IEC TR

15504-2:1998 Information technology — Software

process assessment — Part 2: A reference model for

processes and process capability”.

Lepasaar, M., Mäkinen, T, 2002. “Integrating Software

Process Assessment Models using a Process Meta

Model”. IEMC '02 - IEEE International Engineering

Management Conference, Vol 1, pp 224-229.

Mingay, S.; Bittinger, S. Combine CobiT and ITIL for

Powerful Governance. Gartner Inc, 2006.

OMG - Object Management Group. “Meta Object Facility

(MOF) Core Specification”. 2006. On-line at

http://www.omg.org/mof/ .

OMG - Object Management Group. “Software Process

Engineering Metamodel version 2.0”. 2007. On-line at

http://www.omg.org/spem/ .

OMG - Object Management Group. “Unified Modeling

Language: Superstructure”. 2007. On-line at

http://www.omg.org/uml/ .

Pickerill, J., 2005. “Implementing the CMMI in a Six

Sigma World”. Software Engineering Institute -

Carnegie Mellon University. http://www.sei.cmu.edu/

cmmi/adoption/pdf/pickerill.pdf

Pressman, Roger S. “Software Engineering: a

practitioner’s approach”. New York: McGraw Hill, 6th

ed., 880p.

Rocha, Ana R. C.; Maldonado, José; Weber, Kival.

Qualidade de Software - Teoria e Prática. São Paulo,

Prentice Hall, 2001, 303pp.

Rout, T. P., Tuffley, A., Cahill, B, 2001. “Capability

Maturity Model Integration Mapping to ISO/IEC TR

15504-2:19998”. Software Quality Institute - Griffith

University – Austrália. http://www.sqi.gu.edu.au/

cmmi/report/docs/MappingReport.pdf

Sallé, M. IT Service Management and IT Governance:

review, comparative analysis and their impact on

utility computing: Hewlett-Packard Company, 2004.

Siviy, J., M., Hallowell, D., 2005. “Bridging the Gap

Between CMMI and Six Sigma Training: An overview

and Case Study of Performance-Driven Process

analysis”. Software Engineering Institute - Carnegie

Mellon University. http://www.sei.cmu.edu/cmmi/

adoption/comparisons.html.

Schulmeyer, G. Gordon. "Handbook of Software Quality

Assurance". Norwood, MA: Artech House, INC, 4th

ed., 485pp, 2008.

SOFTEX. “MPS.BR - Melhoria de Processo do Software

Brasileiro – Guia Geral”. 2009. On-line at

http://www.softex.br/mpsbr/ .

Sommerville, Ian. “Engenharia de Software”. São Paulo,

Addison Wesley, 2003, 592 pp.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

306
