A REQUIREMENTS METAMODEL FOR RICH INTERNET

APPLICATIONS

Esteban Robles Luna

LIFIA, Universidad Nacional de La Plata, La Plata, Argentina

María José Escalona

ETS Ingeniería Informática, University of Seville, Reina Mercedes S/N, Seville, Spain

Gustavo Rossi

LIFIA, Universidad Nacional de La Plata, Argentina and Conicet, La Plata, Argentina

Keywords: Rich Internet Applications, Web Engineering, Web Requirements.

Abstract: The evolution of the Web has motivated the development of several Web design approaches to support the

systematic building of Web software. Together with the constant technological advances, these methods

must be constantly improved to deal with a myriad of new feasible application features. In this paper we fo-

cus on the field of Rich Internet Applications (RIA); specifically we aim to offer a solution for the treatment

of Web Requirements in RIA development. For this aim we present WebRE+, a requirements metamodel

which incorporates RIA features into the modelling repertoire. We illustrate our ideas with a meaningful ex-

ample of a business intelligence application.

1 INTRODUCTION

It is widely known that the Web is constantly

evolving. In this evolution, Rich Internet Applica-

tions (RIA) (Duhl, 2003) represent a major break-

through, as they allow combining the typical navi-

gation flavour of the Web with the interface fea-

tures of desktop applications. These applications

allow reducing the communication between clients

and servers since pages (differently from the

“navigational” Web) do not need be fully reloaded

with each user interaction. The emergence of a

well-known set of RIA patterns (Yahoo Patterns)

has additionally defined a small, though complete,

vocabulary for expressing desired interaction func-

tionalities in a software system. It is now common

saying: “this should be an auto-complete field” or,

“we can use hover details for showing this infor-

mation”. Not surprisingly applications stakeholders

also use this vocabulary as part of their require-

ments for a new application.

However, though most Web design methods

have been already extended to cover the scope

of RIA (Meliá, et. al. 2008, Preciado et. al. 2007,

Urbieta et.al. 2007), there is still an important gap

in requirement specification of RIA functionality,

since requirement specification and modelling

languages do not include suitable primitives for

expressing this kind of requirements. In this way,

checking whether a requirement has been fully

implemented becomes a subjective matter, and it is

not possible to automate this process (e.g. by

automatically generating tests from requirement

specifications).

In this paper we analyze the new kind of re-

quirements that occur in RIA, and how we can

extend an existing approach to specify the behav-

iour of this kind of applications in a Model-Driven

Web Engineering style (Moreno et. al 2007). Spe-

cifically, we use an enhanced version of the We-

bRE metamodel (Escalona & Koch, 2006) to spec-

ify RIA requirements.

The paper has two aims:

• We introduce a metamodel for supporting

RIA requirements. The metamodel is im-

Robles Luna E., Escalona M. and Rossi G. (2010).

A REQUIREMENTS METAMODEL FOR RICH INTERNET APPLICATIONS.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 14-21

DOI: 10.5220/0002916800140021

 SciTePress

plemented in a suitable UML profile to

support reuse.

• We show how to derive a set of interaction

tests from WebRE+ models to validate the

RIA functionality.

The paper is structured as follows: Section 2

presents related works in Web requirements,

Model-Driven Web Engineering and RIA. In Sec-

tion 3, the extension of WebRE for RIA, its UML

profile and its implementation in Enterprise Archi-

tect (Enterprise Architect) are presented. Section 4

presents how tests are derived from WebRE+

models. Section 5 shows a case of study with an

example in the Business Intelligence area. Finally

we present the conclusions and future research

work in this project.

2 RELATED WORKS

The research of this paper is related with research

in two different areas: the specification of Web

Requirements in the context of Model Driven En-

gineering (MDE) and RIA. We analyze both areas

in separate sub-sections.

2.1 Web Requirements Engineering

and MDE

Web engineering is nowadays an important field in

software engineering (Desphande et al. 2002).

However there is an important gap in the treatment

of requirements. In the first design approaches,

OOHDM (Object-Oriented Hypermedia Design

Model) (Rossi & Schwabe 2008), WebML (Web

Modeling Language) (Ceri et al. 2000) or UWE

(UML Web Engineering) (Koch 2008) the main

focus was put on modelling and design issues,

while the requirements phase was almost neglected

as reported in (Escalona et. al 2007).

The importance of a full-fledge requirements

phase is nowadays common in Web methodologies

like NDT (Navigational Development Techniques)

(Escalona & Aragon 2008) or OOWS (Fons et al.

2003). Additionally, some of the previous ap-

proaches started to include their own formalisms

for requirement specification. For instance,

OOHDM was enriched with UIDs (User Interface

Diagrams) (Vilain et al. 2000) or WebML with

business models (Brambilla et al. 2009).

Other relevant problem in the requirements

specification stage is the lack of standards and

therefore the proliferation of proprietary notations;

each approach tends to offer its own notation. To

make matters worse similar formalisms are used in

different approaches with slightly different seman-

tics, or several names are used for the same con-

cept.

In order to solve this problem, some authors

have used the concepts in MDE (Atkinson &

Kühne 2003). In this development approach, build-

ing models is the main activity, and software is

built by a series of model transformations ending,

eventually, in a running application. Models are

built using instances of concepts and relationships

which are formally described by metamodels.

In (Escalona & Koch 2006) the authors present

WebRE, a metamodel which defines a set of con-

cepts to deal with requirements in Web Engineer-

ing. WebRE covers each artefact included in most

methodologies such as UWE requirements, UIDs

of OOHDM, W2000 extended use cases and re-

quirements in NDT.

WebRE abstracts the concepts and terminology

used in each approach and defines a common rep-

resentation using shared requirements metamodel;

in this way WebRE allows engineers to work on a

“unified” vocabulary of requirement artefacts in-

stead of using proprietary notations, since as

shown in (Koch et al. 2006) these requirements

artefacts can be translated into analysis models

using model transformations.

In summary, MDE offers a suitable solution for

Web requirements for several reasons:

1. It mainly focuses on concepts; the way to

represent them is a secondary aspect. It

offers a systematic way to translate re-

quirements knowledge into the next

phases in the development life cycle.

2. Additionally, as some relations are de-

fined between requirements and analysis

concepts, it can control the traceability

and the coverage of requirements.

3. Finally, if an UML profile is defined for

the requirements metamodel (as it is in

WebRE), software support tools for mod-

elling activities can be built in a cheap

way.

2.2 Rich Internet Applications

The Web as it was originally conceived has dra-

matically changed since 2003 when the concept of

Rich Internet Applications (RIA) appeared. This

new kind of Web applications mixes the old navi-

gation style of Web Applications with the behav-

iour of traditional desktop applications: client side

feedback, drag and drop features, etc. Since then,

A REQUIREMENTS METAMODEL FOR RICH INTERNET APPLICATIONS

almost any desktop application has a Web counter-

part, allowing users to take advantage of automatic

updates since no instalment is necessary at the

client side. Some examples of Web applications

with RIA behaviour are Google Maps (Google

Maps), GMail and Google calendar (Gmail),

Meebo (Meebo), etc.

As developers faced the same problems repeat-

edly and found good solutions using the concepts

in RIA, some patterns arose. As in the design pat-

terns field, different catalogues showing RIA solu-

tions to abstract problems have been described;

one of the most popular catalogues is the so called

Yahoo Patterns catalogue (Yahoo Patterns). In

contrast with software design patterns, RIA pat-

terns are near to the stakeholder’s perspective thus

they use patterns’ names when they describe spe-

cific RIA requirements. ADV-charts (Urbieta et.al.

2007) were proposed as a modelling approach to

design the structural and behavioural of user inter-

face (UI) elements of RIA applications. However

their level of abstraction (close to implementation)

is inadequate to be used during requirements speci-

fication.

In the following sections we describe how we

extended WebRE to include RIA artefacts and how

we derive tests from requirements.

3 A REQUIREMENTS

METAMODEL FOR RIA

Expressing RIA behaviour and especially RIA

patterns in requirements using a metamodel have

many benefits such as:

• Making possible to develop the application eas-

ier by automatically deriving concrete software

artefacts,

• Allowing the generation of tests to automati-

cally validate the requirements

• Supporting requirements evolution and

• Improving traceability between requirements

and the implementation.

In the following subsections we briefly present

WebRE, its RIA extension and the corresponding

UML profile.

3.1 WebRE

WebRE is a metamodel that includes modelling

artefacts to deal with requirements in Web applica-

tions; it uses the power of metamodelling to fuse

different approaches. WebRE was born from the

exhaustive analysis of different Web engineering

proposals that deal with requirements. It unifies the

criteria of these proposals and defines a unified

metamodel for the CIM (Computer Independent

Model) level. It provides a base to decide which

concepts or elements must be captured and defined

in the requirements phase of Web applications. The

metamodel defines each of these concepts and the

relationships between them.

With this unification, WebRE overcomes an

important gap: with the use of a common meta-

model, it abstracts from the multiple notations used

in each approach. Each artefact defined in WebRE

can be mapped to an artefact in each different

approach. Besides, WebRE also comprises an

UML Profile with a concrete syntax to represent

each concept. Thus, a development team can spec-

ify an application’s requirements using the WebRE

profile, and later (when necessary) map them to

concrete model elements to continue with the se-

lected methodology (NDT, UWE, W2000 or

OOHDM). Additionally, it would be possible to

systematically derive the corresponding navigation

models from requirements expressed in WebRE

using suitable transformations.

As a summary, WebRE provides a suitable en-

vironment for Web software development allowing

the specification of navigation requirements of a

Web application. However, WebRE was originally

conceived for Web 1.0 applications and therefore it

does not support specification of RIA behaviours.

The extension proposed in this paper allows the

systematic generation of models for Web 2.0 ap-

plications and the generation of tests to validate the

RIA functionality (Section 4). In the following

sub-section we show how we enriched the WebRE

metamodel with new metaclasses and meta-

associations in order to provide an approach that

covers both: Web 1.0 and Web 2.0 requirements.

3.2 WebRE+

RIA has particular features like sophisticated inter-

active behaviour, client-side feedback of “slow”

operations and different kinds of client-side behav-

iour depending on the occurrence of events, among

others. An example of the last feature is shown in

Figure 1. The line graph shows information about

the progress of the business across the time. As a

consequence of how progress is measure (it re-

quires certain calculations) we only show the final

computed value in the graph. The details of how

those values were computed are shown only when

the user shows interested in it (e.g. when the user

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

puts its mouse over an item). This solution is well

known as a hover detail pattern in the Yahoo Pat-

terns catalogue. This kind of RIA behaviour im-

proves applications usability without polluting the

user interface with lots of information, which could

be unnecessary at first sight. To provide a precisely

specification of this kind of requirement we need

to deal with concepts such as events, UI elements

like buttons, textfields, etc. For this reason we

extended the WebRE metamodel with these con-

cepts as shown in figure 2.

Figure 1: Hover detail pattern on a line graph.

In WebRE+ the original packages, structure and

behaviour, were kept to preserve the mapping

between the concepts present in WebRE+ and its

ancestors.

The structure package includes each concept to

deal with the conceptual aspect of web require-

ments. Since RIA applications mainly deal with

client side behaviour, we add the UIElement meta-

class. Instances of this metaclass are: buttons,

textfields, images, checkboxes, etc. To support RIA

we extended the metamodel with two new meta-

classes: RIASpecification, which represents a defi-

nition of a set of scenarios that a RIA behaviour

must satisfy and RIAScenarioSpecification, which

describes any RIASpecification in a concrete sce-

nario. For example, in the hover detail feature (a

RIASpecification instance), we must specify two

different scenarios (RIAScenarioSpecification

instances):

• Hover detail appears: When the user puts the

mouse over an item then a UIElement must ap-

pear after 2 seconds. This UIElement must con-

tain a name and a description of the item.

• Hover detail disappears: When the user moves

the mouse out of the item then the UIElement

with the details of the item must not be shown.

The behaviour package includes metaclasses to

represent user’s interaction and navigation. We

extended the package with the Event metaclass

which is important to specify different situations

such as: when the user puts the mouse over an

item, when the user types something on a field, etc.

In this case, we differentiate between to different

subclasses: those events which are originated with

the keyboard (KeyboardEvent) and those which are

originated with the mouse (MouseEvent). Also, we

include a new metaclass UIAction which captures

the actions that the user can perform over an ele-

ment in the UI of the application (relationship

between UIAction and UIElement). Instances of

UIAction are “click”, “type keys”, and execution of

one of the actions may produce many events, e.g.

when typing a key on a user interface element

three events are fired onpressdown, onpresskey and

onpressup.

In the following subsection we describe our

implementation of the UML profile in the Enter-

prise Architect environment.

class WebRE+

WebRE Behav iour

WebRE Structure

WebUs er

Nav igation

WebProcess

Action

UIAction

UserTransaction

Brow ser

Ev ent

MouseEv e nt

KeyboardEv ent

Node

Content

WebUI

UIElement

RIASpecification

RIAScenarioSpecification

0..*

+parameter

1..*

+transaction

1..*

0..*

+subject

+scenario

1..*

+source

1..*

+target

+event

1..*

1..* 1..*

1..*

+page

1..*

+location

0..*

1..*

+action

Figure 2: WebRE+ metamodel.

3.3 A UML Profile for WebRE+

In order to provide editing support for our

approach, we developed an UML profile for We-

bRE+, and implemented it using the Enterprise

Architect tool. The use of UML profiles to provide

A REQUIREMENTS METAMODEL FOR RICH INTERNET APPLICATIONS

class WebRE profile

«metaclass»

Actor

WebUser

«metaclass»

Class

+ isActive: Boolean

Nav igation

«metaclass»

Activ ity

+ isReadOnly: Boolean = false

+ isSingleExecution: Boolean

+ parameterName: string

+ postcondition: string

+ precondition: string

WebProcess

«metaclass»

UseCase

Brow se

UserTransaction

Node

Content

WebUI

Action

UIAction

«metaclass»

Event

MouseEv ent

KeyboardEv ent

RIASpecification

RIAScenarioSpecification

UIElement

«extends»

Figure 3: WebRE+ profile.

tool supports is being used as a solution in some

Web design approaches like UWE with

MagicUWE (MagicUWE) or NDT with NDT-

Profile (NDT-Profile).

In figure 3 we present the profile for WebRE+.

As WebRE has its own profile, we only show our

extension; that is, the metaclasses we have added

to create WebRE+.

Each metaclass of WebRE extends an UML

metaclass. Thus, we map our artefacts onto UML

ones and define for them a set of characteristic that

we could, even, improve with specific tag values or

constraints.

In figure 4, we show an example work screen

of WebRE+ in Enterprise Architect.

On the left, we can see a special toolbox for

creating instances of the metaclasses. The user can

select each WebRE+ artefact to deal with it in his

diagrams. In figure 4, a WebUser instance (We-

bUserExample) and a RIASpecification instance

(RIASpecification) example is presented. As RI-

ASpecification is defined as an extension of the

UseCase metaclass, it could be related with a User,

like WebUserExample.

4 TEST DERIVATION

Requirements validation is usually a hard and time

consuming task which is performed by a quality

assurance team after the application has been im-

plemented. Generally, it is done manually (because

requirements are captured using informal docu

ments such as Use Cases or User Stories), by creat-

ing a set of tests that validate the requirements. The

tests are run and if they pass, then the application

can be deployed to production.

Using the formal definition that WebRE+ pro-

vides, we can use the requirement specification to

derive these tests automatically thus reducing the

time spent on the process and bridging the gap

between requirements and tests. The process trans-

forms a WebRE+-based model into a test model

(Figure 5) that is independent of the platform. The

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

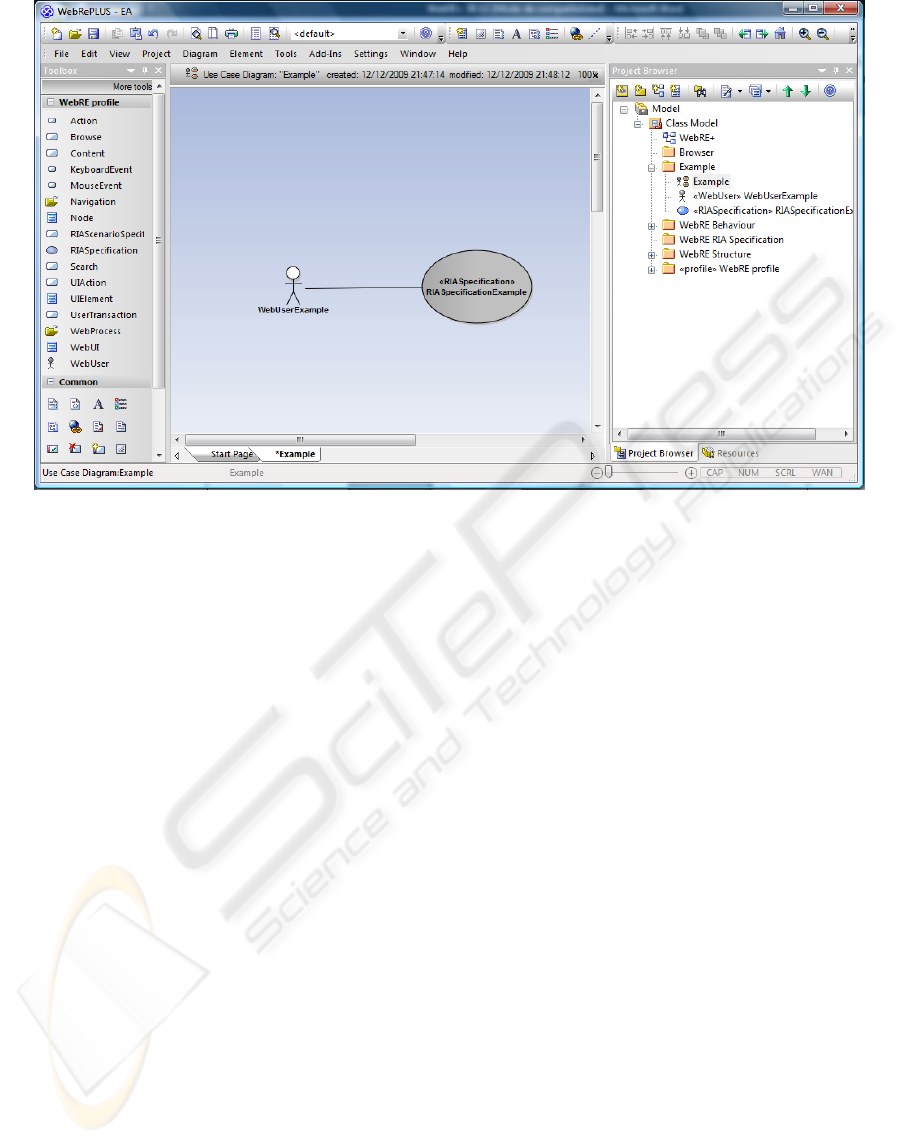

Figure 4: The WebRE+ profile in Enterprise Architect.

transformation process follows these steps:

1. For each RIASpecification:

a. Create a test suite.

b. For each RIAScenarioSpecification:

i. Create a test.

ii. Add the actions of the scenario in the test.

iii. Add an assertion for the post condition of

the scenario.

The test model is then transformed into a con-

crete test implementation. So far, we have use

Selenium (Selenium) for this purpose, although we

could use a different framework such us Watir

(Watir). We have chosen Selenium because it is

one of the most popular testing frameworks that

simulate user input and it is widely used in indus-

trial settings. Also, a selenium test could be written

in almost any programming language and run on a

selenium server whereas Watir depends on Ruby.

In the following section we illustrate the use of

the metamodel with a specific RIA requirement in

the context of a Business Intelligence application

showing how we specify it using WebRE+ and

how tests are derived to Selenium.

5 A CASE OF STUDY

The business intelligence area is an example of

how to use RIA to improve the user experience.

For example, Pentaho BI suite (Pentaho) uses the

Web environment to show data and allows users to

execute queries to the data warehouse. A line

graph that shows the progress of the business (Fig-

ure 1) could provide details about each value

shown using the hover detail pattern.

Let’s suppose that we are developing a Busi-

ness Intelligence Web application for a company

whose core business is organizing campaigns for

different customers and providing summary reports

to them. To improve the usability of the summary

report which contains the line graph of Figure 1,

we would like to add hover details to the items to

show how those values are computed. For exam-

ple, on a particular day there have been 3245 clicks

and 15687 impressions so the CPC (Cost per click)

is 0.34.

As on every RIA pattern, there are some features

that can be configured and should be specified

during the requirement elicitation phase. A simpli-

fied instance model of the WebRE+ specification

for this requirement is shown in figure 6. The

model shows that when the item receives an on-

mouseover event, a detail of the item must be

shown in the page in less than 2 seconds. This

widget must contain a label with the money used in

the campaign and the number of clicks.

A REQUIREMENTS METAMODEL FOR RICH INTERNET APPLICATIONS

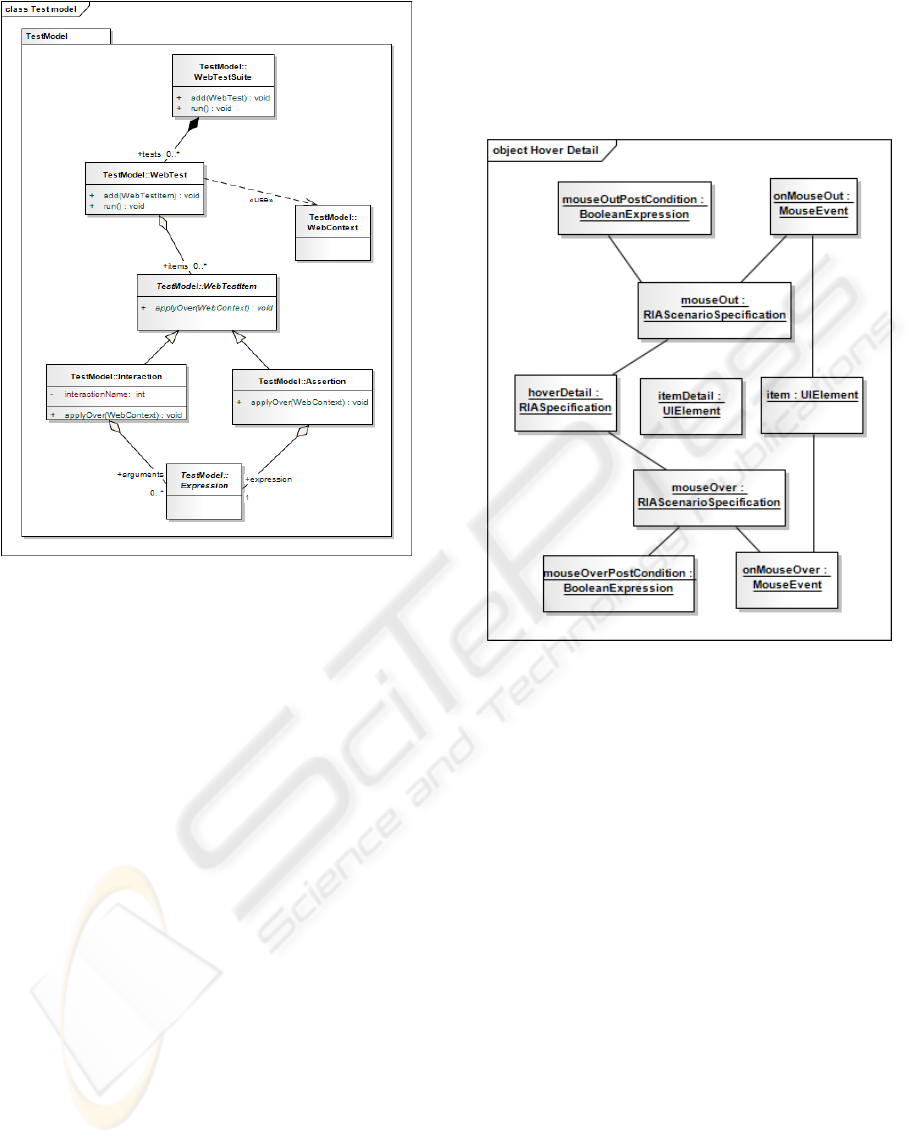

Figure 5: Test model.

The WebRE+ instantiation describes the possible

scenarios that the RIA behaviour must satisfy.

Using the transformation explained in Section 4 we

transform this model into an instantiation of the

test metamodel and then we derive the test suite to

the Selenium framework. The derived tests are

shown next:

Test 1

(01) s.open(reportURL);

(02) s.mouseOver("id=item1");

(03) Thread.sleep(1000);

(04) assertTrue(s.isElePresent("id=d1"));

Test 2

(01) s.open(reportURL);

(02) s.mouseOver("id=item1");

(03) Thread.sleep(1000);

(04) s.mouseOut("id=item1");

(05) Thread.sleep(1000);

(06) assertFalse(s.isElePresent("id=d1"));

The test suite contains 2 tests, one for each sce-

nario described in the WebRE+ model of figure 6.

The first test opens the report (line 1), passes the

mouse over the item (2) and waits till the item

detail is shown (3), then the assertion verifies that

the detail is present (4). The second test opens the

report (1), passes the mouse over the item (2) and

waits till the item detail is shown (3). Then the

mouse is put out off the item and waits (4 and 5)

and the assertion verifies that the detail is not pre-

sent (6).

Figure 6. Hover detail’s specification in WebRE+.

6 CONCLUSIONS AND FUTURE

WORKS

In this paper we presented a metamodel for captur-

ing RIA requirements. The metamodel allows us to

express different well known RIA patterns such as

those in the Yahoo patterns catalogue. The meta-

model has been implemented as a UML profile and

used within the EA environment to capture differ-

ent RIA requirements in the context of a business

intelligence application.

We still need some further work on some of the

motivations of using metamodels to capture RIA

requirements. In this matter we are working on

deriving part of the RIA functionality using well

known Javascript libraries such us YUI or ExtJS.

Finally, because of this kind of requirements not

only affect the UI part but also the software

backend, we are trying to indicate which part of the

functionality could not be implemented automati-

cally and thus needs manual intervention from

developers.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

ACKNOWLEDGEMENTS

This research has been supported by the project

QSimTest (TIN2007-67843-C06 03)

REFERENCES

Atkinson, C., Kühne, T. 2003. Model-Driven Develop-

ment: A Metamodeling Foundation. IEEE Software,

20(5), pp. 36-41.

Brambilla, M., Fraternali, P., Tisi, M. A Transformation

Framework to Bridge Domain Specific Languages to

MDEA. 4th Workshop on Model-Driven web Engi-

neering. LNCS 5421. France, 2009. pp. 167-181.

Ceri, S. Fraternali, P. Bongio, A. 2000. Web Modelling

Language (WebML): A Modelling Language for De-

signing web Sites. Conference WWW9/Computer

Networks, 33(1-6), pp. 137-157.

Deshpande, Y., Marugesa, S., Ginige, A., Hanse, S.,

Schawabe, D., Gaedke, M., White, B. 2002. Web

Engineering. Journal of web Engineering, 1(1), pp.

3-17.

Duhl, J. Rich Internet Applications. A white paper spon-

sored by Macromedia and Intel, IDC Report, 2003

Enterprise Architect. www.sparxsystems.com.au

Escalona, M.J., Torres, J., Mejías, M., Gutierrez, J.J.,

Villadiego, D. 2007. The treatment of navigation in

web Engineering. Advances in Engineering Soft-

ware. Vol. 38. pp.267-282.

Escalona, M.J., Aragon, G. 2008. NDT. A Model-Driven

approach for web requirements. IEEE Transaction

on Software Engineering, 34(3), pp. 370-390.

Escalona, M.J., Koch, N. 2007. Metamodelling the

requirements of Web Systems. Web Information

Systems and Technologies. Int. Conferences WE-

BIST 2005 and WEBIST 2006. Revised Selected

Papers. LNBIP, Vol. 1, Springer, pp. 267-280.

Fons, J., Pelechano, V. Albert, M., Pastor, O. 2003.

Development of Web Applications from Web En-

hanced Conceptual Schemas. Conference on Con-

ceptual Modeling LNCS, 2813, pp. 232-245.

Springer Verlag.

Google Adwords. http://adwords.google.com. Last visit:

12/09.

Google Maps. http://maps.google.com. Last visit: 12/09

Gmail. http://www.gmail.com. Last visit: Dec 2009.

Jacobson I., Object-Oriented Software Engineering: A

Use Case Driven Approach, ACM Press/Addison-

Wesley, 1992.

Jeffries R, Andersen A., Hendrickson C., Extreme Pro-

gramming Installed, Addison-Wesley, 2000

Koch, N. , Knapp, A., Zhang, G. 2008. UML-Based

Web Engineering. In Web Engineering: Modelling

and Implementing Web Applications, Springer. 157-

191.

Koch, N., Zhang, G., Escalona, M.J. 2006. Model Trans-

formations from Requirements to Web System De-

sign. ACM International Conference Proceeding Se-

ries. Proceedings of the 6th international conference

on Web Engineering (ICWE 2006). ISBN: 1-59593-

352-2. Ed. ACM. pp. 281-288. Palo Alto. California.

USA.

MagicUWE. http://uwe.pst.ifi.lmu.de/toolMagic

UWE.html.Last visit: 05/10.

Meebo. http://www.meebo.com. Last visit: Dec 2009.

Meliá, S., Gómez, J., Pérez, S., and Díaz, O. 2008. A

Model-Driven Development for GWT-Based Rich

Internet Applications with OOH4RIA. In Proceed-

ings of the 2008 Eighth international Conference on

Web Engineering (July 14 - 18, 2008). International

Conference On Web Engineering. IEEE Computer

Society, Washington, DC, 13-23.

Moreno, M., Romero, J.R., Vallecillo, A. 2007. An

overview of Model-Driven web Engineering and the

MDA. Web Engineering and web Applications De-

sign Methods. Vol. 12. Human-Computer Interaction

Series. Chapter 12. Springer.

NDT-Profile. http://www.iwt2.org/ndt. Last visit: 05/10.

Pentaho. http://www.pentaho.com. Last visit: 12/09.

Preciado, J. C., Linaje, M., Comai, S., and Sanchez-

Figueroa, F. 2007. Designing Rich Internet Applica-

tions with Web Engineering Methodologies. In Pro-

ceedings of the 2007 9th IEEE international Work-

shop on Web Site Evolution (October 05 - 06, 2007).

WSE. IEEE Computer Society, Washington, DC, 23-

30.

Rossi, G., Schwabe, D. 2008. Modeling and implement-

ing Web Applications with OOHDM. In Web Engi-

neering: Modelling and Implementing Web Applica-

tions, Springer.

Selenium. http://seleniumhq.org Last visit: 12/09..

Urbieta, M., Rossi, G, Ginzburg J., Schwabe D.: Design-

ing the Interface of Rich Internet Applications. LA-

WEB 2007: 144-153

Vilain, P., Schwabe, D., Siechenius, C. 2002. A dia-

grammatic Tool for Representing User Interaction in

UML. UML’2000. pp. 133-147. England.

Watir. http://watir.com/ Last visit: 12/09.

Yahoo Patterns, http://developer.yahoo.com/ypatterns/.

Last visit: 12/09.

YieldManager. https://www.yieldmanager.com/. Last

visit: Dec 2009.

A REQUIREMENTS METAMODEL FOR RICH INTERNET APPLICATIONS
