ABSOLUTE SCALES TO EXPRESS STAKEHOLDER VALUE

FOR IMPROVING SUPPORT FOR PRIORITIZATION

Lindsey Brodie and Mark Woodman

School of Engineering and Information Sciences, Middlesex University, Hendon, London, U.K.

Keywords: Stakeholder Value, Impact Estimation, Requirements Prioritization, Design Prioritization, Metrics,

Value-based Software Engineering.

Abstract: Given the reality of resource constraints, software development always involves prioritization to establish

what to implement. Iterative and incremental development methods increase the amount of prioritization

required and introduce the need to support dynamic prioritization to identify high stakeholder value. Ideally

the needs of all the stakeholders are considered in the priority decision-making and there might be

negotiation amongst them. In this paper we argue that the current prioritization methods often lack adequate

support for the prioritization process. Specifically that many methods fail to appropriately structure the data

for stakeholder value, which results in explicit stakeholder value not being captured. This problem is often

compounded by a lack of support for handling multiple stakeholder viewpoints. We propose an extension to

an existing prioritization method, impact estimation, to move towards better capture of explicit stakeholder

value and catering for multiple stakeholders. A key feature is the use of absolute scale data for stakeholder

value. We use a small industry case study to evaluate this new approach. Our findings argue that it provides

a better basis for supporting priority decision-making over the implementation choices for requirements and

designs.

1 INTRODUCTION

Research into prioritization has increased in recent

years with many new prioritization methods and

variants being put forward. Much has been achieved

in identifying the prioritization factors and the issues

of concern when structuring prioritization data.

However, existing prioritization methods and the

prioritization data they utilize (in content and

structure) continues to be insufficient to support the

type of prioritization process that ideally needs to be

adopted. Specifically, progress in improving the

prioritization process seems hampered by inadequate

conceptualizations of stakeholder value, in particular

by the use of implicit notions of value. This is often

compounded by an additional failure to support

multiple stakeholder viewpoints. Note the term

“stakeholder” is used here to mean any group of

people with an interest in the system, and they can

be identified by role and/or location.

In this paper, to move towards addressing the

problems identified above, we propose capturing

stakeholder value by stakeholder role, and using

absolute scale data (as opposed to using, for

example, ordinal scale data) for stakeholder value.

We consider the explicit “real world” data captured

by using absolute scales normally provides a better

basis for supporting priority decision-making. For

example, as we shall discuss later, it supports

arithmetic calculations such as return on investment

(ROI).

To present the argument for our proposals for

stakeholder value, this paper is structured in the

following way. Section 2 outlines the need for

prioritization explaining why the prioritization

process is important. Section 3 provides an overview

of the existing research on prioritization and

analyses how it relates to the problems we perceive

impacting the prioritization of stakeholder value.

Section 4 then investigates in detail how stakeholder

value is currently expressed within the prioritization

data and explains some of the resulting weaknesses.

Finally, Section 5 briefly describes initial validation

of using explicit absolute scale data for stakeholder

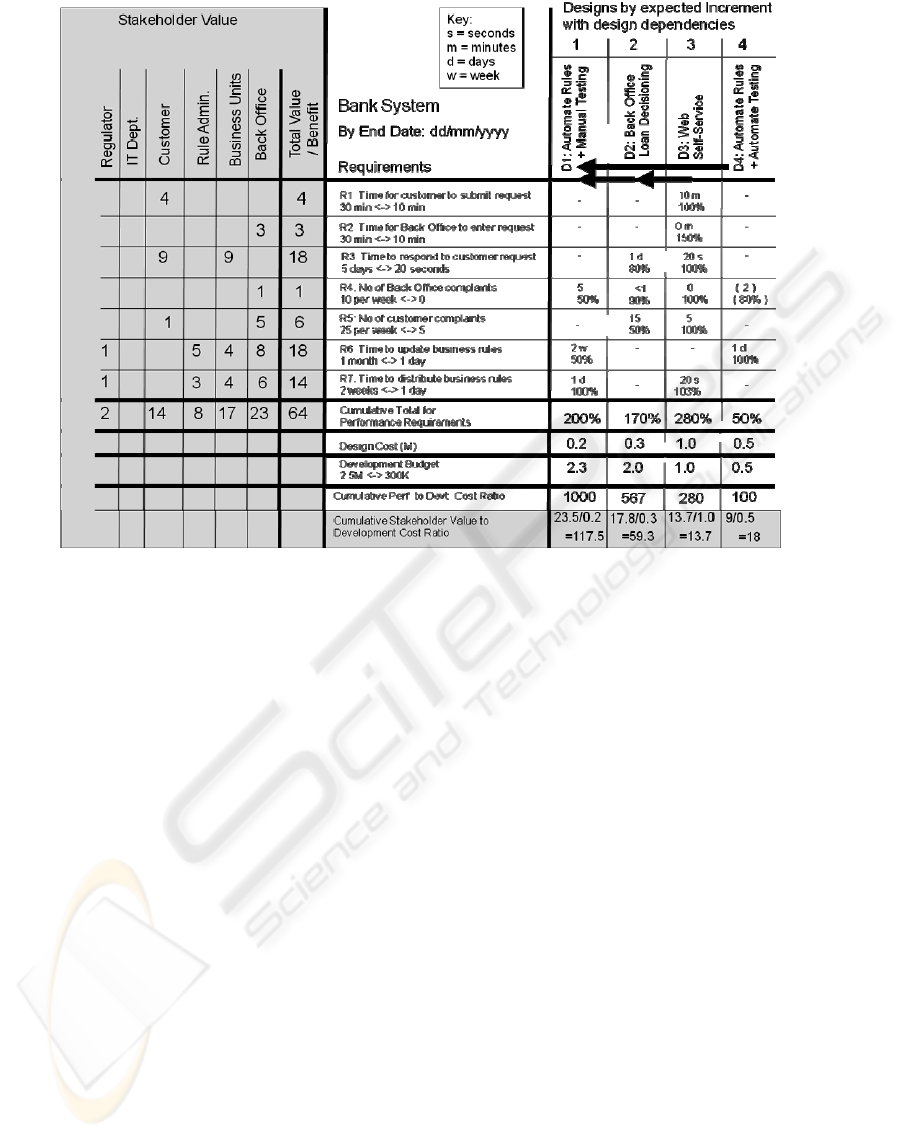

value: a case study using value impact estimation

(VIE). We have developed VIE as a simple

extension to an existing method, impact estimation

(IE). IE (Gilb, 2005) uses absolute scale data and

Brodie L. and Woodman M. (2010).

ABSOLUTE SCALES TO EXPRESS STAKEHOLDER VALUE FOR IMPROVING SUPPORT FOR PRIORITIZATION.

In Proceedings of the Fifth International Conference on Evaluation of Novel Approaches to Software Engineering, pages 48-57

DOI: 10.5220/0002932600480057

 SciTePress

captures the impact of each of the potential designs

on each of the requirements. VIE extends this to

additionally capture explicit stakeholder value by

stakeholder role. Our initial findings are that use of

absolute scales is indeed beneficial for capturing

stakeholder value, and that capturing stakeholder

value by stakeholder role is helpful for decision-

making. However, there remains considerable future

work to develop adequate theory on stakeholder

value and stakeholder viewpoints, and improve

understanding of the prioritization process.

2 THE NEED FOR

PRIORITIZATION

2.1 Lack of Guidance

Prioritization can be considered something of a

“gap” in current software engineering. Certainly

within the most commonly used system

development methods, it has had far too low a

profile in the past. Also industry standards such as

the Integrated Capability Maturity Model (CMMI)

(Boehm et al., 2002) and SWEBOK (Software

Engineering Book of Knowledge) (Bourque and

Dupuis, 2004) fail to offer specific guidance on the

prioritization process. This lack of attention matters

because of the “bigger picture”: the main purpose of

prioritization is to help ensure projects are

implementing the “right thing” at the “right time”,

while making good use of the always limited human,

monetary and time resources. Opportunities to assist

project planning, and so improve project delivery,

are being lost if prioritization is not intelligently

executed.

In addition, the demand to move towards value-

based software engineering (VBSE) (Boehm, 2003)

raises the need for greater attention to be paid to the

delivery of stakeholder value. Indeed, Sullivan

(2007) reports on a lack of “formal, testable and

tested theories, methods, and tools to support

economic-based analysis and decision-making (and

value-based analysis more broadly)”.

2.2 Changing needs for Prioritization

Moreover, recent developments in software

development mean that prioritization can be seen

today as having a more central, on-going role to play

throughout systems development. In Waterfall

methods, prioritization only has to be carried out

once, early on in the systems development process,

and involves deciding what requirements are to be in

the system and what are not. However, prioritization

processes now have to support iterative and

incremental development (Larman and Basili, 2003).

Such development requires on-going communication

to capture data from the external environment,

accept changing requirements, and receive feedback

from each incremental delivery, in order to then

establish what the stakeholders agree is of high

value and should be in the next increment. This

means the prioritization process has to cater for

reuse of data while also accommodating changing

data. Moreover, dynamic prioritization has to occur

with each increment to determine what to implement

next. Also that on-going identification of high

stakeholder value is essential.

An additional demand comes from the

recognition of the need for improved stakeholder

understanding, especially the handling of multiple

stakeholder viewpoints (Park et al. , 1999). There is

a need to not only capture and present the different

viewpoints, but also to enable stakeholder

negotiation and tradeoffs, and to help achieve

stakeholder consensus and buy-in (Davis, 2003).

The prioritization process has a major part to play in

providing better support to the system/product

owners, who decide what shall be implemented.

3 EXISTING RESEARCH

ON PRIORITIZATION

Research in the area of prioritization has increased in

recent years. In 1997, Karlsson and Ryan (1997)

wrote an influential paper describing their Cost-

Value Approach based on the Analytic Hierarchy

Process (AHP) (Saaty, 1990), which acted as a

springboard for much subsequent research. In this

section, we briefly review the existing literature on

prioritization: listing the existing prioritization

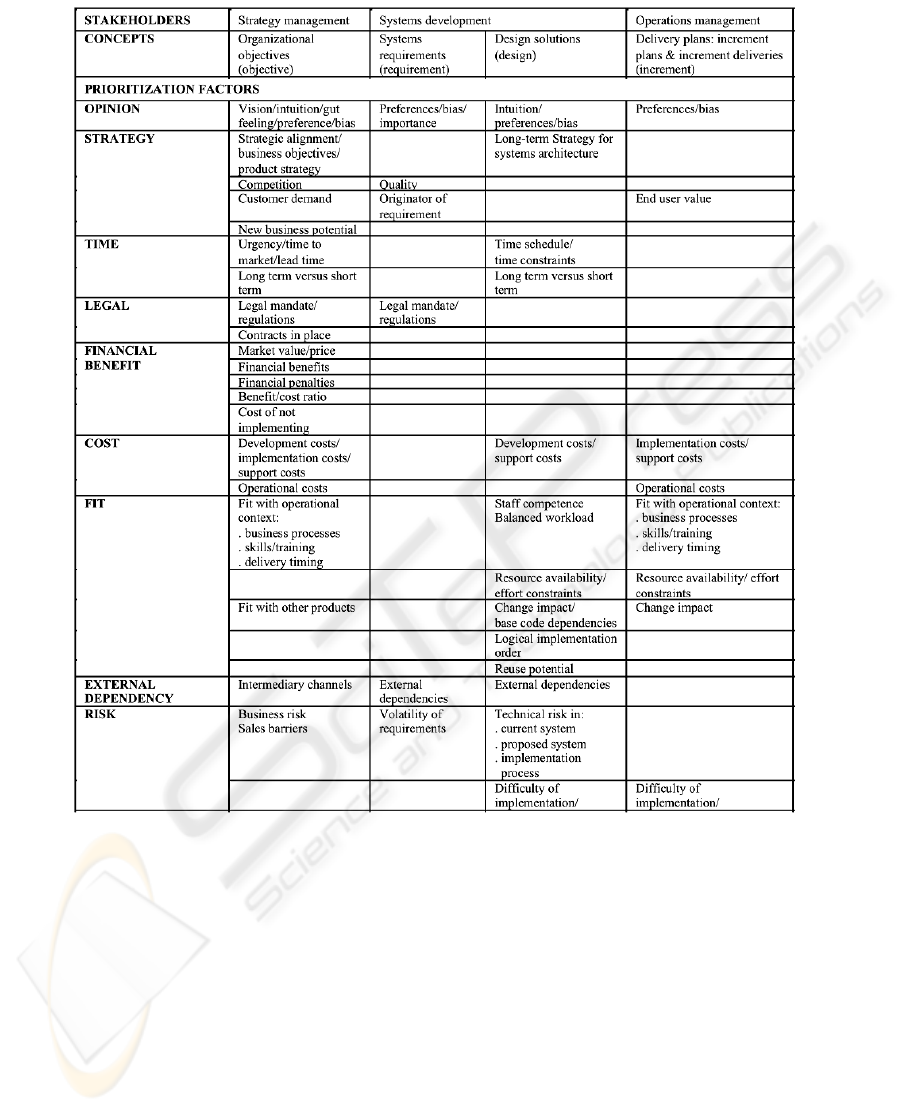

methods, the identified prioritization factors and

some of the identified issues with structuring

prioritization data. Concurrently, we analyse how

this existing research relates to the problems we

perceive in prioritizing stakeholder value.

3.1 Positioning of Prioritization

Aspects of prioritization are discussed in the IT

literature under several subject areas including

requirements prioritization (Karlsson et al. , 1998;

Moisiadis, 2002; Berander and Andrews, 2005),

release planning (Greer and Ruhe, 2004),

ABSOLUTE SCALES TO EXPRESS STAKEHOLDER VALUE FOR IMPROVING SUPPORT FOR PRIORITIZATION

architecture selection (Kazman et al. , 2001), COTS

(Commercial Off-The-Self) selection (Mohamed et

al. , 2007a), financial management (Favaro, 2002;

Sivzattian, 2003), and decision-making and

negotiation methods (Park et al. , 1999). There

appears to be compartmentalization in the literature,

which we argue needs questioning. While specialist

areas for prioritization exist, it is essential that an

overall view be considered because any given

system encompasses many of these subject areas:

there has to be interaction and integration at the

system level. Accordingly, the stance taken by this

research is that a holistic view should be taken: any

overall prioritization process must include

consideration of a wide range of prioritization data,

which includes the fundamental software

engineering concepts that we have termed here as

“objective”, “requirement”, “design” and

“increment”. All these four concepts impact on the

concept of stakeholder value. For example, carrying

out a prioritization process using just the

requirements without consideration of, say, the

potential designs and the operational impacts, both

of which affect the costs, needs to be questioned.

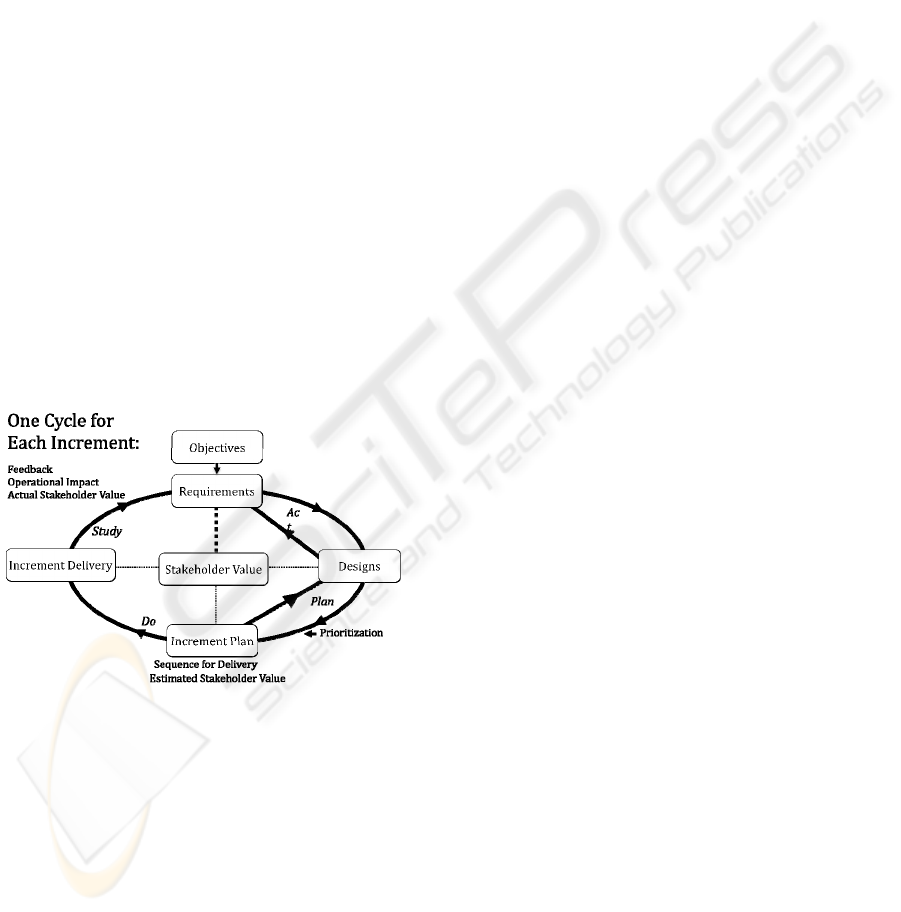

See Figure 1, which shows an increment delivery

cycle with iteration around these concepts as

software development progresses.

Figure 1: Increment delivery cycle based on Deming’s

Plan-Do-Study-Act (PDSA) Cycle.

Despite the previous argument, responsibility for the

prioritization process and data model probably

should reside within requirements engineering

because it interfaces with the majority, if not all, of

the stakeholders, and because the system

requirements form the primary (but not sole) data for

prioritization. However, care needs to be taken that

there is adequate consideration of the wider aspects

of the prioritization process that fall within other

viewpoints, such as strategy management and

operations management.

3.2 Existing Prioritization Methods

To date, we have identified over 60 different

prioritization methods in the literature. For brevity,

full discussion of these is not given. A selection of

those found categorized by subject area is as

follows:

• Requirements Prioritization: MoSCoW

(Stapleton, 2003), the Hundred-Dollar Test

(Berander, 2007) and Requirements

Prioritization Tool (RPT) (Moisiadis, 2002).

• Requirements (and Effort) Prioritization: Cost-

Value Approach (Karlsson and Ryan, 1997) and

Wiegers’ Method (Lehtola and Kauppinen,

2006).

• Requirements (and Design) Prioritization:

Analytic Hierarchy Process (AHP) (Saaty, 1990),

Quality Function Deployment (QFD) (Cohen,

1995; Akao, 1997) and Impact Estimation (IE)

(Gilb, 2005).

• Architecture (Design) Prioritization: Cost Benefit

Analysis Method (CBAM) (Kazman et al. ,

2001) and Reasoning Frameworks (Bass et al. ,

2005).

• COTS (Design) Prioritization: Procurement-

Orientated Requirements Engineering (PORE)

(Mohamed et al. , 2007a) and Mismatch

Handling for COTS Selection (MiHOS)

(Mohamed et al. , 2007b).

• Release Planning: Planning Game (Beck, 2000),

EVOLVE/EVOLVE* (Greer and Ruhe, 2004;

Saliu and Ruhe, 2005) and Requirements Triage

(Davis, 2003).

• Financial Prioritization: Business Case

Analysis/ROI (Favaro, 2003), Incremental

Funding Method (IFM) (Denne and Cleland-

Huang, 2004) and Real Options Analysis

(Favaro, 2002).

• Negotiation Prioritization: Quantitative WinWin

(Ruhe et al. , 2003) and Distributed

Collaborative Prioritization Tool (DCPT) (Park

et al. , 1999).

• Others: Conjoint Analysis (Green and Wind,

1975).

The prioritization methods given most coverage in

the literature include AHP, QFD the Cost-Value

Approach, and more recently, the Planning Game.

However, it is not clear to what extent all these

methods are used by software development in

industry, or indeed how successful they have been.

Lehtola (2006) considers, “Even though many

authors have evaluated prioritization approaches and

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

Table 1: Prioritization factors by stakeholder viewpoint and software engineering concept.

done comparison studies with them, the suitability of

the approaches for solving practical product

development challenges in prioritization has not

been widely studied. It is even not clear if any of the

techniques can solve the existing challenges in the

area of requirements prioritization.” Indeed, there

appear to be some problems with the take-up and

continued use of the well-known prioritization

methods, such as QFD (Martins and Aspinwall,

2001) and AHP (Lehtola and Kauppinen, 2006).

3.3 Prioritization Factors

There are many prioritization factors (also

sometimes called “criteria” (Wohlin and Aurum,

2005; Barney et al. , 2008) or “aspects” (Lehtola,

2006; Berander, 2007)) that can be considered in the

prioritization process. We have identified a list of

over 50 prioritization factors from the literature; the

main sources include (Carlshamre et al. , 2001;

Moisiadis, 2002; Greer and Ruhe, 2004; Firesmith,

2004; Berander and Andrews, 2005; Lehtola and

Kauppinen, 2006; Barney et al. , 2008). See Table 1,

in which we chose to sub-divide the factors into

three categories by stakeholder viewpoint and note

the similarity to the choices of Lehtola (2006) and

Barney, et al. (2008).

For brevity here, we have limited discussion of

our work to just three stakeholder viewpoints that

are representative of the mandatory viewpoints in

any systems development prioritization process:

strategy management, systems development and

ABSOLUTE SCALES TO EXPRESS STAKEHOLDER VALUE FOR IMPROVING SUPPORT FOR PRIORITIZATION

operations management (Clearly there are many

more stakeholder roles than these in a system.) We

added further sub-division under the four software

engineering concepts used earlier in Figure 1. We

decided that: strategy management has responsibility

for the objectives, systems development is primarily

responsible for the requirements and designs, and

operations management has responsibility for

accepting the planned and delivered increments. In

other words, the data associated with the selected

system concepts would be of prime interest to the

stakeholder viewpoint when establishing priorities.

Furthermore, we introduced grouping of the

prioritization factors by concept area, for example,

strategy, cost and risk. Several of these groups are

also identified by Berander (2007) as “aspects”.

Note that, due to space limitations, any explanations

of individual prioritization factors and relevant

references have been omitted. Note also that these

prioritization factors are not complete; this table

only reflects the main prioritization factors found in

the literature. The following observations can be

made:

• A general set of prioritization factors that could

be proposed as “a starter” for a prioritization

process emerges from the table.

• The prioritization factors span all the four

software engineering concepts. This argues for a

prioritization process that offers support for all

these concepts. If more narrowly focused,

specialized, prioritization methods are to exist

then they need to integrate into an overarching

prioritization process/method. The table

provides support for the existence of different

stakeholder viewpoints in the mappings between

the stakeholder viewpoints and the prioritization

factors: different stakeholder viewpoints are

interested in and knowledgeable about different

prioritization factors. This means any

prioritization process or prioritization method

must cater for different stakeholder viewpoints.

• A tentative observation can be made that the

prioritization factor groupings (for example,

strategy, legal, cost and risk), map across to the

dimensions for stakeholder value.

3.4 Known Issues in Structuring

Prioritization Data

A list of issues encountered when structuring the

prioritization data to support the prioritization

process was identified by extrapolating from

discussions in the literature, for example from

(Karlsson et al. , 1998; Carlshamre et al. , 2001;

Moisiadis, 2002; Davis, 2003; Firesmith, 2004;

Lehtola and Kauppinen, 2006; Gorschek and

Wohlin, 2006; Mead, 2006). The issues considered

relevant to expressing prioritization data include:

Explicit Stakeholder Value. This is the often the

expression of stakeholder priority to reflect the

stakeholder value as well as the capture of explicit

value.

Multiple Stakeholder Viewpoints. There is a need

to handle different areas of interest/expertise and

capture the different viewpoints together with their

associated stakeholder values.

Requirements Abstraction. This is the ability to

handle requirements captured at different levels of

refinement.

Interdependencies. The ability to express

interdependencies among the requirements and also

the designs. This becomes increasingly important

with iterative and incremental development.

Dynamic Prioritization. The priority data must be

captured in order that it can be reused in subsequent

prioritizations (future increments) without needing

further inputs from stakeholders (unless something

significant has changed in the system and/or its

environment that they need to provide additional

data on).

Scaling-up. This is the ability to scale up to cope

with large numbers of items. Some existing

prioritization methods become impractical when the

number of requirements begins to grow to sizes

typical of modern systems. In fact, for most large-

scale projects, prioritization can tend to be carried

out at a fairly high level of abstraction.

4 ANALYSIS OF EXISTING

PRIORITIZATION DATA

4.1 Expressing Prioritization Data

How prioritization data is expressed is a key factor

in a prioritization process. We argue in this section

that the prioritization data that the prioritization

methods currently utilize (in content and structure) is

insufficient to support the type of enhanced

prioritization process that ideally needs to be

adopted. Specifically, the lack of use of quantified

data captured on absolute scale types is hindering

progress.

The type of scale being used to capture the data

is specifically important as it identifies the extent to

which arithmetic calculations can validly be carried

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

out. Only the ordinal and ratio scale types are

commonly used in existing prioritization methods.

The absolute scale type is only occasionally used at

present, but we propose it should be much more

widely used and in fact, that it should replace much

of the use of the ordinal and ratio scale types.

Table 2: Mapping of prioritization technique(s) and scale

type(s) to prioritization methods.

4.2 Prioritization Techniques

Several different ways (sometimes termed

“prioritization techniques” (Berander, 2007)) of

expressing prioritization data can be identified

(Firesmith (2004); Berander and Andrews (2005)).

We have reduced the number of different categories

to four main ones as follows:

Grouping. The individual items are each

categorized into one of a set of priority groups, for

example the MoSCoW prioritization method

demands each requirement is categorized as either

“must have”, “should have”, “could have” or “would

like, but wouldn’t have this time” (Stapleton, 2003).

The results are on an ordinal scale.

Ranking. Requirements are ranked in order of

preference. Ranking is carried out by bubble sort or

by binary search tree (Karlsson

et al. , 1998). This

is an ordinal scale of measure as there is no

information about the differentials amongst the

ranked items.

Weighting. Stakeholders assign their preferences

and relative weightings are calculated. The results

are on a ratio scale. One means of obtaining the

weightings is by using voting (Berander and

Andrews, 2005): stakeholders are requested to

distribute some fixed number of votes (say 100 or

1000 dollars) amongst the different items being

prioritized. Another means is by using pair-wise

comparison: priorities are calculated by creating a

hierarchy with branches of up to seven comparable

items and then the items within each branch are pair-

wise compared using a scale of 1 to 9 where 1

equates to “equally important” and 9 equates to

“extremely more important” (Moisiadis, 2002). The

scales are then converted to normalized weightings,

which are then carried up the hierarchy. In AHP,

pair-wise comparison is used to first weight the

requirements, and then the designs.

Metrics. Absolute scales of measure are used to

express certain attributes and these metrics form the

basis for selection, for example by enabling

calculation of ROI figures (Firesmith, 2004). ROI

calculation needs data on the amount of benefit

(stakeholder value) that would be achieved by

implementing a given design and the

implementation cost associated with it. Only

absolute scale data enables such ROI estimates to be

calculated, as explicit stakeholder value data such as

“a cost saving over the next year of 220,000

monetary units” would be captured. This contrasts to

the ordinal scale data of say, the MoSCoW method,

which simply captures requirements identified as of

high stakeholder value into a “must have” priority

group. In this paper, we are using Planguage (Gilb,

1988) to express metrics, which captures the

performance and resource requirements, as required

levels on scales of measure.

See Table 2, which gives some examples of how the

scale types and prioritization techniques map to a

selection of prioritization methods.

See also Table 3, which shows how the

prioritization techniques cope with a selection of

prioritization data issues. Some example data has

been inserted in the top row. From this row, it can be

seen that use of metrics with absolute scale types

results in real data that is much easier to understand

and say, discuss with another stakeholder. It is less

ambiguous than trying to work out what “Medium”

should be interpreted to mean. An observation can

be made that all the techniques, apart from metrics,

are generating additional data that captures some

indirect notion of stakeholder value (such as “must

have”), but not any explicit value (such as 220,000

monetary units).

5 SOME EXAMPLES FROM

A CASE STUDY

5.1 Choice of Prioritization Method

By comparing how prioritization methods handled

the prioritization factors and the data structure issues

(Brodie and Woodman, 2008), and by considering



Prioritization

Method

Prioritization

Technique(s)

Scale

Type(s)

QFD Weighting and

Grouping

Ratio

Ordinal

AHP Weighting

(Pair-wise comparison)

Ratio

IE Metrics Absolute

Cost-Value

Approach

Weighting

(Pair-wise comparison)

Ratio

MoSCoW Grouping Ordinal

Planning Game Grouping Ordinal

Requirements

Triage

Grouping and

Weighting

Ordinal

Ratio

ABSOLUTE SCALES TO EXPRESS STAKEHOLDER VALUE FOR IMPROVING SUPPORT FOR PRIORITIZATION

Table 3: How prioritization techniques cope with a selection of data structuring issues.

the usage of software engineering concepts and scale

types, we determined that IE offered an initial sound

basis for this research: it spans the concepts of

requirement, design and increment, and uses

absolute scale data (Gilb, 2005). However, the IE

method lacks consideration of explicit stakeholder

value, so we extended it to cater for stakeholder

value by stakeholder role. We chose to link

stakeholder value to requirement. See Figure 2 for

an example of an extended IE table

5.2 Case Study Description

The case study examples are from a customer

business rules “decisioning” system for a bank. The

bank’s objectives are customer satisfaction and,

more efficient and effective internal processes. The

main problems perceived by the bank are the time,

effort and accuracy of updating and using the

business rules, and the elapse time taken and the

accuracy of dealing with customer requests. Of

course, having up-to-date business rules in place

impacts the accuracy of the handling of the customer

requests. As the intention is to demonstrate that

absolute scale data helps prioritization reasoning, a

detailed discussion of all the requirements is not

given here. We also limit our comments here about

the use of performance requirements (also known as

non-functional requirements) apart from recognizing

that this is an additional reason why IE merits

attention (given very few prioritization methods

handle performance requirements (Firesmith,

2004)).

For brevity, a very restricted, cut down sample of

the system specification is presented below. Note the

data highlighted in bold in this specification is

captured in the extended IE table in Figure 2.

Stakeholders: Regulator, IT Department,

Customer, Rules Administration,

Business Units, Back Office.

Requirements:

Function: Submit request.

Performance requirement: Reduce time for

customer to submit request.

Scale: Average time taken for defined

[request type: Default = Loan].

Past: 30 minutes.

Goal: 10 minutes.

Function: Enter customer request

details.

Performance requirement: Reduce time for

Back Office to enter request.

Past: 30 minutes.

Goal: 10 minutes.

Function: Process a customer request.

Performance requirement: Reduce time to

process customer request.

Past: 5 days.

Goal: 20 seconds.

Performance requirement: Reduce number

of complaints.

Scale: Average number of complaints in

defined [Time] from defined

[Stakeholder].

Past [Back Office]: 10 per week.

Goal: 0 per week.

Past [Customer]: 25 per week.

Goal: 5 per week.

Function: Update the business rules.

Performance requirement: Reduce time to



Prioritization

Technique:

Grouping Ranking Weighting Metrics

Example of

prioritization data

ÒHighÓ,

ÒMediumÓ or ÒLowÓ

1, 2, 3, ... N

30/100

Time to carry out task to

be reduced from 1 day to

5 minutes

Data Structuring

Issue

Stakeholder value

Implicit; value is say,

ÒMediumÓ

Implicit; value is say,

ranked as Ò2Ó

Implicit; value is

30% of whatever

100% equates to

For above metric, an

estimate of explicit

financial value can be

derived if monetary rate of

pay and task occurrence are

known

Multiple

stakeholder

viewpoints

Would be represented as

say, ÒHighÓ and

ÒMediumÓ

Would be represented

as say, Ò2Ó and Ò20Ó

and Ò3Ó

Would be

represented as say,

30/100 and 2/100

Time to carry out task to be

reduced from 1 day down to

say, 5 minutes and to 2 hours

Interdependencies

(Y)

Would have to work by

selecting an item and then

seeing if there were any

prior dependencies that

would override

(Y)

Ditto

(Y)

Ditto

(Y)

Ditto

Abstraction

N Y

Create hierarchy

Dynamic

prioritization

Add any new data to an

existing data grouping.

No extra effort (unless

something has changed)

Would need to re-

examine existing ranks

(Y)

Considerable effort

needed by

stakeholders

Add to existing data and

reprocess

Scaling-up

Too many in a group

Difficult to keep track

Considerable effort

(Y)

Would use high-level

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

Figure 2: VIE table for bank case study. The shaded area represents the extension to IE.

update rules.

Scale: Average time taken for defined

[request type].

Past: 1 month.

Goal: 1 day.

Function: Distribute business rules.

Performance requirement: Reduce time

taken. Scale: Average time taken.

Past: 2 weeks.

Goal: 1 day.

Designs:

APTM: Automate the rules & test

manually.

Rationale: Speed up the distribution to

Back Office staff.

BD: Back Office loan decisioning system.

Rationale: Automating applying the rules

will save time.

Dependency: APTM.

WSS: Web self-service.

Rationale: Customers can get a rapid

response.

Dependency: BD, APTM.

APAT: Automate the rules & test

automatically.

Rationale: Speed up the distribution to

Back Office staff.

Dependency: APTM.

5.3 Analysis of the VIE Table

Figure 2 also captures the estimated impacts of the

various designs on the requirements and the

estimated value for each stakeholder of achieving

100% of the requirement. When feedback is

obtained after implementing an increment, the actual

figures can be added into the table, compared to the

estimates and any deviations from the plan can be

addressed.

Stakeholder value is determined as figures of

merit on the basis of the monetary value of

additional customer sales and the cost savings due to

reduction in effort. An initial assumption is made

that the utility curves (Daniels et al. , 2001) for

value against the requirement levels are all linear.

The extended IE table also shows an initial

proposed ordering of the designs into increments.

The bold arrows show the design dependencies.

Note the impact of a design can be overridden by the

impact of earlier designs: the impact of

D4 Automate

Rules and Automate testing

on the requirement

No. of Back Office complaints

is such a case and the

estimated figures are therefore shown in brackets.

The development costs (but not the operational

implementation costs) are also shown.

Using these figures the cumulative stakeholder-

to-development cost ratio for each of the designs

was calculated. For example, for the design

D2 Back

office loan decisioning

, the ratio was calculated as

follows: (80% (impact) of 18 (total value) for

requirement

R3 Time to respond to customer request

ABSOLUTE SCALES TO EXPRESS STAKEHOLDER VALUE FOR IMPROVING SUPPORT FOR PRIORITIZATION

+ 40% (impact = 90% – 50%) of 1 (total value) for

requirement R4 No. of Back Office complaints +

50% (impact) of 6 (total value) for requirement R5

No. of customer complaints) divided by 0.3 (the

development cost) = (14.4 + 0.4 + 3) / 0.3 = 17.8/0.3

= 59.3, shown at the bottom of the column for

design

D2.

In the calculations, all impacts were capped at

100% as that represented what the customer had

requested (Of course, the customer might be

interested in the additional impact especially if there

is no additional cost associated with achieving it.)

By reviewing the cumulative stakeholder value

to development cost ratio, it looks as if the design

“Automate rules and automate testing” would be of

more value than implementing “Web self-service”.

However, it could be that the utility curve for value

for the requirement “Time to respond to customer

request” is not linear. Further discussion is need with

the stakeholders. Such negotiation is exactly the

purpose of using an extended IE table. Note how

where the stakeholder value resides can be seen and

how it is possible to detect which are the “valuable”

requirements.

6 CONCLUSIONS

Despite much research in the last decade on

prioritization in software engineering projects,

progress is being hampered by inadequate

representation of stakeholder value. The issue is

becoming more urgent because dynamic

prioritization of stakeholder value is increasingly

needed as iterative and incremental development

methods become more widely used. We have argued

in this paper that the use of absolute scale data is

essential to address the problems with the current

prioritization processes: specifically, to provide

unambiguous prioritization data that stakeholders

can understand and relate to, and to support

arithmetic calculations.

This paper has briefly reviewed existing research

on prioritization. Our findings include:

• By categorizing and analysing the existing

prioritization methods, that many (not all of) the

existing prioritization methods are restricted in

their scope (for example, some methods are just

considering the requirements).

• By investigation of the prioritization factors

discussed in the literature, we have shown that

the scope of the prioritization process spans

system-wide data from organizational objectives

to increment delivery. An additional finding

from this data is that different stakeholders have

different viewpoints on the prioritization factors,

and that therefore, multiple stakeholder

viewpoints need to be supported.

• By identifying the known issues with structuring

prioritization data and analyzing how the

prioritization techniques and scale types used in

prioritization methods tackle these issues, we

determine that the techniques of grouping,

ranking and weighting are weaker than metrics in

addressing the issues. Specifically, expression of

stakeholder value is implicit in the prioritization

data, and that arithmetic calculations are often

impossible or problematic, apart from when

metrics are used.

Further, we demonstrate the validity of the use of

absolute scale data in prioritization by using VIE, an

extended version of the IE prioritization method

with some examples from a case study. We

specifically extended IE to cater for stakeholder

value for multiple stakeholders. We show the ability

to carry out calculations to investigate requirement

and design priorities.

Work is underway to investigate further

extending the IE method to represent additional

aspects of stakeholder value. Future work plans to

make the detailed decision-making of a rational

prioritization process explicit.

REFERENCES

Akao, Y., 1997. “QFD: Past, Present, and Future”, Procs.

of the International Symposium on QFD ’97,

Linkoping.

Barney, S., Aurum, A., Wohlin, C., 2008. “A product

management challenge: Creating software product

value through requirements selection”, Journal of

Systems Architecture, Elsevier.

Bass, L., Ivers, J., Klein, M., Merson, P., 2005.

“Reasoning Frameworks” (CMU/SEI-2005-TR-007),

Software Engineering Institute, CMU.

Beck, K., 2000. Extreme Programming Explained:

Embrace Change, Addison Wesley.

Berander, P., 2007. Evolving Prioritization for Software

Product Management, Blekinge Institute of

Technology. Doctoral Dissertation Series.

Berander, P., Andrews, A., 2005. “Requirements

Prioritization” (Chapter 4), Engineering and

Managing Software Requirements, Aurum and Wohlin

(Eds.), Springer-Verlag. ISBN 3540250433.

Boehm, B., 2003. “Value-Based Software Engineering”,

Software Engineering Notes, Vol. 28, No. 2, ACM.

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

Boehm, B., Port, D., Basili, V.R., 2002. “Realizing the

Benefits of the CMMI with the CeBASE Method”,

Systems Engineering, J. Wiley and Sons, Inc.

Bourque, P., Dupuis, R. (eds.), 2004. SWEBOK: Guide to

the Software Engineering Body of Knowledge 2004

Version, IEEE Computer Society.

Brodie, L., Woodman, M., 2008. “Towards a Rational

Prioritization Process for Incremental and Iterative

Systems Engineering”, Procs. of the 1

International

Workshop on Requirements Analysis, Pearson.

Carlshamre, P., Sandahl, K., Lindvall, M., Regnell, B.,

Natt och Dag, J., 2001. “An Industrial Survey of

Requirements Interdependencies in Software Product

Release Planning.” Procs. of the 5th IEEE

International Symposium on RE.

Cohen, L., 1995. Quality Function Deployment: How to

Make QFD Work for You, Addison Wesley.

Daniels, J., Werner P.W., Bahill, A.T., 2001. “Quantitative

Methods for Tradeoff Analyses”, Systems

Engineering, John Wiley & Sons, Inc., 4, 3.

Davis, A., 2003. “The Art of Requirements Triage”, IEEE

Computer, March 2003, 36, 3, pp. 42-49

Denne, M., Cleland-Huang, J., 2004. Software by

Numbers: Low-Risk, High-Return Development,

Prentice-Hall. ISBN 0131407287. 190 pages.

Favaro, J., 2003. “Value-Based Management and Agile

Methods”, M.Marchesi and G. Succi (Eds.): Procs. of

the 4

International Conference on XP and Agile

Methods, May 2003, Springer-Verlag.

Favaro, J., 2002. “Managing Requirements for Business

Value”, IEEE Software, March/April 2002.

Firesmith, D., 2004. “Prioritizing Requirements”, Journal

of Object Technology.

Gilb, T., 2005. Competitive Engineering: A Handbook For

Systems Engineering, Requirements Engineering, and

Software Engineering Using Planguage, L. Brodie

(Ed.), Butterworth-Heinemann. ISBN 0750665076.

Gilb, T., 1988. Principles of Software Engineering

Management, Addison Wesley. ISBN 0201192462.

Gorschek, T., Wohlin, C., 2006. “Requirements

Abstraction Model”, Requirements Engineering,

Springer Verlag, 11, pp. 79-101.

Green, P.E., Wind, Y., 1975. “New Way to Measure

Consumers’ Judgments”, Harvard Business Review.

Greer, D., Ruhe, G., 2004. “Software release planning: an

evolutionary and iterative approach”, Information and

Software Technology, 46, 4, pp. 243-253.

Karlsson, J., Ryan, K., 1997. “A Cost-Value Approach for

Prioritizing Requirements”, IEEE Software.

Karlsson, J., Wohlin, C., Regnell, B., 1998. “An

Evaluation of Methods for Prioritizing Software

Requirements”, Information and Software Technology,

Elsevier Science B.V.

Kazman, R., Asundi, J., Klein, M., 2001. “Quantifying the

Costs and Benefits of Architectural Decisions”, Procs.

of the 23rd International Conference on Software

Engineering (ICSE 2001), IEEE.

Larman, C., Basili, V.R., 2003. Iterative and Incremental

Development: a Brief History, IEEE Computer, 36, 6.

Lehtola, L., 2006. Providing value by prioritizing

requirements throughout software product

development: State of practice and suitability of

prioritization methods, Licentiate thesis, Helsinki

University of Technology.

Lehtola, L., Kauppinen, M., 2006. “Suitability of

Requirements Prioritization Methods for Market-

driven Software Product Development”, Software

Process Improvement and Practice, Wiley.

Martins, A., Aspinwall, E., 2001. “Quality Function

Deployment: an empirical study in the UK”, Total

Quality Management, August 2001.

Mead, N., 2006. “Requirements Prioritization

Introduction”, Software Engineering Institute (SEI),

Carnegie Mellon University (CMU).

Mohamed, A., Ruhe, G., Eberlein, A., 2007a. “COTS

Selection: Past, Present, and Future”, Procs. of the

IEEE Intl. Conf. and Workshops on the Engineering of

Computer-Based Systems (ECBS’07), IEEE.

Mohamed, A., Ruhe, G., Eberlein, A., 2007b. “Decision

Support for Handling Mismatches between COTS

Products and System Requirements”, Procs. of the

COTS-Based Software Systems (ICCBSS’07) Conf.

Moisiadis, F., 2002. “The Fundamentals of Prioritising

Requirements”, Procs. of the Systems Engineering,

Test and Evaluation Conference.

Park, J., Port, D., Boehm, B., 1999. “Supporting

Distributed Collaborative Prioritization for Win-Win

Requirements Capture and Negotiation”, Procs. of the

International Third World Multi-conference on

Systemics, Cybernetics and Informatics (SCI'99),

International Institute of Informatics and Systemics.

Ruhe, G., Eberlein, A., Pfahl, D., 2003. “Trade-off

Analysis for Requirements Selection”, International

Journal of Software Engineering and Knowledge

Engineering, 13, 4, pp.345-366.

Saaty, T.L., 1990. “How to Make a Decision: The

Analytic Hierarchy Process”, European Journal of

Operational Research, 48, 1990, pp. 9-26.

Saliu, O., Ruhe, G., 2005. “Supporting Software Release

Planning Decisions for Evolving Systems”, Procs. of

the 2005 29th Annual IEEE/NASA Software

Engineering Workshop (SEW’05), IEEE.

Sivzattian, S.V., 2003. Requirements as Economic

Artifacts: A Portfolio-Based Approach, Ph.D. Thesis,

Department of Computing, Imperial College of

Science, Technology and Medicine, London.

Stapleton, J. (Editor), 2003. DSDM: Business Focused

Development (2nd Edition), Addison Wesley.

Sullivan, K., 2007. Introduction to the First Workshop on

the Economics of Software and Computation, In

Companion to the Procs. of the 29th International

Conf. on Software Engineering, IEEE.

Wohlin, A., Aurum, A., 2005. “Criteria for Selecting

Software Requirements to Create Product Value: An

Industrial Empirical Study”, S. Biffl, A. Aurum, B.

Boehm, H. Erdogmus, P. Grunbacher (Eds.), Value-

Based Software Engineering, Springer.

ABSOLUTE SCALES TO EXPRESS STAKEHOLDER VALUE FOR IMPROVING SUPPORT FOR PRIORITIZATION
