 DESIGN OF ALLPASS FILTERS WITH SPECIFIED DEGREES OF
FLATNESS AND EQUIRIPPLE PHASE RESPONSES
Xi Zhang
Department of Information and Communication Engineering, The University of Electro-Communications
1–5–1 Chofugaoka, Chofu-shi, 182-8585, Tokyo, Japan
Keywords:
IIR allpass ﬁlter, Flatness, Equiripple approximation, Remez exchange algorithm.
Abstract:
This paper proposes a new method for designing allpass ﬁlters having the speciﬁed degrees of ﬂatness at the
speciﬁed frequency point(s) and equiripple phase responses in the approximation band(s). First, a system of
linear equations are derived from the ﬂatness conditions. Then, the Remez exchange algorithm is used to
approximate the equiripple phase responses in the approximation band(s). By incorporating the linear equa-
tions from the ﬂatness conditions into the equiripple approximation, the design problem is formulated as a
generalized eigenvalue problem. Therefore, we can solve the eigenvalue problem to obtain the ﬁlter coefﬁ-
cients, which have the equiripple phase response and satisfy the speciﬁed degrees of ﬂatness simultaneously.
Furthermore, a class of IIR ﬁlters composed of allpass ﬁlters are introduced as one of its applications, and it is
shown that IIR ﬁlters with ﬂat passband (or stopband) and equiripple stopband (or passband) can be designed
by using the proposed method. Finally, some examples are presented to demonstrate the effectiveness of the
proposed design method.
1 INTRODUCTION
Allpass ﬁlters possess constant magnitude response at
all frequencies and are a basic scalar lossless building
block (Mitra and Kaiser, 1993), (Regalia et al., 1988).
Interconnections of allpass ﬁlters have found numer-
ous applications in many practical ﬁltering problems
such as low-sensitivity ﬁlter structures, wavelet ﬁlter
banks, and so on (Mitra and Kaiser, 1993), (Shenoi,
1999), (Regalia et al., 1988), (Laakso et al., 1996),
(Lang, 1998), (Selesnick and Burrus, 1998), (Se-
lesnick, 1999), (Zhang and Iwakura, 1999). In many
applications, it is necessary to design an allpass ﬁl-
ter both satisfying the speciﬁed degrees of ﬂatness at
the speciﬁed frequency point(s) and having equiripple
phase response in the approximation band(s). For ex-
ample, in the allpass-sum structure (Selesnick, 1999),
the phase response of the allpass sub-ﬁlter is required
to be ﬂat in the band(s) where the corresponding ﬁl-
ter has the ﬂat magnitude response, and is equiripple
in other band(s) to get the equiripple magnitude re-
sponse. Many methods have been proposed for the
phase design of allpass ﬁlters: the maximally ﬂat
design (Thiran, 1971), least squares design (Laakso
et al., 1996), (Lang, 1998), and equiripple design
(Zhang and Iwakura, 1999), (Tseng, 2003).
However, the approximation of allpass ﬁlters with
both the speciﬁed degrees of ﬂatness and equiripple
phase responses in the approximation band(s) is still
open.
In this paper, we propose a new method for de-
signing allpass ﬁlters which have both the speciﬁed
degrees of ﬂatness at the speciﬁed frequency point(s)
and equiripple phase responses in the approximation
band(s). First, we derive a system of linear equations
from the ﬂatness conditions of the phase response at
the speciﬁed frequency point(s). Then, we apply the
Remez exchange algorithm to obtain the equiripple
reponse in the approximation band(s). By incorpo-
rating the linear equations from the ﬂatness condi-
tions into the equiripple approximation, we formulate
the design problem as a generalized eigenvalue prob-
lem (Zhang and Iwakura, 1996), (Zhang and Iwakura,
1999). Therefore, we can obtain the ﬁlter coefﬁcients
by iteratively solving the eigenvalue problem. The
resulting allpass ﬁlters have the equiripple phase re-
sponses and satisfy the speciﬁed degrees of ﬂatness si-
multaneously. Furthermore, as one of the applications
of allpass ﬁlters, we introduce a class of IIR ﬁlters
composed of allpass ﬁlters (Regalia et al., 1988), (Se-
lesnick, 1999), whose design problem can be reduced
to the phase approximation of the allpass sub-ﬁlter.
205
Zhang X. (2010).
DESIGN OF ALLPASS FILTERSWITH SPECIFIED DEGREES OF FLATNESS AND EQUIRIPPLE PHASE RESPONSES.
In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 205-210
DOI: 10.5220/0002934102050210
c
SciTePress Thus, we can design the ﬁlters with ﬂat passband (or
stopband) and equiripple stopband (or passband) by
using the proposed method. Finally, some design ex-
amples are presented to demonstrate the effectiveness
of the proposed design method.
2 ALLPASS FILTERS
It is well-known that the transfer function of an all-
pass ﬁlter A(z) is deﬁned by
A(z) = z
N
N
n=0
a
n
z
n
N
n=0
a
n
z
n
, (1)
where N ( Z) is ﬁlter degree, and a
n
( R) are real
coefﬁcients and a
0
= 1.
It can be seen that A(z) in Eq.(1) has unit mag-
nitude response at all frequencies, and its phase re-
sponse θ(ω) is given by
θ(ω) = Nω + 2tan
1
N
n=0
a
n
sinnω
N
n=0
a
n
cosnω
. (2)
Let θ
d
(ω) be the desired phase response. The dif-
ference θ
e
(ω) between θ(ω) and θ
d
(ω) is
e
jθ
e
(ω)
= e
j{θ(ω)θ
d
(ω)}
=
N
n=0
a
n
e
j{(n
N
2
)ω
θ
d
(ω)
2
}
N
n=0
a
n
e
j{(n
N
2
)ω
θ
d
(ω)
2
}
,
(3)
and
θ
e
(ω) = 2tan
1
N
n=0
a
n
sin{(n
N
2
)ω
θ
d
(ω)
2
}
N
n=0
a
n
cos{(n
N
2
)ω
θ
d
(ω)
2
}
.
(4)
Therefore, the design problem of allpass ﬁlters
is the phase approximation of θ(ω) to θ
d
(ω) in the
approximation band(s), that is, the minimization of
the phase error θ
e
(ω) in Eq.(4) in the speciﬁed cri-
terion, e.g., in the least squares, and/or Chebyshev
(minimax), and/or maximally ﬂat sense. In the fol-
lowing, we discuss the design of allpass ﬁlters hav-
ing equiripple phase responses in the approximation
band(s) while satisfying the speciﬁed degrees of ﬂat-
ness at the speciﬁed frequency point(s).
3 ALLPASS FILTER DESIGN
In this section, we describe the design method of all-
pass ﬁlters with both the speciﬁed degrees of ﬂatness
and equiripple phase responses in the approximation
band(s). Firstly, we consider the ﬂatness condition of
the phase response at the frequency point ω
p
. It is re-
quired that the derivatives of θ(ω) in Eq.(2) are equal
to that of θ
d
(ω) at ω = ω
p
, that is,
r
θ(ω)
∂ω
r
ω=ω
p
=
r
θ
d
(ω)
∂ω
r
ω=ω
p
(r = 0, 1, ··· , K 1),
(5)
where K ( Z) is a parameter that controls the degree
of ﬂatness. It is seen that to satisfy the speciﬁed de-
grees of ﬂatness, the ﬂatness conditions in Eq.(5) be-
come
r
θ
e
(ω)
∂ω
r
ω=ω
p
= 0 (r = 0, 1, ··· , K 1). (6)
From Eq.(4), we have
tan
θ
e
(ω)
2
=
N(ω)
D(ω)
, (7)
where
N(ω) =
N
n=0
a
n
sin{(n
N
2
)ω
θ
d
(ω)
2
}
D(ω) =
N
n=0
a
n
cos{(n
N
2
)ω
θ
d
(ω)
2
}
. (8)
Therefore, it is proven that the condition in Eq.(6) is
equivalent to
r
N(ω)
∂ω
r
ω=ω
p
= 0 (r = 0, 1, ··· , K 1). (9)
By substituting N(ω) in Eq.(8) into Eq.(9), we can
derive a system of linear equations as follows,
N
n=0
r
sin{(n
N
2
)ω
θ
d
(ω)
2
}
∂ω
r
ω=ω
p
a
n
= 0, (10)
for r = 0, 1, ··· , K 1. For example, if a linear phase
is required, that is, θ
d
(ω) = τω, then Eq.(10) is re-
duced to
SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications
206 N
n=0
(n
Nτ
2
)
r
sin{(n
Nτ
2
)ω
p
}a
n
= 0 (even r)
N
n=0
(n
Nτ
2
)
r
cos{(n
Nτ
2
)ω
p
}a
n
= 0 (odd r)
.
(11)
It is known that the phase response θ(ω) is an odd
function with respect to ω = 0 and π. If ω
p
= 0 or π,
then the equations with even r are satisﬁed without
any conditions, and thus the number of the condi-
tions reduces about a half, that is, L =
K
2
, where x
means the largest integer not greater than x. When
ω
p
6= 0 and π, then L = K.
When the above-mentioned conditions are im-
posed at several frequency points ω
pi
(i = 1, 2, ··· ,
M), the total number of the conditions is L =
M
i=1
L
i
,
where L
i
=
K
i
2
if ω
pi
= 0 or π, and L
i
= K
i
if
ω
pi
6= 0 and π. Note that K
i
is a parameter that con-
trols the degree of ﬂatness at ω
pi
. Therefore, if L = N,
we can solve a system of linear equations as shown
in Eq.(10) to obtain a set of ﬁlter coefﬁcients, which
has the maximally ﬂat phase response and satisﬁes the
speciﬁed degrees of ﬂatness at the speciﬁed frequency
point(s) ω
pi
.
Next, we consider the case of L < N. Besides sat-
isfying the ﬂatness conditions in Eq.(5), we want to
obtain an equiripple phase response in the approxi-
mation band(s) by using the remaining degree of free-
dom. We apply the Remez exchange algorithm in the
approximation band(s). Let ω
i
(i = 0, 1, ··· , N L)
are the extremal frequencies in the approximation
band(s), we formulate θ
e
(ω) as
tan
θ
e
(ω
i
)
2
=
N
n=0
a
n
sin{(n
N
2
)ω
i
θ
d
(ω
i
)
2
}
N
n=0
a
n
cos{(n
N
2
)ω
i
θ
d
(ω
i
)
2
}
= (1)
i
δ,
(12)
where δ ( R) is an error. We incorporate Eq.(10) into
Eq.(12), and formulate the design problem as a gener-
alized eigenvalue problem. Then we rewrite Eqs.(10)
and (12) in the matrix form as
PA = δQA, (13)
where A = [a
0
, a
1
, ··· , a
N
]
T
, and the elements of the
matrices P and Q, for example, when the ﬂatness
condition in Eq.(5) is imposed at only one frequency
0 0.1 0.2 0.3 0.4 0.5
−8
−6
−4
−2
0
NORMALIZED FREQUENCY
PHASE RESPONSE ( )
K=7
K=9
K=11
π

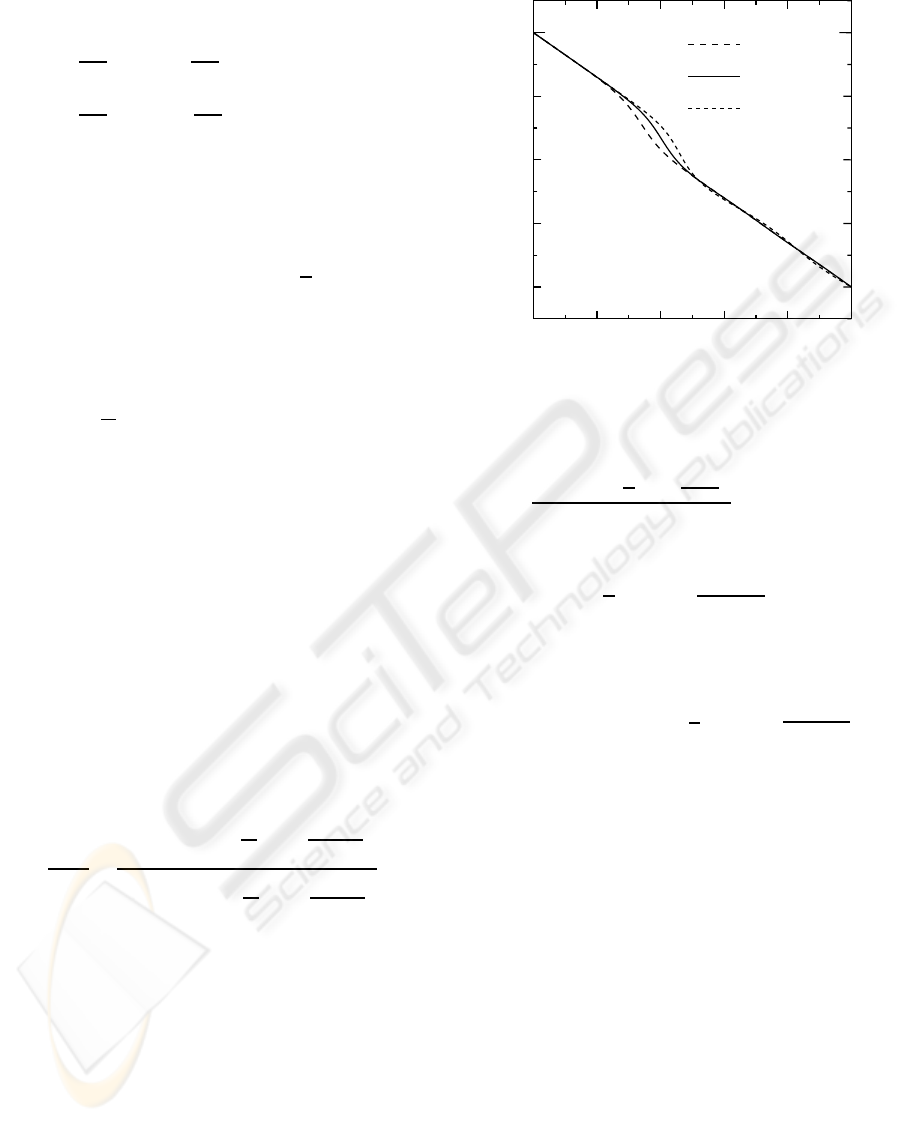

Figure 1: Phase responses of allpass ﬁlters.
point ω
p
(6= 0 and π), are given by
P
ij
=
i
sin{( j
N
2
)ω
θ
d
(ω)
2
}
∂ω
i
ω=ω
p
(i = 0, 1, ··· , L 1)
sin{( j
N
2
)ω
(iL)
θ
d
(ω
(iL)
)
2
}
(i = L, L+ 1, ··· , N)
,
(14)
Q
ij
=
0 (i = 0, 1, ··· , L 1)
(1)
(iL)
cos{( j
N
2
)ω
(iL)
θ
d
(ω
(iL)
)
2
}
(i = L, L+ 1, ··· , N)
.
(15)
Once the design speciﬁcation: the ﬁlter degree N,
the desired phase response θ
d
(ω), the degree of ﬂat-
ness K
i
, the speciﬁed frequency point(s) ω
pi
, and the
extremal frequencies ω
i
in the approximation band(s)
are given, the elements P
ij
and Q
ij
of the matrices P
and Q can be computed by Eqs.(14) and (15). There-
fore, it should be noted that Eq.(13) corresponds to
a generalized eigenvalue problem, i.e., δ is an eigen-
value, and A is a corresponding eigenvector. In or-
der to minimize the error δ, we must ﬁnd the absolute
minimum eigenvalue by solving the eigenvalue prob-
lem, so that the corresponding eigenvector gives a set
of ﬁlter coefﬁcients a
n
. To obtain an equiripple phase
response, we make use of an iteration procedure so
that the optimal ﬁlter coefﬁcients is easily obtained.
The design algorithm is shown as follows.
DESIGN OF ALLPASS FILTERSWITH SPECIFIED DEGREES OF FLATNESS AND EQUIRIPPLE PHASE
RESPONSES
207 4 DESIGN ALGORITHM
Procedure. {Allpass Filter Design Algorithm.}
Begin
d
(ω), K
i
, and ω
pi
.
2) Select initial extremal frequencies
i
(i =
0, 1, ··· , N L) equally spaced in approximation
band(s).
Repeat
3) Set ω
i
=
i
(i = 0, 1, · · · , N L).
4) Compute P and Q by using Eqs.(14) and (15), and
ﬁnd the absolute minimum eigenvalue δ to obtain
a set of ﬁlter coefﬁcients a
n
.
5) Search the peak frequencies
i
(i = 0, 1, · · · , N
L) of θ
e
(ω) in approximation band(s).
Until
Satisfy the following condition for a prescribed small
constant ε (for example, ε = 10
8
):
|ω
i
i
| < ε (for all i)
End.
5 IIR FILTERS COMPOSED OF
ALLPASS FILTERS
Many methods for designing IIR ﬁlters have been pro-
posed in (Mitra and Kaiser, 1993), (Regalia et al.,
1988), (Zhang and Iwakura, 1996), (Lang, 1998),
(Hegde and Shenoi, 1998), (Selesnick and Burrus,
1998), (Selesnick, 1999). These design methods have
considered the maximally ﬂat and/or equiripple mag-
nitude responses. It is required in some applications
that the magnitude response of the ﬁlters is ﬂat in
passband(s) and equiripple in stopband(s) (Darling-
ton, 1978), (Vaidyanathan, 1985), (Selesnick and Bur-
rus, 1996), (Hegde and Shenoi, 1998). In this section,
we discuss the design of IIR ﬁlters with ﬂat pass-
band(s) and equiripple stopband(s), which are com-
posed of two allpass ﬁlters.
It is known in (Regalia et al., 1988), (Lang, 1998),
(Selesnick and Burrus, 1998) and (Selesnick, 1999)
that a parallel interconnection of two allpass ﬁlters
(allpass-sum) has many advantages, such as low-
sensitivity structures, low-complexity structures with
low roundoff noise behavior, and so on. The classical
digital (Butterworth, Chebyshev, and elliptic) ﬁlters
can be realized as an allpass-sum structure. In addi-
tion, the allpass-sum structure can realize a more gen-
eral class of transfer functions. Here, we consider this
class of IIR ﬁlters whose transfer function is given by
H(z) =
1
2
[z
J
A
1
(z) + A
2
(z)], (16)
0 0.1 0.2 0.3 0.4 0.5
−0.1
−0.05
0
0.05
0.1
NORMALIZED FREQUENCY
PHASE ERROR ( )
K=7
K=9
K=11
π

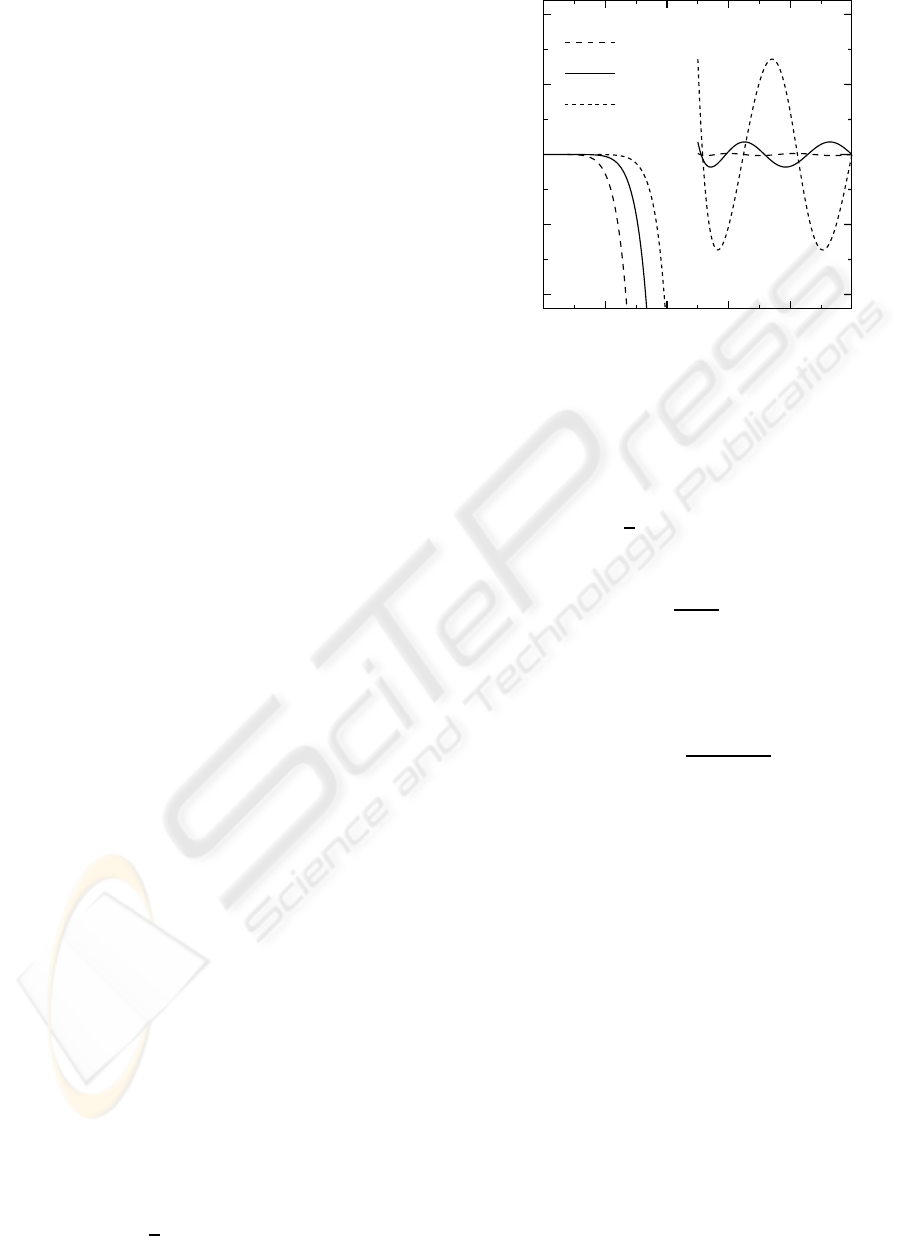

Figure 2: Phase errors of allpass ﬁlters.
where A
1
(z), A
2
(z) are two causal stable allpass ﬁlters
of degree N
1
, N
2
, and J ( Z) is a nonnegative integer.
Eq.(16) can be rewritten to
H(z) =
1
2
A
1
(z)[z
J
+ A(z)], (17)
where
A(z) =
A
2
(z)
A
1
(z)
, (18)
whose degree is N = N
1
+ N
2
. Note that A(z) needs
not be causal stable. The magnitude response of H(z)
is given by
|H(e
jω
)| = |cos
θ(ω) + Jω
2
|, (19)
where θ(ω) is the phase response of A(z). It is clear
that the phase difference between A(z) and z
J
must
be 2nπ in the passband(s) of H(z), and (2n + 1)π in
the stopband(s), where n Z. Therefore, the desired
phase response of A(z) is
θ
d
(ω) =
Jω+ 2nπ (in passband)
Jω+ (2n+ 1)π (in stopband)
,
(20)
then the design problem of H(z) becomes the phase
approximation of A(z). The conventional design
methods, for example, the maximally ﬂat design (Thi-
ran, 1971), equiripple design (Zhang and Iwakura,
1999), (Tseng, 2003) and so on, can be used in the
design. However, these methods cannot design all-
pass ﬁlters with ﬂat and equiripple phase response in
passband(s) and stopband(s), respectively. By using
the design method proposed in the preceding section,
we can obtain easily the ﬂat passband(s) and equirip-
ple stopband(s) of H(z).
SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications
208 0 0.1 0.2 0.3 0.4 0.5
−80
−60
−40
−20
0
NORMALIZED FREQUENCY
MAGNITUDE RESPONSE (dB)
K=7
K=9
K=11

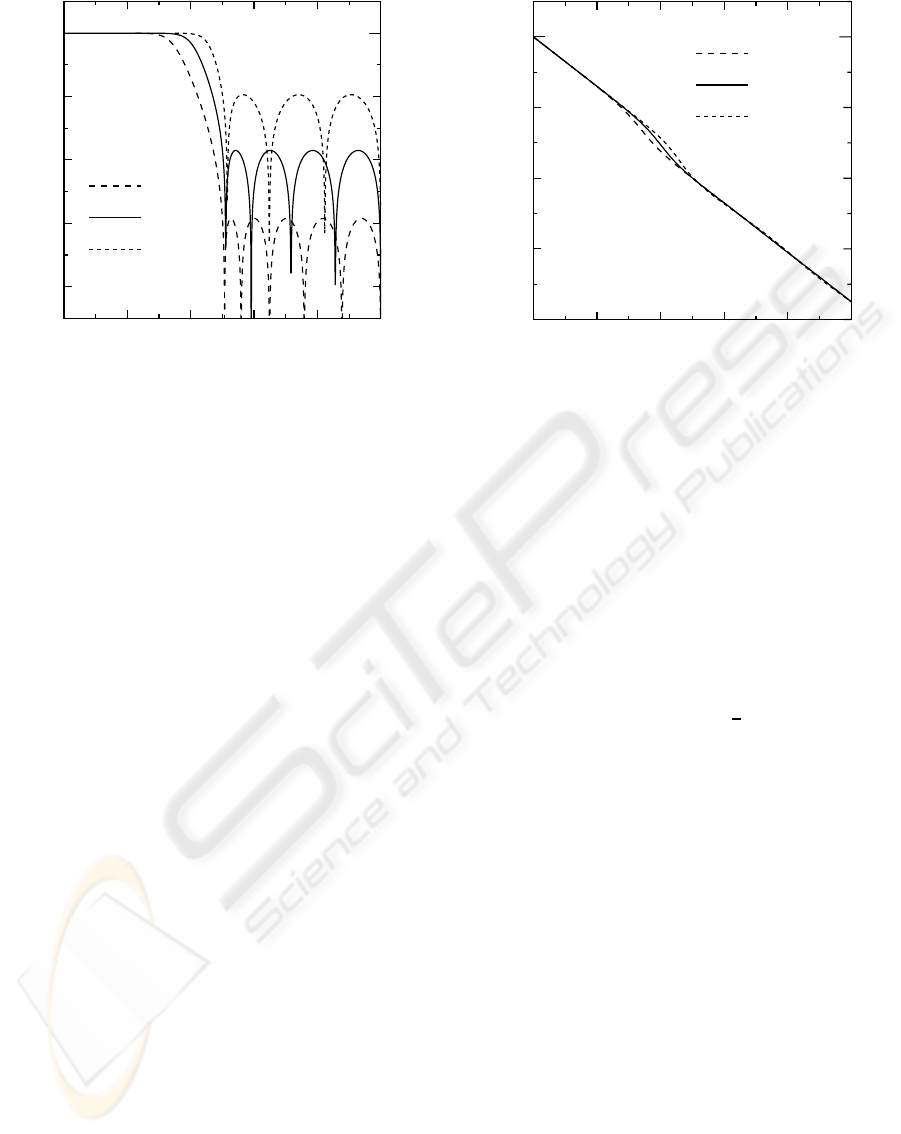

Figure 3: Magnitude responses of IIR lowpass ﬁlters.
For example, if we want H(z) to be a lowpass ﬁl-
ter, the desired phase response is given by
θ
d
(ω) =
Jω (0 ω ω
1
)
Jω± π (ω
2
ω π)
, (21)
where ω
1
and ω
2
are the cutoff frequencies of the
passband and stopband, respectively. Note that in
this case, the ﬁlter degrees N
1
and N
2
must satisfy
N
2
N
1
= J 1. If we set N
1
= 0 and N = N
2
=
J 1, then the ﬁlter will have an approximately linear
phase response also (Laakso et al., 1996), (Zhang and
Iwakura, 1999).
We use the proposed method to design the allpass
ﬁlter A(z), whose phase response θ(ω) satisﬁes Eq.(5)
at ω
p
= 0. Note that K should be an odd number, be-
cause θ(ω) is an odd function with respect to ω = 0.
Thus, the resulting lowpass ﬁlter H(z) has a ﬂat mag-
nitude response at ω
p
= 0, and the degree of ﬂatness
is 2K.
6 DESIGN EXAMPLES
In this section, we present some examples to
demonstrate the effectiveness of the proposed design
method.
First, we consider the design of allpass ﬁlter of de-
gree N = 8 with the desired phase response θ
d
(ω) =
7ω in [0, 0.3π] and θ
d
(ω) = 7ω π in [0.5π, π].
The degree of ﬂatness is required to be K = 9 at
ω
p
= 0, then L = 4. Since the remaining degree of
freedom is N L = 4, we have selected initial ex-
tremal frequencies 0.5π = ω
0
< ω
1
< ·· · < ω
4
< π
equally spaced in [0.5π, π], and obtained the optimal
0 0.1 0.2 0.3 0.4 0.5
−8
−6
−4
−2
0
NORMALIZED FREQUENCY
PHASE RESPONSE ( )
K=7
K=9
K=11
π
Figure 4: Phase responses of IIR lowpass ﬁlters.
ﬁlter coefﬁcients a
n
by using the design algorithm de-
scribed in the section IV. The resulting phase response
and phase error are shown in the solid line in Fig.1 and
Fig.2, respectively. It is clear in Fig.2 that the phase
response is ﬂat at ω = 0 and equiripple in [0.5π, π]. In
Fig.1 and Fig.2, the phase responses of two allpass ﬁl-
ters with K = 7 and K = 11 are shown also. It is seen
that the degree of ﬂatness K can be arbitrarily spec-
iﬁed. It is found that these allpass ﬁlters are causal
stable since all poles are within the unit circle (Zhang
and Iwakura, 1999).
Next, we use the obtained allpass ﬁlters to con-
struct IIR lowpass ﬁlters: H(z) =
1
2
[z
7
+ A(z)]. The
magnitude and phase responses of the IIR ﬁlters are
shown in Fig.3 and Fig.4, respectively. It is seen in
Fig.3 and Fig.4 that these lowpass ﬁlters have the ﬂat
passband and equiripple stopband responses, while
the phase responses are approximately linear.
7 CONCLUSIONS
In this paper, we have proposed a new method for de-
signing allpass ﬁlters which have both the speciﬁed
degrees of ﬂatness and equiripple phase responses
in the approximation band(s). Firstly, a system of
linear equations have been derived from the ﬂatness
conditions of the phase responses, then the Remez
exchange algorithm is used to get the equiripple re-
sponses in the approximation band(s). The design
problem has been formulated as a generalized eigen-
value problem by incorporating the ﬂatness condi-
tions into the equiripple approximation, thus, a set of
ﬁlter coefﬁcients can be easily obtained by solving the
eigenvalue problem. Furthermore, as one application
DESIGN OF ALLPASS FILTERSWITH SPECIFIED DEGREES OF FLATNESS AND EQUIRIPPLE PHASE
RESPONSES
209 of allpass ﬁlters, a class of IIR ﬁlters composed of two
allpass ﬁlters has been discussed also. Finally, some
examples have been presented to demonstrate the ef-
fectiveness of the proposed design method.
