CONFIDENTIALITY AND INTEGRITY FOR SUM AGGREGATION

IN SENSOR NETWORKS

Keith B. Frikken and Yihua Zhang

Miami University, Oxford, Ohio, U.S.A.

Keywords:

Sensor aggragation, Privacy, Integrity.

Abstract:

When deploying sensor networks in environments that monitor people (e.g., monitoring water usage), both

privacy and integrity are important. Several solutions have been proposed for privacy (Castelluccia et al.,

2005), (He et al., 2007), and integrity (Yang et al., 2006), (Przydatek et al., 2003), (Hu and Evans, 2003), (Chan

et al., 2006), (Frikken and Dougherty, 2008). Unfortunately, these mechanisms are not easily composable. In

this paper, we extend the splitting schemes proposed in (He et al., 2007) to provide privacy and integrity when

computing the SUM aggregate. Our scheme provides privacy even if the base station colludes with some

cluster heads, and provides integrity by detecting when individual nodes inﬂate or deﬂate their values too

much. Our main contributions are: i) a new integrity measure that is a relaxation of the one in (Chan et al.,

2006), ii) a new privacy measure called k-similarity, iii) a construction that satisﬁes both of these measures for

the computation of the SUM aggregate that avoids the usage of expensive cryptography, and iv) experimental

results that demonstrate the effectiveness of our techniques.

1 INTRODUCTION

Wireless sensor networks have promising applica-

tions from military surveillance to civilian usage. In

these applications, the base station queries the net-

work and sensor nodes report their values to the base

station. In some applications, privacy and integrity

are security concerns. For example, if the sensor’s

individual readings reveal information about speciﬁc

people, then these values must be protected (even

against the base station). Furthermore, as individual

nodes may become compromised the base station de-

sires a guarantee about the accuracy of the query re-

sult.

A well known technique to extend the lifetime

of the network is in-network aggregation. Although

this approach reduces the communication overhead

and extends the network’s operation time, in its most

straight-forward implementation it suffers from both

privacy and integrity problems (for a detailed survey

of security in aggregation see (Alzaid et al., 2008)).

In terms of privacy, while the base station only re-

ceives an aggregated result, the values are now leaked

to other nodes(i.e., aggregator nodes) in the network.

Also, there are now two integrity threats: i) a node

may inﬂate of deﬂate its values (and the base station

can no longer perform the sanity check on each value)

and ii) an aggregator might misrepresent the aggre-

gated value. There has been a signiﬁcant amount of

work (Castelluccia et al., 2005) and (He et al., 2007)

addressing the privacy issue for in-network aggrega-

tion. However, all of these works assume that sen-

sors will honestly report their values. Also, many

schemes (Yang et al., 2006), (Przydatek et al., 2003),

(Hu and Evans, 2003), (Chan et al., 2006), (Frikken

and Dougherty, 2008) address the integrity issue. Ba-

sically, these schemes use other nodes to verify the

validity of reported values. However, with these ap-

proaches a verifying node inevitably learns the sen-

sitive information for the nodes that it veriﬁes. The

natural question becomes “Can we design a scheme

that achieves both privacy and integrity?” The only

work that we are aware of that addresses both of these

problems is (Roberto et al., 2009) and (Castelluccia

and Soriente, 2008). We discuss the differences be-

tween our work and this prior work in the next sec-

tion.

We propose a scheme for computing the sum ag-

gregate that provably achieves both meaningful pri-

vacy and integrity. Our work is built upon the

SMART scheme(He et al., 2007), that uses the split-

and-merge mechanism. Our main contributions are:

1. We introduce the notion of ampliﬁcation factor

to measure the deviation degree between the re-

231

B. Frikken K. and Zhang Y. (2010).

CONFIDENTIALITY AND INTEGRITY FOR SUM AGGREGATION IN SENSOR NETWORKS.

In Proceedings of the International Conference on Security and Cryptography, pages 231-240

DOI: 10.5220/0002937602310240

 SciTePress

ported and the correct aggregate values.

2. We introduce a new privacy notion, k-similarity,

that provides “good” enough security. We provide

analysis to show that this new notion provides a

reasonable level of privacy.

3. We provide a protocol for computing the sum ag-

gregate that achieves both integrity and privacy.

The proofs of these claims is omitted due to page

constraints. Expensive cryptography is not used in

this protocol, which makes it applicable to current

sensor technology. Furthermore, the communica-

tion is also reasonable.

4. We provide experimental results to demonstrate

the effectiveness of our approach.

The rest of this paper is organized as follows: in

section 2 we survey related literature. In section 3 we

deﬁne the problem, and in section 4 we introduce a

splitting scheme that performs the sum aggregation.

In section 5, we formally deﬁne the integrity and pri-

vacy goals for splitting schemes. In section 6, we pro-

vide a construction that satisﬁes our goals. In section

7, a series of experiments to test the effectiveness of

our constructions is performed. Finally in section 8,

we summarize our work and describe future work.

2 RELATED WORK

Initial works(Madden et al., 2002), (Intanagonwiwat

et al., 2002) in the data aggregation domain share the

same assumption that all sensors in the network are

honest, and no outsiders attempt to eavesdrop or tam-

per with the sensor readings. However, in reality, sen-

sors are deployed in unattended or hostile environ-

ments which put them at risk in the following ways: i)

adversaries interested in the values of individual sen-

sors will either eavesdrop the communication or phys-

ically crack the sensors to obtain the sensor readings

and ii) adversaries who compromise a fraction of sen-

sors will attempt to mislead the base station to accept

a spurious aggregate result or prevent the ﬁnal aggre-

gate from being reported to the base station. Many

schemes have been introduced that address either the

privacy or the integrity issue.

Many of the approaches for integrity utilize

a divide-and-conquer, commit-and-attest mechanism

for the purpose of obtaining an acceptable aggre-

gation result when a fraction of sensors are com-

promised. These schemes fail to achieve privacy,

because in the aggregation phase, the intermediate

node(aggregator) will learn all private sensor read-

ings sent from its children. In (Chan et al., 2006) and

(Frikken and Dougherty, 2008), schemes for provably

secure hierarchical in-network data aggregation were

proposed. The schemes were based on a commit-and-

attest mechanism, but utilized the delayed aggrega-

tion to effectively reduce the veriﬁcation overhead.

However, neither of these schemes provided privacy.

Works presented in (Castelluccia et al., 2005),

(He et al., 2007) are related to privacy preservation.

In (Castelluccia et al., 2005), the author proposed a

homomorphic encryption scheme that achieves both

the end-to-end privacy and energy-efﬁcient proper-

ties. Another work (He et al., 2007) introduced two

schemes(CPDA, SMART) to protect individual sen-

sor readings during the aggregation phase. Speciﬁ-

cally, in the SMART scheme each sensor conceals its

private data by slicing it into pieces, and sends the

pieces to different cluster heads in the networks. Af-

ter receiving all shares, those cluster heads will sim-

ply aggregate those shares, and further send the ag-

gregate to the base station. One major problem in

these two works(Castelluccia et al., 2005), (He et al.,

2007) is that they did not consider the existence of

malicious users who may report illegal values (e.g.,

values that are outside of the range of legal values).

Lacking a mechanism to check the validity of reported

values, the integrity will not be guaranteed. Our work

is primarily based on analyzing the security charac-

teristics of the SMART scheme, and aims to incor-

porate both the conﬁdentiality and integrity into this

scheme. Source location privacy(Kamat et al., 2005),

(Yang et al., 2008) attempts to hide the location of

a reported event, which is an orthogonal issue to the

issues considered in this paper.

Recently, a scheme(Roberto et al., 2009) was pro-

posed to address both of the privacy and integrity is-

sues. In (Roberto et al., 2009), the author applies ho-

momorphic encryption to preserve the privacy, and

uses monitoring sensors to detect the abnormal be-

havior of aggregators. That is, each aggregating node

has several monitoring nodes that ensure that the ag-

gregator does not misbehave. However, this does not

prevent leaf nodes from intentionally reporting ille-

gal values. In order to preserve privacy, the scheme

also requires that neither the aggregating nodes nor

the monitoring nodes collude with the base station.

Another scheme, ABBA, (Castelluccia and Sori-

ente, 2008) was proposed for providing privacy and

integrity in sensor aggregation which utilized an addi-

tive checksum to provide integrity. A downside with

this approach was that if an adversary corrupted a sin-

gle node and knows the reported values of several

nodes in the network, then this adversary can modify

these known values to arbitrary values.

SECRYPT 2010 - International Conference on Security and Cryptography

232

3 PROBLEM DEFINITION

We consider a sensor network with N nodes, denoted

by s

,...,s

. At any given time each sensor node

has a value in the range [0,M], where node s

’s value

is denoted by v

. A special node, the base station,

will query the network to learn

∑

i=1

. Limiting the

range of values to [0,M] does not limit the applicabil-

ity of the scheme, because other ranges can simply be

scaled to match this type of range.

We assume that there is a special set of nodes,

called cluster heads. These cluster heads could ei-

ther be more expensive tamper-resistant nodes, or can

be regular nodes in the network that are identiﬁed via

a cluster formation process (as in (He et al., 2007)).

During deployment (before the adversary compro-

mises nodes), each sensor node discovers its closest C

cluster heads. The regular nodes in the network will

send information to their closest cluster heads, and

then these cluster heads will pass the aggregation in-

formation up the aggregation tree to the base station.

We assume that sensor nodes have keys with each

other. Speciﬁcally, we require that each sensor node

has a key with each of its C cluster heads. This can be

achieved using one of the many well-known key pre-

distribution schemes (see (Camtepe and Yener, 2005)

for a survey of such schemes). We assume that the

base station can perform authenticated broadcast by

using a protocol such as µTELSA(Perrig et al., 2002).

The primary security concerns in this paper are:

1. Integrity. We want to defend against the stealthy

attack deﬁned in (Przydatek et al., 2003). Specif-

ically, we assume that some leaf nodes are com-

promised, and we want to prevent them from con-

vincing the base station of a false result. At a high

level, we want to prevent nodes from being able

to have more inﬂuence on the ﬁnal aggregate than

what can be achieved by changing its reported

value to something in the range [0,M]. We achieve

only a weakened form of this goal. Essentially,

we bound the amount that each node cannot in-

ﬂuence the result. When using in-network aggre-

gation, there are two potential threats: i) a sens-

ing node is corrupt and reports a value outside of

the range [0, M], and ii) aggregating node modi-

ﬁes the results of previous nodes. The scheme in

(Chan et al., 2006) protected against both of these

threats, but did not preserve privacy. The work

in (Roberto et al., 2009) did not consider the ﬁrst

type of attack, and thus to corrupt the result, an

adversary only needs corrupt an individual node.

In this paper we focus on preventing this type

of attack, but do not address corrupt aggregating

nodes. However, our techniques can be combined

with the technique in (Roberto et al., 2009) to pro-

tect against both corrupt reporting nodes and cor-

rupt aggregating nodes.

2. Privacy. The value of each sensor node should

be private, even from the base station. We assume

that the base station and up to t cluster heads are

corrupt, and attempt to learn an individual sen-

sor’s values. Here “corrupt” means that the clus-

ter heads collude with the base station to reveal

the sensor’s private data, not that it lies to the

base station(i.e., misrepresent the sensor’s private

reading, or not warn the base station about illegal

shares). We prove security when t = 1, but pro-

vide experimental results that show that our ap-

proach is effective for larger t values.

3. Availability. We do not consider denial of service

attacks in this paper.

4 SUM AGGREGATION USING

SPLITTING SCHEMES

In this section, we will review the basic ideas of the

SMART (He et al., 2007) splitting scheme that aims

to preserve the privacy of each sensor’s reading dur-

ing the sum aggregation. Each sensor hides its private

data by slicing it into several pieces, and then it sends

each encrypted piece to different cluster heads. After

receiving all pieces, each cluster head will calculate

the intermediate aggregate result, and further report

it to the base station. To explain in details, we will

divide this process into three steps: Slice, Mix and

Merge.

Step 1 (“Slice”). Each node s

, will slice v

into

C shares: v

,...,v

. That is v

∑

j=1

. The node

then sends to each of its C cluster heads one of these

values.

Step 2 (“Mix”). After receiving all of the shares,

the cluster head decrypts all of its values and sums up

all of the reported shares. It then sends this aggregate

to the base station.

Step 3 (“Merge”). The base station receives all

of the values from the cluster heads and sums up all

of these values to obtain the sum of all nodes’ values.

This value will be

∑

i=1

∑

j=1

∑

i=1

It is important to note that the actual SMART pro-

tocol is slightly different from the one above. Specif-

ically, each node would sends their shares to a ran-

dom subset of nodes in the network. Also, the nodes

keep one share for themselves, aggregate it with other

shares it received. While the SMART protocol in-

tuitively achieves private aggregation for the SUM,

there are two main limitations to its initial presenta-

CONFIDENTIALITY AND INTEGRITY FOR SUM AGGREGATION IN SENSOR NETWORKS

233

tion in (He et al., 2007). First, no description of how

to split the values was given in (He et al., 2007), and

second, no formal analysis was given to provide any

security guarantees. However, this approach does po-

tentially enjoy an additional advantage that was not

discussed in (He et al., 2007); speciﬁcally, it can po-

tentially provide integrity in addition to privacy. That

is, in the mixing step, the cluster heads can verify that

the values are in a valid range; and thus, this could

bound the amount a corrupted node can affect the ﬁ-

nal aggregate. The aims of this paper are to: i) give a

speciﬁc construction for splitting schemes, ii) provide

a formal analysis of the effectiveness of this scheme

with regards to privacy and integrity, and iii) demon-

strate that the construction provides a meaningful no-

tion of privacy and integrity.

5 FORMALIZING SPLITTING

SCHEMES

In this section we formalize the desired properties of

a splitting scheme, so that it can be used in a proto-

col such as the one in the previous section to provide

integrity and privacy. Suppose a sensor node has a

value v that is in the range [0,M]. The node is con-

cerned about the privacy of v so it splits v into inte-

ger shares v

,...,v

such that

∑

i=1

= v. The node

then reports to each of its cluster heads one of these

values. The cluster heads then verify that each share

is in a valid range and then aggregate the individual

shares. The privacy concern with this approach is that

an adversary would obtain some share values (i.e., by

corrupting some cluster heads) and then be able to de-

termine information about v. Informally, the goal is

that if the adversary obtains up to some threshold t

shares, the adversary should not be able to determine

the value used to generate the shares. In the remainder

of this section we focus on the case where t = 1, but

in section 7 we consider larger values of t. What com-

plicates this problem, is the orthogonal server goal of

data integrity; that is the server wants to prevent the

client from inﬂating or deﬂating his value too much

(i.e., reporting a value outside of the range [0,M]. We

now formalize some notions about splitting values.

Deﬁnition 1. A splitting scheme is a probabilistic al-

gorithm S that takes as input: i) an upper bound on

values M, ii) a value v ∈ [0, M], and iii) a number of

shares s. S then produces output v

,...,v

such that

∑

i=1

= v.

To simplify the analysis of splitting schemes we

will consider only splitting schemes where the distri-

bution for share v

is the same as the distribution for

the share v

for all i, j ∈ [1,s]. More formally:

Deﬁnition 2. A splitting scheme, S, is called symmet-

ric if ∀i

∈[1,s] and j ∈Z, Pr[v

= j|(v

,...,v

) ←

S(M, v,s)] = Pr[v

= j|(v

,...,v

) ← S(M,v,s)] for

all valid choices of M, v, and s.

One may be concerned that asymmetric splitting

schemes may perform better than symmetric splitting

schemes. However, suppose we have an asymmetric

splitting scheme, A. To convert A into a symmetric

scheme: i) compute (v

,...,v

) ← A(M, v, s) and ii)

randomly permute the shares to obtain the respective

shares. It is straightforward to show that this a sym-

metric scheme, and clearly if no t shares reveal any-

thing about v in the original set, then no t shares reveal

anything about v in the permuted set. Thus it sufﬁ-

cient to consider only symmetric splitting schemes.

5.1 Integrity Goal

The server’s integrity concern is that a corrupted sen-

sor may report a value not in the range [0,M]. Any

splitting scheme will produce shares inside of a spe-

ciﬁc range, we call the range [Min,Max]. Formally,

Deﬁnition 3. The range of a splitting scheme, a

share count s and an upper bound M is denoted by

range(S,M, s) is [Min(S,M, s), Max(S,M, s)] where

• Min(S,M, s) (resp. Max(S, M,s)) is the mini-

mum (resp. maximum) share value produced by

S(M, v,s) over all possible v ∈ [0,M] and all pos-

sible choices for the randomness for S.

Since individual cluster heads know the value

range(S,M,s), they can verify that the shares that it

receives are inside this range. If any of the shares are

outside this range, then the cluster head reports the

error to the base station. Thus a node can cannot re-

port any value outside of the range [s ×Min(S,M,s),

s ×Max(S,M, s)] to the base station. The additional

range reporting capability is deﬁned in the following

metric:

Deﬁnition 4. The ampliﬁcation factor of a splitting

scheme S for parameters M,s is

s ×Max(S,M, s) −s ×Min(S,M, s) + 1

M + 1

As an example, suppose that the user’s values

must be in the range [0,2], and that the splitting

scheme produces two shares each in the range [−2,2].

Thus a malicious node can report any value in the

range [−4,4], and so the ampliﬁcation factor is 3, that

is a malicious user can report a value in a range that is

three times bigger than the range of the actual values.

That is, if the splitting scheme has an ampliﬁcation

SECRYPT 2010 - International Conference on Security and Cryptography

234

factor of a, then compromising a single node is like

compromising a nodes in a scheme where all reported

values are to be in the range [0,M].

Clearly, the goal is to make the ampliﬁcation fac-

tor as close to 1 as possible. In fact, in the absence of

the privacy goal, this is trivial. Simply have s = 1, and

have S(M, v,s) = v. However, while this provides am-

pliﬁcation factor of 1, it clearly provides no privacy.

5.2 Privacy Goal

The initial privacy goal is that the adversary should

not be able to determine the value of the result, when

given one of the shares. Since the scheme is symmet-

ric we only consider giving the ﬁrst share to the adver-

sary (that is the ﬁrst share has the same distribution as

every other share, so the adversary will not gain more

information from receiving a different share). We for-

malize this notion for symmetric splitting schemes in

the following experiment:

Deﬁnition 5. Share Indistinguishability Experi-

ment Exp

M,s,S

(k).

1. A is given the security parameter 1

, the values M

and s. A chooses two values m

and m

(both in

[0,M]).

2. A bit b is randomly chosen. (v

,...,v

) ←

S(M, m

,s). A is given v

3. A outputs a bit b

4. If b = b

, then output 1. Otherwise output 0.

We denote the advantage of A as Adv

M,s,S

(k) :=

Pr[Exp

M,s,S

(k) = 1] −

. We say that a split-

ting scheme is cryptographically private if for all

probabilistic polynomial time (PPT) algorithms A,

Adv

M,s,S

(k) is negligible in k. Here, “negligible” has

the standard cryptographic deﬁnition. That is, a func-

tion f (k) is negligible if for all polynomials P and

large enough N: ∀n > N : f (n) <

P(n)

If we ignore the integrity goal, then it is straight-

forward to achieve cryptographic privacy. Essentially,

the algorithm chooses v

uniformly from [0,M ∗2

]

and sets v

= v −v

. We omit a formal proof that this

is cryptographically private, but the basic idea is that

if v

is chosen in the range [M, (2

−1)M], then no in-

formation is leaked about v, by either of the individual

shares. v

is not chosen in this range with probability

(2M)/M2

k−1

, which is negligible in k. Unfor-

tunately, this scheme has an ampliﬁcation factor of

k+1

, which clearly provides no meaningful integrity.

5.2.1 Good Enough Privacy

As can be seen from the previous two sections, it is

possible to achieve either integrity or cryptographic

privacy for splitting schemes. The natural question

that arises is whether it is possible to achieve both

simultaneously. Unfortunately, we later show that

any splitting scheme with cryptographic privacy has

super-polynomial (in terms of the security parameter)

ampliﬁcation factor. This implies that one of the two

constraints must be weakened. In order for a split-

ting scheme to provide any integrity, the ampliﬁcation

factor must be kept small, and thus the question be-

comes: “Is there a meaningful notion of privacy that

can be obtained that suffers only moderate ampliﬁca-

tion factor?” In the remainder of this section we ﬁrst

prove the impossibility result, describe some failed at-

tempts at privacy, and then introduce and analyse a

new notion of privacy called k-similarity.

5.2.2 Impossibility Result

We now show that a symmetric splitting scheme

cannot achieve both cryptographic privacy and

polynomially-bounded ampliﬁcation factor. Due to

page constraints we omit the formal proof and give

only a sketch of the results below. Speciﬁcally, the

main result is as follows:

Theorem 1. Any symmetric splitting scheme, S, with

parameters M, and s (s > 1) such that Adv

M,s,S

(k) ≤ε

has an ampliﬁcation factor ≥

√

2(M+1)

√

A consequence of the above theorem is that if the

adversary advantage is negligible in k, then the ampli-

ﬁcation factor must be super-polynomial. That is, M

and s are ﬁxed constants, and the ε is in the denomi-

nator, so the ampliﬁcation factor is inversely propor-

tional to the square root of the adversary advantage.

Before sketching the proof, we deﬁne the follow-

ing notation:

Deﬁnition 6. A symmetric splitting scheme, S for

range [0, M] and shares s induces a distribution on

[Min(S, M,s), Max(S,M, s)]for each value v ∈ [0,M].

We denote the probability that a share is i given a split

value v as:

S,M,s

[i] = Pr[v

= i|(v

,...,v

) ← S(M,v,s)].

Theorem 1 rests on the following two lemmas:

Lemma 1.

∑

Max(S,M,s)

i=Min(S,M,s)

i ∗D

S,M,s

[i] =

Lemma 2. Suppose ∃i ∈ [Min(S,M, s), Max(S,M, s)]

and m

∈ [0, M] such that |D

S,M,s

[i] −D

S,M,s

[i]| ≥

ε, then there exists a PPT adversary A such that

Adv

M,s,S

(k) ≥

The proof proceeds as follows, using lemma 1

it is possible to show that when splitting two dif-

ferent values that there is a speciﬁc value where

CONFIDENTIALITY AND INTEGRITY FOR SUM AGGREGATION IN SENSOR NETWORKS

235

the value is above

(r−1)s

(where r = Max(S,M,s) −

Min(S, M,s) + 1) . However, combining this with

Lemma 2 this is enough to show unless r is super-

polynomial, that the Adv

M,s,S

(k) is non-negligible.

5.2.3 A Deﬁnition for Privacy

Clearly, in order for splitting schemes to be useful, we

need to relax one of our two goals. If we require cryp-

tographic privacy, then the ampliﬁcation factor will be

large and no useful integrity will be provided. Thus

we explore weaker deﬁnitions of privacy; our funda-

mental goal is to place some bound on the information

gained by an adversary. Before describing the deﬁni-

tion, we look at some failed attempts:

1. We could require that |D

S,M,s

[i] −D

S,M,s

[i]| is be-

low some threshold ε for all values m

, m

, and i.

However, this does not prevent the following situ-

ation: D

S,M,s

[i] = 0 and D

S,M,s

[i]| 6= 0. If this situ-

ation happens, and the adversary is attempting to

distinguish between m

and m

and the corrupted

sample is i, then the adversary is certain that the

split value is m

. Thus the adversary’s knowledge

gain is potentially arbitrarily large.

2. A stronger condition is that

∑

Max(S,M,s)

i=Min(S,M,s)

S,M,s

[i]

−D

S,M,s

[i]| is below some threshold ε. However,

this has the same problem as the prior approach.

When considering the amount of knowledge

gained from a share, an important factor is that the

difference between the two distributions at any point

is small relative to the values at those points. Using

this as motivation we propose the following deﬁni-

tion.

Deﬁnition 7. A symmetric splitting scheme, S,

with parameters M, and s provides k-similar

privacy if and only if ∀m

∈ [0,M], ∀i ∈

[Min(S, M,s),Max(S, M,s)] either

i) D

S,M,s

[i] = 0 and D

S,M,s

[i] = 0 or

ii)

min{D

S,M,s

[i],D

S,M,s

[i]}

max{D

S,M,s

[i],D

S,M,s

[i]}−min{D

S,M,s

[i],D

S,M,s

[i]}

≥ k

5.2.4 Analysis of k-similar Privacy

We are interested in bounding the “information gain”

that the adversary has from the captured share. To

model this, suppose that the adversary is trying to dis-

tinguish whether the user has a value m

or a value

. Furthermore, the adversary has some background

knowledge regarding the likelihood that the value is

, and we represent this as probability P. We stress

that we do not assume knowledge of value P, but

rather we wish bound the information gain for any

value of P. Denote as P

the adversary’s probabil-

ity that the value is m

after seeing a single sample

with value i. Below, a bound is placed upon the value

−P|, which is independent of i.

Theorem 2. If a splitting scheme satisﬁes k-

similarity, then |P

−P|≤

Q−Q

Q+k

where Q =

√

+ k −

Proof. For the sake of brevity denote as p

S,M,s

[i] and q

= D

S,M,s

[i]. Now, P

P×p

+(1−P)×q

We consider two cases: i) p

≥ q

and ii) p

< q

Case 1. p

≥ q

: It is straightforward to show

that P

≥ P. Since

−q

≥ k, q

≥

k+1

. Now, P

+(1−P)q

, and this value is maximized when q

minimized. Thus, P

≤

+(1−P)

k+1

P+(1−P)

k+1

Pk+P

Pk+P+(k−kP)

Pk+P

P+k

. Now P

−P ≤

Pk+P

P+k

−P =

P−P

P+k

It is straightforward to show that this value is maxi-

mized when P =

√

+ k −k.

Case 2. p

< q

: A symmetrical argument can be

made to case 1. 

In Figure 1 we plot the the maximal knowledge

gain (i.e., |P

−P|) for several value of k. Observe

that, as k increases this value decreases rapidly. For

example, if a scheme satisﬁes 7-similarity, then a sin-

gle sample changes the adversary’s belief about the

reported value by at most 3.4%, and if the splitting

scheme satisﬁes 10-similarity, the maximum change

is 2.4%. Clearly, this is not as strong as the notion of

cryptographic privacy, but it may be enough security

in some situations.

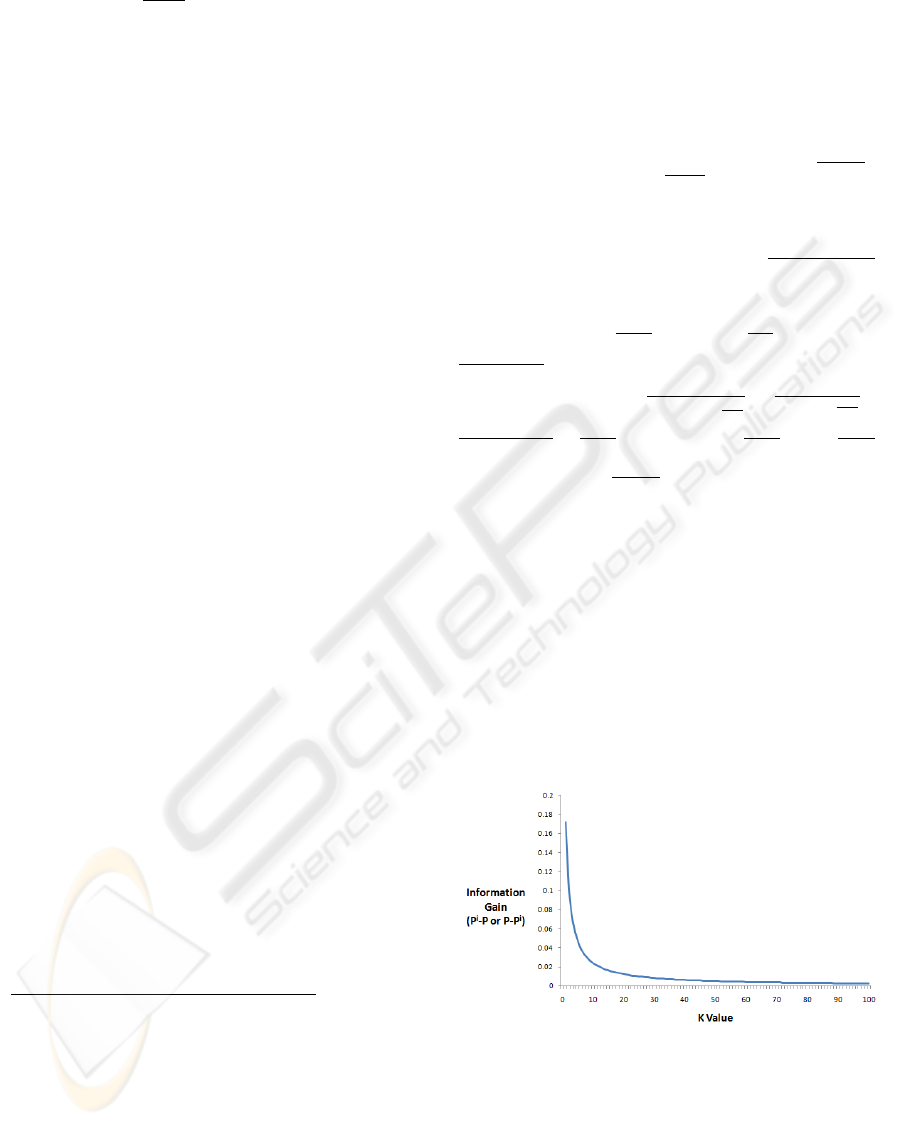

Figure 1: Relation between maximum information gain and

K value.

6 A CONSTRUCTION

In this section we present a construction for a splitting

scheme. Before describing the scheme we introduce

a new deﬁnition. Deﬁne C

(T,a,b) to be the number

SECRYPT 2010 - International Conference on Security and Cryptography

236

of ways to choose s values that sum up to T where all

values are in the range [a,b]. Note that these C values

can be computed using the following recurrence:

1. C

(T,a,b) = 1 if T ∈ [a,b] and is 0 otherwise.

2. C

(T,a,b) =

∑

j=a

i−1

(T − j,a,b)

The main construction is as follows: At a high

level, to split a value v among s shares, the split-

ting scheme takes as a parameter a value N and pro-

duces values in the range [−N,N]. We discuss how to

choose N later, but clearly it is required that Ns ≥ M.

The scheme chooses q as the ﬁrst share with proba-

bility

s−1

(v−q,−N,N)

(v,−N,N)

. It then chooses shares for values

v −q using s −1 shares recursively using the same

strategy. Before describing the actual construction,

we need another building block that chooses a value

in a range with the above-speciﬁed distribution. This

algorithm is given in Algorithm 1, and the details of

the construction are provided in Algorithm 2.

Algorithm 1: CHOOSE(MIN, MAX,v,s).

1: for i = MIN to MAX do

2: d

s−1

(v−i,MIN,MAX)

(v,MIN,MAX )

3: end for

4: Choose a value i ∈ [MIN,MAX ] according to dis-

tribution d

MIN

,...,d

MAX

5: return i

Algorithm 2: SPLIT (M, v,s,N).

1: if s = 1 then

2: if v ∈[−N, N] then

3: return < v >

4: else

5: return FAIL/*This will never happen*/

6: end if

7: end if

8: v

= CHOOSE(−N, N, v, s)

9: < v

,...,v

s−1

>= SPLIT (M,v −v

,s −1)

10: return < v

,...,v

In Algorithm 2, notice that if the last share does

not fall into the range [−N,N], then the algorithm will

return FAIL. However, this situation will never hap-

pen, because when we set the ith share to v

it must

be possible to obtain v −

∑

j=1

using the remaining

shares. This follows from the probability of that the

ith share is v

is:

s−i

(v−

∑

j=1

,−N,N)

s−i+1

(v−

∑

i−1

j=1

,−N,N)

, which is 0 if it

is not possible to obtain v −

∑

j=1

with the remain-

ing shares.

Next, let’s look at an example of calculating the

share distributions when N = 2, M = 1, and s = 3.

We use d

to represent the distribution of share i when

splitting the value j. Then, based on the construction,

when splitting value v = 0, we need to follow the for-

mula below to calculate share i’s distribution:

(0 −i,−2,2)

(0,−2,2)

Concerning d

−1

, for the numerator C

(1,−2,2), since

there are four ways(h0,1i,h1,0i,h2,−1i,h−1,2i) to

sum up to 1 with two shares, the value of the numer-

ator will be 4. Then, we can use the same method to

calculate the value of denominator C

(0,−2,2) which

is 19, and so the probability of share being value -1 is

. Using the same method, d

−2

, d

and d

. When splitting the value v = 1, the follow-

ing is the share distributions: d

−2

, d

−1

, d

and d

Using these distributions, we now analyse the de-

gree of k-similarity between these two distributions.

After computing all of these values, the minimum

such k value is 2.375, and thus for these parameters

this construction is 2.375-similar.

If N = (k + 1)M and s = 3, then the scheme

satisﬁes k-similarity with an ampliﬁcation factor of

6(k + 1). Due to page constraints we omit the proof

of these claims. We analyse the situation for s > 3 and

the case where t > 1 in experimental section.

• Computation Overhead. One concern with this

splitting scheme is that its time complexity may

not be suitable for a sensor node. Computing the

C values is potentially an expensive step. Dy-

namic programming can be used to compute the

C values. We omit the details of the algorithm,

but it has complexity O(s

), and it is within the

sensor’s computation capability. That is, the val-

ues of s and N are likely to be small enough in

practice to make this practical for a sensor node.

A storage-computation tradeoff is possible; that is

the sensor’s can store the various C values.

• Communication Overhead. We compare

our scheme with both homomorphic encryp-

tion(Castelluccia et al., 2005) and secure aggrega-

tion protocol(Frikken and Dougherty, 2008) that

proposed solutions for solely privacy and integrity

respectively. Speciﬁcally in our scheme, the con-

gestion occurred in a single node is O(s). The

scheme in (Castelluccia et al., 2005) results in

O(1) congestion per node, but only provides pri-

vacy. The protocol in (Frikken and Dougherty,

2008) has O(4logN) congestion per node, but

only provides integrity (Here, 4 is the maximum

degree of aggregation tree).

CONFIDENTIALITY AND INTEGRITY FOR SUM AGGREGATION IN SENSOR NETWORKS

237

7 EXPERIMENTS

In this section we describe various experiments that

test the resiliency of the proposed splitting schemes.

We initially focus on the case when a single share is

compromised (i.e., t = 1), but then we consider the

case when t > 1.

7.1 Resiliency against the Single Share

Compromise

Given parameters M, s, and N the level of k-similarity

can be computed as follows: Since the scheme is sym-

metric we need only consider the distribution of the

ﬁrst share. This distribution is computed as in Algo-

rithm 1. Given this distribution it is straightforward to

compute the k value by ﬁnding the i value in [−N,N]

and values m

and m

in [0,M] that minimize:

min{D

S,M,s

[i],D

S,M,s

[i]}

max{D

S,M,s

[i],D

S,M,s

[i]}−min{D

S,M,s

[i],D

S,M,s

[i]}

for all values i ∈ [−N, N]. This search can be ex-

pedited because this value will be minimized when

= 0 and m

= M (the proof of this claim is omit-

ted due to page constraints).

We now describe the speciﬁc experiments:

• Relation between Share Ranges and K Value.

In this part, we ﬁx M = 1, s = 3 and varied N from

1 to 20. Figure 2 shows the k value for each value

of N. First it is worth noting that this experiment

validates the claims of section 6. That is if N =

(k + 1)M that the scheme is k-resilient.

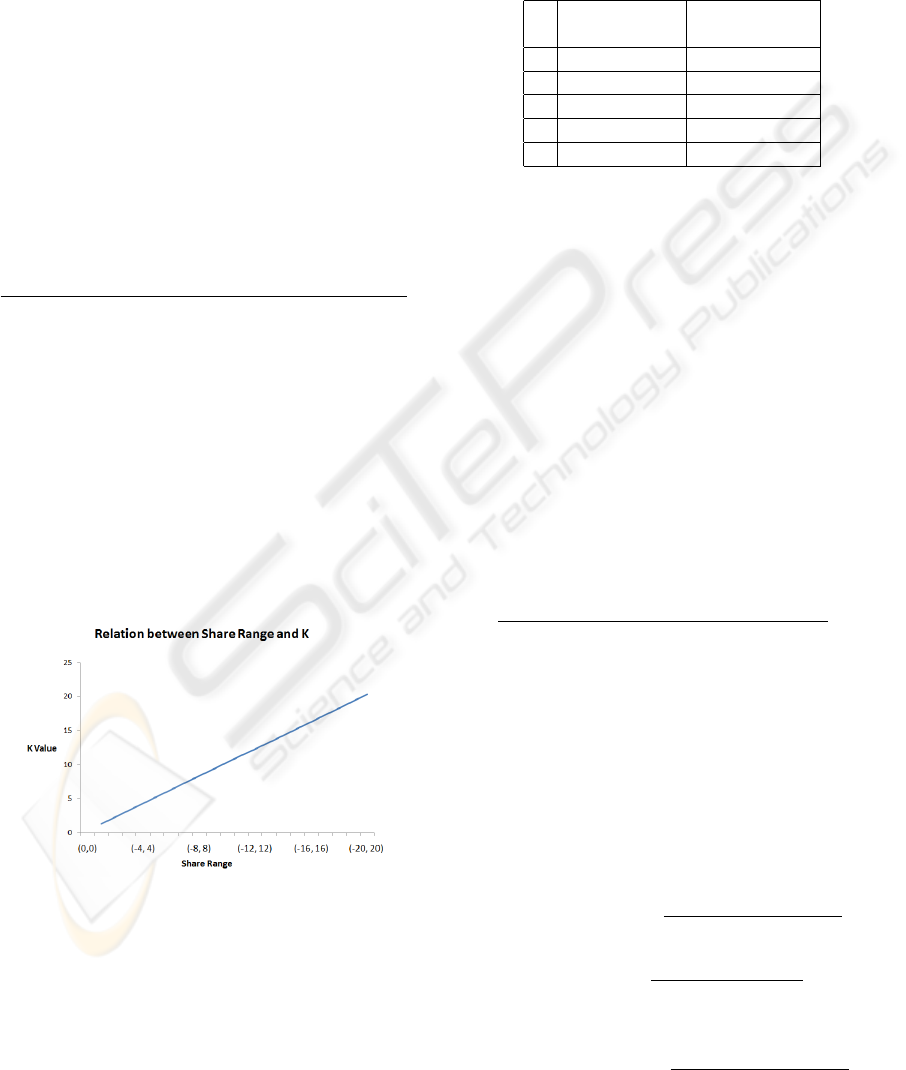

Figure 2: Relation between share range and K value.

• Relation between the Number of Shares and K

Value. The goal of this experiment is to deter-

mine the effect of increasing the number of shares.

We ﬁxed M = 1, varied s from 4 to 7, and deter-

mined the minimum N value that was necessary to

achieve k = 10. Table 1 shows the results. It ap-

pears as though the ampliﬁcation factor is about

the same for all values (except s = 4). Since in-

creasing the number of shares increases the com-

munication, it appears that if the adversary com-

promises only a single cluster head, then s should

probably be chosen as 3.

Table 1: Ampliﬁcation factor for varied shares.

s Minimum N Ampliﬁcation

for k = 10 Factor

3 10 30.5

4 10 40.5

5 6 30.5

6 5 30.5

7 4 28.5

7.2 Resiliency against the Collusion

Attack

We now consider the case where the adversary has

more than one share. We generalize the deﬁnition of

k-similarity, by looking at the difference in the distri-

butions of t-shares. First, the construction actually

satisﬁes a stronger deﬁnition of symmetry than the

one presented in Deﬁnition 2 in that the distribution

of any t shares is the same regardless of which shares

are chosen. Thus we need only consider the distribu-

tion of the ﬁrst t shares. To formalize this notion if

t = 2, then we let D

S,M,s

[i, j] be the probability that

two shares will be i and j when splitting the value m

Thus a scheme is k-similar if for all possible share

values i and j and values m

and m

min{D

S,M,s

[i, j], D

S,M,s

[i, j]}

max{D

S,M,s

[i, j], D

S,M,s

[i, j]}−min{D

S,M,s

[i, j], D

S,M,s

[i, j]}

≥ k

We start with the case where t = 2. Given param-

eters M, s, and N the level of k-similarity can be com-

puted as follows: since the scheme is symmetric we

only need to consider the pair distributions of the ﬁrst

and the second share, namely Pr[s

= i∧s

= j](i, j ∈

[−N,N]). The distribution is computed as following:

Pr[s

= i ∧s

= j] = Pr[s

= i|s

= j]Pr[s

= j]

Based on Algorithm 1, we have

Pr[s

= i|s

= j] =

s−2

(v −i − j, −N, N)

s−1

(v − j, −N, N)

Pr[s

= j] =

s−1

(v − j, −N, N)

(v,−N,N)

Therefore,

Pr[s

= i ∧s

= j] =

s−2

(v −i − j, −N, N)

(v,−N,N)

SECRYPT 2010 - International Conference on Security and Cryptography

238

Given this distribution it is straightforward to com-

pute the k value by ﬁnding the i and j values in

[−N,N] and values m

and m

that minimizes the for-

mula in Deﬁnition 10. Similar to Section 7.1, these

value will be minimized when m

= 0 and m

= M.

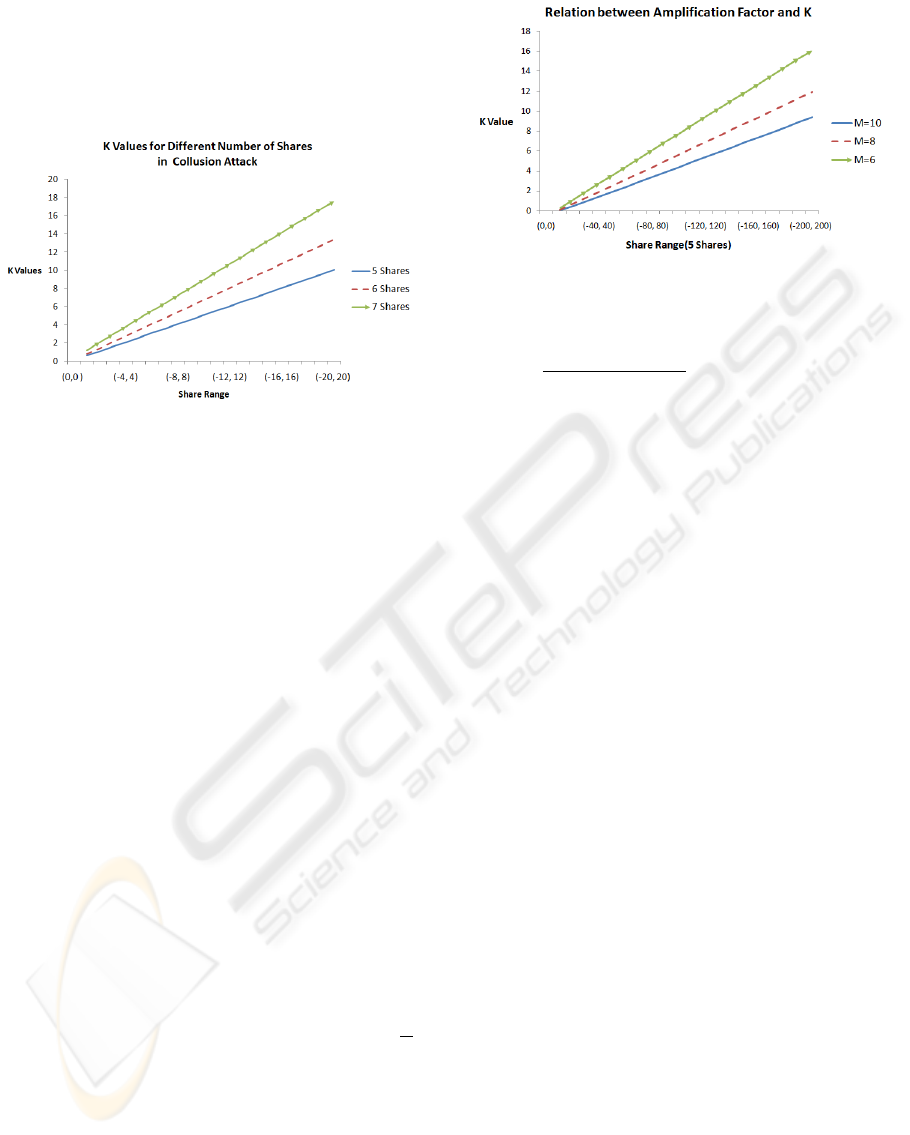

Figure 3: K values for different number of shares in collu-

sion attack.

• Relation between Number of Shares and K. In

this part, we ﬁx M = 1, t = 2, varied N from 1 to

20, and varied s from 5 to 7. We did not consider s

as 3 or 4, because these provide only 0-similarity.

To be more speciﬁc if v = 0 and s = 3, then it is

possible using the construction that 2 shares are

−N and 0 (the 3rd share would be N), but it is not

possible to have 2 shares be −N and 0 when v = 1

(the 3rd share would need to be N + 1, which is

not in the value share range).

Figure 3 shows the results of this experiment.

First, observe that it is possible to obtain reason-

able values of k for these values. Furthermore, it

appears that there is a linear relationship between

N and the k value. Speciﬁcally, when s = 5, the

scheme appears to be .5N-resilient, when s = 6,

the scheme appears to be .67N-resilient, and when

s = 7, the scheme appears to be .88N-resilient.

• Relation between Ampliﬁcation Factor and K.

In this part, we ﬁxed s = 5, t = 2, varied M from

6 to 10, and varied N from 10 to 200. Figure 4

shows the k value for each pair of N and M values.

Again the linear relationship seems to hold, and

it appears as though k is linear in the value

Similar results hold when s is increased (but these

experiments are omitted due to page constraints).

7.2.1 The Case when t > 2

Due to the page limit, we omit from the manuscript

the experiments for when t > 2 shares are com-

promised, but the basic idea is that, we will

compute the distributions for the ﬁrst t shares

Figure 4: Relation between ampliﬁcation factor and K value

in collusion attack.

using the formula Pr[s

= v

∧ s

= v

∧ ··· ∧

= v

s−n

(v−

∑

i=1

,−N,N)

(v,−N,N)

, and compute the k value

based on Deﬁnition 10. Similar results hold in this

case, but the number of shares must be increased.

That is, it must be that s > 2t + 1 in order to have

k-similarity for k > 0.

8 SUMMARY AND FUTURE

WORK

In this paper, we introduced a new integrity measure

and a new privacy measure, called called k-similarity,

which is a weaker notion than cryptographic privacy,

but it is still useful in real applications. Furthermore,

we built a splitting construction that can achieve both

the meaningful privacy and integrity during the SUM

aggregation. And ﬁnally, we implemented a series of

experiments to test the effectiveness of our technique

against the adversaries who captured a certain number

of shares. There are several problems for future work,

including:

1. The splitting scheme currently only protects

against leaf nodes reporting false values. While

the scheme could be combined with the approach

in (Roberto et al., 2009) to protect against mali-

cious aggregator nodes, it would be desirable to

create one mechanism that handles both type of

integrity violations. For example, is it possible to

combine the splitting scheme with the scheme in

(Chan et al., 2006) by using different aggregation

trees to obtain similar results.

2. The current scheme doesn’t use expensive cryp-

tography (homomorphic encryption, zero knowl-

edge proofs, etc). Is it possible to obtain crypto-

graphic privacy and constant ampliﬁcation factor?

Or, is there a different approach that does not use

expensive cryptography that achieves this result?

CONFIDENTIALITY AND INTEGRITY FOR SUM AGGREGATION IN SENSOR NETWORKS

239

3. The analysis in this paper was for the case when

t = 1. However, there appears to be a linear rela-

tionship between the k and N/M. Can this result

be formalized and be proven for t > 1?

ACKNOWLEDGEMENTS

The authors would like to thank the anonymous re-

viewers for their comments and useful suggestions.

Portions of this work were supported by Grant CNS-

0915843 from the National Science Foundation.

REFERENCES

Alzaid, H., Foo, E., and Nieto, J. G. (2008). Secure data

aggregation in wireless sensor network: a survey. In

AISC ’08: Proceedings of the sixth Australasian con-

ference on Information security, pages 93–105, Dar-

linghurst, Australia, Australia. Australian Computer

Society, Inc.

Camtepe, S. A. and Yener, B. (2005). Key distribution

mechanisms for wireless sensor networks: a survey.

Technical report, Rensselaer Polytechnic Institute.

Castelluccia, C., Mykletun, E., and Tsudik, G. (2005). Efﬁ-

cient aggregation of encrypted data in wireless sensor

networks. In MOBIQUITOUS ’05: Proceedings of

the The Second Annual International Conference on

Mobile and Ubiquitous Systems: Networking and Ser-

vices, pages 109–117, Washington, DC, USA. IEEE

Computer Society.

Castelluccia, C. and Soriente, C. (2008). Abba: A balls

and bins approach to secure aggregation in wsns. In

WiOpt’08:Sixth International Symposium on Model-

ing and Optimization in Mobile, Ad Hoc, and Wireless

Networks.

Chan, H., Perrig, A., and Song, D. (2006). Secure hierar-

chical in-network aggregation in sensor networks. In

CCS ’06: Proceedings of the 13th ACM conference on

Computer and communications security, pages 278–

287, New York, NY, USA. ACM.

Frikken, K. B. and Dougherty, IV, J. A. (2008). An efﬁ-

cient integrity-preserving scheme for hierarchical sen-

sor aggregation. In WiSec ’08: Proceedings of the ﬁrst

ACM conference on Wireless network security, pages

68–76, New York, NY, USA. ACM.

He, W., Liu, X., Nguyen, H., Nahrstedt, K., and Abdelzaher,

T. (2007). Pda: Privacy-preserving data aggregation

in wireless sensor networks. In INFOCOM 2007. 26th

IEEE International Conference on Computer Commu-

nications. IEEE, pages 2045–2053.

Hu, L. and Evans, D. (2003). Secure aggregation for wire-

less networks. In SAINT-W ’03: Proceedings of the

2003 Symposium on Applications and the Internet

Workshops (SAINT’03 Workshops), page 384, Wash-

ington, DC, USA. IEEE Computer Society.

Intanagonwiwat, C., Estrin, D., Govindan, R., and Heide-

mann, J. (2002). Impact of network density on data

aggregation in wireless sensor networks. In ICDCS

’02: Proceedings of the 22 nd International Confer-

ence on Distributed Computing Systems (ICDCS’02),

page 457, Washington, DC, USA. IEEE Computer So-

ciety.

Kamat, P., Zhang, Y., Trappe, W., and Ozturk, C. (2005).

Enhancing source-location privacy in sensor network

routing. In ICDCS ’05: Proceedings of the 25th

IEEE International Conference on Distributed Com-

puting Systems, pages 599–608, Washington, DC,

USA. IEEE Computer Society.

Madden, S., Franklin, M. J., Hellerstein, J. M., and Hong,

W. (2002). Tag: a tiny aggregation service for

ad-hoc sensor networks. SIGOPS Oper. Syst. Rev.,

36(SI):131–146.

Perrig, A., Szewczyk, R., Tygar, J. D., Wen, V., and Culler,

D. E. (2002). Spins: security protocols for sensor net-

works. Wireless Networks, 8(5):521–534.

Przydatek, B., Song, D., and Perrig, A. (2003). Sia: secure

information aggregation in sensor networks. In SenSys

’03: Proceedings of the 1st international conference

on Embedded networked sensor systems, pages 255–

265, New York, NY, USA. ACM.

Roberto, D. P., Pietro, M., and Reﬁk, M. (2009). Conﬁden-

tiality and integrity for data aggregation in wsn using

peer monitoring. In Security and Communication Net-

works, pages 181–194.

Yang, Y., Shao, M., Zhu, S., Urgaonkar, B., and Cao, G.

(2008). Towards event source unobservability with

minimum network trafﬁc in sensor networks. In WiSec

’08: Proceedings of the ﬁrst ACM conference on Wire-

less network security, pages 77–88, New York, NY,

USA. ACM.

Yang, Y., Wang, X., Zhu, S., and Cao, G. (2006). Sdap: a

secure hop-by-hop data aggregation protocol for sen-

sor networks. In MobiHoc ’06: Proceedings of the 7th

ACM international symposium on Mobile ad hoc net-

working and computing, pages 356–367, New York,

NY, USA. ACM.

SECRYPT 2010 - International Conference on Security and Cryptography

240
