A PARALLEL VERSION OF THE MPEG-2 ENCODING

ALGORITHM FORMALLY ANALYZED USING ALGEBRAIC

SPECIFICATIONS

Katerina Ksystra, Petros Stefaneas

School of Electrical and Computer Engineering, National Technical University of Athens, Athens, Greece

School of Applied Mathematical and Physical Sciences, National Technical University of Athens, Athens, Greece

Iakovos Ouranos, Panayiotis Frangos

School of Electrical and Computer Engineering, National Technical University of Athens, Athens, Greece

Keywords: MPEG-2 encoding algorithm, Parallel algorithm, CafeOBJ, Observational Transition System.

Abstract: MPEG-2 is a wide used group of standards, established by the Moving Picture Experts Group (MPEG), for

the digital compression of broadcast-quality full-motion video. Due to its high acceptance, it is very

important to ensure that it behaves in a correct manner. To avoid vulnerability problems the MPEG-2

encoding algorithm has been already formally specified and verified for its correctness. In this paper, we

propose the use of the OTS/CafeOBJ Method in order to prove that two MPEG-2 encoding algorithms for

the same input produce the same output. Our approach is based on a simplified parallel version of the

MPEG-2 encoder. Also, we have proved a mutual exclusion property for this parallel algorithm.

1 INTRODUCTION

Formal methods are techniques based on

mathematical theories that can be used to prove

desirable system properties. The need for applying

formal methods to specify and verify encoding

protocols and systems has increased, as encoders

evolve and become more and more complex. The

sequential MPEG-2 encoding algorithm has been

specified, using the OTS/CafeOBJ formal

methodology (Ksystra et. al, 2009). We have proved

some important invariant properties. 1) If the frame

A belongs to the output buffer and it is an I-frame

then it is the coded I frame of the GoP. 2) If the

frame A belongs to the output buffer and it is a P-

frame then it is the coded P frame of the GoP. 3) If

the frame A belongs to the output buffer and it is a

B-frame then it the coded B-frame of the GoP. The

verification of invariants 1-3 proves that for any

input the output of the encoding algorithm is as

expected and consecutively that the algorithm

behaves in a correct manner. In the following figure

we present the sequential MPEG-2 encoding

algorithm:

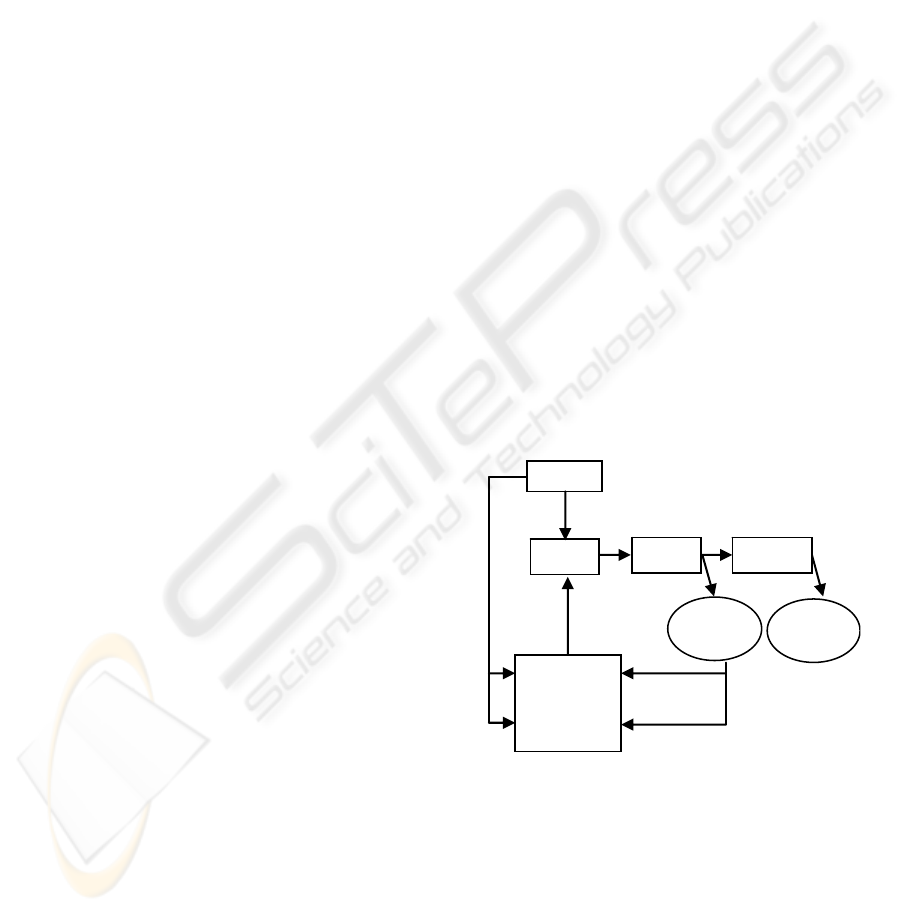

Figure 1: Diagram of the sequential MPEG-2 encoding

algorithm.

We propose the use of the OTS/CafeOBJ

Method as a means of comparison between MPEG-2

encoding algorithms. More precisely, we have

demonstrated that this method can be used to prove

that two algorithms, the MPEG-2 sequential

algorithm and a simplified partially parallel version

of it are equivalent i.e., for the same input produce

the same output. The parallel algorithm presented

dct-q

vlc

idct-iq

input

output

buffer

motion vector

prediction error

Frame

Store

Ksystra K., Stefaneas P., Ouranos I. and Frangos P. (2010).

A PARALLEL VERSION OF THE MPEG-2 ENCODING ALGORITHM FORMALLY ANALYZED USING ALGEBRAIC SPECIFICATIONS.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 35-38

DOI: 10.5220/0002944600350038

 SciTePress

here is used only for demonstration purposes and is

constrained to a specific input. This is done in order

to simplify the specification process. The rest of the

paper is organized as follows: In section 2 we briefly

introduce the OTS/CafeOBJ method. In section 3 we

present the parallel encoding algorithm and its

specification as an OTS in CafeOBJ while section 4

presents the verification of the invariants and the

corresponding proof scores. Finally, section 5

concludes the paper.

2 THE OTS/CAFEOBJ METHOD

2.1 Observational Transition Systems

Assuming that there exists a universal state space

called Y and that each data type used, has been

defined in advance, an Observational Transition

System (OTS) (Ogata, 2006), is a triplet <O,I, T >

that defines a transition system written in terms of

equations. O denotes a finite set of observers, i.e.

functions from the state space to a data type. I

denotes the set of the initial states, such that I is a

subset of the state space Y, and finally T is a set of

conditional transition rules. Each  is a function

:   , such that 

















 for each





,



/



. The condition 



of τ is called the

effective condition.

2.2 OTS in CafeOBJ

CafeOBJ (Diaconescu, 1998, CafeOBJ Home Page)

is an algebraic specification language that can be

used to specify abstract data types as well as abstract

state machines. An OTS is described in CafeOBJ.

The key component in a specification is a module.

Each module defines a sort, a CafeOBJ term

describing abstract data types with multiple

inheritance and operational semantics based on term

rewriting (Diaconescu, 2000). A visible sort denotes

an abstract data type while a hidden sort (Goguen,

1997) the state space of an abstract machine. Two

kinds of operators can be applied to hidden sorts,

action operators that change the state of an abstract

machine and correspond to transitions and

observation operators that are used to observe some

key values that define the inside of the abstract

machine and correspond to observers. Declarations

of observation and action operators start with bop or

bops, and those of other operators with op or ops.

Declarations of equations start with eq, and those

of conditional ones with ceq. So typically an action

operator corresponding to transition τ

j1,...,jn

∈

T is

declared in CafeOBJ as bop a : H Vj1 ... Vjn -> H,

where H is the hidden sort denoting the state space

and Vj1 ... Vjn are the visible sorts (date types) that

parameterize this action operator .

3 ALGEBRAIC SPECIFICATION

OF THE PARALLEL

ALGORITHM

3.1 Parallel Encoding Algorithm

There are some encoding steps of the MPEG-2 that

may proceed in parallel. Based on this we present an

encoding algorithm which is partially parallel, i.e.,

that only some parts of the encoding process can be

simultaneously computed by different processors

(most of the processes presuppose other encoding

steps). For example, in the model shown in table 1

below, we use two processors. To simplify the

specification of this parallel algorithm we will

consider as input the Group of pictures: IBBP, where

the actual encoding order is IPBB.

When the input is I on processor C1, the Discrete

Cosine Transform is applied on each macroblock

and then comes the Quantization. After quantization,

comes the encoding using a variable length code and

is sent to the output buffer, on C1. At the same time

the Inverse Quantization and the Inverse DCT give

us a compressed picture which is stored in the Frame

Store (FS), on C2. When the input is P, the motion

vector and the prediction error are computed using

the frame stored in FS, on C1. Then, these are coded

following the same steps as for the I frame. After the

coding of the reference frames (I,P) the first B frame

is encoded on C1 and the second on C2.

Table 1: Data flow table of the parallel algorithm.

dct-q(I) Iq-idct(I) dct-q(P) iq-idct(P) encode(B1)

vlc(I) vlc(P) encode(B2)

3.2 OTS Model and Specification

The observers we will use are: Q which observes the

content of the output buffer at any given time. Iqi

which returns the result of the Inverse Quantization

and Inverse DCT process on the I-frame. Iqp which

returns the result of the Inverse Quantization and

Inverse DCT process on the P-frame. Dctqi which

returns the result of the Discrete Cosine Transform

and the Quantization process on the I-frame. Dctqp

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

which returns the result of the Discrete Cosine

Transform and the Quantization process on the P-

frame. Pc which observes in which state we are, and

busy which checks in every state whether the

processor is busy or not. Finally, we use a variable

{C1,C2} and declares which of the two processors

we want to use.

The transitions we used in order to specify the

parallel encoding algorithm are the following: dctqI,

decodeI, dctqP, decodeP, vlcI, vlcP, encodeB1,

encodeB2 and finish1.

4 VERIFICATION OF THE

PARALLEL ALGORITHM

Our main intent is to show that the formal

verification can be used to verify that a parallel

version is identical to the original serial one. To this

end, we have formally verified that the two

algorithms produce the same output, given the same

input by showing that the invariants proved for the

sequential algorithm also hold for the parallel.

In order to prove such properties in CafeOBJ,

several steps need to be taken (Ogata 2008,

Futatsugi, 2005).

First, we express the property in a formal way as

a predicate, say invariant inv1(p,x), where p is a free

variable for states and x denotes other free variables

of inv1.

Then, we write a module, usually called INV,

where inv1(p,x) is expressed as a CafeOBJ term.

op inv1 : Sys Frame Frame -> Bool

eq inv1(S,A,I)=((A in q(S)and isI(A)

and (I=i))implies A=I(vlc(dctq(I)))) .

Show that inv1 holds for any initial state, say

init, with the following proof score:

open INV

red inv1(init,a,i') .

where red is a command that reduces a given term

by regarding declared equations as left-to-right

rewrite rules.

Write the inductive step where s’ denotes the

successor state of s.

op istep1 : -> Bool

eq istep1 = inv1(s,a,i') implies

inv1(s',a,i') .

Check for each transition rule if the inductive step

holds.

open ISTEP

op k : -> Frame .

eq s' = vlci(s,k&l&m&n).

red istep1 .

If istep1 is reduced to true then, the transition

preserves the invariant. The above case returns

neither true nor false. CafeOBJ returns a clause that

contains as a sub clause the effective condition. This

means that the machine cannot reduce whether or

not the effective condition holds under the given

equations. In this case we need to apply case

splitting to help CafeOBJ reduce this case. To this

end, we split the effective condition.

open ISTEP

op k : -> Frame .

eq c-vlci(s,k&l&m&n) =false.

eq s' = vlci(s,k&l&m&n) .

red istep1 .

The above refers to the case that the effective

condition is false and CafeOBJ returns true. Now we

must cover its symmetrical one, i.e.

c-vlci

(s,k&l&m&n)=true. Again CafeOBJ returns

neither true nor false. Following the same approach

we reach the following state:

dci(s)=dctq(k)

∧

(

c=c2)

∧

(k = i)

∧

busy(s,c)

∧

(a= I(vlc(dctq(i'))))

∧

(a = I(vlc(dctq(k))))

∧

(i = i')

Here CafeOBJ has returned true, for all the

symmetrical sub cases but returns neither true nor

false for this state. Normally we would, and can,

apply more case splitting, but we notice that these

predicates cannot hold simultaneously in our OTS

(computer - human interactive proving procedure).

So we can use these contradicting predicates to

conjure a lemma and discard this case. These

predicates constitute lemma 1 of table 2. Using this

lemma we can discard this case with the following

proof passage:

open ISTEP

op k : -> Frame .

eq (dci(s) = dctq(k)) = true .

eq (c = c2) = true .

eq (k = i) = true .

eq busy(s,c) = false .

eq (a = I(vlc(dctq(i')))) = false .

eq (a = I(vlc(dctq(k)))) = true .

eq (i = i') = true .

A PARALLEL VERSION OF THE MPEG-2 ENCODING ALGORITHM FORMALLY ANALYZED USING

ALGEBRAIC SPECIFICATIONS

eq s' = vlci(s,k&l&m&n) .

red inv5(a,i,i',k) implies istep1.

CafeOBJ returns true for the above proof passage

and hence, once we prove lemma 1 (table 2), this

concludes the proof for the vlci transition rule of

our safety property. Applying the same technique,

CafeOBJ returned true for all transitions. Finally, all

the lemmas were proven and thus our proof

concludes. Following the procedure presented

above, 16 lemmas were discovered and used. In

table 2 we present some of the most characteristic

ones.

Table 2: Most important lemmas.

Most important Lemmas/Invariants

1. If A is equal to I(vlc(dctq(K)) and not equal to

I(vlc(dctq(I’)))) then K is not equal to I and I is not

equal to I’.

2. If A is a coded I frame that implies that it is not an

Bframe.

3. If A is equal to P(vlc(dctq(est(I,P)+comp(I,P)) and

not equal to P(vlc(dctq(est(I’,P’)+comp(I’,P’)) that

implies that P(vlc(dctq(est(I,P) +comp(I,P)) is not

equal to P(vlc(dctq(est(I’,P’) + comp(I’,P’))

5 CONCLUSIONS

We have presented briefly a methodology for

comparing two encoding algorithms using the

specification of a simplified parallel version of the

MPEG-2 Encoding Algorithm as an Observational

Transition System in CafeOBJ. Several alternative

versions of the MPEG-2 encoding algorithm have

been proposed as it is a wide used protocol

(Cambronero, 2005) but to our knowledge we are

the first to apply the OTS/CafeOBJ method to this.

Our work is part of a bigger research project

(Triantafyllou et. al, 2009, Ouranos et. al 2007,

Ouranos et. al 2007) in modeling and specification

of algorithms and protocols using algebraic

specification languages. In the future we plan to

apply this formal approach to other video encoding

standards such as the MPEG-4.

REFERENCES

Diaconescu, R., Futatsugi, K., 1998. CafeOBJ Report. In

World Scientific.

Goguen, J. A., Malcolm, G., 1997. A Hidden Agenda. In

Technical Report. University of California at San

Diego.

Diaconescu, R., 2000. Behavioral Coherence in Object -

Oriented Algebraic Specification. In J.Universal

Computer Science. 6(1). pp. 74-96.

Ogata, K., Futatsugi, K., 2006. Some Tips on Writing

Proof Scores in the OTS/CafeOBJ Method. K.

Futatsugi, J.-P. Jouannaud, J. Meseguer (Eds.),

Algebra, Meaning, and Computation, Essays

Dedicated to Joseph A. Goguen on the Occasion of

His 65th Birthday, LNCS 4060, pp. 596-615, Springer.

Ogata, K., Futatsugi, K., 2008. Simulation-based

Verification for Invariant Properties in the

OTS/CafeOBJ Method. In Electronic Notes Theor.

Comp. Science 20. pp. 127-154.

Futatsugi, K., Goguen, J.A., Ogata, K., 2005. Verifying

Specifications with Proof Scores in CafeOBJ. B.

Meyer, J. Woodcock (Eds.), Verified Software:

Theories, Tools, Experiments, First IFIP TC 2/WG 2.3

Conference, VSTTE, LNCS 4171, pp. 277-290.

Cambronero, M., Ravn, A.P., Valero, V., 2005. Using

UPPAAL to analyse an MPEG-2 algorithm. In

Proceedings of VII Workshop Brasileiro de Tempo

Real. Fortaleza (Brasil). pp. 73-82.

Triantafyllou, N., Ouranos, I., Stefaneas, P., 2009.

Algebraic Specifications for OMA REL Licences. In

Wimob‘09, IEEE International Conference on

Wireless and Mobile Computing, Networking and

Communications. pp.376-381.

Ouranos, I., Stefaneas, P., Frangos P., 2007. An Algebraic

Framework for Modeling of Mobile Systems. In

IEICE Trans. Fund., Vol. E90-A, No. 9, pp. 1986-

1999.

Ouranos, I., Stefaneas, P., 2007. Verifying Security

Protocols for Sensor Networks using Algebraic

Specification Techniques. In CAI’07, Thessalonica,

Greece, LNCS 4728, pp. 247-259, Springer.

Ksystra, K., Stefaneas, P., Triantafyllou, N., Ouranos, I.,

2009. An Algebraic Specification for the MPEG-2

Encoding Algorithm. In SEEFM’09, Formal Methods

for Web Services Formal Methods for Agent-based

Systems. Thessalonici, Greece. (presented)

CafeOBJ Home Page http://www.ldl.jaist.ac.jp/cafeobj/.

MPEG Home Page, http://www.mpeg.org.

ISO/IEC 138182

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications
