MANAGEMENT OF SECURITY POLICIES IN VIRTUAL

ORGANISATIONS

Benjamin Aziz, Alvaro Arenas, Ian Johnson

e-Science Centre, STFC Rutherford Appleton Laboratory, Oxfordshire OX11 0QX, Didcot, U.K.

Matej Arta

c, Ale

Cernivec

XLAB d.o.o., Pot za Brdom 100, SI-1000, Ljubljana, Slovenia

Philip Robinson

SAP, Belfast, Northern Ireland

Keywords:

Grid computing, Security management, Security policies, Virtual organisations.

Abstract:

Grid-based virtual organisations facilitate the sharing of computational resources among users belonging to

different organisations and working towards a computationally-intensive goal within some project. The se-

lection, access, usage and release of such resources is usually controlled through the enforcement of security

policies that express what is acceptable behaviour by the resources and their users at each stage. This process

is complex to manage in large-scale Grid-based systems, therefore, a solution tackling the management of VO

policies is desirable. In this paper, we propose one such solution that provides policy management capabil-

ities at each phase of the VO lifecycle. We discuss full aspects of the solution starting from the context and

requirements analysis, use cases, design, implementation and ﬁnally, qualitative and quantitative evaluation.

1 INTRODUCTION

Exchange of ideas and cooperation in terms of both

human and computational resources provide beneﬁts

to research and industry projects. There are many ad-

vantages of cooperation between organisations of dif-

ferent types, consisting of universities, research insti-

tutions and industries. Many of these organisations

own computational facilities composed into Grids,

which can be used to their advantage by partners col-

laborating in formal projects. However, the diversity

of systems, the time and effort required to conﬁgure

them for access from external users as well as admin-

istrative constraints all can hinder exploitation of such

large-scale computational resources.

To overcome these problems, we work with the

notion of a Virtual Organisation (VO) (Foster et al.,

2001). A VO is a dynamic entity composed of users

and computational resources regardless of which in-

stitution or organisation they belong to. A system

implementing VOs therefore provides the means to a

simple and efﬁcient collaboration beyond the bound-

aries of the physical organisations. Such a system is

only complete when it also provides the mechanisms

to assert the policies imposed within the physical or-

ganisations and restrictions agreed on in the projects

utilising the VOs.

In this paper we propose a solution for managing

security policies in VOs. The solution takes into con-

sideration policies that the VO actors, such as its users

and its resources, are subjected to outside the VO it-

self and addionally, it accommodates for additional

policies that arise from the nature of VO itself. The

main novelty in our solution is that it considers se-

curity information at the point of resource selection.

This is achieved by applying standard policy enforce-

ment machinery.

The solution takes into account the phases each

VO goes through within its lifetime. The implemen-

tation follows a set of requirements which make sure

that, ﬁrst of all, the Grid administration staff in the

physical organisations will be willing to adopt the sys-

tem implementing VOs. Considering the security and

maintainability of the active resources is critical, this

467

Aziz B., Arenas A., Johnson I., Arta

c M.,

Cernivec A. and Robinson P. (2010).

MANAGEMENT OF SECURITY POLICIES IN VIRTUAL ORGANISATIONS.

In Proceedings of the International Conference on Security and Cryptography, pages 467-477

DOI: 10.5220/0002959404670477

 SciTePress

is an important issue to be addressed. Furthermore,

the impact of the policy enforcement should not be

apparent on the actual usability of the VOs. Finally,

the policy system should not enable situations where

a user with less rights would gain more access than

permitted, or to prevent the access to the system alto-

gether, unless speciﬁcally required to do so.

For the proposed VO policy management system

we will systematically show its usage in the scenarios

that are common in the lifecycle of the VOs. The poli-

cies have their own lifecycle within that of the VOs,

hence we present the scenarios accordingly. We have

developed our VO policy management system for the

XtreemOS operating system

(Coppola et al., 2008).

Our evaluation of the proposed solution is based on

our experience with this reference implementation.

The rest of the paper is structured as follows. In

Section 2, we give some background discussing the

context and the requirements motivating our work. In

Section 3, we deﬁne the phases of the policy man-

agement lifecycle and demonstrate the use cases in-

volved. In Section 4, we introduce our VO policy

management system and discuss its design and im-

plementation. In Section 5, we evaluate our service

in meeting its requirements and highlight its perfor-

mance. Finally, in Section 6, we review related work

and in Section 7, we conclude the paper giving direc-

tions for future work.

2 VIRTUAL ORGANISATION

POLICY MANAGEMENT

The VO policy management problem concerns the as-

surance that policies governing a collection of users,

services and resources from different organisations

are consistently enforced accross the distributed col-

laborative environments. This section describes the

context of this problem, providing a background on

VO lifecycle, security policies, certiﬁcates and cre-

dentials, and administrative domains. It also discusses

the requirements for addressing the problem.

2.1 Context

In XtreemOS, VOs are created for the purpose of en-

abling distributed collaborations among different or-

ganisations such that users from one organisation can

access resources owned and administered by other or-

ganistions based on a Grid infrastructure. The VO

scenario is used to describe the activities and infor-

www.xtreemos.org

mation that compose the context of VO policy man-

agement and to motivate our requirements.

2.1.1 Virtual Organisation Lifecycle

The VO lifecycle in XtreemOS consists of four main

phases. The Grid Set-Up and Management phase in-

volves the setting up of the infrastructure underlying

the Grid and populating the Grid with resources and

prospective users of those resources. Despite the fact

that this phase is the entry point to the lifecycle, it

is visited again whenever new resources or users are

added to the Grid and existing ones removed. The VO

Creation and Management phase is concerned with

creating VOs on top of the Grid infrastructure and

populating those VOs with resources and users. Once

a VO has been created and populated, it then becomes

operational, which means that the lifecycle moves to

the VO Operation phase. Users can then order, access

and use resources. From the operational phase, it is al-

ways possible to perform VO management operations

such as replacing VO users and resources. Finally,

once the VO has reached its goal and its purpose has

expired, it then enters the VO Termination phase, in

which the VO state is dissolved.

2.1.2 Security Policies in VOs

We deﬁne a security policy, p ∈ P , as a set of tuples

p = (u, r, a, q), where u ∈ U is a user, r ∈ R is a re-

source, a ∈ A is the permission to execute an action

on a resource and q ∈ Q is a set of logical conditions.

The policy hence states that u is permitted to apply

action a to the resource r under the conditions q such

that q must be true. When any of the users, resources,

actions or set of conditions are unknown, we use the

variables x, y, z to represent their values. In our VOs,

we distinguish four categories of policies.

• User Policies: User policies are policies that are

speciﬁed by the VO users in order to determine the

suitability of VO resources to run their jobs. The

purpose of these policies is to protect user data

and jobs. We refer to a user policy as p

∈ P .

An example of such policy is “Run all my jobs on

resources not shared with competitive users”.

• Resource Policies: These are security policies set

by the local resource administrators to control ac-

cess and usage to their resources by VO users. We

refer to these policies as p

∈ P . An example of

a resource policy would be that “this resource is

available to the VO users only between the hours

5pm and 7am”.

• VO Policies: VO policies are speciﬁed by the VO

owners or managers to determine what is accept-

SECRYPT 2010 - International Conference on Security and Cryptography

468

able behaviour in a VO by its resources and users.

VO policies are different from user or resource

policies in that they provide general rules at the

level of the whole VO rather than a speciﬁc user

or resource belonging to a speciﬁc administrative

domain. We shall refer to VO policies as p

∈ P .

An example of VO policies is that “VO users can

only submit a maximum of three jobs per day to

the VO resources”.

• Filtering Policies: Filtering policies are created

from matching user and VO policies. These poli-

cies are then evaluated at selection time to ensure

that the resources selected are suitable. Filtering

policies are refered to in what follows as p

f l

∈ P .

An example of a ﬁltering policy would be to inter-

sect the above user and VO policies to obtain the

following policy “A user can submit a maximum

of three jobs a day and all those jobs must be run

on resources not shared with competitive users”.

2.1.3 Policy Evaluation Strategies

We assume that there are four points in time at which

security policies can be evaluated and enforced, rela-

tive to the timeline of computational jobs.

• Selection-time: Evaluating policies at this stage

occurs at the time when VO resources are being

selected by selection services, such as a schedul-

ing service, for job executions. Hence, policies

will guide the matching of resources to jobs.

• Access-time: Evaluation of policies at this stage

represents classical access control, like for ex-

ample the lattice-based and the role-based access

control models (Sandhu et al., 1996).

• Usage-time: This stage is used to refer to the run-

time control of the usage of resources by the se-

curity policies. A recent dominant example of

usage-time policy evaluation is the usage control

model proposed in (Park and Sandhu, 2004).

• Release-time: This stage refers to the evaluation

of policies applying once resources have been re-

leased by the user and they include all the future

obligations on the user (Bettini et al., 2002), such

as the cleaning-up of the state of the resource or

paying for its usage.

The main focus of the solution we discuss later is on

the ﬁrst two points: selection-time and access-time.

2.1.4 VO Certiﬁcates and Credentials

Certiﬁcates are tokens of trust that convey credentials

about the identity and attributes of the certiﬁed en-

tity. In our case, we deﬁne certiﬁcates as a set, c ∈ C,

where {|c|}

denotes that the certiﬁcate is signed by

the key, K. Certiﬁcates carry certain information, as

in the case of X-509 certiﬁcates, such as the issuer,

subject, validity and attributes. We shall refer to these

whenever necessary using the in-notation, for exam-

ple, {|issuer = CA, subject = Bob|}

, refers to a

certiﬁcate whose subject is Bob, issuer is CA and it

is signed by the private key of CA. We write private

keys as K and their corresponding public keys as K

2.1.5 Administrative Domains

Administrative domains represent divisions of trust

and ownership among users and resource administra-

tors and give some structure to the way resources are

owned and managed by the owner organisations. We

consider three administrative domains, called sites:

• Resource Sites: These are the sites in which re-

sources offered to the Grid reside.

• User Sites: These denote sites to which users of

VOs belong and who will eventually submit jobs

to the resources of those VOs.

• The Core Site: This is a robust and well-protected

site in which the security and VO management

services will be running. From the trust point of

view, the core site represents the root of trust for

both the resource and user sites.

2.2 Requirements

The requirements for VO policy management can

be derived from what Foster, Kesselman and

Tuecke (Foster et al., 2001) deﬁne as the “Grid Prob-

lem”: ﬂexible, secure, coordinated resource shar-

ing among dynamic collections of individuals, insti-

tutions, and resources. They state that resource shar-

ing is, necessarily, highly controlled, with resource

providers and consumers deﬁning clearly and care-

fully what is shared, who is allowed to share, and the

conditions under which sharing occurs. Wasson and

Humphrey(Wasson and Humphrey, 2003) further sug-

gest that VO policies should be sufﬁciently concrete

in order to describe actions that will be taken to main-

tain the desired VO state. They identify three classes

of VO Policy: (i) VO-wide operational policy, (ii) VO

policy on resources and (iii) VO policy on users. Tak-

ing these past foundations for VO policy management

as a basis, along with XtreemOS application-speciﬁc

requirements, we condense the requirements into six

main classes:

R1 Administrative Autonomy. Organisations, own-

ers and administrators must be able to maintain ul-

timate control over the usage of resources within

MANAGEMENT OF SECURITY POLICIES IN VIRTUAL ORGANISATIONS

469

their domains. Failure to do so results in political

and legal problems such as information disclosure

between organisations sharing resources.

R2 Effective Conﬂict Handling. Conﬂicting poli-

cies (e.g. policies with the same subject and re-

source but with opposing permissions, i.e. grant

versus deny) must not be present in the VO pol-

icy management service at enforcement time. VO

policy management must have strategies for pre-

enforcement resolution of policy conﬂicts.

R3 Maintenance Efﬁciency. VO policy manage-

ment must introduce minimal administrative ef-

fort to resource providers and consumers, beyond

the protection of their resources, data and jobs.

Redundant interactions for dealing with policy or

certiﬁcate expiration and update must be avoided.

R4 Least Privileges. Any subject must only be able

to access resources in the VO necessary for estab-

lished or registered responsibilities, roles, tasks

and conditions. If the case arises that subjects

can access resources for which the access is not

justiﬁed or sanctioned, they may maliciously or

accidentally compromise the resource or make it

unaccessible for legitimate subjects.

R5 Non-intrusiveness. The overhead required to

enforce policies must have negligible impact on

the performance of resource requests. Enforce-

ment of policies requires two types of compute-

intensive actions: (i) cryptographic operations and

(ii) policy evaluation (ﬁltering, data collection, re-

sult determination). These actions must be imple-

mented efﬁciently so as they do not introduce un-

necessary checks, operations or interactions that

substantially slow the system’s performance.

R6 Expressiveness without Losing Enforceability.

It must be possible to codify rules that govern the

behavior of VO users, resource access and usage

in such a way that they are consistently and auto-

matically enforceable. We advocate that enforce-

ment of policies at the lowest level of the software

stack (the Operating System) is a means of attain-

ing ﬂexibility and expressiveness with strong en-

forceability of policies.

In the evaluation Section 5, the above require-

ments R1-R6 are used to demonstrate the validity of

VOPS for addressing the “Grid Problem”.

3 VO POLICY LIFECYCLE

In this section, we discuss the management of VO

policies in each phase of the VO lifecycle as described

in Section 2.1.1. First, however, we start by giving an

overview of some of the XtreemOS services used in

this lifecycle. The ﬁrst group of these services are

trust management services and they include:

• A Root Certiﬁcation Authority (Root CA): This is

a service that creates the main trust anchor in the

Grid and facilitates the certiﬁcation of the iden-

tity of other core services within that Grid. This

service can be performed ofﬂine to avoid compro-

mise of the root private key, or online using the

CDA service described next.

• A Credential Distribution Authority (CDA): This

service is responsible for distributing identity cer-

tiﬁcates to users. It is a subordinate of the Root

CA and facilitates the separation by managing

users’ certiﬁcation only.

• A Resource Certiﬁcation Authority (RCA): This

service is responsible for distributing identity cer-

tiﬁcates to resources. It is a subordinate of the

Root CA and facilitates the separation of concern

by managing resources’ certiﬁcation only.

The next group includes the service responsible for

managing policies in VOs.

• A VO Policy Service (VOPS): This is the main ser-

vice here, which is used to manage security poli-

cies in VOs as well as enforce those policies at the

point of resource selection. We shall explain more

in detail the architecture of VOPS in Section 4.

Finally, the last group includes services for manag-

ing job submissions and selecting resources, which

are necessary in order to illustrate the operation of an

active policy management system.

• The Resource Selection Service (RSS): this is a

distributed overlay service (Costa et al., 2009) that

runs on every resource and that computes speciﬁc

matching algorithms to decide whether or not the

resource is suitable and available to run a job sub-

mitted by a VO user. Incorporated in this deci-

sion is the decision taken by a local policy deci-

sion point, part of the VOPS service, as to whether

or not the resource satisﬁes the ﬁlter policy asso-

ciated with the submitted job.

• The Application Execution Manager (AEM): This

is a job management service, which accepts job

submissions from users and interacts with the RSS

to determine the appropriate resources matching

the job. The AEM then executes the job on the

selected resources or may prompt the user to make

the ﬁnal decision.

Next, we describe the policy management lifecycle

phases, which involve all the above services.

SECRYPT 2010 - International Conference on Security and Cryptography

470

3.1 Grid Management

In this phase, site administrators willing to offer their

site resources to the Grid advertise the general site

and resource policies with the VOPS. At this stage,

there are no VOs formed yet, so these policies will be

generic enough at the level of the Grid.

3.1.1 Site Registration

During this phase, site administrators at individual

sites register their sites with the VOPS as shown in

the scenario of Figure 1.

{|p

0, c

RCA

KRCA

Where p

0 = (x,y,z,q)

RCA

= {|issuer = Root CA,

subject = RCA, PK = K

RCA

KRootCA

Root

Core SiteResource Site

Administrator

VOPS

RCA

PAP

(2)

(1)

Figure 1: Adding a site domain to the Grid.

We assumed that prior to this step, the site admin-

istrator will have contacted the Grid administrators at

the core site to perform a vetting process, in which the

physical identity of the administrator is authenticated

as well as any attributes related to their site.

After this vetting process, the site administrator

(whom we assume also to be the administrator for

all resources belonging to his site) will ﬁrst regis-

ter his site, by means of registering the site’s RCA,

with the Root CA trusted at the core site running

the VOPS. This registration process results in the

Root CA returning a certiﬁcate c

RCA

= {|issuer =

Root CA, subject = RCA, PK = K

RCA

Root CA

. The

certiﬁcate binds the site’s RCA to its public key K

RCA

This certiﬁcation of the RCA is needed by VOPS to

authentically associate the site with its policies.

The site’s administrator then submits to the VOPS

the default site’s policy with regards to all Grid users,

which includes rules on how to access and use the

site’s resources and the possible actions that can be

performed on them. This policy is written as p

0 =

(x, y, z, q), which only outlines the set of conditions,

q, under which any Grid user attempting to perform

any actions on any of the site’s resources will be ad-

mitted. This policy is general in the sense that it does

not specify any users, resources or actions at this stage

and so it should cater for all future unknown VOs cre-

ated within the Grid. The policy is the safest policy

though other policies can also be speciﬁed. The as-

sociation of p

0 with c

RCA

establishes the trust path

with the Root CA.

3.1.2 Site Population

Once the resource site has been registered with the

core site, it is then possible for the RCA to issue cer-

tiﬁcates to the individual resources in the site bind-

ing them with public keys of each resource and to in-

form the VOPS with the speciﬁc VO policy for the

resources. This scenario is called site population and

it is shown in Figure 2.

RCA

Resource r

Administrator

{|p

1, c

RCA

KRCA

Where p

1 = (x, r, a, q)

1 = {|issuer = RCA,

subject = r, PK = K

KRCA

Resource Site

Core Site

VOPS

PAP

(2)

(1)

Figure 2: Adding a resource to the RCA.

In the ﬁrst interaction, the RCA issues a certiﬁcate

1 = {|issuer = RCA, subject = r, PK = K

|}K

RCA

which binds the resource r to its public key K

. This

allows r to be authentically identiﬁed in any future

interactions assuming it does not leak its private key

to unauthorised users.

In the next step, the site administrator creates a

speciﬁc policy, p

1, for the resource and submits it

to the VOPS along with the certiﬁcate identifying the

site, c

RCA

. p

1 = {x, r, a, q}, refers to the set of con-

ditions, q, under which r will allow action a to be

applied to it by any VO user x. This policy is more

speciﬁc than p

0 in that it refers to a speciﬁc resource

in the site and the speciﬁc actions that could be ap-

plied to that resource.

3.1.3 User Registration

In parallel to the registration and population of re-

source sites, users can also be registered in the Grid

as shown in Figure 3.

CDA

Core SiteUser Site

1 = {|issuer = CDA,

subject = U, PK = K

KCDA

User U

(1)

Figure 3: User registration in the CDA.

However, from the perspective of VOPS, no user

policies are introduced at this stage to its database.

MANAGEMENT OF SECURITY POLICIES IN VIRTUAL ORGANISATIONS

471

The reason is because in practice, users may have VO-

speciﬁc policies to specify the conditions under which

their jobs are run, however, they would rarely spec-

ify Grid-wide policies. The interaction will allow the

user to obtain a certiﬁcate from the CDA, trusted by

VOPS, to associate her with her public key. This cer-

tiﬁcate will be used in the next phase of VO creation

and management to allow the user to include her VO

policies in VOPS.

3.2 VO Creation and Management

After the previous phase, the Grid is assumed to have

been set-up and it is ready to be utilised. Therefore,

in this next phase, VOs will be created and populated

with Grid sites, resources and users.

3.2.1 VO Creation

A user, already registered in the Grid, will create a

VO as is shown in Figure 4.

CDA

{|p

, c

1, c

2|}

KUser

Where p

= (x, VO, y, q)

Core SiteUser Site

VOPS

2 = {|issuer = CDA, subject = U,

Attr = (Admin(VO)=U)|}

KCDA

User U

PAP

(1)

(2)

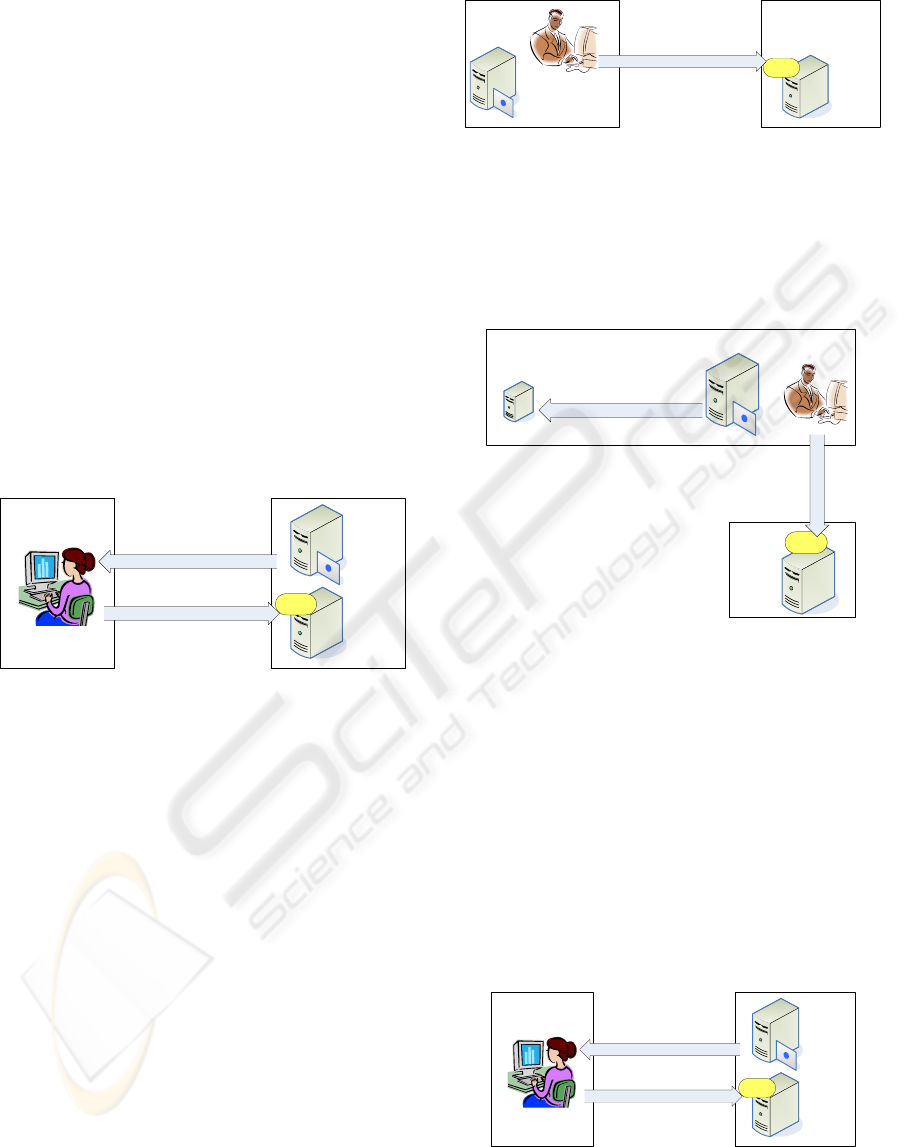

Figure 4: Creating a VO and Registering its Policies.

In order to achieve this, the user needs to obtain an

attribute certiﬁcate c

2 from the CDA stating that the

user is the administrator of the VO. This certiﬁcate

along with c

1 is sent in the next interaction, which

registers the VO policy of the new VO with VOPS.

The two certiﬁcates together prove the identity of the

user as well as the fact that the user is the VO admin-

istrator. The VO policy, p

= (x, VO, y, q), states all

the acceptable conditions q under which the VO must

operate in the future. Example of such conditions in-

clude acceptable VO load-balancing conditions.

3.2.2 Adding Sites to a VO

After registering a site in the Grid, the site adminis-

trator may wish to include their site in some VO. This

operation of adding sites to a VO is shown in the in-

teractions of Figure 5.

The site administrator sends the new site policy,

2 = (VO, x, y, q), to VOPS along with the proof of

the identity of the administrator. The policy gives the

acceptable conditions, q, under which any users of the

VO can access any of the resources offered by the site.

{|p

2, c

RCA

KRCA

Where p

2 = (VO, x, y, q)

Core SiteResource Site

Administrator

VOPS

RCA

PAP

(1)

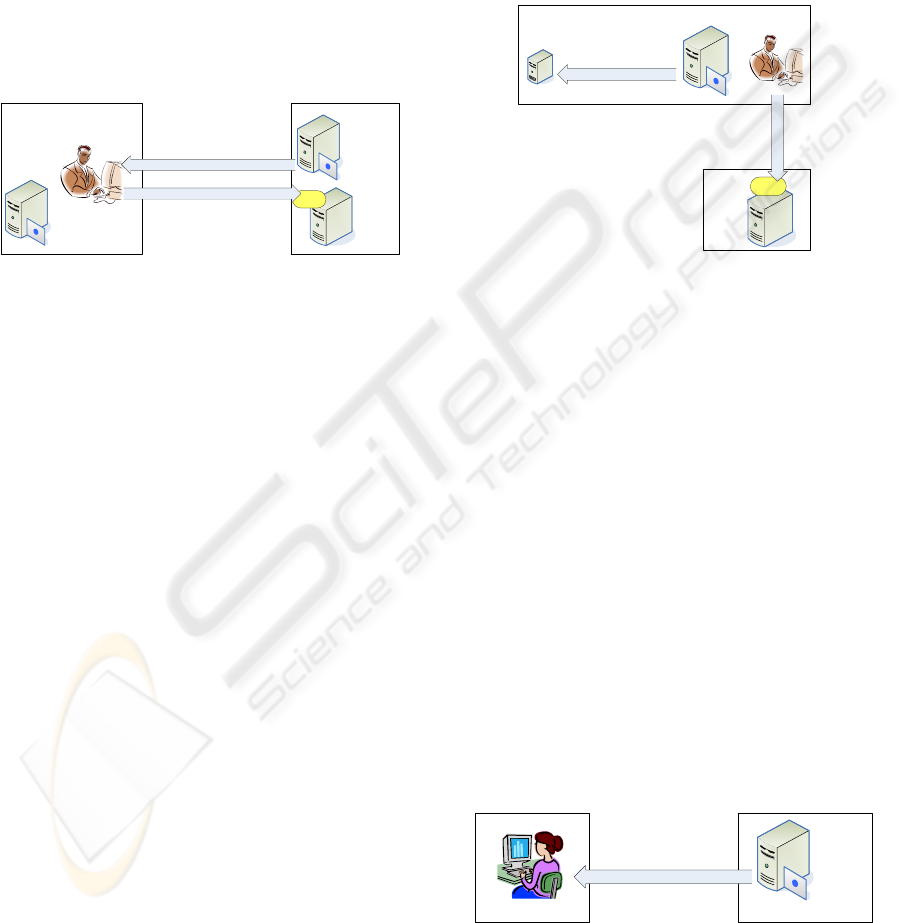

Figure 5: Adding a site to a VO.

3.2.3 Adding Resources to a VO

Once a site administrator has joined their site to a VO,

they can add site resources to the VO under a new

policy, p

3, as shown in Figure 6.

RCA

Resource r

Administrator

{|p

3, c

RCA

KRCA

Where p

3 = (VO, r, a, q)

2 = {|issuer = RCA, subject = r,

Attr=member(VO)|}

KRCA

Resource Site

Core Site

VOPS

PAP

(1)

Figure 6: Adding a resource to a VO.

Prior to that, the local RCA at the resource site

will issue the resource with an attribute certiﬁcate to

certify the fact that the resource is now in the VO.

This certiﬁcate is necessary for future resource selec-

tion processes. The policy p

3 provides the accept-

able conditions, q, under which r can be accessed us-

ing actions a by users of the VO.

3.2.4 Adding Users to a VO

Similar to the addition of sites and resources to a VO,

users need to join VOs before they can utilise the VO

resources for their jobs, as is shown in Figure 7. In

CDA

{|p

, c

1, c

3|}

Where p

= (U, VO, y, q)

VOPS

3 = {|issuer = CDA, subject = U,

Attr = (Member(VO)=U)|}

KCDA

User U

PAP

(1)

(2)

Figure 7: Joining users to VOs.

this case, the ﬁrst interaction allows the user to obtain

an attribute certiﬁcate from the CDA to certify that

SECRYPT 2010 - International Conference on Security and Cryptography

472

the user is indeed a member of the VO. This certiﬁ-

cate will allow the user to submit jobs in the future to

VO resources. The user also can specify her policy,

= (U, V O, y, q), specifying the conditions q under

which the user’s jobs, may be computed over the VO

resources. This policy is signed by the user and asso-

ciated with the user’s certiﬁcate showing her identity

and the fact that it belongs to the VO. The policy p

which will be used at the operational phase to cre-

ate the ﬁltering policy, allows VOPS to determine the

suitability of resources to run the user’s jobs. For ex-

ample, the resource may not have the minimum as-

surence level or QoS attributes.

3.3 VO Operation

The main functionality of VOPS during the oper-

ational phase of VOs is to aid the RSS in its re-

source selection process by making sure that only re-

sources whose policies match the ﬁltering policies in

VOPS are selected for job executions. This opera-

tional phase is shown in Figure 8.

User Site

User U

AEM

Core Site

Resource Site

Resource

Job Submission, VO, c

1, c

(2)

Run matching

algorithm on the

job incorporating

Node PDP’s

decision on filter

and resource

policies

Submit job and filter policy

Return list of final resources

(4)

Resource

PDP

RSS

VOPS

Obtain filter

policy relevant

to the job

(

)

Return selection decision

(3)

(1)

(6)

PIP

Figure 8: Resource selection during VO operation.

In this phase, the user submits a job to the AEM

along with certiﬁcates proving her identity and the

fact that it belongs to the VO. The job submission is

then used to obtain, from VOPS, a copy of the rele-

vant ﬁltering policy (i.e. the policy union of the user

and the VO policies.) Once this is done, the AEM

then submits the job along with the ﬁltering policy

to the RSS, which is running on every resource in

the VO. The RSS evaluates, using internal selection

and matching algorithms, whether the resource can or

cannot offer itself to run the job. This will depend on

static and dynamic properties of the resource.

Part of this decision also is the decision from the

local resource PDP, which will evaluate the request’s

attributes against the local and the ﬁltering policies

and return a security decision as to whether the re-

source is suitable or not to run the job. Once the ﬁnal

decision has been computed by the RSS, it returns the

decision to the AEM, which in turn returns the list of

all resources that have been selected to the user or al-

ternatively, will schedule the job directly to run on a

subset of those resources.

3.4 VO Termination

The ﬁnal phase in the policy management lifecycle is

the termination phase, which involves the VO admin-

istrator informing the VOPS of the termination of the

VO that she owns, as shown in Figure 9.

Core Site

User Site

VOPS

User U

{|Delete(VO), c

1, c

2|}

PAP

(1)

(2)

Clean-up

Internal State

Figure 9: Termination of VOs.

In the ﬁrst interaction, the VO owner needs to

prove her identity and provide the attribute certiﬁcate

showing that she owns the VO. Once these certiﬁcates

are validated by the VOPS, the VOPS then proceeds

to clean-up its internal state by removing policies as-

sociated with the VO.

4 VOPS: A VO POLICY SERVICE

4.1 Architecture

The VO Policy Management Service (VOPS) is struc-

tured logically as shown in Figure 10.

VOPS

Policy Information

Point

Policy Store

Policy Administration

Point

Policy Enforcement

Point

Policy Decision

Point

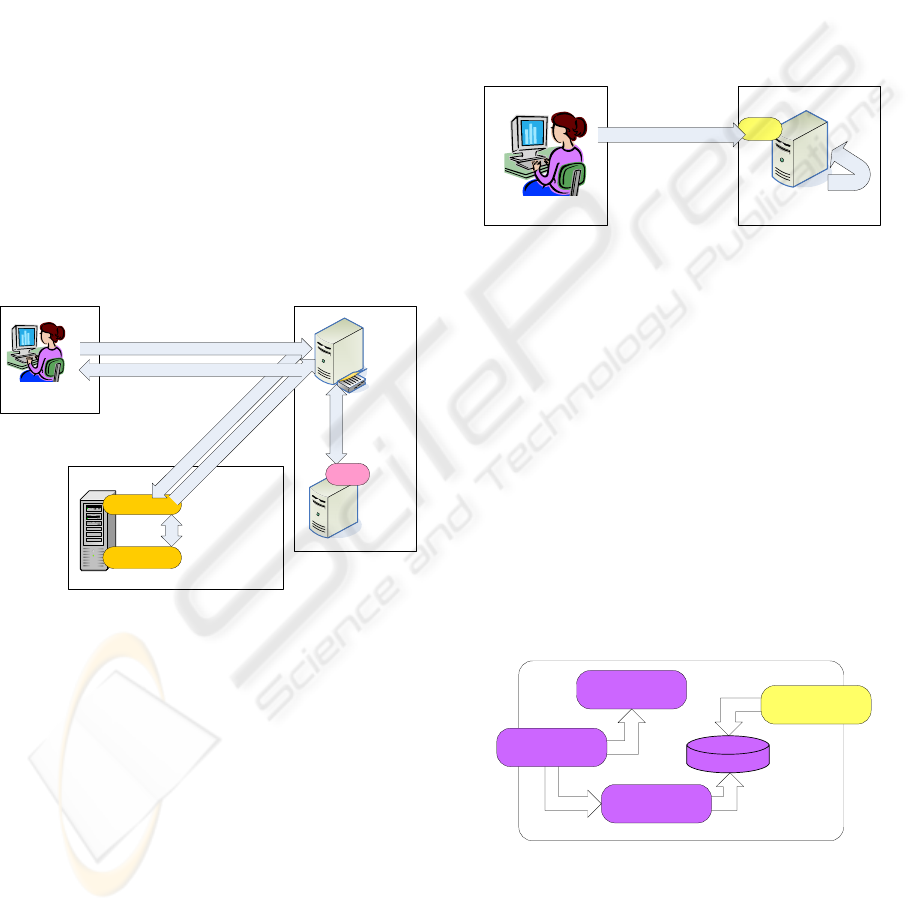

Figure 10: The structure of VOPS.

• Policy Enforcement Point (PEP): The PEP is

where the users requests are intercepted in order

for these requests to be checked and appropriate

decisions enforced on the requests. The users re-

quests may carry user credentials regarding their

attributes and the attributes of the context.

MANAGEMENT OF SECURITY POLICIES IN VIRTUAL ORGANISATIONS

473

• Policy Decision Point (PDP): The PDP is the

component which enforces the security policies

on user requests. The PDP contains the logic ap-

plied to policies and users’ requests. There is one

component of the PDP, the Resource PDP, which

runs locally at the resource and assists the RSS

during the selection process.

• Policy Information Point (PIP): The PIP is the

component of VOPS that queries attributes about

the request arriving from a user, additional user

credentials and information about the context of

the request (e.g. time and location).

• Policy Administration Point (PAP): The PAP al-

lows site administrators and users to add, delete

and update site, resource, VO and user policies in

the policy store.

• Policy Store: The Policy Store is a database con-

taining all the relevant policies.

4.2 Implementation

The implementation of VOPS includes a number of

classes, as shown in Figure 11.

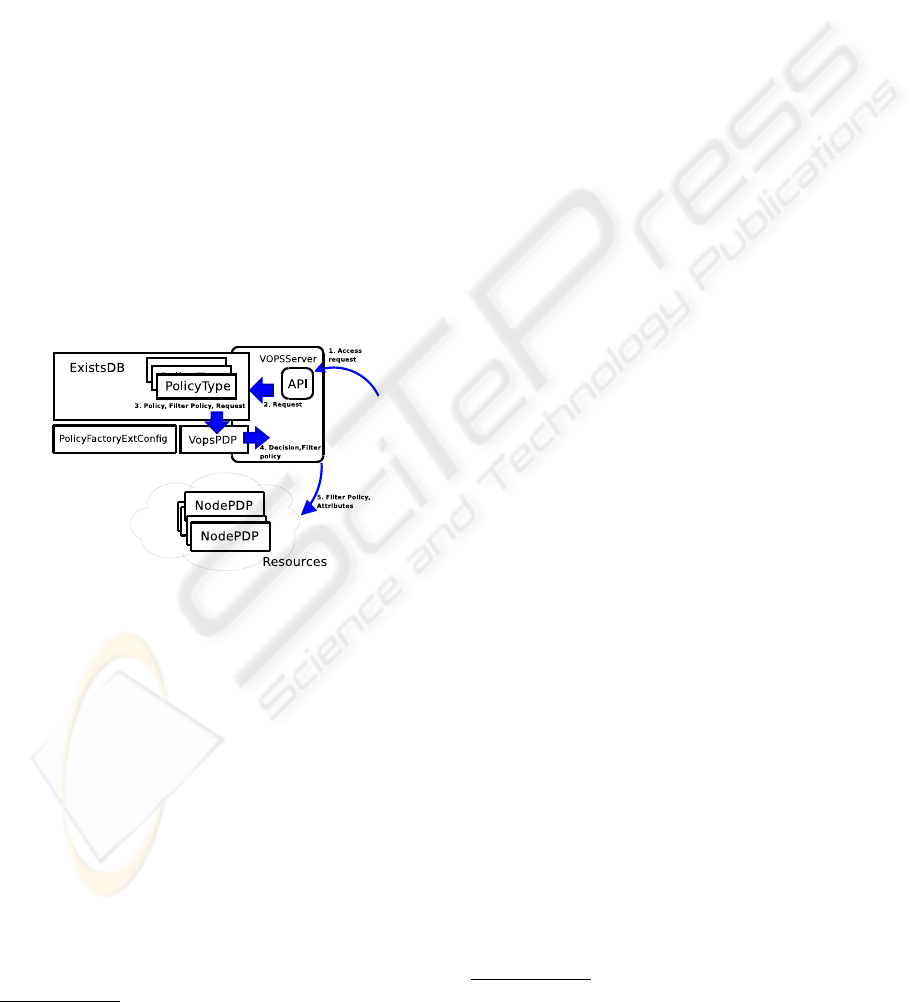

Figure 11: Dataﬂow in VOPS.

• VOPSServer: This is the main class containing

server logic providing VOPS API. The API pro-

vides the enforcement point (where access re-

quests are being processed) as well as methods

for creating and removing policies, adding policy

rules and creating ﬁlter policies.

• EXistsDB: As mentioned above, the PAP module

accepts policies from resource administrators and

makes them available to the PDP. The PAP there-

fore holds policies in an internal database imple-

mented with eXist

. eXist is an XML database

which provides easy and fast search engine over

policies stored in XACML format. EXistsDB is

an entity interfacing VOPSServer and providing

access point to administrators and users.

http://exist.sourceforge.net

• PolicyType: This is a collection of policies from

a domain. It provides access to essential opera-

tions over policies e.g. listing, adding, removing.

EXistsDB encapsules PolicyType as ﬁelds.

• PolicyFactoryExtConﬁg: This is a conﬁguration

class containing settings from a conﬁguration ﬁle.

• NodePDP: This is a class used by resource se-

lection services during selection process. Fil-

tered policies are provided to selection service

where enforcement is done in time. Subject, re-

source and action attributes are provided with cor-

responding certiﬁcates and job description ﬁle.

• VopsPDP: This class provides implementation of

the decision engine. It constructs Policy Deci-

sion Point with different modules provided by the

XACML implementation.

The implementation of the above classes was car-

ried out in Java and uses Bouncy Castle provider

library for handling certiﬁcates. Policy handling

is achieved with Sun’s XACML implementation li-

brary

extended with modiﬁed PDP module. The ser-

vice is hosted within a staging framework and mes-

saging bus developed in XtreemOS. eXist is used as

XML database which provides efﬁcient way for stor-

ing XACML policies and provides XQuery process-

ing for easier information extraction from policies

stored in the database.

5 EVALUATION

The evaluation of the VOPS service is carried under

two main criteria: The ﬁrst is to determine how well

the service meets the requirements set in Section 2.2,

and the second is its performance overhead.

5.1 Meeting the Requirements

5.1.1 R1: Autonomy

Any system running on top of the existing Linux ma-

chines with the purpose of providing access to exter-

nal users must ﬁrst assure that the policies imposed by

the resource administrator, who is the actual owner of

the hardware are enforced ﬁrst. We have built into

VOPS this requirement by providing a hierarchy of

policies by their type. This means that the resource

policy will take precedence in the evaluation on VO

or user policies.

http://www.bouncycastle.org

http://sunxacml.sourceforge.net

SECRYPT 2010 - International Conference on Security and Cryptography

474

5.1.2 R2: Conﬂict Handling

In our VOPS implementation, we consider the con-

ﬂicting policies in the design time already. Possible

conﬂicting situations can arise only within a speciﬁc

policy (i.e., between the rules that compose a policy)

and not between policies themselves thanks to the hi-

erarchical structure of the database. Since XACML

is used to represent policies, rule combining algo-

rithms are used at a policy level to automatically re-

solve conﬂicts among policy rules (Shu et al., 2009).

Least privileged policies are user policies (each user

of a speciﬁc VO possesses one user policy) and are

considered in parallel with VO policies. VO policies

are provided by VO administrators and have therefore

higher privileges than user policies. Resource policies

are considered at the last stage of resource selection

through ﬁltering policies and these comprise rules of

all three kind of policies conforming with attributes

presented with user, resource and job information.

5.1.3 R3: Maintenance Efﬁciency

The VOPS provides a set of policy database opera-

tions, including policy deletions, insertions and policy

retrieval, each available to user, VO and resource do-

mains. The policies are referenced by their unique ID,

reducing unnecessary trafﬁc for deletions and modiﬁ-

cations. Building up a policy consists of adding rules

that encapsulate the conditions in the smallest amount

of data. Furthermore, entities of the system request

policy ﬁlters, which, in turn, contain only the relevant

policies in a single compact form.

5.1.4 R4: Least Privileges

High ﬂexibility of the VOPS based on the XACML

speciﬁcation shows, in fact, that it is possible to pro-

vide either positive or negative policy deﬁnitions. In

practice this will mean that the system, upon its boot-

strap, will have a built-in policy denying any action

to any actor. Only by adding new policy rules is it

possible to enable the actions to the speciﬁed actors.

5.1.5 R5: Non-intrusiveness

To provide non-intrusiveness in a system, the design

should be such that it reduces the load on a particular

PDP. One way to achieve this is to have a central PIP,

but to distribute the PDP to the entities that are subject

to decision. In the XtreemOS reference implementa-

tion, the PDP is used during the resource discovery,

and the resulting list must comply with the policies.

This is a distributed operation that employs a peer-to-

peer paradigm. We are thus able to utilise the ﬁlter-

ing policies evaluated on the nodes themselves. As a

result, handling the policies becomes a part of the op-

erations that take place in any case, contributing to a

negligible overhead.

5.1.6 R6: Expressiveness without Losing

Enforceability

Four types of policies are deﬁned within our system:

user, resource, VO and ﬁltering policies. Rules in

each type of policies can conform to any of the rele-

vant user, resource or VO attributes provided through

the use of certiﬁcates and job description. Due to this

fact, any scenario concerning user-VO, user-resource

and VO-resource relations can be expressed through

the aforementioned policies within our system.

5.2 Performance Evaluation

Our reference for performance evaluation is a detailed

comparison between different XACML engines de-

scribed in (Turkmen and Crispo, 2008) where the

choice of the Sun’s XACML engine over other alter-

natives is justiﬁed. We add our results of timing sub-

missions of generated user requests to VOPS PDP in

the same manner, where the requests contain a vary-

ing number (10, 100, 1000 and 10000) of generic

policies consisting of four rules of which three of

them deny the access to the resource and one of the

rules always permits the access. First policy conform-

ing to the request and denying the action (no permis-

sive rule resides in the policy) stops the whole evalu-

ation by denying the evaluation. In order to time the

evaluation of all policies in the storage, a permissive

rule exists in each policy and, therefore, each policy

conforms to the request.

The results in Figure 12 show that we introduced

some overhead to the response times in our imple-

mentation consisting of the eXist engine for storing

the XACML policies and the XtreemOS service stag-

ing the communication bus.

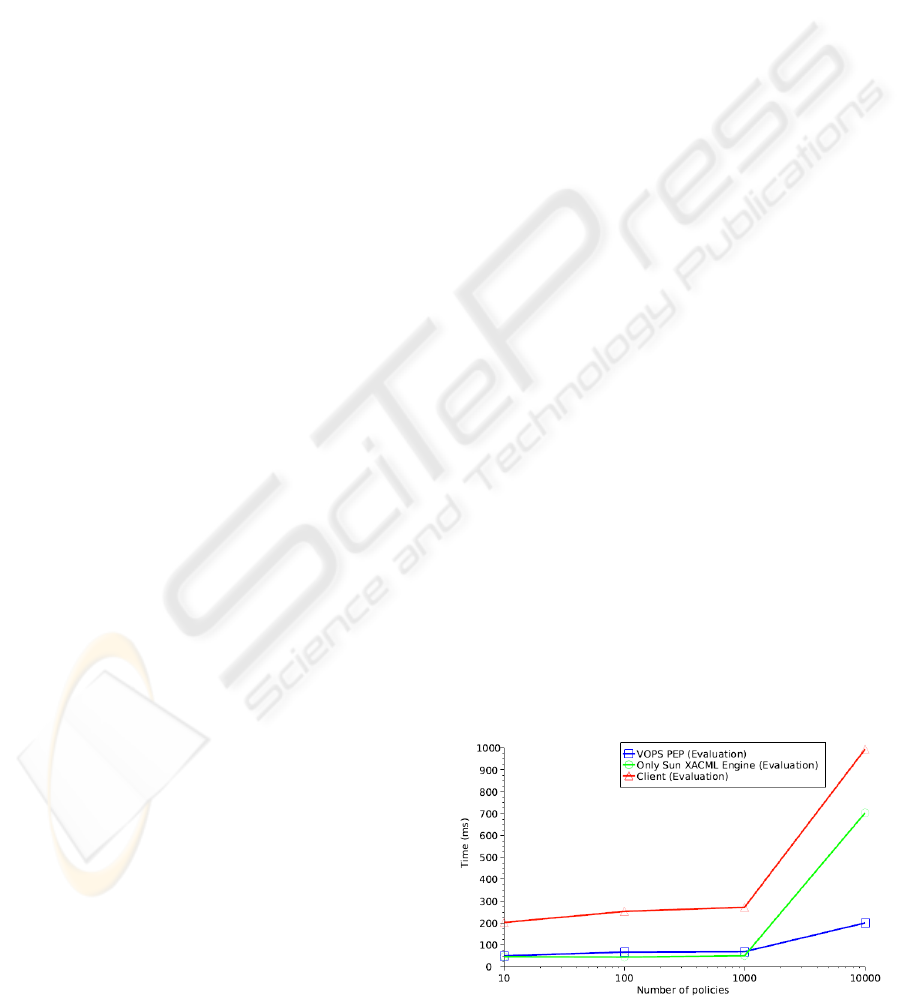

Figure 12: Times to evaluate user request with large number

of policies in PDP.

MANAGEMENT OF SECURITY POLICIES IN VIRTUAL ORGANISATIONS

475

On the other hand, we gained the ease to man-

age the policies, extract the ﬁlter policies from the

database and separate the communication part from

the core of the service. The blue graph presents aver-

age times for XACML engine’s PDP, the green graph

presents times obtained by authors in (Turkmen and

Crispo, 2008), which is shown as a comparison. The

red graph presents average times of ﬁrst user’s access

request evaluation, i.e., when VOPS is started. In case

of 10000 policies, not taking into account the ﬁrst ac-

cess to PEP, which is the most expensive, we obtain

average time of 174 ms with standard deviation of 88

ms (50 tests were performed). By that we get close

to the desired blue graph with small addition due to

usage of communication framework and network la-

tency of around 40 ms.

Figure 13 depicts how much time is consumed for

saving the policies to database and loading different

amount of policies from database into main memory

preparing the policies for evaluation.

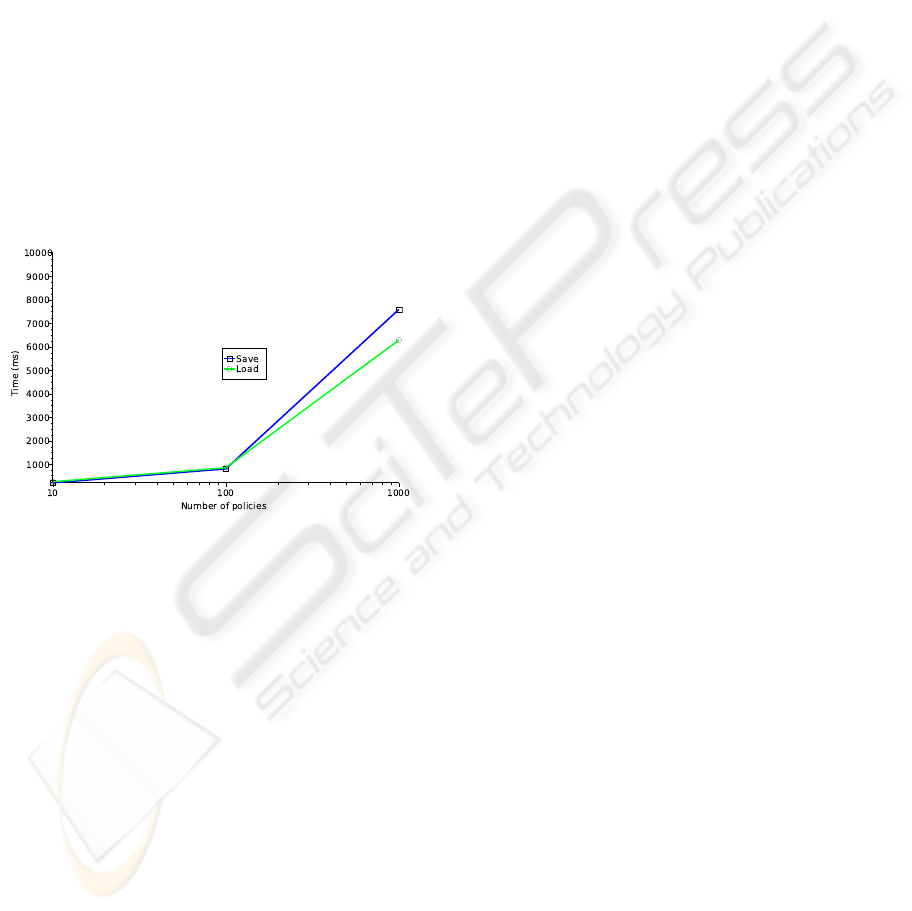

Figure 13: Time for loading large number of policies and

PDP construction (green line) and time for saving policies

from memory to database.

6 RELATED WORK

Standard policy management for Grids is speciﬁed in

the OGF Security Architecture for Open Grid Ser-

vices (OGSA) (Nagaratnam et al., 2003), describing

how Grids can use Web services techniques to spec-

ify, publish and enforce security policies. Each node

can use standard authorisation languages such as WS-

Policy and XACML to specify its policies. Our ap-

proach is aligned with the OGSA speciﬁcation; how-

ever, it differs in that we consider policy information

when selecting resources. Most Grid systems use job-

description languages to express resource attributes

and perform matches between job requests and avail-

able resources at selection time. The primary focus

is on attributes such as computational power and stor-

age capacity, and thus they handle access control only

during job execution. In our work, we argue that ac-

cess control should be considered also in the resource

selection process during the VO operation phase.

There have been other attempts to use security

information at resource-selection time. (Mazzoleni

et al., 2009), integrates policy information with re-

source selection, using XACML as the policy lan-

guage. They compare a VO policy with a local re-

source policy in order to determine compatibility by

applying policy-matching algorithms. Their tech-

nique differs from ours in that we do not use policy

matching, instead we apply the classical machinery

for policy evaluation/enforcement at selection time in

order to determine whether a resource could enforce

a VO policy. Application of numerical trust metric to

integrate trust into resource management is presented

in (Arenas et al., 2008). The limitation of such ap-

proach is that even though the idea of reducing and

simplifying the notion of trust to a number is appeal-

ing, many aspects of trust in the real world are quali-

tative rather than quantitative.

For the evaluation and enforcement of policies at

access time, we have followed the standard approach

to access control (Chakrabarti, 2007), as other sys-

tems like PERMIS (Chadwick et al., 2008). Those

systems differ in the language used to specify autho-

rization (i.e., SAML, XACML, or ad-hoc language),

the authorization model (i.e., pull or push), and func-

tionalities (i.e., support for PDP only or both PDP and

PEP).

7 CONCLUSIONS

We presented in this paper a VO policy management

system, which provides capabilities for the manage-

ment of security policies in Grid systems along a life-

cycle including phases related to the setting-up of

Grids, creation and management of VOs as well as

their operation and termination. The system facil-

itates the selection of resources by evaluating poli-

cies speciﬁed by the site and resource administrators,

users and VO owners.

There are several directions for future work. One

problem we see is a lack of additional policy check at

access time on the resource as described in this arti-

cle. To solve this issue, some revocation mechanism

should be incorporated into the system to assist with

the decision just before user’s request is executed on

the resource. We believe there are several possibilities

to tackle this issue, however, more thorough and strin-

gent checks are done on expense of time and commu-

nication complexity. Moreover, a threat analysis is

needed to expose any vulnerabilities that VOPS may

SECRYPT 2010 - International Conference on Security and Cryptography

476

be susceptible to. One type of such vulnerabilities

could arise from the problem of compromised certiﬁ-

cates. Another interesting line of work is to experi-

ment with the application of the VOPS system to the

domain of Cloud computing. This will be based on

the use of XtreemOS as an operating system enabling

virtualisation platforms for Cloud service providers,

as was recently envisioned by Morin et al. in (Morin

et al., 2009). Finally, VOPS could be enhanced to

construct dynamic enforcement mechanisms capable

of enforcing runtime-based usage control policies.

ACKNOWLEDGEMENTS

This work was funded by the European FP6 project

XtreemOS under the EC contract number IST-

033576. The VOPS implementation was partially ﬁ-

nanced by the European Union under the European

Social Fund.

REFERENCES

Arenas, A. E., Aziz, B., and Silaghi, G. C. (2008). Rep-

utation Management in Grid-based Virtual Organisa-

tions. In SECRYPT 2008, International Conference

on Security and Cryptography, pages 538–545.

Bettini, C., Jajodia, S., Wang, X., and Wijesekera, D.

(2002). Obligation Monitoring in Policy Manage-

ment. In POLICY ’02: 3rd International Workshop on

Policies for Distributed Systems and Networks. IEEE

Computer Society.

Chadwick, D. W., Zhao, G., Otenko, S., Laborde, R., Su, L.,

and Nguyen, T.-A. (2008). PERMIS: A Modular Au-

thorization Infrastructure. Concurrency and Compu-

tation: Practice and Experience, 20(11):1341–1357.

Chakrabarti, A. (2007). Grid Computing Security. Springer.

Coppola, M., J

egou, Y., Matthews, B., Morin, C., Prieto,

L. P., S

anchez, O. D., Yang, E., and Yu, H. (2008).

Virtual Organization Support within a Grid-wide Op-

erating System. IEEE Internet Computing, 12(2):20–

28.

Costa, P., Napper, J., Pierre, G., and van Steen, M. (2009).

Autonomous resource selection for decentralized util-

ity computing. In 29th International Conference on

Distributed Computing Systems (ICDCS).

Foster, I. T., Kesselman, C., and Tuecke, S. (2001). The

Anatomy of the Grid - Enabling Scalable Virtual Or-

ganizations. International Journal of High Perfor-

mance Computing Applications, 15(3):200–222.

Mazzoleni, P., Crispo, B., Sivasubramanian, S., and

Bertino, E. (2009). Efﬁcient Integration of Fine-

Grained Access Control and Resource Brokering in

Grid. The Journal of Supercomputing, 49(1):108–126.

Morin, C., J

egou, Y., Gallard, J., and Riteau, P. (2009).

Clouds, A New Playground for the XtreemOS Grid

Operating System. Parallel Processing Letters (PPL),

19(3):435–449.

Nagaratnam, N., Janson, P., Dayka, J., Nadalin, A., Sieben-

list, F., Welch, V., Tuecke, S., and Foster, I. (2003).

Security Architecture for Open Grid Services. OGF

Document.

Park, J. and Sandhu, R. (2004). The UCON

abc

Usage Con-

trol Model. ACM Transactions on Information and

System Security, 7(1):128–174.

Sandhu, R. S., Coyne, E. J., Feinstein, H. L., and Youman,

C. E. (1996). Role-based Access Control Models.

Computer, 29(2):38–47.

Shu, C., Yang, E., and Arenas, A. (2009). Detecting

Conﬂicts in ABAC Policies with Rule-Reduction and

Binary-Search Techniques. In Policy 2009: IEEE

International Symposium on Policies for Distributed

Systems and Networks. IEEE Computer Society.

Turkmen, F. and Crispo, B. (2008). Performance Evalua-

tion of XACML PDP Implementations. In SWS 2008:

ACM Workshop on Secure Web Services, pages 37–44.

ACM.

Wasson, G. and Humphrey, M. (2003). Toward explicit pol-

icy management for virtual organizations. In POLICY

’03: Proceedings of the 4th IEEE International Work-

shop on Policies for Distributed Systems and Net-

works. IEEE Computer Society.

MANAGEMENT OF SECURITY POLICIES IN VIRTUAL ORGANISATIONS

477
