Image Formalization via Descriptive Image Algebras

Igor Gurevich and Vera Yashina

The Institution of the Russian Academy of Sciences, “A. A. Dorodnicyn Computing

Center of the RAS”, 40, Vavilov str., Moscow, 119333, Russian Federation

Abstract. In the framework of the Descriptive approach to image analysis and

understanding, the concept of Image Formalization Space (IFS) is introduced.

The elements of IFS are the different image representation forms through which

a raw image passes while it is transformed into a recognizable form, i.e., into an

image model. The structure and the main objects of the IFS are characterized

and discussed. A system of concepts and a formal apparatus of descriptive

image models are introduced to state the main axioms constituting the

conceptual foundation for image formalization in image analysis and

recognition. The topology of IFS is given by descriptive image algebra defining

operations on pixels and their configurations, on pixel values, and on image

states constructed using these operations.

1 Introduction

A breakthrough challenge of theoretical computer science is to find automated ways

of processing, analyzing, evaluating, and understanding information represented in

the form of images. For developers of automated systems designed to handle images,

as well as for end users in automated or interactive modes, this automation is expected

to help to develop, adapt and check methods and algorithms for image recognition,

understanding, and evaluation: (1) choose optimal or suitable methods and algorithms

for image recognition, understanding and evaluation; (2) check the quality of initial

data and whether they can be used in solving the image recognition problem; (3)

apply standard algorithmic schemes for image recognition, understanding, evaluation,

and search.

To ensure automation, we need to develop and evolve a new approach to analyzing

and evaluating information represented in the form of images. For this purpose, the

Algebraic Approach of Yu.I. Zhuravlev [9] has been modified for the case when the

initial information is represented in the form of images. The result is the descriptive

approach to image analysis and understanding (DAIA) proposed and justified by I.B.

Gurevich [2] and developed by his students [3, 4].

By the middle of 1990s, it had become obvious that the following points are

critical to the development of image analysis and recognition: (1) understand the

nature of initial information - images, (2) find methods of image representation and

description that allow constructing image models designed for recognition problems,

(3) establish a mathematical language for a unified description of image models and

Gurevich I. and Yashina V. (2010).

Image Formalization via Descriptive Image Algebras.

In Proceedings of the Third International Workshop on Image Mining Theory and Applications, pages 19-28

DOI: 10.5220/0002961500190028

 SciTePress

their transformations that allow constructing image models and solving recognition

problems, (4) construct models to solve recognition problems in the form of standard

algorithmic schemes that allow, in the general case, moving from the initial image to

its model and from the model to the sought solution.

The DAIA gives a unified conceptual structure that helps develop and implement

these models and the mathematical language [2, 3, 4]. The main purpose of the DAIA

is to structure and standardize different methods, operations and representations used

in image recognition and analysis. The DAIA provides the conceptual and

mathematical basis for image mining, with its axiomatic and formal configurations

giving ways and tools for representing and describing the images to be analyzed and

evaluated.

In this work, we give a brief review of the main results concerning the system of

concepts characterizing the initial information - images - in recognition problems and

descriptive image models designed for recognition problems. The work consists of

three main sections (along with the Introduction and Conclusions). Section 1 deals

with the concepts needed to formally describe and represent images within the DAIA

as well as forms and mathematical objects that reproduce an image in the course of

constructing descriptive image models (DIM). We introduce the concept of Image

Formalization Space and define the basic states – aspects of image representations –

generated in the course of reducing images to a recognizable form (RF - recognizable

form). Section 2 formalizes the ways of characterizing images, transformations, and

objects needed to describe images in a form suitable for recognition algorithms.

Finally, we consider the scheme for DIM synthesis. The system of concepts and the

formal apparatus of DIM introduced form the necessary background to state the main

axioms of the mathematical theory of image analysis and recognition. Section 3 gives

a brief review of a new class of image algebras, viz. descriptive image algebras

(DIA), as the sought algebraic language to describe, compare and standardize image

analysis, processing and recognition algorithms. The topology of IFS is given by DIA.

With these algebras, we can combine and standardize procedures of processing image

models and their transformations.

2 Image Description Formalization

To develop methods of automating image recognition, we need to find efficient ways

to formalize images so as to reflect image semantics, information hidden in its

internal structure and the structure of the external bonds within the real world part

(scene) reproduced by the image. No systematic mathematical methods for image

formalization and analysis have been developed thus far. The overwhelming majority

of image handling methods are heuristic, and their advantages depend on the way they

use "non-depictive" tools to convey the "depictive" features of images.

In applied mathematics and computer science, constructing and applying

mathematical and simulation models of objects and procedures used to transform

them is a conventional method of standardization. It was largely the necessity to solve

complicated recognition problems and develop structural recognition methods and

specialized image languages that generated the interest in formal descriptions -

models of initial data -and formalization of descriptions of procedures for their

transformation in pattern recognition (and especially in image recognition in the

1960s) [1, 5, 6, 8].

The DAIA provides the conceptual and mathematical basis for image mining, with

its axiomatic and formal configurations giving methods and tools for representing and

describing the images to be analyzed and evaluated.

The system of concepts we introduced provides the basis for formal definition of

methods for synthesizing image models and descriptive image models designed for

image analysis and recognition problems. Defining the system of concepts, we take

into account the following properties of images: (1) An image consists of a collection

of points and a set of values associated with these points. (2) Manipulation of images

in image analysis involves operations on images and on different types of values and

quantities associated with these images. (3) An image is endowed with two types of

information, i.e., it is defined as spatial relationships between its points and some

types of numerical or other descriptive information associated with these points. (4) A

point set is a topological space. It consists of a collection of objects called points and

a topology which provides for the nearness of two points, the connectivity of a subset

of a point set, the neighborhood of a point, boundary points, curves, and arcs.

By its nature, the image is an object of complex information structure that

reproduces information on the initial scene, using the values of brightness of discrete

elements of the image, viz. pixels, patterns of image fragments, sets of pixels and

spatial and logical relations between patterns, sets of pixels and individual pixels.

What make images different from other tools for data representation is that they are

highly informative, visual, structured and natural in terms of human perception. An

image is a mix of initial (non-processed, "real") data, their realizations, and some

deformations. The realizations (as well as appropriate descriptions) reflect the

informational and physical nature of objects, events, and processes reproduced by the

image, while deformations are due to the technical characteristics of the tools used to

record, form, and transform the image in the course of constructing a hierarchy of

descriptions. Thus, when developing methods for formal description of images, in

addition to the brightness values of image pixels, we need to take into account the

extra information associated with it explicitly and implicitly.

To formalize an image description and its conceptual structure, it is natural to

assume that the initial image is given not only by its digital implementations but also

by context and semantic information that shows the ways of obtaining and forming

the image and/or some of its specific aspects.

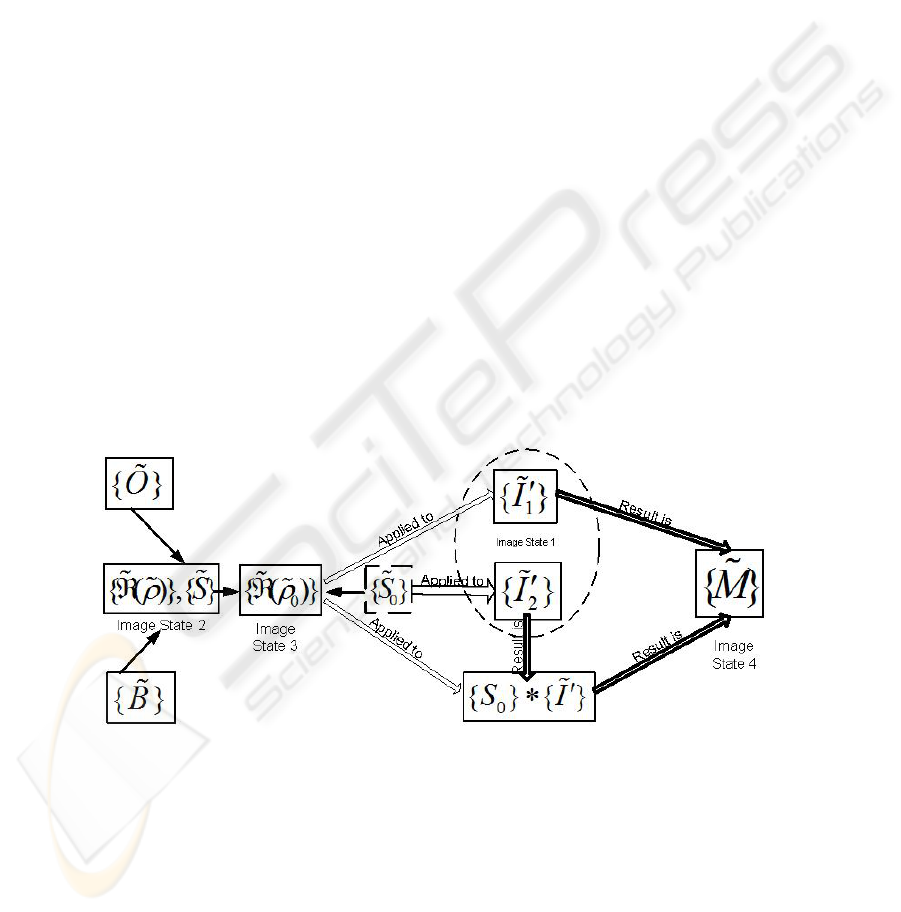

The process of image model synthesis consists of a set of transformations applied

sequentially to a raw image. As a result, we have sequentially changing image

“states” corresponding to different degrees of formalization.

Thus, we can introduce the concept of Image Formalization Space (IFS).

Definition 1. The IFS is a set of image “states” (a raw image, image realization,

image representation, realization of image representation, image model [3]). The IFS

is a metric space, i.e., its elements are image states (phases of formal descriptions of

images). In this sense, the IFS is a phase space. The topology of this space is given by

some algebraic system, i.e. via some image algebra defining operations on pixels and

their configurations, on pixel values, and on image states constructed using these

operations.

To construct formalized image descriptions, transformations from the set of

transformations admissible for this type of images have to be applied to the entire

information available on the image. Thus, we need to study, first, the types of

information contained in the image (the space of initial data) and, second,

transformations that can be applied to initial images to reduce them to a form

supported by recognition algorithms (the space of transformations).

Descriptions of the ways of sequential and/or parallel application of

transformations from the space of transformations to the initial information from the

space of initial data constitute a set of schemes for constructing formal descriptions of

images (the space of image representations).

To be able to apply recognition algorithms to the obtained formal image

descriptions, we need to implement the constructed schemes (implement image

representations), i.e., construct image models that result from reducing the initial

image (taking into account the entire information on the image) to a form supported

by recognition algorithms, i.e., to an RF. The space of image representations is an

intermediate space between the space of initial data and the space of image models.

Thus, the construction of image models involves synthesizing objects from the

following sets: (1) initial data - images; (2) image transformations that reduce images

to an RF; (3) image representations, viz. schemes for constructing formal image

descriptions; (4) realizations of image representations, viz. image representations with

chosen values of transformation parameters and structural elements included in a

representation; (5) image models.

3 Descriptive Image Models

To characterize images, the DAIA uses the following concepts: initial information (an

image together with its legend), its transformations, image representations,

realizations of image representations, and models. To define the types of states

undergone by the initial image in the course of constructing its descriptive model and

establishing the relations between these types, we introduce additional objects. These

are structuring elements, generating rules, semantic and context information on

images, digital representations of images, classes of image representations, classes of

image models, and the correct image model.

To define the main stages of image reduction to an RF, we consider some notions.

The DAIA assumes [4] that an image is described by a set of initial

information

{}

Lemma 1. The set of initial information

{}

consists of two sets {}

′

and {}B

: (1)

the set of realizations

{}II

′′

∈

of the image I that represent the given object or scene

such that

{( , ( ))}

Ixfx

∈

′

is the set of points x belonging to the domain of

definition

of the image realization

′

and the range of

()

at each point of

;

2) semantic and context information on the image

{}B

Definition 2 [4]. The Image Representation is a formal scheme designed to obtain a

standardized formal description of surfaces, point configurations, and shapes that

form the image and the relations between them.

Definition 3. The Image Model is a formal description constructed by applying a

realization of image representation to initial image representations.

Definition 4. The Realization of an Image Representation is an image realization

with chosen parameter values of the transformations involved in the representation.

The synthesis of an image model is shown schematically in Fig. 1. The scheme for

DIM synthesis is based on the following principles: (1) the initial information consists

of the initial image realizations { }

′

(image state 1) and semantic and context

information

{}B

on the initial image; (2) an image representation {()}

ℜ

(image

state 2) is constructed by applying the transformations

{}O

chosen on the basis of

{}B

to initial image or a fragment of the initial image; (3) an image representation is

realized by choosing the transformation parameters

and structural elements

{}S

which help to process not only an image itself but also its fragments (the image

representation realization is

{( )}

ℜ

, which is image state 3); (4) an initial image

model { }

(image state 4) is constructed by applying

{( )}

ℜ

to the image

realizations

{}

′

or to image realizations after the structural elements have been

applied to them

{}*{}SI

′

(to the fragments of the initial image).

Fig. 1. Synthesis of a descriptive image model.

The DAIA deals with three classes of admissible image transformations, viz.

procedural, parametric, and generating transformations [3]. These classes generate

three classes of representations and three classes of image models. Three specialized

schemes for parametric, procedural, and generating image model synthesis were

constructed. The fundamental difference between these schemes and the general

scheme for image model synthesis lies in the corresponding transformations of image

realizations (parametric, procedural, and generating transformations) and in the use of

generating rules for synthesizing the generating DIM.

Proposition 1. Any T-model of the image I generates some realization of the image

I', i.e., the I-model of the image I.

Proposition 2. Any P-model of the image I generates some new semantic and context

information about the image

Proposition 3. Any G-model of the image I generates some new semantic and context

information about the image

The following axioms constitute the conceptual foundation for image formalization.

Axiom 1. Any image I can be unambiguously put into correspondence with the

totality of sets (

{}

, {}O

, { }

), where

{}

is the set of initial information, {}O

the set of transformations applicable to

{}

, and {}

is the set of results produced

by applying transformations to the initial information.

Axiom 2. The set of transformations {}O

of image states is given by the set of

structuring elements

{}S

, the set of generating rules {}R

and three subsets of

transformations: (1) procedural transformations

{}

, (2) parametric transformations

{}

, and (3) generating transformations

{}

Axiom 3. The Image Formalization Space (IFS) includes the Space of Initial Data

(image realizations), the Space of Realizations of Image Representations, and the

Space of Image Models. The IFS is a metric space with the following types of

elements: the states of an image (image aspects – image realizations and the phases of

its formalized descriptions), image representations, realizations of image

representations, and image models.

Axiom 4. The topology of the Image Formalization Space can be given via some

algebraic system – an image algebra, defining operations over image pixels, its

values, and image states constructed by applying the operations.

Axiom 5. The process of reducing an image to an easy-to-recognize form is totally

realized in the Image Formalization Space by Descriptive Image Algebras defined

over IFS elements – image transformations and image states.

4 Descriptive Image Algebras

As shown by the attempts made to create it, the formal apparatus to represent image

processing and analysis procedures in a uniform and compact form should be based

on a formal system of image representation and transformation that meets the

following conditions:

− points, sets, models, transformations, and morphisms can be used as objects;

− each object is a hierarchic structure constructed of primitive objects by some

transformations;

− each transformation is a hierarchic structure constructed of basic transformations

by some transformations.

This formal system (which is essentially a formal language and formalisms based

on it) should allow:

− constructing formal configurations (for instance, algebraic structures) that make it

possible to apply methods from different branches of mathematics and computer

science in image processing, analysis and recognition;

− constructing accurate and compact image descriptions handy in terms of both the

way to interpret the actions performed and the development of new methods;

− describing transformations over images in the form of compact sets of simple

transformations both in the machine-independent form and in the form adapted to

particular architectures;

− creating specialized sub-languages to describe images and transformations over

them in certain classes of image recognition and evaluation problems;

− increasing the efficiency of software implementation;

− choosing the most efficient programming languages in terms of formal structures

that describe known algorithms of image processing, analysis and recognition.

Having analyzed the requirements to its functionality and mathematical

characteristics, we can see that the sought formal system should represent a certain,

special class of algebras that makes it possible to write any image transformation

algorithm as a combination of elementary basic operations. Thus, this class of

algebras should allow handling both main image models - analysis and recognition

objects - and main models of transformations that allow synthesizing and

implementing basic procedures of formal image description, processing, analysis and

recognition efficiently.

The DAIA defines a new class of image algebras, viz. DIA, as the sought algebraic

language to describe, compare and standardize image analysis, processing and

recognition algorithms. DIA makes the process of constructing and applying

algorithmic schemes of image mining flexible and standardized. To give problems,

objects and transformations associated with image mining, we use hierarchic

structures that result from applying DIA operations to the set of primitive problems,

primitive elements of the image and basic transformations. Within such approach, we

can vary methods of solving the sub-problem - use operations of image analysis as

DIA elements, keeping the overall image mining technique unchanged.

The sources of DIA development are investigations of 1970-1980’s in area of

pattern recognition and image analysis “algebraization”. An appearance and

investigations of new algebra follows directly from results of Yu.I.Zhuravlev

algorithm’s algebra [10] and studies on varied image algebras by S.Sternberg[9] and

G.Ritter[7].

Conducted investigation of publications centre around algebraic methods in image

analysis and recognition defines primary specific of new mathematic language: 1)

DIA were created for integration and standardization of procedures of image model

synthesis and their transformations; 2) DIA operands are image models (also initial

images themselves) and image transformations; 3) DIA operations are image analysis

and processing transformations; standard algebraic operations; algebraic closures,

linear combination and superposition of these operations; 4) algorithmic schemes for

formal image description, processing, analysis and recognition consist of elements

described by DIA and any used in scheme transformation is given by structures

constructed by applying DIA operations to a set of DIA operands; 5) to provide DIA

correspondence with requirements for mathematical object “algebra” restrictions on

basic DIA operations are introduced.

We recall the definitions of DIA (definition 5, 6).

Definition 5 [3]. An algebra is called a DIA if its operands are either image models

(both the image itself and the set of its related values and characteristics can be

chosen as a model) or operations over images or both.

Main DIA investigations were directed on study of DIA with one ring (DIA1K)

(definition 6), which is classical algebra of Van der Varden with non-classical

operands. To define DIA with several rings we propose to use a notion “graduated

algebra” and in case DIA with two rings a notion “superalgebra”. Further DIA

specific is defined by algebra properties.

Definition 6 [3]. The ring U, which is the finite-dimensional vector space over some

field P, is a

DIA with one ring if its operands are either image models or operations

over images.

What makes DIA special is that

− by imposing restrictions on basic DIA operations, new mathematical constructions

(DIA) ensure that we use the concept of algebra in its strict classical sense;

− basic DIA operations are introduced both over images and over arbitrary formal

representations of images as well as over image transformations.

The latter explains why this new type of algebras has the word "descriptive", viz.

dealing with image descriptions, in its name. Using the concept of «algebra» in its

strict classical sense in the DIA definition, we can single out basic DIA operations for

different types of operands, thus having the set of complete systems to describe image

analysis problems.

To construct algorithmic schemes for solution of image recognition problem we

should extract basic DIA1K classes, used for description of each scheme step. To

provide this fact we should introduce specialized DIA1K over initial and intermediate

information in image processing, analysis and recognition problems (DIA1K over

image models and over image realizations) and specialized DIA1K over

transformations of images and image models for generation of new image models.

On the basic of image model synthesis scheme (Fig. 1) there were extracted

specialized DIA1K classes for image model description and construction (Table 1).

Each DIA1K class generates rules for DIM construction by this DIA1K (theorems

and proposals were formulated and proved). Formulated theorems and proposals

define algebra property “to generate DIM”.

The Table 1 gives the basic DIA1K classes.

Table 1. Basic classes of DIA1K.

Class Algebra Operands Algebra Operations Algebra generates

1. Realizations of initial

images or realization

of image fragments

Procedural Image

Transformations

Procedural image

models, image

realizations

Procedural image

transformations

Operations on procedural

transformations

Procedural image

models, image

realizations

3. Parametric image

transformations

Operations on parametric

transformations

Parametric image

models

4. Generating image

transformations

Operations on generating

transformations

Generating image

models

Image Representations

Operations on image

representations

DIM; multi model

and multi aspect

image representations

Procedural Image

Models

Operations on procedural

image models

Procedural image

models, image

realizations

7. Parametric Image

Models

Operations on parametric

image models

Parametric Image

Models

8. Generating Image

Models

Operations on generating

image models

Generating Image

Models

For more detailed information on DIA, see [3].

5 Conclusions

We introduce the concept of Image Formalization Space (IFS) as a set of image

“states” (a raw image, image realization, image representation, realization of image

representation, image model). The topology of this space is given by some algebraic

system, i.e. via some image algebra defining operations on pixels and their

configurations, on pixel values, and on image states constructed using these

operations.

Being developed as the fundamental basis for the mathematical theory of image

analysis and recognition, the DAIA allows introducing the axiomatics of the sought

theory. Five axioms were represented.

The DAIA defines a new class of image algebras, viz. DIA, as the sought

algebraic language to describe, compare and standardize image analysis, processing

and recognition algorithms. The topology of IFS is given by DIA. DIA makes the

process of constructing and applying algorithmic schemes of image mining flexible

and standardized. Main DIA investigations were directed on study of DIA with one

ring (DIA1K).

Basic DIA1K should satisfy following requirements: 1) to provide effective

representation of images and their models; 2) to provide representation of DIM [4] as

elements of information technology for image analysis, recognition and

understanding: а) to provide generation of basic DIM classes (P-, G-, T-, I- models);

б) to provide transformations of basic DIM classes; 3) to be elements of a basis of the

set of all DIA1K used for description image processing, analysis and recognition

problems; 4) to satisfy main propositions and conditions defined algebraic

constructions.

Eight classes of basic DIA were extracted.

Acknowledgements

This study was partially supported by the Russian Foundation for Basic Research

(grants no. 08-01-00469, 08-01-90022, 09-07-13595); the Mathematical Sciences

Division of the Russian Academy of Sciences ("Algorithmic Schemes for Descriptive

Image Analysis", project within the "Algebraic and Combinatorial Methods of

Mathematical Cybernetics and Information Systems of the New Generation" program

for fundamental research), and the Russian Academy of Sciences Presidium (project

no. 214 within the "Intellectual Information Technologies, Mathematical Modeling,

System Analysis and Automation" program for fundamental research No.2).

References

1. Grenander, U.: General Pattern Theory. A Mathematical Study of Regular Structure.

Clarendon Press. Oxford (1993)

2. Gurevich, I.B.: The Descriptive Approach to Image Analysis. Current State and Prospects.

In: Proceedings of 14th Scandinavian Conference on Image Analysis, LNCS 3540, pp. 214-

223. Springer-Verlag Berlin Heidelberg (2005)

3. Gurevich, I.B., Yashina, V.V.: Operations of Descriptive Image Algebras with One Ring.

In: Pattern Recognition and Image Analysis: Advances in Mathematical Theory and

Applications, vol.16, no.3, pp. 298-328. Pleiades Publishing, Inc. (2006)

4. Gurevich, I.B., Yashina, V.V.: Descriptive Approach to Image Analysis: Image Models. In:

Pattern Recognition and Image Analysis: Advances in Mathematical Theory and

Applications, vol. 18, no. 4, pp. 518-541. MAIK "Nauka/Interperiodica"/Pleiades

Publishing, Inc. (2008)

5. Marr, D.: Vision. Freeman. New York (1982)

6. Narasimhan, R.: Picture Languages. In: Picture Language Machines(ed. S.Kaneff), pp. 1-

30. Academic Press, London, New York (1970)

7. Ritter, G.X., Wilson, J.N.: Handbook of Computer Vision Algorithms in Image Algebra. 2-

d Edition. CRC Press Inc. (2001)

8. Rosenfeld, A.: Picture Languages. Formal Models for Picture Recognition. In: Academic

Press. New York, San Francisco, London (1979)

9. Sternberg, S. R.: An overview of Image Algebra and Related Architectures. In: Integrated

Technology for parallel Image Processing (S. Levialdi, ed.). London, Academic Press

(1985)

10. Zhuravlev, Yu.I.: An Algebraic Approach to Recognition and Classification Problems. In:

Pattern Recognition and Image Analysis: Advances in Mathematical Theory and

Applications, vol.8, pp.59-100. MAIK "Nauka/Interperiodica" (1998)
